ShaderX

GPU shader effects for Compose Multiplatform — one API, every platform.

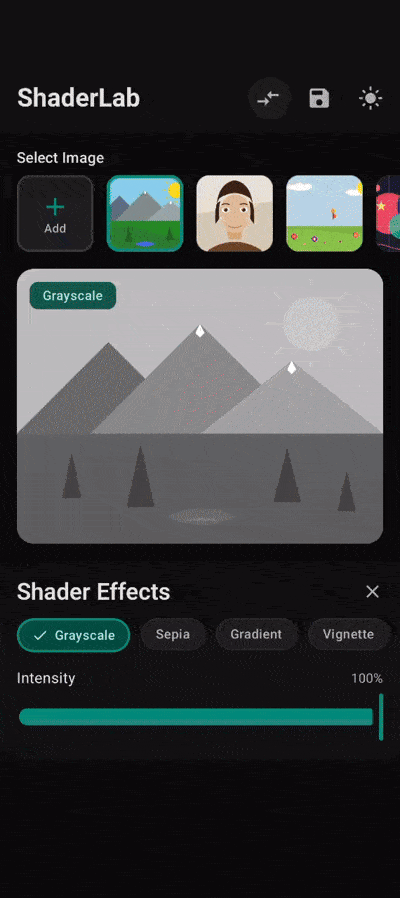

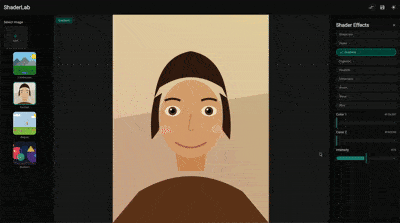

ShaderLab — Android	ShaderLab — Web

Effect gallery with live parameter sliders	Same codebase, compiled to Wasm/JS

ASCIICamera — Real-time Camera Filter	Vertical Carousel — Scroll-driven Effects

Shader on live CameraX frames at 60 fps	Per-card effects driven by scroll state

Why ShaderX?

Most UI toolkits treat shader effects as an afterthought — platform-specific, hard to parameterize, impossible to compose. ShaderX is designed from the ground up for Compose Multiplatform and solves three real problems:

Problem	What most teams do	What ShaderX does
Cross-platform GPU effects	Write AGSL for Android, separate Desktop path, no iOS story	Single Kotlin API — platform backends are an implementation detail
Effect reuse & composition	Hard-code effects per screen; cannot combine them	`GrayscaleEffect() + VignetteEffect()` chains effects with a single `+` operator
Offline image processing	Separate pipeline, no shader reuse	`ImageProcessor` shares the factory's compiled-shader cache

Platform Support

Platform	Shader Backend	Min Version	Composite Effects
Android	AGSL (`RuntimeShader`)	API 33	Full (API 31+)
iOS	Skia `RuntimeEffect`	iOS 14+ (arm64 / Simulator)	Last effect only
Desktop (JVM)	Skia `RuntimeEffect`	JDK 21	Last effect only
Web (Wasm/JS)	Skia `RuntimeEffect`	Modern browsers	Last effect only

Full composite chaining across all platforms is on the roadmap.

Installation

// settings.gradle.kts
dependencyResolutionManagement {
    repositories {
        mavenCentral()
    }
}

// build.gradle.kts (shared module)
dependencies {
  implementation("io.github.debanshu777:shaderx:0.1.4")
}

Requirements: JDK 21 · Kotlin 2.3+ · Compose Multiplatform 1.10+

Quick Start

One line to apply an effect:

Image(
    painter = painterResource("photo.png"),
    contentDescription = null,
    modifier = Modifier.shaderEffect(GrayscaleEffect())
)

Animated effects — handled automatically:

@Composable
fun AnimatedWave() {
  // Modifier.shaderEffect owns a ShaderSession and advances time each frame.
  // Do not also wrap with rememberShaderEffect for normal usage.
    Image(
        painter = painterResource("photo.png"),
        contentDescription = null,
      modifier = Modifier.shaderEffect(WaveEffect(amplitude = 15f, frequency = 6f))
    )
}

Chain effects with +:

// Grayscale → Vignette → Blur, applied in order
val effect = GrayscaleEffect() + VignetteEffect(radius = 0.6f) + NativeBlurEffect(radius = 3f)

Image(modifier = Modifier.shaderEffect(effect))

Offline image processing:

val factory = ShaderFactory.create()
val processor = ImageProcessor.create(factory)

val result = processor.process(imageBytes, SepiaEffect(intensity = 0.8f))
result
    .onSuccess { processedBytes -> saveToFile(processedBytes) }
    .onFailure { error -> log("Processing failed: ${error.message}") }

factory.close()

Built-in Effects

Fifteen production-ready effects ship out of the box, each with validated parameter ranges and a stable @Immutable representation.

GrayscaleEffect

Converts to grayscale using the standard luminance formula: 0.299R + 0.587G + 0.114B.

GrayscaleEffect(intensity = 1f)     // full grayscale
GrayscaleEffect(intensity = 0.5f)   // half-blended with original

Parameter	Type	Range	Default	Description
`intensity`	`Float`	0.0 – 1.0	`1.0`	Blend between original and grayscale

SepiaEffect

Vintage photograph look using the standard sepia transformation matrix.

SepiaEffect(intensity = 1f)

Parameter	Type	Range	Default	Description
`intensity`	`Float`	0.0 – 1.0	`1.0`	Blend between original and sepia

VignetteEffect

Darkens image edges with a smooth center-to-edge gradient — ideal for focus effects and cinematic framing.

VignetteEffect(radius = 0.5f, intensity = 0.5f)

Parameter	Type	Range	Default	Description
`radius`	`Float`	0.0 – 1.0	`0.5`	Distance from center where darkening begins
`intensity`	`Float`	0.0 – 1.0	`0.5`	Strength of the edge darkening

NativeBlurEffect

Hardware-accelerated Gaussian blur. Uses RenderEffect.createBlurEffect() on Android and Skia's ImageFilter.makeBlur() on iOS/Desktop — the fastest path on every platform.

NativeBlurEffect(radius = 10f)

Parameter	Type	Range	Default	Description
`radius`	`Float`	0.0 – 50.0 px	`10.0`	Blur radius in pixels

PixelateEffect

Retro mosaic by snapping fragment coordinates to a pixel grid.

PixelateEffect(pixelSize = 10f)

Parameter	Type	Range	Default	Description
`pixelSize`	`Float`	1.0 – 100.0 px	`10.0`	Block size in pixels (auto-clamped to ≥ 1)

ChromaticAberrationEffect

Simulates lens color separation by offsetting the red and blue channels radially from the image center.

ChromaticAberrationEffect(offset = 5f)

Parameter	Type	Range	Default	Description
`offset`	`Float`	0.0 – 20.0 px	`5.0`	Channel displacement distance

InvertEffect

Inverts all color channels (1.0 - value), alpha preserved. No configuration needed.

InvertEffect()
// or use the singleton:
InvertEffect.Default

WaveEffect (Animated)

Sinusoidal distortion driven by an internal clock. The time field is excluded from equals/ hashCode so the animation loop's LaunchedEffect never restarts mid-animation when you change other parameters.

WaveEffect(amplitude = 10f, frequency = 5f, animate = true)

Parameter	Type	Range	Default	Description
`amplitude`	`Float`	0.0 – 50.0 px	`10.0`	Max pixel displacement
`frequency`	`Float`	1.0 – 20.0	`5.0`	Wave cycles across the image
`animate`	`Boolean`	—	`true`	Toggle animation on/off

AnimatedGradientEffect (Animated)

Rotating two-color gradient overlay. Good starting point for custom animated effects.

AnimatedGradientEffect(speed = 1.5f, animate = true)

PlasmaEffect (Animated)

Layered sine-wave plasma pattern with psychedelic color movement.

PlasmaEffect(scale = 4f, speed = 1f, colorIntensity = 1f)

RippleEffect (Animated)

Expanding concentric rings with distance-based decay.

RippleEffect(frequency = 10f, speed = 1.5f, amplitude = 0.02f)

VortexEffect (Animated)

Spiral/twirl distortion from the image center.

VortexEffect(strength = 1f, radius = 0.5f, speed = 1f)

AudioVisualizerEffect (Animated · Audio)

Live spectrum bar graph. Bind an FFT magnitude texture (or a withFftDataSource lambda) and the session refreshes it each frame.

AudioVisualizerEffect(fftSize = 64f, barColorIntensity = 1f)
  .withFftDataSource { spectrumImage }

AudioDistortionEffect (Animated · Audio)

Warps the underlying content using live FFT bins as a displacement field.

AudioDistortionEffect(fftSize = 64f, intensity = 0.5f)
  .withFftDataSource { spectrumImage }

GradientEffect

Two-color gradient overlay blended over the original image. Supports both Long ARGB and Compose Color APIs.

GradientEffect(
    color1 = 0xFFF3A397,   // coral (bottom-left)
    color2 = 0xFFF8EE94,   // light yellow (top-right)
    intensity = 0.5f
)

// Compose Color convenience API:
effect.withColor1(Color.Blue).withColor2(Color.Magenta)

Parameter	Type	Range	Default	Description
`color1`	`Long` (ARGB)	—	`0xFFF3A397`	Gradient start color (bottom-left)
`color2`	`Long` (ARGB)	—	`0xFFF8EE94`	Gradient end color (top-right)
`intensity`	`Float`	0.0 – 1.0	`0.5`	Blend strength

Advanced Usage

Dynamic Parameter Updates

All effects are immutable data classes. Updating a parameter returns a new instance — safe for Compose state:

var effect by remember { mutableStateOf(GrayscaleEffect()) }

Slider(
    value = effect.intensity,
    onValueChange = { effect = effect.copy(intensity = it) }
)

// Or via the generic Float API (useful for generic parameter editors):
effect = effect.withParameter(GrayscaleEffect.PARAM_INTENSITY, 0.75f)

// Or fully typed (works for color and boolean parameters too):
effect = effect.withTypedParameter(
    GradientEffect.PARAM_COLOR_1,
    ParameterValue.ColorValue(0xFFFF5733)
)

Effect Composition

Chain any number of effects with the + operator. On Android (API 31+), every effect in the chain is applied in order. On other platforms, the last effect is applied.

// Operator syntax
val film = SepiaEffect() + VignetteEffect(radius = 0.6f)

// Named factory — identical result
val editorial = CompositeEffect.of(
    GrayscaleEffect(),
    ChromaticAberrationEffect(offset = 8f),
    VignetteEffect(intensity = 0.7f),
)

// Parameters in composites are namespaced with a U+001F delimiter.
// Two effects that both have "intensity" never collide:
val combined = GrayscaleEffect() + SepiaEffect()
val grayscaleIntensity = combined.getParameterValue("0\u001Fintensity")
val sepiaIntensity = combined.getParameterValue("1\u001Fintensity")

Animation

Modifier.shaderEffect detects AnimatedShaderEffect implementations and uses a ShaderSession to refresh uniforms every frame without recompiling the shader. Shader compilation happens once per session; each frame only updates uniforms and returns a lightweight new RenderEffect reference.

isAnimating / animate controls whether time advances. When paused, the session still refreshes buildFrameUniforms() each frame so live inputs (e.g. FFT textures) keep updating.

Prefer passing the effect directly to shaderEffect. Use rememberShaderEffect only when you apply RenderEffect yourself via graphicsLayer (or need a manually driven clock):

@Composable
fun ManualWave(amplitude: Float, frequency: Float) {
    val wave = rememberShaderEffect(
        WaveEffect(amplitude = amplitude, frequency = frequency)
    )
    Box(modifier = Modifier.fillMaxSize().shaderEffect(wave))
}

Creating custom animated effects

Extend AbstractAnimatedShaderEffect instead of implementing AnimatedShaderEffect directly. The base class enforces the equality contract (time excluded) so animation loops stay stable:

@Immutable
public class MyPulseEffect(
  public val speed: Float = 1f,
  public val animate: Boolean = true,
  override val time: Float = 0f,
) : AbstractAnimatedShaderEffect() {
  override val id = "my_pulse"
  override val displayName = "My Pulse"
  override val isAnimating get() = animate

  override val shaderSource = """
        uniform shader content;
        uniform float2 resolution;
        uniform float time;
        uniform float speed;
        half4 main(float2 fragCoord) {
            half4 c = content.eval(fragCoord);
            float pulse = sin(time * speed) * 0.5 + 0.5;
            return half4(c.rgb * pulse, c.a);
        }
    """.trimIndent()

  override fun buildUniforms(w: Float, h: Float) = listOf(
    FloatUniform("resolution", w, h),
    FloatUniform("time", time),
    FloatUniform("speed", speed),
  )

  override fun copyWithTime(t: Float) = MyPulseEffect(speed, animate, t)
  override fun structuralEquals(other: Any?) =
    other is MyPulseEffect && speed == other.speed && animate == other.animate
  override fun structuralHashCode() = 31 * speed.hashCode() + animate.hashCode()
}

See PlasmaEffect for a richer reference implementation.

Built-in animated effects

Effect	Description
`WaveEffect`	Sinusoidal UV distortion
`AnimatedGradientEffect`	Rotating two-color gradient overlay
`PlasmaEffect`	Classic demoscene plasma colors
`RippleEffect`	Expanding concentric ring distortion
`VortexEffect`	Spiral/twirl from center
`AudioVisualizerEffect`	Live spectrum bars from an FFT texture
`AudioDistortionEffect`	Image warp driven by live FFT bins

Try them in the ShaderLab sample app under the Animated and Audio tabs.

Passing textures / live data (audio FFT)

Beyond the mandatory content layer, an effect can declare additional uniform shader inputs and feed them a Compose ImageBitmap via TextureUniform. This is how you push per-frame data — a lookup table, a mask, or audio FFT magnitudes — into a shader. Under the hood it maps to RuntimeShader.setInputShader on Android and RuntimeShaderBuilder.child on Skia (iOS/Desktop/Wasm).

For data that changes every frame, emit the TextureUniform from buildFrameUniforms() and exclude the image from structuralEquals/structuralHashCode — exactly as time is excluded — so the animation session is not torn down each frame:

override fun buildFrameUniforms() = listOf(
  FloatUniform("time", time),
  TextureUniform("fftData", fftData),   // fftData: ImageBitmap, updated per frame
)

// fftData and time are excluded from equality — see AudioVisualizerEffect
override fun structuralEquals(other: Any?) =
  other is AudioVisualizerEffect && fftSize == other.fftSize && animate == other.animate

For live mic data, prefer a source lambda so the session can pull a fresh bitmap each frame without changing effect identity:

val effect = AudioVisualizerEffect().withFftDataSource { fftSlot.image }

// Pack normalised FFT magnitudes into row 0 of a 1-px-tall bitmap each frame, then:
fftSlot.image = packMagnitudesToImage(magnitudes)

Or snapshot into the effect with withFftData(fftBitmap) when you want an explicit immutable copy. Optional frameDataKey on Modifier.shaderEffect forces Compose invalidation when per-frame data would otherwise be skipped under structural equality.

Child shaders sample in pixel coordinates (not normalised UV): read a texel at normalised u as fftData.eval(float2(u * fftSize, 0.5)).

See AudioVisualizerEffect and AudioDistortionEffect for the full reference implementations. The ShaderLab sample's audiolib module covers mic capture + FFT packing across Android, iOS, Desktop, and Wasm.

Scoped Shader Factory

By default, Modifier.shaderEffect uses a process-wide LocalShaderFactory singleton. For fine-grained cache control, provide a scoped factory:

@Composable
fun ShaderGallery() {
    // Factory is scoped to this composable's lifecycle.
    // maxCacheSize controls GPU memory trade-off.
    val factory = rememberShaderFactory(maxCacheSize = 16)

    CompositionLocalProvider(LocalShaderFactory provides factory) {
        LazyColumn {
            items(effects) { effect ->
                Image(modifier = Modifier.shaderEffect(effect))
            }
        }
    }
}

Offline Image Processing

ImageProcessor shares the factory's compiled-shader cache — processing 1000 images with GrayscaleEffect compiles the shader once.

val factory = ShaderFactory.create(maxCacheSize = 8)
val processor = ImageProcessor.create(factory)

suspend fun batchProcess(images: List<ByteArray>): List<ByteArray> {
    val effect = SepiaEffect(intensity = 0.9f)
    return images.mapNotNull { bytes ->
        processor.process(bytes, effect).getOrNull()
    }
}

First-Frame Optimization

By default, the effect is applied one frame after layout (the composable must be measured before shader dimensions are known). For known-size contexts, skip the delay entirely:

Image(
    modifier = Modifier.shaderEffect(
        effect = GrayscaleEffect(),
        knownSize = IntSize(imageWidth, imageHeight)
    )
)

Custom Effects

Extend AbstractRuntimeShaderEffect for new AGSL/SkSL effects. The base class handles parameter dispatch, range validation, and withTypedParameter automatically — you write the shader and declare parameter handlers.

@Immutable
data class ThermalEffect(
    val intensity: Float = 1f,
    val heatColor: Long = 0xFFFF4500,  // orange-red
) : AbstractRuntimeShaderEffect() {

    override val id = "thermal_vision"
    override val displayName = "Thermal"

    override val shaderSource = """
        uniform shader content;
        uniform float2 resolution;
        uniform float intensity;
        layout(color) uniform half4 heatColor;

        half4 main(float2 fragCoord) {
            half4 color = content.eval(fragCoord);
            float luminance = dot(color.rgb, half3(0.299, 0.587, 0.114));
            half4 thermal = mix(color, heatColor * luminance, intensity);
            return half4(thermal.rgb, color.a);
        }
    """.trimIndent()

    override val parameterHandlers = mapOf(
        "intensity" to floatHandler<ThermalEffect>(
            spec = PercentageParameter("intensity", "Intensity", defaultValue = 1f),
            read = { it.intensity },
            write = { e, v -> e.copy(intensity = v) },
        ),
        "heatColor" to colorHandler<ThermalEffect>(
            spec = ColorParameter("heatColor", "Heat Color", defaultColor = 0xFFFF4500),
            read = { it.heatColor },
            write = { e, v -> e.copy(heatColor = v) },
        ),
    )

    override fun buildUniforms(width: Float, height: Float) = listOf(
        FloatUniform("resolution", width, height),
        FloatUniform("intensity", intensity),
        ColorUniform("heatColor", heatColor),
    )
}

Shader contract: Declare uniform shader content; and half4 main(float2 fragCoord). The same source compiles as AGSL on Android and SkSL on all other platforms.

For platform-native effects (e.g., blur via system APIs), extend AbstractNativeEffect and add a branch to both AndroidShaderFactory.createNativeEffect and SkiaShaderFactory.createNativeEffect.

Error Handling

All factory and processor operations return ShaderResult<T> — a functional result type with composable combinators, no exceptions by default:

factory.createRenderEffect(effect, width, height)
    .onSuccess { renderEffect ->
        graphicsLayer { this.renderEffect = renderEffect }
    }
    .onFailure { error ->
        when (error) {
            is ShaderError.CompilationError ->
                log("Shader compile failed: ${error.message}")
            is ShaderError.UnsupportedEffect ->
                log("Not supported on this platform: ${error.effectId}")
            is ShaderError.PlatformNotSupported ->
                log("Platform limitation: ${error.message}")
            is ShaderError.ProcessingError ->
                log("Image processing error", error.cause)
            is ShaderError.Unknown ->
                log("Unexpected error", error.cause)
        }
    }

// Functional combinators — chain without nesting
val thumbnail = processor.process(bytes, effect)
    .map { processedBytes -> decodeThumbnail(processedBytes) }
    .recover { _ -> Bitmap.createBitmap(1, 1, ARGB_8888) }
    .getOrNull()

// Full combinator set:
// map, flatMap, fold, recover, onSuccess, onFailure, getOrNull, getOrElse, getOrThrow

Architecture

Source-Set Layout

shaderx/
└── src/
    ├── commonMain/      ← Effect definitions, Compose Modifier, ShaderResult, ImageProcessor
    ├── androidMain/     ← AGSL backend (RuntimeShader + LRU cache, thread-safe)
    └── skiaMain/        ← Shared Skia backend for iOS + Desktop + Web
        ├── iosMain      (depends on skiaMain)
        ├── jvmMain      (depends on skiaMain)
        └── wasmJsMain   (depends on skiaMain)

Non-Android platforms share one Skia implementation in skiaMain. New effects added there are immediately available on iOS, Desktop, and Web.

Type Hierarchy

ShaderEffect (sealed interface, @Stable)
├── RuntimeShaderEffect              — AGSL/SkSL shader source + buildUniforms()
│   └── AbstractRuntimeShaderEffect  — parameterHandlers, range validation
│       ├── GrayscaleEffect / SepiaEffect / VignetteEffect / …
│       ├── GradientEffect / PixelateEffect / ChromaticAberrationEffect / InvertEffect
│       └── AbstractAnimatedShaderEffect  — structural equals excludes time
│           ├── WaveEffect / AnimatedGradientEffect / PlasmaEffect
│           ├── RippleEffect / VortexEffect
│           └── AudioVisualizerEffect / AudioDistortionEffect  (+ TextureUniform FFT)
├── NativeEffect                     — delegates to platform-native APIs
│   └── NativeBlurEffect
├── AnimatedShaderEffect             — withTime(), buildFrameUniforms(); session-driven
└── CompositeEffect                  — ordered effect list, + operator, namespaced params

Caching Strategy

Shader compilation is expensive (GPU driver round-trip). Uniform updates are cheap. ShaderX keeps them separate:

An access-order LRU cache holds compiled shader programs keyed by effect ID.
Android (AndroidShaderFactory): fully synchronized — safe for concurrent access.
Skia (SkiaShaderFactory): single-threaded per Compose window; Skia Managed objects are closed on eviction.
Default cache size: 20 slots. Tune with ShaderFactory.create(maxCacheSize = N).

ParameterSpec System

Parameters are declared as sealed ParameterSpec subtypes with built-in validation:

Spec type	Value type	Constraint
`PercentageParameter`	`Float`	Clamped to `0.0..1.0`
`FloatParameter`	`Float`	Clamped to custom `range`
`PixelParameter`	`Float`	Clamped to `range`, displayed with `px`
`ToggleParameter`	`Boolean`	No numeric range (`hasRange = false`)
`ColorParameter`	`Long` (ARGB)	No range; `defaultValue` returns `0f` (deprecated in favour of `getTypedDefaultValue()`)

CompositeEffect namespaces child parameters with a U+001F (ASCII Unit Separator) delimiter — non-printable and guaranteed absent from normal effect IDs.

Sample Applications

ShaderLab — samples/ShaderLab

Full-featured gallery app on Android, iOS, Desktop, and Wasm. Browse built-in effects across Static / Animated / Composite / Audio tabs, tweak parameters with live sliders and color pickers, and drive audio-reactive previews via the sample audiolib module (mic → FFT → texture). Built with the public ShaderX API.

# Android
./gradlew :samples:ShaderLab:androidApp:installDebug

# Desktop
./gradlew :samples:ShaderLab:composeApp:run

# iOS (then open iosApp.xcodeproj in Xcode)
./gradlew :samples:ShaderLab:composeApp:linkDebugFrameworkIosSimulatorArm64

ASCIICamera — samples/ASCIICamera

Real-time camera filter on Android. Applies shader effects to live CameraX frames at 60 fps using ImageProcessor. Demonstrates the offline processing API in a latency-sensitive streaming context.

./gradlew :samples:ASCIICamera:androidApp:installDebug

VerticalCarousel — samples/VerticalCarousel

Scroll-driven effect demo. Each card in a vertical pager applies a different shader, showing how to bind effect parameters to scroll state and animate transitions between items.

Roadmap

Feature	Status
Full composite chaining on iOS / Desktop / Web	Planned
More built-in effects (noise, halftone, bloom, edge detection)	Planned
Shader hot-reload in debug builds	Planned
Declarative parameter animation DSL	Planned
WebGPU backend (Wasm)	Planned
Video frame processing via `VideoProcessor`	Planned

Build Commands

# Build library (all platforms)
./gradlew :shaderx:build

# Run all checks and tests
./gradlew :shaderx:check

# JVM unit tests only
./gradlew :shaderx:jvmTest

# Publish to local Maven for integration testing
./gradlew :shaderx:publishToMavenLocal

Technology Stack

Category	Technology	Version
Language	Kotlin	2.3.21
UI Framework	Compose Multiplatform	1.10.3
Build System	Gradle / AGP	9.1.1
Android compile SDK	—	37
Android min SDK	—	33
Coroutines	kotlinx-coroutines	1.10.2
Serialization	kotlinx-serialization	1.11.0

Android

JVM

iOS

Wasm

GitHub stars13

AuthorsDebanshu777

Dependents0

LicenseApache License 2.0

Creation date10 months ago

Last activity10 days ago

Latest release0.1.3 (6 months ago)

GitHub repository Wiki page

ShaderX

GPU shader effects for Compose Multiplatform — one API, every platform.

ShaderLab — Android	ShaderLab — Web

Effect gallery with live parameter sliders	Same codebase, compiled to Wasm/JS

ASCIICamera — Real-time Camera Filter	Vertical Carousel — Scroll-driven Effects

Shader on live CameraX frames at 60 fps	Per-card effects driven by scroll state

Why ShaderX?

Problem	What most teams do	What ShaderX does
Cross-platform GPU effects	Write AGSL for Android, separate Desktop path, no iOS story	Single Kotlin API — platform backends are an implementation detail
Effect reuse & composition	Hard-code effects per screen; cannot combine them	`GrayscaleEffect() + VignetteEffect()` chains effects with a single `+` operator
Offline image processing	Separate pipeline, no shader reuse	`ImageProcessor` shares the factory's compiled-shader cache

Platform Support

Platform	Shader Backend	Min Version	Composite Effects
Android	AGSL (`RuntimeShader`)	API 33	Full (API 31+)
iOS	Skia `RuntimeEffect`	iOS 14+ (arm64 / Simulator)	Last effect only
Desktop (JVM)	Skia `RuntimeEffect`	JDK 21	Last effect only
Web (Wasm/JS)	Skia `RuntimeEffect`	Modern browsers	Last effect only

Full composite chaining across all platforms is on the roadmap.

Installation

// settings.gradle.kts
dependencyResolutionManagement {
    repositories {
        mavenCentral()
    }
}

// build.gradle.kts (shared module)
dependencies {
  implementation("io.github.debanshu777:shaderx:0.1.4")
}

Requirements: JDK 21 · Kotlin 2.3+ · Compose Multiplatform 1.10+

Quick Start

One line to apply an effect:

Image(
    painter = painterResource("photo.png"),
    contentDescription = null,
    modifier = Modifier.shaderEffect(GrayscaleEffect())
)

Animated effects — handled automatically:

@Composable
fun AnimatedWave() {
  // Modifier.shaderEffect owns a ShaderSession and advances time each frame.
  // Do not also wrap with rememberShaderEffect for normal usage.
    Image(
        painter = painterResource("photo.png"),
        contentDescription = null,
      modifier = Modifier.shaderEffect(WaveEffect(amplitude = 15f, frequency = 6f))
    )
}

Chain effects with +:

// Grayscale → Vignette → Blur, applied in order
val effect = GrayscaleEffect() + VignetteEffect(radius = 0.6f) + NativeBlurEffect(radius = 3f)

Image(modifier = Modifier.shaderEffect(effect))

Offline image processing:

val factory = ShaderFactory.create()
val processor = ImageProcessor.create(factory)

val result = processor.process(imageBytes, SepiaEffect(intensity = 0.8f))
result
    .onSuccess { processedBytes -> saveToFile(processedBytes) }
    .onFailure { error -> log("Processing failed: ${error.message}") }

factory.close()

Built-in Effects

Fifteen production-ready effects ship out of the box, each with validated parameter ranges and a stable @Immutable representation.

GrayscaleEffect

Converts to grayscale using the standard luminance formula: 0.299R + 0.587G + 0.114B.

GrayscaleEffect(intensity = 1f)     // full grayscale
GrayscaleEffect(intensity = 0.5f)   // half-blended with original

Parameter	Type	Range	Default	Description
`intensity`	`Float`	0.0 – 1.0	`1.0`	Blend between original and grayscale

SepiaEffect

Vintage photograph look using the standard sepia transformation matrix.

SepiaEffect(intensity = 1f)

Parameter	Type	Range	Default	Description
`intensity`	`Float`	0.0 – 1.0	`1.0`	Blend between original and sepia

VignetteEffect

Darkens image edges with a smooth center-to-edge gradient — ideal for focus effects and cinematic framing.

VignetteEffect(radius = 0.5f, intensity = 0.5f)

Parameter	Type	Range	Default	Description
`radius`	`Float`	0.0 – 1.0	`0.5`	Distance from center where darkening begins
`intensity`	`Float`	0.0 – 1.0	`0.5`	Strength of the edge darkening

NativeBlurEffect

Hardware-accelerated Gaussian blur. Uses RenderEffect.createBlurEffect() on Android and Skia's ImageFilter.makeBlur() on iOS/Desktop — the fastest path on every platform.

NativeBlurEffect(radius = 10f)

Parameter	Type	Range	Default	Description
`radius`	`Float`	0.0 – 50.0 px	`10.0`	Blur radius in pixels

PixelateEffect

Retro mosaic by snapping fragment coordinates to a pixel grid.

PixelateEffect(pixelSize = 10f)

Parameter	Type	Range	Default	Description
`pixelSize`	`Float`	1.0 – 100.0 px	`10.0`	Block size in pixels (auto-clamped to ≥ 1)

ChromaticAberrationEffect

Simulates lens color separation by offsetting the red and blue channels radially from the image center.

ChromaticAberrationEffect(offset = 5f)

Parameter	Type	Range	Default	Description
`offset`	`Float`	0.0 – 20.0 px	`5.0`	Channel displacement distance

InvertEffect

Inverts all color channels (1.0 - value), alpha preserved. No configuration needed.

InvertEffect()
// or use the singleton:
InvertEffect.Default

WaveEffect (Animated)

WaveEffect(amplitude = 10f, frequency = 5f, animate = true)

Parameter	Type	Range	Default	Description
`amplitude`	`Float`	0.0 – 50.0 px	`10.0`	Max pixel displacement
`frequency`	`Float`	1.0 – 20.0	`5.0`	Wave cycles across the image
`animate`	`Boolean`	—	`true`	Toggle animation on/off

AnimatedGradientEffect (Animated)

Rotating two-color gradient overlay. Good starting point for custom animated effects.

AnimatedGradientEffect(speed = 1.5f, animate = true)

PlasmaEffect (Animated)

Layered sine-wave plasma pattern with psychedelic color movement.

PlasmaEffect(scale = 4f, speed = 1f, colorIntensity = 1f)

RippleEffect (Animated)

Expanding concentric rings with distance-based decay.

RippleEffect(frequency = 10f, speed = 1.5f, amplitude = 0.02f)

VortexEffect (Animated)

Spiral/twirl distortion from the image center.

VortexEffect(strength = 1f, radius = 0.5f, speed = 1f)

AudioVisualizerEffect (Animated · Audio)

Live spectrum bar graph. Bind an FFT magnitude texture (or a withFftDataSource lambda) and the session refreshes it each frame.

AudioVisualizerEffect(fftSize = 64f, barColorIntensity = 1f)
  .withFftDataSource { spectrumImage }

AudioDistortionEffect (Animated · Audio)

Warps the underlying content using live FFT bins as a displacement field.

AudioDistortionEffect(fftSize = 64f, intensity = 0.5f)
  .withFftDataSource { spectrumImage }

GradientEffect

Two-color gradient overlay blended over the original image. Supports both Long ARGB and Compose Color APIs.

GradientEffect(
    color1 = 0xFFF3A397,   // coral (bottom-left)
    color2 = 0xFFF8EE94,   // light yellow (top-right)
    intensity = 0.5f
)

// Compose Color convenience API:
effect.withColor1(Color.Blue).withColor2(Color.Magenta)

Parameter	Type	Range	Default	Description
`color1`	`Long` (ARGB)	—	`0xFFF3A397`	Gradient start color (bottom-left)
`color2`	`Long` (ARGB)	—	`0xFFF8EE94`	Gradient end color (top-right)
`intensity`	`Float`	0.0 – 1.0	`0.5`	Blend strength

Advanced Usage

Dynamic Parameter Updates

All effects are immutable data classes. Updating a parameter returns a new instance — safe for Compose state:

var effect by remember { mutableStateOf(GrayscaleEffect()) }

Slider(
    value = effect.intensity,
    onValueChange = { effect = effect.copy(intensity = it) }
)

// Or via the generic Float API (useful for generic parameter editors):
effect = effect.withParameter(GrayscaleEffect.PARAM_INTENSITY, 0.75f)

// Or fully typed (works for color and boolean parameters too):
effect = effect.withTypedParameter(
    GradientEffect.PARAM_COLOR_1,
    ParameterValue.ColorValue(0xFFFF5733)
)

Effect Composition

Chain any number of effects with the + operator. On Android (API 31+), every effect in the chain is applied in order. On other platforms, the last effect is applied.

// Operator syntax
val film = SepiaEffect() + VignetteEffect(radius = 0.6f)

// Named factory — identical result
val editorial = CompositeEffect.of(
    GrayscaleEffect(),
    ChromaticAberrationEffect(offset = 8f),
    VignetteEffect(intensity = 0.7f),
)

// Parameters in composites are namespaced with a U+001F delimiter.
// Two effects that both have "intensity" never collide:
val combined = GrayscaleEffect() + SepiaEffect()
val grayscaleIntensity = combined.getParameterValue("0\u001Fintensity")
val sepiaIntensity = combined.getParameterValue("1\u001Fintensity")

Animation

isAnimating / animate controls whether time advances. When paused, the session still refreshes buildFrameUniforms() each frame so live inputs (e.g. FFT textures) keep updating.

Prefer passing the effect directly to shaderEffect. Use rememberShaderEffect only when you apply RenderEffect yourself via graphicsLayer (or need a manually driven clock):

@Composable
fun ManualWave(amplitude: Float, frequency: Float) {
    val wave = rememberShaderEffect(
        WaveEffect(amplitude = amplitude, frequency = frequency)
    )
    Box(modifier = Modifier.fillMaxSize().shaderEffect(wave))
}

Creating custom animated effects

Extend AbstractAnimatedShaderEffect instead of implementing AnimatedShaderEffect directly. The base class enforces the equality contract (time excluded) so animation loops stay stable:

@Immutable
public class MyPulseEffect(
  public val speed: Float = 1f,
  public val animate: Boolean = true,
  override val time: Float = 0f,
) : AbstractAnimatedShaderEffect() {
  override val id = "my_pulse"
  override val displayName = "My Pulse"
  override val isAnimating get() = animate

  override val shaderSource = """
        uniform shader content;
        uniform float2 resolution;
        uniform float time;
        uniform float speed;
        half4 main(float2 fragCoord) {
            half4 c = content.eval(fragCoord);
            float pulse = sin(time * speed) * 0.5 + 0.5;
            return half4(c.rgb * pulse, c.a);
        }
    """.trimIndent()

  override fun buildUniforms(w: Float, h: Float) = listOf(
    FloatUniform("resolution", w, h),
    FloatUniform("time", time),
    FloatUniform("speed", speed),
  )

  override fun copyWithTime(t: Float) = MyPulseEffect(speed, animate, t)
  override fun structuralEquals(other: Any?) =
    other is MyPulseEffect && speed == other.speed && animate == other.animate
  override fun structuralHashCode() = 31 * speed.hashCode() + animate.hashCode()
}

See PlasmaEffect for a richer reference implementation.

Built-in animated effects

Effect	Description
`WaveEffect`	Sinusoidal UV distortion
`AnimatedGradientEffect`	Rotating two-color gradient overlay
`PlasmaEffect`	Classic demoscene plasma colors
`RippleEffect`	Expanding concentric ring distortion
`VortexEffect`	Spiral/twirl from center
`AudioVisualizerEffect`	Live spectrum bars from an FFT texture
`AudioDistortionEffect`	Image warp driven by live FFT bins

Try them in the ShaderLab sample app under the Animated and Audio tabs.

Passing textures / live data (audio FFT)

override fun buildFrameUniforms() = listOf(
  FloatUniform("time", time),
  TextureUniform("fftData", fftData),   // fftData: ImageBitmap, updated per frame
)

// fftData and time are excluded from equality — see AudioVisualizerEffect
override fun structuralEquals(other: Any?) =
  other is AudioVisualizerEffect && fftSize == other.fftSize && animate == other.animate

For live mic data, prefer a source lambda so the session can pull a fresh bitmap each frame without changing effect identity:

val effect = AudioVisualizerEffect().withFftDataSource { fftSlot.image }

// Pack normalised FFT magnitudes into row 0 of a 1-px-tall bitmap each frame, then:
fftSlot.image = packMagnitudesToImage(magnitudes)

Child shaders sample in pixel coordinates (not normalised UV): read a texel at normalised u as fftData.eval(float2(u * fftSize, 0.5)).

Scoped Shader Factory

By default, Modifier.shaderEffect uses a process-wide LocalShaderFactory singleton. For fine-grained cache control, provide a scoped factory:

@Composable
fun ShaderGallery() {
    // Factory is scoped to this composable's lifecycle.
    // maxCacheSize controls GPU memory trade-off.
    val factory = rememberShaderFactory(maxCacheSize = 16)

    CompositionLocalProvider(LocalShaderFactory provides factory) {
        LazyColumn {
            items(effects) { effect ->
                Image(modifier = Modifier.shaderEffect(effect))
            }
        }
    }
}

Offline Image Processing

ImageProcessor shares the factory's compiled-shader cache — processing 1000 images with GrayscaleEffect compiles the shader once.

val factory = ShaderFactory.create(maxCacheSize = 8)
val processor = ImageProcessor.create(factory)

suspend fun batchProcess(images: List<ByteArray>): List<ByteArray> {
    val effect = SepiaEffect(intensity = 0.9f)
    return images.mapNotNull { bytes ->
        processor.process(bytes, effect).getOrNull()
    }
}

First-Frame Optimization

By default, the effect is applied one frame after layout (the composable must be measured before shader dimensions are known). For known-size contexts, skip the delay entirely:

Image(
    modifier = Modifier.shaderEffect(
        effect = GrayscaleEffect(),
        knownSize = IntSize(imageWidth, imageHeight)
    )
)

Custom Effects

@Immutable
data class ThermalEffect(
    val intensity: Float = 1f,
    val heatColor: Long = 0xFFFF4500,  // orange-red
) : AbstractRuntimeShaderEffect() {

    override val id = "thermal_vision"
    override val displayName = "Thermal"

    override val shaderSource = """
        uniform shader content;
        uniform float2 resolution;
        uniform float intensity;
        layout(color) uniform half4 heatColor;

        half4 main(float2 fragCoord) {
            half4 color = content.eval(fragCoord);
            float luminance = dot(color.rgb, half3(0.299, 0.587, 0.114));
            half4 thermal = mix(color, heatColor * luminance, intensity);
            return half4(thermal.rgb, color.a);
        }
    """.trimIndent()

    override val parameterHandlers = mapOf(
        "intensity" to floatHandler<ThermalEffect>(
            spec = PercentageParameter("intensity", "Intensity", defaultValue = 1f),
            read = { it.intensity },
            write = { e, v -> e.copy(intensity = v) },
        ),
        "heatColor" to colorHandler<ThermalEffect>(
            spec = ColorParameter("heatColor", "Heat Color", defaultColor = 0xFFFF4500),
            read = { it.heatColor },
            write = { e, v -> e.copy(heatColor = v) },
        ),
    )

    override fun buildUniforms(width: Float, height: Float) = listOf(
        FloatUniform("resolution", width, height),
        FloatUniform("intensity", intensity),
        ColorUniform("heatColor", heatColor),
    )
}

Shader contract: Declare uniform shader content; and half4 main(float2 fragCoord). The same source compiles as AGSL on Android and SkSL on all other platforms.

For platform-native effects (e.g., blur via system APIs), extend AbstractNativeEffect and add a branch to both AndroidShaderFactory.createNativeEffect and SkiaShaderFactory.createNativeEffect.

Error Handling

All factory and processor operations return ShaderResult<T> — a functional result type with composable combinators, no exceptions by default:

factory.createRenderEffect(effect, width, height)
    .onSuccess { renderEffect ->
        graphicsLayer { this.renderEffect = renderEffect }
    }
    .onFailure { error ->
        when (error) {
            is ShaderError.CompilationError ->
                log("Shader compile failed: ${error.message}")
            is ShaderError.UnsupportedEffect ->
                log("Not supported on this platform: ${error.effectId}")
            is ShaderError.PlatformNotSupported ->
                log("Platform limitation: ${error.message}")
            is ShaderError.ProcessingError ->
                log("Image processing error", error.cause)
            is ShaderError.Unknown ->
                log("Unexpected error", error.cause)
        }
    }

// Functional combinators — chain without nesting
val thumbnail = processor.process(bytes, effect)
    .map { processedBytes -> decodeThumbnail(processedBytes) }
    .recover { _ -> Bitmap.createBitmap(1, 1, ARGB_8888) }
    .getOrNull()

// Full combinator set:
// map, flatMap, fold, recover, onSuccess, onFailure, getOrNull, getOrElse, getOrThrow

Architecture

Source-Set Layout

shaderx/
└── src/
    ├── commonMain/      ← Effect definitions, Compose Modifier, ShaderResult, ImageProcessor
    ├── androidMain/     ← AGSL backend (RuntimeShader + LRU cache, thread-safe)
    └── skiaMain/        ← Shared Skia backend for iOS + Desktop + Web
        ├── iosMain      (depends on skiaMain)
        ├── jvmMain      (depends on skiaMain)
        └── wasmJsMain   (depends on skiaMain)

Non-Android platforms share one Skia implementation in skiaMain. New effects added there are immediately available on iOS, Desktop, and Web.

Type Hierarchy

ShaderEffect (sealed interface, @Stable)
├── RuntimeShaderEffect              — AGSL/SkSL shader source + buildUniforms()
│   └── AbstractRuntimeShaderEffect  — parameterHandlers, range validation
│       ├── GrayscaleEffect / SepiaEffect / VignetteEffect / …
│       ├── GradientEffect / PixelateEffect / ChromaticAberrationEffect / InvertEffect
│       └── AbstractAnimatedShaderEffect  — structural equals excludes time
│           ├── WaveEffect / AnimatedGradientEffect / PlasmaEffect
│           ├── RippleEffect / VortexEffect
│           └── AudioVisualizerEffect / AudioDistortionEffect  (+ TextureUniform FFT)
├── NativeEffect                     — delegates to platform-native APIs
│   └── NativeBlurEffect
├── AnimatedShaderEffect             — withTime(), buildFrameUniforms(); session-driven
└── CompositeEffect                  — ordered effect list, + operator, namespaced params

Caching Strategy

Shader compilation is expensive (GPU driver round-trip). Uniform updates are cheap. ShaderX keeps them separate:

An access-order LRU cache holds compiled shader programs keyed by effect ID.
Android (AndroidShaderFactory): fully synchronized — safe for concurrent access.
Skia (SkiaShaderFactory): single-threaded per Compose window; Skia Managed objects are closed on eviction.
Default cache size: 20 slots. Tune with ShaderFactory.create(maxCacheSize = N).

ParameterSpec System

Parameters are declared as sealed ParameterSpec subtypes with built-in validation:

Spec type	Value type	Constraint
`PercentageParameter`	`Float`	Clamped to `0.0..1.0`
`FloatParameter`	`Float`	Clamped to custom `range`
`PixelParameter`	`Float`	Clamped to `range`, displayed with `px`
`ToggleParameter`	`Boolean`	No numeric range (`hasRange = false`)
`ColorParameter`	`Long` (ARGB)	No range; `defaultValue` returns `0f` (deprecated in favour of `getTypedDefaultValue()`)

CompositeEffect namespaces child parameters with a U+001F (ASCII Unit Separator) delimiter — non-printable and guaranteed absent from normal effect IDs.

Sample Applications

ShaderLab — samples/ShaderLab

# Android
./gradlew :samples:ShaderLab:androidApp:installDebug

# Desktop
./gradlew :samples:ShaderLab:composeApp:run

# iOS (then open iosApp.xcodeproj in Xcode)
./gradlew :samples:ShaderLab:composeApp:linkDebugFrameworkIosSimulatorArm64

ASCIICamera — samples/ASCIICamera

./gradlew :samples:ASCIICamera:androidApp:installDebug

VerticalCarousel — samples/VerticalCarousel

Scroll-driven effect demo. Each card in a vertical pager applies a different shader, showing how to bind effect parameters to scroll state and animate transitions between items.

Roadmap

Feature	Status
Full composite chaining on iOS / Desktop / Web	Planned
More built-in effects (noise, halftone, bloom, edge detection)	Planned
Shader hot-reload in debug builds	Planned
Declarative parameter animation DSL	Planned
WebGPU backend (Wasm)	Planned
Video frame processing via `VideoProcessor`	Planned

Build Commands

# Build library (all platforms)
./gradlew :shaderx:build

# Run all checks and tests
./gradlew :shaderx:check

# JVM unit tests only
./gradlew :shaderx:jvmTest

# Publish to local Maven for integration testing
./gradlew :shaderx:publishToMavenLocal

Technology Stack

Category	Technology	Version
Language	Kotlin	2.3.21
UI Framework	Compose Multiplatform	1.10.3
Build System	Gradle / AGP	9.1.1
Android compile SDK	—	37
Android min SDK	—	33
Coroutines	kotlinx-coroutines	1.10.2
Serialization	kotlinx-serialization	1.11.0
