The streaming-text typewriter built for LLM apps on Compose. Renders a Flow<String> of tokens with live progressive Markdown, syntax-highlighted code blocks that build up as tokens arrive, inline $…$ and display $$…$$ LaTeX math, three speed curves (linear / ease-out / natural), tap-to-skip, graceful stop-mid-stream, selectable text, and a screen-reader-friendly live region.

Pairs naturally with prompt-bar — drop both in and you have a ChatGPT-quality chat UI on Android in ~20 lines. PromptBar's Send/Stop button auto-syncs with state.isStreaming.

Existing CMP typewriters take a static String — they're animations, not stream renderers. LlmTypewriter is built around the AI chatbot streaming-token use case that nobody else has shipped:

The library is on Maven Central. One extra line is required: math rendering pulls in AndroidMath transitively, which is hosted on JitPack — declare both repos in settings.gradle.kts:

dependencyResolutionManagement {
    repositories {
        google()
        mavenCentral()
        maven { url = uri("https://jitpack.io") }   // required for AndroidMath
    }
}

Then add the dependency (Kotlin DSL):

// module build.gradle.kts
dependencies {
    implementation("cc.ptoe:llm-typewriter:0.1.0")
}

Groovy DSL:

dependencies {
    implementation 'cc.ptoe:llm-typewriter:0.1.0'
}

Version catalog (gradle/libs.versions.toml):

[versions]
llmTypewriter = "0.1.0"

[libraries]
llm-typewriter = { module = "cc.ptoe:llm-typewriter", version.ref = "llmTypewriter" }

dependencies {
    implementation(libs.llm.typewriter)
}

Requirements: Android minSdk 24, Compose Multiplatform 1.10+, Kotlin 2.3+.

import cc.ptoe.llmtypewriter.*

@Composable
fun ChatBubble(responseFlow: Flow<String>) {
    val state = rememberStreamingTypewriterState()
    StreamingTypewriter(
        tokens = responseFlow,                              // Flow<String> from your LLM
        state = state,
        renderer = rememberMarkdownTypewriterRenderer(state), // live Markdown + code + math
        speedCurve = SpeedCurve.Natural,
    )
    Button(onClick = { state.stop() }, enabled = state.isStreaming) {
        Text("Stop")
    }
}

That's it — tokens stream in, the typewriter reveals them at a natural cadence, renders Markdown progressively (bold the instant ** closes, code blocks that highlight as they grow, and math once the closing $ arrives). Tap the text to skip to the latest buffered token.

@Composable
fun StreamingTypewriter(
    tokens: Flow<String>,
    modifier: Modifier = Modifier,
    state: StreamingTypewriterState = rememberStreamingTypewriterState(),
    renderer: TypewriterRenderer = PlainTypewriterRenderer,
    baseDelayMs: Long = LlmTypewriterDefaults.DefaultBaseDelayMs,   // 18 ms ≈ 55 ch/s
    speedCurve: SpeedCurve = SpeedCurve.Natural,
    tapToSkip: Boolean = true,
    announceForAccessibility: Boolean = true,
)

Test tags: llm_typewriter (root), llm_typewriter_text (text area), llm_typewriter_stopped (stop indicator).

For non-streaming use cases (hero banners, onboarding copy, demos). Internally builds a character-by-character flow and delegates to StreamingTypewriter:

TypewriterText(
    text = "Build LLM-powered apps for Android.",
    speedCurve = SpeedCurve.Natural,
)

Accepts the same renderer, baseDelayMs, speedCurve, and tapToSkip parameters as StreamingTypewriter.

Types one phrase, holds, deletes back to empty, types the next — loops forever. Plain-text only (no Markdown):

CyclingTypewriterText(
    phrases = listOf("Type", "Stream", "Render", "On Android"),
    holdMs = 1200L,
    typeDelayMs = 18L,
    deleteDelayMs = 9L,
)

StreamingTypewriterState is the single source of truth — the composables are thin wrappers. The primary constructor is public, so you can create and drive a state from anywhere without composition:

class ChatViewModel : ViewModel() {
    val typewriterState = StreamingTypewriterState()

    fun startResponse(llm: Flow<String>) {
        viewModelScope.launch {
            typewriterState.reset()
            llm.collect { token -> typewriterState.appendToken(token) }
            typewriterState.completeSource()
        }
    }
}

val state = StreamingTypewriterState()

state.appendToken("Hello, ")      // push a token into the buffer
state.appendToken("world!")
state.completeSource()            // signal the source flow is done

state.skipToEnd()                 // flush everything now (used by tap-to-skip)
state.stop()                      // freeze mid-stream — buffered text stays hidden
state.resume()                    // pick up exactly where stop() left off
state.reset()                     // erase everything — start fresh (e.g. "Regenerate")

state.revealed        // String — what's currently painted
state.phase           // TypewriterPhase
state.pendingChars    // Int — buffered but not yet revealed
state.sourceComplete  // Boolean
state.isStreaming     // extension: true when Revealing or Waiting
state.bufferSoftCap   // Int — advisory memory guard (default 4000)

// Composable helper — flips true the moment the first char is revealed.
// Handy for hiding a "Thinking…" indicator when real text arrives.
val hasText by state.rememberHasRevealedText()

// Default styles resolve against MaterialTheme
val renderer = rememberMarkdownTypewriterRenderer(state)

// Or supply your own MarkdownStyles
val renderer = rememberMarkdownTypewriterRenderer(
    state = state,
    styles = LlmTypewriterDefaults.markdownStyles().copy(
        codeBlockBackground = Color(0xFF1E1E1E),
        codeBlockText = Color(0xFFD4D4D4),
    ),
)

The streaming Markdown parser is prefix-stable: for any prefix of the input, it produces the same prefix of tokens. A **bold mid-stream renders as plain text until the closing ** arrives — but every token before that opening ** stays exactly where it was. Code fences highlight progressively as tokens stream in — no waiting for the closing ```. This is what makes live streaming render without visual jitter.

Math is delegated to AndroidMath's MTMathView, which renders LaTeX with native Freetype typography (Latin Modern Math / Tex Gyre Termes / XITS Math fonts). This gives you proper fractions, stacked big-operator limits, roots with vincula, and the rest of the LaTeX grammar — not a hand-rolled approximation.

Inline math — $E = mc^2$ — renders in text style, inline with surrounding words, and wraps naturally at word boundaries. Each equation's width is pre-measured so surrounding text reflows correctly.

Display math — $$\sum_{i=1}^{n} \frac{1}{i^2}$$ — renders block-level, centered, on its own line with a subtle background tint and a 1.2× font scale.

The area of a circle is $A = \pi r^2$. For the sum of a series:

$$\sum_{n=1}^{\infty} \frac{1}{n^2} = \frac{\pi^2}{6}$$

And a matrix: $\begin{pmatrix}a & b \\ c & d\end{pmatrix}$

Rendering rule: math renders only after the closing $ / $$ has arrived. Before that, the parser emits the partial input as plain text — so a half-streamed $\frac{1}{ shows up as literal characters until the closing $ lands. This guarantees the math backend never sees a half-formed LaTeX string.

Only the color from MarkdownStyles.math is honored; AndroidMath owns the typography (font family, style, weight). Display-math background and scale are configurable via MarkdownStyles.displayMathBackground and displayScale.

SpeedCurve is a fun interface — supply your own:

val snappy = SpeedCurve { base, prev, next ->
    if (next == '\n') base * 8 else base / 2
}
StreamingTypewriter(tokens = tokens, speedCurve = snappy)

TypewriterRenderer is a fun interface — paint the revealed String however you like:

val upperRenderer = TypewriterRenderer { text, modifier ->
    Text(text = text.uppercase(), modifier = modifier)
}
StreamingTypewriter(tokens = tokens, renderer = upperRenderer)

All Markdown styling resolves against MaterialTheme by default. Override any field:

val darkCode = LlmTypewriterDefaults.markdownStyles().copy(
    codeBlockBackground = Color(0xFF1E1E1E),
    codeBlockText       = Color(0xFFD4D4D4),
    codeBlockKeyword    = Color(0xFF569CD6),
    codeBlockString     = Color(0xFFCE9178),
    codeBlockComment    = Color(0xFF6A9955),
    codeBlockNumber     = Color(0xFFB5CEA8),
    math                = SpanStyle(color = Color(0xFFE0E0E0),
                          background = Color(0xFF2D2D2D)),
    displayMathBackground = Color(0xFF1E1E1E),
    displayScale        = 1.3f,
)
val renderer = rememberMarkdownTypewriterRenderer(state, darkCode)

MarkdownStyles fields: bold, italic, code, link, heading, strikethrough, codeBlockBackground, codeBlockText, codeBlockKeyword, codeBlockString, codeBlockComment, codeBlockNumber, math, displayMathBackground, displayScale.

When announceForAccessibility = true (default), the rendered text is wrapped in a liveRegion = Polite semantics node. Screen readers narrate the revealed text as it grows without interrupting the user. The live region is preferred over contentDescription so the underlying Text node's value is announced (and text-equality assertions in tests still work).

ThinkingDots — three pulsing dots, the classic "assistant is thinking" indicator. Show it before the first token arrives, hide it the moment real text appears:

val state = rememberStreamingTypewriterState()
val hasText by state.rememberHasRevealedText()

if (!hasText) ThinkingDots()
else StreamingTypewriter(tokens = tokens, state = state, /* … */)

// Emit each character as a one-char token
val flow = staticFlowOf("Hello, world!")

// Emit each word as a token (closer to real LLM streaming)
val flow = wordTokenFlowOf("Hello world from an LLM", perTokenDelayMs = 80L)

The headless state is fully drivable in pure unit tests — no Compose runtime required. All control-surface methods (appendToken, completeSource, skipToEnd, stop, resume, reset) and observables (revealed, phase, pendingChars, isStreaming) are public:

@Test fun `skipToEnd flushes the buffer`() {
    val state = StreamingTypewriterState()
    state.appendToken("Hi")
    assertEquals("", state.revealed)       // buffered but not yet revealed
    state.skipToEnd()
    assertEquals("Hi", state.revealed)
    assertEquals(TypewriterPhase.Waiting, state.phase)  // source not yet completed
}

@Test fun `stop freezes the reveal`() {
    val state = StreamingTypewriterState()
    state.appendToken("Hello")
    state.stop()
    assertEquals(TypewriterPhase.Stopped, state.phase)
    state.resume()
    assertEquals(TypewriterPhase.Revealing, state.phase)
}

./gradlew :sample:androidApp:assembleDebug

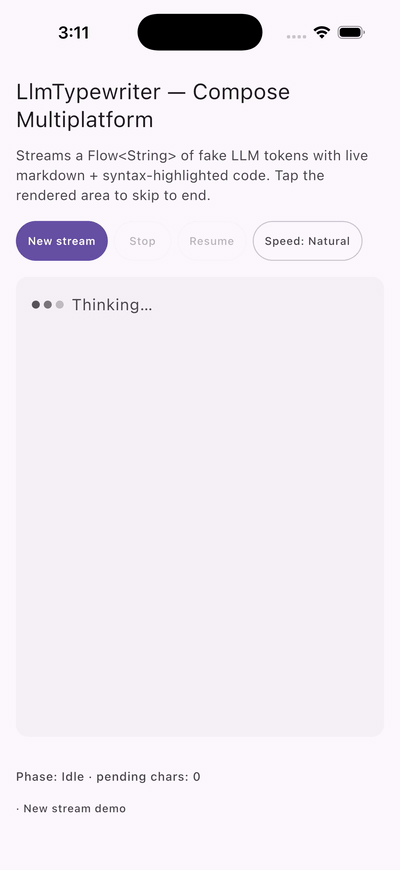

The sample includes a fake-LLM that streams pre-canned responses with Markdown + code blocks + math, a speed-curve switcher, and Stop / Resume / Skip controls.

./gradlew :llm-typewriter:testDebugUnitTest            # pure-logic unit tests (fastest)
./gradlew :llm-typewriter:connectedAndroidTest         # Compose UI instrumented tests
./gradlew build                                         # build + test everything

Pure-logic tests cover the Markdown stream parser, TeX parser, math AST, code highlighter, speed curves, state machine, and paragraph grouping — no Compose runtime needed. Compose UI tests cover tap-to-skip, stop indicator, and test-tag wiring.

The library targets Android only. Math rendering depends on AndroidMath's MTMathView, which is Android-native.

Tag-driven. Pushing a v* tag triggers .github/workflows/publish.yml, which publishes to Maven Central via com.vanniktech.maven.publish and creates a GitHub Release. The version comes from the tag (v0.2.0 → 0.2.0); override locally with -Pversion=....

This project is a fork of NadeemIqbal/llm-typewriter. The original StreamingTypewriter design — the Flow<String>-driven reveal loop, the headless StreamingTypewriterState phase machine, the prefix-stable Markdown parser, and the speed-curve abstraction — was authored by NadeemIqbal and is gratefully acknowledged.

This fork detached from the upstream GitHub fork network because the two projects have diverged substantially:

• Target platform: Android only (upstream targets Compose Multiplatform).
• LaTeX math: this fork adds streaming $…$ / $$…$$ math rendering via AndroidMath's MTMathView, plus a prefix-stable TeX lexer and semantic math AST.
• Performance: incremental Markdown re-parse, O(1) reveal tracking, and process-wide math-measurement caching — none of which are in upstream.
• Markdown layout: CommonMark soft-break handling, inline math reflow via InlineTextContent, and heading-size scaling.

Attribution is also preserved in the published Maven POM (<developers> lists both the upstream author and the current maintainer) and in the LICENSE file. All code — original and modified — remains under the Apache License, Version 2.0.

If you upstream-read this and want to cherry-pick anything back, please open a PR — we're happy to help.

Apache 2.0 — see LICENSE. Original portions Copyright © 2026 NadeemIqbal; modifications Copyright © 2026 originalFactor. Both are licensed under the Apache License, Version 2.0.
