Captures and plays back linear PCM with precise sample rates, channel counts and formats; exact-count reads/writes, conversion accessors, and a single-producer/single-consumer ring buffer.
Kotlin Multiplatform audio I/O library. It captures and plays back linear PCM with a precisely configurable sample rate, channel count and sample format, and reads or writes exactly as many frames, samples or bytes as the caller asks for.
The public API only knows about PCM streams and devices; each platform is implemented on top of its own native audio API behind that API.
| Platform | Kotlin target | Backend |
|---|---|---|
| JVM desktop | jvm |
javax.sound.sampled |
| Android (JVM) | android |
AudioRecord / AudioTrack
|
| Android Native |
androidNativeArm64 / Arm32 / X64 / X86
|
AAudio |
| Windows | mingwX64 |
WASAPI |
| Linux x86_64 | linuxX64 |
ALSA |
| Linux ARM64 | linuxArm64 |
ALSA |
| macOS ARM64 | macosArm64 |
Core Audio (Audio Queue) |
| macOS x86_64 | macosX64 |
Core Audio (Audio Queue) |
| Browser (Wasm) | wasmJs |
Web Audio |
| Browser (JS) | js |
Web Audio |
Audio is always interleaved, little-endian PCM. Raw streams only: container formats (WAV, MP3, ...) and codecs are out of scope.
The browser backends run on the Web Audio API and share one implementation:
the Kotlin side only declares the audioIo_* functions, the audio graph and
its ring buffers live in a small JavaScript glue that the page loads before the
module starts.
<script src="audio-io-kmp-web.js"></script>
<script src="my-app.js"></script>The glue is published as the @enaium/audio-io-kmp npm package (its source
lives in audio-io-kmp/src/webMain/resources), so a web app installs it like
any other dependency and loads it first:
npm i @enaium/audio-io-kmp<script src="node_modules/@enaium/audio-io-kmp/audio-io-kmp-web.js"></script>or import "@enaium/audio-io-kmp" from the page's module. Without it the audioIo_* globals do not exist and the browser backend fails on the first
call.
The page drives the clock, so the browser streams cannot block the thread that
created them: read returns whatever the capture callback buffered (0 when
nothing arrived yet) and write accepts what the playback ring has room for.
Poll them from your render loop or animation frame; read only returns -1
once the stream was stopped. Both directions buffer a second of audio, so a
frame that takes longer than a few milliseconds — a slow canvas, a tab that was
just shown again — neither drops captured frames nor starves the playback. The sample rate has to match the AudioContext
rate — a browser that cannot create the context at the requested rate makes
openInput / openOutput throw. Capture starts from a user gesture (the
browser's autoplay and permission rules), which the example does with its
Start button.
commonMain.dependencies {
implementation("cn.enaium.audio:audio-io-kmp:1.1.0")
}import cn.enaium.audio.*
fun main() {
val system = audioSystem()
try {
println(system.name) // "Core Audio", "WASAPI", ...
println(system.inputDevices()) // every capture endpoint
val format = AudioFormat(48000, 1, SampleFormat.PCM_S16)
val input = system.openInput(format, bufferFrames = 960) // 20 ms
try {
input.start()
val buffer = AudioBuffer(input.format, input.bufferFrames)
while (true) {
val frames = input.read(buffer) // blocks until audio arrives
if (frames < 0) break // stopped or closed
process(buffer.shorts()) // exactly `buffer.sampleCount` samples
}
} finally {
input.close()
}
} finally {
system.close()
}
}Playback works the same way through system.openOutput(...) and
output.write(buffer).
AudioBuffer never hides how much data is there. Every accessor takes a count
and clamps it to the valid region, so a partially filled capture buffer yields
fewer samples instead of zeros or an exception:
val frames = input.read(buffer)
val firstBytes = buffer.bytes(64) // exactly 64 bytes, or fewer at the end
val samples = buffer.shorts(4096) // exactly 4096 samples, interleaved
val left = buffer.floats(2048) // converted to -1.0 .. 1.0
buffer.bytes() // the whole valid region
buffer.toShorts(destination) // conversion without allocating| Type | Purpose |
|---|---|
AudioFormat |
sample rate, channel count, SampleFormat; frame/byte/duration math |
SampleFormat |
PCM_U8, PCM_S16, PCM_S24, PCM_S32, PCM_F32, PCM_F64
|
AudioBuffer |
PCM chunk with its valid frame count and exact-count conversions |
AudioDevice |
one endpoint: backend id, label, direction, default flag |
AudioSystem |
device enumeration and stream creation for one backend |
AudioInput |
capture stream: blocking read, readNonBlocking, available
|
AudioOutput |
playback stream: blocking write, writeNonBlocking, available
|
AudioRingBuffer |
single-producer/single-consumer ring for capture -> processing pipelines |
AudioException |
every failure that came back from the platform audio API |
audioSystem() returns the backend of the current platform. Several systems can
coexist, and the caller owns and closes each one.
open -> OPEN, start -> STARTED, stop -> STOPPED, close -> CLOSED
read and write block. stop() and close() from another thread release the
blocked call, which then returns -1, so a capture loop ends without needing an
extra flag. readNonBlocking/writeNonBlocking never block and report 0 when
there is no room or no data.
AudioRingBuffer is the piece to put between the capture thread and a
processing or playback thread:
val ring = AudioRingBuffer(format, capacityFrames = 48000) // one second
// capture thread
ring.write(buffer)
// processing thread
val frames = ring.read(destination, 960)It is not thread safe by itself: exactly one thread may write and one may read, which is what makes it allocation free.
Every Mixer the JDK reports becomes a device. Capture uses TargetDataLine,
playback SourceDataLine, both in blocking mode. JavaSound does not convert
between formats: a mixer that does not advertise the requested format fails
with an AudioException naming the mixer and the format.
AudioRecord/AudioTrack take the requested format when the device supports
it (PCM_U8, PCM_S16, PCM_F32, and PCM_S32 from API 31 on), otherwise
the call fails with an AudioException naming the format. The application has
to hold RECORD_AUDIO itself; a missing permission surfaces as an
AudioException that says so. Device enumeration needs an application
Context:
val system = audioSystem(context) // full AudioManager enumeration
val system = audioSystem() // default input/output onlyAAudio is available from Android 8.0 (API 26). The backend loads libaaudio.so
at runtime, so a binary that links this library still starts on older devices
and reports the missing API instead. AAudio has no device enumeration: one
default endpoint per direction is reported, and a numeric platform device id can
be passed through AudioDevice.id to pin a stream to a specific device.
Every shared object that links this library is built for 16 KB memory pages
(-Wl,-z,max-page-size=16384 -Wl,-z,common-page-size=16384), which Android 15
and newer require on arm64 devices.
Streams run in shared mode. The requested format is tried first; when the audio
engine cannot take it, the client is opened again with
AUDCLNT_STREAMFLAGS_AUTOCONVERTPCM so the engine performs the sample rate and
format conversion. Devices come from IMMDeviceEnumerator and the
AudioDevice.id is the endpoint id string.
libasound.so.2 is loaded at runtime, so nothing has to be installed to link
against the library; the runtime package that every Linux installation has is
enough. Devices come from ALSA's name hints, so default, sysdefault and
hw:CARD,DEV all work as AudioDevice.id. The format is applied exactly as
requested: a device that cannot deliver the sample rate, channel count or sample
format fails instead of being silently converted. Overruns and suspends are
recovered in place, which keeps a long capture running across a machine sleep.
Streams use Audio Queue Services, which runs its own thread and converts between
the requested format and the hardware format, so any sample rate and sample
format this library can describe works. AudioDevice.id is the Core Audio
device UID, which is what pins a queue to a specific device.
audio-io-kmp/ the library
src/commonMain public API, PCM conversions, ring buffer
src/jvmMain javax.sound.sampled backend
src/androidMain AudioRecord / AudioTrack backend
src/nativeMain shared native code: frame ring, signals, streams
src/posixNativeMain mutex/condition signal for macOS and Linux
src/macosMain Core Audio backend
src/linuxMain ALSA backend
src/mingwMain WASAPI backend
src/androidNativeMain AAudio backend
src/webMain Web Audio backend (shared by both web targets)
src/jsMain / src/wasmJsMain the audioIo_* interop declarations
src/webMain/resources audio-io-kmp-web.js, the Web Audio glue
src/nativeInterop/cinterop cinterop definitions (ALSA, WASAPI, AAudio)
examples/audio-visualizer/ Dear ImGui + ImPlot spectrum visualizer
src/wasmJsMain the same visualizer as a Kotlin/Wasm page
The native targets compile src/nativeMain plus the directory of their OS
family, and each family provides the platform specific pieces such as the
backend itself and its wake-up signal.

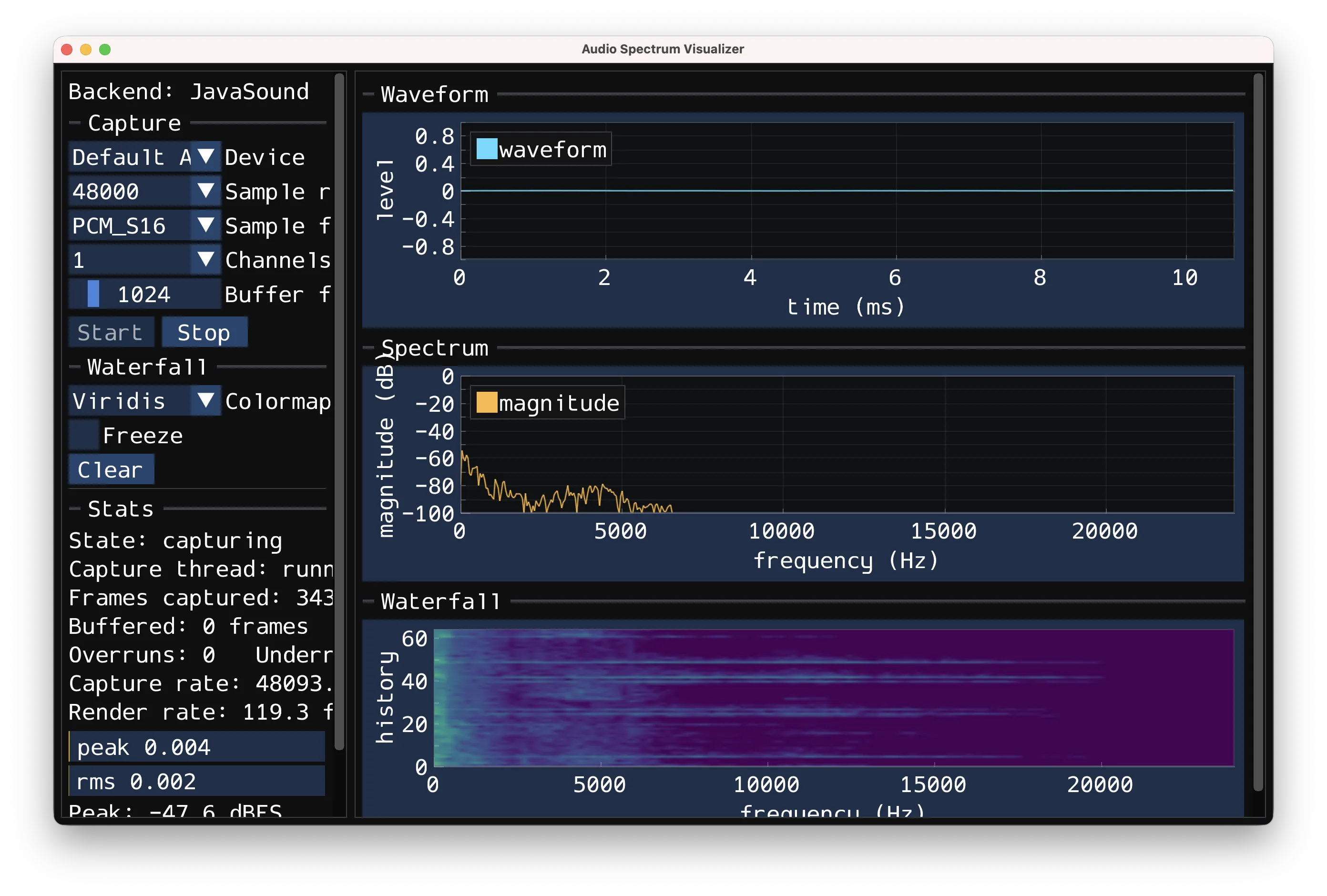

examples/audio-visualizer captures from the default input and draws a
waveform, a live spectrum and a waterfall spectrogram with Dear ImGui and
ImPlot, with device/format selection, an adjustable analysis window, level
meters, and recording of the captured audio for playback:
./gradlew :examples:audio-visualizer:jvmRun # JVM desktop
./gradlew :examples:audio-visualizer:runDebugExecutableMacosArm64
./gradlew :examples:audio-visualizer:android:assembleRelease # Android APK
adb install -r examples/audio-visualizer/android/build/outputs/apk/release/android-release.apkUse the release APK on a device: a debug build links an unoptimized Kotlin/Native binary (46 MB against 12 MB for arm64), which renders a frame in the hundreds of milliseconds. The release build type is signed with the debug key, so it installs without a keystore.
The Android application module hosts the SDL activity and packages the
libmain.so that the example module links for every ABI (arm64-v8a,
armeabi-v7a, x86_64, x86). The activity is locked to landscape, runs immersive,
and asks for RECORD_AUDIO before the native side opens the AAudio capture
stream; it also forwards the display density so the interface is scaled for the
screen instead of using desktop sized text.
The interface fills the whole window: the main ImGui window is re-sized to the ImGui viewport every frame and drawn without decoration, so the layout follows the SDL window on every resize.
The draw data is handed to imgui-kmp's SDL renderer backend, which copies only the vertices each draw command references.
The analysis window is selectable from 256 to 16384 frames. It is the FFT
length, the span of the waveform and the time the level meters average over;
changing it rebuilds that state only, so a running capture keeps going. The
record button keeps up to 30 seconds of the captured audio in memory (bounded
to 16 MiB of float samples) and the play button plays it back through the
default output in the format it was recorded with. write returns once the
frames are queued, so the playback waits one device buffer before it releases
the stream and the last frames are still heard.
The waterfall is drawn as a 128 x 64 texture rather than as an ImPlot heatmap. A heatmap cell costs four vertices in the render backend, which for a spectrogram of a reasonable size dominates the frame time; the same data as a texture is two triangles, and the values are turned into colors through a lookup table sampled from the selected ImPlot colormap. That is what keeps the example at display refresh rate.
Pass --frames N (JVM) or set AUDIO_VISUALIZER_FRAMES=N (native) to exit
after a fixed number of frames, which is what the CI runs use; the run prints
the frame rate it reached. Without a capture device the window still opens and
shows the error instead of failing.
./gradlew :audio-io-kmp:jvmTest # core + JavaSound backend tests
./gradlew :audio-io-kmp:macosArm64Test # the same tests on the native target
./gradlew :audio-io-kmp:compileKotlinLinuxX64 # cross compile a target klibEvery native target except the Apple ones is cross-compiled from any host: the
WASAPI bindings use the MinGW headers that Kotlin/Native ships, and AAudio and
ALSA are resolved with dlopen, so no Android NDK or ALSA development package
is needed to produce the klibs.
The Android target needs an Android SDK (local.properties with sdk.dir, or
ANDROID_HOME).
.github/workflows/publish.yml publishes to Maven Central, and
.github/workflows/test.yml builds and tests every platform. Both are started
manually from the Actions tab.
MIT
The visualizer also runs in the browser: the very same commonMain interface
(Dear ImGui + ImPlot) is compiled to Kotlin/Wasm, SDL3 renders the canvas and
the audio streams come from the Web Audio backend of this library.
./gradlew :examples:audio-visualizer:wasmJsBrowserDistribution
python3 -m http.server 8080 -d examples/audio-visualizer/build/dist/wasmJs/productionExecutable
# open http://localhost:8080The distribution already contains the Emscripten runtimes (SDL3 and Dear ImGui,
copied from their npm packages by the build) and the Web Audio glue, so the
directory is the whole page. Serve it over http://localhost or HTTPS: the
microphone is only available in a secure context, and the browser asks for
permission on the first Start.
The browser has no threads, so the example switches the capture to a polling path (the frame loop drains the stream, the Web Audio backend never blocks) and the playback to a pump driven by the same loop. Everything else — the plots, the controls, the recording, the statistics — is the desktop code.
Kotlin Multiplatform audio I/O library. It captures and plays back linear PCM with a precisely configurable sample rate, channel count and sample format, and reads or writes exactly as many frames, samples or bytes as the caller asks for.
The public API only knows about PCM streams and devices; each platform is implemented on top of its own native audio API behind that API.
| Platform | Kotlin target | Backend |
|---|---|---|
| JVM desktop | jvm |
javax.sound.sampled |
| Android (JVM) | android |
AudioRecord / AudioTrack
|
| Android Native |
androidNativeArm64 / Arm32 / X64 / X86
|
AAudio |
| Windows | mingwX64 |
WASAPI |
| Linux x86_64 | linuxX64 |
ALSA |
| Linux ARM64 | linuxArm64 |
ALSA |
| macOS ARM64 | macosArm64 |
Core Audio (Audio Queue) |
| macOS x86_64 | macosX64 |
Core Audio (Audio Queue) |
| Browser (Wasm) | wasmJs |
Web Audio |
| Browser (JS) | js |
Web Audio |
Audio is always interleaved, little-endian PCM. Raw streams only: container formats (WAV, MP3, ...) and codecs are out of scope.
The browser backends run on the Web Audio API and share one implementation:
the Kotlin side only declares the audioIo_* functions, the audio graph and
its ring buffers live in a small JavaScript glue that the page loads before the
module starts.
<script src="audio-io-kmp-web.js"></script>
<script src="my-app.js"></script>The glue is published as the @enaium/audio-io-kmp npm package (its source
lives in audio-io-kmp/src/webMain/resources), so a web app installs it like
any other dependency and loads it first:
npm i @enaium/audio-io-kmp<script src="node_modules/@enaium/audio-io-kmp/audio-io-kmp-web.js"></script>or import "@enaium/audio-io-kmp" from the page's module. Without it the audioIo_* globals do not exist and the browser backend fails on the first
call.
The page drives the clock, so the browser streams cannot block the thread that
created them: read returns whatever the capture callback buffered (0 when
nothing arrived yet) and write accepts what the playback ring has room for.
Poll them from your render loop or animation frame; read only returns -1
once the stream was stopped. Both directions buffer a second of audio, so a
frame that takes longer than a few milliseconds — a slow canvas, a tab that was
just shown again — neither drops captured frames nor starves the playback. The sample rate has to match the AudioContext
rate — a browser that cannot create the context at the requested rate makes
openInput / openOutput throw. Capture starts from a user gesture (the
browser's autoplay and permission rules), which the example does with its
Start button.
commonMain.dependencies {
implementation("cn.enaium.audio:audio-io-kmp:1.1.0")
}import cn.enaium.audio.*
fun main() {
val system = audioSystem()
try {
println(system.name) // "Core Audio", "WASAPI", ...
println(system.inputDevices()) // every capture endpoint
val format = AudioFormat(48000, 1, SampleFormat.PCM_S16)
val input = system.openInput(format, bufferFrames = 960) // 20 ms
try {
input.start()
val buffer = AudioBuffer(input.format, input.bufferFrames)
while (true) {
val frames = input.read(buffer) // blocks until audio arrives
if (frames < 0) break // stopped or closed
process(buffer.shorts()) // exactly `buffer.sampleCount` samples
}
} finally {
input.close()
}
} finally {
system.close()
}
}Playback works the same way through system.openOutput(...) and
output.write(buffer).
AudioBuffer never hides how much data is there. Every accessor takes a count
and clamps it to the valid region, so a partially filled capture buffer yields
fewer samples instead of zeros or an exception:
val frames = input.read(buffer)
val firstBytes = buffer.bytes(64) // exactly 64 bytes, or fewer at the end
val samples = buffer.shorts(4096) // exactly 4096 samples, interleaved
val left = buffer.floats(2048) // converted to -1.0 .. 1.0
buffer.bytes() // the whole valid region
buffer.toShorts(destination) // conversion without allocating| Type | Purpose |
|---|---|
AudioFormat |
sample rate, channel count, SampleFormat; frame/byte/duration math |
SampleFormat |
PCM_U8, PCM_S16, PCM_S24, PCM_S32, PCM_F32, PCM_F64
|
AudioBuffer |
PCM chunk with its valid frame count and exact-count conversions |
AudioDevice |
one endpoint: backend id, label, direction, default flag |
AudioSystem |
device enumeration and stream creation for one backend |
AudioInput |
capture stream: blocking read, readNonBlocking, available
|
AudioOutput |
playback stream: blocking write, writeNonBlocking, available
|
AudioRingBuffer |
single-producer/single-consumer ring for capture -> processing pipelines |
AudioException |
every failure that came back from the platform audio API |
audioSystem() returns the backend of the current platform. Several systems can
coexist, and the caller owns and closes each one.
open -> OPEN, start -> STARTED, stop -> STOPPED, close -> CLOSED
read and write block. stop() and close() from another thread release the
blocked call, which then returns -1, so a capture loop ends without needing an
extra flag. readNonBlocking/writeNonBlocking never block and report 0 when
there is no room or no data.
AudioRingBuffer is the piece to put between the capture thread and a
processing or playback thread:
val ring = AudioRingBuffer(format, capacityFrames = 48000) // one second
// capture thread
ring.write(buffer)
// processing thread
val frames = ring.read(destination, 960)It is not thread safe by itself: exactly one thread may write and one may read, which is what makes it allocation free.
Every Mixer the JDK reports becomes a device. Capture uses TargetDataLine,
playback SourceDataLine, both in blocking mode. JavaSound does not convert
between formats: a mixer that does not advertise the requested format fails
with an AudioException naming the mixer and the format.
AudioRecord/AudioTrack take the requested format when the device supports
it (PCM_U8, PCM_S16, PCM_F32, and PCM_S32 from API 31 on), otherwise
the call fails with an AudioException naming the format. The application has
to hold RECORD_AUDIO itself; a missing permission surfaces as an
AudioException that says so. Device enumeration needs an application
Context:
val system = audioSystem(context) // full AudioManager enumeration
val system = audioSystem() // default input/output onlyAAudio is available from Android 8.0 (API 26). The backend loads libaaudio.so
at runtime, so a binary that links this library still starts on older devices
and reports the missing API instead. AAudio has no device enumeration: one
default endpoint per direction is reported, and a numeric platform device id can
be passed through AudioDevice.id to pin a stream to a specific device.
Every shared object that links this library is built for 16 KB memory pages
(-Wl,-z,max-page-size=16384 -Wl,-z,common-page-size=16384), which Android 15
and newer require on arm64 devices.
Streams run in shared mode. The requested format is tried first; when the audio
engine cannot take it, the client is opened again with
AUDCLNT_STREAMFLAGS_AUTOCONVERTPCM so the engine performs the sample rate and
format conversion. Devices come from IMMDeviceEnumerator and the
AudioDevice.id is the endpoint id string.
libasound.so.2 is loaded at runtime, so nothing has to be installed to link
against the library; the runtime package that every Linux installation has is
enough. Devices come from ALSA's name hints, so default, sysdefault and
hw:CARD,DEV all work as AudioDevice.id. The format is applied exactly as
requested: a device that cannot deliver the sample rate, channel count or sample
format fails instead of being silently converted. Overruns and suspends are
recovered in place, which keeps a long capture running across a machine sleep.
Streams use Audio Queue Services, which runs its own thread and converts between
the requested format and the hardware format, so any sample rate and sample
format this library can describe works. AudioDevice.id is the Core Audio
device UID, which is what pins a queue to a specific device.
audio-io-kmp/ the library
src/commonMain public API, PCM conversions, ring buffer
src/jvmMain javax.sound.sampled backend
src/androidMain AudioRecord / AudioTrack backend
src/nativeMain shared native code: frame ring, signals, streams
src/posixNativeMain mutex/condition signal for macOS and Linux
src/macosMain Core Audio backend
src/linuxMain ALSA backend
src/mingwMain WASAPI backend
src/androidNativeMain AAudio backend
src/webMain Web Audio backend (shared by both web targets)
src/jsMain / src/wasmJsMain the audioIo_* interop declarations
src/webMain/resources audio-io-kmp-web.js, the Web Audio glue
src/nativeInterop/cinterop cinterop definitions (ALSA, WASAPI, AAudio)
examples/audio-visualizer/ Dear ImGui + ImPlot spectrum visualizer
src/wasmJsMain the same visualizer as a Kotlin/Wasm page
The native targets compile src/nativeMain plus the directory of their OS
family, and each family provides the platform specific pieces such as the
backend itself and its wake-up signal.
examples/audio-visualizer captures from the default input and draws a
waveform, a live spectrum and a waterfall spectrogram with Dear ImGui and
ImPlot, with device/format selection, an adjustable analysis window, level
meters, and recording of the captured audio for playback:
./gradlew :examples:audio-visualizer:jvmRun # JVM desktop
./gradlew :examples:audio-visualizer:runDebugExecutableMacosArm64
./gradlew :examples:audio-visualizer:android:assembleRelease # Android APK
adb install -r examples/audio-visualizer/android/build/outputs/apk/release/android-release.apkUse the release APK on a device: a debug build links an unoptimized Kotlin/Native binary (46 MB against 12 MB for arm64), which renders a frame in the hundreds of milliseconds. The release build type is signed with the debug key, so it installs without a keystore.
The Android application module hosts the SDL activity and packages the
libmain.so that the example module links for every ABI (arm64-v8a,
armeabi-v7a, x86_64, x86). The activity is locked to landscape, runs immersive,
and asks for RECORD_AUDIO before the native side opens the AAudio capture
stream; it also forwards the display density so the interface is scaled for the
screen instead of using desktop sized text.
The interface fills the whole window: the main ImGui window is re-sized to the ImGui viewport every frame and drawn without decoration, so the layout follows the SDL window on every resize.
The draw data is handed to imgui-kmp's SDL renderer backend, which copies only the vertices each draw command references.
The analysis window is selectable from 256 to 16384 frames. It is the FFT
length, the span of the waveform and the time the level meters average over;
changing it rebuilds that state only, so a running capture keeps going. The
record button keeps up to 30 seconds of the captured audio in memory (bounded
to 16 MiB of float samples) and the play button plays it back through the
default output in the format it was recorded with. write returns once the
frames are queued, so the playback waits one device buffer before it releases
the stream and the last frames are still heard.
The waterfall is drawn as a 128 x 64 texture rather than as an ImPlot heatmap. A heatmap cell costs four vertices in the render backend, which for a spectrogram of a reasonable size dominates the frame time; the same data as a texture is two triangles, and the values are turned into colors through a lookup table sampled from the selected ImPlot colormap. That is what keeps the example at display refresh rate.
Pass --frames N (JVM) or set AUDIO_VISUALIZER_FRAMES=N (native) to exit
after a fixed number of frames, which is what the CI runs use; the run prints
the frame rate it reached. Without a capture device the window still opens and
shows the error instead of failing.
./gradlew :audio-io-kmp:jvmTest # core + JavaSound backend tests
./gradlew :audio-io-kmp:macosArm64Test # the same tests on the native target
./gradlew :audio-io-kmp:compileKotlinLinuxX64 # cross compile a target klibEvery native target except the Apple ones is cross-compiled from any host: the
WASAPI bindings use the MinGW headers that Kotlin/Native ships, and AAudio and
ALSA are resolved with dlopen, so no Android NDK or ALSA development package
is needed to produce the klibs.
The Android target needs an Android SDK (local.properties with sdk.dir, or
ANDROID_HOME).
.github/workflows/publish.yml publishes to Maven Central, and
.github/workflows/test.yml builds and tests every platform. Both are started
manually from the Actions tab.
MIT
The visualizer also runs in the browser: the very same commonMain interface
(Dear ImGui + ImPlot) is compiled to Kotlin/Wasm, SDL3 renders the canvas and
the audio streams come from the Web Audio backend of this library.
./gradlew :examples:audio-visualizer:wasmJsBrowserDistribution
python3 -m http.server 8080 -d examples/audio-visualizer/build/dist/wasmJs/productionExecutable
# open http://localhost:8080The distribution already contains the Emscripten runtimes (SDL3 and Dear ImGui,
copied from their npm packages by the build) and the Web Audio glue, so the
directory is the whole page. Serve it over http://localhost or HTTPS: the
microphone is only available in a secure context, and the browser asks for
permission on the first Start.
The browser has no threads, so the example switches the capture to a polling path (the frame loop drains the stream, the Web Audio backend never blocks) and the playback to a pump driven by the same loop. Everything else — the plots, the controls, the recording, the statistics — is the desktop code.
