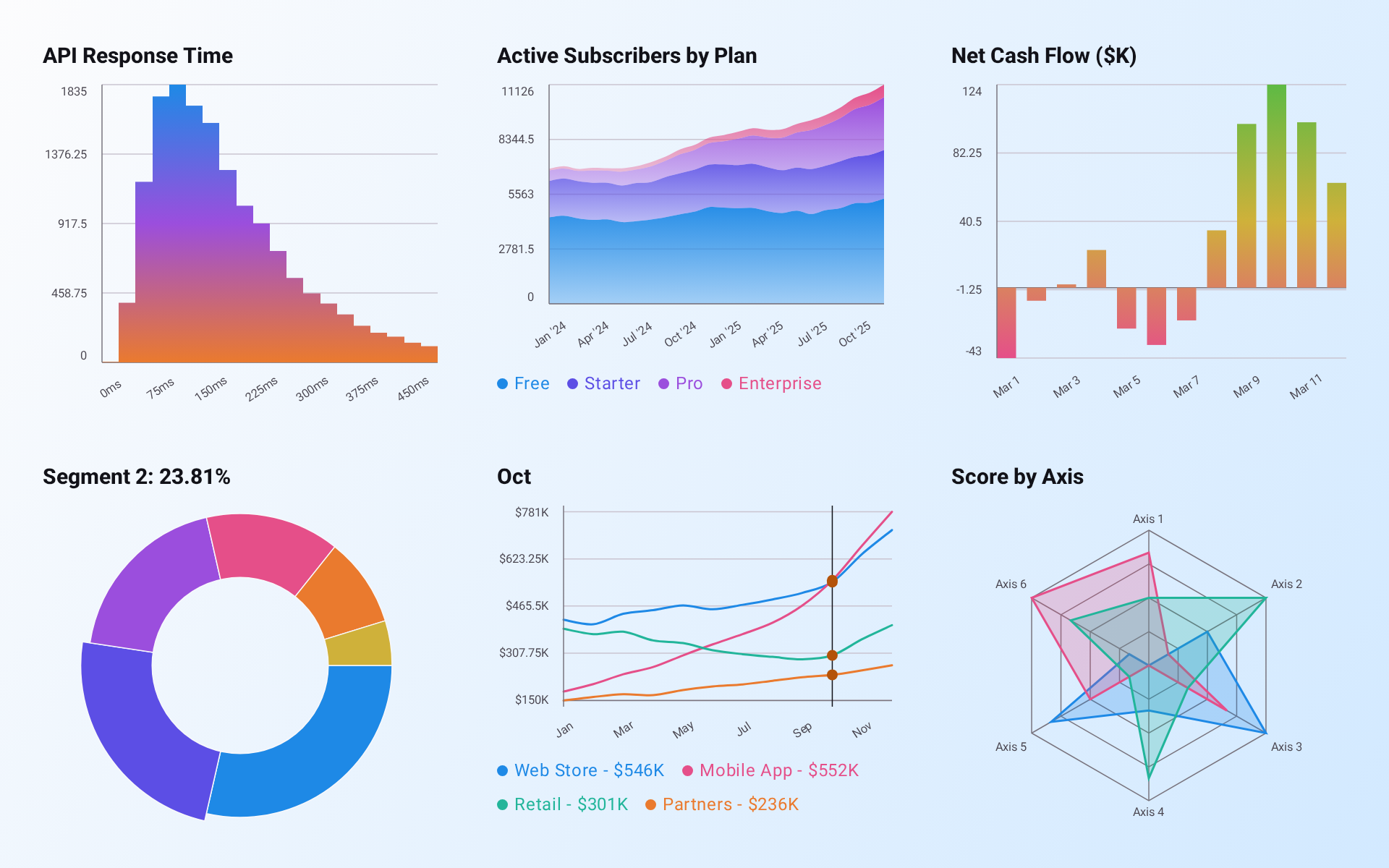

A Kotlin Multiplatform chart library built with Compose Multiplatform.

📚 Documentation

https://charts.hdcode.dev/

🟢 Interactive Demo

https://charts.hdcode.dev/demo/snapshot/

🏀 Playground

https://charts.hdcode.dev/playground

Get Started

This README covers HDCharts 3.x. Replace <version> with the 3.x version you use.

dependencyResolutionManagement {
    repositories {
        mavenCentral()
    }
}

All chart types

Use the umbrella artifact when you want all chart types with the simplest setup.

commonMain.dependencies {
    implementation("io.github.hdcharts:charts:<version>")
}

Individual chart modules

Use independent modules when you want only specific chart types and smaller dependency footprint.

commonMain.dependencies {
    implementation("io.github.hdcharts:line:<version>")
    implementation("io.github.hdcharts:pie:<version>")
    implementation("io.github.hdcharts:bar:<version>")
    implementation("io.github.hdcharts:histogram:<version>")
    implementation("io.github.hdcharts:stacked-bar:<version>")
    implementation("io.github.hdcharts:stacked-area:<version>")
    implementation("io.github.hdcharts:radar:<version>")
    implementation("io.github.hdcharts:gauge:<version>")
}

BOM

Use BOM for version alignment where Gradle platforms are supported. For KMP commonMain, keep explicit versions as shown above.

dependencies {
    implementation(platform("io.github.hdcharts:bom:<version>"))
    implementation("io.github.hdcharts:line")
    implementation("io.github.hdcharts:pie")
    implementation("io.github.hdcharts:bar")
    implementation("io.github.hdcharts:histogram")
    implementation("io.github.hdcharts:stacked-bar")
    implementation("io.github.hdcharts:stacked-area")
    implementation("io.github.hdcharts:radar")
    implementation("io.github.hdcharts:gauge")
}

Example

Show subscriber counts by plan and their combined total with StackedAreaChart.

import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import io.github.hdcharts.core.model.toChartData
import io.github.hdcharts.stackedarea.StackedAreaChart

@Composable
fun SubscribersByPlanChart() {
    val months = listOf("Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec")
    val dataSet = listOf(
        "Free Plan" to listOf(
            206.0, 233.0, 255.0, 260.0, 300.0, 351.0, 353.0,
            362.0, 398.0, 429.0, 484.0, 521.0, 503.0, 526.0,
            579.0, 601.0, 622.0, 642.0, 655.0, 698.0, 741.0,
        ),
        "Standard Plan" to listOf(
            70.0, 102.0, 139.0, 170.0, 207.0, 201.0, 197.0,
            260.0, 298.0, 298.0, 321.0, 336.0, 372.0, 446.0,
            454.0, 436.0, 471.0, 503.0, 529.0, 561.0, 571.0,
        ),
        "Premium Plan" to listOf(
            42.0, 104.0, 189.0, 254.0, 285.0, 353.0, 432.0,
            489.0, 555.0, 479.0, 397.0, 381.0, 409.0, 375.0,
            360.0, 348.0, 335.0, 345.0, 329.0, 293.0, 288.0,
        ),
    ).toChartData(categories = List(21) { months[it % months.size] })

    StackedAreaChart(
        data = dataSet,
        title = "Monthly Active Subscribers by Plan",
        modifier = Modifier
            .fillMaxWidth()
            .height(260.dp),
    )
}

Unless defined locally, dataSet refers to the data from the first example.

Chart API

Sizing

Use the chart composable's modifier to set its size within the parent's constraints. The plot fills the available bounded space after the heading, legend, and content padding. With one unbounded axis, the plot derives a square from the bounded axis; with both axes unbounded, the plot uses a 200.dp fallback. Parent constraints still apply.

LineChart(
    data = dataSet,
    modifier = Modifier
        .fillMaxWidth()
        .height(260.dp),
)

Surrounding chrome

Background, shadow, shape, and outer spacing are not applied by the chart. Wrap the chart in any Compose surface to add chrome.

Card(modifier = Modifier.padding(16.dp)) {
    LineChart(
        data = dataSet,
        modifier = Modifier.fillMaxWidth().height(260.dp),
    )
}

Content spacing

ChartContainerDefaults.style() returns a ChartContainerStyle with styleTitle, styleSubtitle, and contentPadding. Set contentPadding to change the internal spacing for the heading, axes, legend, and plot.

LineChart(
    data = dataSet,
    modifier = Modifier.fillMaxWidth().height(260.dp),
    style = LineChartDefaults.style(
        chartContainerStyle = ChartContainerDefaults.style(contentPadding = 8.dp),
    ),
)

Titles and subtitles

Pass title and subtitle directly to the chart. A subtitle stays visible during selection; a null or blank subtitle reserves no space.

LineChart(
    data = dataSet,
    title = "Monthly Active Subscribers by Plan",
    subtitle = "Monthly totals · All plans",
    modifier = Modifier.fillMaxWidth().height(260.dp),
)

Style per chart

Each chart module exposes its own *Defaults.style() factory. Use named arguments to customize only the parts you need. This example sets the line, points, and axis labels; other settings keep their defaults. Zoom controls appear when a dense chart is expanded to its scrollable view.

LineChart(
    data = dataSet,
    title = "Monthly Active Subscribers by Plan",
    modifier = Modifier.fillMaxWidth().height(260.dp),
    style = LineChartDefaults.style(
        line = LineChartDefaults.line(
            color = Color(0xFF1E88E5),
            strokeWidth = 2.dp,
            bezier = true,
        ),
        points = LineChartDefaults.points(color = Color(0xFF1E88E5), size = 4.dp, visible = true),
        axes = AxesDefaults.style(
            lines = AxisLinesDefaults.style(color = Color.Gray, lineWidth = 1.dp),
            yLabels = AxisLabelDefaults.style(color = Color.Gray, size = 12.sp, maxCount = 5),
            xLabels = AxisLabelDefaults.style(color = Color.Gray, size = 12.sp, maxCount = 7),
        ),
        zoomControlsVisible = true,
    ),
)

Gradients

Use ChartGradients.horizontal() with GradientSpan.Plot to spread one gradient across the whole bar chart: blue on the left, purple in the middle, and orange on the right.

import androidx.compose.ui.graphics.Color
import io.github.hdcharts.bar.BarChart
import io.github.hdcharts.core.style.BarChartDefaults
import io.github.hdcharts.core.style.ChartGradients
import io.github.hdcharts.core.style.GradientSpan

val values = listOf(
    83.0, 89.0, 87.0, 115.0, 146.0, 135.0, 133.0,
    139.0, 145.0, 182.0, 195.0, 169.0, 188.0, 224.0,
    234.0, 246.0, 242.0, 232.0, 259.0, 280.0, 279.0,
)
val months = listOf("Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec")
val barData = values.toChartData(
    categories = List(values.size) { months[it % months.size] },
    seriesName = "Daily Net Cash Flow",
)

BarChart(
    data = barData,
    title = "Daily Net Cash Flow",
    modifier = Modifier.fillMaxWidth().height(260.dp),
    style = BarChartDefaults.style(
        bars = BarChartDefaults.bars(
            gradient = ChartGradients.horizontal(
                colors = listOf(Color(0xFF1E89E6), Color(0xFF9B4EDD), Color(0xFFEA7A2E)),
                span = GradientSpan.Plot,
            ),
        ),
    ),
)

See Gradients for per-shape gradients, fades, and other supported chart types.

Fixed Y-axis range

By default the Y-axis is derived from the data, which can make small fluctuations look exaggerated when the axis doesn't start at zero. Set range on *Defaults.style() to pin min, max, or both, independently of one another; whichever bound you leave null keeps deriving from the data.

LineChart(
    data = dataSet,
    modifier = Modifier.fillMaxWidth().height(260.dp),
    style = LineChartDefaults.style(
        range = LineChartDefaults.range(min = 0.0, max = 800.0),
    ),
)

BarChart exposes the same range block on BarChartDefaults.style(); its automatic range includes zero. Fixed bounds must be finite. If both are set and min >= max, the chart uses its automatic range.

Selection

Use rememberChartSelection() to hoist selection. The chart calls back into it; you read selectedIndex to drive external UI such as legends or summary cards. It is null when nothing is selected and refers to the original data index, including in compact mode.

val selection = rememberChartSelection()
val values = listOf(42.0, 38.0, 45.0, 51.0, 47.0, 54.0, 49.0)

LineChart(
    data = values.toChartData(),
    modifier = Modifier.fillMaxWidth().height(260.dp),
    selection = selection,
)

val selected = selection.selectedIndex?.let { values.getOrNull(it) }
Text(selected?.let { "Selected: $it" } ?: "Select a point")

Responsive layout

Compose the chart with any layout, including Row, Column, LazyColumn, or BoxWithConstraints. Set a height for each chart in a vertical layout so both have room to render.

Column(modifier = Modifier.fillMaxSize().padding(16.dp)) {
    LineChart(
        data = dataSet,
        modifier = Modifier.fillMaxWidth().height(220.dp),
    )
    Spacer(modifier = Modifier.height(16.dp))
    BarChart(
        data = dataSet.series.first().values.toChartData(categories = dataSet.categories),
        modifier = Modifier.fillMaxWidth().height(220.dp),
    )
}

Animation and interaction

animateOnStart controls the initial reveal animation. interactionEnabled = false disables user gestures, selection input, and chart controls; programmatic selection still renders. Use it to embed a chart inside a tappable card.

LineChart morphs between data updates with the same point and series counts. For a sliding window that drops old points and appends new ones, use LiveLineChart. It is display-only and exposes no selection or gesture controls.

LineChart(
    data = dataSet,
    modifier = Modifier.fillMaxWidth().height(260.dp),
    animateOnStart = true,
    interactionEnabled = false,
)

Contributing

See CONTRIBUTING.md for contribution guidelines.
