A PDF document builder for Compose Multiplatform apps. A small, Compose-style DSL for laying out multi-page PDFs — text, shapes, lines, and images — with selectable text and real vector output. Apache PDFBox under the hood; produces standards-compliant PDFs.

Generating a PDF from a CMP / Kotlin Desktop app today means one of three painful paths:

ComposePDF wraps PDFBox in a small Compose-style scope DSL — pdfDocument { page { ... } } — with top-down coordinates, Color from compose.ui, and an API surface that maps cleanly onto how you already think about layout. Real vector output. Text is selectable. Tiny files.

dependencies {
    implementation("io.github.nadeemiqbal:compose-pdf:0.1.0")
}

val pdf: ByteArray = pdfDocument {
    page {
        text("Invoice #2026-0042", x = 50f, y = 50f, fontSize = 24f, bold = true)
        line(50f, 75f, 545f, 75f)
        text("Total: $1,234.56", x = 50f, y = 110f, fontSize = 14f)
    }
}
File("invoice.pdf").writeBytes(pdf)

That's it. Open invoice.pdf in any viewer — text is selectable, vectors are crisp at any zoom level, file is ~1.5 KB.

val pdf = pdfDocument(defaultPageSize = PdfPageSize.A4) {
    page { /* defaults to A4 portrait */ }
    page(size = PdfPageSize.Letter) { /* override per page */ }
    page(size = PdfPageSize.A4.landscape()) { /* rotated */ }
}

Predefined: A3, A4, A5, Letter, Legal, Tabloid. For custom: PdfPageSize.mm(210f, 297f) or PdfPageSize.inches(8.5f, 11f).

Inside a page { ... } you get a PdfPageScope with these primitives:

page {
    // Text — (x, y) is the baseline of the first glyph
    text("Hello", x = 50f, y = 50f, fontSize = 14f, color = Color.Black, bold = false)

    // Filled / stroked rectangle (pass null to either to skip that pass)
    rect(50f, 100f, width = 200f, height = 80f, fillColor = Color(0xFFE3F2FD))
    rect(50f, 200f, width = 200f, height = 80f, strokeColor = Color.Black, strokeWidth = 2f)

    // Single line
    line(50f, 320f, 545f, 320f, color = Color.Red, strokeWidth = 1f)

    // Embedded image (ImageBitmap → PDImageXObject)
    image(bitmap, x = 50f, y = 360f, width = 200f, height = 200f)
}

Coordinates: origin is top-left, y increases downward — matching how you already think about Compose layout. The library handles the PDFBox bottom-up flip internally.

page(size = PdfPageSize.A4) {
    text("Tickets shipped per month", x = 40f, y = 60f, fontSize = 18f, bold = true)

    val data = listOf("Jan" to 18, "Feb" to 22, "Mar" to 31, "Apr" to 28, "May" to 35)
    val (chartL, chartT, chartH, barW, gap, maxV) =
        listOf(60f, 130f, 280f, 50f, 30f, 40)
    line(chartL, chartT + chartH, chartL + 480f, chartT + chartH, Color.Black)
    line(chartL, chartT, chartL, chartT + chartH, Color.Black)
    data.forEachIndexed { i, (label, value) ->
        val h = (value.toFloat() / maxV) * (chartH - 20f)
        val x = chartL + 10f + i * (barW + gap)
        rect(x, chartT + chartH - h, barW, h, fillColor = Color(0xFF1976D2))
        text(label, x + 12f, chartT + chartH + 18f, fontSize = 11f)
        text(value.toString(), x + 14f, chartT + chartH - h - 6f, fontSize = 10f, bold = true)
    }
}

No layout engine, no templating language — just direct vector commands. See sample/desktopApp for a fuller example (invoice + multi-page report + certificate).

./gradlew :sample:desktopApp:run

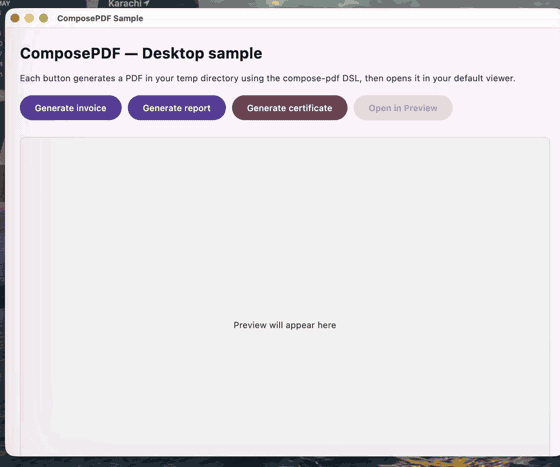

Three buttons: Generate invoice, Generate report, Generate certificate. Each generates a real PDF in your temp directory and opens it in your default viewer.

v0.1 targets Desktop / JVM only — it uses Apache PDFBox 3.0.5 under the hood (~5 MB, Apache 2.0). iOS / Web / Android are planned for v0.2 once Skiko's PDFDocument bindings stabilise in the public Kotlin API (they're not exposed as of Skiko 0.10).

Skia (and therefore Skiko) ships a SkPDFDocument backend that would let this library run on every CMP target — but the Kotlin bindings (org.jetbrains.skia.pdf.PDFDocument) are not in the public API as of Skiko 0.10. Rather than bundle a fork, v0.1 ships with a rock-solid JVM-native backend (PDFBox) and ports to iOS / Web / Android land in v0.2 once Skiko exposes the PDF API publicly. The DSL itself is in commonMain — only the actual implementation is platform-specific, so v0.2 will be a drop-in upgrade for existing call sites.

Apache 2.0 — see LICENSE.
