Spotlight onboarding tours for Compose Multiplatform — dim the screen, cut out a rounded spotlight around the UI element you want to introduce, and surface an explanatory tooltip with Back / Skip / Next controls. One module, every CMP target.

Every product app eventually needs a first-run tour. The pattern is well-known — dim the screen, spotlight one UI element, explain it, Next, repeat — but no notable CMP library ships it. Teams rebuild it from scratch each time, and the cutout/anchor/lifecycle math is annoying enough that the result usually feels half-baked. TutorialView is the polished primitive: declare your steps, mark your targets, call start().

gradle/libs.versions.toml:

[libraries]
tutorial-view = { module = "io.github.nadeemiqbal:tutorial-view", version = "0.2.0" }

commonMain dependencies:

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation(libs.tutorial.view)
        }
    }
}

Three pieces: mark targets, declare steps, host them.

val state = rememberTutorialState(
    steps = listOf(
        TutorialStep("compose", "Compose", "Tap here to write a new message"),
        TutorialStep("inbox",   "Inbox",   "Your messages live here"),
        TutorialStep("profile", "Profile", "Open your account and settings"),
    )
)

TutorialView(state = state) {
    Scaffold(...) {
        Button(onClick = { ... }, modifier = Modifier.tutorialTarget("compose")) { Text("Compose") }
        LazyColumn(Modifier.tutorialTarget("inbox")) { ... }
        Avatar(Modifier.tutorialTarget("profile"))
    }
}

// Start the tour whenever you like — e.g. on first run.
LaunchedEffect(Unit) { if (firstRun) state.start() }

Programmatic navigation

state.start()      // begin the tour at step 0
state.next()       // advance (or finish, on the last step)
state.previous()   // back one step
state.skip()       // dismiss without finishing
state.finish()     // explicitly end

state.isActive            // Boolean — overlay visible?
state.currentStepIndex    // Int
state.currentStep         // TutorialStep? (null when inactive)

Custom button labels (localization)

TutorialView(
    state = state,
    nextLabel = "Continue",
    finishLabel = "Got it",
    previousLabel = "Back",
    skipLabel = "Maybe later",
) { ... }

Per-step cutout shape

TutorialStep(
    targetKey = "fab",
    title = "Quick action",
    description = "Tap to add a new entry",
    cornerRadius = 32.dp,   // circle-ish cutout for the FAB
    padding = 12.dp,        // extra breathing room
)

Custom scrim colour

TutorialView(
    state = state,
    scrimColor = Color.Black.copy(alpha = 0.85f),
) { ... }

Pick or build a transition animation

// One of the curated presets — Default, Subtle, Bouncy, None.
TutorialView(state = state, animations = TutorialAnimations.Bouncy) { ... }

// Or tweak a preset in one line:
TutorialView(
    state = state,
    animations = TutorialAnimations.Default.copy(
        spotlightSpec = spring(dampingRatio = 0.4f, stiffness = 200f),
        pulseEnabled = false,
    ),
) { ... }

Targets safely no-op outside the tour

// Modifier.tutorialTarget is a no-op when no TutorialView is hosting the tree.
// Leave the keys on production UI; the runtime cost is zero outside a tour.
Button(Modifier.tutorialTarget("compose")) { ... }

• scrimColor — the dim wash. Use higher alpha for more focus, lower for a hint of the underlying UI.
• tooltipShape / tooltipMargin — visual chrome of the tooltip card.
• nextLabel / finishLabel / previousLabel / skipLabel — button text for i18n.
• onFinish callback — fires once when the tour ends (Done or Skip). Use it to persist "first-run done" so the tour doesn't replay.
• TutorialStep.cornerRadius / padding — per-step cutout shape; mix and match between steps.
• animations — transitions between steps + on start/dismiss. Pass TutorialAnimations.Default / Subtle / Bouncy / None, or build your own. See below.

TutorialView ships with four presets and a fully customizable TutorialAnimations config object.

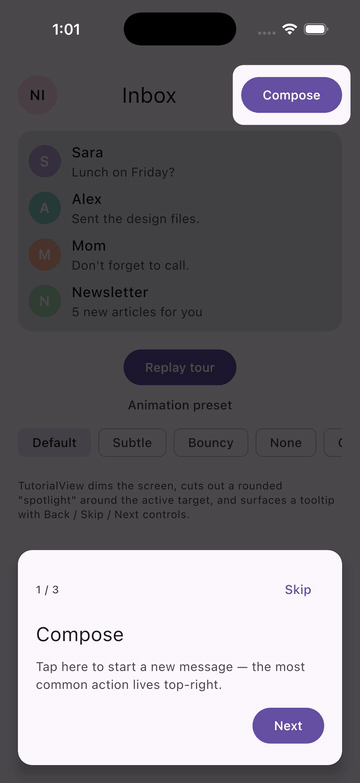

The clip above (iPhone 17 sim) cycles through every preset plus a custom override. Reproduce per-preset GIFs locally with ./scripts/record-animations.sh.

Every field on TutorialAnimations is a standard Compose animation type, so anything you'd write inline with fadeIn() + slideInVertically() slots straight in:

val mine = TutorialAnimations(
    overlayEnter = fadeIn(tween(220)),
    overlayExit = fadeOut(tween(180)),
    spotlightSpec = spring(dampingRatio = 0.5f, stiffness = 240f),
    tooltipForwardEnter = slideInHorizontally { it } + fadeIn(),
    tooltipForwardExit = slideOutHorizontally { -it } + fadeOut(),
    tooltipBackEnter = slideInHorizontally { -it } + fadeIn(),
    tooltipBackExit = slideOutHorizontally { it } + fadeOut(),
    pulseEnabled = true,
    pulseAmplitudeDp = 3.dp,
    pulseDurationMillis = 1200,
)

TutorialView(state = state, animations = mine) { ... }

For most cases, .copy() on a preset is the shortest path:

animations = TutorialAnimations.Default.copy(pulseEnabled = false)

The tooltip is anchored at the top or bottom of the screen, picked automatically so it stays clear of the highlighted element: target in the upper half of the screen → tooltip at the bottom, and vice-versa. There's no "speech bubble" pointer in v0.1.0 — the dim scrim + glowing cutout already direct attention to the target.

• Target bounds are tracked live via onGloballyPositioned. If your UI animates, the cutout follows — no manual updates needed.
• Targets are automatically unregistered when their composable leaves composition, so a stale tutorialTarget("foo") on a since-removed screen can't anchor the cutout in the wrong place.
• If the current step's target doesn't exist (yet), the scrim renders full-dim with no cutout and the tooltip still appears — the user can Next past it cleanly.

• Speech-bubble pointer from the tooltip to the target
• Built-in "show once" persistence helper (multiplatform storage)
• Per-step custom tooltip content slot (content: @Composable () -> Unit)
• Reduced-motion / accessibility flag that respects the OS setting per target

See CONTRIBUTING.md. Bug reports and feature requests are welcome via GitHub Issues.
