A liquid swipe pager for Compose Multiplatform (Android and iOS), in the style of Cuberto's liquid-swipe.

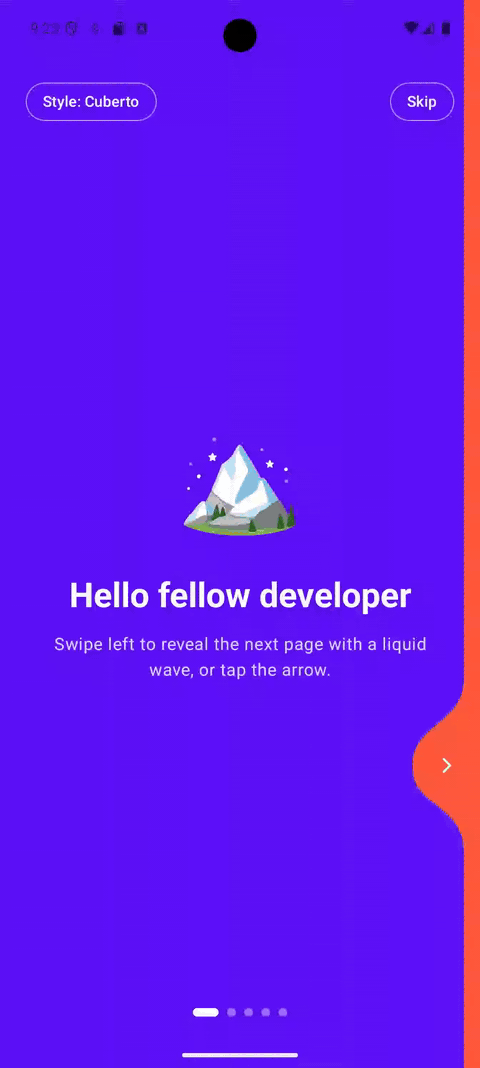

Swiping forward carves a wave into the current page through which the next page appears; swiping back pours the previous page in from the leading edge. Pages are clipped in place, never moved, so the effect works with any content.

• Pure Compose in common code: no Android views, no UIKit, no resources.
• Cuberto's look by default, with a "next" button on a resting bulge, or a Plain preset.
• Each frame only re-records the clip of one layer: no recomposition, no re-layout.
• Flings, chained swipes and programmatic navigation.
• Accessibility and right-to-left support.

// Compose Multiplatform
commonMain.dependencies {
    implementation("io.github.rauletsinf:liquidpage:0.1.0")
}

// Android only
dependencies {
    implementation("io.github.rauletsinf:liquidpage:0.1.0")
}

Compose is an api dependency, so your project resolves at least these versions; use the same Kotlin version or a newer one. On iOS the pager is used from Kotlin inside a ComposeUIViewController; there is no Swift API. Wave edges are anti-aliased on iOS and on modern Android (verified on Android 15); older hardware canvases may render them aliased.

import com.raupime.liquidpage.LiquidPager
import com.raupime.liquidpage.rememberLiquidPagerState

val state = rememberLiquidPagerState { pages.size }

LiquidPager(state = state, modifier = Modifier.fillMaxSize()) { page ->
    Box(Modifier.fillMaxSize().background(pages[page].color)) {
        Text(pages[page].title)
    }
}

Swipe or tap the chevron to move forward, swipe the other way to go back.

• Each page should fill the pager and draw its own background: the next page is rendered underneath and shows through the wave. Pages with transparent areas need pagesAreOpaque = false.
• The pager fills the space it is given; inside unbounded constraints, give it a size.
• Only the current page, its neighbours and the page being revealed are composed. Page state is kept with rememberSaveable; pass key if pages can be reordered.

A complete example is in LiquidOnboarding.kt.

rememberLiquidPagerState(initialPage = 0) { pageCount } survives configuration changes and process death.

Button(onClick = { scope.launch { state.animateToPage(state.currentPage + 1) } }) { Text("Next") }

progress and currentPageOffsetFraction change every frame: read them in a graphicsLayer or draw block (to drive a page indicator, for example) to avoid recomposing.

LiquidPager(
    state = state,
    waveSpec = LiquidWaveSpec.Default,                      // or LiquidWaveSpec.Plain, or a copy()
    animationSpec = tween(800, easing = LinearEasing),      // duration of a full transition
    userScrollEnabled = true,                               // false to drive it only from code
    pagesAreOpaque = true,
    snapPositionalThreshold = 1f / 3f,                      // fraction of the width that commits
    snapVelocityThreshold = 400.dp,                         // fling speed (per second) that commits
    key = { page -> pages[page].id },
    nextButton = { LiquidPagerDefaults.NextButton(state) }, // null hides it
) { page -> /* ... */ }

A half-revealed page takes half the tween duration to finish; springs work too.

val spec = LiquidWaveSpec.Default.copy(
    restHorizontalRadius = 40.dp,       // resting bulge size; 0.dp removes it (and the button)
    restWaveCenterFraction = 0.72f,     // vertical position of the bulge
    forwardDragFraction = 0.45f,        // progress reached by a full-width forward drag
    waveCenterFollowsPointer = true,    // the wave center chases the finger
    maxHorizontalRadiusFraction = 0.8f, // width of the forward wave
    backwardWaveAmplitude = 48.dp,      // wave used when swiping back
)

forwardDragFraction is the main "speed" knob: 0.45 keeps the wave tip under the finger, 1 completes the transition with a full-width drag. Every parameter is documented in the KDoc.

nextButton = { LiquidPagerDefaults.NextButton(state, tint = Color.Black) } // restyled
nextButton = { MyArrow() }                                                  // your own, ~48 dp
nextButton = null                                                           // none

It is shown only when there is a next page and the spec has a resting bulge.

LiquidWaveShape is a regular Shape, so the wave can clip any composable:

Box(Modifier.clip(LiquidWaveShape(progress = progress)))                  // forward wave
Box(Modifier.clip(LiquidWaveShape(progress = progress, backward = true))) // backward wave

LiquidWaveGeometry and Path.addLiquidWave expose the resolved geometry for custom drawing.

The wave geometry and choreography are ported from Cuberto's liquid-swipe and its Android port LiquidSwipe by Jem, both MIT licensed.

MIT © 2026 Raul Piqueras Melero
