A Kotlin Multiplatform media library for Compose — with a focus on animated, interactive, and runtime-editable vector SVG, plus image processing, animated GIFs, audio, video, an on-device compositor with GIF/MP4 export, and a motion & action-FX set, on Android and iOS.

Everything renders into native Compose primitives (Canvas/drawScope), so SVGs are live vectors you can animate, drag, layer, and edit at runtime — not rasterized bitmaps.

Basic "show an SVG on both platforms" is now a solved problem (Coil 3, Kamel, Landscapist, Compose Multiplatform resources). KMPMedia targets what those still don't do — full breakdown with versions + sources in docs/COMPARISON.md:

If all you need is a static SVG loaded from the network, a general image loader is the simpler choice. Reach for KMPMedia when you need media to move, respond, compose, or change at runtime.

_{Compared above against the two most-cited general options; the other KMP libraries are complementary and narrower — Kamel / Landscapist are image loaders (load + cache, static SVG, animated GIF), Compottie plays pre-authored Lottie / After-Effects animations (not runtime-authored media), Telephoto is a zoom/pan viewer. None provide the compositor + export, media-in-shape, runtime-editable vectors, FX or rig above. Verified 2026-10-11: Coil 3.6.3, Kamel 1.0.9, Landscapist 2.13.2, Compottie 2.3.3, Telephoto 0.19.0, Compose Multiplatform 1.12.1 — note Coil's animated GIF and video are Android-only. Full matrix + sources: docs/COMPARISON.md.}

KMPMedia is built to be generated correctly by AI coding assistants, not just written by hand:

• It speaks SVG — the one graphics format LLMs produce natively as text. An assistant can emit an <svg> (including the animated SMIL subset) or a URL, and KMPMedia renders and animates it live on both platforms.
• Declarative, consistent API — every entry point is OG…, and you describe what (a shape, an animation set, a cue at a timestamp, a depth) as data. Generated code compiles more often and hallucinates less surface.
• Agent-ready docs in the repo — a machine-readable llms.txt API index and an AI coding guide with prompt→snippet examples.
• Grounded in published research — it's small and dependency-free, but not ad-hoc: every procedural feature maps to a named algorithm/paper (centripetal Catmull-Rom, OKLab, simplex/fBm, fractal lightning, median-cut + Floyd–Steinberg + LZW, Douglas–Peucker, xorshift, …). See docs/ACADEMIC_FOUNDATIONS.md.
• Runtime prompt-driven editing — OGAiVector is a stable JSON wire format (a codec, not an AI SDK) for the library's vector primitives. It hands a model that contract and turns the reply, or a photo via a vision model (image → vector, v1.25.0), into a live polygon lasso, a multi-region scene cut-out, or an SVG node patch ("describe → shape / patch"); an optional centripetal-spline smoothing knob rounds a model's faceted points into a clean outline. No AI SDK or networking is pulled into the library, and it works with any model (or a segmentation network that emits vertices).
• Describe → a whole movie (v1.45.0) — the loop is closed in the library: OGStageAuthor turns a plain sentence into a playable OGStage movie, and OGOfflineStageAuthor does it with no model, no key and no network at all — it reads a description for mood / time-of-day / subject and assembles a real movie (day→night scene + atmosphere particles + an optional FX beat + a styled title) through the ordinary OGStages builders. That is the honest floor: the loop always works. Wire your own language model, cloud or fully on-device, into the same loop via OGStageModel / OGStageAuthoring.resilient(...) (bring your own key, the call stays in your app) for richer movies in the identical format. See docs/AI_AUTHORING.md.

Today that makes KMPMedia AI-generatable and AI-drivable at runtime, including a full serializable scene-spec (OGSceneSpec, shipped in v1.25.0) that now also carries gradient fills, texture, glow and scatter and its own motion (a day→night scene timeline, v1.38–v1.40). An MCP server (an LLM emits validated data, not Kotlin, and previews it before writing code) remains on the roadmap to make it fully AI-ready.

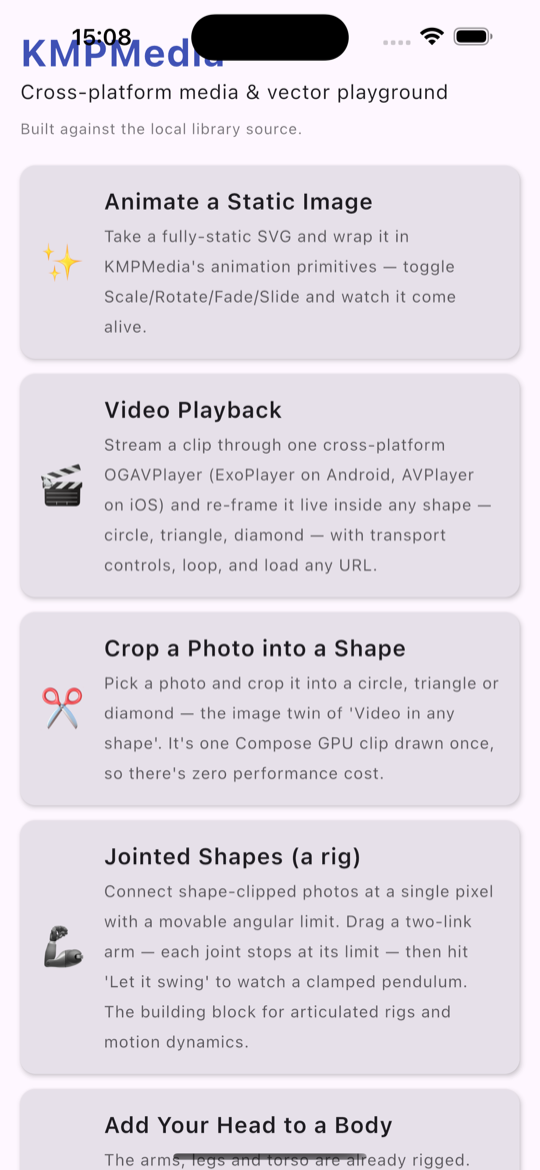

KMPMedia ships with a full Compose Multiplatform demo app (Android + iOS) built directly against this library's source, so every screen is real, readable library code you can lift into your own app. It's the fastest way to see what "animated, interactive, runtime-editable" actually looks like.

⏱️ A note on the GIFs' speed. GIF is a low-frame-rate, palette-limited format, and the shape/path morph clips here are additionally slowed (~2–3×) on purpose, so the shape-shift is easy to follow in a static browser — those morph captures are not the real speed. (The gameplay/feature clips play at real speed.) Running live, every screen animates at your display's refresh rate (~60fps) and is smooth, not steppy: each morph resamples its two endpoint outlines once (cached) and then only interpolates points per frame — no re-parse, no per-frame allocation. So the slowed morph captures read clear-and-slow on purpose; the actual app is fluid.

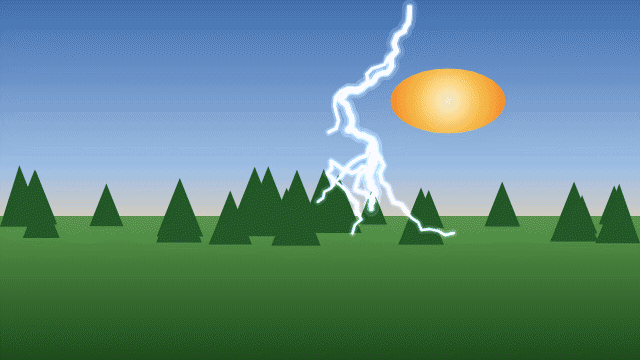

The capstone — one JSON → a whole movie, then exported — and a language model can write that JSON from one line. A single OGStage document stacks a day→night scene, drifting petals, a forked lightning bolt and styled vector-text titles on one timeline; one player plays it at 60fps and scrubs it, and it renders off-screen to a shareable GIF/MP4 on device — every layer kind baked in, identically on Android & iOS:

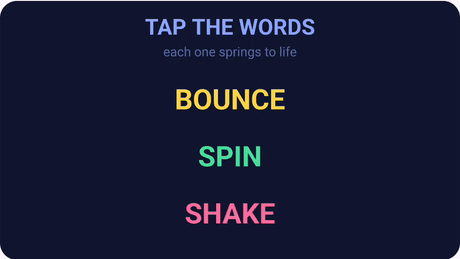

…and now you can poke it — a movie you watch becomes one you touch (v1.44.0):

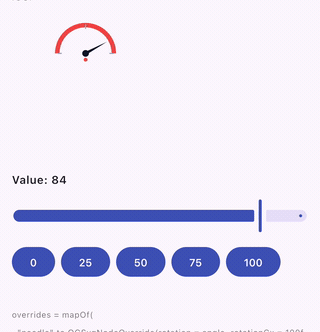

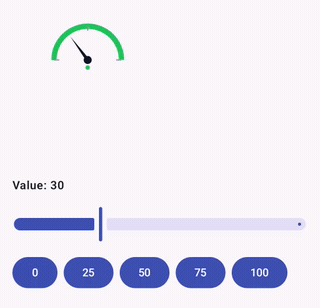

And the flagship runtime-editable SVG — one .svg parsed once, then any node changed by its id at runtime, bound to Compose state:

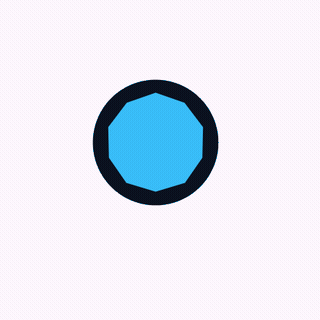

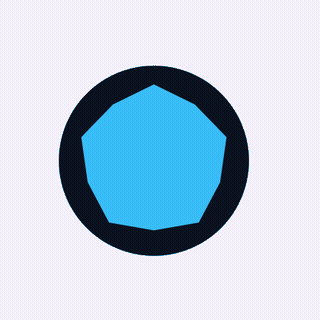

…and the same mechanism morphs a path between two shapes — set a <path>'s pathDataTo and drive morphProgress 0→1 from any Compose animation:

…and the newest — morph the clip mask itself (v1.10.0). The same idea applied to clipping: the outline that masks a running video (or GIF) animates circle → diamond → triangle → lasso while the media plays on:

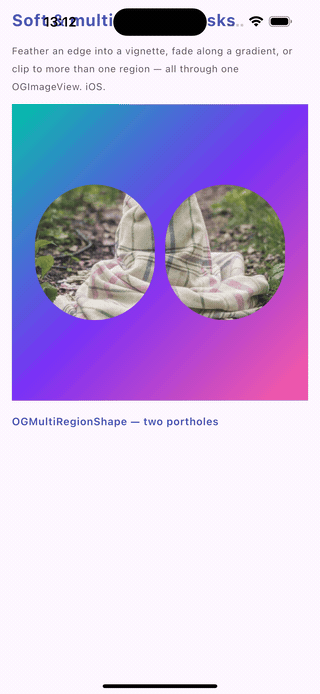

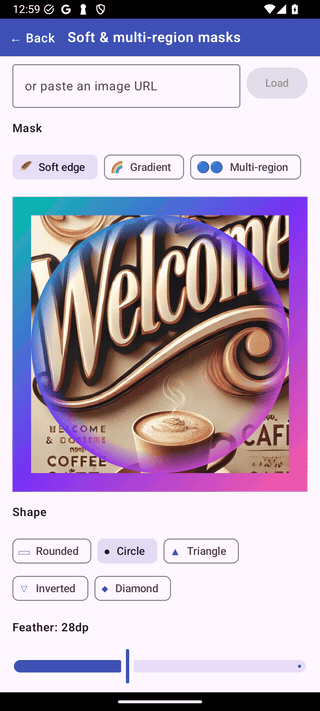

…and the mask can now also be soft and multi-region (v1.12.0). A clip no longer has to be one shape with a hard edge: Modifier.ogSoftClip(shape, feather) fades a photo/GIF out over a feathered band (a vignette) and Modifier.ogGradientMask(brush) fades it along any gradient (edge fade, spotlight) — both surfaced on OGImageView as softEdge / maskBrush; and OGMultiRegionShape combines several placed sub-shapes with a path op (union / intersect / difference / xor) so one clip can show two portholes, or a diamond with a circular bite. It's an ordinary Shape, so it drops into the same clipShape slot for photos, GIFs and video. Soft masks are a single offscreen BlendMode.DstIn pass (no blur, no API floor); multi-region combines outlines once per size — both hold 60fps. See docs/SOFT_MASKS.md.

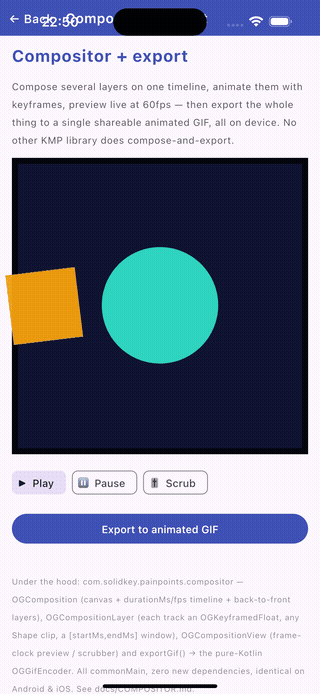

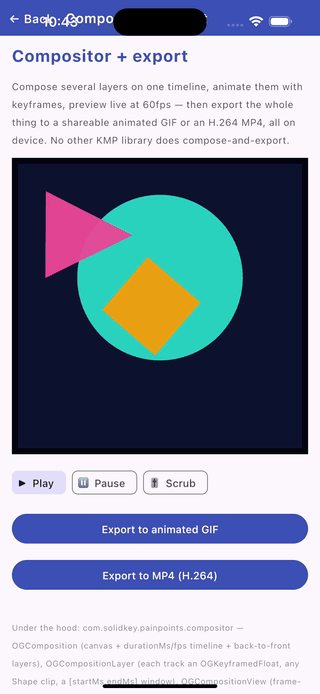

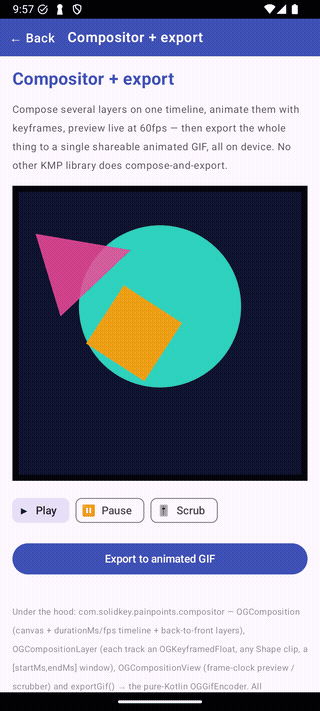

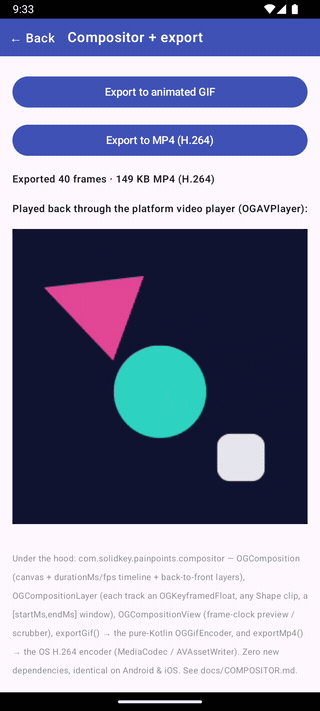

…and the newest, the flagship — compose layered scenes and export them (v1.13.0). KMPMedia could put one piece of media in one shape; now it composes several layers on one timeline, animates them with keyframes, previews the result live at 60fps, and exports it to a single shareable animated GIF — all authored on device. OGComposition stacks image / solid layers, each with animatable x / y / scale / rotation / opacity tracks and any shape clip over a [startMs, endMs] window; OGCompositionView plays it on the Compose frame clock (or scrubs to any positionMs); and OGComposition.exportGif() renders every frame offscreen and encodes one looping GIF with a pure-Kotlin encoder — zero dependencies, identical bytes on Android and iOS. New in v1.14.0: the same composition also exports to a real H.264 MP4 with OGComposition.exportMp4(), driving the device's own video encoder (Android MediaCodec + MediaMuxer, iOS AVAssetWriter) — still with no third-party dependency, since the compositing and colour maths stay in shared, tested commonMain. No other KMP library does compose-and-export. See docs/COMPOSITOR.md.

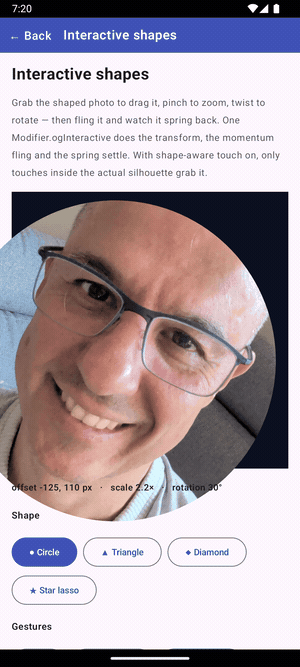

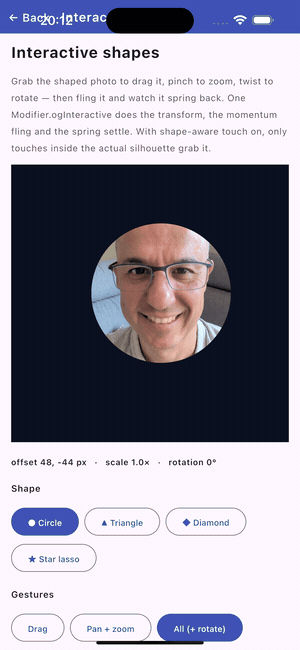

…and that clipped media is now interactive — grab, drag, pinch-zoom, twist-rotate, fling and spring back (v1.15.0). Modifier.ogInteractive(state, hitArea) makes any composable gesture-driven: it applies the pan / zoom / rotation through a single graphicsLayer (a GPU-layer transform, no recomposition, 60fps) and drives it from a custom awaitEachGesture loop, with a momentum fling on release and a spring settle back inside its bounds. Pass an OGHitArea and the touch is shape-aware — a drag only starts inside the clip's silhouette, so the transparent corners of a triangle / circle / lasso fall through instead of grabbing it. Pan limits are a fraction of the content size, so one config works at any resolution; the hit-test and clamp maths are unit-tested on JVM + iOS. No other KMP media library makes a shape-clipped layer physically interactive. See docs/INTERACTIVE.md.

…and the newest, most-animated additions now have GIFs — captured straight from the demo (Android shown; almost all are pure shared commonMain maths drawn by the same Skia engine, so the iOS frame is identical — the two platform-backed exceptions, bloom's blur and styled text's base font, are noted below; run the demo to see any of them live on either OS):

Here's the full rundown of this wave (📷 live camera is the one effect not shown here — it needs a real device's camera, so it stays described):

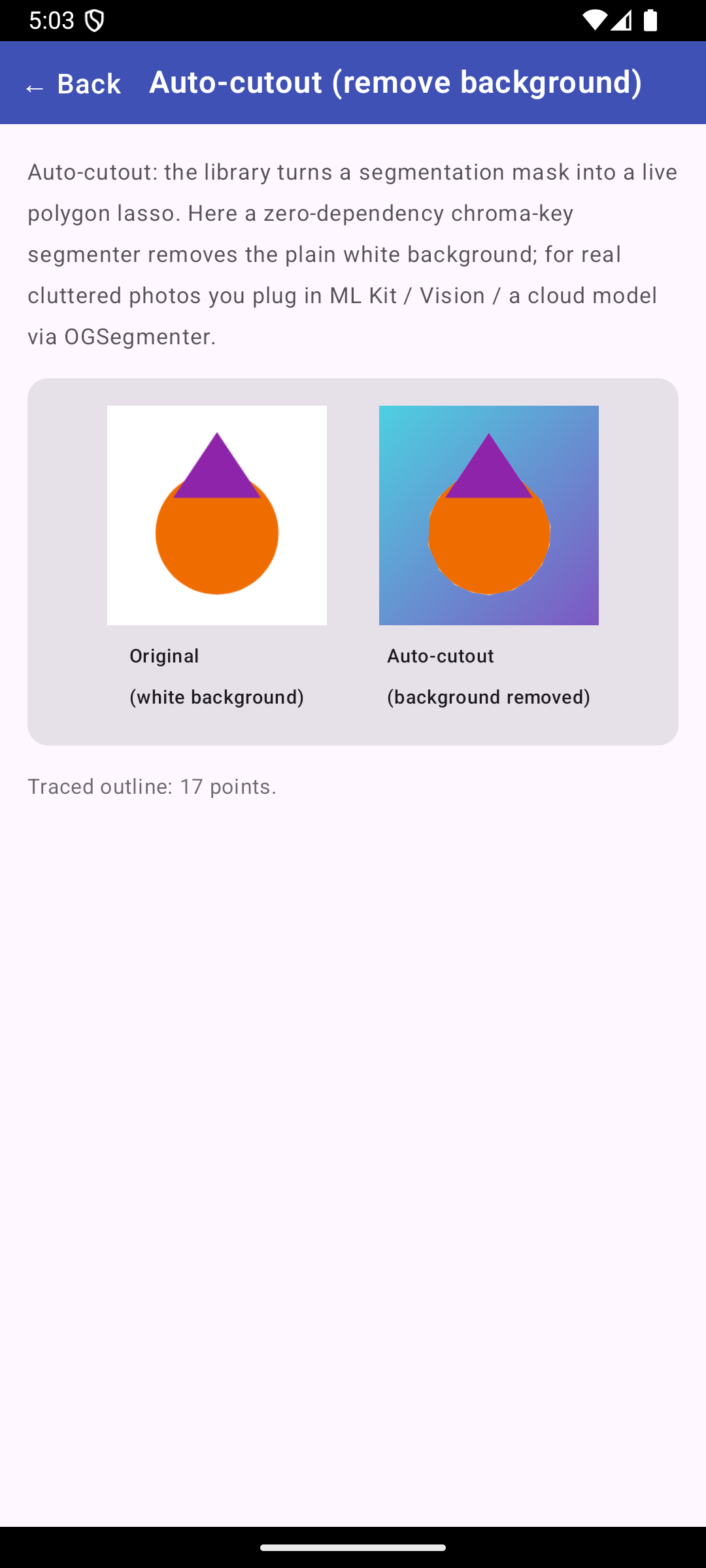

• 🪄 Auto-cutout → live lasso (v1.19.0) — drop a photo and the subject is clipped out: a pluggable OGSegmenter seam (plug in ML Kit / Vision / a cloud model) plus a cross-platform mask → lasso tracer (flood-fill → Moore-neighbour trace → Douglas–Peucker simplify) whose output drops straight into the same clipShape slot. No ML model is bundled. See docs/AUTO_CUTOUT.md.
• 📷 Live camera in any shape (v1.22.0) — OGCameraPreview(shape, facing) masks the live camera feed to any shape (a built-in OGShapeType, an OGPolygonShape lasso, CircleShape, …): the AR-sticker primitive, built on the platform camera APIs (Camera2 / AVFoundation) with no third-party dependency. See docs/CAMERA.md.

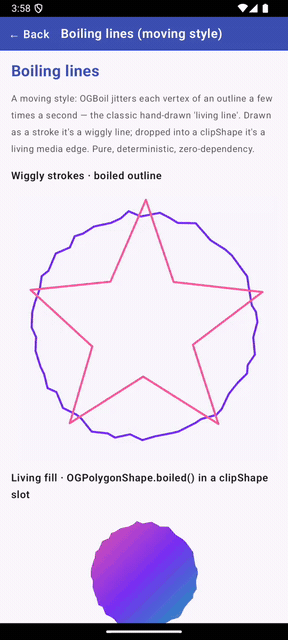

• 🖊️ Data-defined drawing styles (v1.23.0) — a drawing style is now just data: an OGStyleSpec is a JSON pipeline of {op, params} that OGStyles.decode() compiles into a live OGStyle applied every frame — boil (a living, hand-drawn line), quantize (a stepped, stop-motion line) and pixelate (a low-res mosaic fill). A designer or a language model can author and share a .style pack with no code and no rebuild, mirroring how OGAiVector turns a model's JSON into shapes. Zero new dependency; the demo's 🖊️ Boiling lines screen (with a live "Style from JSON" editor) dogfoods it. See docs/STYLES.md.

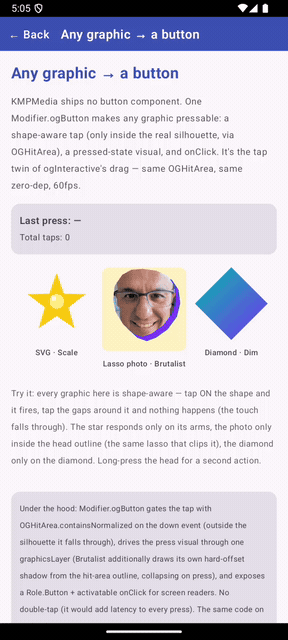

• 🔘 Any graphic → a button (v1.24.0) — KMPMedia ships no components or theme system, so instead it ships the bridge: one modifier, Modifier.ogButton(hitArea, pressEffect) { onClick() }, makes any graphic (a photo, an SVG, a lasso-cut cut-out, a Canvas drawing) a real, accessible button. It's the tap twin of Modifier.ogInteractive — both reuse OGHitArea, so a tap only counts inside the silhouette and the transparent corners fall through. Pick a press effect — Scale, Dim, Brutalist (a pop-art hard-shadow push-in it draws itself) or None — add an optional long-press, and it's done. Zero dependency; the demo's 🔘 Any graphic → a button screen dogfoods it. See docs/BUTTON.md.

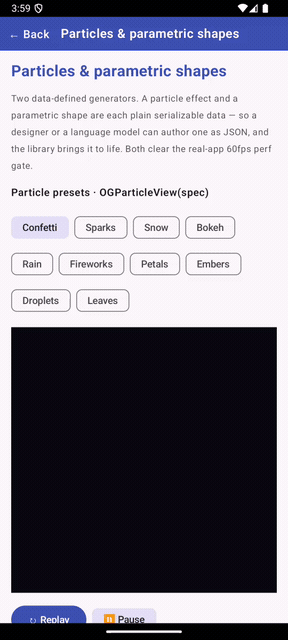

• 🎆 Data-defined particles & parametric shapes (v1.28.0) — a particle effect and a vector shape are each plain serializable data: an OGParticleSpec (rate, gravity, colour-over-life, shape) compiled once into a OGParticleView (a struct-of-arrays sim, no per-frame allocation, deterministic from a seed), and parametric outlines (star / gear / flower / superellipse / blob) wrapped in an OGPolygonShape clipShape. Author-as-JSON, 60fps, same on Android & iOS. See docs/PARTICLES.md · docs/PARAMETRIC_SHAPES.md.

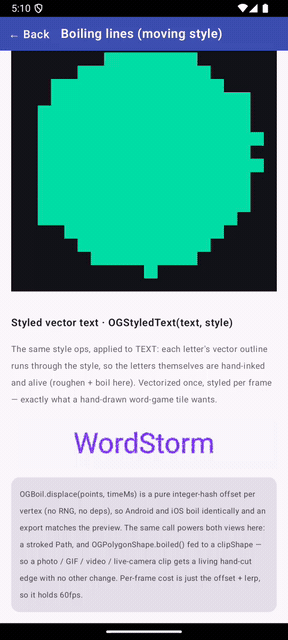

• 🖋️ Styled vector text (v1.29.0) — OGStyledText vectorizes a string once and runs each glyph outline through a drawing style (roughen / boil / wave / …) every frame, so the letters are hand-inked and alive — a title card or a word-game tile. See docs/STYLES.md.

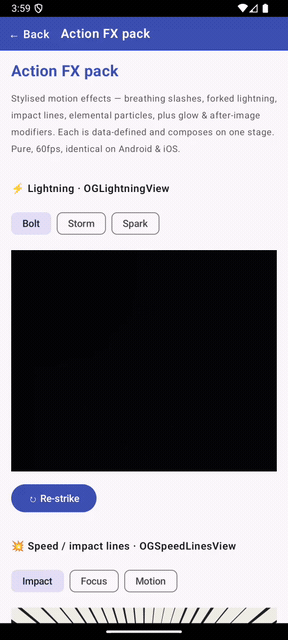

• ⚡ Action-FX pack (v1.30.0) — a com.solidkey.painpoints.fx family for composing stylised action scenes: OGSlashView (a breathing-slash ribbon — water / flame / thunder by data), OGLightningView (forked, fractal lightning), OGSpeedLinesView (manga impact lines), elemental particle presets (petals / embers / droplets / leaves), and Modifier.ogGlow / Modifier.ogAfterImage. Each effect is serializable data; all pure maths, 60fps, frame-identical on Android & iOS — no shaders, no new dependency. See docs/SLASH.md.

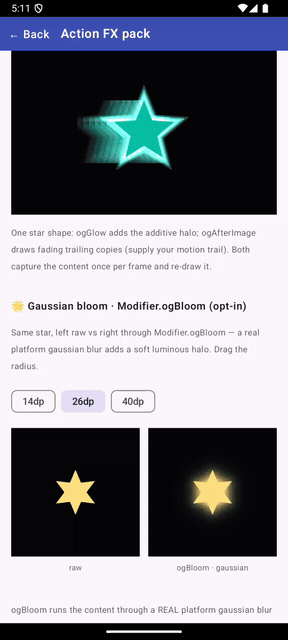

• 🌟 True-gaussian bloom (v1.31.0) — Modifier.ogBloom(radius, intensity, color?) redraws a composable through a real platform gaussian blur (Android RenderEffect / iOS Skia), blended additively, for a soft luminous halo — the cinematic cousin of the zero-dependency, frame-identical ogGlow. Opt-in: the blur needs Android 31+ (it no-ops to a crisp draw below) and isn't pixel-identical across platforms. This release also repairs a 1.30.0 bug that silently no-op'd ogGlow and ogAfterImage, so the composite FX modifiers now render correctly. See docs/SLASH.md.

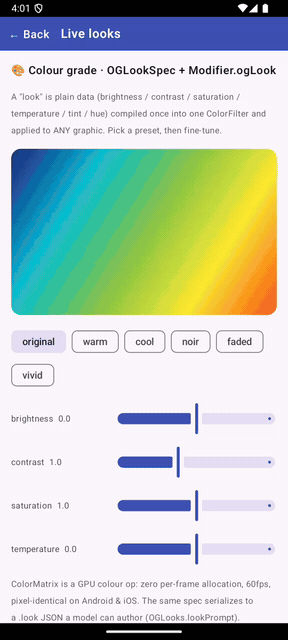

• 🌈 Live looks (v1.32.0) — a colour grade is just data: an OGLookSpec (brightness / contrast / saturation / temperature / tint / hue) compiles once into a single ColorFilter you drop on any graphic with Modifier.ogLook, plus a per-layer grade + blend modes on the compositor. One GPU colour op, zero per-frame allocation, 60fps, pixel-identical on Android & iOS; a look serializes to a .look JSON a model can author (like OGAiVector / OGStyles). See docs/LOOKS.md.

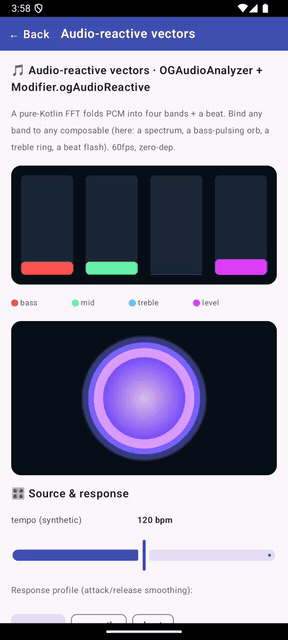

• 🎵 Audio-reactive vectors (v1.33.0) — make any vector react to sound: a pure-Kotlin FFT (OGFft) folds PCM into bass / mid / treble / level + a beat flag (OGAudioAnalyzer), smoothed with attack/release, and Modifier.ogAudioReactive binds a band to any composable (or read it straight into a spec). The capture is a pluggable OGAudioSource — a built-in deterministic OGSyntheticAudioSource runs it with no mic, and you feed your own mic/music tap on device, so no platform audio or permission enters the library. Zero-dep, 60fps, same code on Android & iOS. See docs/AUDIO_REACTIVE.md.

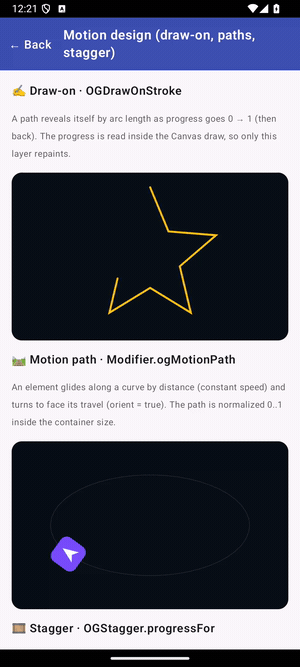

• ✍️ Motion design (v1.34.0) — three motion-graphics primitives in com.solidkey.painpoints.motion: draw-on (a stroke or logo that draws itself on by arc length, OGDrawOnStroke), motion paths (send any element gliding along a curve at constant speed and turning to face its travel, Modifier.ogMotionPath), and stagger (one timeline → per-element offset timing so a group cascades / waves / pops, OGStagger). The path + stagger are plain serializable data (OGMotions), the core is pure arc-length maths (O(log n) per lookup, centripetal smoothing, no recomposition), 60fps, same code on Android & iOS. See docs/MOTION.md.

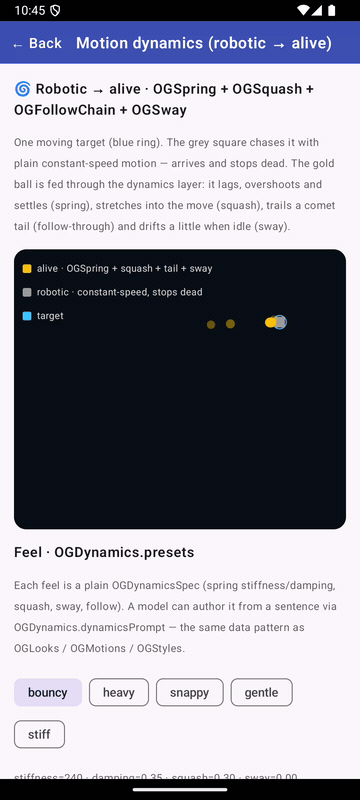

• 🌀 Motion dynamics (v1.35.0) — the pure-maths "feel" layer of com.solidkey.painpoints.motion: an analytic second-order spring (OGSpring — lag, overshoot, settle; closed-form so the compositor can scrub + export it, which androidx…spring() can't), follow-through (OGFollowChain, a trailing chain for hair / cape / limbs), volume-preserving squash & stretch (OGSquash) and organic idle sway (OGSway). The whole feel is data — an OGDynamicsSpec with five presets (bouncy / heavy / snappy / gentle / stiff) a model can author from a sentence (OGDynamics.dynamicsPrompt), the same pattern as OGLooks / OGMotions / OGStyles. Pure maths, zero dependency, 60fps, same code on Android & iOS. See docs/MOTION.md.
• 🧣 Cloth (v1.36.0) — a fabric primitive in com.solidkey.painpoints.motion: OGClothStrip, a one-dimensional Verlet cloth strip pinned at the head that hangs under gravity, stays inextensible (four position-based distance-constraint passes, so it swings but never stretches) and flutters in a prevailing wind plus seeded OGFxNoise gusts — a scarf, flag, banner or lock of hair. A fixed internal substep makes it stable and byte-for-byte deterministic at any frame rate, and OGCloths.sampleAt(spec, t) re-simulates to a time so the compositor can scrub + export it. The strip is plain serializable data (OGClothSpec) with four ready fabrics (scarf / flag / banner / hair) a model can author (OGCloths.clothPrompt). Reach for it when something should hang and flutter; reach for OGFollowChain when something should stretch and trail. Zero dependency, 60fps, same code on Android & iOS. See docs/MOTION.md.
• 🪟 Cloth sheet (v1.37.0) — cloth in two dimensions: OGCloth, a 2-D planar Verlet sheet (a cols × rows grid of masses held by structural + shear springs, inextensible) that does the thing the 1-D strip can't — it drapes over and collides with OGClothCollider capsule "poles" (a line + radius; a circle is a zero-length capsule), so you can throw a tarp over a scaffold bar or fly a flag off a pole. Same fixed-substep determinism (byte-for-byte identical on Android & iOS), four pin modes (NONE / TOP_EDGE / TOP_CORNERS / LEFT_EDGE), and the same data-defined, AI-authorable codec (OGClothMeshSpec + OGCloths.meshPreset / clothMeshPrompt, presets tarp / curtain / banner-wall / sail) with OGCloths.sampleAt for deterministic scrub + export. Deliberately a planar media primitive — no 3-D cloth, self-collision, tearing or solver API. Zero dependency, 60fps, same code on Android & iOS. See docs/MOTION.md.
• 🖼️ Living AI scenes (v1.38.0 – v1.40.0) — the OGSceneSpec "photo → vector scene" format grew up. v1.38.0 adds per-shape gradient fills (OKLab-resampled, no banding) plus a scene background + colour grade; v1.39.0 adds richer stills — a procedural texture (fur / grass / grain), an additive glow halo, and a seeded scatter that stamps one shape into a whole field (trees / tufts); v1.40.0 makes it live — a region declares its own looping motion (translate / scale / rotate / fade) and the scene swings a colour grade + sky over time (day → dusk → night), all pure and t-addressable so the compositor can scrub + export it. Backward-compatible, pure codec, 60fps, same code on Android & iOS.
• 🦁 Clickable-joints rig (v1.41.0) — a deform rig for a dense scene mesh: OGRig binds a handful of joints to the mesh once (linear-blend skinning, partition-of-unity weights), then a drag warps the whole mesh around the joint, re-skinned every frame — the one case the rasterise-once / cache path can't cover. ~1.3 ms to skin 20k vertices; deformInto is zero-allocation, nearestJoint is the touch hit-test, and a released joint springs home with OGSpring. Pure maths, zero dependency, 60fps, frame-identical on Android & iOS.
• 🎞️ OGStage — one JSON, a whole movie (v1.42.0 – v1.45.0) — the capstone that unifies every pack onto one serializable timeline: OGStage stacks solid / scene / particles / slash / lightning / speedlines / styled-text layers, each transformed by the compositor's keyframe tracks and graded by a look. One OGStageView plays it at 60fps and scrubs it; OGStage.exportGif() / exportMp4() render it off-screen with every layer kind baked in (the iOS README clip was rendered headless on the simulator through that very path). A language model authors the whole movie from one line via OGStages.stagePrompt() — the codec tolerates real model output (bare-number tracks, case-insensitive enums, markdown fences), and three model-written movies (STORM / HANAMI / RUSH) ship in the demo and are pinned as regression tests. v1.44.0 makes it interactive: any layer can carry an onTap trigger — tap it and it springs to life (BOUNCE / SHAKE / SPIN via the dynamics OGSpring, or SEEK / PLAY_PAUSE), the Rive-style interactivity the CMP players led on, as plain model-authorable data. v1.45.0 closes the describe→movie loop: OGStageAuthor turns a plain sentence into a playable stage, and OGOfflineStageAuthor does it with no model, no key and no network (a deterministic director that reads the words for mood / subject) — so the loop always works; wire your own model (cloud or on-device) into the same loop via OGStageModel / OGStageAuthoring.resilient(...) for richer movies. Thin orchestration, no new per-frame cost, same code on Android & iOS. See docs/STAGE.md and docs/AI_AUTHORING.md.

(📷 Live camera is the one effect without a GIF here — it needs a real device's camera (there's nothing to film on a headless emulator), so run the demo on a device to see it live.)

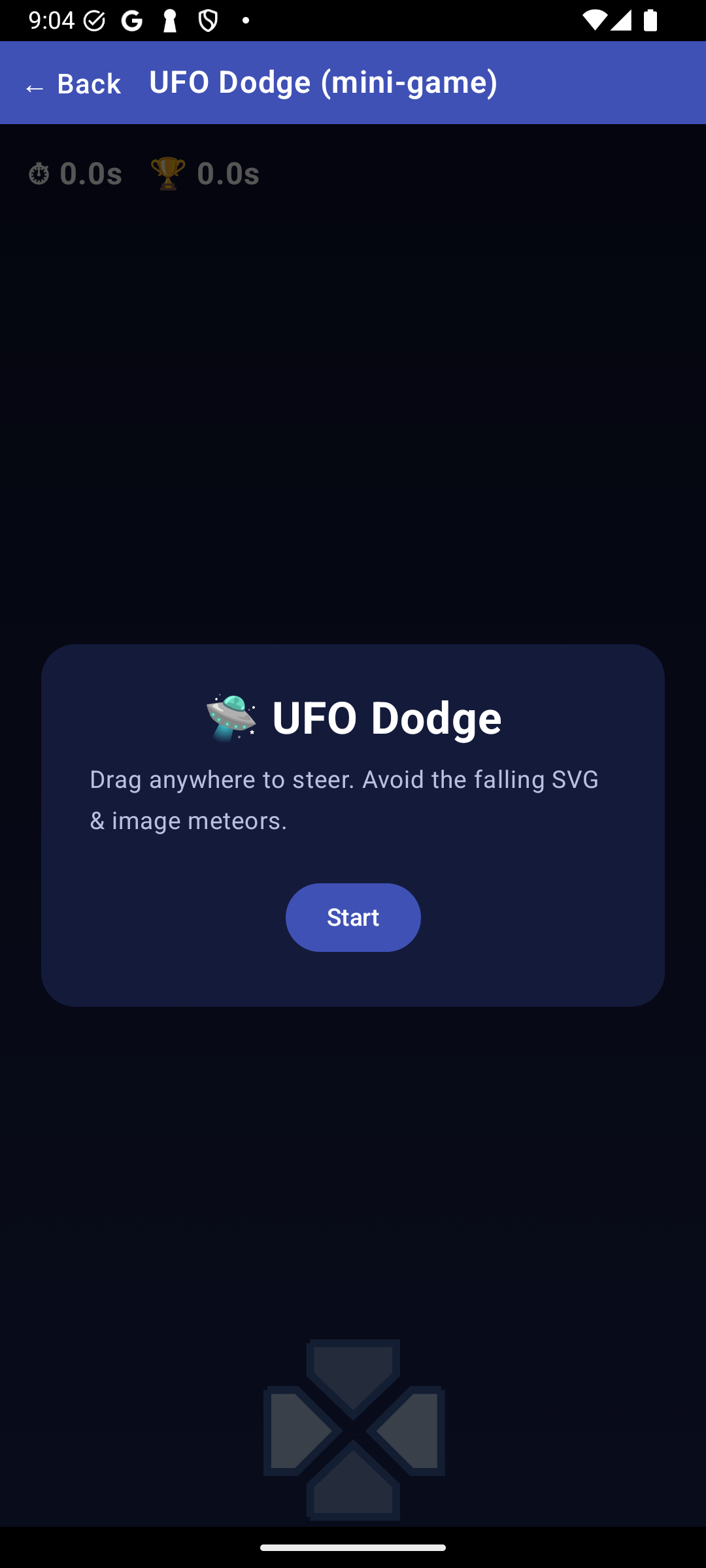

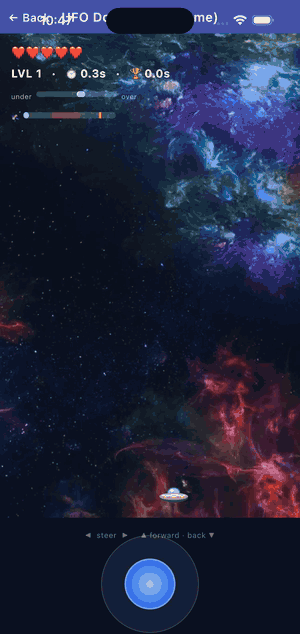

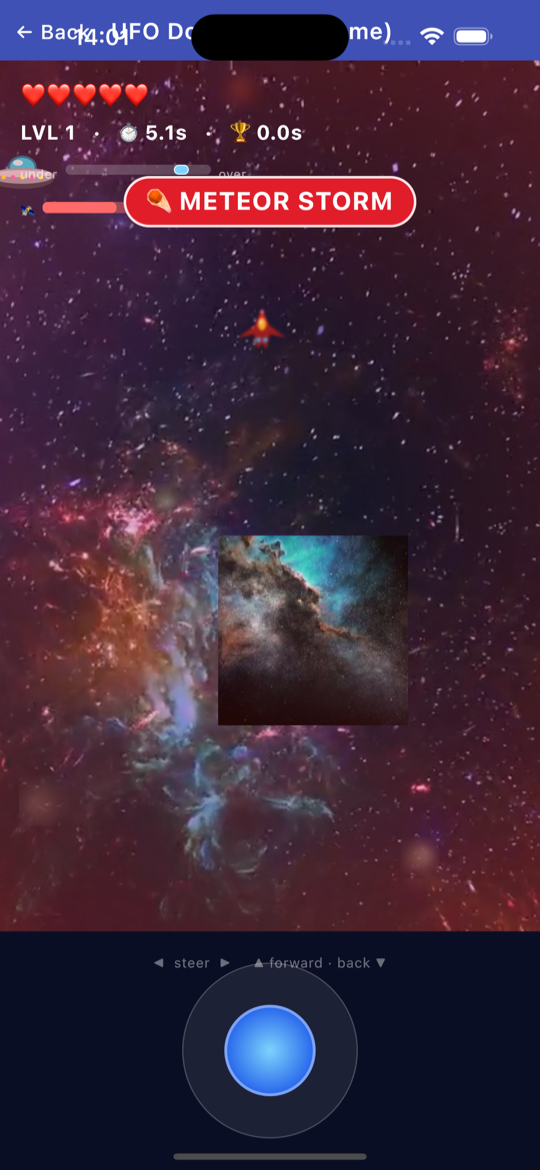

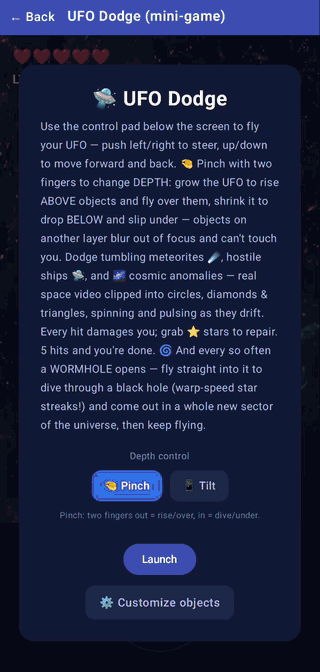

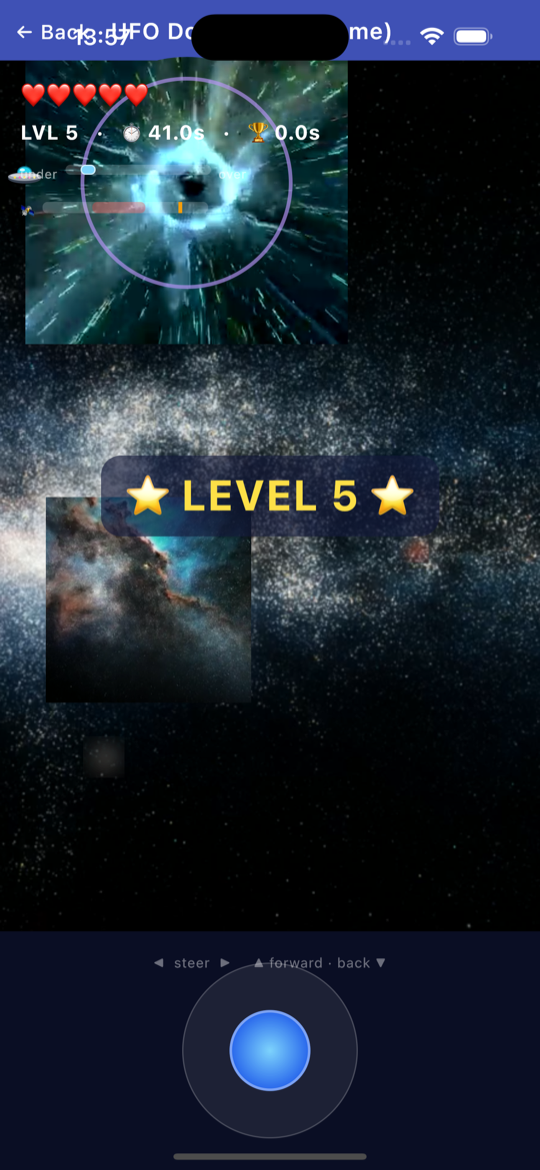

And a whole mini-game built from those same primitives:

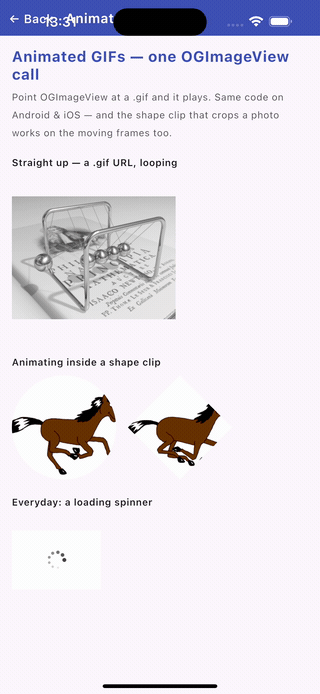

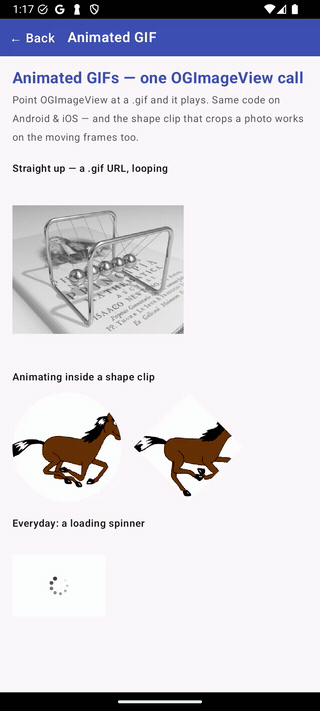

And animated GIFs — one OGImageView pointed at a .gif, playing on both platforms (and clipped into shapes just like a still photo):

What's inside

• ✨ Animate a Static Image — take a fully-static SVG (zero <animate> tags) and bring it alive with the animation primitives: Scale / Rotate / Fade / Slide, combined live.
• 🎨 Runtime-editable SVG — load an SVG once, then change any node by id at runtime — recolour, rotate, move, reshape its path, or morph it smoothly between two shapes — bound to Compose state (OGSvgNodeOverride). A live gauge whose needle and zones follow a slider, and a star that tweens into a ring at 60fps, no re-parse. "SVG as a live template", identical on Android & iOS.

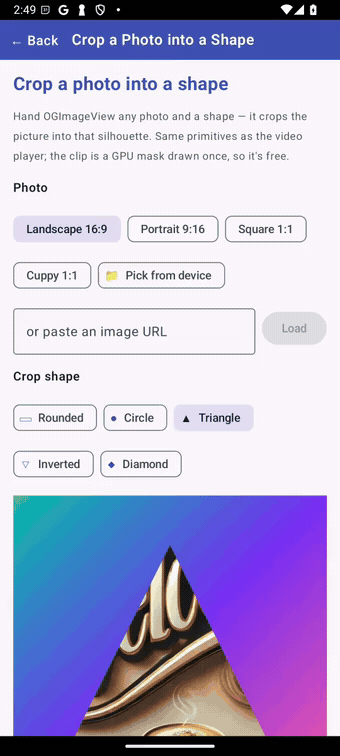

• ✂️ Crop a Photo into a Shape — crop any photo into a circle / triangle / diamond with pinch-to-zoom, drag-to-pan and a 3×3 focal grid — one GPU clip, drawn once, so it's free.

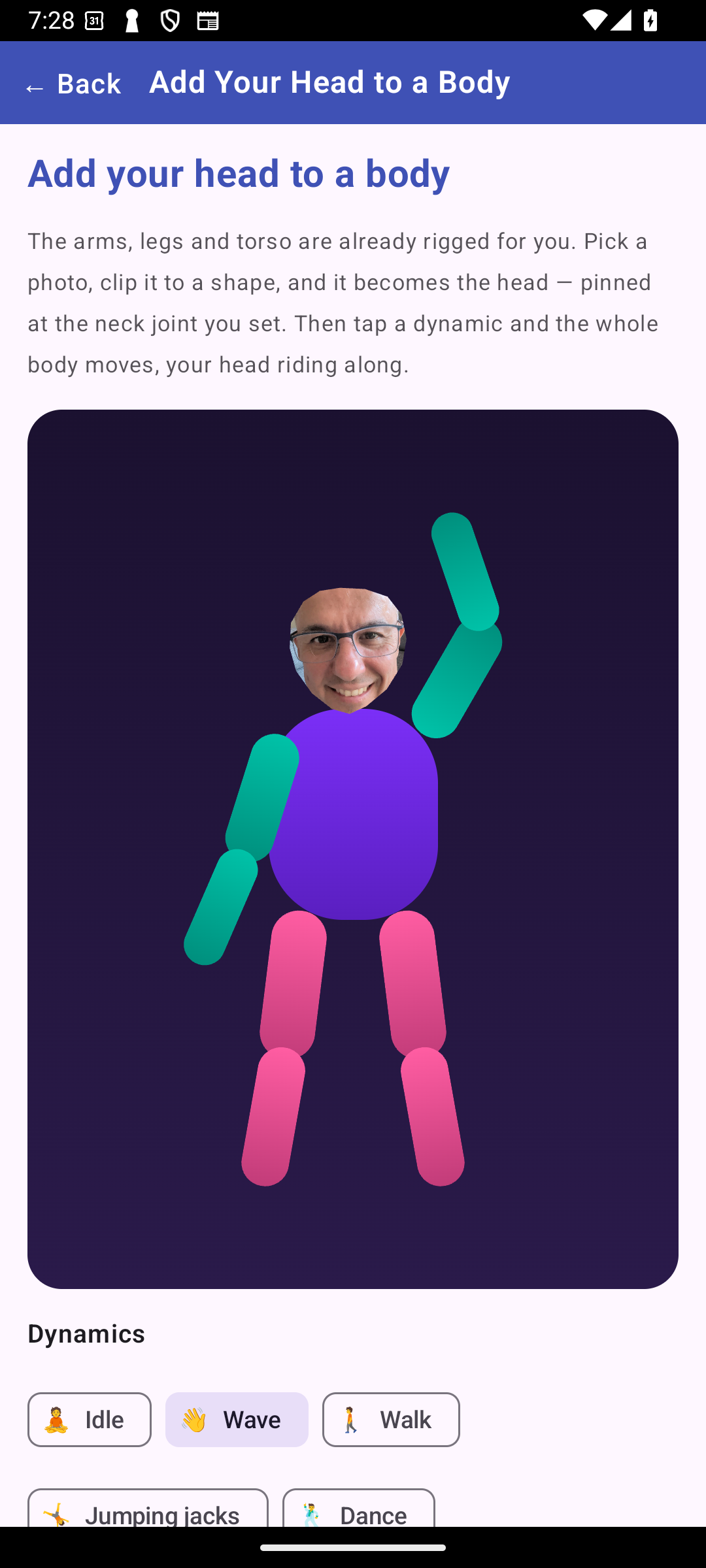

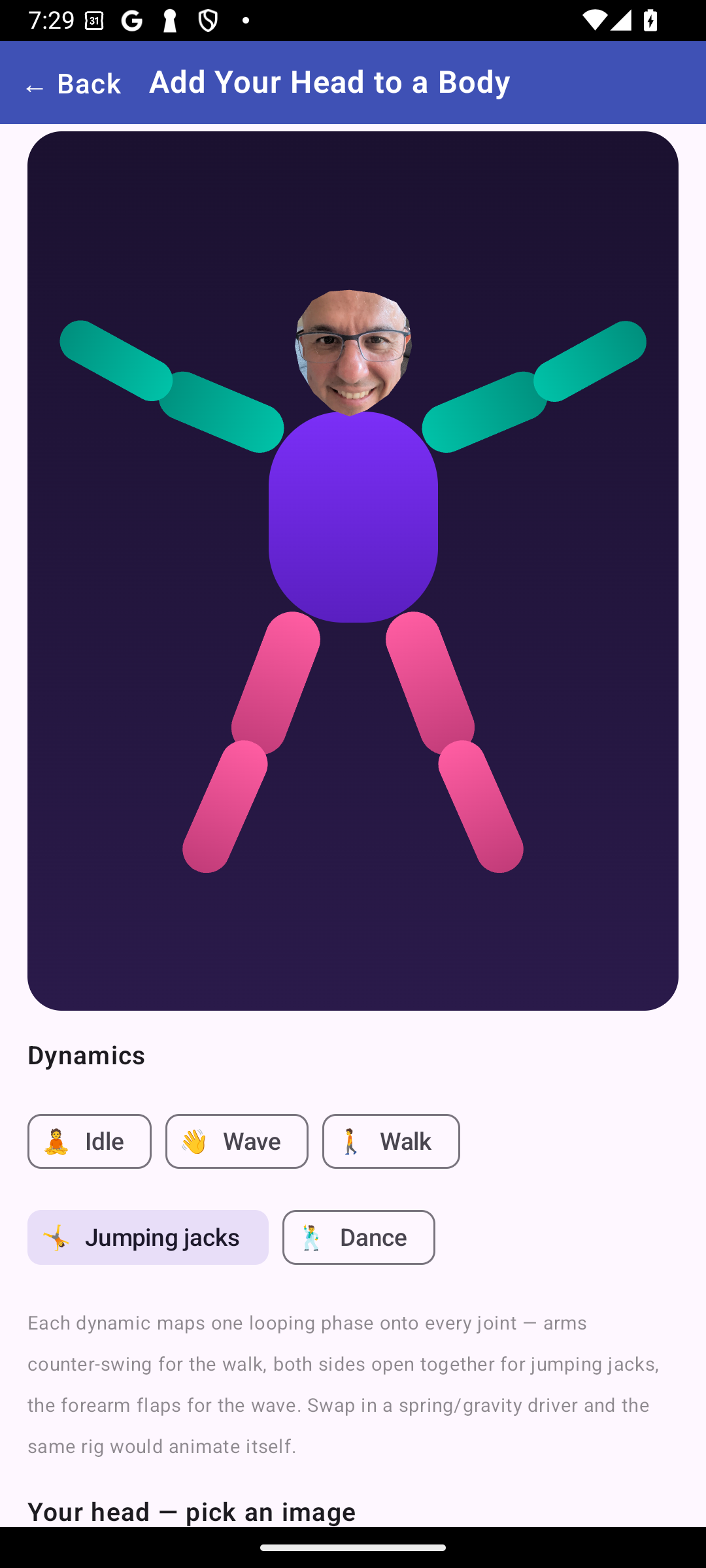

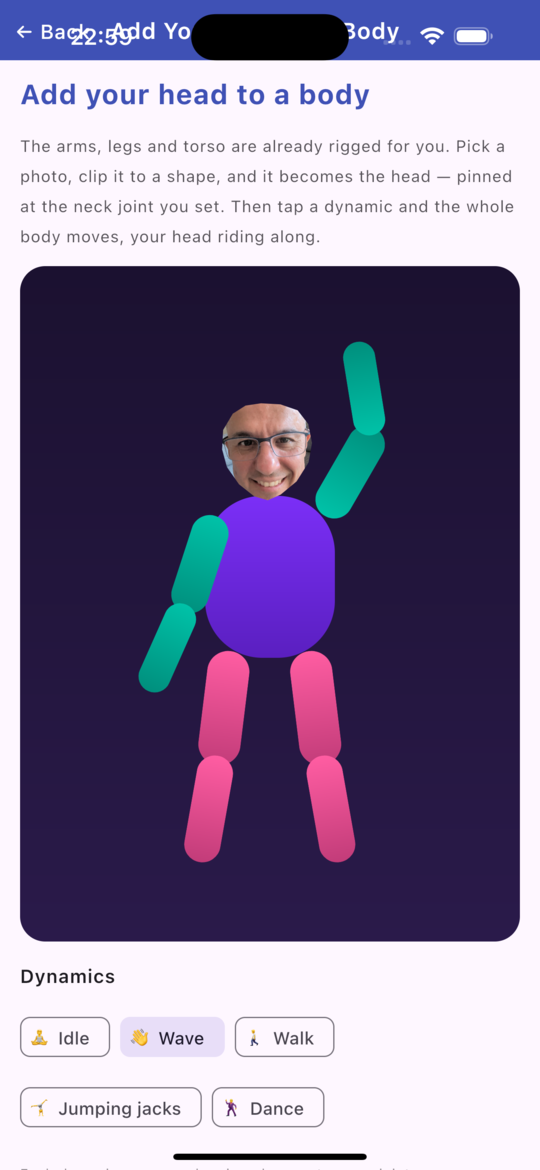

• 🧍 Add Your Head to a Body — an already-rigged body (torso + two arms + two legs, every segment a jointed chain). Drop in a photo and the ✂️ head lasso (OGPolygonShape) clips out just the head — no external editor — pinned at the neck joint you set (size + tilt); or fall back to a circle / triangle / diamond. Then tap Wave / Walk / Jumping jacks / Dance and the whole body animates, your head riding along. The head is one OGImageView clip; the rig and every dynamic are plain Compose, identical on Android & iOS.
• 🦾 Jointed Shapes — the building block behind it: shape-clipped photos pinned at one pixel with a movable angular limit, chained into a draggable two-link arm and a clamped pendulum.
• 🎞️ Animated GIF — point one OGImageView at a .gif and it plays: looping frames on Android (AnimatedImageDrawable) and iOS (Skia Codec), the same code. The shape clip that crops a photo animates the moving frames inside a circle / diamond too.
• 🎬 Video Playback — one cross-platform OGAVPlayer (ExoPlayer on Android, AVPlayer on iOS), re-framed live into any shape, with transport controls, loop and load-any-URL.
• 🫧 Morph the clip itself — the clip mask animates circle → diamond → triangle → lasso while a video and a GIF keep playing, all driven by one OGMorphShape. Clipping moving media to a morphing outline at 60fps, identical on Android & iOS.
• 🪶 Soft & multi-region masks — feather a photo's edge into a vignette (softEdge), fade it along a gradient (maskBrush), or clip it to more than one region at once — two portholes, a diamond with a circular bite — with OGMultiRegionShape. Soft edges via one offscreen DstIn pass; multi-region via a path op computed once. Same code on Android & iOS.
• 🤹 Interactive shapes — grab a shape-clipped photo and drag it, pinch to zoom, twist to rotate — then fling it and watch it spring back, with a live offset / scale / rotation HUD. One Modifier.ogInteractive adds the transform + momentum + spring; OGHitArea means only touches inside the actual silhouette grab it, not its bounding box. Zero-dep, 60fps, same code on Android & iOS.
• 🪄 Auto-cutout — drop a photo and the subject is clipped out automatically: a pluggable OGSegmenter seam (ML Kit / Vision / cloud) plus a zero-dependency mask → lasso tracer that feeds the same clipShape slot. No bundled ML model.
• 📷 Live camera in any shape — OGCameraPreview(shape, facing) masks the live camera feed to any shape (built-in / lasso / CircleShape), front or back: the AR-sticker primitive, on Camera2 / AVFoundation with no third-party dependency.
• 🖊️ Data-defined drawing styles — a style is just data: an OGStyleSpec JSON pipeline of {op, params} (boil / quantize / pixelate) that OGStyles.decode() compiles into a live OGStyle applied every frame. Author and share .style packs with no code; the 🖊️ Boiling lines screen has a live "Style from JSON" editor.
• 🔘 Any graphic → a button — make a graphic tappable with one Modifier.ogButton: an SVG star, a lasso-cut photo head and a diamond, each with a different press effect (Scale / Dim / Brutalist) and shape-aware taps — tap the head and it fires; tap a transparent corner of the same photo and it falls through. The tap twin of ogInteractive, zero-dep, same code on Android & iOS.
• 🎆 Particles & parametric shapes — the six particle presets (confetti / sparks / snow / bokeh / rain / fireworks) in OGParticleView with a live JSON editor, and parametric outlines (star / gear / flower / squircle / blob) spun on the GPU — both author-as-JSON.

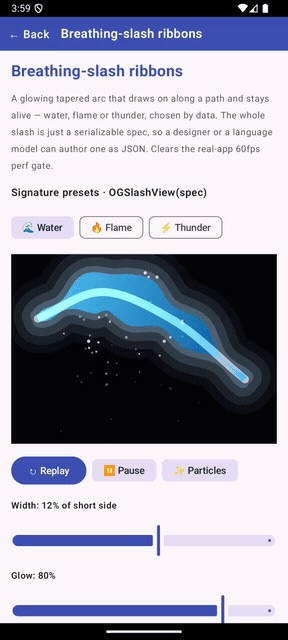

• 🗡️ Breathing-slash ribbons — OGSlashView water / flame / thunder slashes with live Width / Glow / Breathing sliders, a JSON editor, and composed droplet / ember / spark particles.
• ⚡ Action FX pack — forked OGLightningView lightning, manga OGSpeedLinesView impact lines, elemental particle presets, the ogGlow / ogAfterImage modifiers, and a composed "action beat" assembling several on one stage.
• 🛸 UFO Dodge (mini-game) — every sprite is a static SVG animated by the library; crop your own photos into shapes and drop them into the field as live game objects.
• 🎛️ Playground · 🧪 Edge Cases · ⚡ Performance — load anything from any URL/resource and tune every config live; deliberately broken inputs that prove onError fires cleanly; and load-timing / many-layer stress benchmarks with live numbers.

Run it — the demo lives in its own companion repo and consumes this library via includeBuild:

• Android — ./gradlew :androidApp:assembleDebug, install the APK, or open it in Android Studio. Prebuilt APKs are on the demo repo's Releases page.
• iOS — open the Xcode project and run; a run-script phase recompiles the shared KMP framework on every build, so library changes flow straight through.

• ✅ Android (minSdk per catalog, compiled against JDK 17)
• ✅ iOS (iosArm64, iosSimulatorArm64)

ℹ️ There are no JVM-desktop, web, or Linux targets in this build.

✅ Available on Maven Central. Add the coordinate below and you're set. If you'd rather build against the library source (or need an unreleased change), see includeBuild or GitHub Packages below.

KMPMedia is a Compose Multiplatform library. In your settings.gradle.kts, make sure the Compose dev repo is available alongside the usual repositories:

dependencyResolutionManagement {
    repositories {
        google()
        mavenCentral()
        maven("https://maven.pkg.jetbrains.space/public/p/compose/dev")
    }
}

Then add the dependency to your shared module's commonMain:

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("se.solidkey:kmpmedia-lib:1.41.0")
        }
    }
}

// settings.gradle.kts
dependencyResolutionManagement {
    repositories {
        maven("https://maven.pkg.github.com/SolidKeyAB/kmpmedia") {
            credentials {
                username = providers.gradleProperty("gpr.user").orNull ?: System.getenv("GPR_USER")
                password = providers.gradleProperty("gpr.key").orNull ?: System.getenv("GPR_TOKEN")
            }
        }
    }
}

// settings.gradle.kts of the consuming project
includeBuild("../KMPMedia") // path to your local clone

// consuming module's build.gradle.kts
commonMain.dependencies {
    implementation("se.solidkey:kmpmedia-lib")
}

import com.solidkey.painpoints.image.svg.OGSVGView
import com.solidkey.painpoints.image.loading.OGSvgUrlType

OGSVGView(
    source = OGSvgUrlType("https://example.com/logo.svg"),
    width = 240f,
    height = 240f,
    onError = { message -> /* handle load/parse errors */ },
)

Sources can also be local files or bundled resources:

OGSvgFileType("/path/to/icon.svg")
OGSvgResourceFileType("icon.svg")

import com.solidkey.painpoints.image.svg.animation.OGSVGAnimationPlayer

OGSVGAnimationPlayer(
    source = OGSvgResourceFileType("spinner.svg"),
    width = 120f,
    height = 120f,
    isPlaying = true,
    loop = true,
    onError = { /* ... */ },
)

OGAnimatedImage wraps any source — a photo, or even a plain SVG with no <animate> tags — and animates it at runtime. The source file is never modified; the motion comes entirely from the wrapper.

import com.solidkey.painpoints.image.animating.OGAnimatedImage
import com.solidkey.painpoints.image.animating.OGAnimationType
import com.solidkey.painpoints.image.loading.OGImageUrlType

OGAnimatedImage(
    source = OGImageUrlType("https://example.com/logo.png"),
    animations = setOf(OGAnimationType.SCALE, OGAnimationType.ROTATE), // SCALE / ROTATE / FADE / TRANSLATE
    durationMillis = 1200,
    intensity = 1f,
    onError = { /* ... */ },
)

import com.solidkey.painpoints.image.OGImageView
import com.solidkey.painpoints.image.loading.OGImageUrlType

OGImageView(
    source = OGImageUrlType("https://example.com/photo.jpg"),
    draggable = true,
    onEventTriggered = { event, id -> /* layer interaction events */ },
    onError = { /* ... */ },
)

Crop the photo into a shape (circle, triangle, diamond, …) with a GPU clip — drawn once, no bitmap cost:

import androidx.compose.foundation.layout.size
import androidx.compose.ui.Alignment
import androidx.compose.ui.layout.ContentScale
import androidx.compose.ui.unit.dp
import com.solidkey.painpoints.shape.OGShapeType

OGImageView(
    source = OGImageUrlType("https://example.com/portrait.jpg"),
    modifier = Modifier.size(220.dp),
    displayShape = OGShapeType.CIRCLE,   // CIRCLE / TRIANGLE_UP / TRIANGLE_DOWN / DIAMOND / SQUARE / RECTANGLE
    contentScale = ContentScale.Crop,
    alignment = Alignment.TopCenter,     // which region stays visible when the photo is over-scaled
    onEventTriggered = { _, _ -> },
    onError = { /* ... */ },
)

The same shape-crop applies to video — a built-in shape via OGAVPlayer(config = OGPlayerConfig(displayShape = OGShapeType.CIRCLE)), or a free-form lasso via OGPlayerConfig(clipShape = OGPolygonShape.of(...)) (the same clipShape override as images).

Need to keep only an arbitrary region — a head, a logo, a hand-drawn area? Clip to a free-form polygon lasso instead of a built-in shape. The outline is just a list of normalized 0..1 vertices joined by line segments, so an AI/segmentation model or an on-image finger-draw can produce it directly — no external editor:

import com.solidkey.painpoints.shape.OGPolygonShape

OGImageView(
    source = OGImageResourceFileType("portrait", OGImageFormat.JPEG),
    modifier = Modifier.size(220.dp),
    contentScale = ContentScale.Crop,
    clipShape = OGPolygonShape.of(          // vertices in 0..1 space (top-left origin), any count ≥ 3
        0.48f to 0.02f, 0.86f to 0.22f, 0.84f to 0.54f,
        0.48f to 0.83f, 0.16f to 0.53f, 0.15f to 0.22f,
    ),                                      // ← clips to exactly this outline; see docs/POLYGON_SHAPE.md
    onEventTriggered = { _, _ -> },
    onError = { /* ... */ },
)

Point OGImageView at a .gif and it plays — no extra API. The frames animate on both platforms (previously the image path only ever showed the first frame). Everything else about OGImageView still applies: contentScale, alignment, and shape-crop / lasso clipping all work on the moving image.

import com.solidkey.painpoints.image.OGImageView
import com.solidkey.painpoints.image.loading.OGImageUrlType

// A .gif URL (or file path) auto-detects and loops.
OGImageView(
    source = OGImageUrlType("https://example.com/loading.gif"),
    onEventTriggered = { _, _ -> },
    onError = { /* ... */ },
)

Want direct control over looping / speed, or to feed the animation into your own Image? Use the underlying painter:

import androidx.compose.foundation.Image
import com.solidkey.painpoints.image.gif.rememberOGAnimatedPainter
import com.solidkey.painpoints.source.OGSource

val painter = rememberOGAnimatedPainter(
    source = OGSource.Url("https://example.com/loading.gif"),
    loop = true,
    speed = 1.5f,          // iOS honours speed; Android plays at native rate
)
painter?.let { Image(painter = it, contentDescription = null) }

How it works — Android decodes into the platform's self-animating AnimatedImageDrawable (API 28+; the static first frame on API 24–27). iOS decodes every frame with Skia's Codec and cycles them honouring per-frame delays and speed. See docs/GIF.md.

See docs/POLYGON_SHAPE.md for the full API and how the demo's "Add Your Head to a Body" uses it to cut out a head.

import com.solidkey.painpoints.video.playing.OGAVPlayer
import com.solidkey.painpoints.video.playing.OGAVPlayerAction
import com.solidkey.painpoints.video.loading.OGVideoUrlType

val result = OGAVPlayer(
    action = OGAVPlayerAction.PLAY,   // PLAY / PAUSE / STOP
    source = OGVideoUrlType("https://example.com/clip.mp4"),
    onError = { error -> /* DAVPlayerError */ },
)

New in 1.1.0. Give any content a depth (0f = far/behind, 1f = near/front) relative to a focal plane, and KMPMedia derives all three depth effects from that one number: z-order (fly over/under), a depth-of-field blur + dim that grows with distance from focus, and an optional parallax scale.

The easy path — a field of objects that share one focal plane; each child just states its own depth:

import com.solidkey.painpoints.depth.OGDepthField
import com.solidkey.painpoints.depth.OGDepthObject
import com.solidkey.painpoints.depth.OGDepthConfig

OGDepthField(focalDepth = 0.5f) {                    // 0.5 is the plane in sharp focus
    OGDepthObject(depth = 0.1f) { Backdrop() }       // far   → behind + blurred
    OGDepthObject(depth = 0.5f) { Subject() }        // in focus → crisp
    OGDepthObject(depth = 0.9f, config = OGDepthConfig.Video) {
        OGAVPlayer(...)                              // near, in front — Video preset: dim, no blur
    }
}

Or drop it onto any single composable:

import com.solidkey.painpoints.depth.ogDepth

OGImageView(..., modifier = Modifier.ogDepth(depth = 0.2f, focalDepth = 0.5f))

Tune it with OGDepthConfig(maxBlur, minAlpha, dimFalloff, blurContent, depthScale); use OGDepthConfig.Video for video/native surfaces (dim + z-order, no blur — a RenderEffect blur over a TextureView/AVPlayerLayer is unreliable). In focus with defaults it applies only zIndex (no extra layer). Full perf + compatibility analysis in docs/DEPTH_LAYER.md.

New in 1.11.0. KMPMedia's vector primitives are just data, so a language model can produce them. OGAiVector is a provider-agnostic JSON interop layer: it hands a model the exact contract with polygonPrompt(...) / svgPatchPrompt(...), and turns the reply back into a live clip shape or SVG patch — tolerant of the code fences and prose models add. No AI SDK or networking is pulled into the library; you own the model and the call.

import com.solidkey.painpoints.ai.OGAiVector

// describe → clip region: the model's reply becomes an OGPolygonShape for any clipShape
val prompt = OGAiVector.polygonPrompt("the outline of a five-pointed star")
val star = OGAiVector.decodePolygonOrNull(myLlm.complete(prompt))   // your model, your call

// describe → SVG patch: constrain the model to the ids that exist, apply the result live
val patch = OGAiVector.svgPatchPrompt("point the needle to 80% and turn the arc amber",
                                      nodeIds = listOf("needle", "arc"))
OGSVGView(source = OGSvgResourceFileType("gauge.svg"), width = 240f, height = 240f,
          overrides = OGAiVector.decodeSvgPatchOrNull(myLlm.complete(patch)) ?: emptyMap())

// image → vector (new in 1.25.0): hand a VISION model a photo/frame, get editable vectors back
val imgPrompt = OGAiVector.imageToVectorPrompt(hint = "trace the person", imageInfo = OGImageInfo.of(photo))
val cutout = OGAiVector.decodePolygonOrNull(myVisionLlm.complete(imgPrompt, photo.toBase64Png()))

encodePolygon / encodeSvgPatch / encodeScene go the other way (persist a lasso/scene, seed a prompt with the current state). New in 1.25.0: imageToVectorPrompt(...) + decodeScene(...) turn a photo (or a live frame) into editable vector shapes via any vision model — you attach the image with ImageBitmap.toBase64Png(), and the library still makes no network call. All of it runs at generate/patch time, never per frame. See docs/AI_HOOKS.md.

New in 1.23.0. A drawing style is just data — a JSON pipeline of {op, params}. OGStyles.decode(...) compiles it once into a live OGStyle; apply it each frame with a rising timeMs. The ops are boil (the living hand-drawn line), quantize (a stepped line) and pixelate (a low-res sprite fill); a designer or a model can author and share a .style pack with no code.

import com.solidkey.painpoints.style.OGStyles

val style = OGStyles.decode(
    """{"name":"pixel sprite","ops":[
         {"op":"boil","amplitude":0.03,"boilFps":10},
         {"op":"pixelate","resolution":20}
       ]}""",
)

val frame = style.apply(outline, timeMs)   // outline: List<OGPoint> in 0..1 space
if (frame.isPixelated) { /* draw frame.pixelSize squares at frame.pixels */ }
else                   { /* stroke or fill frame.outline */ }

Or give a media clip a living, hand-cut edge — a boiled OGPolygonShape drops into any clipShape slot, recreated each frame from a rising time:

import com.solidkey.painpoints.style.OGBoil
import com.solidkey.painpoints.style.boiled

OGImageView(
    source = OGImageUrlType("https://example.com/photo.jpg"),
    clipShape = OGPolygonShape(outline).boiled(OGBoil(amplitude = 0.02f), timeMs),
    onEventTriggered = { _, _ -> },
    onError = { /* ... */ },
)

OGStyles.stylePrompt("a nervous pencil sketch") hands any model the exact JSON contract, so a style can be AI-authored too. See docs/STYLES.md.

New in 1.24.0. Modifier.ogButton makes any graphic a real, accessible, shape-aware button — no UI component, no theme system. Pass an OGHitArea matching the clip and only taps inside the silhouette count; the transparent corners fall through. Pick a press effect and you're done.

import com.solidkey.painpoints.gesture.ogButton
import com.solidkey.painpoints.gesture.OGHitArea
import com.solidkey.painpoints.gesture.OGPressEffect

OGImageView(
    source = photo,
    clipShape = headLasso,                           // the visible cut-out
    modifier = Modifier
        .size(160.dp)
        .ogButton(
            hitArea = OGHitArea.polygon(headLasso),  // only the head is tappable
            pressEffect = OGPressEffect.Brutalist(),  // pop-art hard-shadow push-in
            onLongClick = { showOptions() },
        ) { open() },
    onEventTriggered = { _, _ -> },
    onError = { /* ... */ },
)

It's the tap twin of Modifier.ogInteractive (the drag half) — both reuse OGHitArea. Other press effects: OGPressEffect.Scale() (a squeeze), OGPressEffect.Dim() (a fade), OGPressEffect.None. See docs/BUTTON.md.

The SVG engine is a pure-Kotlin parser + renderer. Honest status:

Supported

• Path commands M L H V C Q Z and arcs (A, approximated with béziers)
• Shapes: rect (incl. rx/ry), circle, ellipse, line, polygon, polyline
• <g>, <use>, <symbol>
• Linear & radial gradients, patterns
• Transforms: translate, scale, rotate, skewX/Y, matrix
• SMIL animation (<animate>) and interactive/draggable layers

Partial / not yet supported

• Fill/stroke opacity, <clipPath>, <mask>
• <text> / <tspan>
• <image>

Anything not listed above as working should be treated as unsupported for now.

Pre-1.0 in spirit — the SVG animation/interaction layer is the actively developed core; the audio/video/image pieces are functional wrappers over platform players. See the CHANGELOG for release history.

MIT © SolidKey AB
