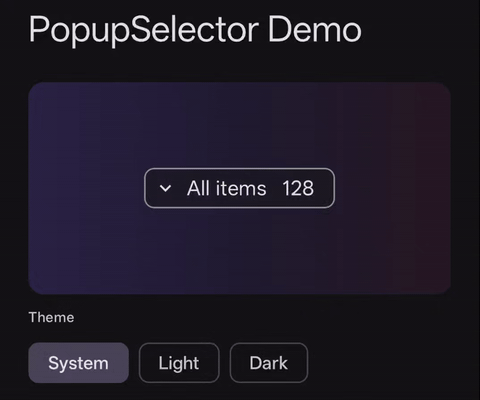

A sleek, fluid morphing popup selector component for Compose Multiplatform (Android, JVM/Desktop, iOS).

📦 Download Demo APK

• 🪶 Zero External Dependencies: Built exclusively on Compose Foundation and Material 3.
• 🪄 Fluid Morphing Animation: Seamless continuous transition between the collapsed button and the expanded floating surface.
• 🛫 Flying Selected Item: The selected item visibly flies from the trigger button into its position inside the expanded list.
• 🧭 Smart Direction Resolution: Each axis picks its side from the available space — centring on the current selection, hugging the leading edge, or pinning an explicit side (Top/Bottom, Start/End) via PopupVerticalAlignment / PopupHorizontalAlignment.
• ⌨️ Keyboard Navigation: Arrow keys move the cursor, Enter/Space select, Esc dismisses. Fully operable on desktop.
• 🎨 Deep Customization: Fully customizable colors, corner radius, heights, widths, and item slots.
• 🧩 Pluggable Visual Effects: Attach frosted-glass blur (Haze / Blur) or custom backgrounds via anchorModifier and surfaceModifier.
• 🧱 Fully Overridable Metrics: Every size, spacing and animation threshold is a plain data class you can replace wholesale.

In your module's build.gradle.kts (e.g., commonMain):

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("io.github.viel0320:popupselector:2.1.0")
        }
    }
}

[!NOTE] Ensure mavenCentral() is declared in your root settings.gradle.kts repositories block.

[!NOTE] Material 3 is not exposed transitively at compile time. The library reads your MaterialTheme for its default colors, but if your module uses Material 3 APIs itself (as most Compose apps do), declare the compose.material3 dependency explicitly.

The library is also published to GitHub Packages. GitHub's Maven registry requires authentication even for public packages, so declare the repository with credentials (a GitHub username plus a token with read:packages) in your settings.gradle.kts:

dependencyResolutionManagement {
    repositories {
        maven {
            url = uri("https://maven.pkg.github.com/Viel0320/Popupselector")
            credentials {
                username = findProperty("gpr.user") as String? ?: System.getenv("GITHUB_ACTOR")
                password = findProperty("gpr.key") as String? ?: System.getenv("GITHUB_TOKEN")
            }
        }
    }
}

import androidx.compose.runtime.*
import com.viel.compose.popupselector.*

@Composable
fun FilterSelector() {
    var expanded by remember { mutableStateOf(false) }
    var selectedIndex by remember { mutableStateOf<Int?>(0) }

    val items = remember {
        listOf(
            textPopupItem(key = "all", label = "All Items", count = 128),
            textPopupItem(key = "favorites", label = "Favorites", count = 12),
            textPopupItem(key = "archived", label = "Archived", count = 3),
            textPopupItem(key = "trash", label = "Trash", enabled = false),
        )
    }

    PopupSelector(
        items = items,
        expanded = expanded,
        selectedIndex = selectedIndex,
        onExpandedChange = { expanded = it },
        onSelect = { selectedIndex = it },
        layout = PopupLayout(width = PopupWidth.Wrap),
    )
}

You can provide fully customized item composables for each option:

val items = remember {
    listOf(
        PopupItem(
            key = "daily",
            count = { Text("7:00 AM", style = MaterialTheme.typography.bodySmall) },
        ) {
            Row(verticalAlignment = Alignment.CenterVertically) {
                Icon(Icons.Default.Today, contentDescription = null)
                Spacer(Modifier.width(8.dp))
                Text("Daily Digest")
            }
        },
        PopupItem(key = "weekly") {
            Row(verticalAlignment = Alignment.CenterVertically) {
                Icon(Icons.Default.DateRange, contentDescription = null)
                Spacer(Modifier.width(8.dp))
                Text("Weekly Summary")
            }
        },
    )
}

PopupSelector(
    items = items,
    expanded = expanded,
    selectedIndex = selectedIndex,
    onExpandedChange = { expanded = it },
    onSelect = { selectedIndex = it },
    layout = PopupLayout(width = PopupWidth.Fixed(280.dp)),
)

Set via PopupLayout(width = ...). Three strategies are available:

[!NOTE] With MatchAnchor or a narrow Fixed width, overflowing labels marquee-scroll, but the trailing count slot is laid out at its shared section width and can be clipped if the panel is narrower than the content and count sections combined. Prefer PopupWidth.Wrap when items carry counts.

Set via PopupLayout(verticalAlignment = ..., horizontalAlignment = ...). The two axes resolve independently, so the panel can, say, open downward while hugging the trailing edge.

Vertical — PopupVerticalAlignment:

• Auto: (Default) With a selection, aligns the selected row's vertical centre with the trigger's centre, so the current selection stays put as the panel opens. Without a selection, compares the room above and below and picks the side that fits.
• Top / Bottom: Pin the panel to that side of the trigger.

Horizontal — PopupHorizontalAlignment:

• Auto: (Default) Hugs the trigger's leading side when both sides fit; opens toward the only side with room. Mirrors with the layout direction.
• Start / End: Pin a direction-aware side (mirrors in RTL).

Both axes also offer Inherit, which follows the matching component of LocalPopupAlignment — the ambient alignment a subtree provides with CompositionLocalProvider (typically alongside a Box(contentAlignment = ...)), falling back to Auto when none is provided.

Explicit placements are honoured whether or not an item is selected. Only Auto repositions the panel vertically to match the selection.

You can customize the content inside the collapsed button (ideal for dropdown action menus). collapsedContent is the last parameter, so it can be passed as a trailing lambda:

PopupSelector(
    items = menuItems,
    expanded = expanded,
    onExpandedChange = { expanded = it },
    onSelect = { index -> handleMenuAction(index) },
) {
    Text("Actions Menu", fontWeight = FontWeight.Bold)
}

To use real-time blur libraries like Haze, wrap your root layout in PopupOverlayContainer (or PopupOverlayHost) so the panel shares the same window and drawing tree with hazeSource (isolated native Popup windows cannot sample parent pixels). Combine with PopupDefaults.blurColors() for preconfigured transparent surfaces.

[!IMPORTANT] Dual-State Background Sampling Setup (Avoiding Color Flickering / Flashing)

During morph animations, the selector smoothly transitions from the collapsed trigger to the expanded panel:

• Collapsed State: Provide a background sampling source (hazeSource) beneath the anchor button and pass anchorModifier = Modifier.hazeEffect(...). Note that the button must be layered on top of the background layer (not as a child inside the hazeSource composable) so Haze can sample behind it.
• Expanded State: Provide a broader page/screen-level background sampling source (hazeSource) so the floating panel can sample correctly even when expanding outside local cards, using surfaceModifier = Modifier.hazeEffect(...).

Setting up sampling sources for both layers ensures seamless color and blur interpolation during the morph transition without visual glitches or color flashing.

val rootHazeState = remember { HazeState() }
val parentHazeState = remember { HazeState() }

// Wrap your root/screen in PopupOverlayContainer to enable seamless in-window blur sampling
PopupOverlayContainer(Modifier.fillMaxSize()) {
    // 1. Root layer registered as hazeSource (for expanded panel & full-screen blur)
    Column(
        modifier = Modifier
            .fillMaxSize()
            .hazeSource(rootHazeState)
            .padding(16.dp)
    ) {
        // 2. Direct parent container with background registered as hazeSource (for collapsed anchor button)
        Box(
            modifier = Modifier
                .background(Color.Blue.copy(alpha = 0.3f), RoundedCornerShape(12.dp))
                .hazeSource(parentHazeState)
                .padding(16.dp)
        ) {
            PopupSelector(
                items = items,
                expanded = expanded,
                selectedIndex = selectedIndex,
                onExpandedChange = { expanded = it },
                onSelect = { selectedIndex = it },
                style = PopupDefaults.style(colors = PopupDefaults.blurColors()),
                anchorModifier = Modifier.hazeEffect(state = parentHazeState, style = HazeMaterials.ultraThin()),
                surfaceModifier = Modifier.hazeEffect(state = rootHazeState, style = HazeMaterials.ultraThin()),
            )
        }
    }
}

All values are @Stable data class fields, so you can override any subset:

collapsedHeight (32.dp) · collapsedTouchTarget (48.dp) · rowTouchTargetHeight (48.dp) · rowVerticalSpacing (4.dp) · panelVerticalPadding (8.dp) · collapsedHorizontalPadding (16.dp) · rowHorizontalPadding (12.dp) · chevronLeadingPadding (8.dp) · countSpacing (12.dp) · borderWidth (1.dp) · chevronSize (18.dp) · rowEnterTranslation (14.dp) · edgeMargin (8.dp) · maxHeightFraction (0.6f) · disabledAlpha (0.38f) · corner (8.dp) · collapsedElevation (0.dp) · expandedElevation (6.dp)

visibleEpsilon (0.0001f) · morphCompleteThreshold (0.999f) · chevronExpandFadeSpan (0.25f) · chevronCollapseFadeSpan (0.25f) · staggerBase (0.15f) · staggerStep (0.06f) · staggerMax (0.6f) · borderMinWidth (0.25f) · containerMinAlpha (0.001f) · shadowStartFraction (0.85f) · anchorHighlightFadeMillis (90 ms)

shadowStartFraction delays the expanding surface's shadow until the morph is that far along, so a low-elevation shadow doesn't read as a dark rim around transparent containers — set 0f for an always-on ramp. anchorHighlightFadeMillis is the collapsed trigger's press/hover highlight fade duration.

The expanded panel takes focus automatically and supports:

Disabled options are skipped by arrow-key navigation. While the panel collapses, its rows leave the accessibility tree, and the surface unmounts entirely once collapsed, so the fading panel is never announced. The collapsed trigger announces its expansion state via stateDescription ("Expanded" / "Collapsed"); Compose currently has no localizable expanded-state semantic property, so these strings are supplied by the library in English.

[!TIP] Animation & State Handoff in Debug Builds

Due to Compose runtime overhead and unoptimized recompositions in Debug builds, the 1-frame transition/handoff interval between the collapsed anchor and the morphing surface may occasionally be amplified.

In Release builds (with R8 / compiler optimizations enabled), this handoff is seamless and transitions run smoothly at full frame rate. Always evaluate animation fluidity on Release builds.
