Kioto is a lightweight and robust ui framework that streamlines navigation management in Compose Multiplatform Mobile applications. Its structured approach promotes a clear separation of concerns and improves code maintainability across your mobile projects.

In the evolving landscape of Compose Multiplatform Mobile development, managing complex navigation flows and maintaining a clean architecture can be challenging. Kioto addresses these challenges by offering a lightweight and opinionated solution designed to:

• Simplify Navigation Define your application's UI as modular Node components, making navigation intuitive and easy to reason about.
• Promote Clean Architecture Enforce a strict separation of concerns, leading to more maintainable and testable code.
• Ensure Multiplatform Consistency Provide a unified navigation API that works seamlessly across Android and iOS, reducing platform-specific boilerplate.
• Enhance State Management Leverage a robust state management system within each Node, ensuring predictable UI updates and a responsive user experience.

Kioto helps you build scalable and robust Compose Multiplatform Mobile applications with confidence and efficiency.

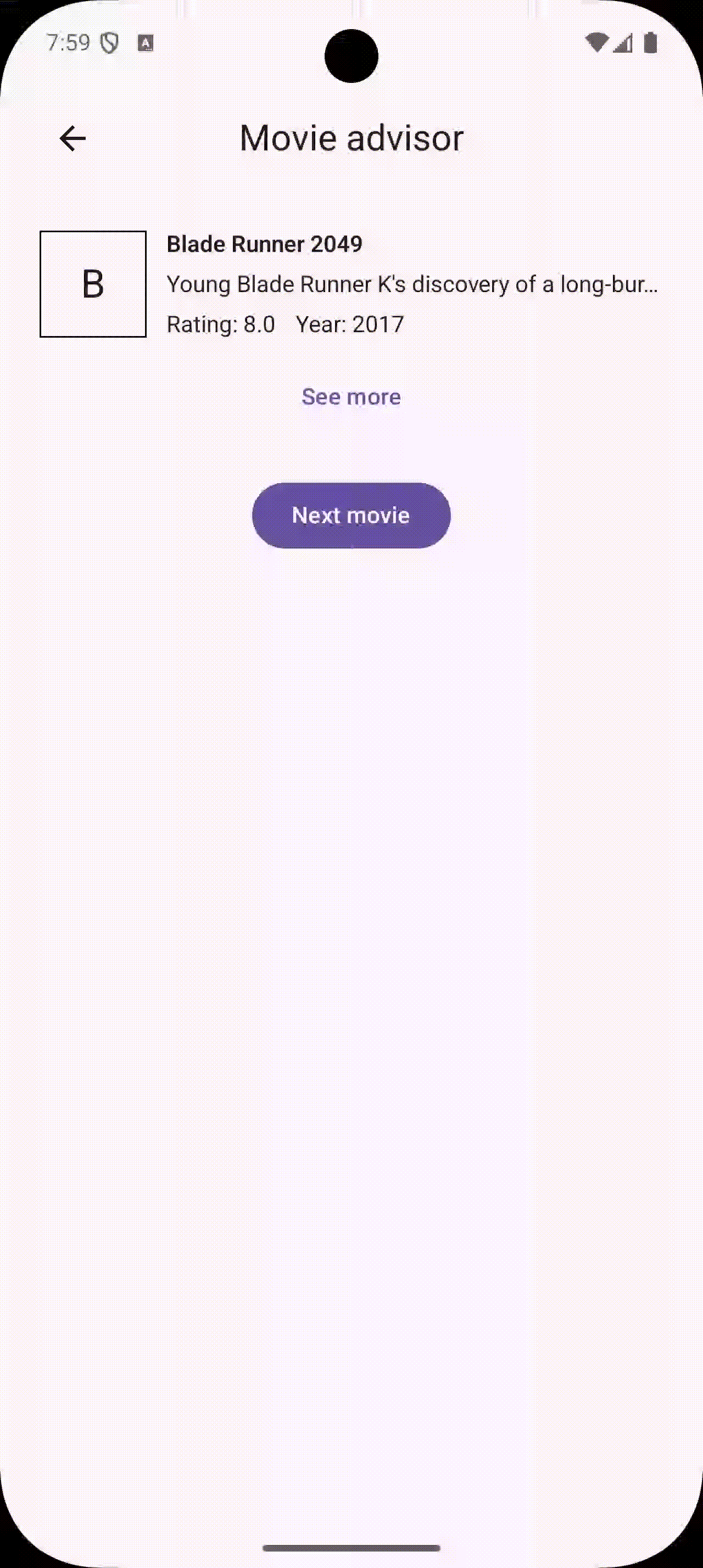

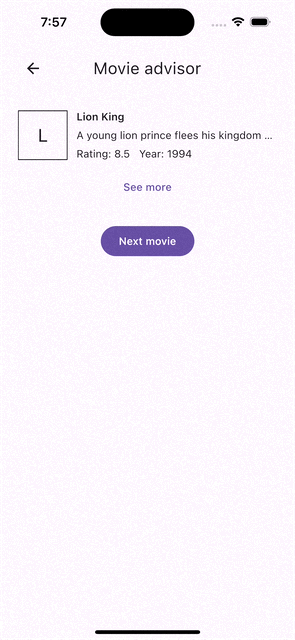

Android	iOS

A Node represents a modular portion of your application's UI. Nodes are presentation logic components that encapsulate their own state and behavior.

To create a Node, you need to extend the Node class and define its state.

class MovieAdvisor : Node<MovieAdvisor.State>() {

    data class State(
        val movie: Movie? = null
    )

}

States are considered the core component of a Node. Let's see how to work with them.

class MovieAdvisor : Node<MovieAdvisor.State>() {

    data class State(
        val movie: Movie? = null
    )

    init {
        subscribe(::suggestMovie) { updateState { state.copy(movie = this) } } // this refers to the result of the suspend function suggestMovie
    }

}

In the example above, when the node is initialized, it subscribes to a suspend function suggestMovie. When this function completes, it updates the node's state with the result. Let's break down in detail the init block:

• Subscriptions (subscribe and flowSubscribe)

Instances of Node can subscribe to suspend functions and flows by calling subscribe and flowSubscribe methods respectively. These subscriptions are cancelled automatically when the node is cleared.

protected fun <T> subscribe(
    source: suspend () -> T,   // The suspend function to subscribe to
    onError: () -> Unit = { }, // Optional error handler
    onCompleted: T.() -> Unit  // The action to perform when the source function completes
)

protected fun <T> flowSubscribe(
    source: suspend () -> Flow<T>, // The suspend function that returns a Flow to subscribe to
    onError: () -> Unit = { },     // Optional error handler
    onNext: T.() -> Unit           // The action to perform on each emitted value
)

• updateState

The updateState function is used to atomically update the Node's state.
You can access the current state via the state property.

protected fun updateState(
    update: () -> S // A lambda that returns the new state for the node
)

To render a Node, you need to implement a NodeView designed for that Node's state. The NodeView automatically recompose whenever the Node's state changes, ensuring your UI is always up-to-date.

class MovieAdvisorView(
    private val listener: ViewListener // A listener to send events back to the Node
) : NodeView<MovieAdvisor.State> {

    @Composable
    override fun Compose(state: MovieAdvisor.State) {
        // Your composable UI code here
    }

    interface ViewListener {
        fun onSeeMore(movie: Movie)
    }

}

So far, you are able to create a Node and the component that renders it. So it's time to introduce the last Node component that wires up everything together: the NodeToken.

class MovieAdvisor : Node<MovieAdvisor.State>() {

    data class State(
        val movie: Movie? = null
    )

    object Token : NodeToken {
        override fun node() = node(::MovieAdvisor, ::State) {
            MovieAdvisorView(object : MovieAdvisorView.ViewListener {
                override fun onSeeMore(movie: Movie) = Unit // Handle the request from the view
            })
        }
    }

    init {
        subscribe(::suggestMovie) { updateState { state.copy(movie = this) } }
    }

}

NodeTokens are the glue that binds the Node, its state, and its view together. It tells the system how to instantiate the Node, what its initial state is, and how to create the corresponding NodeView. You need to implement the NodeToken and override the node method to return the result of calling the node function.

fun <N : Node<S>, S : Any> node(
    node: () -> N,              // The function that creates the Node instance
    initialState: () -> S,      // The function that provides the initial state for the Node
    view: N.() -> NodeView<S>   // The function that creates the NodeView for the Node, which receives the Node instance as a receiver
): NodeToken.Node

NodeTokens can be parameterized, allowing you to pass parameters to the Node's constructor and its initial state. Look at the example below that takes a Movie as a parameter which is used to initialize both, the Node and its view.

class MovieDetail(
    private val movieId: String
) : Node<MovieDetail.State>() {

    object State // Empty state for this example

    // This token accepts a 'Movie' object
    class Token(val movie: Movie) : NodeToken {
        override fun node() = node({ MovieDetail(movie.id) }, { State }) {
            MovieView(movie = movie)
        }
    }

}

A Node can host one or more child nodes to build complex screens composed of independent, reusable components. This is perfect for layouts like tabbed interfaces, dashboards with multiple sections, or any screen that combines several distinct pieces of functionality. A hosted node can in turn hosts its own children nodes.

• Key characteristics of hosted nodes:

• Inherited Navigator: Hosted nodes automatically inherit the Navigator instance from their host node. This means any navigation operations initiated from a hosted node will be forwarded to the host node.
• Lifecycle Management: Hosted nodes are automatically cleared when their host node is cleared.

class Landing : Node<Landing.State>() {

    object State //Empty state for this example

    object Token : NodeToken {
        override fun node() = node(::Landing, { State }) { LandingView() }
    }

    init {
        // This node hosts two child nodes, the Demo and About nodes
        host(
            Demo.Token,
            About.Token
        )
    }

}

To host nodes, host node must call host(vararg nodes: NodeToken) and pass the tokens of the nodes to be hosted. Calling host() again will clear any previously hosted nodes and establish the new ones. You can call host() with no arguments to clear all children.

To display hosted nodes in your NodeView, you can use of the predefined solutions or build a custom layout with the HostedNodesHost composable.

Built-in predefined Host Composables

Kioto provides ready-to-use solutions for common hosting patterns:

• BoxHost A composable that displays the hosted node at first index. It supports custom loading/empty states and animations.

@Composable
private fun BoxHostSample() {
    BoxHost(modifier = Modifier.fillMaxSize())
}

• PagerHost A composable that displays a collections of hosted nodes one at a time, using a pager-like interface. It supports custom loading/empty states and animations.

@Composable
private fun PagerHostSample() {
    Column(modifier = Modifier.fillMaxSize()) {
        val pagerHostState = rememberPagerHostState()
        PrimaryTabRow(selectedTabIndex = pagerHostState.currentPage, modifier = Modifier.fillMaxWidth()) {
            repeat(3) { tabIndex ->
                Tab(selected = pagerHostState.currentPage == tabIndex, onClick = { pagerHostState.currentPage = tabIndex }, text = { Text(text = "Tab $tabIndex") })
            }
        }
        PagerHost(state = pagerHostState, modifier = Modifier.fillMaxSize().weight(1F))
    }
}

• Build your own solution

HostedNodesHost gives you full control over how your hosted nodes are rendered. It provides the count of active nodes and a function to render each one by its index.

// Renders hosted nodes in a vertically stacked layout, each taking equal space
Column(modifier = Modifier.fillMaxSize()) {
  HostedNodesHost { nodes, render ->
      // `nodes` represents the number of currently hosted nodes, or `null` if host node didn't ask to host any nodes
      // `render(index)` is a lambda that renders a specific node
    repeat(nodes ?: 0) { index ->
      Box(modifier = Modifier.fillMaxSize().weight(1F)) {
        render(index)
      }
    }
  }
}

Nodes can be navigated using the nav property available within the Node class, which provides a simple API to navigate between nodes. Let's see how to navigate to another node as a result of an action in the view.

class MovieAdvisor : Node<MovieAdvisor.State>() {

    data class State(
        val movie: Movie? = null
    )

    object Token : NodeToken {
        override fun node() = node(::MovieAdvisor, ::State) {
            // The 'this' context here is the MovieAdvisor Node instance
            MovieAdvisorView(object : MovieAdvisorView.ViewListener {
                override fun onSeeMore(movie: Movie) = nav.navigate { MovieDetail.Token(movie) }
            })
        }
    }

    init {
        subscribe(::suggestMovie) { updateState { state.copy(movie = this) } }
    }

}

In the example above, when the user requests to see more details about a movie, the onSeeMore method is called, which uses the nav.navigate method to navigate to the MovieDetail node. Note that to navigate to a node, you need to provide the NodeToken that represents the destination node. The way tokens are created and the files they are declared is up to you, although the recommended way to do it is as shown in the examples above.

This navigation solution follows a stack of stacks navigation model, meaning that each node belongs to a stack, which could be shared with other nodes. The first node added to the first stack is known as the root node, this node is a bit special node because it isn't allowed to share its stack with other nodes.

Let's review the available navigation methods for Nodes:

• resetNavigation Pops all the stacks and their nodes, and starts a new navigation stack.

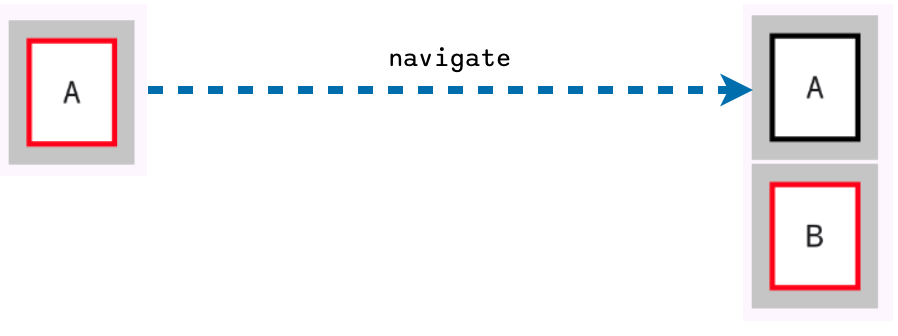

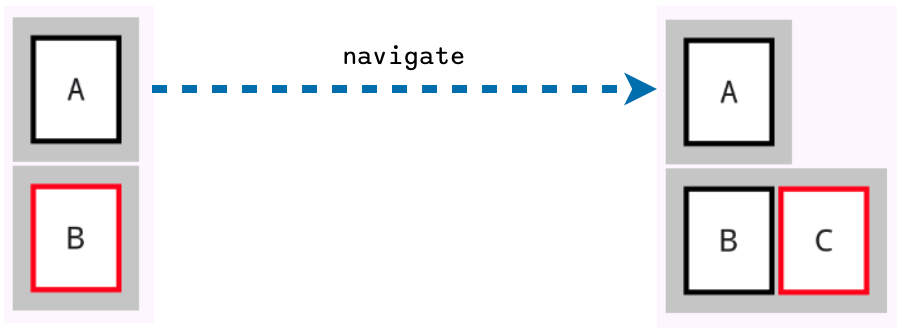

• navigate Transitions to the specified node within the current navigation stack, except if called from a root node, in which case it begins a new stack.

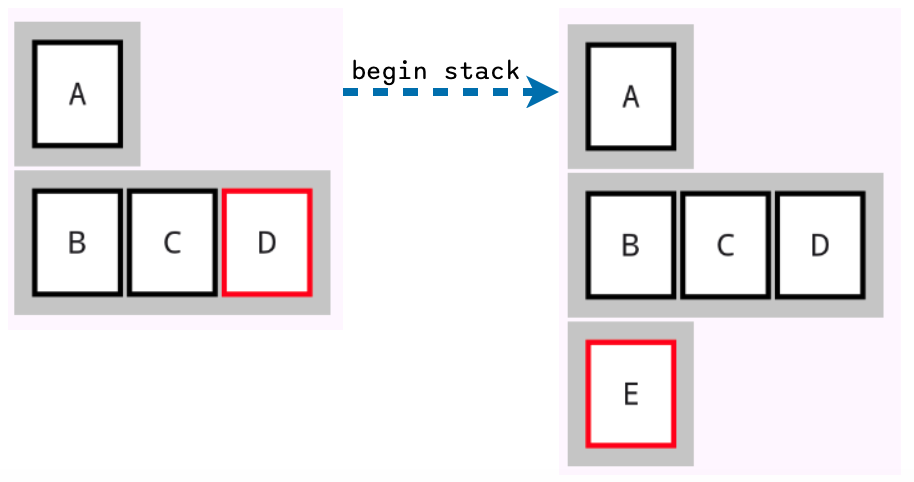

• beginStack Starts a new stack with the specified node as the stack root node.

• replace Replaces the current node with the specified node. Replacing a root node behaves as if resetNavigation was called.

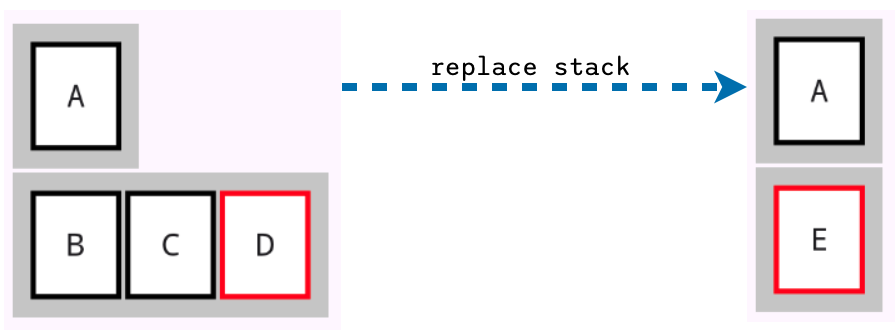

• replaceStack Starts a new stack replacing the node's current stack. Replacing the stack of a root node behaves as if resetNavigation was called.

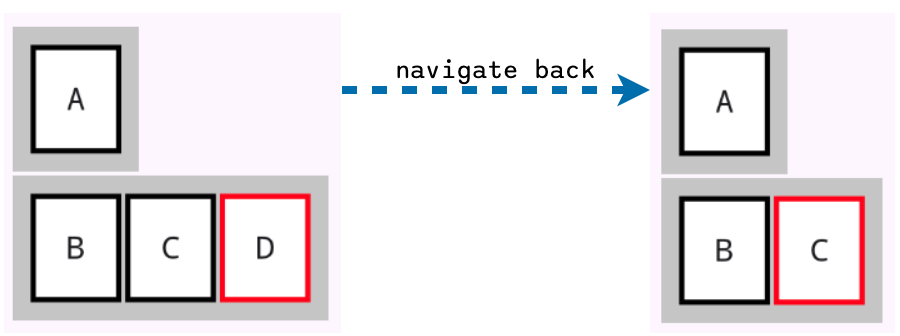

• navigateBack Pops the node from the stack.

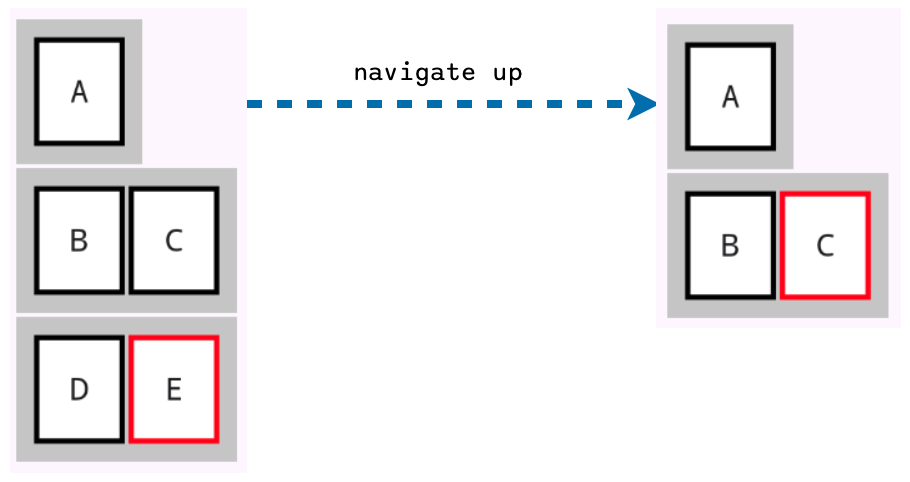

• navigateUp Pops all the nodes belonging to the node's stack.

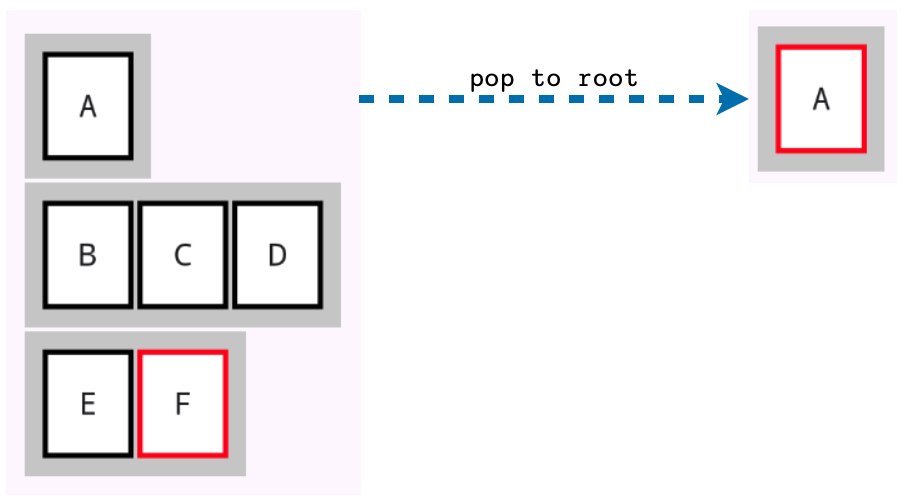

• popToRoot Pops all the nodes in the stack until the root node is reached, unless the node that initiates the navigation is a root node, in which case it behaves as if navigateBack was called.

Navigation events are usually triggered by the latest added node, however, there's nothing by design that prevents from navigating from any previous node in the stack. In that case, all subsequent nodes will first be popped until the node requesting the navigation is reached before handling the navigation request.

NodeNav is the core component that manages navigation under the hood. NodeNav runs regardless of the UI is rendering nodes or not, you just need to create an instance of it and set a Node as the root node to start the navigation process. There's no limit on the number of NodeNav instances you can create, so it's up to you to determine the approach that works best for your application, you could have a single global reference to a NodeNav instance in your application file or use more elaborated solutions like dependency injection to manage it. For most applications, a single NodeNav instance at the application root is sufficient, but more advanced scenarios might benefit from multiple instances. If a NodeNav instance's lifecycle is shorter than app's lifecycle, it is necessary to call release to ensure proper cleanup of active nodes.

val nodeNav = NodeNav.newInstance().apply {
    setNavigation { Landing.Token } // Set the initial navigation token
}

In the example above, a NodeNav instance is created and setNavigation is called to set the initial navigation node. Calling setNavigation again will clear any previous navigation state and start a new one.

Sometimes you may find scenarios where you need your users to interact with the UI from events triggered from outside of the regular UI navigation flow. Such as opening a push notification from the notifications center, a second factor authentication request, or a required pending terms acceptance that you discover during a login process. For these cases, you can leverage presentStack or awaitPresentStack to start a new stack with a node that will be presented to the user, allowing them to interact with it and then return to the previous navigation state.

• presentStack presents a new stack on top of any existing stacks.

fun presentDebitCardPaymentOperation(operationId: String) {
    // Presents a new stack with the DebitCardPaymentDetail node on top of any existing stacks if any
    nodeNav.present { DebitCardPaymentOperation.Token(operationId = operationId) }
}

awaitPresentStack is a suspend function, coroutine execution is suspended until the presented stack and its replacements, if any, are dismissed.

suspend fun authenticate(authenticate: (code: String) -> Boolean) {
    nodeNav.present { SecondFactorAuthentication.Token(authenticate) } // Suspended until SecondFactorAuthentication is dismissed
}

class SecondFactorAuthentication(
    private val auth: suspend (String) -> Boolean
) : Node<SecondFactorAuthentication.State>() {

    data class State(
        val isAuthenticating: Boolean = false,
        val invalidCodeError: Boolean = false
    )

    class Token(val auth: (String) -> Boolean) : NodeToken {
        override fun node() = node({ SecondFactorAuthentication(auth) }, ::State) {
            SecondFactorAuthenticationView(
                listener = object : SecondFactorAuthenticationView.ViewListener {
                    override fun onAuthenticate(code: String) = authenticate(code)
                }
            )
        }
    }

    fun authenticate(code: String) {
        updateState { state.copy(isAuthenticating = true) }
        subscribe(
            source = { auth(code) },
            onError = { updateState { state.copy(isAuthenticating = false, invalidCodeError = true) } },
            onCompleted = { nav.navigateUp() }
        )
    }

}

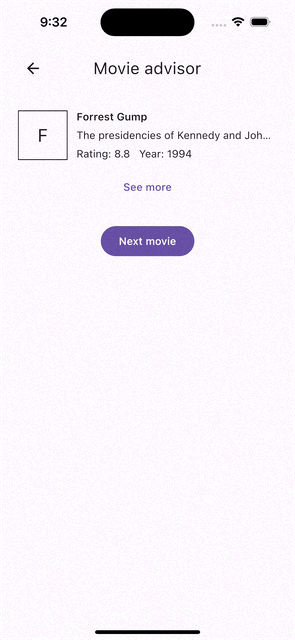

Kioto supports predictive back gestures, allowing users to navigate back in the navigation stack by swiping from the edges (from the right only available on Android) of the screen. Follow official Android documentation to enable predictive back gesture in your Android application: Predictive back gesture.

Android	iOS

NodeNav can provide a scoped context to the Node instances it hosts. Contexts are unbounded, since they can hold any number of properties. DI graphs, configuration parameters, node's dependencies, are just a few examples of how you can take advantage of this feature.

Context properties are identified by a ProvidableContext key. Nodes uses this key to retrieve the context properties they need.

val logger = contextKeyOf<Logger>() // Declare a context key for Logger

val nodeNav = NodeNav(
    context = context(
        // Associate logger key to Logger supplier lambda, instances are created lazily and reused.
        logger provides { Logger(::println) }
    )
)

class MovieAdvisor : Node<MovieAdvisor.State>() {

    data class State(
        val movie: Movie? = null
    )

    object Token : NodeToken {
        override fun node() = node(::MovieAdvisor, ::State) {
            MovieAdvisorView(object : MovieAdvisorView.ViewListener {
                override fun onSeeMore(movie: Movie) = seeMore(movie)
            })
        }
    }

    init {
        subscribe(::suggestMovie) { updateState { state.copy(movie = this) } }
    }

    private fun seeMore(movie: Movie) {
        nav.navigate { MovieDetail.Token(movie) }.also {
            // Retrieve the context property by invoking () the key
            logger().log("See more about ${movie.title}")
        }
    }

}

fun interface Logger {
    fun log(message: String)
}

Once a NodeNav is initialized by adding a first node, aka root node, it cannot be emptied anymore. Any attempt to empty the navigation by dismissing its root node has no effect.

However, it's common you may start a navigation from a node that is not the usual root node, for example, when opening the app from a notification or a deep link and you may want your users to be directed to a specific node after leaving the app, for example, a home or dashboard node. To deal with these situations, provide a handleRootDismissTry lambda when instantiating NodeNav. handleRootDismissTry is called everytime a new root node is set. This lambda should return another lambda which will be invoked if an attempt is made to dismiss that root node, allowing you to define the desired behavior.

val nodeNav = NodeNav.newInstance(
    context = context(logger provides { Logger(::println) })
) { rootToken ->
    // Any attempt to dismiss a root node other than Demo, will take users to Demo node by setting a new navigation.
    // Having this way Demo as the only exit point for the application.
    if (rootToken != Demo.Token) return@newInstance { setNavigation { Demo.Token } } else null
}.apply {
    // Initialize the navigation with the first node.
    setNavigation { Demo.Token }
}

Add the dependency to your project build.gradle file:

kotlin {
    //...
    sourceSets {
        commonMain.dependencies {
            implementation("com.wokdsem.kioto:kioto:0.5.5")
        }
    }
}

Available on Maven Central

Use NodeHost composable function to render a NodeNav instance in your Android application.

class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            NodeHost(
                nodeNav = nodeNav // The NodeNav instance to be rendered
            )
        }
    }

}

Use nodeHost function which returns a UIViewController to render a NodeNav instance in your iOS application. Override the default composable nodeHost wrapper if you need to customize the nodeHost holder.

object ExampleIOsApplication {

    fun getNodeNavUIViewController() = nodeHost(
        nodeNav = nodeNav // The NodeNav instance to be rendered
    )

}

@main
struct iOSApp: App {
    var body: some Scene {
        WindowGroup {
            NodeNavRenderer()
                .ignoresSafeArea(.all)
        }
    }
}

struct NodeNavRenderer: UIViewControllerRepresentable {
    func makeUIViewController(context: Context) -> UIViewController {
        ExampleIOsApplication().getNodeNavUIViewController()
    }

    func updateUIViewController(_ uiViewController: UIViewController, context: Context) {
    }
}

Kioto provides the following composition locals:

• LocalNodeHost Provides access to the current NodeHost instance, allowing any composable to react to the host's state. The NodeHost exposes the following properties:
  • platform: Platform: The host platform the app is currently running on (ANDROID or IOS).
  • isTransitionInProgress: A flag that is true if a navigation transition between nodes is currently active.

This is particularly useful for building platform-specific UI or for disabling certain interactions during a navigation transition.

val nodeHost = LocalNodeHost.current ?: return
if (!nodeHost.isTransitionInProgress) {
    val platform = when (nodeHost.platform) {
        Platform.ANDROID -> "Android"
        Platform.IOS -> "iOS"
    }
    Text(text = "Platform: $platform")
}

• LocalNodeScope Provides the current NodeScope instance, which can be used to request a back navigation and determine if the current node is hosted by another.

val nodeScope = LocalNodeScope.current
if (nodeScope?.isHosted == false) {
    IconButton(onClick = { nodeScope.navigateBack() }) {
        Icon(imageVector = Icons.AutoMirrored.Default.ArrowBack, contentDescription = "Back")
    }
}

Copyright 2025 Wokdsem

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
