On-device debugging suite offering network capture, typed preferences and SQLite editors, crash/ANR reports, logs, performance metrics, extensible plugin API, and no-op release-safe replacement.
An on-device debugging suite for Kotlin Multiplatform apps.
Chucker's network inspection, Flipper's storage tools, Pluto's plugin model — KMP-first, Java-friendly, and built so it cannot ship to your users by accident.
Status: early release (
0.3.0), available on Maven Central. Expect the API to move before 1.0. Android, JVM desktop and iOS are all verified on-device/simulator with running sample apps.Scry installs into apps that have Kotlin shared code. Kotlin and Java callers are both first-class — the Java builder facade is compile-enforced on Android and desktop. A Swift app that shares a KMP module and uses Ktor is well served; a pure Swift/
URLSessionapp is not a consumer today, because iOS capture goes through Ktor andNSURLProtocolinterception is not implemented. See iOS limitations.
| Network | Prefs | DB | Crash/ANR | KMP | |
|---|---|---|---|---|---|
| Chucker | ✅ | ❌ | ❌ | ❌ | ❌ Android only |
| Pluto | ✅ | ✅ | ✅ | ✅ | ❌ Android only |
| Flipper | ✅ | ✅ | ✅ | ✅ | ❌ + desktop app required |
| Inspektify / Inspektor / NetLens / wiretapKMP | ✅ | ❌ | ❌ | ❌ | ✅ |
| Scry | ✅ | ✅ | ✅ | ✅ | ✅ |
Every KMP debugger on the market is network-only. Every full-suite debugger is Android-only. Scry is the intersection: one plugin host, one UI, every target.
The plugin API is the product. Network, preferences, database and crash inspection are proof that the API is expressive enough for anyone else's plugin — they use exactly the API you would.

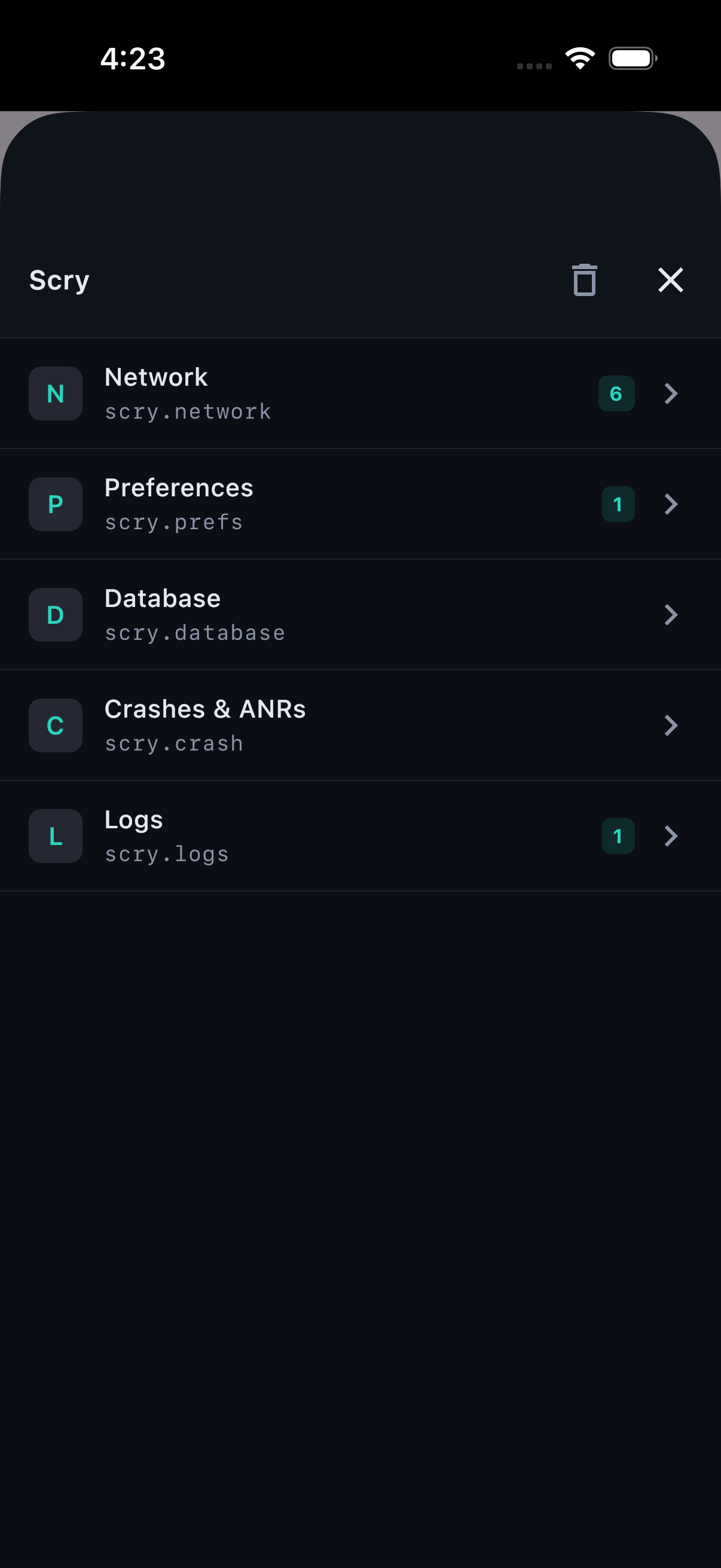

iOS — the same Compose shell, presented over UIKit:

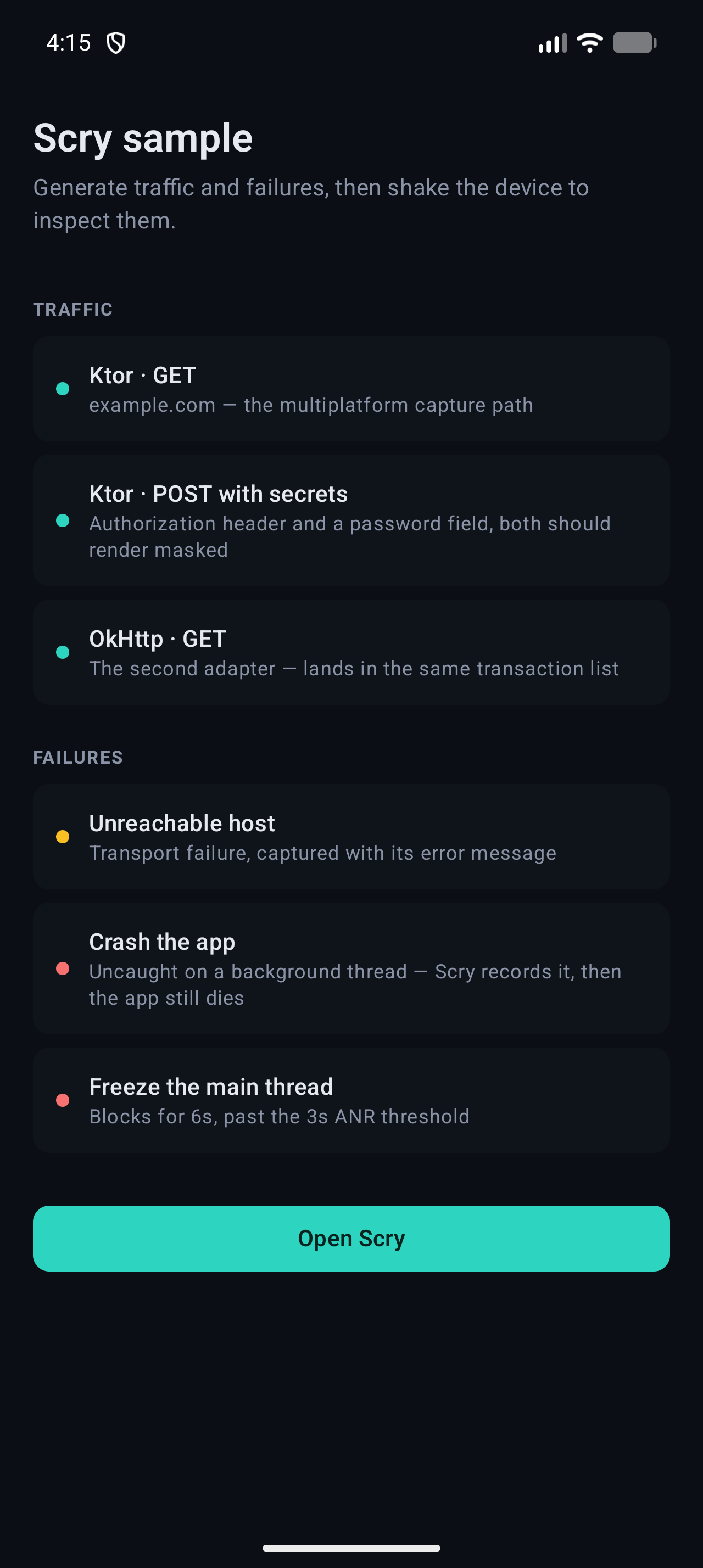

Screens above are the Android sample in dark mode. Scry ships a light theme too, following the host app's system theme by default.
| Artifact | What it does |
|---|---|
scry-core |
Plugin API, config DSL + Java builder, SQLite-backed store with retention, redaction, sharing, shake-to-open |
scry-ui |
Compose Multiplatform shell — plugin list, navigation, theme, shared screen bar / share / confirm-delete actions, Android activity host, desktop window |
scry-network |
Engine-agnostic NetworkTransaction, capture plugin, list/detail UI, HAR + cURL export |
scry-network-ktor |
Ktor client plugin — the multiplatform capture path |
scry-network-okhttp |
OkHttp 5 interceptor — the Android/Retrofit path |
scry-prefs |
Key-value store viewer and editor, with per-store JSON export and reset |

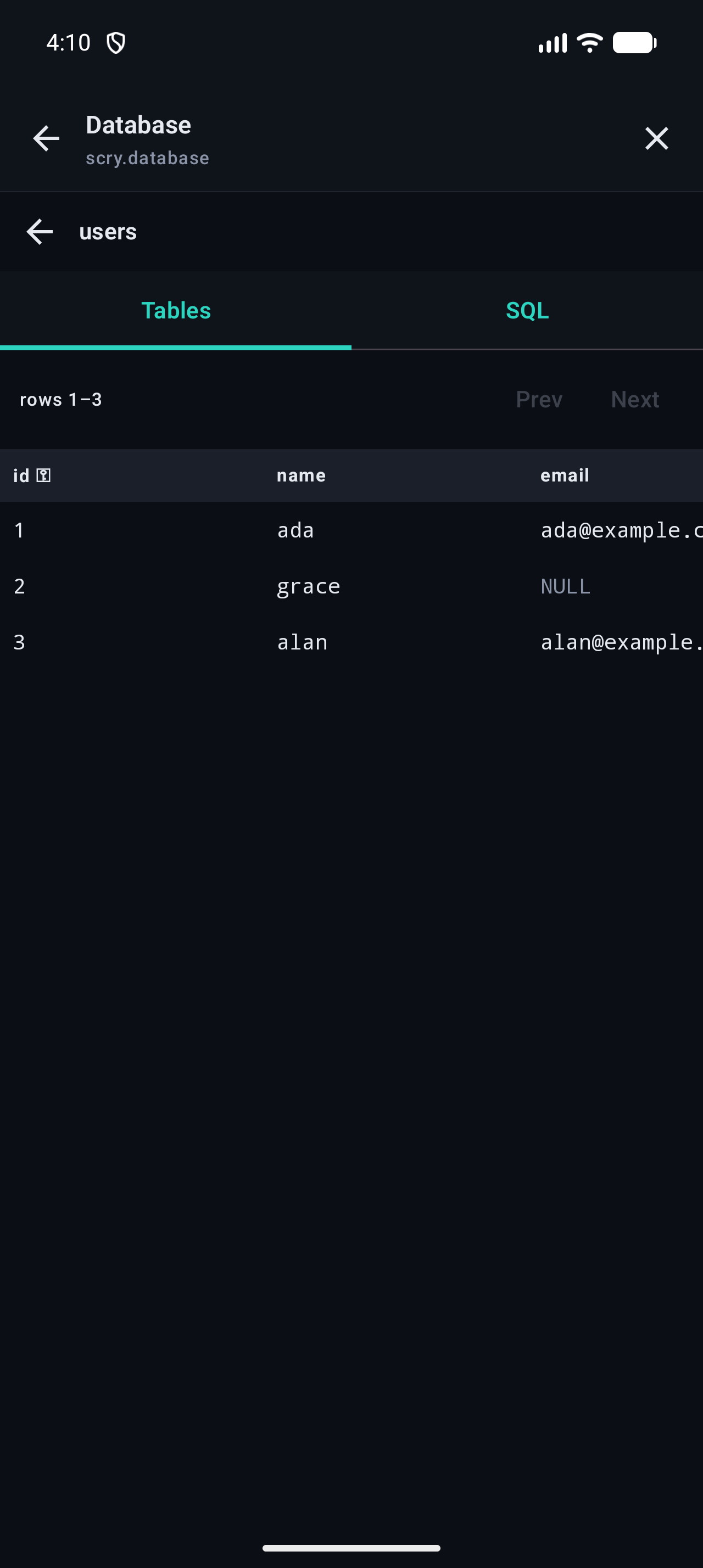

scry-database |
SQLite browser and editor — schema, rows, cell editing, row/table delete, CSV export, SQL console |
scry-crash |

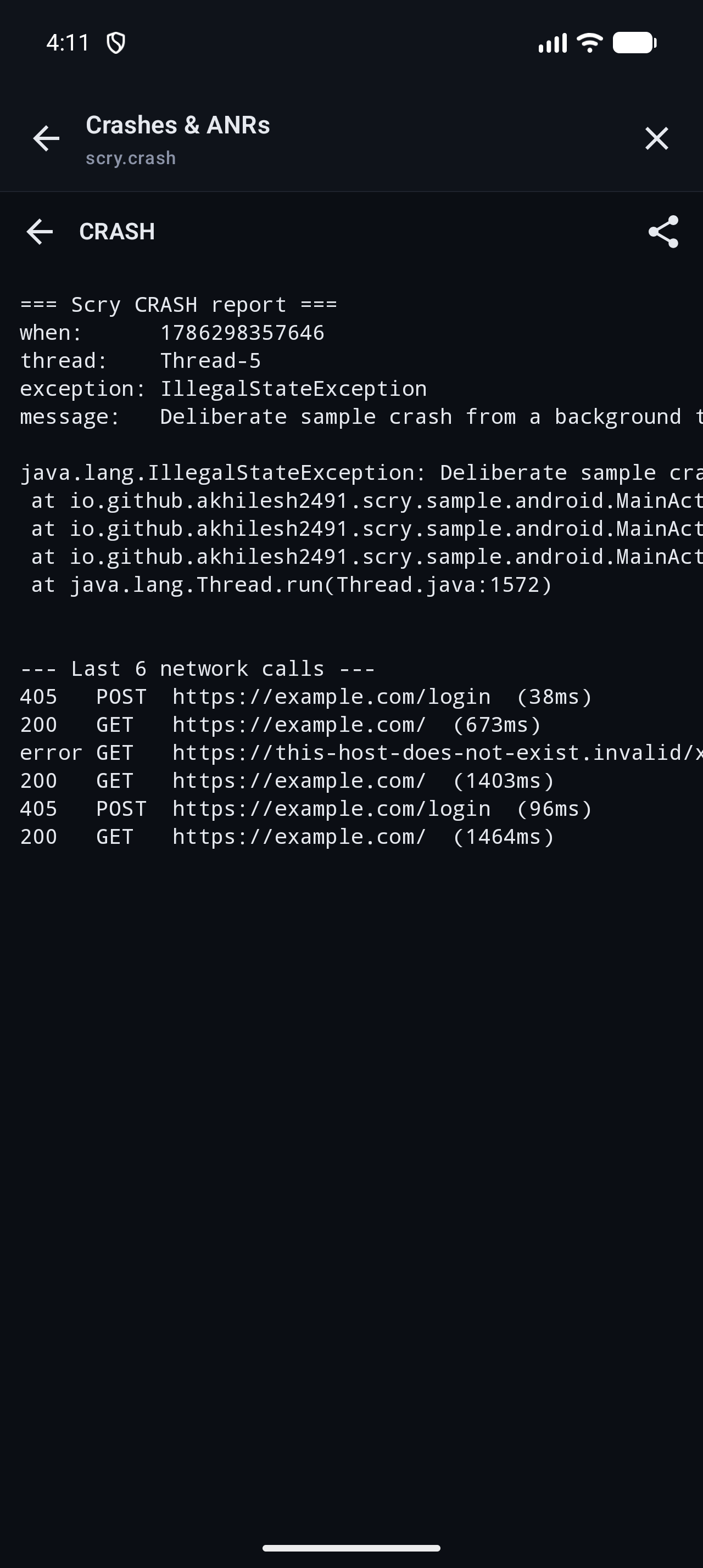

Crash + ANR capture with cross-plugin context, and report sharing |

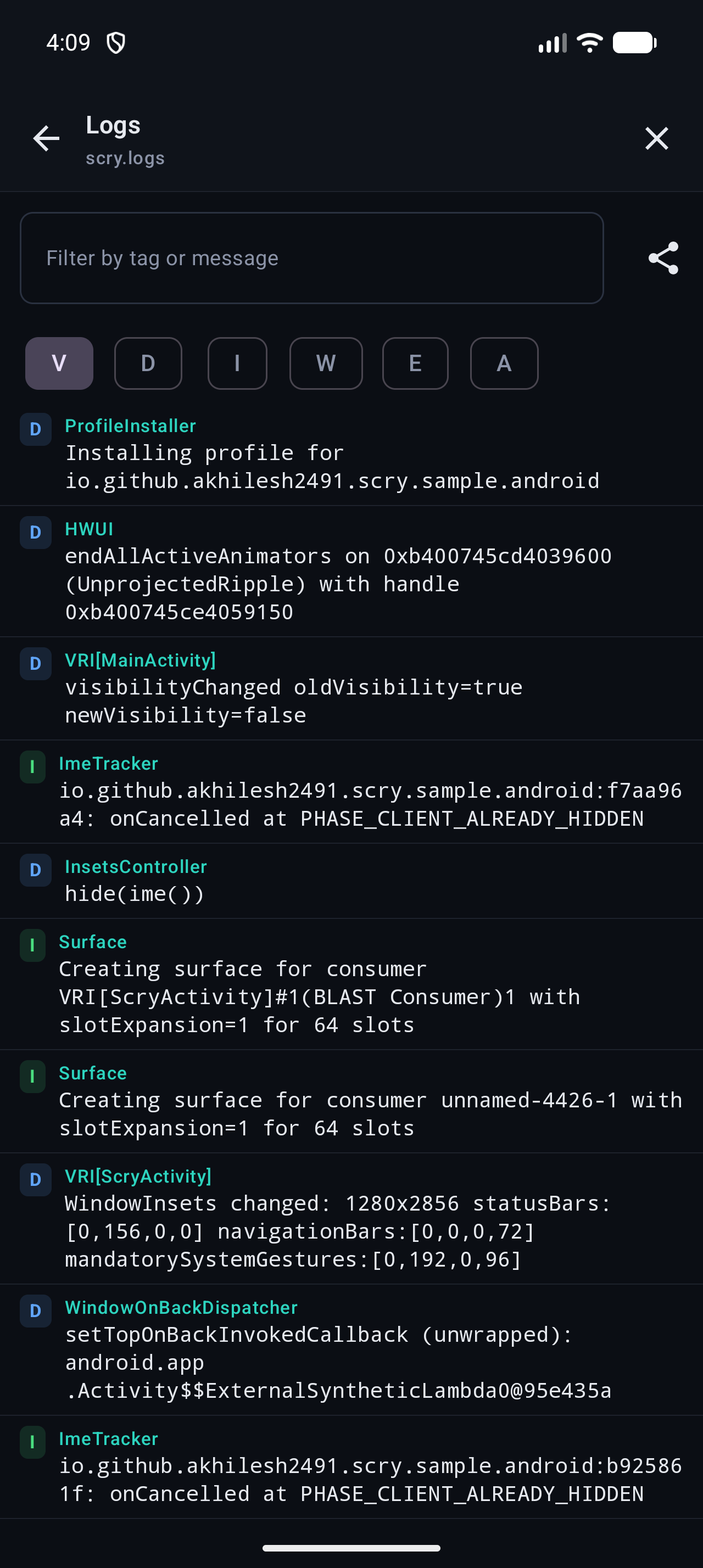

scry-logs |
In-app logger, Android logcat capture, level/tag filtering |

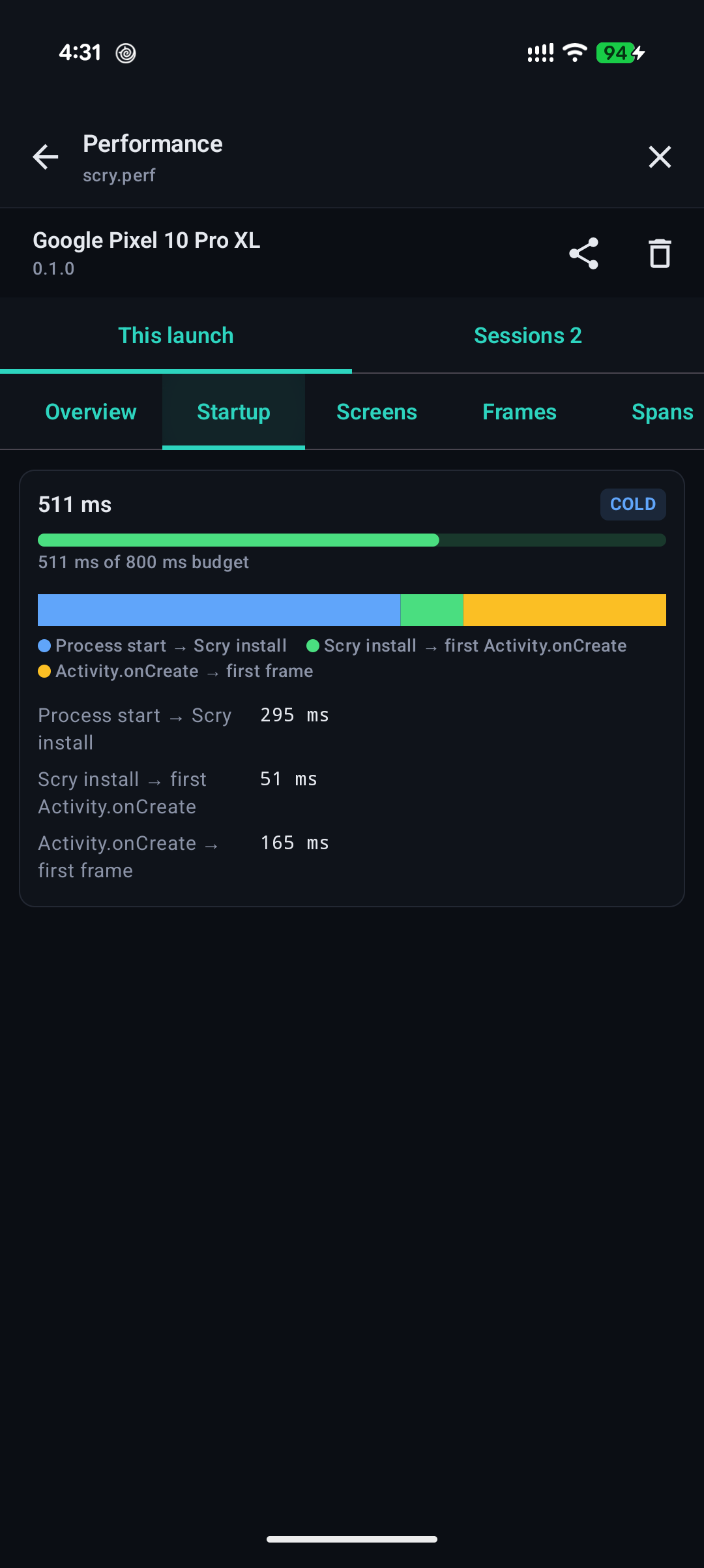

scry-perf |
Startup, screen-load and frame timing with budgets, sessions and JSON/CSV export |
scry-no-op |
API-identical inert replacement for release builds, parity-gated in CI |
scry-gradle-plugin |
Wires debug/release variants and fails the build if Scry reaches release |
Targets: Android (minSdk 23), JVM desktop, and iOS (arm64 + simulator arm64).
0.3.0 is built and verified against these versions. Older ones may work but are untested —
if you are on an earlier Kotlin or AGP and hit a resolution failure, that is the first thing to check.
| Kotlin | 2.4.10 |
| AGP | 9.3.1 |
| Compose Multiplatform | 1.11.1 — only needed if you use scry-ui
|
| JDK | 17 |
| Android |
minSdk 23, compileSdk 37
|
| Targets |
android, jvm (desktop), iosArm64, iosSimulatorArm64
|
minSdk is 23 rather than 21 because Compose Multiplatform pulls androidx.navigationevent. If you
are on 21 or 22 you can still take scry-core and the capture modules — it is scry-ui that
carries the floor.
There is no iosX64 — androidx.sqlite publishes no Intel-simulator variant. Apple-silicon
simulators only.
Android projects can skip Steps 2 and 3. The Gradle plugin does the debug/release wiring for you and fails the build if Scry reaches release. The manual route below is still what you want for KMP, desktop, or any project with custom variants.
Scry publishes to Maven Central, so in most projects this is already there. In settings.gradle.kts:
dependencyResolutionManagement {
repositories {
mavenCentral()
}
}In gradle/libs.versions.toml, so the modules can never drift apart:
[versions]
scry = "0.3.0"
[libraries]
scry-core = { module = "io.github.akhilesh2491.scry:scry-core", version.ref = "scry" }
scry-ui = { module = "io.github.akhilesh2491.scry:scry-ui", version.ref = "scry" }
scry-network-okhttp = { module = "io.github.akhilesh2491.scry:scry-network-okhttp", version.ref = "scry" }
scry-network-ktor = { module = "io.github.akhilesh2491.scry:scry-network-ktor", version.ref = "scry" }
scry-prefs = { module = "io.github.akhilesh2491.scry:scry-prefs", version.ref = "scry" }
scry-database = { module = "io.github.akhilesh2491.scry:scry-database", version.ref = "scry" }
scry-crash = { module = "io.github.akhilesh2491.scry:scry-crash", version.ref = "scry" }
scry-logs = { module = "io.github.akhilesh2491.scry:scry-logs", version.ref = "scry" }
scry-perf = { module = "io.github.akhilesh2491.scry:scry-perf", version.ref = "scry" }
scry-no-op = { module = "io.github.akhilesh2491.scry:scry-no-op", version.ref = "scry" }Take only the plugins you want — scry-core plus scry-ui is the minimum for a usable install.
Android — the split matters. Real modules on debug, the no-op on release:
dependencies {
debugImplementation(libs.scry.core)
debugImplementation(libs.scry.ui)
debugImplementation(libs.scry.network.okhttp)
debugImplementation(libs.scry.prefs)
debugImplementation(libs.scry.crash)
releaseImplementation(libs.scry.no.op)
}scry-no-op provides the same public API with empty implementations, so your Scry.install(...)
call still compiles in release without any if (BuildConfig.DEBUG) guards — and ships nothing.
See Safety for why this is the whole design.
Kotlin Multiplatform — add to commonMain; Gradle resolves the per-target variant:
kotlin {
sourceSets {
commonMain.dependencies {
implementation(libs.scry.core)
implementation(libs.scry.ui)
implementation(libs.scry.network.ktor)
}
}
}
scry-network-okhttpis JVM-only (Android + desktop) — OkHttp does not exist on Native. On iOS, usescry-network-ktor. Putting the OkHttp module incommonMainfails to resolve for the iOS targets.
Desktop-only (JVM) — plain implementation, since there are no build variants to separate:
dependencies {
implementation(libs.scry.core)
implementation(libs.scry.ui)
}Gate it yourself with a debug flag, or use a custom debug source set.
Pick your platform below — Kotlin, Java, Desktop or iOS. The shortest possible Android version:
class MyApp : Application() {
override fun onCreate() {
super.onCreate()
Scry.install(this) { plugin(NetworkPlugin()) }
enableScryUi(this)
ShakeToOpen(this).start()
}
}Then attach the capture point for whatever you use — an OkHttp interceptor, the Ktor plugin, a
SupportSQLiteOpenHelper. Nothing is captured until you do.

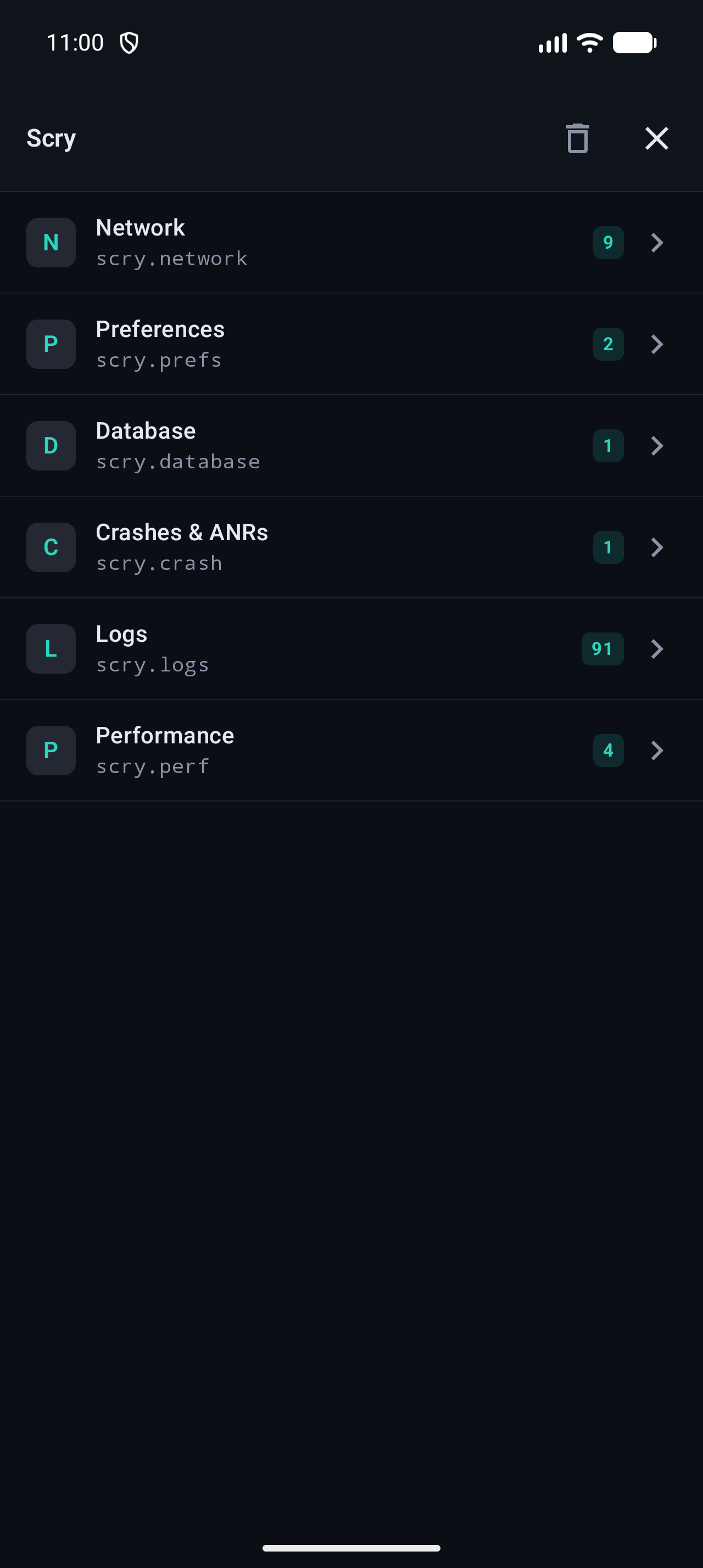

Run a debug build, exercise some traffic, and shake the device (or Scry.show() from anywhere,
or Ctrl/Cmd+Shift+S on desktop). You should get the plugin list with live badges. If the UI
never appears, the usual cause is enableScryUi(...) not being called — Scry.install alone
captures data but registers no UI.
To confirm the release side is clean:
./gradlew assembleReleasethen check that no scry-core or scry-ui classes are in the APK. If you use the Gradle plugin
below, this is checked for you on every release build.
Steps 2 and 3 are mechanical, and hand-wiring debugImplementation/releaseImplementation for
every module you add is the single most common way an on-device debugger ends up in a shipped app.
The io.github.akhilesh2491.scry
plugin does that wiring instead, and fails the release build if a real Scry artifact reaches the
release runtime classpath:
plugins {
id("com.android.application")
id("io.github.akhilesh2491.scry") version "0.1.0"
}
scry {
modules.set(setOf(ScryModule.NETWORK_OKHTTP, ScryModule.PREFS, ScryModule.CRASH))
}That replaces Steps 2 and 3 entirely. It adds scry-core and scry-ui to debugImplementation
automatically — a debugger you cannot open is not a debugger, and forgetting scry-ui produces a
confusing "nothing happens" rather than a compile error — plus whichever modules you list, and
scry-no-op to releaseImplementation. Library versions default to the plugin's own version, so
the two can never drift apart.
The plugin is still at
0.1.0while the libraries are at0.3.0. Because the default library version follows the plugin, applying it as shown wires the0.1.0libraries — setversion.set("0.3.0")in thescryblock to pull the current ones.ScryModule.PERFdoes not exist in the published plugin yet, so wirescry-perfby hand (Steps 2 and 3) until the plugin catches up.
Apply it after the Android application or library plugin: it needs the debugImplementation
and releaseImplementation configurations to already exist. If they don't, it logs a warning and
adds nothing, rather than half-wiring the build.
| Setting | Default | Notes |
|---|---|---|
modules |
NETWORK_OKHTTP |
NETWORK_KTOR, NETWORK_OKHTTP, PREFS, DATABASE, CRASH
|
version |
the plugin's version | override only if you need to pin the libraries separately |
enabled |
true |
false adds no dependencies — useful for a staged rollout |
failOnReleaseLeak |
true |
false drops the release-leak check |
The default is the network plugin alone, because that is why most people install Scry and pulling
in the storage inspectors silently would be a surprise. scry-logs has no ScryModule entry yet —
add it by hand if you want it.
The check itself runs as checkScryNotInRelease, wired into assembleRelease* and bundleRelease:
./gradlew checkScryNotInReleaseIt walks the dependency resolution graph rather than an artifact view, so it catches published coordinates and project dependencies — the latter matter more than they look, since composite builds and this repo's own samples consume Scry that way.
class MyApp : Application() {
override fun onCreate() {
super.onCreate()
Scry.install(this) {
retention = Retention.of(24.hours, maxEntries = 1_000, maxBytes = 50L * 1024 * 1024)
plugin(NetworkPlugin { maxBodyBytes = 256 * 1024 })
plugin(PreferencesPlugin())
plugin(DatabasePlugin { database(appDatabase) })
plugin(CrashPlugin { anrThreshold = 4.seconds })
plugin(LogPlugin { captureSystemLog = true })
}
enableScryUi(this) // connect the Compose UI
ShakeToOpen(this).start() // shake to open
}
}
// Ktor
val client = HttpClient { install(ScryKtor) }
// or OkHttp / Retrofit
val okhttp = OkHttpClient.Builder().addInterceptor(ScryInterceptor()).build()ScryAndroid.installer(context)
.retention(Retention.ofHours(12))
.redactHeaders("X-Internal-Trace")
.addPlugin(new NetworkPlugin())
.install();
new ShakeToOpen(context).start();
OkHttpClient client = new OkHttpClient.Builder()
.addInterceptor(new ScryInterceptor())
.build();Java interop is enforced by the build, not by intention. A Java file in each sample compiles on every build and breaks the moment a Kotlin-only construct reaches the public API.
val scry = Scry.install(PlatformContext(applicationId = "my-app")) { plugin(NetworkPlugin()) }
application {
Window(onCloseRequest = ::exitApplication, onKeyEvent = ::onScryHotkey) { App() }
scry?.let { ScryDesktopWindow(it) } // renders only when shown
}val scry = Scry.install(PlatformContext()) { plugin(NetworkPlugin()) }
enableScryUi() // presents over the key window when Scry.show() is calledOr present it yourself: ScryUIViewController(instance) returns a UIViewController.
Open with shake on Android, Ctrl/Cmd+Shift+S on desktop, Scry.show() from anywhere.

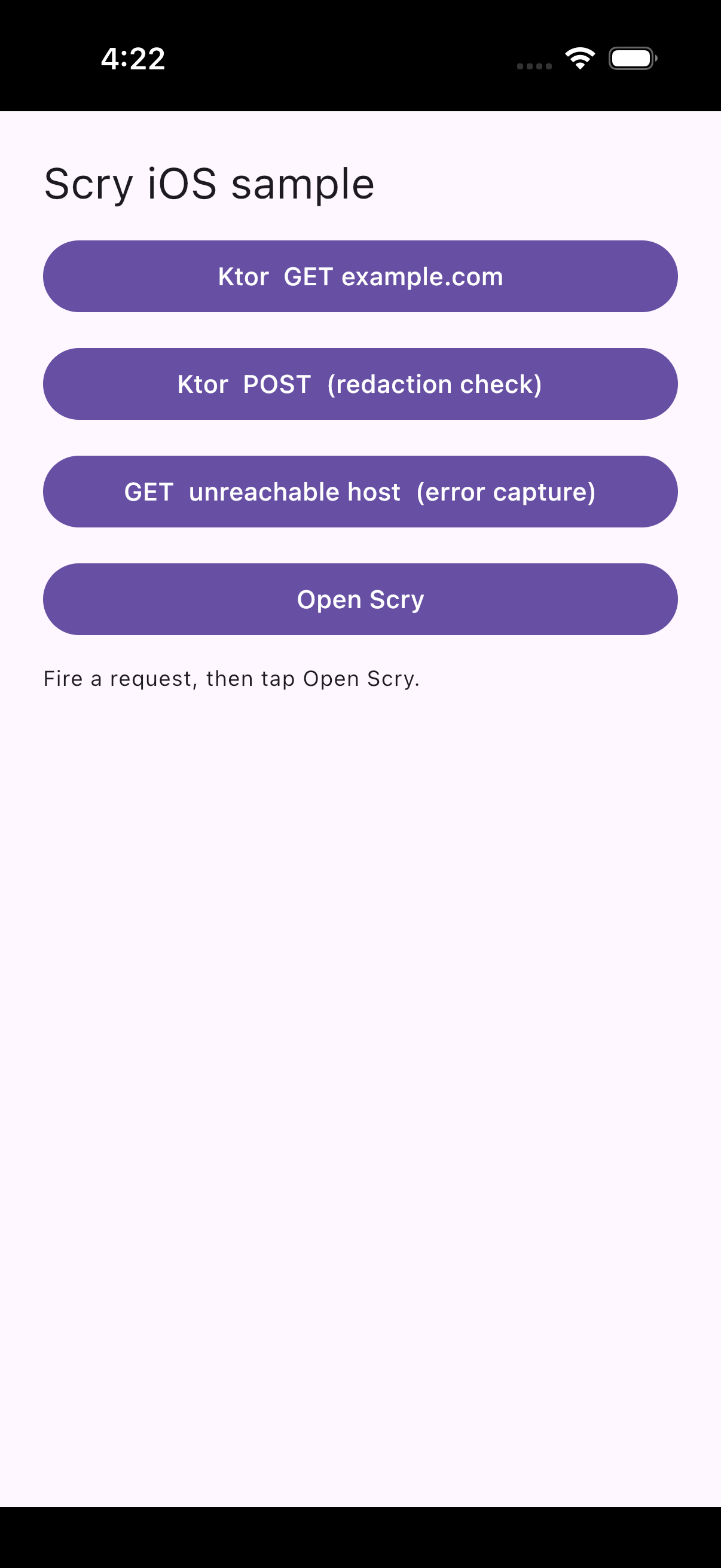

There is a runnable sample at samples/sample-ios (Compose shared code + a SwiftUI host generated
by XcodeGen):
./gradlew :samples:sample-ios:linkDebugFrameworkIosSimulatorArm64
cd samples/sample-ios/iosApp && xcodegen generate && open ScrySample.xcodeprojBuilding a release iOS framework needs a large Kotlin/Native heap — set
kotlin.native.jvmArgs=-Xmx8gingradle.properties, and avoid linking both architectures in parallel. Whole-program optimisation over Compose OOMs at the 3 GB default with no hint that heap is the problem.If you host Compose on iOS yourself, your
Info.plistneedsCADisableMinimumFrameDurationOnPhone = true. Compose Multiplatform refuses to start without it. Nothing to do with Scry — but it is the first thing that will stop you.
./gradlew iosSimulatorArm64Test runs 115 tests as real Kotlin/Native code on the simulator: the
store on a Documents-backed SQLite file (including retention eviction), the pthread lock, the clock,
Ktor capture, redaction, HAR/cURL export, the database inspector, and NSUserDefaults round-trips —
including that a stored boolean reads back as a boolean rather than a number, which is how feature
flags would otherwise turn into 0/1.
The sample confirms the rest on a simulator: the Compose shell presents as a page sheet over the
SwiftUI host, all four plugins register with live badges, and captured traffic lands in

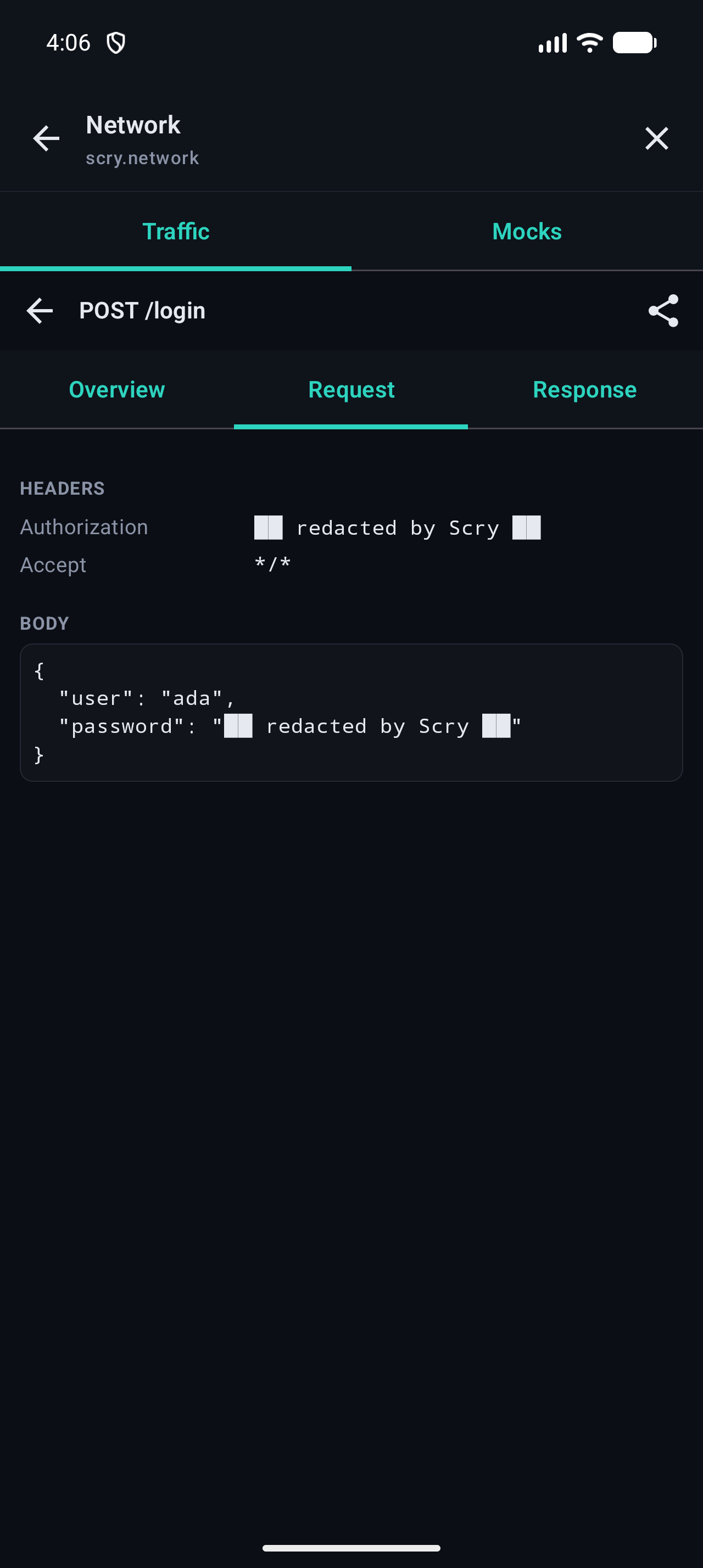

Documents/scry/<bundle-id>/scry.db with Authorization and password fields already masked.
URLSession directly are not captured;
NSURLProtocol interception is not implemented yet.SIGSEGV, SIGABRT) — which is
how most Kotlin/Native crashes actually terminate. Keep a dedicated crash reporter for production;
Scry is for the debug loop.NSUserDefaults named suites cannot be discovered — the API offers no enumeration. Register
them with store(NSUserDefaults(suiteName = "…").asScryStore("…")).iosX64. androidx.sqlite publishes no Intel-simulator variant.Requests and responses with headers, bodies, status, duration, size and protocol; pretty-printed JSON; search; in-flight requests visible before they complete (so a hung call is diagnosable); errors captured with their message.

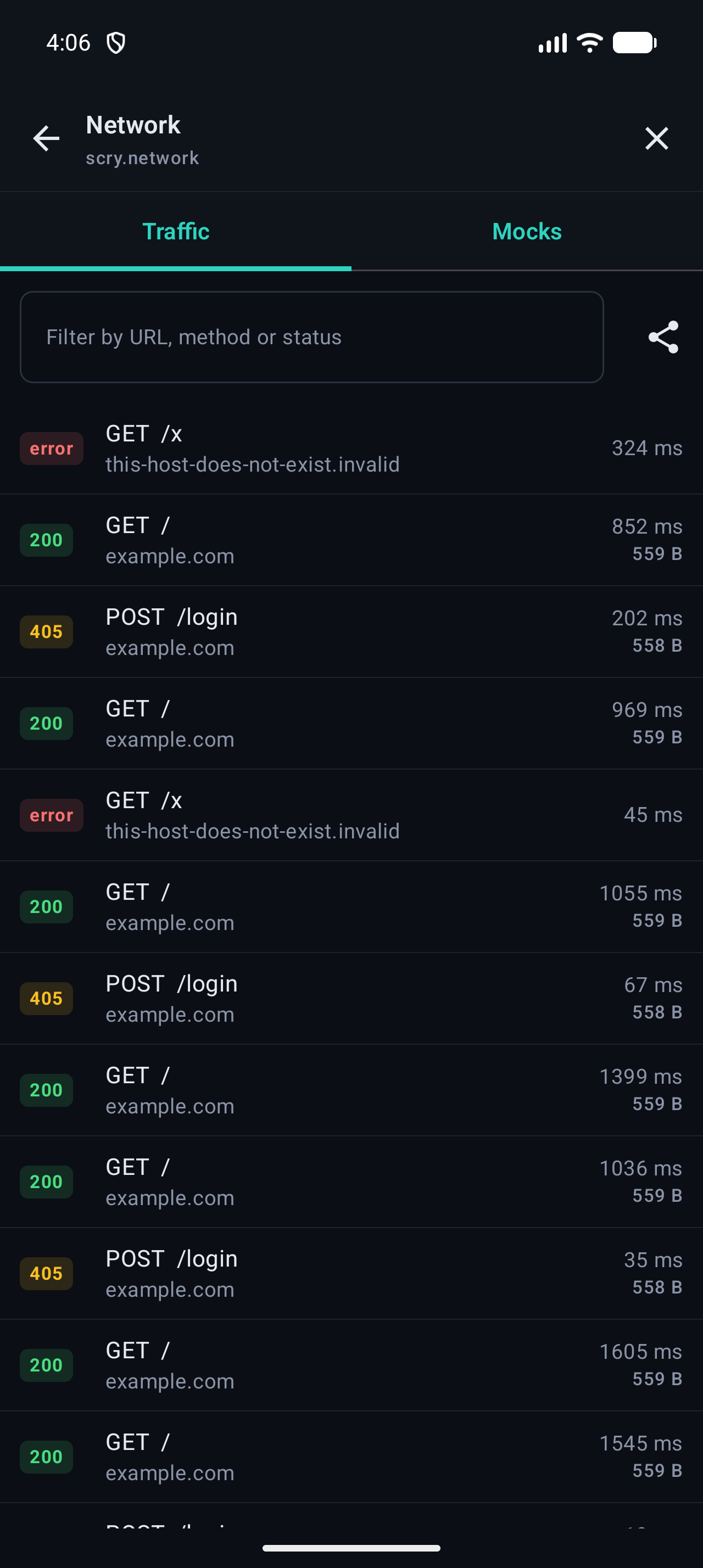

Two capture adapters — Ktor (all targets) and OkHttp 5 (Android/JVM) — produce the same
NetworkTransaction, so they share one UI, one store and one export path. Use both at once; they
land in the same list.

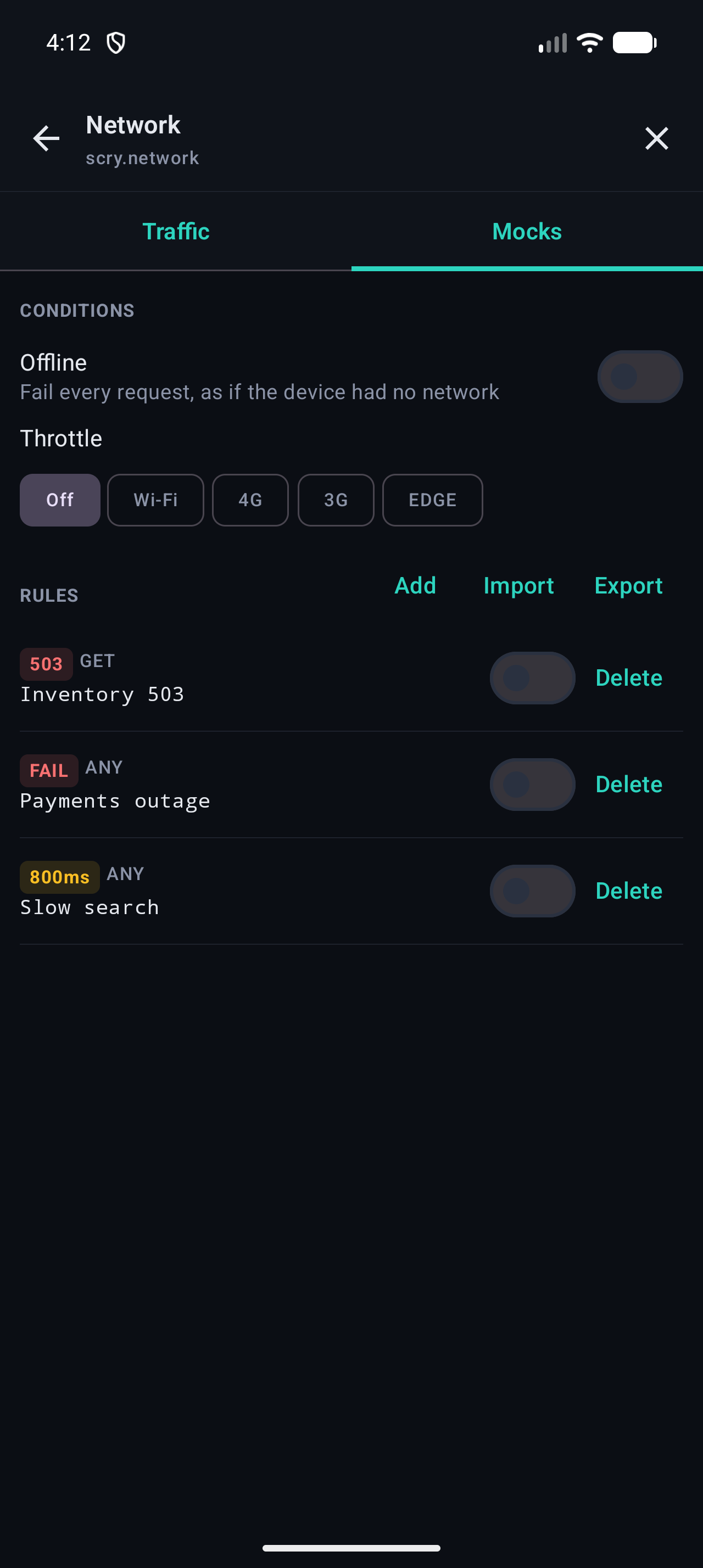

Mocking, throttling and fault injection live in a Mocks tab beside the traffic list:
plugin.mocks.addRule(
MockRule(
id = "orders-down",
urlPattern = "*/orders*", // glob, not regex — URL metacharacters are escaped
method = "GET", // or null for any
action = MockAction.Respond(statusCode = 503, body = """{"down":true}"""),
),
)
plugin.mocks.setThrottle(ThrottleProfile.SLOW_3G)
plugin.mocks.setOffline(true)Actions are Respond (canned response, never touches the network), Fail (injected transport
error) and Delay (real request, added latency). Rules apply to both adapters, so one rule
fires whether the call goes through Ktor or OkHttp.
Mocked responses carry a Scry-Mocked: true header and are captured in the traffic list like any
other — silently faking traffic with no trace is how people lose an afternoon. The Mocks tab shows
a dot when anything is active, for the same reason.
Rules export as JSON so a QA engineer can configure a scenario on a device, commit the file, and have everyone reproduce the same failure. A mocking feature you cannot share is a toy.
Export: HAR 1.2 for the whole session (imports into Charles, Proxyman, Insomnia, DevTools) and runnable, correctly-quoted cURL per request.

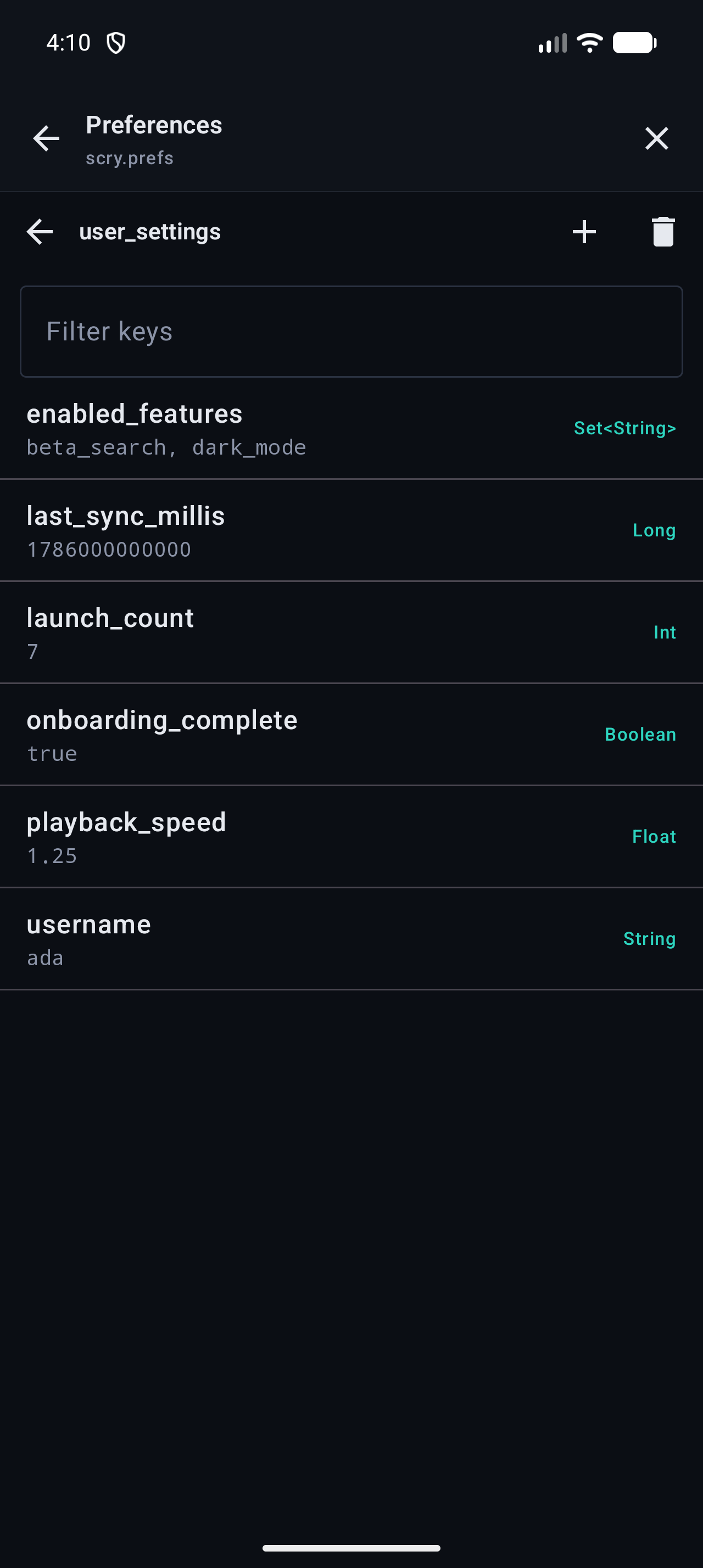

Discovers every SharedPreferences file automatically — lazily, so stores created after startup
still appear. Values are typed, and edits preserve the stored type: Scry refuses to rewrite an
Int key as a String, because that is exactly how the host app gets a ClassCastException on its
next read.
Pass encrypted stores explicitly — file scanning would only show ciphertext:
plugin(PreferencesPlugin { store(securePrefs.asScryStore("secure")) })| Mode | How | Trade-off |
|---|---|---|
| Instance (recommended) | DatabasePlugin { database(myDb) } |
No lock contention, no stale reads, works with SQLCipher |
| File (zero config) | auto-discovered from databases/
|
Read-only by default — a second writer on a non-WAL file can block the app |
Table list with row counts, schema-aware headers with primary-key markers, paginated rows, NULL rendered distinctly, inline cell editing matched by primary key, and a SQL console.
allowFileModeWrites(true) opts into writes on discovered files. Prefer instance mode.
Uncaught exceptions and main-thread stalls, persisted across process death so you can read them on the next launch. Reports arrive with the last 25 network calls already attached:
=== Scry CRASH report ===
thread: Thread-5
exception: IllegalStateException
message: Deliberate sample crash from a background thread
…
--- Last 6 network calls ---
405 POST https://example.com/login (38ms)
200 GET https://example.com/ (673ms)
error GET https://this-host-does-not-exist.invalid/x
scry-crash has no dependency on scry-network. Plugins contribute diagnostics through
ScryContextRegistry in core, so either module stays independently droppable.
Two guarantees:
plugin(LogPlugin { captureSystemLog = true })
ScryLog.i("Checkout", "Placing order $id")
ScryLog.e("Checkout", "Payment failed", throwable)Filter by level, tag or free text; tap an entry with a throwable to expand its stack. On Android
captureSystemLog tails logcat for this process, so framework output shows up alongside your own.
This does not replace your logger — point your existing Timber tree or SLF4J appender at
ScryLog.record(...) rather than rewriting call sites. Recent lines are attached to crash reports,
so a crash arrives with the narrative that led to it.
Two defaults worth knowing: entries are capped in memory (2000) and trimmed on write, because logs
arrive far faster than anything else Scry captures; and they are not persisted unless you set
persist = true, which trades store size for surviving process death.
plugin(PerfPlugin {
budget {
coldStartupMillis = 800
slowFramePercent = 5.0
}
})
ScryTrace.measure("checkout") { placeOrder(cart) }Cold/warm startup broken into phases, per-screen time-to-initial-display, frame timing with
percentiles and slow/frozen counts, and manual spans — all on-device, in a debug build, while you
use the app. Numbers are checked against budgets you set; breaking one counts on the plugin's badge,
lists it in red under Over budget, publishes a PerfViolationEvent, and calls your onViolation
hook if you registered one.
Each launch is kept as a session, so the Sessions tab compares this run against the last 20. Recent measurements are attached to crash reports, and the whole history exports as JSON or CSV.
Activities and Fragments are instrumented automatically. Fragments need no dependency from you —
androidx.fragment is compileOnly here and the hook is skipped if your app does not have it.
ScryTrace is deliberately not a @Composable: everything an app calls in shared code needs an
inert mirror in scry-no-op, and a @Composable mirror would mean shipping Compose in release —
the one thing that artifact exists to prevent.
Everything Scry attributes — every screen load, every frame — is filed under a name. The
automatic Android hooks supply two of them, Activity and Fragment, and nothing else. Whatever
your app calls a screen, you name it yourself.
Start here if you only see one screen. In a single-Activity Compose app, the automatic hook has
exactly one name to report, so every screen load and every dropped frame in the app lands in one
bucket called MainActivity. That is the tool working correctly on the only boundary it can see —
not a bug, and not something a setting turns on. Name your screens and the rest of this section
works.
Activities. Nothing to do. Every non-Scry Activity is timed from onCreate to its first draw,
and frames are attributed to it from onResume. Push a second Activity and it appears on its own.
Fragments. Also nothing to do, including child fragments inside a ViewPager or a nested host —
the callbacks are registered recursively, because those are exactly the loads that are hardest to
see any other way.
Compose screens, or any custom navigator. One call per destination. screenEntered both starts
the screen's load clock and decides which screen subsequent frames count against:
@Composable
fun CheckoutScreen() {
LaunchedEffect(Unit) { ScryTrace.screenEntered("Checkout") }
…
}Prefer one central place over a call per screen — you cannot forget a destination that way, and back navigation matters: the screen you return to never re-announces itself, so without this its frames keep landing in the bucket of the screen you just left.
navController.addOnDestinationChangedListener { _, destination, _ ->
ScryTrace.screenEntered(destination.route ?: "unknown")
}Called from a LaunchedEffect, the load clock starts after the first composition — so it misses
the ViewModel construction and query setup that a screen does when it first composes, which is
usually the expensive part. If that is what you are chasing, announce during composition instead
(remember(key) { ScryTrace.screenEntered(name) }) and the number includes it.
The clock is closed by the next frame Scry observes, so on JVM desktop — which has no frame
monitor, for the reason given below — nothing ever closes it. Time the load yourself there and hand
over the result with ScryTrace.screenDisplayed("Checkout", ttidMillis).
A list, and why scrolling deserves its own bucket. Idle frames are plentiful and cheap. Mix them in and a list that visibly stutters still reports a healthy p90, because the jank is a rounding error against thousands of frames spent doing nothing. Give the scroll its own name:
val listState = rememberLazyListState()
val perf = PerfPlugin.installed()
LaunchedEffect(listState) {
snapshotFlow { listState.isScrollInProgress }.collect { scrolling ->
perf?.attributeFramesTo(if (scrolling) "Feed:scroll" else "Feed")
}
}Use attributeFramesTo, not screenEntered. Only the frame bucket should move — scrolling is
not a screen load, and routing it through screenEntered files a bogus load every time a finger
leaves the glass. The same applies to a RecyclerView (OnScrollListener), a tab switch inside one
screen, or a pager page.
A custom view, or any expensive block. There is no per-view frame data to give you:
FrameMetrics reports whole-window frames, so one view's contribution to a frame is not separable
from the rest of the tree. Measure the work directly instead — wrap onDraw, a bind, an inflate, an
image decode, a migration:
override fun onDraw(canvas: Canvas) = ScryTrace.measure("SparklineView.onDraw") {
super.onDraw(canvas)
…
}measure records even if the block throws. Across a callback boundary, open and close it yourself
with ScryTrace.begin(name) / span.close(). Nested spans are indented on the plugin's screen.
Time-to-full-display. Screen load measures time-to-initial-display — the frame the screen appears on, which for a network-backed screen is an empty one. When its data actually lands is something only your app knows:
ScryTrace.reportFullyDrawn("Checkout", millisSinceEntered)One catch worth knowing: a TTFD attaches to the most recent screen load recorded under the same name that does not have one yet. Report against a name that never announced itself and the number is dropped silently. If a composable is reused under several hosts, report against the host.
Reading the numbers in code, for a QA gate or your own overlay:
PerfPlugin.installed()?.frameStats("Feed:scroll") // p50/p90/p99, jankPercent, frozenFrames
PerfPlugin.installed()?.recentFrames("Feed:scroll", 120)Keep names bounded. Scry holds a ring of frame samples per name for the life of the process, so
names should describe screens, not instances. ChannelThread is a name; channel-8f3a91 is a
memory leak with a hundred one-sample buckets where a useful percentile should be.
Shared KMP code that must not see Scry. If your screens live in a shared module that also
compiles for release or for iOS, do not import io.github.akhilesh2491.scry.* there. Either depend
on scry-no-op in those configurations, or declare your own inert hook in
shared code and install it from your debug source set — a handful of nullable function properties,
wired once at startup:
// your own object, in shared code, with no Scry import:
// object ScreenTrace { var onScreenEntered: ((String) -> Unit)? = null; … }
// wired here, from the debug source set, where Scry does exist:
ScreenTrace.install(
onScreenEntered = ScryTrace::screenEntered,
onFullyDrawn = ScryTrace::reportFullyDrawn,
)Release wires nothing, so every call in shared code stays a null check.
| Startup | Screen load | Frames | |
|---|---|---|---|
| Android API 24+ | ✅ true process start, 3 phases | ✅ automatic (Activity, Fragment) | ✅ FrameMetrics, real refresh rate |
| Android API 23 | ✅ automatic | ❌ see below | |
| iOS | ✅ via screenEntered
|
CADisplayLink — main-thread stalls only |
|
| JVM desktop | ✅ via screenDisplayed
|
❌ see below |
The gaps are stated rather than papered over, and the plugin's own screen repeats them in place:
FrameMetrics. The alternative is re-posting a Choreographer callback every
frame, which keeps the Choreographer awake and so produces the frames it claims to observe.withFrameNanos loop
invalidates every frame and would measure Scry rather than the app.CADisplayLink fires from the main run loop, so a long interval proves the main thread
was blocked — which is what iOS jank usually is. It cannot see the GPU.One thing to keep in mind about every number here: this is a debug build, with Scry installed and no R8. Use it to compare your own runs against each other, not as a figure to quote against release.
An on-device debugger that reaches production is a security incident, not a bug. Scry is built around that.
Authorization, Cookie, Set-Cookie, Proxy-Authorization,
X-Api-Key and body keys matching password|token|secret|otp|pin are masked on capture —
before anything is stored, displayed or exported. Exports are safe by construction.Scry.install returns null in a non-debuggable build
unless allowInReleaseBuilds = true — deliberately verbose and greppable.Scry-Mocked: true, are captured like real
traffic, and the Mocks tab shows a dot while any rule, throttle or offline mode is active.scry-no-op mirrors the public API exactly and does nothing — no SQLite, no Compose, no
serialization, no handlers, no watchdog thread. Swapping it in cannot break compilation, and that
promise is machine-checked:
./gradlew :scry-no-op:checkNoOpParity # 975 signatures across 9 modulesThe gate compares public signatures of the real desktop jars against the no-op and fails on
anything missing. It has already caught four real gaps — including REDACTED landing in the wrong
JVM facade class because a no-op file had a different file name than the real one (Kotlin derives
facade class names from file names, so Java callers would have broken).
The strongest check is the sample itself: ./gradlew :samples:sample-android:assembleRelease
compiles the entire app against the no-op. The sample APK goes from 24.8 MB debug to 9.4 MB
release — that 15 MB is Scry, Compose and SQLite leaving the build.
One deliberate exclusion: scry-ui has no no-op mirror, because a Compose-carrying stub in a
release build would defeat the point. App code never references it — enableScryUi lives in
scry-core and starts the UI activity by class name, so the UI module can simply be absent.
Requires JDK 17 and the Android SDK (compileSdk 37, minSdk 23).
./gradlew build # everything: Android + desktop, tests, parity gate
./gradlew :samples:sample-desktop:run # desktop sample — Ctrl/Cmd+Shift+S opens Scry
./gradlew :samples:sample-android:installDebug # Android sample — shake to open
./gradlew :samples:sample-android:assembleRelease # proves the no-op swap compilesCurrent state: 13 modules, 665 tests, 0 failures — 218 on the JVM desktop, 224 on the Android host, 210 on the iOS simulator, 13 for the Gradle plugin.
scry-core/ plugin API, store, redaction, sharing, launchers
scry-ui/ Compose Multiplatform shell
scry-network/ capture model + UI + exporters
scry-network-ktor/ Ktor adapter
scry-network-okhttp/ OkHttp adapter
scry-prefs/ preferences inspector
scry-database/ SQLite inspector
scry-crash/ crash + ANR capture
scry-logs/ in-app logger + logcat capture
scry-perf/ startup, screen-load and frame timing
scry-no-op/ inert mirror of all of the above
scry-gradle-plugin/ variant wiring + release-leak check (its own included build)
build-logic/ convention plugins (also an included build)
samples/ sample-android (Kotlin + Java), sample-desktop (Kotlin + Java)
tools/ check-noop-parity.py
Built-in features use exactly the API third parties do. If it cannot express a built-in, the API is wrong.
class MyPlugin : ScryUiPlugin {
override val id = "acme.myplugin"
override val displayName = "My Plugin"
override val badge = MutableStateFlow<String?>(null)
override fun onInstall(scope: ScryScope) {
// scope gives you: context, coroutineScope, store, events, contextRegistry, config
scope.contextRegistry.register(id) {
listOf(ScryContextSection("My state", describeState()))
}
}
override fun onClear() { /* drop your data */ }
@Composable
override fun Content() { MyScreen() }
}Test it without installing Scry — ScryTesting.scope() ships in the main artifact precisely so
plugin authors are not forced through a real install with a platform context and a database file:
val plugin = MyPlugin().apply { onInstall(ScryTesting.scope()) }Done: network (Ktor + OkHttp), preferences, database, crashes/ANRs, logs, performance (startup / screen load / frames), export from every screen (HAR, cURL, JSON, CSV, text), per-screen clear/delete, no-op + parity gate, Gradle plugin, Android + desktop + iOS.
Published: 0.3.0 on Maven Central, signed, across Android, JVM desktop and iOS · the Gradle
plugin at 0.1.0 on the
Gradle Plugin Portal.
The repository is pre-alpha and the plugin API is not frozen. If you are building against it,
expect breaking changes until 1.0.
Every change must keep ./gradlew build green, which includes the no-op parity gate. If you add a
public declaration to a real module, add its mirror to scry-no-op in a file with the same name.
An on-device debugging suite for Kotlin Multiplatform apps.
Chucker's network inspection, Flipper's storage tools, Pluto's plugin model — KMP-first, Java-friendly, and built so it cannot ship to your users by accident.
Status: early release (
0.3.0), available on Maven Central. Expect the API to move before 1.0. Android, JVM desktop and iOS are all verified on-device/simulator with running sample apps.Scry installs into apps that have Kotlin shared code. Kotlin and Java callers are both first-class — the Java builder facade is compile-enforced on Android and desktop. A Swift app that shares a KMP module and uses Ktor is well served; a pure Swift/
URLSessionapp is not a consumer today, because iOS capture goes through Ktor andNSURLProtocolinterception is not implemented. See iOS limitations.
| Network | Prefs | DB | Crash/ANR | KMP | |
|---|---|---|---|---|---|
| Chucker | ✅ | ❌ | ❌ | ❌ | ❌ Android only |
| Pluto | ✅ | ✅ | ✅ | ✅ | ❌ Android only |
| Flipper | ✅ | ✅ | ✅ | ✅ | ❌ + desktop app required |
| Inspektify / Inspektor / NetLens / wiretapKMP | ✅ | ❌ | ❌ | ❌ | ✅ |
| Scry | ✅ | ✅ | ✅ | ✅ | ✅ |
Every KMP debugger on the market is network-only. Every full-suite debugger is Android-only. Scry is the intersection: one plugin host, one UI, every target.
The plugin API is the product. Network, preferences, database and crash inspection are proof that the API is expressive enough for anyone else's plugin — they use exactly the API you would.
iOS — the same Compose shell, presented over UIKit:
Screens above are the Android sample in dark mode. Scry ships a light theme too, following the host app's system theme by default.
| Artifact | What it does |
|---|---|
scry-core |
Plugin API, config DSL + Java builder, SQLite-backed store with retention, redaction, sharing, shake-to-open |
scry-ui |
Compose Multiplatform shell — plugin list, navigation, theme, shared screen bar / share / confirm-delete actions, Android activity host, desktop window |
scry-network |
Engine-agnostic NetworkTransaction, capture plugin, list/detail UI, HAR + cURL export |
scry-network-ktor |
Ktor client plugin — the multiplatform capture path |
scry-network-okhttp |
OkHttp 5 interceptor — the Android/Retrofit path |
scry-prefs |
Key-value store viewer and editor, with per-store JSON export and reset |
scry-database |
SQLite browser and editor — schema, rows, cell editing, row/table delete, CSV export, SQL console |
scry-crash |
Crash + ANR capture with cross-plugin context, and report sharing |
scry-logs |
In-app logger, Android logcat capture, level/tag filtering |
scry-perf |
Startup, screen-load and frame timing with budgets, sessions and JSON/CSV export |
scry-no-op |
API-identical inert replacement for release builds, parity-gated in CI |
scry-gradle-plugin |
Wires debug/release variants and fails the build if Scry reaches release |
Targets: Android (minSdk 23), JVM desktop, and iOS (arm64 + simulator arm64).
0.3.0 is built and verified against these versions. Older ones may work but are untested —
if you are on an earlier Kotlin or AGP and hit a resolution failure, that is the first thing to check.
| Kotlin | 2.4.10 |
| AGP | 9.3.1 |
| Compose Multiplatform | 1.11.1 — only needed if you use scry-ui
|
| JDK | 17 |
| Android |
minSdk 23, compileSdk 37
|
| Targets |
android, jvm (desktop), iosArm64, iosSimulatorArm64
|
minSdk is 23 rather than 21 because Compose Multiplatform pulls androidx.navigationevent. If you
are on 21 or 22 you can still take scry-core and the capture modules — it is scry-ui that
carries the floor.
There is no iosX64 — androidx.sqlite publishes no Intel-simulator variant. Apple-silicon
simulators only.
Android projects can skip Steps 2 and 3. The Gradle plugin does the debug/release wiring for you and fails the build if Scry reaches release. The manual route below is still what you want for KMP, desktop, or any project with custom variants.
Scry publishes to Maven Central, so in most projects this is already there. In settings.gradle.kts:
dependencyResolutionManagement {
repositories {
mavenCentral()
}
}In gradle/libs.versions.toml, so the modules can never drift apart:
[versions]
scry = "0.3.0"
[libraries]
scry-core = { module = "io.github.akhilesh2491.scry:scry-core", version.ref = "scry" }
scry-ui = { module = "io.github.akhilesh2491.scry:scry-ui", version.ref = "scry" }
scry-network-okhttp = { module = "io.github.akhilesh2491.scry:scry-network-okhttp", version.ref = "scry" }
scry-network-ktor = { module = "io.github.akhilesh2491.scry:scry-network-ktor", version.ref = "scry" }
scry-prefs = { module = "io.github.akhilesh2491.scry:scry-prefs", version.ref = "scry" }
scry-database = { module = "io.github.akhilesh2491.scry:scry-database", version.ref = "scry" }
scry-crash = { module = "io.github.akhilesh2491.scry:scry-crash", version.ref = "scry" }
scry-logs = { module = "io.github.akhilesh2491.scry:scry-logs", version.ref = "scry" }
scry-perf = { module = "io.github.akhilesh2491.scry:scry-perf", version.ref = "scry" }
scry-no-op = { module = "io.github.akhilesh2491.scry:scry-no-op", version.ref = "scry" }Take only the plugins you want — scry-core plus scry-ui is the minimum for a usable install.
Android — the split matters. Real modules on debug, the no-op on release:
dependencies {
debugImplementation(libs.scry.core)
debugImplementation(libs.scry.ui)
debugImplementation(libs.scry.network.okhttp)
debugImplementation(libs.scry.prefs)
debugImplementation(libs.scry.crash)
releaseImplementation(libs.scry.no.op)
}scry-no-op provides the same public API with empty implementations, so your Scry.install(...)
call still compiles in release without any if (BuildConfig.DEBUG) guards — and ships nothing.
See Safety for why this is the whole design.
Kotlin Multiplatform — add to commonMain; Gradle resolves the per-target variant:
kotlin {
sourceSets {
commonMain.dependencies {
implementation(libs.scry.core)
implementation(libs.scry.ui)
implementation(libs.scry.network.ktor)
}
}
}
scry-network-okhttpis JVM-only (Android + desktop) — OkHttp does not exist on Native. On iOS, usescry-network-ktor. Putting the OkHttp module incommonMainfails to resolve for the iOS targets.
Desktop-only (JVM) — plain implementation, since there are no build variants to separate:
dependencies {
implementation(libs.scry.core)
implementation(libs.scry.ui)
}Gate it yourself with a debug flag, or use a custom debug source set.
Pick your platform below — Kotlin, Java, Desktop or iOS. The shortest possible Android version:
class MyApp : Application() {
override fun onCreate() {
super.onCreate()
Scry.install(this) { plugin(NetworkPlugin()) }
enableScryUi(this)
ShakeToOpen(this).start()
}
}Then attach the capture point for whatever you use — an OkHttp interceptor, the Ktor plugin, a
SupportSQLiteOpenHelper. Nothing is captured until you do.
Run a debug build, exercise some traffic, and shake the device (or Scry.show() from anywhere,
or Ctrl/Cmd+Shift+S on desktop). You should get the plugin list with live badges. If the UI
never appears, the usual cause is enableScryUi(...) not being called — Scry.install alone
captures data but registers no UI.
To confirm the release side is clean:
./gradlew assembleReleasethen check that no scry-core or scry-ui classes are in the APK. If you use the Gradle plugin
below, this is checked for you on every release build.
Steps 2 and 3 are mechanical, and hand-wiring debugImplementation/releaseImplementation for
every module you add is the single most common way an on-device debugger ends up in a shipped app.
The io.github.akhilesh2491.scry
plugin does that wiring instead, and fails the release build if a real Scry artifact reaches the
release runtime classpath:
plugins {
id("com.android.application")
id("io.github.akhilesh2491.scry") version "0.1.0"
}
scry {
modules.set(setOf(ScryModule.NETWORK_OKHTTP, ScryModule.PREFS, ScryModule.CRASH))
}That replaces Steps 2 and 3 entirely. It adds scry-core and scry-ui to debugImplementation
automatically — a debugger you cannot open is not a debugger, and forgetting scry-ui produces a
confusing "nothing happens" rather than a compile error — plus whichever modules you list, and
scry-no-op to releaseImplementation. Library versions default to the plugin's own version, so
the two can never drift apart.
The plugin is still at
0.1.0while the libraries are at0.3.0. Because the default library version follows the plugin, applying it as shown wires the0.1.0libraries — setversion.set("0.3.0")in thescryblock to pull the current ones.ScryModule.PERFdoes not exist in the published plugin yet, so wirescry-perfby hand (Steps 2 and 3) until the plugin catches up.
Apply it after the Android application or library plugin: it needs the debugImplementation
and releaseImplementation configurations to already exist. If they don't, it logs a warning and
adds nothing, rather than half-wiring the build.
| Setting | Default | Notes |
|---|---|---|
modules |
NETWORK_OKHTTP |
NETWORK_KTOR, NETWORK_OKHTTP, PREFS, DATABASE, CRASH
|
version |
the plugin's version | override only if you need to pin the libraries separately |
enabled |
true |
false adds no dependencies — useful for a staged rollout |
failOnReleaseLeak |
true |
false drops the release-leak check |
The default is the network plugin alone, because that is why most people install Scry and pulling
in the storage inspectors silently would be a surprise. scry-logs has no ScryModule entry yet —
add it by hand if you want it.
The check itself runs as checkScryNotInRelease, wired into assembleRelease* and bundleRelease:
./gradlew checkScryNotInReleaseIt walks the dependency resolution graph rather than an artifact view, so it catches published coordinates and project dependencies — the latter matter more than they look, since composite builds and this repo's own samples consume Scry that way.
class MyApp : Application() {
override fun onCreate() {
super.onCreate()
Scry.install(this) {
retention = Retention.of(24.hours, maxEntries = 1_000, maxBytes = 50L * 1024 * 1024)
plugin(NetworkPlugin { maxBodyBytes = 256 * 1024 })
plugin(PreferencesPlugin())
plugin(DatabasePlugin { database(appDatabase) })
plugin(CrashPlugin { anrThreshold = 4.seconds })
plugin(LogPlugin { captureSystemLog = true })
}
enableScryUi(this) // connect the Compose UI
ShakeToOpen(this).start() // shake to open
}
}
// Ktor
val client = HttpClient { install(ScryKtor) }
// or OkHttp / Retrofit
val okhttp = OkHttpClient.Builder().addInterceptor(ScryInterceptor()).build()ScryAndroid.installer(context)
.retention(Retention.ofHours(12))
.redactHeaders("X-Internal-Trace")
.addPlugin(new NetworkPlugin())
.install();
new ShakeToOpen(context).start();
OkHttpClient client = new OkHttpClient.Builder()
.addInterceptor(new ScryInterceptor())
.build();Java interop is enforced by the build, not by intention. A Java file in each sample compiles on every build and breaks the moment a Kotlin-only construct reaches the public API.
val scry = Scry.install(PlatformContext(applicationId = "my-app")) { plugin(NetworkPlugin()) }
application {
Window(onCloseRequest = ::exitApplication, onKeyEvent = ::onScryHotkey) { App() }
scry?.let { ScryDesktopWindow(it) } // renders only when shown
}val scry = Scry.install(PlatformContext()) { plugin(NetworkPlugin()) }
enableScryUi() // presents over the key window when Scry.show() is calledOr present it yourself: ScryUIViewController(instance) returns a UIViewController.
Open with shake on Android, Ctrl/Cmd+Shift+S on desktop, Scry.show() from anywhere.
There is a runnable sample at samples/sample-ios (Compose shared code + a SwiftUI host generated
by XcodeGen):
./gradlew :samples:sample-ios:linkDebugFrameworkIosSimulatorArm64
cd samples/sample-ios/iosApp && xcodegen generate && open ScrySample.xcodeprojBuilding a release iOS framework needs a large Kotlin/Native heap — set
kotlin.native.jvmArgs=-Xmx8gingradle.properties, and avoid linking both architectures in parallel. Whole-program optimisation over Compose OOMs at the 3 GB default with no hint that heap is the problem.If you host Compose on iOS yourself, your
Info.plistneedsCADisableMinimumFrameDurationOnPhone = true. Compose Multiplatform refuses to start without it. Nothing to do with Scry — but it is the first thing that will stop you.
./gradlew iosSimulatorArm64Test runs 115 tests as real Kotlin/Native code on the simulator: the
store on a Documents-backed SQLite file (including retention eviction), the pthread lock, the clock,
Ktor capture, redaction, HAR/cURL export, the database inspector, and NSUserDefaults round-trips —
including that a stored boolean reads back as a boolean rather than a number, which is how feature
flags would otherwise turn into 0/1.
The sample confirms the rest on a simulator: the Compose shell presents as a page sheet over the
SwiftUI host, all four plugins register with live badges, and captured traffic lands in
Documents/scry/<bundle-id>/scry.db with Authorization and password fields already masked.
URLSession directly are not captured;
NSURLProtocol interception is not implemented yet.SIGSEGV, SIGABRT) — which is
how most Kotlin/Native crashes actually terminate. Keep a dedicated crash reporter for production;
Scry is for the debug loop.NSUserDefaults named suites cannot be discovered — the API offers no enumeration. Register
them with store(NSUserDefaults(suiteName = "…").asScryStore("…")).iosX64. androidx.sqlite publishes no Intel-simulator variant.Requests and responses with headers, bodies, status, duration, size and protocol; pretty-printed JSON; search; in-flight requests visible before they complete (so a hung call is diagnosable); errors captured with their message.
Two capture adapters — Ktor (all targets) and OkHttp 5 (Android/JVM) — produce the same
NetworkTransaction, so they share one UI, one store and one export path. Use both at once; they
land in the same list.
Mocking, throttling and fault injection live in a Mocks tab beside the traffic list:
plugin.mocks.addRule(
MockRule(
id = "orders-down",
urlPattern = "*/orders*", // glob, not regex — URL metacharacters are escaped
method = "GET", // or null for any
action = MockAction.Respond(statusCode = 503, body = """{"down":true}"""),
),
)
plugin.mocks.setThrottle(ThrottleProfile.SLOW_3G)
plugin.mocks.setOffline(true)Actions are Respond (canned response, never touches the network), Fail (injected transport
error) and Delay (real request, added latency). Rules apply to both adapters, so one rule
fires whether the call goes through Ktor or OkHttp.
Mocked responses carry a Scry-Mocked: true header and are captured in the traffic list like any
other — silently faking traffic with no trace is how people lose an afternoon. The Mocks tab shows
a dot when anything is active, for the same reason.
Rules export as JSON so a QA engineer can configure a scenario on a device, commit the file, and have everyone reproduce the same failure. A mocking feature you cannot share is a toy.
Export: HAR 1.2 for the whole session (imports into Charles, Proxyman, Insomnia, DevTools) and runnable, correctly-quoted cURL per request.
Discovers every SharedPreferences file automatically — lazily, so stores created after startup
still appear. Values are typed, and edits preserve the stored type: Scry refuses to rewrite an
Int key as a String, because that is exactly how the host app gets a ClassCastException on its
next read.
Pass encrypted stores explicitly — file scanning would only show ciphertext:
plugin(PreferencesPlugin { store(securePrefs.asScryStore("secure")) })| Mode | How | Trade-off |
|---|---|---|
| Instance (recommended) | DatabasePlugin { database(myDb) } |
No lock contention, no stale reads, works with SQLCipher |
| File (zero config) | auto-discovered from databases/
|
Read-only by default — a second writer on a non-WAL file can block the app |
Table list with row counts, schema-aware headers with primary-key markers, paginated rows, NULL rendered distinctly, inline cell editing matched by primary key, and a SQL console.
allowFileModeWrites(true) opts into writes on discovered files. Prefer instance mode.
Uncaught exceptions and main-thread stalls, persisted across process death so you can read them on the next launch. Reports arrive with the last 25 network calls already attached:
=== Scry CRASH report ===
thread: Thread-5
exception: IllegalStateException
message: Deliberate sample crash from a background thread
…
--- Last 6 network calls ---
405 POST https://example.com/login (38ms)
200 GET https://example.com/ (673ms)
error GET https://this-host-does-not-exist.invalid/x
scry-crash has no dependency on scry-network. Plugins contribute diagnostics through
ScryContextRegistry in core, so either module stays independently droppable.
Two guarantees:
plugin(LogPlugin { captureSystemLog = true })
ScryLog.i("Checkout", "Placing order $id")
ScryLog.e("Checkout", "Payment failed", throwable)Filter by level, tag or free text; tap an entry with a throwable to expand its stack. On Android
captureSystemLog tails logcat for this process, so framework output shows up alongside your own.
This does not replace your logger — point your existing Timber tree or SLF4J appender at
ScryLog.record(...) rather than rewriting call sites. Recent lines are attached to crash reports,
so a crash arrives with the narrative that led to it.
Two defaults worth knowing: entries are capped in memory (2000) and trimmed on write, because logs
arrive far faster than anything else Scry captures; and they are not persisted unless you set
persist = true, which trades store size for surviving process death.
plugin(PerfPlugin {
budget {
coldStartupMillis = 800
slowFramePercent = 5.0
}
})
ScryTrace.measure("checkout") { placeOrder(cart) }Cold/warm startup broken into phases, per-screen time-to-initial-display, frame timing with
percentiles and slow/frozen counts, and manual spans — all on-device, in a debug build, while you
use the app. Numbers are checked against budgets you set; breaking one counts on the plugin's badge,
lists it in red under Over budget, publishes a PerfViolationEvent, and calls your onViolation
hook if you registered one.
Each launch is kept as a session, so the Sessions tab compares this run against the last 20. Recent measurements are attached to crash reports, and the whole history exports as JSON or CSV.
Activities and Fragments are instrumented automatically. Fragments need no dependency from you —
androidx.fragment is compileOnly here and the hook is skipped if your app does not have it.
ScryTrace is deliberately not a @Composable: everything an app calls in shared code needs an
inert mirror in scry-no-op, and a @Composable mirror would mean shipping Compose in release —
the one thing that artifact exists to prevent.
Everything Scry attributes — every screen load, every frame — is filed under a name. The
automatic Android hooks supply two of them, Activity and Fragment, and nothing else. Whatever
your app calls a screen, you name it yourself.
Start here if you only see one screen. In a single-Activity Compose app, the automatic hook has
exactly one name to report, so every screen load and every dropped frame in the app lands in one
bucket called MainActivity. That is the tool working correctly on the only boundary it can see —
not a bug, and not something a setting turns on. Name your screens and the rest of this section
works.
Activities. Nothing to do. Every non-Scry Activity is timed from onCreate to its first draw,
and frames are attributed to it from onResume. Push a second Activity and it appears on its own.
Fragments. Also nothing to do, including child fragments inside a ViewPager or a nested host —
the callbacks are registered recursively, because those are exactly the loads that are hardest to
see any other way.
Compose screens, or any custom navigator. One call per destination. screenEntered both starts
the screen's load clock and decides which screen subsequent frames count against:
@Composable
fun CheckoutScreen() {
LaunchedEffect(Unit) { ScryTrace.screenEntered("Checkout") }
…
}Prefer one central place over a call per screen — you cannot forget a destination that way, and back navigation matters: the screen you return to never re-announces itself, so without this its frames keep landing in the bucket of the screen you just left.
navController.addOnDestinationChangedListener { _, destination, _ ->
ScryTrace.screenEntered(destination.route ?: "unknown")
}Called from a LaunchedEffect, the load clock starts after the first composition — so it misses
the ViewModel construction and query setup that a screen does when it first composes, which is
usually the expensive part. If that is what you are chasing, announce during composition instead
(remember(key) { ScryTrace.screenEntered(name) }) and the number includes it.
The clock is closed by the next frame Scry observes, so on JVM desktop — which has no frame
monitor, for the reason given below — nothing ever closes it. Time the load yourself there and hand
over the result with ScryTrace.screenDisplayed("Checkout", ttidMillis).
A list, and why scrolling deserves its own bucket. Idle frames are plentiful and cheap. Mix them in and a list that visibly stutters still reports a healthy p90, because the jank is a rounding error against thousands of frames spent doing nothing. Give the scroll its own name:
val listState = rememberLazyListState()
val perf = PerfPlugin.installed()
LaunchedEffect(listState) {
snapshotFlow { listState.isScrollInProgress }.collect { scrolling ->
perf?.attributeFramesTo(if (scrolling) "Feed:scroll" else "Feed")
}
}Use attributeFramesTo, not screenEntered. Only the frame bucket should move — scrolling is
not a screen load, and routing it through screenEntered files a bogus load every time a finger
leaves the glass. The same applies to a RecyclerView (OnScrollListener), a tab switch inside one
screen, or a pager page.
A custom view, or any expensive block. There is no per-view frame data to give you:
FrameMetrics reports whole-window frames, so one view's contribution to a frame is not separable
from the rest of the tree. Measure the work directly instead — wrap onDraw, a bind, an inflate, an
image decode, a migration:
override fun onDraw(canvas: Canvas) = ScryTrace.measure("SparklineView.onDraw") {
super.onDraw(canvas)
…
}measure records even if the block throws. Across a callback boundary, open and close it yourself
with ScryTrace.begin(name) / span.close(). Nested spans are indented on the plugin's screen.
Time-to-full-display. Screen load measures time-to-initial-display — the frame the screen appears on, which for a network-backed screen is an empty one. When its data actually lands is something only your app knows:
ScryTrace.reportFullyDrawn("Checkout", millisSinceEntered)One catch worth knowing: a TTFD attaches to the most recent screen load recorded under the same name that does not have one yet. Report against a name that never announced itself and the number is dropped silently. If a composable is reused under several hosts, report against the host.
Reading the numbers in code, for a QA gate or your own overlay:
PerfPlugin.installed()?.frameStats("Feed:scroll") // p50/p90/p99, jankPercent, frozenFrames
PerfPlugin.installed()?.recentFrames("Feed:scroll", 120)Keep names bounded. Scry holds a ring of frame samples per name for the life of the process, so
names should describe screens, not instances. ChannelThread is a name; channel-8f3a91 is a
memory leak with a hundred one-sample buckets where a useful percentile should be.
Shared KMP code that must not see Scry. If your screens live in a shared module that also
compiles for release or for iOS, do not import io.github.akhilesh2491.scry.* there. Either depend
on scry-no-op in those configurations, or declare your own inert hook in
shared code and install it from your debug source set — a handful of nullable function properties,
wired once at startup:
// your own object, in shared code, with no Scry import:
// object ScreenTrace { var onScreenEntered: ((String) -> Unit)? = null; … }
// wired here, from the debug source set, where Scry does exist:
ScreenTrace.install(
onScreenEntered = ScryTrace::screenEntered,
onFullyDrawn = ScryTrace::reportFullyDrawn,
)Release wires nothing, so every call in shared code stays a null check.
| Startup | Screen load | Frames | |
|---|---|---|---|
| Android API 24+ | ✅ true process start, 3 phases | ✅ automatic (Activity, Fragment) | ✅ FrameMetrics, real refresh rate |
| Android API 23 | ✅ automatic | ❌ see below | |
| iOS | ✅ via screenEntered
|
CADisplayLink — main-thread stalls only |
|
| JVM desktop | ✅ via screenDisplayed
|
❌ see below |
The gaps are stated rather than papered over, and the plugin's own screen repeats them in place:
FrameMetrics. The alternative is re-posting a Choreographer callback every
frame, which keeps the Choreographer awake and so produces the frames it claims to observe.withFrameNanos loop
invalidates every frame and would measure Scry rather than the app.CADisplayLink fires from the main run loop, so a long interval proves the main thread
was blocked — which is what iOS jank usually is. It cannot see the GPU.One thing to keep in mind about every number here: this is a debug build, with Scry installed and no R8. Use it to compare your own runs against each other, not as a figure to quote against release.
An on-device debugger that reaches production is a security incident, not a bug. Scry is built around that.
Authorization, Cookie, Set-Cookie, Proxy-Authorization,
X-Api-Key and body keys matching password|token|secret|otp|pin are masked on capture —
before anything is stored, displayed or exported. Exports are safe by construction.Scry.install returns null in a non-debuggable build
unless allowInReleaseBuilds = true — deliberately verbose and greppable.Scry-Mocked: true, are captured like real
traffic, and the Mocks tab shows a dot while any rule, throttle or offline mode is active.scry-no-op mirrors the public API exactly and does nothing — no SQLite, no Compose, no
serialization, no handlers, no watchdog thread. Swapping it in cannot break compilation, and that
promise is machine-checked:
./gradlew :scry-no-op:checkNoOpParity # 975 signatures across 9 modulesThe gate compares public signatures of the real desktop jars against the no-op and fails on
anything missing. It has already caught four real gaps — including REDACTED landing in the wrong
JVM facade class because a no-op file had a different file name than the real one (Kotlin derives
facade class names from file names, so Java callers would have broken).
The strongest check is the sample itself: ./gradlew :samples:sample-android:assembleRelease
compiles the entire app against the no-op. The sample APK goes from 24.8 MB debug to 9.4 MB
release — that 15 MB is Scry, Compose and SQLite leaving the build.
One deliberate exclusion: scry-ui has no no-op mirror, because a Compose-carrying stub in a
release build would defeat the point. App code never references it — enableScryUi lives in
scry-core and starts the UI activity by class name, so the UI module can simply be absent.
Requires JDK 17 and the Android SDK (compileSdk 37, minSdk 23).
./gradlew build # everything: Android + desktop, tests, parity gate
./gradlew :samples:sample-desktop:run # desktop sample — Ctrl/Cmd+Shift+S opens Scry
./gradlew :samples:sample-android:installDebug # Android sample — shake to open
./gradlew :samples:sample-android:assembleRelease # proves the no-op swap compilesCurrent state: 13 modules, 665 tests, 0 failures — 218 on the JVM desktop, 224 on the Android host, 210 on the iOS simulator, 13 for the Gradle plugin.
scry-core/ plugin API, store, redaction, sharing, launchers
scry-ui/ Compose Multiplatform shell
scry-network/ capture model + UI + exporters
scry-network-ktor/ Ktor adapter
scry-network-okhttp/ OkHttp adapter
scry-prefs/ preferences inspector
scry-database/ SQLite inspector
scry-crash/ crash + ANR capture
scry-logs/ in-app logger + logcat capture
scry-perf/ startup, screen-load and frame timing
scry-no-op/ inert mirror of all of the above
scry-gradle-plugin/ variant wiring + release-leak check (its own included build)
build-logic/ convention plugins (also an included build)
samples/ sample-android (Kotlin + Java), sample-desktop (Kotlin + Java)
tools/ check-noop-parity.py
Built-in features use exactly the API third parties do. If it cannot express a built-in, the API is wrong.
class MyPlugin : ScryUiPlugin {
override val id = "acme.myplugin"
override val displayName = "My Plugin"
override val badge = MutableStateFlow<String?>(null)
override fun onInstall(scope: ScryScope) {
// scope gives you: context, coroutineScope, store, events, contextRegistry, config
scope.contextRegistry.register(id) {
listOf(ScryContextSection("My state", describeState()))
}
}
override fun onClear() { /* drop your data */ }
@Composable
override fun Content() { MyScreen() }
}Test it without installing Scry — ScryTesting.scope() ships in the main artifact precisely so
plugin authors are not forced through a real install with a platform context and a database file:
val plugin = MyPlugin().apply { onInstall(ScryTesting.scope()) }Done: network (Ktor + OkHttp), preferences, database, crashes/ANRs, logs, performance (startup / screen load / frames), export from every screen (HAR, cURL, JSON, CSV, text), per-screen clear/delete, no-op + parity gate, Gradle plugin, Android + desktop + iOS.
Published: 0.3.0 on Maven Central, signed, across Android, JVM desktop and iOS · the Gradle
plugin at 0.1.0 on the
Gradle Plugin Portal.
The repository is pre-alpha and the plugin API is not frozen. If you are building against it,
expect breaking changes until 1.0.
Every change must keep ./gradlew build green, which includes the no-op parity gate. If you add a
public declaration to a real module, add its mirror to scry-no-op in a file with the same name.
