A lean, extensible network request monitor for Ktor clients on Kotlin Multiplatform (Android, iOS, Desktop/JVM). Capture HTTP traffic in-app, inspect it in a Compose Multiplatform viewer, and extend it — replay/edit- resend, preset-driven API firing, custom tagging, custom body renderers, or let an AI coding agent query it live over MCP — without forking the library.

Trawler is a clean-room alternative to KtorMonitor and Wormholy (iOS-only): same problem space, no shared code, and a deliberately smaller dependency footprint (no DI container, no persistence layer in core — see docs/LEAN_FOOTPRINT.md).

See CONTEXT.md for the project's glossary and docs/adr/ for the foundational architectural decisions.

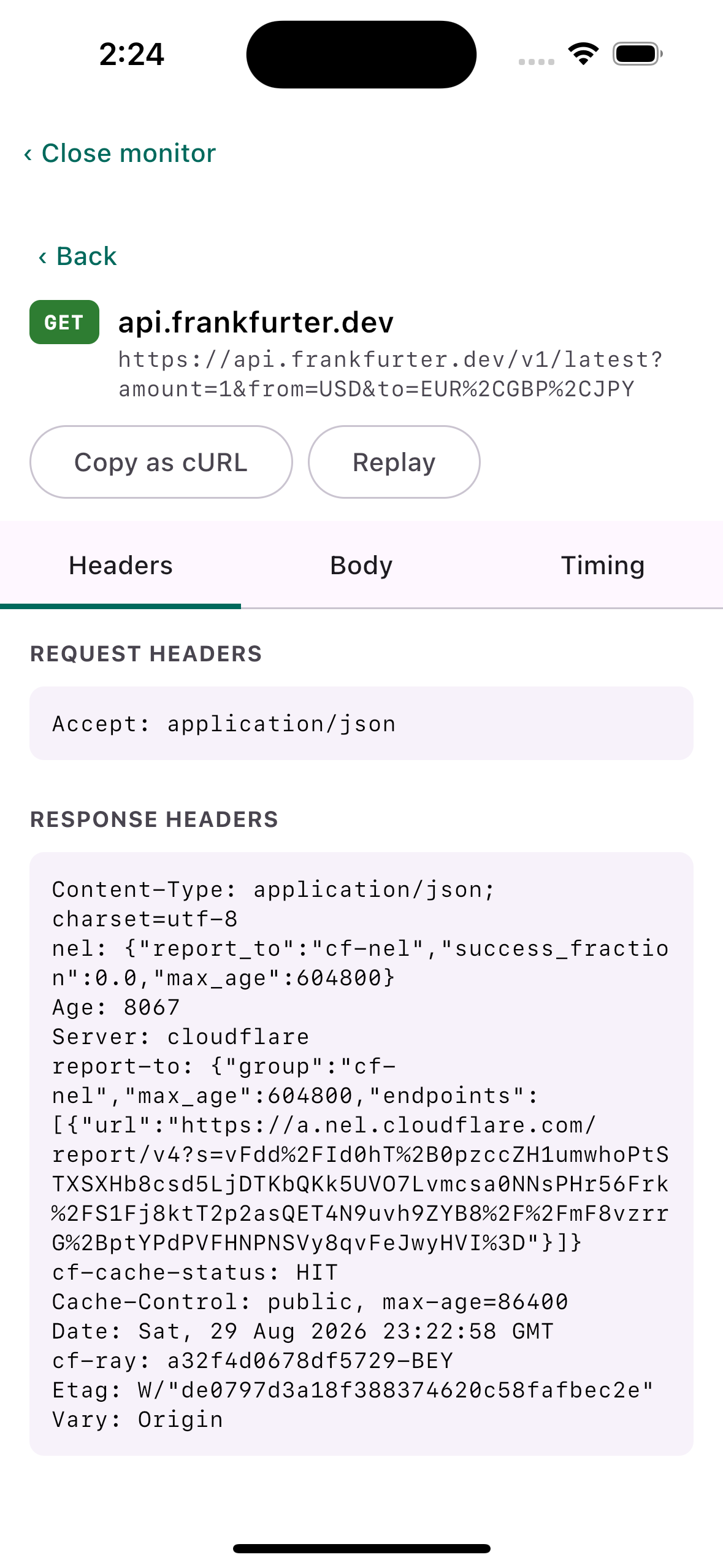

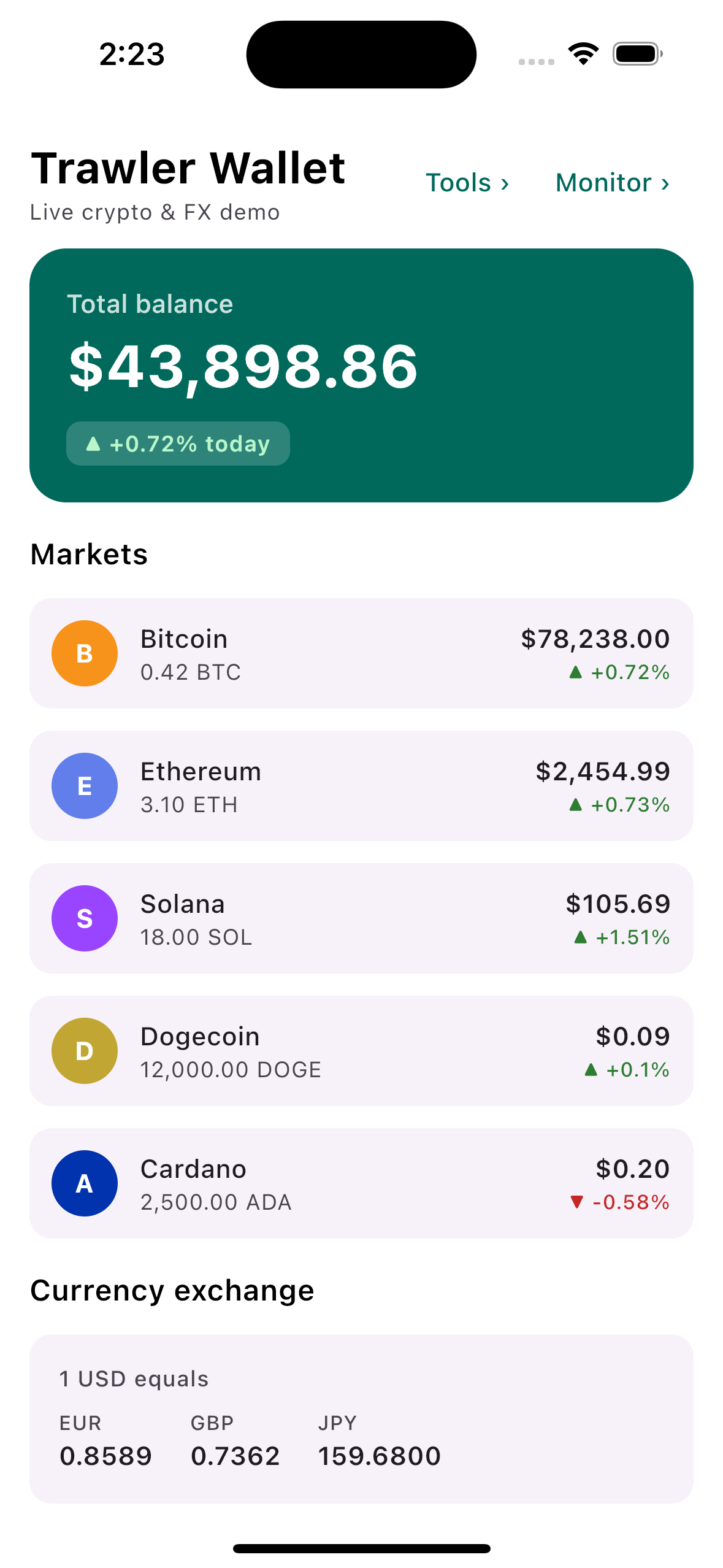

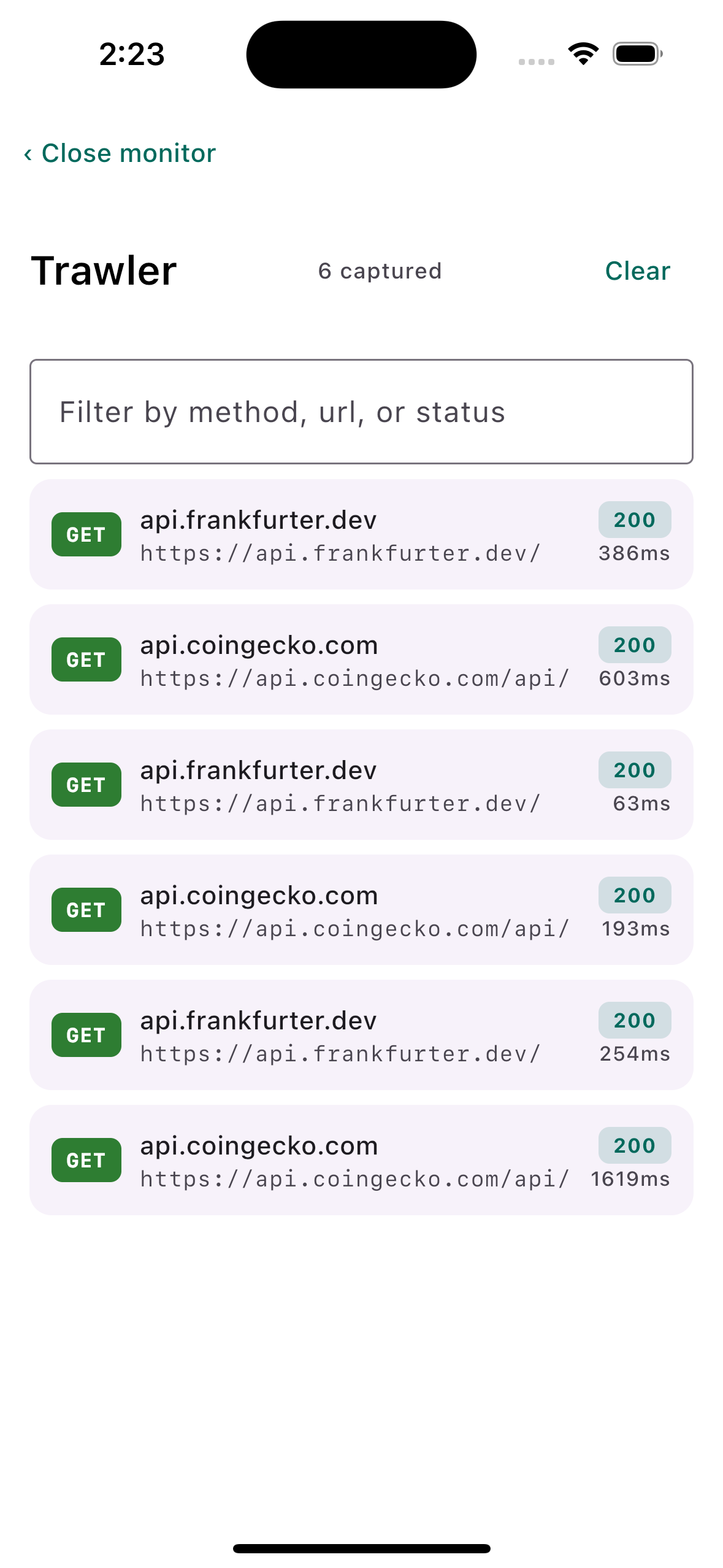

_{Left to right: the sample app (a live crypto/FX wallet built to exercise real traffic), the monitor list, a call's headers with Copy as cURL/Replay, and an AI agent's MCP connection running on-device.}

Available on JitPack (v0.1.2):

repositories {
    maven { url = uri("https://jitpack.io") }
}

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("com.github.alirahal01.trawler:monitor-core:v0.1.2")
            implementation("com.github.alirahal01.trawler:monitor-ktor:v0.1.2")
            implementation("com.github.alirahal01.trawler:monitor-extensions-api:v0.1.2")
            implementation("com.github.alirahal01.trawler:monitor-ui-compose:v0.1.2")

            // optional first-party extensions
            implementation("com.github.alirahal01.trawler:curl-export:v0.1.2")
            implementation("com.github.alirahal01.trawler:replay:v0.1.2")
            implementation("com.github.alirahal01.trawler:preset-playground:v0.1.2")
        }
        // mcp-server is Android + Desktop only (see below) — add it to
        // those source sets specifically, not commonMain.
        androidMain.dependencies {
            implementation("com.github.alirahal01.trawler:mcp-server:v0.1.2")
        }
        desktopMain.dependencies {
            implementation("com.github.alirahal01.trawler:mcp-server:v0.1.2")
        }
    }
}

Each module resolves to the right Android/iOS/Desktop variant automatically through Gradle's normal KMP dependency resolution — verified directly against the built JitPack artifacts, not just documented from assumption.

• monitor-core — CapturedCall model and the CallStore ring buffer. No Ktor or Compose dependency.
• monitor-ktor — the Ktor ClientPlugin that captures requests/responses.
• monitor-ui-compose — the Compose Multiplatform viewer UI.
• monitor-extensions-api — the MonitorExtension contract.
• extensions/curl-export, extensions/replay, extensions/preset-playground — first-party extensions built against that contract.
• extensions/mcp-server — exposes captured calls to an AI coding agent over MCP; see AI agent integration below. Android + Desktop only (see ADR-0004).
• sample-app — Android + iOS + Desktop sample app: Trawler Wallet, a live crypto/FX dashboard (real CoinGecko + Frankfurter traffic) with a Developer Tools screen for edge-case testing, so the monitor has realistic traffic to show off instead of a flat list of test buttons.

extensions/mcp-server runs a localhost-only MCP (Model Context Protocol) server inside the host app, so an AI coding agent — Claude Code, Claude Desktop, or anything else that speaks MCP — can query a live session's captured traffic directly instead of a human relaying it by hand: recent calls, duplicate/retry-storm detection, overlapping-call (race condition) detection, slow calls, and aggregate stats.

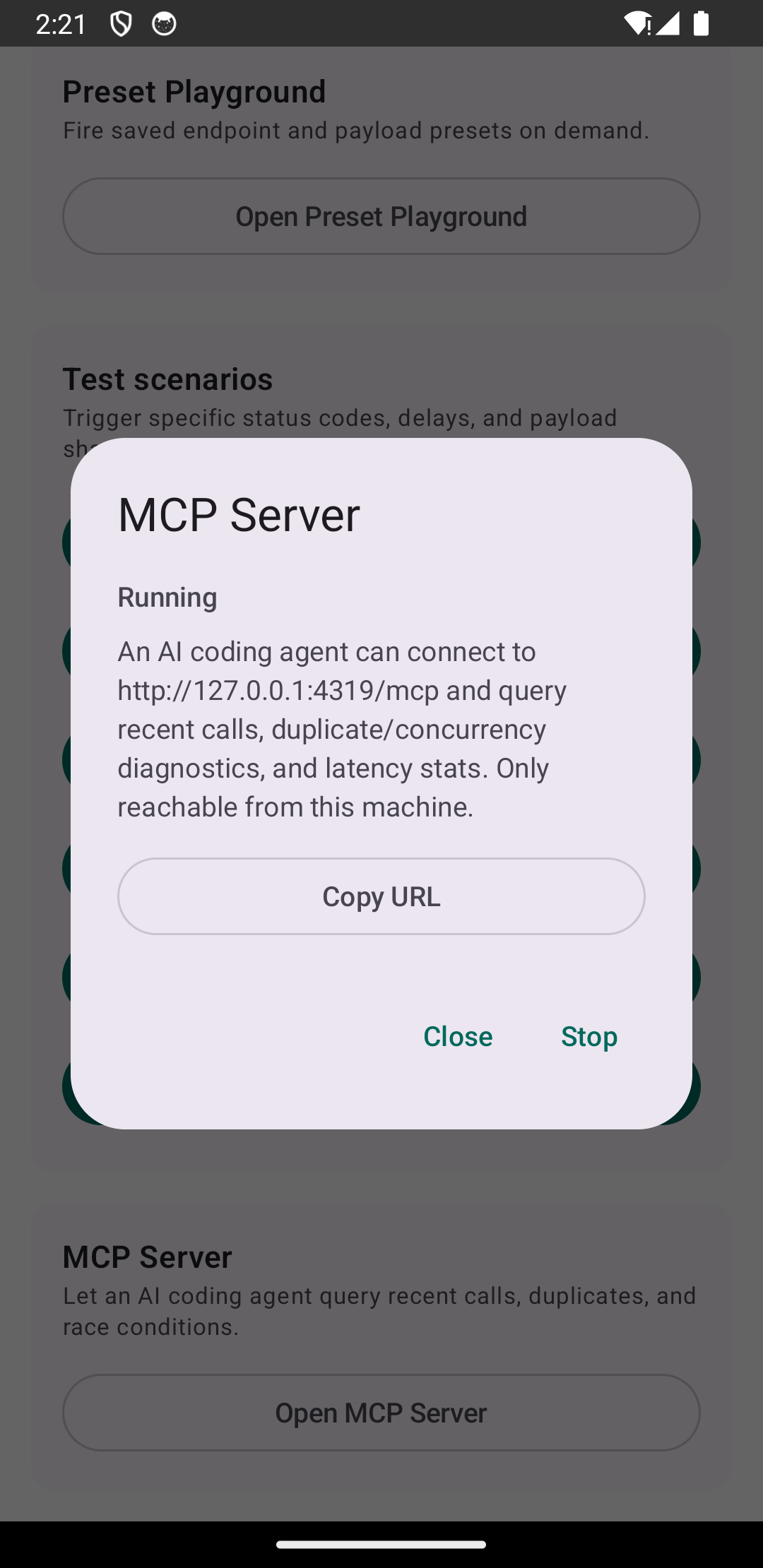

It never starts on its own. In the sample app, it's one more Developer Tools card — press Start, and it's live:

val mcpServer = McpServerExtension(monitor = { monitor }, port = 4319)
// ... later, e.g. from a Developer Tools button:
scope.launch { mcpServer.start() }

Then point an MCP client at it — for Claude Code:

claude mcp add --transport http trawler http://127.0.0.1:4319/mcp

That's a real, working round trip — output from an actual run against the sample app on an Android emulator, reached over adb forward tcp:4319 tcp:4319 (the emulator in this run had no outbound DNS, hence the errors — get_call_stats reports them exactly the same way it would report any other failure):

$ curl -s http://127.0.0.1:4319/mcp \
    -d '{"jsonrpc":"2.0","id":1,"method":"tools/call","params":{"name":"get_call_stats","arguments":{}}}'
{"jsonrpc":"2.0","id":1,"result":{"content":[{"type":"text","text":
  "{\"totalCalls\":4,\"errorCount\":4,\"errorRate\":1.0,\"avgDurationMillis\":20828.25,
    \"p50DurationMillis\":20124,\"p95DurationMillis\":20141,
    \"byHost\":{\"api.coingecko.com\":2,\"api.frankfurter.dev\":2},\"byStatus\":{\"error\":4}}"
}],"isError":false}}

The server only ever binds to 127.0.0.1 and only exposes what's already in the (redacted) CallStore — see the ADR linked above for why, and extensions/mcp-server's source for the exact tool list (list_calls, get_call, find_duplicate_calls, find_concurrent_calls, find_slow_calls, get_call_stats, clear_calls, and an optional replay_call).

• Desktop: ./gradlew :sample-app:desktopApp:run
• Android: ./gradlew :sample-app:androidApp:installDebug, or open the repo root in Android Studio and run the androidApp configuration.
• iOS: sample-app/iosApp/ is an XcodeGen project — project.yml is the source of truth, not the generated .xcodeproj. First time, or after editing project.yml:

  brew install xcodegen
  cd sample-app/iosApp && xcodegen generate


  Then open TrawlerSample.xcodeproj in Xcode and run. The Kotlin framework builds automatically via a Run Script build phase (embedAndSignAppleFrameworkForXcode) — no separate Gradle step needed.

Core capture pipeline, redaction, the Compose viewer, and all four first-party extensions (curl-export, replay, preset-playground, mcp-server) are built and tested. Published to JitPack as v0.1.2; not yet on Maven Central.

Apache-2.0 — see LICENSE.
