KotStep

KotStep is an expressive, high-performance, fully customizable Stepper UI library built natively for Compose Multiplatform. Create elegant multi-step workflows, timelines, and progress flows across Android, iOS, Desktop (JVM), and Web (Wasm) from a single shared codebase.

✨ Features

🌐 Compose Multiplatform 100% Native: Runs seamlessly on Android, iOS, Desktop (JVM), and Web (Wasm).
✍️ Clean V3 DSL: Intuitive, declarative KotStep { step(...) } builder syntax.
⚡ Smooth Fractional Progress: Animate connecting lines dynamically with continuous Float progress values (e.g. 1.5f = 50% between step 1 and 2).
📐 Horizontal & Vertical Orientations: Switch layout styles effortlessly with unified indicator and line alignment.
🏷️ Dual Label Slots: First-class support for leadingLabel (e.g. timestamps, step numbers) and trailingLabel (e.g. titles, subtitles, cards).
🎨 Deep Visual Customization: Configure indicator shapes, sizes, colors, stroke caps, borders, and line types (Solid, Dashed, Dotted) per state (Todo, Current, Done).
📂 Collapsible Steps: Built-in support for accordion-style expandable step content.
🛡️ Zero Android Leakage: commonMain is 100% pure Kotlin & Compose Multiplatform with constraint-safe layout measurement.

📱 Platform Requirements

Platform	Minimum Requirement	Runtime Engine
Android	API 24+ (Android 7.0)	Jetpack Compose / ART
iOS	iOS 16.0+	Compose Multiplatform (Skiko)
Desktop (JVM)	Java 17+	Skia / AWT
Web (Wasm)	Modern Browser (Chrome 119+, Firefox 120+, Safari 18+)	Kotlin/Wasm GC + Canvas

📦 Installation

KotStep is published directly to Maven Central (and also available via JitPack).

Dependency Setup

Compose Multiplatform (Shared `commonMain`)

Ensure mavenCentral() is present in your settings.gradle.kts (standard in Gradle):

// shared/build.gradle.kts or build.gradle.kts in multiplatform module
kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("io.github.binayshaw7777:kotstep:3.2.0")
        }
    }
}

Android (Single-Platform)

// app/build.gradle.kts
dependencies {
    implementation("io.github.binayshaw7777:kotstep:3.2.0")
}

[!NOTE] Legacy JitPack Users: Projects using JitPack can also resolve com.github.binayshaw7777:KotStep:3.2.0 with maven("https://jitpack.io"). For all new Compose Multiplatform projects, Maven Central (io.github.binayshaw7777:kotstep:3.2.0) is recommended.

iOS Setup

JitPack distributes Kotlin klibs and metadata. To link the iOS framework from source:

./gradlew :kotstep:linkReleaseFrameworkIosSimulatorArm64 \
          :kotstep:linkReleaseFrameworkIosArm64 \
          :kotstep:linkReleaseFrameworkIosX64

Combine the resulting .framework bundles with xcodebuild -create-xcframework or consume the shared KMP module directly in Xcode.

🚀 Quick Start (V3 DSL)

import androidx.compose.runtime.*
import com.binayshaw7777.kotstep.v3.KotStep
import com.binayshaw7777.kotstep.v3.model.step.StepLayoutStyle
import com.binayshaw7777.kotstep.v3.model.style.KotStepStyle
import com.binayshaw7777.kotstep.v3.util.ExperimentalKotStep

@OptIn(ExperimentalKotStep::class)
@Composable
fun CheckoutFlow() {
    var currentStep by remember { mutableFloatStateOf(1f) }

    KotStep(
        currentStep = { currentStep },
        style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
    ) {
        step(title = "Cart", onClick = { currentStep = 0f })
        step(title = "Shipping", onClick = { currentStep = 1f })
        step(title = "Payment", onClick = { currentStep = 2f })
        step(title = "Review", onClick = { currentStep = 3f })
    }
}

🖼️ Permutations & Combinations Matrix

KotStep provides full orthogonal combinatorics across layouts, indicator shapes, line types, label configurations, and color palettes:

#	Permutation / Combination	Layout	Indicator Shape	Indicator Content	Line Type	Label Slots	Theme	Preview
1	Classic Numbered	Horizontal	Circle	Numbers (`"1"`)	Solid	Trailing	Light Emerald/Indigo	View
2	Dual Labels	Horizontal	Circle	Numbers (`"1"`)	Solid	Leading + Trailing	Light Clean	View
3	Minimalist Dots	Horizontal	Circle	Default Dot	Solid	None (Minimal)	Light Indigo	View
4	Dotted Line Track	Horizontal	Circle	Numbers (`"1"`)	Dotted	Trailing	Rose Sunset	View
5	Dashed Squircle	Horizontal	RoundedCorner	Letters (`"A"`)	Dashed	Trailing	Warm Amber	View
6	Vector Icons	Horizontal	Circle	`ImageVector`	Solid	Trailing	Royal Purple	View
7	Custom Composable	Horizontal	Circle	Composable / Emojis	Solid	Trailing	Emerald Green	View
8	Cut-Corner Geometric	Horizontal	CutCorner	Numbers (`"1"`)	Solid	Trailing	Cyberpunk Dark	View
9	Fintech Dark Mode	Horizontal	Circle	Numbers (`"1"`)	Solid	Trailing	Obsidian Cyan	View

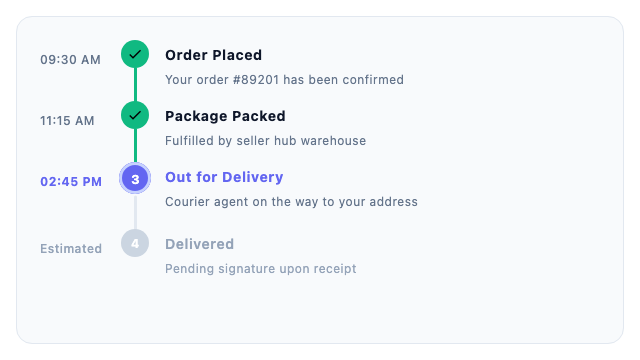

10	Delivery Timeline	Vertical	Circle	Numbers / Checkmarks	Solid	Leading + Trailing	Light Slate	View

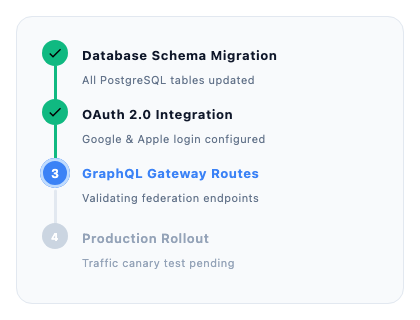

11	Minimal Activity Rail	Vertical	Circle	Numbers / Checkmarks	Solid	Trailing only	Light Slate	View

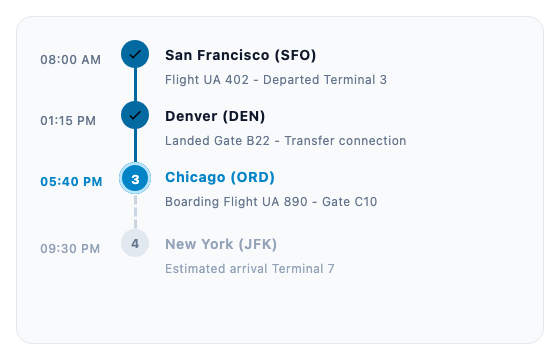

12	Dashed Transit Route	Vertical	Circle	Numbers / Checkmarks	Dashed	Leading + Trailing	Sky Blue	View

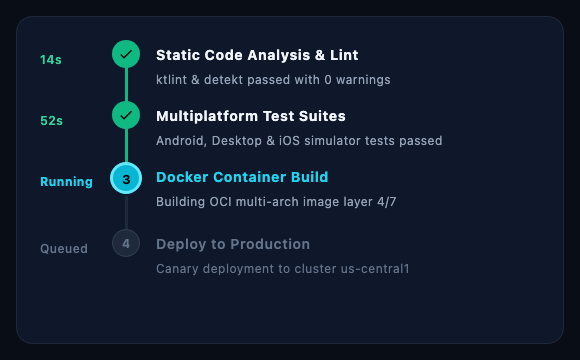

13	Dark CI/CD Pipeline	Vertical	Circle	Numbers / Checkmarks	Solid	Leading + Trailing	Terminal Dark	View

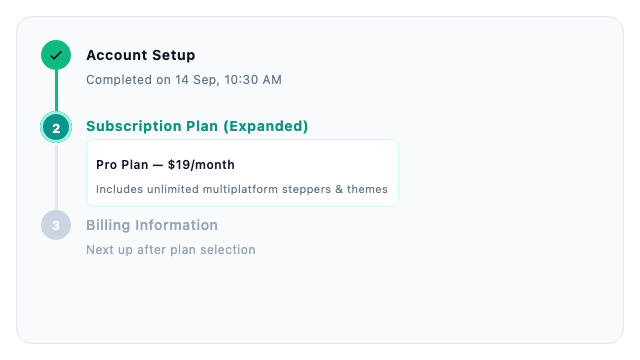

14	Interactive Collapsible	Vertical	Circle	Numbers / Checkmarks	Solid	Trailing (Collapsible)	Mint Teal	View
15	Roadmap Milestones	Vertical	Circle	`ImageVector`	Solid	Leading + Trailing	Violet Purple	View

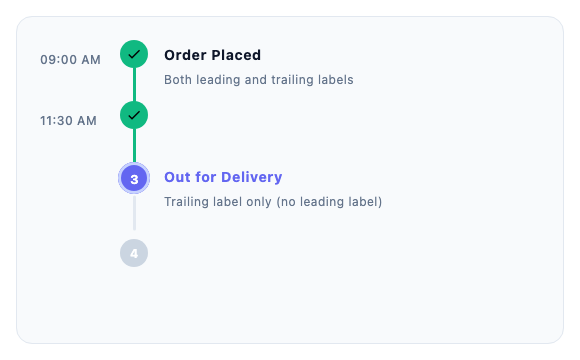

16	Mixed Slot Permutations	Vertical	Circle	Numbers / Checkmarks	Solid	Both, Leading-only, Trailing-only, None	Light Slate	View

🎨 Visual Showcase & Code Snippets

1. Horizontal Stepper with Animated Progress

Clean multi-step horizontal navigation with custom status colors, active rings, and fractional progress line interpolation.

KotStep(
    currentStep = { 1.5f }, // 50% animated progress between step 1 and step 2
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(title = "1", trailingLabel = { Text("Cart") })
    step(title = "2", trailingLabel = { Text("Shipping") })
    step(title = "3", trailingLabel = { Text("Payment") })
    step(title = "4", trailingLabel = { Text("Review") })
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt

@OptIn(ExperimentalKotStep::class)
@Composable
fun HorizontalCheckoutSnippet() {
    var step by remember { mutableFloatStateOf(1.5f) }

    KotStep(
        currentStep = { step },
        style = KotStepStyle(
            stepLayoutStyle = StepLayoutStyle.Horizontal,
            stepStyle = StepStyles.default().copy(
                onTodo = StepStyle(stepSize = 36.dp, stepColor = Color(0xFFE2E8F0)),
                onCurrent = StepStyle(
                    stepSize = 40.dp,
                    stepColor = Color(0xFF2563EB),
                    borderStyle = BorderStyle(width = 3.dp, color = Color(0xFF93C5FD))
                ),
                onDone = StepStyle(stepSize = 36.dp, stepColor = Color(0xFF10B981))
            ),
            lineStyle = LineStyles.default().copy(
                onCurrent = LineStyle(
                    lineLength = 130.dp,
                    lineThickness = 4.dp,
                    lineColor = Color(0xFFE2E8F0),
                    progressColor = Color(0xFF2563EB),
                    lineStrokeCap = StrokeCap.Round,
                    progressStrokeCap = StrokeCap.Round
                )
            )
        )
    ) {
        step(title = "1", trailingLabel = { Text("Cart") })
        step(title = "2", trailingLabel = { Text("Shipping") })
        step(title = "3", trailingLabel = { Text("Payment") })
        step(title = "4", trailingLabel = { Text("Review") })
    }
}

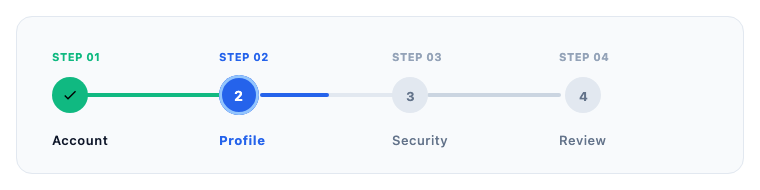

2. Horizontal Dual Labels (Top Step + Bottom Title)

Utilizes both leadingLabel (positioned above indicator) and trailingLabel (positioned below indicator) for structured enterprise checkout flows.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(
        title = "1",
        leadingLabel = { Text("STEP 01", fontSize = 11.sp, fontWeight = FontWeight.Bold) },
        trailingLabel = { Text("Account", fontSize = 13.sp) }
    )
    step(
        title = "2",
        leadingLabel = { Text("STEP 02", fontSize = 11.sp, fontWeight = FontWeight.Bold) },
        trailingLabel = { Text("Profile", fontSize = 13.sp) }
    )
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt (HorizontalDualLabelSnippet)

3. Horizontal Minimalist Dots (Compact Onboarding)

No text labels, pure compact pagination/onboarding dots with animated active indicator ring.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        showCheckMarkOnDone = false,
        stepStyle = StepStyles.default().copy(
            onTodo = StepStyle(stepSize = 12.dp, stepColor = Color(0xFFCBD5E1)),
            onCurrent = StepStyle(stepSize = 16.dp, stepColor = Color(0xFF6366F1), borderStyle = BorderStyle(3.dp, Color(0xFFC7D2FE))),
            onDone = StepStyle(stepSize = 12.dp, stepColor = Color(0xFF10B981))
        ),
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineLength = 64.dp, lineThickness = 3.dp)
        )
    )
) {
    step(); step(); step(); step(); step()
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt (MinimalistDotsSnippet)

4. Horizontal Dotted Line Track (Sunset Theme)

Demonstrates LineType.Dotted(gapLength = 8.dp) with StrokeCap.Round for modern, airy progress tracks.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dotted(gapLength = 8.dp), progressColor = Color(0xFFF43F5E))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Plan") })
    step(title = "2", trailingLabel = { Text("Design") })
    step(title = "3", trailingLabel = { Text("Develop") })
    step(title = "4", trailingLabel = { Text("Ship") })
}

🔍 See snippet & options

File: LineStylingSnippets.kt

5. Horizontal Dashed Line & Squircle Badges

Combine RoundedCornerShape with LineType.Dashed(dashLength, gapLength) for industrial, roadmapped stages.

KotStep(
    currentStep = { 1f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepShape = RoundedCornerShape(12.dp), stepColor = Color(0xFFF59E0B)),
            onDone = StepStyle(stepShape = RoundedCornerShape(10.dp), stepColor = Color(0xFFD97706))
        ),
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dashed(dashLength = 8.dp, gapLength = 6.dp))
        )
    )
) {
    step(title = "A", trailingLabel = { Text("Plan") })
    step(title = "B", trailingLabel = { Text("Build") })
    step(title = "C", trailingLabel = { Text("Test") })
    step(title = "D", trailingLabel = { Text("Deploy") })
}

🔍 See snippet & options

File: LineStylingSnippets.kt

6. Horizontal Vector Icons & State Colors

Replace numbers with Compose ImageVector icons and configure distinct icon tints and sizes across states.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(icon = Icons.Default.Home, trailingLabel = { Text("Start") })
    step(icon = Icons.Default.Person, trailingLabel = { Text("Profile") })
    step(icon = Icons.Default.Star, trailingLabel = { Text("Perks") })
    step(icon = Icons.Default.Favorite, trailingLabel = { Text("Done") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (VectorIconStepperSnippet)

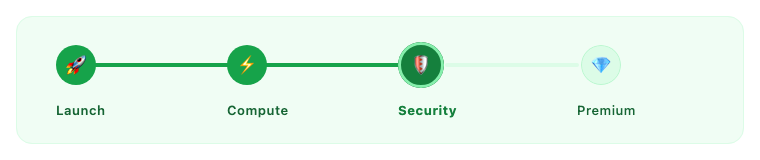

7. Horizontal Custom Composable Badges & Emojis

Pass arbitrary Compose UI inside content = { ... } to display badges, custom animated spinners, or emojis.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal, showCheckMarkOnDone = false)
) {
    step(content = { Text("🚀", fontSize = 16.sp) }, trailingLabel = { Text("Launch") })
    step(content = { Text("⚡", fontSize = 16.sp) }, trailingLabel = { Text("Compute") })
    step(content = { Text("🛡️", fontSize = 16.sp) }, trailingLabel = { Text("Security") })
    step(content = { Text("💎", fontSize = 16.sp) }, trailingLabel = { Text("Premium") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (ComposableContentStepperSnippet)

8. Horizontal Cut-Corner Geometric Shape (Cyberpunk / Gold)

Demonstrates CutCornerShape(8.dp) with high-contrast active borders for sci-fi, gaming, or angular enterprise aesthetics.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepShape = CutCornerShape(8.dp), stepColor = Color(0xFFD97706), borderStyle = BorderStyle(3.dp, Color(0xFFFDE68A))),
            onDone = StepStyle(stepShape = CutCornerShape(8.dp), stepColor = Color(0xFFF59E0B))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Phase Alpha") })
    step(title = "2", trailingLabel = { Text("Phase Beta") })
    step(title = "3", trailingLabel = { Text("Phase Gamma") })
    step(title = "4", trailingLabel = { Text("Launch Final") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (CutCornerGamingSnippet)

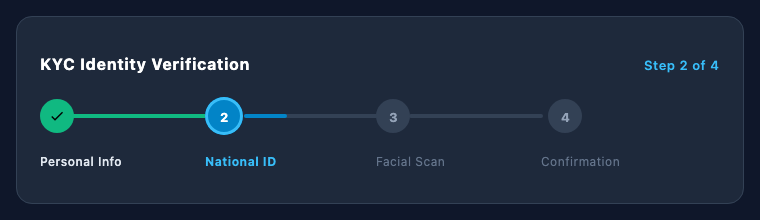

9. Horizontal Dark Fintech Stepper

Dark mode theme with deep obsidian slate and electric cyan highlights, built for KYC verification.

KotStep(
    currentStep = { 1.3f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onTodo = StepStyle(stepColor = Color(0xFF334155)),
            onCurrent = StepStyle(stepColor = Color(0xFF0284C7), borderStyle = BorderStyle(3.dp, Color(0xFF38BDF8))),
            onDone = StepStyle(stepColor = Color(0xFF10B981))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Personal Info") })
    step(title = "2", trailingLabel = { Text("National ID") })
    step(title = "3", trailingLabel = { Text("Facial Scan") })
    step(title = "4", trailingLabel = { Text("Confirmation") })
}

🔍 See snippet & options

File: ThemingSnippets.kt (FintechDarkThemeSnippet)

10. Vertical Timeline with Dual Label Slots

Display delivery tracking and timeline histories using leadingLabel for timestamps and trailingLabel for rich descriptions. Perfectly aligned single-axis vertical connecting line.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(
        title = "1",
        leadingLabel = { Text("09:30 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Order Placed", fontWeight = FontWeight.Bold) }
    )
    step(
        title = "2",
        leadingLabel = { Text("11:15 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Package Packed", fontWeight = FontWeight.Bold) }
    )
    step(
        title = "3",
        leadingLabel = { Text("02:45 PM", fontSize = 12.sp, fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) },
        trailingLabel = { Text("Out for Delivery", fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) }
    )
    step(
        title = "4",
        leadingLabel = { Text("Estimated", fontSize = 12.sp, color = Color.LightGray) },
        trailingLabel = { Text("Delivered", color = Color.LightGray) }
    )
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (DeliveryTrackingTimelineSnippet)

11. Vertical Minimal Activity Rail (No Timestamps)

Compact vertical indicator rail without leading timestamps, ideal for task lists and setup checklists.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(title = "1", trailingLabel = { Text("Database Schema Migration") })
    step(title = "2", trailingLabel = { Text("OAuth 2.0 Integration") })
    step(title = "3", trailingLabel = { Text("GraphQL Gateway Routes") })
    step(title = "4", trailingLabel = { Text("Production Rollout") })
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalMinimalRailSnippet)

12. Vertical Dashed Flight Transit Route

Demonstrates a vertical travel / logistics shipping route using LineType.Dashed.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Vertical,
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dashed(dashLength = 6.dp, gapLength = 6.dp))
        )
    )
) {
    step(title = "1", leadingLabel = { Text("08:00 AM") }, trailingLabel = { Text("San Francisco (SFO)") })
    step(title = "2", leadingLabel = { Text("01:15 PM") }, trailingLabel = { Text("Denver (DEN)") })
    step(title = "3", leadingLabel = { Text("05:40 PM") }, trailingLabel = { Text("Chicago (ORD)") })
    step(title = "4", leadingLabel = { Text("09:30 PM") }, trailingLabel = { Text("New York (JFK)") })
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalDashedRouteSnippet)

13. Vertical Dark Mode CI/CD Pipeline

Dark DevOps build/deploy timeline with duration badges, execution states, and terminal colorway.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Vertical,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepColor = Color(0xFF06B6D4), borderStyle = BorderStyle(3.dp, Color(0xFF67E8F9))),
            onDone = StepStyle(stepColor = Color(0xFF10B981))
        )
    )
) {
    step(title = "1", leadingLabel = { Text("14s") }, trailingLabel = { Text("Static Code Analysis") })
    step(title = "2", leadingLabel = { Text("52s") }, trailingLabel = { Text("Multiplatform Tests") })
    step(title = "3", leadingLabel = { Text("Running") }, trailingLabel = { Text("Docker Build") })
    step(title = "4", leadingLabel = { Text("Queued") }, trailingLabel = { Text("Deploy Prod") })
}

🔍 See snippet & options

File: ThemingSnippets.kt (VerticalDarkPipelineSnippet)

14. Vertical Interactive Collapsible Stepper

Tapping a step expands/collapses its trailing content dynamically with animated transitions.

step(
    title = "2",
    isCollapsible = true, // Tapping indicator or row toggles visibility
    trailingLabel = {
        Column {
            Text("Subscription Plan (Expanded)", fontWeight = FontWeight.Bold)
            Card { Text("Pro Plan — $19/month") }
        }
    }
)

🔍 See snippet & options

File: CollapsibleStepSnippets.kt (CollapsibleOrderDetailsSnippet)

15. Vertical Milestone Roadmap with Vector Icons

Display quarterly product or project roadmap milestones using custom ImageVector icons per step.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(icon = Icons.Default.Home, leadingLabel = { Text("Q1 2026") }, trailingLabel = { Text("Architecture") })
    step(icon = Icons.Default.Person, leadingLabel = { Text("Q2 2026") }, trailingLabel = { Text("CMP Targets") })
    step(icon = Icons.Default.Star, leadingLabel = { Text("Q3 2026") }, trailingLabel = { Text("V3 Release") })
    step(icon = Icons.Default.Favorite, leadingLabel = { Text("Q4 2026") }, trailingLabel = { Text("Ecosystem") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (VerticalMilestoneIconsSnippet)

16. Vertical Timeline with Mixed Slot Combinations

Demonstrates dynamic slot variations across steps in a single timeline — Step 1 with both labels, Step 2 with leading only, Step 3 with trailing only, and Step 4 with indicator only. The layout engine reserves slot width dynamically, keeping the indicator column and connecting line 100% straight.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    // 1. Both leading and trailing label
    step(
        title = "1",
        leadingLabel = { Text("09:00 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Order Placed", fontWeight = FontWeight.Bold) }
    )

    // 2. Just leading label (no trailing label)
    step(
        title = "2",
        leadingLabel = { Text("11:30 AM", fontSize = 12.sp, color = Color.Gray) }
    )

    // 3. Just trailing label (no leading label)
    step(
        title = "3",
        trailingLabel = { Text("Out for Delivery", fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) }
    )

    // 4. None (indicator only, no labels)
    step(
        title = "4"
    )
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalMixedSlotsSnippet)

📖 Complete API Reference

`KotStep` Composable

@ExperimentalKotStep
@Composable
fun KotStep(
    modifier: Modifier = Modifier,
    currentStep: () -> Float,
    style: KotStepStyle = KotStepStyle(),
    content: KotStepScope.() -> Unit
)

Parameter	Type	Default	Description
`modifier`	`Modifier`	`Modifier`	Layout modifier applied to the stepper root container.
`currentStep`	`() -> Float`	Required	Lambda providing active step index as a `Float`. Supports fractional values for smooth line transitions.
`style`	`KotStepStyle`	`KotStepStyle()`	Comprehensive styling options for indicators, lines, layout, and states.
`content`	`KotStepScope.() -> Unit`	Required	DSL scope for declaring individual steps via `step(...)`.

`KotStepScope.step()` Variants

Declare steps inside KotStep using three overloaded variants:

// 1. Text or numbered step
step(
    title: String,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

// 2. Icon step
step(
    icon: ImageVector,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

// 3. Fully custom composable indicator
step(
    content: (@Composable () -> Unit)? = null,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

`currentStep` State & Progress Semantics

KotStep uses a continuous Float progress model:

-1.0f  // All steps are Todo; all lines empty
 0.0f  // Step 0 is Current; Step 1+ are Todo; Line 0 progress is 0%
 0.5f  // Step 0 is Current; Line between 0 and 1 is 50% animated
 1.0f  // Step 0 is Done; Step 1 is Current; Line 0 is 100% completed
 3.0f  // Steps 0, 1, 2 are Done; Step 3 is Current
 4.0f  // For 4 steps: All steps (0..3) marked Done; all lines 100% completed

Style Configuration Objects

`KotStepStyle`

data class KotStepStyle(
    val stepLayoutStyle: StepLayoutStyle = StepLayoutStyle.Vertical,
    val itemPadding: Dp = 8.dp,
    val showCheckMarkOnDone: Boolean = true,
    val ignoreCurrentState: Boolean = false,
    val stepStyle: StepStyles = StepStyles.default(),
    val lineStyle: LineStyles = LineStyles.default()
)

`StepStyle`

data class StepStyle(
    val stepColor: Color = Color.Gray,
    val stepSize: Dp = 24.dp,
    val stepShape: Shape = CircleShape,
    val textStyle: TextStyle = TextStyle(color = Color.Black, fontSize = 16.sp),
    val iconStyle: IconStyle = IconStyle(),
    val borderStyle: BorderStyle = BorderStyle()
)

`LineStyle` & `LineType`

data class LineStyle(
    val lineColor: Color = Color.Gray,
    val progressColor: Color = Color.Green,
    val lineLength: Dp = 16.dp,
    val lineThickness: Dp = 2.dp,
    val linePadding: PaddingValues = PaddingValues(0.dp),
    val lineStrokeCap: StrokeCap = StrokeCap.Square,
    val progressStrokeCap: StrokeCap = StrokeCap.Square,
    val lineType: LineType = LineType.Solid,
    val progressType: LineType = LineType.Solid
)

Supported LineType variants:

LineType.Solid: Continuous line.
LineType.Dashed(dashLength: Dp = 1.dp, gapLength: Dp = 15.dp): Dashed pattern.
LineType.Dotted(gapLength: Dp = 8.dp): Dotted pattern.

💡 Migrating from KotStep V2? KotStep V3 is a full multiplatform rewrite with an expressive declarative DSL. See the dedicated V2 → V3 Migration Guide for complete side-by-side diffs and class mapping tables.

🏃 Running the Demo Apps

KotStep includes a shared multiplatform demo application with interactive playgrounds:

# Run Desktop (JVM) Demo
./gradlew :desktopApp:run

# Run Web (Wasm) Demo
./gradlew :webApp:wasmJsBrowserDevelopmentRun

# Run Android Demo
Open in Android Studio and run the 'app' configuration

# Run iOS Demo
Open 'iosApp/iosApp.xcodeproj' in Xcode and run on any iOS Simulator

🧪 Verification & Off-Screen Previews

# Run multiplatform unit & UI tests on Desktop JVM
./gradlew :kotstep:desktopTest

# Re-export high-resolution component preview PNGs to docs/images/
./gradlew :kotstep:desktopTest --tests "com.binayshaw7777.kotstep.v3.KotStepExportPreviewsTest"

👤 Author & Maintenance

KotStep is a personal library developed and maintained by Binay Shaw. External contributions and pull requests are not accepted. Feel free to fork or report issues via GitHub Issues.

📄 License

Copyright 2024 Binay Shaw

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

Android

JVM

iOS

Wasm

GitHub stars322

Authorsbinayshaw7777

Dependents0

LicenseApache License 2.0

Creation dateabout 3 years ago

Last activity12 days ago

Latest release3.2.0 (13 days ago)

GitHub repository GitHub pages Wiki page

KotStep

✨ Features

🌐 Compose Multiplatform 100% Native: Runs seamlessly on Android, iOS, Desktop (JVM), and Web (Wasm).
✍️ Clean V3 DSL: Intuitive, declarative KotStep { step(...) } builder syntax.
⚡ Smooth Fractional Progress: Animate connecting lines dynamically with continuous Float progress values (e.g. 1.5f = 50% between step 1 and 2).
📐 Horizontal & Vertical Orientations: Switch layout styles effortlessly with unified indicator and line alignment.
🏷️ Dual Label Slots: First-class support for leadingLabel (e.g. timestamps, step numbers) and trailingLabel (e.g. titles, subtitles, cards).
🎨 Deep Visual Customization: Configure indicator shapes, sizes, colors, stroke caps, borders, and line types (Solid, Dashed, Dotted) per state (Todo, Current, Done).
📂 Collapsible Steps: Built-in support for accordion-style expandable step content.
🛡️ Zero Android Leakage: commonMain is 100% pure Kotlin & Compose Multiplatform with constraint-safe layout measurement.

📱 Platform Requirements

Platform	Minimum Requirement	Runtime Engine
Android	API 24+ (Android 7.0)	Jetpack Compose / ART
iOS	iOS 16.0+	Compose Multiplatform (Skiko)
Desktop (JVM)	Java 17+	Skia / AWT
Web (Wasm)	Modern Browser (Chrome 119+, Firefox 120+, Safari 18+)	Kotlin/Wasm GC + Canvas

📦 Installation

KotStep is published directly to Maven Central (and also available via JitPack).

Dependency Setup

Compose Multiplatform (Shared `commonMain`)

Ensure mavenCentral() is present in your settings.gradle.kts (standard in Gradle):

// shared/build.gradle.kts or build.gradle.kts in multiplatform module
kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("io.github.binayshaw7777:kotstep:3.2.0")
        }
    }
}

Android (Single-Platform)

// app/build.gradle.kts
dependencies {
    implementation("io.github.binayshaw7777:kotstep:3.2.0")
}

[!NOTE] Legacy JitPack Users: Projects using JitPack can also resolve com.github.binayshaw7777:KotStep:3.2.0 with maven("https://jitpack.io"). For all new Compose Multiplatform projects, Maven Central (io.github.binayshaw7777:kotstep:3.2.0) is recommended.

iOS Setup

JitPack distributes Kotlin klibs and metadata. To link the iOS framework from source:

./gradlew :kotstep:linkReleaseFrameworkIosSimulatorArm64 \
          :kotstep:linkReleaseFrameworkIosArm64 \
          :kotstep:linkReleaseFrameworkIosX64

Combine the resulting .framework bundles with xcodebuild -create-xcframework or consume the shared KMP module directly in Xcode.

🚀 Quick Start (V3 DSL)

import androidx.compose.runtime.*
import com.binayshaw7777.kotstep.v3.KotStep
import com.binayshaw7777.kotstep.v3.model.step.StepLayoutStyle
import com.binayshaw7777.kotstep.v3.model.style.KotStepStyle
import com.binayshaw7777.kotstep.v3.util.ExperimentalKotStep

@OptIn(ExperimentalKotStep::class)
@Composable
fun CheckoutFlow() {
    var currentStep by remember { mutableFloatStateOf(1f) }

    KotStep(
        currentStep = { currentStep },
        style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
    ) {
        step(title = "Cart", onClick = { currentStep = 0f })
        step(title = "Shipping", onClick = { currentStep = 1f })
        step(title = "Payment", onClick = { currentStep = 2f })
        step(title = "Review", onClick = { currentStep = 3f })
    }
}

🖼️ Permutations & Combinations Matrix

KotStep provides full orthogonal combinatorics across layouts, indicator shapes, line types, label configurations, and color palettes:

#	Permutation / Combination	Layout	Indicator Shape	Indicator Content	Line Type	Label Slots	Theme	Preview
1	Classic Numbered	Horizontal	Circle	Numbers (`"1"`)	Solid	Trailing	Light Emerald/Indigo	View
2	Dual Labels	Horizontal	Circle	Numbers (`"1"`)	Solid	Leading + Trailing	Light Clean	View
3	Minimalist Dots	Horizontal	Circle	Default Dot	Solid	None (Minimal)	Light Indigo	View
4	Dotted Line Track	Horizontal	Circle	Numbers (`"1"`)	Dotted	Trailing	Rose Sunset	View
5	Dashed Squircle	Horizontal	RoundedCorner	Letters (`"A"`)	Dashed	Trailing	Warm Amber	View
6	Vector Icons	Horizontal	Circle	`ImageVector`	Solid	Trailing	Royal Purple	View
7	Custom Composable	Horizontal	Circle	Composable / Emojis	Solid	Trailing	Emerald Green	View
8	Cut-Corner Geometric	Horizontal	CutCorner	Numbers (`"1"`)	Solid	Trailing	Cyberpunk Dark	View
9	Fintech Dark Mode	Horizontal	Circle	Numbers (`"1"`)	Solid	Trailing	Obsidian Cyan	View
10	Delivery Timeline	Vertical	Circle	Numbers / Checkmarks	Solid	Leading + Trailing	Light Slate	View
11	Minimal Activity Rail	Vertical	Circle	Numbers / Checkmarks	Solid	Trailing only	Light Slate	View
12	Dashed Transit Route	Vertical	Circle	Numbers / Checkmarks	Dashed	Leading + Trailing	Sky Blue	View
13	Dark CI/CD Pipeline	Vertical	Circle	Numbers / Checkmarks	Solid	Leading + Trailing	Terminal Dark	View
14	Interactive Collapsible	Vertical	Circle	Numbers / Checkmarks	Solid	Trailing (Collapsible)	Mint Teal	View
15	Roadmap Milestones	Vertical	Circle	`ImageVector`	Solid	Leading + Trailing	Violet Purple	View
16	Mixed Slot Permutations	Vertical	Circle	Numbers / Checkmarks	Solid	Both, Leading-only, Trailing-only, None	Light Slate	View

🎨 Visual Showcase & Code Snippets

1. Horizontal Stepper with Animated Progress

Clean multi-step horizontal navigation with custom status colors, active rings, and fractional progress line interpolation.

KotStep(
    currentStep = { 1.5f }, // 50% animated progress between step 1 and step 2
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(title = "1", trailingLabel = { Text("Cart") })
    step(title = "2", trailingLabel = { Text("Shipping") })
    step(title = "3", trailingLabel = { Text("Payment") })
    step(title = "4", trailingLabel = { Text("Review") })
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt

@OptIn(ExperimentalKotStep::class)
@Composable
fun HorizontalCheckoutSnippet() {
    var step by remember { mutableFloatStateOf(1.5f) }

    KotStep(
        currentStep = { step },
        style = KotStepStyle(
            stepLayoutStyle = StepLayoutStyle.Horizontal,
            stepStyle = StepStyles.default().copy(
                onTodo = StepStyle(stepSize = 36.dp, stepColor = Color(0xFFE2E8F0)),
                onCurrent = StepStyle(
                    stepSize = 40.dp,
                    stepColor = Color(0xFF2563EB),
                    borderStyle = BorderStyle(width = 3.dp, color = Color(0xFF93C5FD))
                ),
                onDone = StepStyle(stepSize = 36.dp, stepColor = Color(0xFF10B981))
            ),
            lineStyle = LineStyles.default().copy(
                onCurrent = LineStyle(
                    lineLength = 130.dp,
                    lineThickness = 4.dp,
                    lineColor = Color(0xFFE2E8F0),
                    progressColor = Color(0xFF2563EB),
                    lineStrokeCap = StrokeCap.Round,
                    progressStrokeCap = StrokeCap.Round
                )
            )
        )
    ) {
        step(title = "1", trailingLabel = { Text("Cart") })
        step(title = "2", trailingLabel = { Text("Shipping") })
        step(title = "3", trailingLabel = { Text("Payment") })
        step(title = "4", trailingLabel = { Text("Review") })
    }
}

2. Horizontal Dual Labels (Top Step + Bottom Title)

Utilizes both leadingLabel (positioned above indicator) and trailingLabel (positioned below indicator) for structured enterprise checkout flows.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(
        title = "1",
        leadingLabel = { Text("STEP 01", fontSize = 11.sp, fontWeight = FontWeight.Bold) },
        trailingLabel = { Text("Account", fontSize = 13.sp) }
    )
    step(
        title = "2",
        leadingLabel = { Text("STEP 02", fontSize = 11.sp, fontWeight = FontWeight.Bold) },
        trailingLabel = { Text("Profile", fontSize = 13.sp) }
    )
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt (HorizontalDualLabelSnippet)

3. Horizontal Minimalist Dots (Compact Onboarding)

No text labels, pure compact pagination/onboarding dots with animated active indicator ring.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        showCheckMarkOnDone = false,
        stepStyle = StepStyles.default().copy(
            onTodo = StepStyle(stepSize = 12.dp, stepColor = Color(0xFFCBD5E1)),
            onCurrent = StepStyle(stepSize = 16.dp, stepColor = Color(0xFF6366F1), borderStyle = BorderStyle(3.dp, Color(0xFFC7D2FE))),
            onDone = StepStyle(stepSize = 12.dp, stepColor = Color(0xFF10B981))
        ),
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineLength = 64.dp, lineThickness = 3.dp)
        )
    )
) {
    step(); step(); step(); step(); step()
}

🔍 See snippet & options

File: HorizontalStepperSnippets.kt (MinimalistDotsSnippet)

4. Horizontal Dotted Line Track (Sunset Theme)

Demonstrates LineType.Dotted(gapLength = 8.dp) with StrokeCap.Round for modern, airy progress tracks.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dotted(gapLength = 8.dp), progressColor = Color(0xFFF43F5E))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Plan") })
    step(title = "2", trailingLabel = { Text("Design") })
    step(title = "3", trailingLabel = { Text("Develop") })
    step(title = "4", trailingLabel = { Text("Ship") })
}

🔍 See snippet & options

File: LineStylingSnippets.kt

5. Horizontal Dashed Line & Squircle Badges

Combine RoundedCornerShape with LineType.Dashed(dashLength, gapLength) for industrial, roadmapped stages.

KotStep(
    currentStep = { 1f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepShape = RoundedCornerShape(12.dp), stepColor = Color(0xFFF59E0B)),
            onDone = StepStyle(stepShape = RoundedCornerShape(10.dp), stepColor = Color(0xFFD97706))
        ),
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dashed(dashLength = 8.dp, gapLength = 6.dp))
        )
    )
) {
    step(title = "A", trailingLabel = { Text("Plan") })
    step(title = "B", trailingLabel = { Text("Build") })
    step(title = "C", trailingLabel = { Text("Test") })
    step(title = "D", trailingLabel = { Text("Deploy") })
}

🔍 See snippet & options

File: LineStylingSnippets.kt

6. Horizontal Vector Icons & State Colors

Replace numbers with Compose ImageVector icons and configure distinct icon tints and sizes across states.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal)
) {
    step(icon = Icons.Default.Home, trailingLabel = { Text("Start") })
    step(icon = Icons.Default.Person, trailingLabel = { Text("Profile") })
    step(icon = Icons.Default.Star, trailingLabel = { Text("Perks") })
    step(icon = Icons.Default.Favorite, trailingLabel = { Text("Done") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (VectorIconStepperSnippet)

7. Horizontal Custom Composable Badges & Emojis

Pass arbitrary Compose UI inside content = { ... } to display badges, custom animated spinners, or emojis.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Horizontal, showCheckMarkOnDone = false)
) {
    step(content = { Text("🚀", fontSize = 16.sp) }, trailingLabel = { Text("Launch") })
    step(content = { Text("⚡", fontSize = 16.sp) }, trailingLabel = { Text("Compute") })
    step(content = { Text("🛡️", fontSize = 16.sp) }, trailingLabel = { Text("Security") })
    step(content = { Text("💎", fontSize = 16.sp) }, trailingLabel = { Text("Premium") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (ComposableContentStepperSnippet)

8. Horizontal Cut-Corner Geometric Shape (Cyberpunk / Gold)

Demonstrates CutCornerShape(8.dp) with high-contrast active borders for sci-fi, gaming, or angular enterprise aesthetics.

KotStep(
    currentStep = { 1.5f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepShape = CutCornerShape(8.dp), stepColor = Color(0xFFD97706), borderStyle = BorderStyle(3.dp, Color(0xFFFDE68A))),
            onDone = StepStyle(stepShape = CutCornerShape(8.dp), stepColor = Color(0xFFF59E0B))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Phase Alpha") })
    step(title = "2", trailingLabel = { Text("Phase Beta") })
    step(title = "3", trailingLabel = { Text("Phase Gamma") })
    step(title = "4", trailingLabel = { Text("Launch Final") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (CutCornerGamingSnippet)

9. Horizontal Dark Fintech Stepper

Dark mode theme with deep obsidian slate and electric cyan highlights, built for KYC verification.

KotStep(
    currentStep = { 1.3f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Horizontal,
        stepStyle = StepStyles.default().copy(
            onTodo = StepStyle(stepColor = Color(0xFF334155)),
            onCurrent = StepStyle(stepColor = Color(0xFF0284C7), borderStyle = BorderStyle(3.dp, Color(0xFF38BDF8))),
            onDone = StepStyle(stepColor = Color(0xFF10B981))
        )
    )
) {
    step(title = "1", trailingLabel = { Text("Personal Info") })
    step(title = "2", trailingLabel = { Text("National ID") })
    step(title = "3", trailingLabel = { Text("Facial Scan") })
    step(title = "4", trailingLabel = { Text("Confirmation") })
}

🔍 See snippet & options

File: ThemingSnippets.kt (FintechDarkThemeSnippet)

10. Vertical Timeline with Dual Label Slots

Display delivery tracking and timeline histories using leadingLabel for timestamps and trailingLabel for rich descriptions. Perfectly aligned single-axis vertical connecting line.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(
        title = "1",
        leadingLabel = { Text("09:30 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Order Placed", fontWeight = FontWeight.Bold) }
    )
    step(
        title = "2",
        leadingLabel = { Text("11:15 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Package Packed", fontWeight = FontWeight.Bold) }
    )
    step(
        title = "3",
        leadingLabel = { Text("02:45 PM", fontSize = 12.sp, fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) },
        trailingLabel = { Text("Out for Delivery", fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) }
    )
    step(
        title = "4",
        leadingLabel = { Text("Estimated", fontSize = 12.sp, color = Color.LightGray) },
        trailingLabel = { Text("Delivered", color = Color.LightGray) }
    )
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (DeliveryTrackingTimelineSnippet)

11. Vertical Minimal Activity Rail (No Timestamps)

Compact vertical indicator rail without leading timestamps, ideal for task lists and setup checklists.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(title = "1", trailingLabel = { Text("Database Schema Migration") })
    step(title = "2", trailingLabel = { Text("OAuth 2.0 Integration") })
    step(title = "3", trailingLabel = { Text("GraphQL Gateway Routes") })
    step(title = "4", trailingLabel = { Text("Production Rollout") })
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalMinimalRailSnippet)

12. Vertical Dashed Flight Transit Route

Demonstrates a vertical travel / logistics shipping route using LineType.Dashed.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Vertical,
        lineStyle = LineStyles.default().copy(
            onCurrent = LineStyle(lineType = LineType.Dashed(dashLength = 6.dp, gapLength = 6.dp))
        )
    )
) {
    step(title = "1", leadingLabel = { Text("08:00 AM") }, trailingLabel = { Text("San Francisco (SFO)") })
    step(title = "2", leadingLabel = { Text("01:15 PM") }, trailingLabel = { Text("Denver (DEN)") })
    step(title = "3", leadingLabel = { Text("05:40 PM") }, trailingLabel = { Text("Chicago (ORD)") })
    step(title = "4", leadingLabel = { Text("09:30 PM") }, trailingLabel = { Text("New York (JFK)") })
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalDashedRouteSnippet)

13. Vertical Dark Mode CI/CD Pipeline

Dark DevOps build/deploy timeline with duration badges, execution states, and terminal colorway.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(
        stepLayoutStyle = StepLayoutStyle.Vertical,
        stepStyle = StepStyles.default().copy(
            onCurrent = StepStyle(stepColor = Color(0xFF06B6D4), borderStyle = BorderStyle(3.dp, Color(0xFF67E8F9))),
            onDone = StepStyle(stepColor = Color(0xFF10B981))
        )
    )
) {
    step(title = "1", leadingLabel = { Text("14s") }, trailingLabel = { Text("Static Code Analysis") })
    step(title = "2", leadingLabel = { Text("52s") }, trailingLabel = { Text("Multiplatform Tests") })
    step(title = "3", leadingLabel = { Text("Running") }, trailingLabel = { Text("Docker Build") })
    step(title = "4", leadingLabel = { Text("Queued") }, trailingLabel = { Text("Deploy Prod") })
}

🔍 See snippet & options

File: ThemingSnippets.kt (VerticalDarkPipelineSnippet)

14. Vertical Interactive Collapsible Stepper

Tapping a step expands/collapses its trailing content dynamically with animated transitions.

step(
    title = "2",
    isCollapsible = true, // Tapping indicator or row toggles visibility
    trailingLabel = {
        Column {
            Text("Subscription Plan (Expanded)", fontWeight = FontWeight.Bold)
            Card { Text("Pro Plan — $19/month") }
        }
    }
)

🔍 See snippet & options

File: CollapsibleStepSnippets.kt (CollapsibleOrderDetailsSnippet)

15. Vertical Milestone Roadmap with Vector Icons

Display quarterly product or project roadmap milestones using custom ImageVector icons per step.

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    step(icon = Icons.Default.Home, leadingLabel = { Text("Q1 2026") }, trailingLabel = { Text("Architecture") })
    step(icon = Icons.Default.Person, leadingLabel = { Text("Q2 2026") }, trailingLabel = { Text("CMP Targets") })
    step(icon = Icons.Default.Star, leadingLabel = { Text("Q3 2026") }, trailingLabel = { Text("V3 Release") })
    step(icon = Icons.Default.Favorite, leadingLabel = { Text("Q4 2026") }, trailingLabel = { Text("Ecosystem") })
}

🔍 See snippet & options

File: CustomIndicatorSnippets.kt (VerticalMilestoneIconsSnippet)

16. Vertical Timeline with Mixed Slot Combinations

KotStep(
    currentStep = { 2f },
    style = KotStepStyle(stepLayoutStyle = StepLayoutStyle.Vertical)
) {
    // 1. Both leading and trailing label
    step(
        title = "1",
        leadingLabel = { Text("09:00 AM", fontSize = 12.sp, color = Color.Gray) },
        trailingLabel = { Text("Order Placed", fontWeight = FontWeight.Bold) }
    )

    // 2. Just leading label (no trailing label)
    step(
        title = "2",
        leadingLabel = { Text("11:30 AM", fontSize = 12.sp, color = Color.Gray) }
    )

    // 3. Just trailing label (no leading label)
    step(
        title = "3",
        trailingLabel = { Text("Out for Delivery", fontWeight = FontWeight.Bold, color = Color(0xFF6366F1)) }
    )

    // 4. None (indicator only, no labels)
    step(
        title = "4"
    )
}

🔍 See snippet & options

File: VerticalTimelineSnippets.kt (VerticalMixedSlotsSnippet)

📖 Complete API Reference

`KotStep` Composable

@ExperimentalKotStep
@Composable
fun KotStep(
    modifier: Modifier = Modifier,
    currentStep: () -> Float,
    style: KotStepStyle = KotStepStyle(),
    content: KotStepScope.() -> Unit
)

Parameter	Type	Default	Description
`modifier`	`Modifier`	`Modifier`	Layout modifier applied to the stepper root container.
`currentStep`	`() -> Float`	Required	Lambda providing active step index as a `Float`. Supports fractional values for smooth line transitions.
`style`	`KotStepStyle`	`KotStepStyle()`	Comprehensive styling options for indicators, lines, layout, and states.
`content`	`KotStepScope.() -> Unit`	Required	DSL scope for declaring individual steps via `step(...)`.

`KotStepScope.step()` Variants

Declare steps inside KotStep using three overloaded variants:

// 1. Text or numbered step
step(
    title: String,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

// 2. Icon step
step(
    icon: ImageVector,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

// 3. Fully custom composable indicator
step(
    content: (@Composable () -> Unit)? = null,
    leadingLabel: @Composable () -> Unit = {},
    trailingLabel: @Composable () -> Unit = {},
    isCollapsible: Boolean = false,
    onClick: (() -> Unit) = {},
    onDone: (() -> Unit) = {}
)

`currentStep` State & Progress Semantics

KotStep uses a continuous Float progress model:

-1.0f  // All steps are Todo; all lines empty
 0.0f  // Step 0 is Current; Step 1+ are Todo; Line 0 progress is 0%
 0.5f  // Step 0 is Current; Line between 0 and 1 is 50% animated
 1.0f  // Step 0 is Done; Step 1 is Current; Line 0 is 100% completed
 3.0f  // Steps 0, 1, 2 are Done; Step 3 is Current
 4.0f  // For 4 steps: All steps (0..3) marked Done; all lines 100% completed

Style Configuration Objects

`KotStepStyle`

data class KotStepStyle(
    val stepLayoutStyle: StepLayoutStyle = StepLayoutStyle.Vertical,
    val itemPadding: Dp = 8.dp,
    val showCheckMarkOnDone: Boolean = true,
    val ignoreCurrentState: Boolean = false,
    val stepStyle: StepStyles = StepStyles.default(),
    val lineStyle: LineStyles = LineStyles.default()
)

`StepStyle`

data class StepStyle(
    val stepColor: Color = Color.Gray,
    val stepSize: Dp = 24.dp,
    val stepShape: Shape = CircleShape,
    val textStyle: TextStyle = TextStyle(color = Color.Black, fontSize = 16.sp),
    val iconStyle: IconStyle = IconStyle(),
    val borderStyle: BorderStyle = BorderStyle()
)

`LineStyle` & `LineType`

data class LineStyle(
    val lineColor: Color = Color.Gray,
    val progressColor: Color = Color.Green,
    val lineLength: Dp = 16.dp,
    val lineThickness: Dp = 2.dp,
    val linePadding: PaddingValues = PaddingValues(0.dp),
    val lineStrokeCap: StrokeCap = StrokeCap.Square,
    val progressStrokeCap: StrokeCap = StrokeCap.Square,
    val lineType: LineType = LineType.Solid,
    val progressType: LineType = LineType.Solid
)

Supported LineType variants:

LineType.Solid: Continuous line.
LineType.Dashed(dashLength: Dp = 1.dp, gapLength: Dp = 15.dp): Dashed pattern.
LineType.Dotted(gapLength: Dp = 8.dp): Dotted pattern.

💡 Migrating from KotStep V2? KotStep V3 is a full multiplatform rewrite with an expressive declarative DSL. See the dedicated V2 → V3 Migration Guide for complete side-by-side diffs and class mapping tables.

🏃 Running the Demo Apps

KotStep includes a shared multiplatform demo application with interactive playgrounds:

# Run Desktop (JVM) Demo
./gradlew :desktopApp:run

# Run Web (Wasm) Demo
./gradlew :webApp:wasmJsBrowserDevelopmentRun

# Run Android Demo
Open in Android Studio and run the 'app' configuration

# Run iOS Demo
Open 'iosApp/iosApp.xcodeproj' in Xcode and run on any iOS Simulator

🧪 Verification & Off-Screen Previews

# Run multiplatform unit & UI tests on Desktop JVM
./gradlew :kotstep:desktopTest

# Re-export high-resolution component preview PNGs to docs/images/
./gradlew :kotstep:desktopTest --tests "com.binayshaw7777.kotstep.v3.KotStepExportPreviewsTest"

👤 Author & Maintenance

KotStep is a personal library developed and maintained by Binay Shaw. External contributions and pull requests are not accepted. Feel free to fork or report issues via GitHub Issues.

📄 License

Copyright 2024 Binay Shaw

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

KotStep

KotStep

✨ Features

📱 Platform Requirements

📦 Installation

Dependency Setup

Compose Multiplatform (Shared commonMain)

Android (Single-Platform)

iOS Setup

🚀 Quick Start (V3 DSL)

🖼️ Permutations & Combinations Matrix

🎨 Visual Showcase & Code Snippets

1. Horizontal Stepper with Animated Progress

2. Horizontal Dual Labels (Top Step + Bottom Title)

3. Horizontal Minimalist Dots (Compact Onboarding)

4. Horizontal Dotted Line Track (Sunset Theme)

5. Horizontal Dashed Line & Squircle Badges

6. Horizontal Vector Icons & State Colors

7. Horizontal Custom Composable Badges & Emojis

8. Horizontal Cut-Corner Geometric Shape (Cyberpunk / Gold)

9. Horizontal Dark Fintech Stepper

10. Vertical Timeline with Dual Label Slots

11. Vertical Minimal Activity Rail (No Timestamps)

12. Vertical Dashed Flight Transit Route

13. Vertical Dark Mode CI/CD Pipeline

14. Vertical Interactive Collapsible Stepper

15. Vertical Milestone Roadmap with Vector Icons

16. Vertical Timeline with Mixed Slot Combinations

📖 Complete API Reference

KotStep Composable

KotStepScope.step() Variants

currentStep State & Progress Semantics

Style Configuration Objects

KotStepStyle

StepStyle

LineStyle & LineType

🏃 Running the Demo Apps

🧪 Verification & Off-Screen Previews

👤 Author & Maintenance

📄 License

KotStep

✨ Features

📱 Platform Requirements

📦 Installation

Dependency Setup

Compose Multiplatform (Shared commonMain)

Android (Single-Platform)

iOS Setup

🚀 Quick Start (V3 DSL)

🖼️ Permutations & Combinations Matrix

🎨 Visual Showcase & Code Snippets

1. Horizontal Stepper with Animated Progress

2. Horizontal Dual Labels (Top Step + Bottom Title)

3. Horizontal Minimalist Dots (Compact Onboarding)

4. Horizontal Dotted Line Track (Sunset Theme)

5. Horizontal Dashed Line & Squircle Badges

6. Horizontal Vector Icons & State Colors

7. Horizontal Custom Composable Badges & Emojis

8. Horizontal Cut-Corner Geometric Shape (Cyberpunk / Gold)

9. Horizontal Dark Fintech Stepper

10. Vertical Timeline with Dual Label Slots

11. Vertical Minimal Activity Rail (No Timestamps)

12. Vertical Dashed Flight Transit Route

13. Vertical Dark Mode CI/CD Pipeline

14. Vertical Interactive Collapsible Stepper

15. Vertical Milestone Roadmap with Vector Icons

16. Vertical Timeline with Mixed Slot Combinations

📖 Complete API Reference

KotStep Composable

KotStepScope.step() Variants

currentStep State & Progress Semantics

Style Configuration Objects

KotStepStyle

StepStyle

LineStyle & LineType

🏃 Running the Demo Apps

🧪 Verification & Off-Screen Previews

👤 Author & Maintenance

📄 License

Compose Multiplatform (Shared `commonMain`)

`KotStep` Composable

`KotStepScope.step()` Variants

`currentStep` State & Progress Semantics

`KotStepStyle`

`StepStyle`

`LineStyle` & `LineType`

Compose Multiplatform (Shared `commonMain`)

`KotStep` Composable

`KotStepScope.step()` Variants

`currentStep` State & Progress Semantics

`KotStepStyle`

`StepStyle`

`LineStyle` & `LineType`
