Type-safe coroutine orchestration for Kotlin Multiplatform.
The code reads like a diagram. The compiler won't let you wire it wrong.
Get Started · Docs · Cookbook
A checkout that calls 7 services in 4 phases. Stock validation needs retry. Payment needs a circuit breaker. Promos have a timeout. Read this and tell me: where are the phases? Where's the retry logic vs the business logic?
data class CheckoutResult(
val user: String, val cart: String, val promos: String,
val stock: Boolean,
val shipping: Double, val tax: Double,
val payment: String,
)
val breaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
coroutineScope {
val dUser = async { fetchUser() }
val dCart = async { fetchCart() }
val dPromos = async {
withTimeout(3.seconds) { fetchPromos() }
}
val user = dUser.await()
val cart = dCart.await()
val promos = dPromos.await()
// --- phase 2: validate stock (with retry) ---
var stock = false
var attempt = 0
var delay = 100.milliseconds
while (true) {
try {
stock = validateStock()
break
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
if (++attempt >= 3) throw e
delay(delay)
delay *= 2
}
}
// --- phase 3: shipping & tax in parallel ---
val dShipping = async { calcShipping() }
val dTax = async { calcTax() }
val shipping = dShipping.await()
val tax = dTax.await()
// --- phase 4: payment (with circuit breaker) ---
val payment = if (!breaker.shouldAttempt()) {
throw CircuitBreakerOpenException()
} else {
try {
val p = withTimeout(5.seconds) { reservePayment() }
breaker.recordSuccess()
p
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
breaker.recordFailure()
throw e
}
}
CheckoutResult(user, cart, promos, stock, shipping, tax, payment)
}The phases are buried. The retry loop broke the async/await rhythm. The circuit breaker is interleaved with the business flow. Add one more concern and it gets worse.
@KapTypeSafe
data class CheckoutResult(
val user: String, val cart: String, val promos: String,
val stock: Boolean,
val shipping: Double, val tax: Double,
val payment: String,
)
val retryPolicy = Schedule.exponential<Throwable>(100.milliseconds) and Schedule.times(3)
val breaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
kap(::CheckoutResult)
.withUser { fetchUser() } // ┐
.withCart { fetchCart() } // ├─ phase 1: parallel
.withPromos(Kap { fetchPromos() }.timeout(3.seconds)) // ┘ + timeout on promos
.thenStock(Kap { validateStock() }.retry(retryPolicy)) // ── phase 2: barrier + retry
.withShipping { calcShipping() } // ┐ phase 3: parallel
.withTax { calcTax() } // ┘
.thenPayment(Kap { reservePayment() } // ── phase 4: barrier
.withCircuitBreaker(breaker) // + circuit breaker
.timeout(5.seconds)).evalGraph() // + timeoutSame 7 calls, same 4 phases, same retry, same circuit breaker, same timeouts. .with = parallel, .then = barrier. Resilience is per-call, inline, composable.

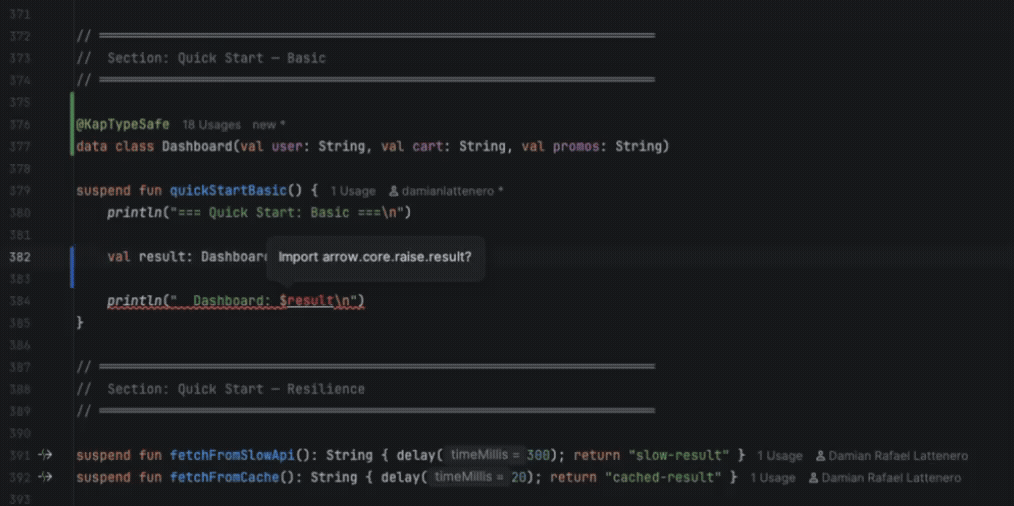

@KapTypeSafe generates a step class per field — after .withUser, the IDE only offers .withCart. You can't swap, skip, or forget a field:
| You write | What happens | Think of it as |
|---|---|---|
.withX { } |
Runs in parallel with everything else in the same phase | "and at the same time..." |
.thenX { } |
Waits for all above, then continues | "once that's done..." |
.andThen { result -> } |
Waits, passes the result, builds the next graph | "using what we got..." |
Most use cases don't need retry or circuit breakers. At its core, KAP is just a clean way to run things in parallel and combine the results:
@KapTypeSafe
data class Dashboard(val user: String, val feed: String, val notifications: Int)
kap(::Dashboard)
.withUser { fetchUser() } // ┐
.withFeed { fetchFeed() } // ├─ all three run in parallel
.withNotifications { countUnread() } // ┘
.evalGraph()Need one field to wait for another? Change .with to .then:
@KapTypeSafe
data class ProfilePage(val user: String, val avatar: String, val recommendations: String)
kap(::ProfilePage)
.withUser { fetchUser(id) } // ┐ parallel
.withAvatar { fetchAvatar(id) } // ┘
.thenRecommendations { fetchRecommendations(user) } // waits for user, then fetches
.evalGraph()Need the result of one graph to decide what to build next? Use .andThen:
kap(::Dashboard)
.withUser { fetchUser() }
.withFeed { fetchFeed() }
.withNotifications { countUnread() }
.andThen { dashboard ->
// use dashboard.user to decide what's next
kap(::FullPage)
.withDashboard { dashboard }
.withSuggestions { fetchSuggestions(dashboard.user) }
}.evalGraph()Nothing runs until .evalGraph(). The graph is data — you can build it dynamically, pass it around, compose it.
11 microservice calls. 5 phases. 8 Strings, 2 Booleans, 3 Doubles — the compiler catches every swap:
@KapTypeSafe
data class CheckoutResult(
val user: String, val cart: String,
val promos: String, val inventory: Boolean,
val stock: Boolean,
val shipping: Double, val tax: Double, val discounts: Double,
val payment: String,
val confirmation: String, val email: String,
)
kap(::CheckoutResult)
.withUser { fetchUser() } // ┐
.withCart { fetchCart() } // ├─ phase 1: parallel
.withPromos { fetchPromos() } // │
.withInventory { fetchInventory() } // ┘
.thenStock { validateStock() } // ── phase 2: barrier
.withShipping { calcShipping() } // ┐
.withTax { calcTax() } // ├─ phase 3: parallel
.withDiscounts { calcDiscounts() } // ┘
.thenPayment { reservePayment() } // ── phase 4: barrier
.withConfirmation { generateConfirmation() } // ┐ phase 5
.withEmail { sendEmail() } // ┘
.evalGraph()val checkout = coroutineScope {
val dUser = async { fetchUser() }
val dCart = async { fetchCart() }
val dPromos = async { fetchPromos() }
val dInventory = async { fetchInventory() }
val user = dUser.await()
val cart = dCart.await()
val promos = dPromos.await()
val inventory = dInventory.await()
val stock = validateStock()
val dShipping = async { calcShipping() }
val dTax = async { calcTax() }
val dDiscounts = async { calcDiscounts() }
val shipping = dShipping.await()
val tax = dTax.await()
val discounts = dDiscounts.await()
val payment = reservePayment()
val dConfirmation = async { generateConfirmation() }
val dEmail = async { sendEmail() }
CheckoutResult(
user, cart, promos, inventory, stock,
shipping, tax, discounts, payment,
dConfirmation.await(), dEmail.await()
)
}By default, if any .with branch fails, the whole graph is cancelled — structured concurrency. But sometimes you want partial failures. settled { } wraps the result in Result<A> so a failure doesn't kill the rest:
@KapTypeSafe
data class HomePage(val profile: String, val feed: Result<String>, val ads: Result<String>)
kap(::HomePage)
.withProfile { fetchProfile() } // critical — failure cancels everything
.withFeed(settled { fetchFeed() }) // optional — failure returns Result.failure
.withAds(settled { fetchAds() }).evalGraph() // optional — failure returns Result.failure
// Feed throws? Profile and ads still complete. You get Result.failure for feed.Need ALL results even if some fail? sequenceSettled runs every item and collects outcomes:
val results = listOf("svc-a", "svc-b", "svc-c").traverseSettled { svc ->
Kap { callService(svc) }
}.evalGraph()
// → [Success("ok"), Failure(TimeoutException), Success("ok")]Each one is a method call. No boilerplate, no manual state.
Race — fastest wins, losers cancelled:
val price = raceN(
Kap { pricingFromUS(item) },
Kap { pricingFromEU(item) },
Kap { pricingFromAsia(item) },
).evalGraph() // fastest response wins, other two cancelledBounded concurrency — process N items, max M at a time:
val users = userIds.traverse(concurrency = 5) { id ->
Kap { fetchUser(id) }
}.evalGraph() // 100 users, 5 at a time, results in orderTimeout with parallel fallback — don't wait, race against the cache:
val data = Kap { fetchFromApi() }
.timeoutRace(2.seconds, fallback = Kap { readFromCache() })
.evalGraph() // both start at t=0, API wins if fast enough, cache if notComposable retry — define once, reuse everywhere:
val policy = Schedule.exponential<Throwable>(100.milliseconds)
.jittered() // ±50% random spread (no thundering herd)
.and(Schedule.times(3)) // max 3 attempts
.withMaxDuration(10.seconds) // total budget
Kap { callFlakyService() }.retry(policy).evalGraph()Timed — measure any call without manual instrumentation:
@KapTypeSafe
data class Dashboard(val user: String, val latency: TimedResult<String>)
kap(::Dashboard)
.withUser { fetchUser() }
.withLatency(timed { fetchSlowService() }) // TimedResult(value, duration)
.evalGraph()
// dashboard.latency.duration → 230.msMemoize — compute once, cache thread-safely:
val config = Kap { loadRemoteConfig() }.memoizeOnSuccess()
// call it from 10 coroutines — only one HTTP request, others wait for the cached result
// if it fails, next caller retries (failures are NOT cached)Real HTTP — not just simulated delays. This hits the GitHub API:
@KapTypeSafe
data class DeveloperProfile(val user: GithubUser, val topRepos: List<GithubRepo>, val funFact: String)
val profile = kap(::DeveloperProfile)
.withUser { client.get("https://api.github.com/users/kotlin").body() }
.withTopRepos { client.get("https://api.github.com/users/kotlin/repos?sort=stars").body() }
.withFunFact { client.get("https://catfact.ninja/fact").body<CatFact>().fact }
.evalGraph()
// 3 HTTP calls in parallel, one result. See examples/real-world-http for the full example.A real order placement. Read it top to bottom — each comment tells you what that line does and why:
@KapTypeSafe
data class OrderResult(
val finalPrice: Double,
val reservationId: String,
val paymentId: String,
val notifications: List<Result<Unit>>,
)
// Retry: exponential backoff (100ms, 200ms, 400ms) + jitter, max 3 attempts
val retryPolicy = Schedule.exponential<Throwable>(100.milliseconds).jittered() and Schedule.times(3)
// Circuit breaker: after 5 failures, stop calling payment for 30s
val paymentBreaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
suspend fun placeOrder(input: OrderInput): Either<Nel<OrderError>, OrderResult> {
// ── PHASE 1: Validate in parallel, collect ALL errors ────────
val validated = kapV<OrderError, ValidAddress, ValidCard, ValidItems, ValidOrder>(::ValidOrder)
.withV { validateAddress(input.address) } // ┐ all three run at the same time
.withV { validatePaymentInfo(input.card) } // ├─ if address AND card fail,
.withV { validateItems(input.items) } // ┘ you get BOTH errors
.evalGraph()
val order = validated.getOrElse { return Either.Left(it) }
// ── PHASES 2–5: inside DB transaction (rollback on any failure) ──
return bracketCase(
acquire = { db.beginTransaction() },
use = { tx ->
kap(::OrderResult)
// PHASE 2: race 3 pricing providers — fastest wins, losers cancelled
.withFinalPrice(raceN(
Kap { pricingServiceA(order) },
Kap { pricingServiceB(order) },
Kap { pricingServiceC(order) },
))
// PHASE 3: reserve inventory — retry with backoff if flaky
.thenReservationId(
Kap { reserveInventory(tx, order) }
.retry(retryPolicy)
)
// PHASE 4: charge payment — circuit breaker + 5s timeout
.thenPaymentId(
Kap { chargePayment(tx, order) }
.withCircuitBreaker(paymentBreaker)
.timeout(5.seconds)
)
// PHASE 5: notifications — if one fails, others still complete
.withNotifications(listOf(
Kap { sendEmail(order) },
Kap { sendPush(order) },
Kap { updateAnalytics(order) },
).sequenceSettled())
.map { Either.Right(it) }
},
release = { tx, exit -> when (exit) {
is ExitCase.Completed -> tx.commit() // success → commit
else -> tx.rollback() // failure or cancel → rollback
}}
).evalGraph()
}Eight production concerns in one function: parallel validation, error accumulation, racing, retry with backoff, circuit breaker, timeout, partial failure tolerance, transactional safety.
val paymentBreaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
suspend fun placeOrder(input: OrderInput): Either<Nel<OrderError>, OrderResult> {
// ── Phase 1: validate (need supervisorScope to not short-circuit) ──
val (addr, card, items) = supervisorScope {
val dAddr = async { validateAddress(input.address) }
val dCard = async { validatePaymentInfo(input.card) }
val dItems = async { validateItems(input.items) }
Triple(dAddr.await(), dCard.await(), dItems.await())
}
val errors = buildList {
addr.leftOrNull()?.let(::addAll)
card.leftOrNull()?.let(::addAll)
items.leftOrNull()?.let(::addAll)
}
if (errors.isNotEmpty()) return Either.Left(NonEmptyList.fromListUnsafe(errors))
val validAddress = addr.getOrNull()!!
val validCard = card.getOrNull()!!
val validItems = items.getOrNull()!!
val order = ValidOrder(validAddress, validCard, validItems)
// ── Phase 2: race 3 pricing providers (manual select) ──
val bestPrice = coroutineScope {
val jobs = listOf(
async { pricingServiceA(order) },
async { pricingServiceB(order) },
async { pricingServiceC(order) },
)
select {
jobs.forEach { d ->
d.onAwait { price ->
jobs.forEach { it.cancel() }
price
}
}
}
}
// ── Phases 3–5: inside DB transaction (manual try/finally) ──
val tx = db.beginTransaction()
try {
// Phase 3: reserve inventory (manual retry + exponential backoff)
var reservationId: String? = null
var attempt = 0
var retryDelay = 100.milliseconds
while (reservationId == null) {
try {
reservationId = reserveInventory(tx, order)
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
if (++attempt >= 3) throw e
delay(retryDelay)
retryDelay = (retryDelay * 2).coerceAtMost(1600.milliseconds)
// (no jitter — you'd need Random + math here too)
}
}
// Phase 4: charge payment (manual circuit breaker + timeout)
val paymentId = if (!paymentBreaker.shouldAttempt()) {
throw CircuitBreakerOpenException()
} else {
try {
val p = withTimeout(5.seconds) { chargePayment(tx, order) }
paymentBreaker.recordSuccess()
p
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
paymentBreaker.recordFailure()
throw e
}
}
// Phase 5: send notifications (need supervisorScope so one failure doesn't kill the rest)
val notifications = supervisorScope {
listOf(
async { runCatching { sendEmail(order) } },
async { runCatching { sendPush(order) } },
async { runCatching { updateAnalytics(order) } },
).map { it.await() }
}
tx.commit()
Either.Right(OrderResult(bestPrice, reservationId, paymentId, notifications))
} catch (e: Exception) {
tx.rollback()
throw e
}
}| Module | What it gives you | When you need it |
|---|---|---|
| kap-core |
.with, .then, .andThen, race, traverse, memoize, settled
|
Always |
| kap-ksp |
@KapTypeSafe, @KapBridge — compile-time named builders with IDE autocomplete |
When you want swap-proof, guided orchestration |
| kap-resilience |
retry, Schedule, CircuitBreaker, Resource, bracket, raceQuorum, timeoutRace
|
When you call external services |
| kap-arrow |
.withV, kapV, error accumulation with Either<NonEmptyList<E>, A>
|
When you need parallel validation |
| kap-ktor |
respondAsync, KapTracer, circuit breaker plugin |
When you use Ktor |
| kap-kotest |
shouldSucceedWith, shouldFailWith, shouldCompleteWithin
|
When you test Kap graphs |
KAP is not a replacement for Arrow. They solve different problems and work together:
Either, NonEmptyList, Option, functional error handlingKAP's kap-arrow module builds on Arrow's Either and NonEmptyList for parallel validation with error accumulation. Use both — Arrow for your domain types, KAP for wiring them together:
// Arrow types + KAP orchestration
val result: Either<Nel<OrderError>, OrderResult> =
kapV<OrderError, ValidEmail, ValidAge, User>(::User)
.withV { validateEmail(input) } // returns Either<Nel<OrderError>, ValidEmail>
.withV { validateAge(input) } // returns Either<Nel<OrderError>, ValidAge>
.evalGraph()
// Both run in parallel. Both errors collected. Arrow types, KAP execution.| Arrow | KAP | Together | |
|---|---|---|---|
| Parallel execution |
parZip (max 9 args) |
.with / kap(::T) (unlimited) |
KAP orchestrates, Arrow types flow through |
| Error accumulation | zipOrAccumulate |
kapV + .withV (max 22 args) |
KAP runs validators in parallel, Arrow collects errors |
| Retry / Circuit breaker |
Schedule (Arrow) |
Schedule + CircuitBreaker (KAP) |
KAP's compose inline with .with / .then chains |
| Phase barriers | Manual nesting |
.then / .andThen
|
Only KAP has first-class phases |
KAP is just suspend functions in, result out. It works anywhere coroutines work:
// Ktor
get("/checkout/{id}") {
val id = call.parameters["id"]!!
val result = kap(::CheckoutResult)
.withUser { userService.fetch(id) }
.withCart { cartService.fetch(id) }
.withPromos { promoService.fetch(id) }
.evalGraph()
call.respond(result)
}
// Spring Boot
@RestController
class CheckoutController(val userService: UserService, val cartService: CartService) {
@GetMapping("/checkout/{id}")
suspend fun checkout(@PathVariable id: String): CheckoutResult =
kap(::CheckoutResult)
.withUser { userService.fetch(id) }
.withCart { cartService.fetch(id) }
.withPromos { promoService.fetch(id) }
.evalGraph()
}
// Android ViewModel
class HomeViewModel : ViewModel() {
val state = MutableStateFlow<HomeState>(Loading)
fun load() = viewModelScope.launch {
val home = kap(::HomeData)
.withProfile { repo.fetchProfile() }
.withFeed(settled { repo.fetchFeed() })
.withNotifications { repo.countUnread() }
.evalGraph()
state.value = Ready(home)
}
}No framework, no runtime, no annotation processing at runtime. Your suspend functions go in, your data class comes out.
plugins {
id("com.google.devtools.ksp") // only needed for @KapTypeSafe
}
dependencies {
implementation("io.github.damian-rafael-lattenero:kap-core:2.7.0")
// optional — add any combination
implementation("io.github.damian-rafael-lattenero:kap-resilience:2.7.0")
implementation("io.github.damian-rafael-lattenero:kap-arrow:2.7.0")
implementation("io.github.damian-rafael-lattenero:kap-ksp-annotations:2.7.0")
ksp("io.github.damian-rafael-lattenero:kap-ksp:2.7.0")
}Starter project — clone and run in 30 seconds.
Use it when:
Skip it when:
coroutineScope { async {} } is fine| Dimension | Raw Coroutines | KAP |
|---|---|---|
| Framework overhead (arity 3) | <0.01ms | <0.01ms |
| Multi-phase (9 calls, 4 phases) | 180.85ms | 180.98ms |
| 5 parallel calls @ 50ms each | 50.27ms | 50.31ms |
KAP adds zero measurable overhead. The abstraction compiles away. Full benchmark suite (119 JMH benchmarks).
900+ tests · Maven Central · Kotlin Multiplatform (JVM, JS, WASM, Native) · Apache 2.0
Get Started · Docs · Cookbook
Type-safe coroutine orchestration for Kotlin Multiplatform.
The code reads like a diagram. The compiler won't let you wire it wrong.
Get Started · Docs · Cookbook
A checkout that calls 7 services in 4 phases. Stock validation needs retry. Payment needs a circuit breaker. Promos have a timeout. Read this and tell me: where are the phases? Where's the retry logic vs the business logic?
data class CheckoutResult(
val user: String, val cart: String, val promos: String,
val stock: Boolean,
val shipping: Double, val tax: Double,
val payment: String,
)
val breaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
coroutineScope {
val dUser = async { fetchUser() }
val dCart = async { fetchCart() }
val dPromos = async {
withTimeout(3.seconds) { fetchPromos() }
}
val user = dUser.await()
val cart = dCart.await()
val promos = dPromos.await()
// --- phase 2: validate stock (with retry) ---
var stock = false
var attempt = 0
var delay = 100.milliseconds
while (true) {
try {
stock = validateStock()
break
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
if (++attempt >= 3) throw e
delay(delay)
delay *= 2
}
}
// --- phase 3: shipping & tax in parallel ---
val dShipping = async { calcShipping() }
val dTax = async { calcTax() }
val shipping = dShipping.await()
val tax = dTax.await()
// --- phase 4: payment (with circuit breaker) ---
val payment = if (!breaker.shouldAttempt()) {
throw CircuitBreakerOpenException()
} else {
try {
val p = withTimeout(5.seconds) { reservePayment() }
breaker.recordSuccess()
p
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
breaker.recordFailure()
throw e
}
}
CheckoutResult(user, cart, promos, stock, shipping, tax, payment)
}The phases are buried. The retry loop broke the async/await rhythm. The circuit breaker is interleaved with the business flow. Add one more concern and it gets worse.
@KapTypeSafe
data class CheckoutResult(
val user: String, val cart: String, val promos: String,
val stock: Boolean,
val shipping: Double, val tax: Double,
val payment: String,
)
val retryPolicy = Schedule.exponential<Throwable>(100.milliseconds) and Schedule.times(3)
val breaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
kap(::CheckoutResult)
.withUser { fetchUser() } // ┐
.withCart { fetchCart() } // ├─ phase 1: parallel
.withPromos(Kap { fetchPromos() }.timeout(3.seconds)) // ┘ + timeout on promos
.thenStock(Kap { validateStock() }.retry(retryPolicy)) // ── phase 2: barrier + retry
.withShipping { calcShipping() } // ┐ phase 3: parallel
.withTax { calcTax() } // ┘
.thenPayment(Kap { reservePayment() } // ── phase 4: barrier
.withCircuitBreaker(breaker) // + circuit breaker
.timeout(5.seconds)).evalGraph() // + timeoutSame 7 calls, same 4 phases, same retry, same circuit breaker, same timeouts. .with = parallel, .then = barrier. Resilience is per-call, inline, composable.
@KapTypeSafe generates a step class per field — after .withUser, the IDE only offers .withCart. You can't swap, skip, or forget a field:
| You write | What happens | Think of it as |
|---|---|---|
.withX { } |
Runs in parallel with everything else in the same phase | "and at the same time..." |
.thenX { } |
Waits for all above, then continues | "once that's done..." |
.andThen { result -> } |
Waits, passes the result, builds the next graph | "using what we got..." |
Most use cases don't need retry or circuit breakers. At its core, KAP is just a clean way to run things in parallel and combine the results:
@KapTypeSafe
data class Dashboard(val user: String, val feed: String, val notifications: Int)
kap(::Dashboard)
.withUser { fetchUser() } // ┐
.withFeed { fetchFeed() } // ├─ all three run in parallel
.withNotifications { countUnread() } // ┘
.evalGraph()Need one field to wait for another? Change .with to .then:
@KapTypeSafe
data class ProfilePage(val user: String, val avatar: String, val recommendations: String)
kap(::ProfilePage)
.withUser { fetchUser(id) } // ┐ parallel
.withAvatar { fetchAvatar(id) } // ┘
.thenRecommendations { fetchRecommendations(user) } // waits for user, then fetches
.evalGraph()Need the result of one graph to decide what to build next? Use .andThen:
kap(::Dashboard)
.withUser { fetchUser() }
.withFeed { fetchFeed() }
.withNotifications { countUnread() }
.andThen { dashboard ->
// use dashboard.user to decide what's next
kap(::FullPage)
.withDashboard { dashboard }
.withSuggestions { fetchSuggestions(dashboard.user) }
}.evalGraph()Nothing runs until .evalGraph(). The graph is data — you can build it dynamically, pass it around, compose it.
11 microservice calls. 5 phases. 8 Strings, 2 Booleans, 3 Doubles — the compiler catches every swap:
@KapTypeSafe
data class CheckoutResult(
val user: String, val cart: String,
val promos: String, val inventory: Boolean,
val stock: Boolean,
val shipping: Double, val tax: Double, val discounts: Double,
val payment: String,
val confirmation: String, val email: String,
)
kap(::CheckoutResult)
.withUser { fetchUser() } // ┐
.withCart { fetchCart() } // ├─ phase 1: parallel
.withPromos { fetchPromos() } // │
.withInventory { fetchInventory() } // ┘
.thenStock { validateStock() } // ── phase 2: barrier
.withShipping { calcShipping() } // ┐
.withTax { calcTax() } // ├─ phase 3: parallel
.withDiscounts { calcDiscounts() } // ┘
.thenPayment { reservePayment() } // ── phase 4: barrier
.withConfirmation { generateConfirmation() } // ┐ phase 5
.withEmail { sendEmail() } // ┘
.evalGraph()val checkout = coroutineScope {
val dUser = async { fetchUser() }
val dCart = async { fetchCart() }
val dPromos = async { fetchPromos() }
val dInventory = async { fetchInventory() }
val user = dUser.await()
val cart = dCart.await()
val promos = dPromos.await()
val inventory = dInventory.await()
val stock = validateStock()
val dShipping = async { calcShipping() }
val dTax = async { calcTax() }
val dDiscounts = async { calcDiscounts() }
val shipping = dShipping.await()
val tax = dTax.await()
val discounts = dDiscounts.await()
val payment = reservePayment()
val dConfirmation = async { generateConfirmation() }
val dEmail = async { sendEmail() }
CheckoutResult(
user, cart, promos, inventory, stock,
shipping, tax, discounts, payment,
dConfirmation.await(), dEmail.await()
)
}By default, if any .with branch fails, the whole graph is cancelled — structured concurrency. But sometimes you want partial failures. settled { } wraps the result in Result<A> so a failure doesn't kill the rest:
@KapTypeSafe
data class HomePage(val profile: String, val feed: Result<String>, val ads: Result<String>)
kap(::HomePage)
.withProfile { fetchProfile() } // critical — failure cancels everything
.withFeed(settled { fetchFeed() }) // optional — failure returns Result.failure
.withAds(settled { fetchAds() }).evalGraph() // optional — failure returns Result.failure
// Feed throws? Profile and ads still complete. You get Result.failure for feed.Need ALL results even if some fail? sequenceSettled runs every item and collects outcomes:
val results = listOf("svc-a", "svc-b", "svc-c").traverseSettled { svc ->
Kap { callService(svc) }
}.evalGraph()
// → [Success("ok"), Failure(TimeoutException), Success("ok")]Each one is a method call. No boilerplate, no manual state.
Race — fastest wins, losers cancelled:
val price = raceN(
Kap { pricingFromUS(item) },
Kap { pricingFromEU(item) },
Kap { pricingFromAsia(item) },
).evalGraph() // fastest response wins, other two cancelledBounded concurrency — process N items, max M at a time:
val users = userIds.traverse(concurrency = 5) { id ->
Kap { fetchUser(id) }
}.evalGraph() // 100 users, 5 at a time, results in orderTimeout with parallel fallback — don't wait, race against the cache:
val data = Kap { fetchFromApi() }
.timeoutRace(2.seconds, fallback = Kap { readFromCache() })
.evalGraph() // both start at t=0, API wins if fast enough, cache if notComposable retry — define once, reuse everywhere:
val policy = Schedule.exponential<Throwable>(100.milliseconds)
.jittered() // ±50% random spread (no thundering herd)
.and(Schedule.times(3)) // max 3 attempts
.withMaxDuration(10.seconds) // total budget
Kap { callFlakyService() }.retry(policy).evalGraph()Timed — measure any call without manual instrumentation:
@KapTypeSafe
data class Dashboard(val user: String, val latency: TimedResult<String>)
kap(::Dashboard)
.withUser { fetchUser() }
.withLatency(timed { fetchSlowService() }) // TimedResult(value, duration)
.evalGraph()
// dashboard.latency.duration → 230.msMemoize — compute once, cache thread-safely:
val config = Kap { loadRemoteConfig() }.memoizeOnSuccess()
// call it from 10 coroutines — only one HTTP request, others wait for the cached result
// if it fails, next caller retries (failures are NOT cached)Real HTTP — not just simulated delays. This hits the GitHub API:
@KapTypeSafe
data class DeveloperProfile(val user: GithubUser, val topRepos: List<GithubRepo>, val funFact: String)
val profile = kap(::DeveloperProfile)
.withUser { client.get("https://api.github.com/users/kotlin").body() }
.withTopRepos { client.get("https://api.github.com/users/kotlin/repos?sort=stars").body() }
.withFunFact { client.get("https://catfact.ninja/fact").body<CatFact>().fact }
.evalGraph()
// 3 HTTP calls in parallel, one result. See examples/real-world-http for the full example.A real order placement. Read it top to bottom — each comment tells you what that line does and why:
@KapTypeSafe
data class OrderResult(
val finalPrice: Double,
val reservationId: String,
val paymentId: String,
val notifications: List<Result<Unit>>,
)
// Retry: exponential backoff (100ms, 200ms, 400ms) + jitter, max 3 attempts
val retryPolicy = Schedule.exponential<Throwable>(100.milliseconds).jittered() and Schedule.times(3)
// Circuit breaker: after 5 failures, stop calling payment for 30s
val paymentBreaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
suspend fun placeOrder(input: OrderInput): Either<Nel<OrderError>, OrderResult> {
// ── PHASE 1: Validate in parallel, collect ALL errors ────────
val validated = kapV<OrderError, ValidAddress, ValidCard, ValidItems, ValidOrder>(::ValidOrder)
.withV { validateAddress(input.address) } // ┐ all three run at the same time
.withV { validatePaymentInfo(input.card) } // ├─ if address AND card fail,
.withV { validateItems(input.items) } // ┘ you get BOTH errors
.evalGraph()
val order = validated.getOrElse { return Either.Left(it) }
// ── PHASES 2–5: inside DB transaction (rollback on any failure) ──
return bracketCase(
acquire = { db.beginTransaction() },
use = { tx ->
kap(::OrderResult)
// PHASE 2: race 3 pricing providers — fastest wins, losers cancelled
.withFinalPrice(raceN(
Kap { pricingServiceA(order) },
Kap { pricingServiceB(order) },
Kap { pricingServiceC(order) },
))
// PHASE 3: reserve inventory — retry with backoff if flaky
.thenReservationId(
Kap { reserveInventory(tx, order) }
.retry(retryPolicy)
)
// PHASE 4: charge payment — circuit breaker + 5s timeout
.thenPaymentId(
Kap { chargePayment(tx, order) }
.withCircuitBreaker(paymentBreaker)
.timeout(5.seconds)
)
// PHASE 5: notifications — if one fails, others still complete
.withNotifications(listOf(
Kap { sendEmail(order) },
Kap { sendPush(order) },
Kap { updateAnalytics(order) },
).sequenceSettled())
.map { Either.Right(it) }
},
release = { tx, exit -> when (exit) {
is ExitCase.Completed -> tx.commit() // success → commit
else -> tx.rollback() // failure or cancel → rollback
}}
).evalGraph()
}Eight production concerns in one function: parallel validation, error accumulation, racing, retry with backoff, circuit breaker, timeout, partial failure tolerance, transactional safety.
val paymentBreaker = CircuitBreaker(maxFailures = 5, resetTimeout = 30.seconds)
suspend fun placeOrder(input: OrderInput): Either<Nel<OrderError>, OrderResult> {
// ── Phase 1: validate (need supervisorScope to not short-circuit) ──
val (addr, card, items) = supervisorScope {
val dAddr = async { validateAddress(input.address) }
val dCard = async { validatePaymentInfo(input.card) }
val dItems = async { validateItems(input.items) }
Triple(dAddr.await(), dCard.await(), dItems.await())
}
val errors = buildList {
addr.leftOrNull()?.let(::addAll)
card.leftOrNull()?.let(::addAll)
items.leftOrNull()?.let(::addAll)
}
if (errors.isNotEmpty()) return Either.Left(NonEmptyList.fromListUnsafe(errors))
val validAddress = addr.getOrNull()!!
val validCard = card.getOrNull()!!
val validItems = items.getOrNull()!!
val order = ValidOrder(validAddress, validCard, validItems)
// ── Phase 2: race 3 pricing providers (manual select) ──
val bestPrice = coroutineScope {
val jobs = listOf(
async { pricingServiceA(order) },
async { pricingServiceB(order) },
async { pricingServiceC(order) },
)
select {
jobs.forEach { d ->
d.onAwait { price ->
jobs.forEach { it.cancel() }
price
}
}
}
}
// ── Phases 3–5: inside DB transaction (manual try/finally) ──
val tx = db.beginTransaction()
try {
// Phase 3: reserve inventory (manual retry + exponential backoff)
var reservationId: String? = null
var attempt = 0
var retryDelay = 100.milliseconds
while (reservationId == null) {
try {
reservationId = reserveInventory(tx, order)
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
if (++attempt >= 3) throw e
delay(retryDelay)
retryDelay = (retryDelay * 2).coerceAtMost(1600.milliseconds)
// (no jitter — you'd need Random + math here too)
}
}
// Phase 4: charge payment (manual circuit breaker + timeout)
val paymentId = if (!paymentBreaker.shouldAttempt()) {
throw CircuitBreakerOpenException()
} else {
try {
val p = withTimeout(5.seconds) { chargePayment(tx, order) }
paymentBreaker.recordSuccess()
p
} catch (e: CancellationException) { throw e }
catch (e: Exception) {
paymentBreaker.recordFailure()
throw e
}
}
// Phase 5: send notifications (need supervisorScope so one failure doesn't kill the rest)
val notifications = supervisorScope {
listOf(
async { runCatching { sendEmail(order) } },
async { runCatching { sendPush(order) } },
async { runCatching { updateAnalytics(order) } },
).map { it.await() }
}
tx.commit()
Either.Right(OrderResult(bestPrice, reservationId, paymentId, notifications))
} catch (e: Exception) {
tx.rollback()
throw e
}
}| Module | What it gives you | When you need it |
|---|---|---|
| kap-core |
.with, .then, .andThen, race, traverse, memoize, settled
|
Always |
| kap-ksp |
@KapTypeSafe, @KapBridge — compile-time named builders with IDE autocomplete |
When you want swap-proof, guided orchestration |
| kap-resilience |
retry, Schedule, CircuitBreaker, Resource, bracket, raceQuorum, timeoutRace
|
When you call external services |
| kap-arrow |
.withV, kapV, error accumulation with Either<NonEmptyList<E>, A>
|
When you need parallel validation |
| kap-ktor |
respondAsync, KapTracer, circuit breaker plugin |
When you use Ktor |
| kap-kotest |
shouldSucceedWith, shouldFailWith, shouldCompleteWithin
|
When you test Kap graphs |
KAP is not a replacement for Arrow. They solve different problems and work together:
Either, NonEmptyList, Option, functional error handlingKAP's kap-arrow module builds on Arrow's Either and NonEmptyList for parallel validation with error accumulation. Use both — Arrow for your domain types, KAP for wiring them together:
// Arrow types + KAP orchestration
val result: Either<Nel<OrderError>, OrderResult> =
kapV<OrderError, ValidEmail, ValidAge, User>(::User)
.withV { validateEmail(input) } // returns Either<Nel<OrderError>, ValidEmail>
.withV { validateAge(input) } // returns Either<Nel<OrderError>, ValidAge>
.evalGraph()
// Both run in parallel. Both errors collected. Arrow types, KAP execution.| Arrow | KAP | Together | |
|---|---|---|---|
| Parallel execution |
parZip (max 9 args) |
.with / kap(::T) (unlimited) |
KAP orchestrates, Arrow types flow through |
| Error accumulation | zipOrAccumulate |
kapV + .withV (max 22 args) |
KAP runs validators in parallel, Arrow collects errors |
| Retry / Circuit breaker |
Schedule (Arrow) |
Schedule + CircuitBreaker (KAP) |
KAP's compose inline with .with / .then chains |
| Phase barriers | Manual nesting |
.then / .andThen
|
Only KAP has first-class phases |
KAP is just suspend functions in, result out. It works anywhere coroutines work:
// Ktor
get("/checkout/{id}") {
val id = call.parameters["id"]!!
val result = kap(::CheckoutResult)
.withUser { userService.fetch(id) }
.withCart { cartService.fetch(id) }
.withPromos { promoService.fetch(id) }
.evalGraph()
call.respond(result)
}
// Spring Boot
@RestController
class CheckoutController(val userService: UserService, val cartService: CartService) {
@GetMapping("/checkout/{id}")
suspend fun checkout(@PathVariable id: String): CheckoutResult =
kap(::CheckoutResult)
.withUser { userService.fetch(id) }
.withCart { cartService.fetch(id) }
.withPromos { promoService.fetch(id) }
.evalGraph()
}
// Android ViewModel
class HomeViewModel : ViewModel() {
val state = MutableStateFlow<HomeState>(Loading)
fun load() = viewModelScope.launch {
val home = kap(::HomeData)
.withProfile { repo.fetchProfile() }
.withFeed(settled { repo.fetchFeed() })
.withNotifications { repo.countUnread() }
.evalGraph()
state.value = Ready(home)
}
}No framework, no runtime, no annotation processing at runtime. Your suspend functions go in, your data class comes out.
plugins {
id("com.google.devtools.ksp") // only needed for @KapTypeSafe
}
dependencies {
implementation("io.github.damian-rafael-lattenero:kap-core:2.7.0")
// optional — add any combination
implementation("io.github.damian-rafael-lattenero:kap-resilience:2.7.0")
implementation("io.github.damian-rafael-lattenero:kap-arrow:2.7.0")
implementation("io.github.damian-rafael-lattenero:kap-ksp-annotations:2.7.0")
ksp("io.github.damian-rafael-lattenero:kap-ksp:2.7.0")
}Starter project — clone and run in 30 seconds.
Use it when:
Skip it when:
coroutineScope { async {} } is fine| Dimension | Raw Coroutines | KAP |
|---|---|---|
| Framework overhead (arity 3) | <0.01ms | <0.01ms |
| Multi-phase (9 calls, 4 phases) | 180.85ms | 180.98ms |
| 5 parallel calls @ 50ms each | 50.27ms | 50.31ms |
KAP adds zero measurable overhead. The abstraction compiles away. Full benchmark suite (119 JMH benchmarks).
900+ tests · Maven Central · Kotlin Multiplatform (JVM, JS, WASM, Native) · Apache 2.0
Get Started · Docs · Cookbook
