Configurable, data-source-agnostic reporting for Kotlin Multiplatform. Feed it rows, define your dimensions and measures, and render themeable Koala Plot charts — on Android, iOS, desktop, and the web from a single codebase.

• Agnostic — the engine reads rows through a one-method RowSource. FHIR, SQL, REST, or in-memory: the charts never see your backend.
• Multiplatform — Android, iOS, JVM/desktop, JS, and WasmJS.
• Themeable — light/dark themes, ready-made colour palettes, and per-chart style overrides.
• Extensible — register your own chart types and export formats without forking.

The name — womblot = wombat + plot: a small tribute to Koala Plot, which draws every chart here. The wombat is the koala's closest relative, so the nod stays in the family. 🐨🐻

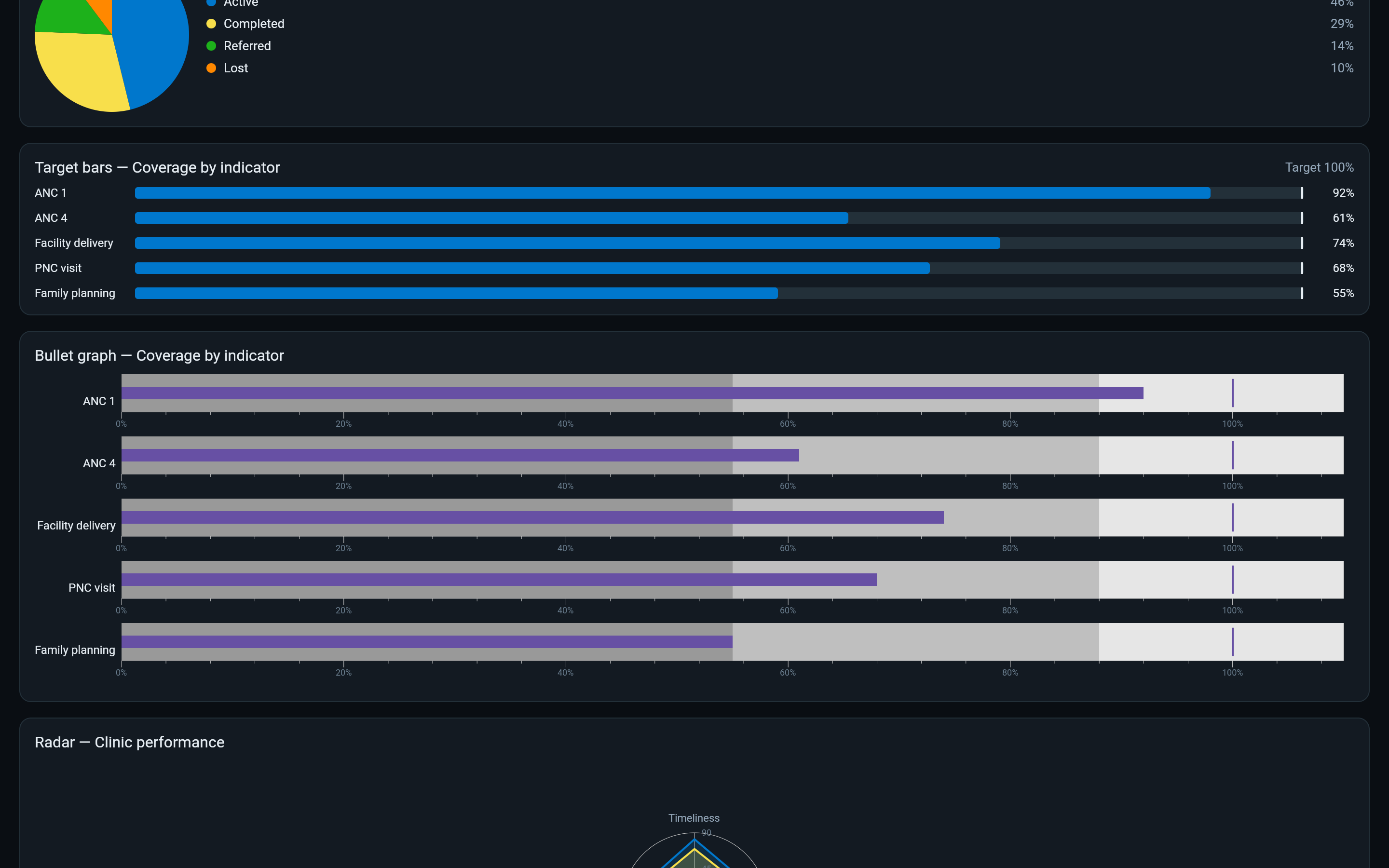

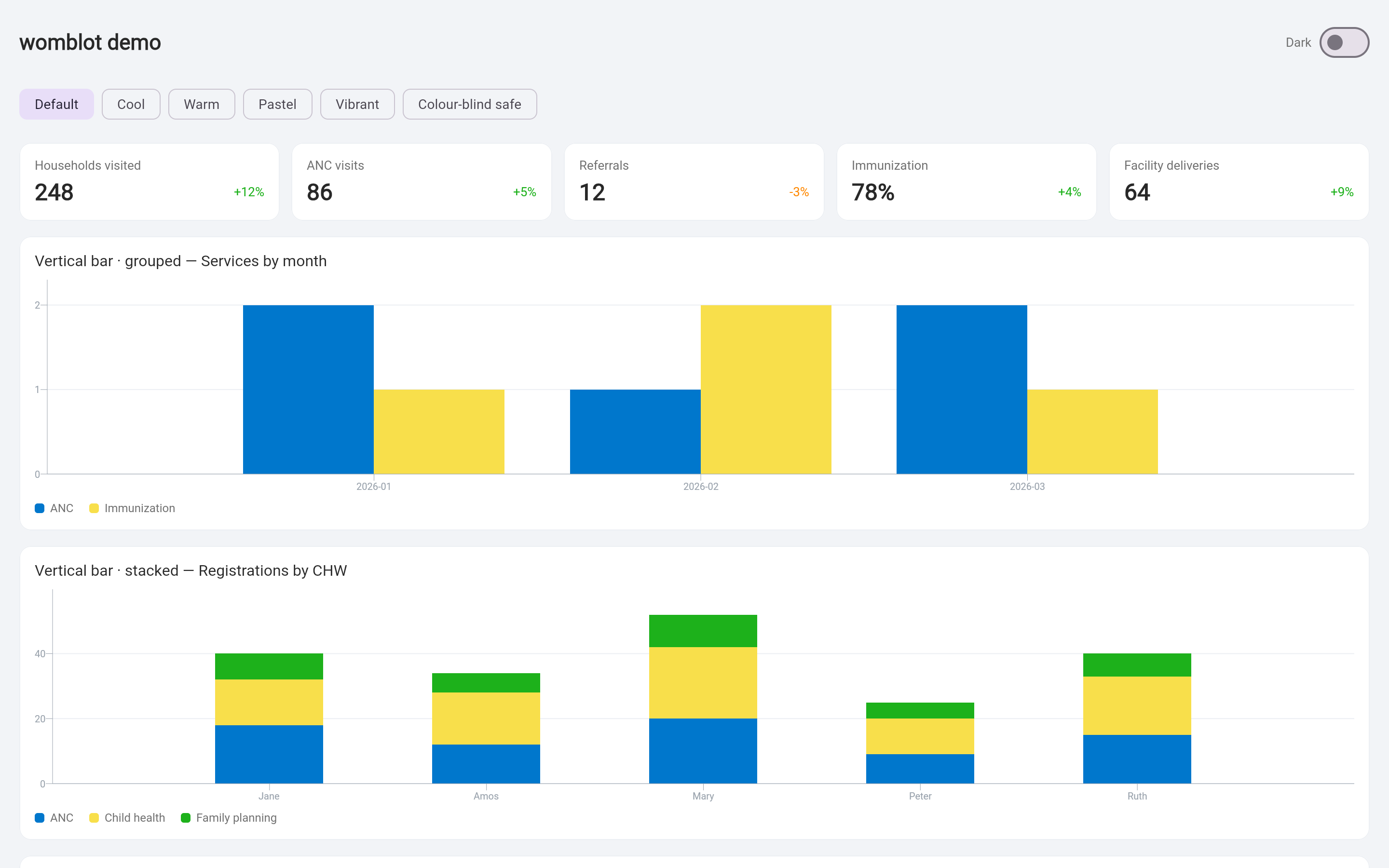

The demo module running in the browser on WasmJS — the same Compose code that ships to Android, iOS, and desktop.

Light	Dark

Artifacts are published to Maven Central under io.github.ellykits.womblot.

repositories {
  mavenCentral()
}

kotlin {
  sourceSets {
    commonMain.dependencies {
      implementation("io.github.ellykits.womblot:womblot-core:1.0.0-alpha02")
      implementation("io.github.ellykits.womblot:womblot-compose:1.0.0-alpha02")
    }
  }
}

womblot-compose exposes womblot-core as an api dependency, so the ReportResult types the chart adapters take come along with it — depend on womblot-core directly only if you use the engine without any UI.

womblot-core supports all targets and may live in commonMain. womblot-compose targets Android, iOS, desktop, JS, and WasmJS.

This walkthrough builds the exact report the demo module ships with — count of service visits per month, split by programme — so you can follow along against real, runnable code. The three moving parts are always the same: rows in → a definition → a result → a visual.

A Row is just a Map<String, ReportValue> — one flat record. womblot never parses your domain objects; you hand it rows and it aggregates them. For tests and prototypes, InMemoryRowSource groups named lists of rows into "sources" a report can point at.

import io.ellykits.womblot.model.ReportValue
import io.ellykits.womblot.source.InMemoryRowSource
import io.ellykits.womblot.source.Row

fun visit(date: String, program: String, patient: String): Row =
  mapOf(
    "date" to ReportValue.Text(date),
    "program" to ReportValue.Text(program),
    "patient" to ReportValue.Text(patient),
  )

val visits =
  listOf(
    visit("2026-01-05", "ANC", "p1"),
    visit("2026-01-20", "ANC", "p2"),
    visit("2026-01-15", "Immunization", "p3"),
    visit("2026-02-10", "ANC", "p4"),
    visit("2026-02-18", "Immunization", "p6"),
    visit("2026-03-04", "ANC", "p7"),
    visit("2026-03-22", "Immunization", "p9"),
  )

val source = InMemoryRowSource(mapOf("visits" to visits))

For anything real, implement the one-method seam instead — the engine only ever calls rows(query):

class SqlRowSource(private val db: Database) : RowSource {
  override suspend fun rows(query: SourceQuery): List<Row> =
    db.select(query.source).map { record -> record.toReportRow() }
}

A ReportDefinition is the whole query, declared as data:

• source — which named row set to read ("visits" above).
• dimensions — how to group. Each Dimension(name, column, bucket?) reads one column; an optional DateBucket (DAY, WEEK, MONTH, QUARTER, YEAR) collapses a date column into periods. Here date → month, and program is grouped verbatim.
• measures — what to compute per group. Each Measure(name, aggregation, column?) applies an Aggregation (COUNT, SUM, AVG, MIN, MAX, DISTINCT). COUNT needs no column.
• filters (optional) — Filter(column, op, value) drops rows before aggregation (EQ, NE, GT, LT, …).

import io.ellykits.womblot.model.Aggregation
import io.ellykits.womblot.model.DateBucket
import io.ellykits.womblot.model.Dimension
import io.ellykits.womblot.model.Measure
import io.ellykits.womblot.model.ReportDefinition

val servicesByMonth =
  ReportDefinition(
    name = "servicesByMonth",
    source = "visits",
    dimensions =
      listOf(
        Dimension("month", column = "date", bucket = DateBucket.MONTH),
        Dimension("program", column = "program"),
      ),
    measures = listOf(Measure("count", Aggregation.COUNT)),
  )

ReportEngine reads the rows from the source and returns a ReportResult — a small cube of cells keyed by each dimension combination, holding the computed measures. It is pure data, UI-free, and identical on every platform.

import io.ellykits.womblot.engine.ReportEngine

val result = ReportEngine(source).run(servicesByMonth)

Wrap content in a ReportThemeProvider, pivot the result into ChartData with toChartData(...), and drop in any visual. category picks the axis dimension, measure the value, and the optional seriesBy splits into a series per value of another dimension (here, one bar colour per programme).

import io.ellykits.womblot.compose.model.toChartData
import io.ellykits.womblot.compose.theme.ReportPalettes
import io.ellykits.womblot.compose.theme.ReportTheme
import io.ellykits.womblot.compose.theme.ReportThemeProvider
import io.ellykits.womblot.compose.ui.Metric
import io.ellykits.womblot.compose.ui.MetricRow
import io.ellykits.womblot.compose.ui.chart.BarChart

ReportThemeProvider(theme = ReportTheme.light(ReportPalettes.Cool)) {
  Column {
    MetricRow(
      listOf(
        Metric("Households visited", "248"),
        Metric("ANC visits", "86"),
      ),
    )
    BarChart(
      data = result.toChartData(category = "month", measure = "count", seriesBy = "program"),
      title = "Services by month",
    )
  }
}

val csv: ByteArray = ExportRegistry.export("csv", result)
val json: ByteArray = ExportRegistry.export("json", result)

Every visual takes caller-supplied ChartData and a ChartStyle, renders inside a themed card, and is drawn by Koala Plot underneath.

ReportTheme controls the palette, semantic colours, card, axis, and grid. Use ReportTheme.light(palette) / ReportTheme.dark(palette) with a preset from ReportPalettes (Default, Cool, Warm, Pastel, Vibrant, ColorblindSafe), or build your own. Any ChartStyle.palette overrides the theme for a single chart.

ReportThemeProvider(theme = ReportTheme.dark(ReportPalettes.ColorblindSafe)) { /* … */ }

Register a new visual type — configuration and ReportVisualRegistry.Render pick it up like any built-in.

registerBuiltinVisuals()
ReportVisualRegistry.register("gauge") { data, style, title -> MyGauge(data, style, title) }

ExportRegistry.register("xlsx", exporter) adds export formats the same way.

The demo shows every visual over the sample data above, with a theme switch and a palette picker.

./gradlew :demo:run                          # desktop
./gradlew :demo:wasmJsBrowserDevelopmentRun  # browser, WasmJS

Charts are rendered with Koala Plot, a Compose Multiplatform plotting library, which womblot is named in tribute to. womblot is a thin, opinionated reporting layer on top of it: the aggregation engine, theming, and config surface are ours; the drawing is theirs. If you need lower-level plotting control, use Koala Plot directly.

Apache License 2.0.
