This document describes how to use the ZETA SDK, and how to build and run the provided test- and demo-clients.

The ZETA Client SDK is designed to be integrated into existing and new client applications that need to access a TI service based on the new Zerotrust (or ZETA) architecture.

The SDK aims to encapsulate the ZETA requirements and shield the application from it, while at the same time allowing the client to reuse existing functionality that may already be implemented, like the specific storage, configuration, or getting an SM(C)-B token. While implementations for those topics are provided, due to the modular nature and the configuration parameters when instantiating the ZETA SDK, client-specific implementations can be injected into the SDK.

The client is written in kotlin multiplatform, to provide a single implementation of the ZETA functionality, but providing examples on how the client can be integrated into a Java application and as a C++ library.

The following sections give an overview on the repository content, as well as how to build the different clients and how to use them.

[[TOC]]

The Zeta Client SDK is build with Kotlin Multiplatform (KMP) to target multiple platforms (iOS, Android and JVM), while reducing the duplicated code. By sharing core logic across platforms, minimizing the maintenance overhead and ensure consistent behaviour for all clients.

Folders for core SDK functionality and clients.

Verzeichnis	Beschreibung
zeta-sdk	Core SDK Modul
zeta-client	Code for the demo client
zeta-client-java	Code for the Java client
zeta-client-cpp	Code for the C++ client
zeta-client	Code for the demo client
zeta-testdriver	Code for the test proxy client
attestation-service	Code for the attestation service for Windows and Linux
docs	Further code-related documentation

The different clients serve different purposes:

• The demo client is a pure kotlin client and running in a JVM, and features all the functions to access the test Fachdienst
• The proxy client is running in a container and works as an HTTP proxy, to be used in testing.
• The Java client is a Proof-of-concept and shows how to configure and use the client from a Java application, but only implements the hellozeta call of the test Fachdienst.
• The C++ client is a Proof-of-concept and shows how to configure and use the client from a C++ application, but also only implements the hellozeta call

The clients, how to build and how to use them are described in more detail below.

Here are the folders for the different modules:

Folder	Description
common	commonly used code like logging and platform configuration
asl	ASL implementation
attestation	Attestation module
authentication	authentication module
client-registration	Modul for the client registration
configuration	Runtime configuration
crypto	Crypto functionality
flow-controller	Core SDK controller logic
network	Network module (e.g. HttpClient)
storage	Storage module
tpm	Access to the TPM or alternate implementations

Folder	Description
gradle	Gradle installation
build-logic	Gradle/Kotlin build logic
build	build output

The different modules contain, depending on the respective setup, platform-specific subfolders.

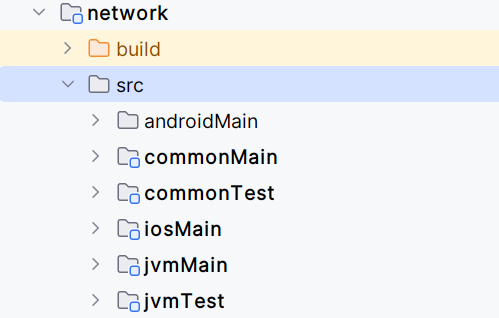

Here an example from the network module:

The different subfolders contain either commonly used code, which is at least the API of the module, or the platform specific implementations

Verzeichnis	Beschreibung
common	gemeinsame API
jvm	Code specific for the JVM-implementation
desktop	Code specific for the desktop implementations (windows, linux, mac)
android	Code specific for the Android-implementation
ios	Code specific for the iOS-implementation

If you want to include the SDK into your own Java projects, you can get it from a maven repository already.

To do this, add this dependency to your maven pom file:

<!-- https://mvnrepository.com/artifact/de.gematik.zeta/zeta-sdk-jvm -->
<dependency>
  <groupId>de.gematik.zeta</groupId>
  <artifactId>zeta-sdk-jvm</artifactId>
  <version>x.y.z</version>
</dependency>

Here is The Maven repository homepage.

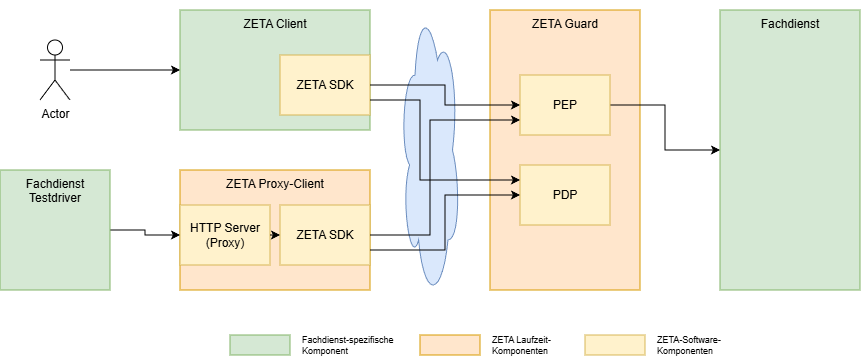

The next sections contain information about the clients.

All clients implement at least the "hellozeta" call to show how the integration of the kotlin code/library is done. The Java and C++ base clients also show how to use the websockets interface.

The demo-client can use the functional interface of the Test Fachdienst (test resource server), and can thus create presciptions, show them, modify them, and delete them.

The testdriver is a proxy client that just forwards the HTTP(S) requests it receives to the given resource server, but using the PEP endpoint and the necessary ZETA and ASL protocols. In addition, it also provides the websockets interface. It can be run in a container, allowing for easy proxying of functional test clients through ZETA SDK and ZETA Guard to an actual resource server. A ready to use container image is provided.

The Java and C++ clients are proof-of-technology clients that only implement the "hellozeta" call, to show how the SDK can be integrated into clients with this technology. In addition, they use the websockets functionality to connect to the test resource server.

The build process is using the gradle tool. It can be customized using some values in the "gradle.properties" and the "local.properties" file.

The gradle.properties file contains switches that enable or disable building some of the platforms. These can be used to improve the build speed.

de.gematik.zeta.sdk.build-logic.enableAndroid=true
de.gematik.zeta.sdk.build-logic.enableIOS=true
de.gematik.zeta.sdk.build-logic.enableNative=true

Here the "enableNative" switch enables the C++ build components.

In the local.properties file the location of the Android Sdk can be set, for example like so on a windows machine:

sdk.dir=C\:\\Users\\ABCDE\\AppData\\Local\\Android\\Sdk

All clients use the same set of configuration values, which are described here. These are either configured as environment variables, or in a configuration file.

Note that these items only concern the provided demo- and test-clients. In a real client (like a practice management system) these should be provided by the "surrounding" client application.

Here are the items you need to adapt:

Value	Description	Example
FACHDIENST_URL	URL of the resource server as reachable via the PEP	https://fachdienst.host.example.com/pep/fachdienst_url/api
SMB_KEYSTORE_FILE	Path to the SM-B Certificate-File (in .p12 format)	/smcb-certificates.p12
SMB_KEYSTORE_ALIAS	Alias of the key in the SM-B Certificate file
SMB_KEYSTORE_PASSWORD	Password for the private key
SMCB_BASE_URL	base url of the konnektor webservice interface (needs to include the "/ws")
SMCB_MANDANT_ID	for connector calls
SMCB_CLIENT_SYSTEM_ID	<client_system_id> for connector calls
SMCB_WORKSPACE_ID	<workspace_id> for connector calls
SMCB_USER_ID	- is required for SMC-B but is being ignored
SMCB_CARD_HANDLE
POPP_TOKEN	Value of a PoPP Tokens, which is given to the PEP (optional)	eyJhbGciOiJFUzI1NiI......
DISABLE_SERVER_VALIDATION	If set to "true", TLS server TLS certificate checks are disabled (for testing only!)
WS_SERVER_CONTEXT_PATH	Specifies the base context to target the resource server. It is used in the Java client to prefix STOMP Websockets destinations	/testfachdienst
WS_BASE_URL	Defines the Websocket base URL (including protocol: ws/wss)	wss://host/resource/ws
ASL_PROD	Defines whether the client runs in Productive or Non Productive mode. If set to "false" exposes the ASL symmetric keys: K2_c2s_app_data and K2_s2c_app	by default is set to "true" (productive environment)

Note that two sets of configuration variables for the SM(C)-B client authentication are provided, one for the SM-B certificate file, another for the SMC-B connector interface.

Only one set of these needs to be provided

The demo client shows the use of the SDK in a kotlin multiplatform environment. It implements the functionality that is exposed by the Test-Fachdienst.

• A PC with Windows, Linux, or Mac
• Installed Java Development Kit (JDK)
• git client to clone the source repo, or a copy of the source repo content
• Installed Android Software Development Kit (SDK) with configured ANDROID_HOME environment variable (optional)

Note: the SDK and the test client can be built without Android SDK.

The main configuration of the test client are the

• Endpoint of the Fachdienst
• SM-B file location, alias and password

Those are being provided using a configuration file or environment variables.

After creating the configuration file the test client can be started like so:

./gradlew :zeta-client:jvmRun -DmainClass="de.gematik.zeta.client.ZetaClientAppKt" --args='--ZETA_ENV_FILE=<Name-der-Parameter-Datei>

The parameter file contains the configuration parameters as described above:

ENVIRONMENTS=<resource_server_1_api_endpoint> <resource_server_2_api_endpoint> ...

SMB_KEYSTORE_FILE=<sm-b-keystore-file>.p12
SMB_KEYSTORE_ALIAS=<key-alias-im-keystore-file>
SMB_KEYSTORE_PASSWORD=<keystore-password>

POPP_TOKEN=eyJhbGciOiJ......
...

Note: the resource server URL is here named differently as 'ENVIRONMENTS', as there are multiple resource servers possible, not just a single 'FACHDIENST_URL'

The variable 'ENVIRONMENTS' thus contains multiple resource server endpoints, separate by a space. These can be selected in the UI of the demo client.

This step does not need an Android SDK.

./gradlew publishJvmPublicationToMavenLocal
./gradlew publishKotlinMultiplatformToMavenLocal

Hinweis: sollten Sie das ZETA SDK in ein eigenes Remote Repository submitten wollen, so müssen sie die folgende Konfiguration in der build-logic anpassen:

Verzeichnis	Datei	Zeile/Variable	Beschreibung	Beispiel
build-logic/build-logic/src/main/kotlin/com/ey/buildlogic	BuildLogicPlugin.kt	242 URL des Maven Repositories	URL des remote Maven Repositories	"https:///api/v4/projects/3/packages/maven"

The full tests and setups need an Android SDK:

./gradlew build

./gradlew testAll

In this section we describe how you can create a container with a proxy client containing the SDK and exposing the SDK APIs and other test-related actions as HTTP endpoints. This proxy client is used in various test situations.

Here is an overview on how the proxy client sits between a test driver and the zeta guard. The purpose of the proxy client is to encapsulate the ZETA protocol and make testing of the zeta guard setup easier.

TODO: diagram how the proxy client sits between a test driver and the zeta guard

Requests to the Fachdienst enter the proxy client as normal HTTP requests, get forwarded to the ZETA guard using the ZETA and optionally ASL protocol, the ZETA guard validates them and forwards them to the Fachdienst backend. This facilitates end-to-end testing and testing whether the ZETA guard setup is correct.

The proxy client exposes a number of HTTP endpoints that allow on one side forwarding requests to the Fachdienst, but also control the client and extract information necessary for testing.

endpoint	access type	purpose
/proxy/*	all HTTP methods	Forward any requests path after the "/proxy/" part to the Fachdienst. According to the SDK API, includes discovery, client registration and authentication if not already done. Note this also includes the websocket protocol.
/testdriver-api/discover	GET	Just the discovery part of the protocol, i.e. reading the .well-known files
/testdriver-api/register	GET	Perform client registration (includes discovery if not already done)
/testdriver-api/authenticate	GET	Retrieve and store an access token (includes client registration and discovery if not already done)
/testdriver-api/storage	GET	Retrieve the stored data (like client instance key, access token etc)
/testdriver-api/reset	GET	forget all the stored information, so any call will start triggering a discovery, client registration and authentication again
/health	GET	health API for kubernetes

Note: in coming project milestones the paths may change or be extended to accomodate for multiple client instance running in parallel

Note that building the container image in an automated CI/CD process is preferred over these manual steps. The file .gitlab-ci.yml shows how this can be done.

In general the requisites are required for building the test driver as are for the demo client.

• A PC with Windows, Linux, or Mac
• Installed Java Development Kit (JDK)
• git client to clone the source repo, or a copy of the source repo content
• Installed Android Software Development Kit (SDK) with configured ANDROID_HOME environment variable (optional)

Also this tools is required to create the container image:

• Docker build Tool

The necessary libraries can be built with

./gradlew clean jar copyRuntimeLibs

The artifacts are then in

**/build/libs/*.jar
**/build/runtime-libs/*.jar

The container can then be built using the dockerfile:

docker build -f zeta-testdriver/Dockerfile .

The container can be built using the deployment.yml described here.

The configuration items in the deployment.yml file that need to be set are described above in the Configuration section.

In the example below these configuration items are set via helm variables, so they can be used depending on the environment.

The SMB keystore file is being mounted as kubernetes secret.

Other values are also set by helm variables, like the used image repository, version, etc.

A helm chart template for the Deployment descriptor can be found in the gematik ZETA github repository This folder includes examples for the ingress and the service definitions.

The continuous integration pipeline can be set up with the included .gitlab-ci.yml file, that you need to adapt to your development process.

.gitlab-ci.yml

The Java client shows how the ZETA SDK can be integrated into a Java-based application. It implements only the "hellozeta" call of the Test Fachdienst.

The Java class "Main" in zeta-client-java/main/java/de/gematik/zeta shows how the integration can be done.

The Java client can be built with

./gradlew zeta-client-java:build

and it can be run with

./gradlew zeta-client-java:run

Without any command line parameters, the configuration (as described above) needs to be provided with environment variables.

It if is run with a command line argument of a configuration file like so:

./gradlew zeta-client-java:run --args='config.file'

Then it will read the configuration from the given filename.

Note: when run from gradle, the filename is relative to the build directory, use an absolute path, or relative to the build directory, like ../config.file

The C++ client shows how the ZETA SDK can be integrated into a C++-based application. It implements only the "hellozeta" call of the Test Fachdienst.

The C++ file "hello.cpp" in zeta-client-cpp/src/main/cpp shows how to integrate the SDK.

To compile the C++ client, a C++ development environment needs to be installed, like for example

• MinGW (Windows)
• gcc/g++ or clang/clang++ (Linux)

The C++ client can be built with

./gradlew zeta-client-cpp:build

and it can be run with

./gradlew zeta-client-cpp:allTests

The attestation service is a service that runs locally alongside the Zeta SDK client. It provides TPM-based attestation capabilities for Windows and Linux, allowing the SDK to perform platform attestation as part of the ZETA protocol.

The SDK communicates with the attestation service locally to perform TPM operations, such as quote generation and PCR-based attestation. The endpoint of the attestation must be configured in the SDK configuration so the SDK can connect to it.

• A PC with Windows or Linux
• Installed JDK
• OpenSSL 3.X installed (libcrypto)

The TSS2 libraries (tpm2-tss) are bundled as static libraries within the project and do not need to be installed separately. At runtime, the attestation service requires access to a TPM 2.0 device.

The attestation service uses its own configuration file, and can also be configured via command line arguments.

Argument	Description
--config-file	Path to the configuration file (required)
--reset-file-integrity	If present, resets the file integrity state on startup

Property	Description	Required	Default
FILES	Comma-separated list of files to monitor for integrity	Yes	-
SERVER_PORT	Port on which the attestation service listen	No	8081
PCR_ID	TPM PCR register ID used for file integrity measurements (existing data will be overwritten!)	No	23
ALLOWED_EXECUTABLES	Comma-separated list of allowed executable paths for process monitoring	Yes	-

FILES=/path/to/file1,=/path/to/file1
SERVER_PORT=8081
PCR_ID=23
ALLOWED_EXECUTABLES=/usr/bin/app1

./gradlew :attestation-service:linkReleaseExecutableLinux64

The attestation serivice exposes the following HTTP and Websocket endpoints:

endpoint	method	purpose
/attest	POST	Performs a TMP attestation. Accepts AttestationRequest JSON body and returns the TPM quote, signature and attestation key.
/verify-integrity	POST	Verifies the integrity of the monitored files. Returns the integrity verification result.
/integrity	Websocket	Provides real-time file integrity monitoring. On connection, sends current state. Subsequently pushes updates whenever the integrity state changes.
/health	GET	Health check endpoint. Return current status of the attestation service.

The ZETA SDK consists of a number of modules as described above. The entry into the ZETA-SDK is the class ZetaSdk. It provides a builder interface that can be used to configure the SDK.

The build interface includes the URL of the resource server. Using different URLs, a client can create multiple instances of the SDK, one per resource server.

The following example shows in the kotlin version how a resource can be called.

The configuration includes config objects that allow reusing existing functionality where available. For example, we assume that a client implementation in the context of the TI already has ways to store items securely, or how to create an SM(C)-B token. So these functions can be injected.

The exact configuration items are described in the sourcecode.

class ZetaSdkTest {
    @Test
    @Ignore
    fun sdk_halloZetaTest() = runTest {
        // Arrange
        val sdk = ZetaSdk.build(
            "https://<resource-url>",
            BuildConfig(
                "demo-client",
                "0.2.0",
                "client-sdk",
                StorageConfig(),
                object : TpmConfig {},
                AuthConfig(
                    listOf(
                        "zero:audience",
                    ),
                    30,
                    true,
                    SmbTokenProvider(SmbTokenProvider.Credentials("", "", "")),
                    AttestationConfig.software(),
                ),
            ),
        )

        // Act
        val client = sdk.httpClient {
            logging(
                LogLevel.ALL,
                object : Logger {
                    override fun log(message: String) {
                        println("log:" + message)
                    }
                },
            )
        }

        val helloResult = client.get("/hellozeta")
            .bodyAsText()
    }
}

This section gives an overview on how to use the API. More details can be found in the source code.

Note: this API is an intermediary target API and can deviate from the API in tne source code, depending on the state of the implementation according to the project milestones.

The ZETA API offers the following public API:

Operation	Description	Return value	Errors
build(resource, BuildConfig)	static method to create a new SDK client instance
forget()	static method to clear all cached information for the FQDN, like instance key, well-known files, or access tokens. This method is mostly used for testing
discover()	Perform discovery and configuration, i.e. mainly reading the well-known files
register()	Perform client registration; includes discovery and configuration if not already done
authenticate()	perform the authentication; includes client registration and discovery and configuration if not alreaady done
httpClient()	Returns an HttpClient with overloaded method that implement the ZETA specific protocol; this includes authentication etc if not already done
close()	Closing the ZETA SDK client without forgetting the cached information	-	error codes

Inside the HTTP operations as provided by the HttpClient, the discovery, client registration and authentication are performed automatically. The methods discover(), register(), and authenticate() are idempotent. Providing them separately allows the client to implement flexible UI flows in case there is any client interaction needed. For example the authentication could be done at start without an actual call to the Fachdienst, so that any later Fachdienst call is then uninterrupted by manual interaction.

The configuration is done by passing the BuildConfig object to the ZetaSdkClient. This object contains the following attributes and sub-objects.

BuildConfig Attribute	Description
productId	The gematik Product-ID
productVersion	The version of the product
clientName	The name of the client
storageConfig	An object providing configuration for secure storage (e.g. of the auth token)
tpmConfig	Information about the client's TPM
authConfig	Konfiguration des Authentication Prozesses, wie Token scopes, Expiry etc.
http_config	Konfigurationsparameter für den HTTP Client wie timeouts, retries etc.
registrationCallback	a function that is called when a user interaction is required during client registration
authenticationCallback	a function that is called when a user interaction is required during authentication

Note: in implementation phase 1 callbacks are not expected. In implementation phase 2 callbacks may be added e.g. for pushed authentication requests to the IDP. Details are still to be determined.

The AuthConfig object configures the authentication process:

Attribute	Description
scopes	Scope-values for the Access Tokens
exp	The expiration time of the JWT as lifetime duration in seconds
aslProdEnvironment	Determines if the client runs non/production environment. The ASL keys can be accessed if it is set to false
subjectTokenProvider	a class that provides a subject token, either SM-B or SMC-B depending on the implementation
attestation	Configures the attestation mode and connection to the attestation service. Defaults to AttestationConfig.software

The attestation config allows three atteatation modes:

Mode	Factory method	Description
Software	AttestationConfig.software()	Software-based attestation without TPM (default if no other specified)
TpmHttp	AttestationConfig.tpmHttp()	TPM-based attestation via HTTP conenction to the attestation service. The SDK connects to the service using the configured endpoint
TpmCustom	AttestationConfig.tpmCustom()	TPM-based attestation using a custom AttestationService implementation provided by the client application

This interface provides a simple Map-type storage interface that is used to save the session information.

This object configures the HTTP client. It contains three sub-objects:

This object contains configuration for e.g. retries and timeouts.

This object allows adding additional CAs that are validated against for the TLS certificate.

This object determines the log level for backend requests.

(C) EY Strategy and Transactions GmbH, 2025, licensed for gematik GmbH

Apache License, Version 2.0

See the LICENSE for the specific language governing permissions and limitations under the License

1. Copyright notice: Each published work result is accompanied by an explicit statement of the license conditions for use. These are regularly typical conditions in connection with open source or free software. Programs described/provided/linked here are free software, unless otherwise stated.
2. Permission notice: Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
   1. The copyright notice (Item 1) and the permission notice (Item 2) shall be included in all copies or substantial portions of the Software.
   2. The software is provided "as is" without warranty of any kind, either express or implied, including, but not limited to, the warranties of fitness for a particular purpose, merchantability, and/or non-infringement. The authors or copyright holders shall not be liable in any manner whatsoever for any damages or other claims arising from, out of or in connection with the software or the use or other dealings with the software, whether in an action of contract, tort, or otherwise.
   3. We take open source license compliance very seriously. We are always striving to achieve compliance at all times and to improve our processes. If you find any issues or have any suggestions or comments, or if you see any other ways in which we can improve, please reach out to: ospo@gematik.de
3. Please note: Parts of this code may have been generated using AI-supported technology. Please take this into account, especially when troubleshooting, for security analyses and possible adjustments.
