Implements Material Design tap targets for feature discovery, offering a coordinator, modifier-based attachment, customizable styles and text definitions, chained targets support, and an example app.
Animated feature-discovery overlays for Android and iOS, built with Compose Multiplatform.
English | 한국어
tap-target-cmp introduces app features by highlighting an existing composable and displaying a title and description beside it. Wrap a screen in a coordinator, mark its targets with a modifier, and let the library handle ordered presentation, overlay animations, and scrolling requests.
This fork of tap-target-compose brings the original Android approach to Android and iOS through shared Compose Multiplatform code. It follows the Material Design feature-discovery pattern, with composable slots for icons and skipping a tour.
| Android | iOS |
|---|---|
![]() |
![]() |

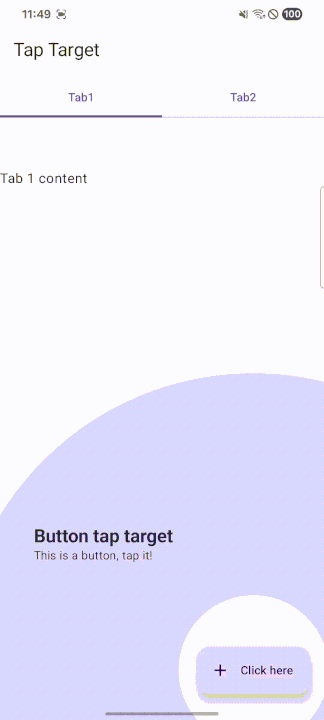

Watch or download the Android MP4. Recorded from this source build on a physical Pixel 7a running Android 17, showing the wrapped icon, target transitions, and automatic scrolling. The 18-second recording omits the system status and navigation bars. The previous Android capture is also preserved.

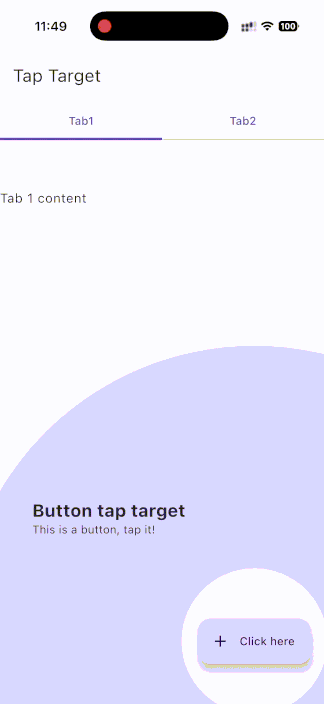

Watch or download the iOS MP4. Recorded from this source build on the iPhone 18 Pro simulator running iOS 27.0, showing the wrapped icon, target transitions, automatic scrolling, and skipping the remaining tour. The 24-second edit removes waiting between interactions and omits the system status and home-indicator areas. The previous iOS capture is also preserved.
Explore the shared sample screen for toolbar, floating-action-button, tab, and scrollable targets.
precedence, with callbacks for target changes and completion.TapTargetDefinition; use ifTapTarget in reusable UI that can also appear outside a tour.onComplete.The following targets are configured in the library module. This matrix describes build targets, not a device-certification guarantee.
| Platform | Support | Notes |
|---|---|---|
| Android | Supported |
androidLibrary; minimum API 29. |
| iOS device | Supported |
iosArm64; shared Compose renderer. |
| iOS simulator on Apple silicon | Supported |
iosSimulatorArm64; includes an iOS gesture test. |
| iOS simulator on Intel | Unsupported | No iosX64 target configured. |
| Desktop JVM | Unsupported | No JVM desktop target configured. |
| Web (JS / Wasm) | Unsupported | No JS or Wasm target configured. |
The verified Maven Central release is 2.0.1: zone.ien.taptargetcmp:taptarget. This matches the repository version catalog and Central metadata. The API reference describes the current checkout.
Configure dependency repositories in settings.gradle.kts:
dependencyResolutionManagement {
repositories {
google()
mavenCentral()
}
}Add to gradle/libs.versions.toml:
[versions]
taptarget = "2.0.1"
[libraries]
taptarget = { module = "zone.ien.taptargetcmp:taptarget", version.ref = "taptarget" }Then add the library to your shared module's build.gradle.kts:
kotlin {
sourceSets {
commonMain.dependencies {
implementation(libs.taptarget)
}
}
}Alternatively, use the coordinate directly in commonMain.dependencies:
implementation("zone.ien.taptargetcmp:taptarget:2.0.1")Your app must already configure Compose Multiplatform and its Android/iOS targets. The examples use Material 3 components; configure Material 3 in the consuming UI module as well. See compatibility for the repository's toolchain and the published dependency versions.
Wrap your UI in TapTargetCoordinator and attach tapTarget inside its receiver scope. The host owns whether the tour is visible and what completion means for the app.
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.material3.Button
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import zone.ien.taptargetcmp.TapTargetCoordinator
import zone.ien.taptargetcmp.TapTargetStyle
import zone.ien.taptargetcmp.TextDefinition
@Composable
fun FeatureDiscoveryExample() {
var showTour by remember { mutableStateOf(true) }
MaterialTheme {
TapTargetCoordinator(
showTapTargets = showTour,
modifier = Modifier.fillMaxSize(),
onComplete = { showTour = false },
) {
Button(
onClick = { /* App action */ },
modifier = Modifier.tapTarget(
precedence = 0,
title = TextDefinition(
text = "Create an item",
textStyle = MaterialTheme.typography.titleLarge,
color = MaterialTheme.colorScheme.onSecondaryContainer,
),
description = TextDefinition(
text = "Start here to add your first item.",
textStyle = MaterialTheme.typography.bodyMedium,
color = MaterialTheme.colorScheme.onSecondaryContainer,
),
tapTargetStyle = TapTargetStyle(
backgroundColor = MaterialTheme.colorScheme.secondaryContainer,
tapTargetHighlightColor = MaterialTheme.colorScheme.onSecondaryContainer,
),
),
) {
Text(text = "Create")
}
}
}
}Tapping the highlighted area advances the tour. It calls onTargetClick on the target definition; it does not forward the tap to the original Button.onClick. Add onTargetClick if discovery should also perform an app action. Add more targets with distinct precedence values to build a sequence.
See the complete sample.
The following snippets build on the Compose and library imports in Quick Start; additional imports are included where needed.
Pass a definition directly to Modifier.tapTarget(definition) inside the coordinator scope. For a reusable composable without a TapTargetScope receiver, use the top-level ifTapTarget extension instead:
import zone.ien.taptargetcmp.TapTargetDefinition
import zone.ien.taptargetcmp.ifTapTarget
@Composable
fun DiscoverableButton(definition: TapTargetDefinition? = null) {
Button(
onClick = { /* App action */ },
modifier = Modifier.ifTapTarget(definition),
) {
Text(text = "Create")
}
}
@Composable
fun ReusableTargetExample() {
val definition = TapTargetDefinition(
precedence = 10,
title = TextDefinition(text = "Create an item"),
description = TextDefinition(text = "Use this button to get started."),
)
TapTargetCoordinator(showTapTargets = true) {
DiscoverableButton(definition = definition)
}
}ifTapTarget(null) and ifTapTarget(definition) outside a coordinator leave the modifier unchanged. Give each mounted target a unique precedence, even when sharing a definition template.
The optional slot is a BoxScope below the description. Invoke its supplied onSkip callback to skip all remaining targets and call the coordinator's onComplete. This does not invoke individual target click/cancel callbacks.
import androidx.compose.material3.TextButton
import androidx.compose.ui.Alignment
import zone.ien.taptargetcmp.TapTargetDefinition
@Composable
fun SkippableTour() {
var showTour by remember { mutableStateOf(true) }
TapTargetCoordinator(
showTapTargets = showTour,
onComplete = { showTour = false },
skipButton = { onSkip ->
TextButton(
onClick = onSkip,
modifier = Modifier.align(Alignment.Center),
) {
Text(text = "Skip")
}
},
) {
DiscoverableButton(
definition = TapTargetDefinition(
precedence = 0,
title = TextDefinition(text = "Create an item"),
description = TextDefinition(text = "Start your first item here."),
),
)
}
}The renderer reserves a 48.dp-high slot for the skip control; keep custom content within that height.
Use this inside the coordinator content; the coordinator's bringIntoViewVerticalOffset = 100.dp can provide a default for the entire tour:
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.rememberScrollState
import androidx.compose.foundation.verticalScroll
import androidx.compose.ui.unit.dp
Column(modifier = Modifier.verticalScroll(rememberScrollState())) {
Spacer(modifier = Modifier.height(600.dp))
Button(
onClick = { },
modifier = Modifier.tapTarget(
precedence = 20,
title = TextDefinition(text = "More options"),
description = TextDefinition(text = "This target requests scrolling."),
bringIntoViewVerticalOffset = 160.dp,
),
) {
Text(text = "Options")
}
}The per-target offset overrides the coordinator default; null inherits it. The requested rectangle starts at local y = -offset, so a positive offset extends the request above the target. Actual scrolling depends on the ancestor's bring-into-view handling and available scroll range; the offset is not a guaranteed final screen position.
Set bringIntoViewEnabled = false to opt out for a target. The direct tapTarget overload also accepts a custom BringIntoViewRequester; TapTargetDefinition does not expose that parameter.
Supply an existing ImageVector from your app; no additional icon dependency is required by this example. The icon appears above the title, and iconWrapper can add a background or decoration.
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.size
import androidx.compose.foundation.shape.CircleShape
import androidx.compose.ui.Alignment
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.vector.ImageVector
import androidx.compose.ui.unit.dp
import zone.ien.taptargetcmp.TapTargetScope
@Composable
fun TapTargetScope.IconTarget(icon: ImageVector) {
Button(
onClick = { },
modifier = Modifier.tapTarget(
precedence = 30,
title = TextDefinition(text = "Create something new"),
description = TextDefinition(text = "This action starts a new item."),
icon = icon,
iconWrapper = { content ->
Box(
modifier = Modifier.size(72.dp)
.background(Color.White, CircleShape),
contentAlignment = Alignment.Center,
) {
content()
}
},
),
) {
Text(text = "Create")
}
}The icon is 48.dp inside a 72.dp container. tapTargetHighlightColor controls its tint; it does not recolor the original target. A wrapper is used only when icon is non-null. The sample demonstrates a wrapped icon on a floating action button.
All APIs below are in zone.ien.taptargetcmp. See TapTarget.kt for declarations and Rendering.kt for overlay behavior.
| Parameter | Type | Default | Behavior |
|---|---|---|---|
showTapTargets |
Boolean |
Required | Controls overlay visibility; does not reset progress. |
modifier |
Modifier |
Modifier |
Applied to the root Box. |
onComplete |
() -> Unit |
{ } |
Called after the final target is dismissed or the tour is skipped; guarded against repeat completion for the same state. |
onTargetChanged |
(Int) -> Unit |
{ } |
Reports the newly active target's precedence, not its list index. |
state |
TapTargetCoordinatorState |
Internally remembered state | Constructor and progress mutation are internal; see state restrictions. |
contentAlignment |
Alignment |
Alignment.Center |
Alignment within the root Box. |
bringIntoViewVerticalOffset |
Dp |
0.dp |
Default scroll-request offset for targets. |
skipButton |
(@Composable BoxScope.(onSkip: () -> Unit) -> Unit)? |
null |
Custom skip UI below the description. |
content |
@Composable TapTargetScope.() -> Unit |
Required | Screen content in which tapTarget is available. |
TapTargetScope supplies two member extensions: Modifier.tapTarget(title, description, precedence, ...) and Modifier.tapTarget(tapTargetDefinition). The definition has the following constructor parameters, also accepted by the direct overload:
| Parameter | Type | Default | Behavior |
|---|---|---|---|
title |
TextDefinition |
Required | Title text and style. |
description |
TextDefinition |
Required | Description text and style. |
precedence |
Int |
Required | Lower values are shown first; must be unique within a coordinator. |
tapTargetStyle |
TapTargetStyle |
TapTargetStyle.Default |
Overlay and icon appearance. |
onTargetClick |
() -> Unit |
{ } |
Invoked for a tap inside the highlighted target circle; advances after the exit animation. |
onTargetCancel |
() -> Unit |
{ } |
Invoked after the exit animation for a tap outside the outer circle; advances to the next target. |
bringIntoViewEnabled |
Boolean |
true |
Enables an automatic bring-into-view request when the target activates. |
bringIntoViewVerticalOffset |
Dp? |
null |
Overrides the coordinator's offset when non-null. |
icon |
ImageVector? |
null |
Optional icon above the text. |
iconWrapper |
(@Composable (content: @Composable () -> Unit) -> Unit)? |
null |
Wraps the provided icon content. |
The direct overload additionally accepts bringIntoViewRequester: BringIntoViewRequester? = null; a requester is remembered when none is supplied.
The top-level Modifier.ifTapTarget(definition: TapTargetDefinition?) finds the nearest coordinator through LocalTapTargetScope. It applies the definition only when both scope and definition exist. See optional targets.
TextDefinition merges explicitly supplied style values into textStyle. Constructor arguments are available to callers even though the backing styling properties are internal; the resolved style: TextStyle and text: String are public.
TextDefinition parameter |
Type | Default |
|---|---|---|
text |
String |
Required |
textStyle |
TextStyle |
TextStyle.Default |
color |
Color |
Color.Unspecified |
fontSize, letterSpacing, lineHeight
|
TextUnit |
TextUnit.Unspecified |
fontStyle |
FontStyle? |
null |
fontWeight |
FontWeight? |
null |
fontFamily |
FontFamily? |
null |
textDecoration |
TextDecoration? |
null |
textAlign |
TextAlign? |
null |
The renderer centers text when its resolved alignment is unspecified. A specified textAlign overrides that behavior.
TapTargetStyle property |
Type | Default | Behavior |
|---|---|---|---|
backgroundColor |
Color |
Color.Blue |
Outer circle color. |
backgroundAlpha |
Float |
1f |
Outer circle opacity; supply a value from 0 to 1. |
tapTargetHighlightColor |
Color |
Color.White |
Optional icon tint. |
TapTargetStyle.Default is equivalent to TapTargetStyle().
TapTargetScope is provided by the coordinator and has an internal constructor. In extracted screen functions, use a TapTargetScope receiver, or use ifTapTarget for optional integration.LocalTapTargetScope is a public CompositionLocal<TapTargetScope?> with a default of null.TapTargetCoordinatorState has an internal constructor and exposes currentTarget: TapTarget?. There is no public state factory, reset, next, or skip method; the coordinator creates its default state internally. The state parameter does not provide a generally usable external state-construction API.TapTarget has an internal constructor. Its public properties describe the current target: precedence, title, description, coordinates, style, click/cancel callbacks, scroll configuration and requester, icon, and iconWrapper. Graphics-layer bookkeeping is internal.The versions below are the current repository configuration, not a guarantee that every older/newer consumer toolchain is compatible. See the version catalog, Gradle wrapper, and sample configuration.
| Component | Repository configuration |
|---|---|
| Kotlin / Compose compiler plugin | 2.4.21 |
| Compose Multiplatform | 1.12.2 |
| Compose Material 3 | 1.12.0-alpha03 (prerelease dependency) |
| Android Gradle Plugin | 9.3.1 |
| Gradle wrapper | 9.7.0 |
| Android | minSdk 29; compileSdk 37; sample targetSdk 37 |
| Sample Java / JVM target | 21; use JDK 21 for repository development |
| iOS sample deployment target | 18.2; this is the sample setting, not a separately declared library minimum |
The published 2.0.1 POM declares Kotlin stdlib 2.4.21, Compose preview/resources 1.12.2, and Material 3 1.12.0-alpha03. These match this checkout; account for the prerelease Material 3 dependency when integrating the published artifact.
key) to start a fresh tour. Completion history is not persisted; store first-run preferences in your app.showTapTargets gates drawing, but target-change callbacks and bring-into-view effects are not gated by it. A hidden, newly composed coordinator can still request scrolling.Report problems through GitHub issues. To follow releases, watch the repository.
Repository layout:
| Path | Purpose |
|---|---|
| taptarget | Library, shared rendering, common tests, and iOS gesture test. |
| example/composeApp | Shared sample UI and iOS framework. |
| example/androidApp | Android application entry point. |
| example/iosApp | Xcode sample project. |
| .github/workflows | CI and Maven Central publishing workflows. |
Use JDK 21 and an Android SDK with platform 37. iOS builds/tests require macOS and Xcode; the configured simulator target requires Apple silicon. Configure the Android SDK location through your local environment or local.properties.
Run from the repository root:
# Build the library
./gradlew :taptarget:assemble
# Run common tests on the Android host
./gradlew :taptarget:testAndroidHostTest
# Run common tests and the iOS gesture test on an Apple-silicon simulator
./gradlew :taptarget:iosSimulatorArm64Test
# Run library lint
./gradlew :taptarget:lint
# Build the Android sample
./gradlew :example:androidApp:assembleDebug
# Install it on a connected Android device or emulator
./gradlew :example:androidApp:installDebugFor the iOS sample, open iosApp.xcodeproj in Xcode, select the iosApp scheme and an appropriate simulator or device, and run. The build phase invokes :example:composeApp:embedAndSignAppleFrameworkForXcode; device runs require your signing configuration.
Existing tests cover definition configuration, skip-index calculation, text placement, graphics-layer rendering decisions/transforms, and iOS tap handling during relayout. These checks do not replace device-level visual or accessibility testing. The CI workflow currently selects JDK 17, while the sample targets JVM 21; its presence alone does not establish compatibility with the current toolchain.
The repository's LICENSE contains the MIT License and Copyright (c) 2023 Pierfrancesco Soffritti. Preserve that notice and the license text when redistributing the software.
This project is a Compose Multiplatform fork of Pierfrancesco Soffritti's tap-target-compose, originally an Android library inspired by KeepSafe's TapTargetView. This fork configures Android/iOS targets and includes scroll offsets, optional definitions, icon wrappers, and a composable skip slot.
License metadata discrepancy: the repository publishing configuration and published 2.0.1 POM declare Apache-2.0, whereas the checked-in LICENSE says MIT. These declarations are inconsistent; maintainers need to clarify the intended licensing. This documentation preserves both declarations and does not change licensing terms.
Animated feature-discovery overlays for Android and iOS, built with Compose Multiplatform.
English | 한국어
tap-target-cmp introduces app features by highlighting an existing composable and displaying a title and description beside it. Wrap a screen in a coordinator, mark its targets with a modifier, and let the library handle ordered presentation, overlay animations, and scrolling requests.
This fork of tap-target-compose brings the original Android approach to Android and iOS through shared Compose Multiplatform code. It follows the Material Design feature-discovery pattern, with composable slots for icons and skipping a tour.
| Android | iOS |
|---|---|
![]() |
![]() |
Watch or download the Android MP4. Recorded from this source build on a physical Pixel 7a running Android 17, showing the wrapped icon, target transitions, and automatic scrolling. The 18-second recording omits the system status and navigation bars. The previous Android capture is also preserved.
Watch or download the iOS MP4. Recorded from this source build on the iPhone 18 Pro simulator running iOS 27.0, showing the wrapped icon, target transitions, automatic scrolling, and skipping the remaining tour. The 24-second edit removes waiting between interactions and omits the system status and home-indicator areas. The previous iOS capture is also preserved.
Explore the shared sample screen for toolbar, floating-action-button, tab, and scrollable targets.
precedence, with callbacks for target changes and completion.TapTargetDefinition; use ifTapTarget in reusable UI that can also appear outside a tour.onComplete.The following targets are configured in the library module. This matrix describes build targets, not a device-certification guarantee.
| Platform | Support | Notes |
|---|---|---|
| Android | Supported |
androidLibrary; minimum API 29. |
| iOS device | Supported |
iosArm64; shared Compose renderer. |
| iOS simulator on Apple silicon | Supported |
iosSimulatorArm64; includes an iOS gesture test. |
| iOS simulator on Intel | Unsupported | No iosX64 target configured. |
| Desktop JVM | Unsupported | No JVM desktop target configured. |
| Web (JS / Wasm) | Unsupported | No JS or Wasm target configured. |
The verified Maven Central release is 2.0.1: zone.ien.taptargetcmp:taptarget. This matches the repository version catalog and Central metadata. The API reference describes the current checkout.
Configure dependency repositories in settings.gradle.kts:
dependencyResolutionManagement {
repositories {
google()
mavenCentral()
}
}Add to gradle/libs.versions.toml:
[versions]
taptarget = "2.0.1"
[libraries]
taptarget = { module = "zone.ien.taptargetcmp:taptarget", version.ref = "taptarget" }Then add the library to your shared module's build.gradle.kts:
kotlin {
sourceSets {
commonMain.dependencies {
implementation(libs.taptarget)
}
}
}Alternatively, use the coordinate directly in commonMain.dependencies:
implementation("zone.ien.taptargetcmp:taptarget:2.0.1")Your app must already configure Compose Multiplatform and its Android/iOS targets. The examples use Material 3 components; configure Material 3 in the consuming UI module as well. See compatibility for the repository's toolchain and the published dependency versions.
Wrap your UI in TapTargetCoordinator and attach tapTarget inside its receiver scope. The host owns whether the tour is visible and what completion means for the app.
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.material3.Button
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import zone.ien.taptargetcmp.TapTargetCoordinator
import zone.ien.taptargetcmp.TapTargetStyle
import zone.ien.taptargetcmp.TextDefinition
@Composable
fun FeatureDiscoveryExample() {
var showTour by remember { mutableStateOf(true) }
MaterialTheme {
TapTargetCoordinator(
showTapTargets = showTour,
modifier = Modifier.fillMaxSize(),
onComplete = { showTour = false },
) {
Button(
onClick = { /* App action */ },
modifier = Modifier.tapTarget(
precedence = 0,
title = TextDefinition(
text = "Create an item",
textStyle = MaterialTheme.typography.titleLarge,
color = MaterialTheme.colorScheme.onSecondaryContainer,
),
description = TextDefinition(
text = "Start here to add your first item.",
textStyle = MaterialTheme.typography.bodyMedium,
color = MaterialTheme.colorScheme.onSecondaryContainer,
),
tapTargetStyle = TapTargetStyle(
backgroundColor = MaterialTheme.colorScheme.secondaryContainer,
tapTargetHighlightColor = MaterialTheme.colorScheme.onSecondaryContainer,
),
),
) {
Text(text = "Create")
}
}
}
}Tapping the highlighted area advances the tour. It calls onTargetClick on the target definition; it does not forward the tap to the original Button.onClick. Add onTargetClick if discovery should also perform an app action. Add more targets with distinct precedence values to build a sequence.
See the complete sample.
The following snippets build on the Compose and library imports in Quick Start; additional imports are included where needed.
Pass a definition directly to Modifier.tapTarget(definition) inside the coordinator scope. For a reusable composable without a TapTargetScope receiver, use the top-level ifTapTarget extension instead:
import zone.ien.taptargetcmp.TapTargetDefinition
import zone.ien.taptargetcmp.ifTapTarget
@Composable
fun DiscoverableButton(definition: TapTargetDefinition? = null) {
Button(
onClick = { /* App action */ },
modifier = Modifier.ifTapTarget(definition),
) {
Text(text = "Create")
}
}
@Composable
fun ReusableTargetExample() {
val definition = TapTargetDefinition(
precedence = 10,
title = TextDefinition(text = "Create an item"),
description = TextDefinition(text = "Use this button to get started."),
)
TapTargetCoordinator(showTapTargets = true) {
DiscoverableButton(definition = definition)
}
}ifTapTarget(null) and ifTapTarget(definition) outside a coordinator leave the modifier unchanged. Give each mounted target a unique precedence, even when sharing a definition template.
The optional slot is a BoxScope below the description. Invoke its supplied onSkip callback to skip all remaining targets and call the coordinator's onComplete. This does not invoke individual target click/cancel callbacks.
import androidx.compose.material3.TextButton
import androidx.compose.ui.Alignment
import zone.ien.taptargetcmp.TapTargetDefinition
@Composable
fun SkippableTour() {
var showTour by remember { mutableStateOf(true) }
TapTargetCoordinator(
showTapTargets = showTour,
onComplete = { showTour = false },
skipButton = { onSkip ->
TextButton(
onClick = onSkip,
modifier = Modifier.align(Alignment.Center),
) {
Text(text = "Skip")
}
},
) {
DiscoverableButton(
definition = TapTargetDefinition(
precedence = 0,
title = TextDefinition(text = "Create an item"),
description = TextDefinition(text = "Start your first item here."),
),
)
}
}The renderer reserves a 48.dp-high slot for the skip control; keep custom content within that height.
Use this inside the coordinator content; the coordinator's bringIntoViewVerticalOffset = 100.dp can provide a default for the entire tour:
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.rememberScrollState
import androidx.compose.foundation.verticalScroll
import androidx.compose.ui.unit.dp
Column(modifier = Modifier.verticalScroll(rememberScrollState())) {
Spacer(modifier = Modifier.height(600.dp))
Button(
onClick = { },
modifier = Modifier.tapTarget(
precedence = 20,
title = TextDefinition(text = "More options"),
description = TextDefinition(text = "This target requests scrolling."),
bringIntoViewVerticalOffset = 160.dp,
),
) {
Text(text = "Options")
}
}The per-target offset overrides the coordinator default; null inherits it. The requested rectangle starts at local y = -offset, so a positive offset extends the request above the target. Actual scrolling depends on the ancestor's bring-into-view handling and available scroll range; the offset is not a guaranteed final screen position.
Set bringIntoViewEnabled = false to opt out for a target. The direct tapTarget overload also accepts a custom BringIntoViewRequester; TapTargetDefinition does not expose that parameter.
Supply an existing ImageVector from your app; no additional icon dependency is required by this example. The icon appears above the title, and iconWrapper can add a background or decoration.
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.size
import androidx.compose.foundation.shape.CircleShape
import androidx.compose.ui.Alignment
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.vector.ImageVector
import androidx.compose.ui.unit.dp
import zone.ien.taptargetcmp.TapTargetScope
@Composable
fun TapTargetScope.IconTarget(icon: ImageVector) {
Button(
onClick = { },
modifier = Modifier.tapTarget(
precedence = 30,
title = TextDefinition(text = "Create something new"),
description = TextDefinition(text = "This action starts a new item."),
icon = icon,
iconWrapper = { content ->
Box(
modifier = Modifier.size(72.dp)
.background(Color.White, CircleShape),
contentAlignment = Alignment.Center,
) {
content()
}
},
),
) {
Text(text = "Create")
}
}The icon is 48.dp inside a 72.dp container. tapTargetHighlightColor controls its tint; it does not recolor the original target. A wrapper is used only when icon is non-null. The sample demonstrates a wrapped icon on a floating action button.
All APIs below are in zone.ien.taptargetcmp. See TapTarget.kt for declarations and Rendering.kt for overlay behavior.
| Parameter | Type | Default | Behavior |
|---|---|---|---|
showTapTargets |
Boolean |
Required | Controls overlay visibility; does not reset progress. |
modifier |
Modifier |
Modifier |
Applied to the root Box. |
onComplete |
() -> Unit |
{ } |
Called after the final target is dismissed or the tour is skipped; guarded against repeat completion for the same state. |
onTargetChanged |
(Int) -> Unit |
{ } |
Reports the newly active target's precedence, not its list index. |
state |
TapTargetCoordinatorState |
Internally remembered state | Constructor and progress mutation are internal; see state restrictions. |
contentAlignment |
Alignment |
Alignment.Center |
Alignment within the root Box. |
bringIntoViewVerticalOffset |
Dp |
0.dp |
Default scroll-request offset for targets. |
skipButton |
(@Composable BoxScope.(onSkip: () -> Unit) -> Unit)? |
null |
Custom skip UI below the description. |
content |
@Composable TapTargetScope.() -> Unit |
Required | Screen content in which tapTarget is available. |
TapTargetScope supplies two member extensions: Modifier.tapTarget(title, description, precedence, ...) and Modifier.tapTarget(tapTargetDefinition). The definition has the following constructor parameters, also accepted by the direct overload:
| Parameter | Type | Default | Behavior |
|---|---|---|---|
title |
TextDefinition |
Required | Title text and style. |
description |
TextDefinition |
Required | Description text and style. |
precedence |
Int |
Required | Lower values are shown first; must be unique within a coordinator. |
tapTargetStyle |
TapTargetStyle |
TapTargetStyle.Default |
Overlay and icon appearance. |
onTargetClick |
() -> Unit |
{ } |
Invoked for a tap inside the highlighted target circle; advances after the exit animation. |
onTargetCancel |
() -> Unit |
{ } |
Invoked after the exit animation for a tap outside the outer circle; advances to the next target. |
bringIntoViewEnabled |
Boolean |
true |
Enables an automatic bring-into-view request when the target activates. |
bringIntoViewVerticalOffset |
Dp? |
null |
Overrides the coordinator's offset when non-null. |
icon |
ImageVector? |
null |
Optional icon above the text. |
iconWrapper |
(@Composable (content: @Composable () -> Unit) -> Unit)? |
null |
Wraps the provided icon content. |
The direct overload additionally accepts bringIntoViewRequester: BringIntoViewRequester? = null; a requester is remembered when none is supplied.
The top-level Modifier.ifTapTarget(definition: TapTargetDefinition?) finds the nearest coordinator through LocalTapTargetScope. It applies the definition only when both scope and definition exist. See optional targets.
TextDefinition merges explicitly supplied style values into textStyle. Constructor arguments are available to callers even though the backing styling properties are internal; the resolved style: TextStyle and text: String are public.
TextDefinition parameter |
Type | Default |
|---|---|---|
text |
String |
Required |
textStyle |
TextStyle |
TextStyle.Default |
color |
Color |
Color.Unspecified |
fontSize, letterSpacing, lineHeight
|
TextUnit |
TextUnit.Unspecified |
fontStyle |
FontStyle? |
null |
fontWeight |
FontWeight? |
null |
fontFamily |
FontFamily? |
null |
textDecoration |
TextDecoration? |
null |
textAlign |
TextAlign? |
null |
The renderer centers text when its resolved alignment is unspecified. A specified textAlign overrides that behavior.
TapTargetStyle property |
Type | Default | Behavior |
|---|---|---|---|
backgroundColor |
Color |
Color.Blue |
Outer circle color. |
backgroundAlpha |
Float |
1f |
Outer circle opacity; supply a value from 0 to 1. |
tapTargetHighlightColor |
Color |
Color.White |
Optional icon tint. |
TapTargetStyle.Default is equivalent to TapTargetStyle().
TapTargetScope is provided by the coordinator and has an internal constructor. In extracted screen functions, use a TapTargetScope receiver, or use ifTapTarget for optional integration.LocalTapTargetScope is a public CompositionLocal<TapTargetScope?> with a default of null.TapTargetCoordinatorState has an internal constructor and exposes currentTarget: TapTarget?. There is no public state factory, reset, next, or skip method; the coordinator creates its default state internally. The state parameter does not provide a generally usable external state-construction API.TapTarget has an internal constructor. Its public properties describe the current target: precedence, title, description, coordinates, style, click/cancel callbacks, scroll configuration and requester, icon, and iconWrapper. Graphics-layer bookkeeping is internal.The versions below are the current repository configuration, not a guarantee that every older/newer consumer toolchain is compatible. See the version catalog, Gradle wrapper, and sample configuration.
| Component | Repository configuration |
|---|---|
| Kotlin / Compose compiler plugin | 2.4.21 |
| Compose Multiplatform | 1.12.2 |
| Compose Material 3 | 1.12.0-alpha03 (prerelease dependency) |
| Android Gradle Plugin | 9.3.1 |
| Gradle wrapper | 9.7.0 |
| Android | minSdk 29; compileSdk 37; sample targetSdk 37 |
| Sample Java / JVM target | 21; use JDK 21 for repository development |
| iOS sample deployment target | 18.2; this is the sample setting, not a separately declared library minimum |
The published 2.0.1 POM declares Kotlin stdlib 2.4.21, Compose preview/resources 1.12.2, and Material 3 1.12.0-alpha03. These match this checkout; account for the prerelease Material 3 dependency when integrating the published artifact.
key) to start a fresh tour. Completion history is not persisted; store first-run preferences in your app.showTapTargets gates drawing, but target-change callbacks and bring-into-view effects are not gated by it. A hidden, newly composed coordinator can still request scrolling.Report problems through GitHub issues. To follow releases, watch the repository.
Repository layout:
| Path | Purpose |
|---|---|
| taptarget | Library, shared rendering, common tests, and iOS gesture test. |
| example/composeApp | Shared sample UI and iOS framework. |
| example/androidApp | Android application entry point. |
| example/iosApp | Xcode sample project. |
| .github/workflows | CI and Maven Central publishing workflows. |
Use JDK 21 and an Android SDK with platform 37. iOS builds/tests require macOS and Xcode; the configured simulator target requires Apple silicon. Configure the Android SDK location through your local environment or local.properties.
Run from the repository root:
# Build the library
./gradlew :taptarget:assemble
# Run common tests on the Android host
./gradlew :taptarget:testAndroidHostTest
# Run common tests and the iOS gesture test on an Apple-silicon simulator
./gradlew :taptarget:iosSimulatorArm64Test
# Run library lint
./gradlew :taptarget:lint
# Build the Android sample
./gradlew :example:androidApp:assembleDebug
# Install it on a connected Android device or emulator
./gradlew :example:androidApp:installDebugFor the iOS sample, open iosApp.xcodeproj in Xcode, select the iosApp scheme and an appropriate simulator or device, and run. The build phase invokes :example:composeApp:embedAndSignAppleFrameworkForXcode; device runs require your signing configuration.
Existing tests cover definition configuration, skip-index calculation, text placement, graphics-layer rendering decisions/transforms, and iOS tap handling during relayout. These checks do not replace device-level visual or accessibility testing. The CI workflow currently selects JDK 17, while the sample targets JVM 21; its presence alone does not establish compatibility with the current toolchain.
The repository's LICENSE contains the MIT License and Copyright (c) 2023 Pierfrancesco Soffritti. Preserve that notice and the license text when redistributing the software.
This project is a Compose Multiplatform fork of Pierfrancesco Soffritti's tap-target-compose, originally an Android library inspired by KeepSafe's TapTargetView. This fork configures Android/iOS targets and includes scroll offsets, optional definitions, icon wrappers, and a composable skip slot.
License metadata discrepancy: the repository publishing configuration and published 2.0.1 POM declare Apache-2.0, whereas the checked-in LICENSE says MIT. These declarations are inconsistent; maintainers need to clarify the intended licensing. This documentation preserves both declarations and does not change licensing terms.
