A Compose Multiplatform library for capturing and exporting signatures as ImageBitmap with customizable options. Perfect for electronic signatures, legal documents, and more.

Supported platforms: Android · iOS · Desktop (JVM) · Web (JS) · Web (WasmJS)

See the project's website for full documentation.

• Capture signatures as ImageBitmap on all platforms
• Customizable signature color, thickness, pad color, shape, and border
• Optional guideline with configurable style, padding, and dash pattern
• Hint text when the signature pad is empty
• State management with rememberSignatureState() for persistence
• Clear and complete actions via SignatureAction

Add the Maven Central repository if it is not already there:

repositories {
    mavenCentral()
}

Add the dependency to your commonMain source set:

kotlin {
    sourceSets {
        commonMain {
            dependencies {
                implementation("io.github.joelkanyi:sain:<latest-version>")
            }
        }
    }
}

Add the dependency to your app's build.gradle.kts:

dependencies {
    implementation("io.github.joelkanyi:sain:<latest-version>")
}

Add the following to your libs.versions.toml:

[versions]
sain = "<latest-version>"

[libraries]
sain = { module = "io.github.joelkanyi:sain", version.ref = "sain" }

Then add the dependency in your build.gradle.kts:

dependencies {
    implementation(libs.sain)
}

Add the Sain composable to your project:

var imageBitmap by remember { mutableStateOf<ImageBitmap?>(null) }

Sain(
    signatureHeight = 250.dp,
    signaturePadColor = Color.White,
    signatureBorderStroke = BorderStroke(
        width = .5.dp,
        color = MaterialTheme.colorScheme.onSurface,
    ),
    signaturePadShape = RoundedCornerShape(8.dp),
    onComplete = { signatureBitmap ->
        if (signatureBitmap != null) {
            imageBitmap = signatureBitmap
        } else {
            println("Signature is empty")
        }
    },
) { action ->
    Row(
        modifier = Modifier
            .padding(top = 16.dp)
            .fillMaxWidth(),
        horizontalArrangement = Arrangement.spacedBy(16.dp),
    ) {
        Button(
            modifier = Modifier.weight(1f),
            onClick = {
                imageBitmap = null
                action(SignatureAction.CLEAR)
            },
        ) {
            Text("Clear")
        }
        Button(
            modifier = Modifier.weight(1f),
            onClick = {
                action(SignatureAction.COMPLETE)
            },
        ) {
            Text("Complete")
        }
    }
}

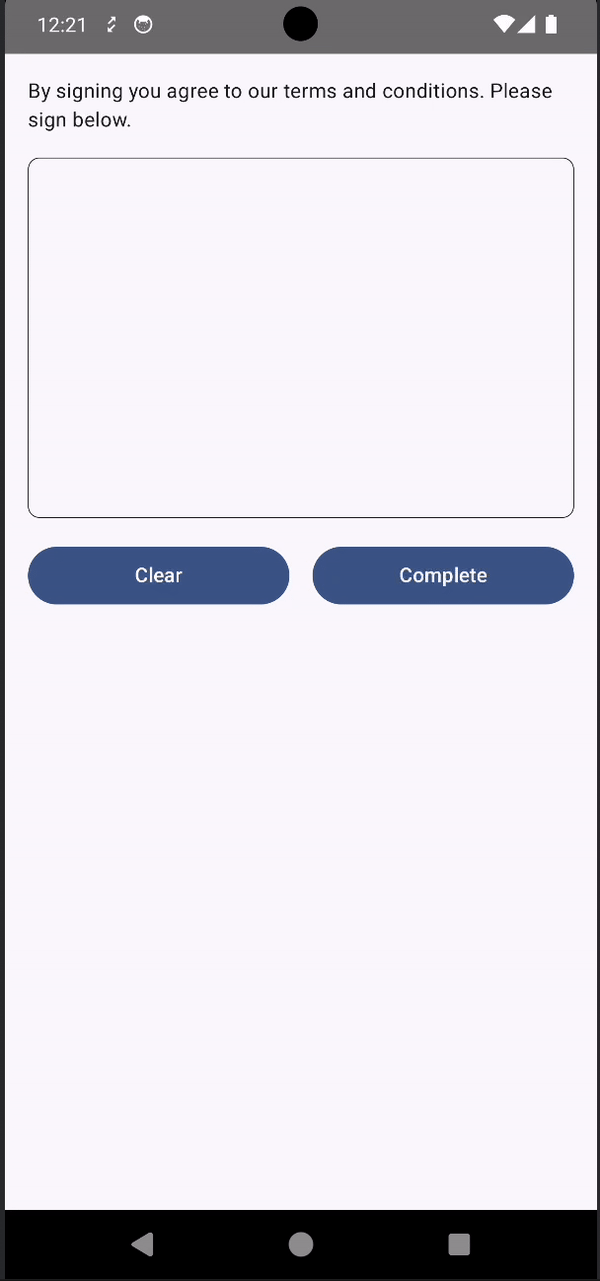

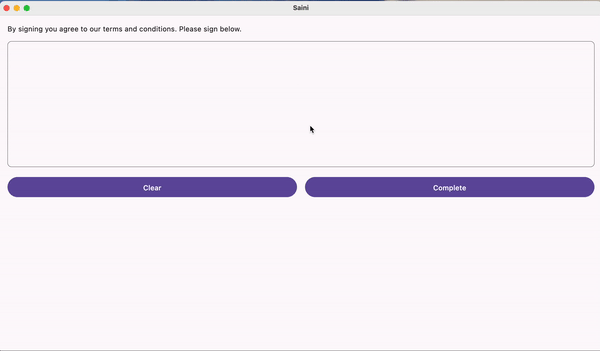

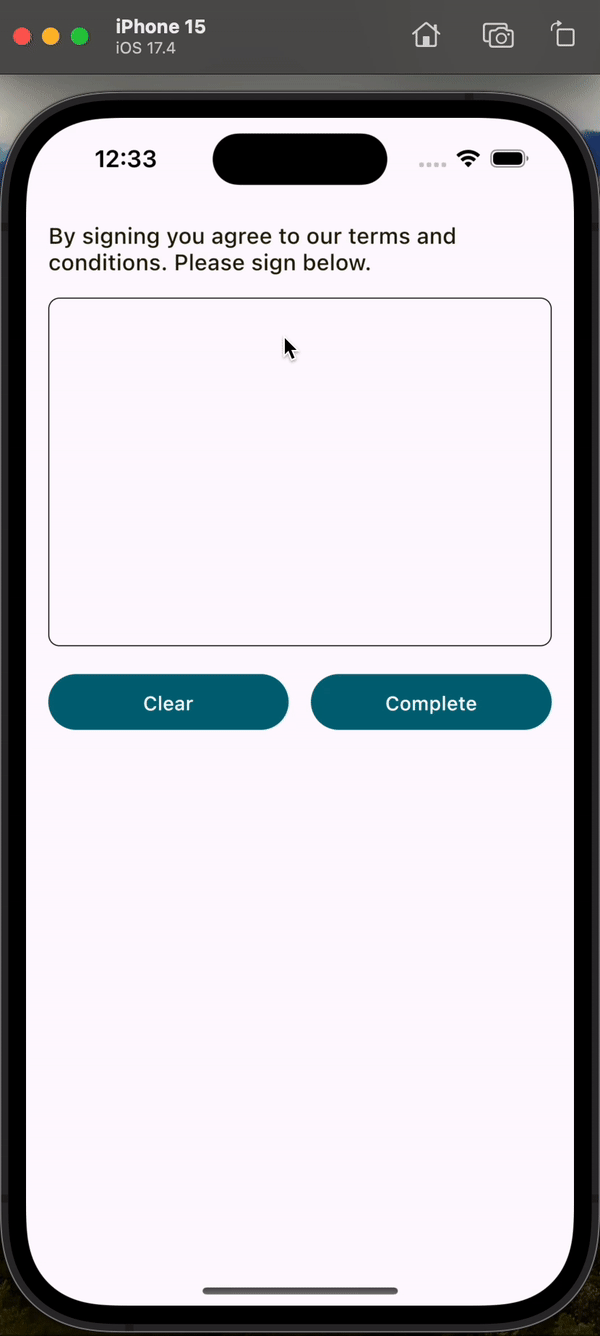

Android	iOS	Desktop

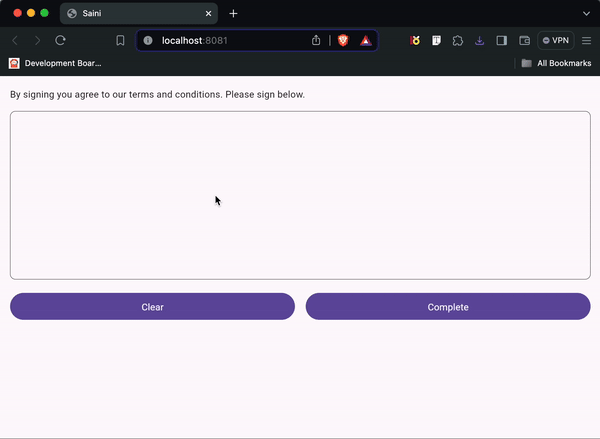

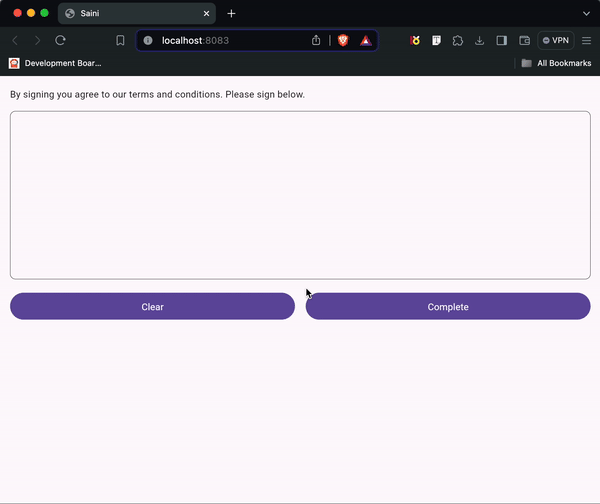

Web (JS)	Web (WasmJS)
