Interactive graph visualization supporting hierarchical and force-directed layouts, custom layout plugins, customizable nodes and edges, zooming/panning, resizable canvas, layout animations and automatic node measurement.
ALPHA RELEASE - This library is in early development. The API is subject to change and may contain bugs. Feedback and bug reports are welcome at GitHub Issues.
Kuiver is available on Maven Central.
For multiplatform projects, add to your common source set:
kotlin {
sourceSets {
commonMain.dependencies {
implementation("io.github.justdeko:kuiver:0.4.1")
}
}
}Or for a specific platform only:
kotlin {
sourceSets {
androidMain.dependencies {
implementation("io.github.justdeko:kuiver-android:0.4.1")
}
iosMain.dependencies {
implementation("io.github.justdeko:kuiver-iosarm64:0.4.1")
}
// etc.
}
}@Composable
fun MyGraphViewer() {
// Create graph structure
val kuiver = remember {
buildKuiver {
// Add nodes
nodes("A", "B", "C")
// Add edges
edges(
"A" to "B",
"B" to "C",
"A" to "C"
)
}
}
// Configure layout
val layoutConfig = LayoutConfig.Hierarchical(
direction = LayoutDirection.HORIZONTAL
)
// Create viewer state
val viewerState = rememberKuiverViewerState(
initialKuiver = kuiver,
layoutConfig = layoutConfig
)
// Render the graph
KuiverViewer(
state = viewerState,
nodeContent = { node ->
// Customize node appearance
Box(
modifier = Modifier
.size(80.dp)
.background(Color.Blue, CircleShape),
contentAlignment = Alignment.Center
) {
Text(node.id, color = Color.White)
}
},
edgeContent = { edge, from, to ->
// Customize edge appearance
EdgeContent(from, to, color = Color.Gray)
}
)
}Kuiver only handles visual graph structure using node IDs. Store your application data separately
and look it up by node ID in your nodeContent composable.
The edgeContent lambda receives the edge data and start/end positions (from: Offset,
to: Offset). You can use built-in components or create custom rendering with Canvas:
// Using built-in styled edges (automatically styles FORWARD, BACK, CROSS, SELF_LOOP)
edgeContent = { edge, from, to ->
StyledEdgeContent(
edge = edge,
from = from,
to = to,
baseColor = Color.Black,
backEdgeColor = Color(0xFFFF6B6B),
strokeWidth = 3.dp
)
}
// Custom edge rendering
edgeContent = { edge, from, to ->
val density = LocalDensity.current
val path = remember(from, to, density) {
EdgePathFactory.createStraightPath(from, to, density)
}
EdgeCanvas(remember(path, density) { path.boundingRect(density) }) {
drawLine(
color = Color.Blue,
start = path.from,
end = path.pathEndpoint,
strokeWidth = 2.dp.toPx()
)
// Draw custom arrows, labels, etc.
}
}Use EdgeContentWithLabel (or StyledEdgeContent) to display text along an edge. Labels
automatically hide on edges shorter than minEdgeLengthForLabel and can optionally rotate
to follow the edge direction.
edgeContent = { edge, from, to ->
EdgeContentWithLabel(
from = from,
to = to,
label = "my label",
labelPlacement = LabelPlacement.CENTER, // START, CENTER, or END
labelStyle = EdgeLabelStyle(
textColor = Color.Black,
backgroundColor = Color.White.copy(alpha = 0.9f),
fontSize = 12.sp,
rotateWithEdge = false
)
)
}
// or use a custom composable as the label
edgeContent = { edge, from, to ->
EdgeContentWithLabel(
from = from,
to = to,
label = "custom",
labelContent = { text ->
Text(text, color = Color.Red, fontWeight = FontWeight.Bold)
}
)
}StyledEdgeContent also accepts the same label parameters, so you can combine automatic
edge styling with labels in one call.
Kuiver depends on compose runtime + foundation + ui only, so it can't read MaterialTheme
directly. However you can useLocalKuiverColors. Provide it once instead of overriding colors
in every edgeContent lambda:
CompositionLocalProvider(
LocalKuiverColors provides KuiverColors(
edge = MaterialTheme.colorScheme.onSurface,
backEdge = MaterialTheme.colorScheme.tertiary,
labelText = MaterialTheme.colorScheme.onSurface,
labelBackground = MaterialTheme.colorScheme.surface,
),
) {
KuiverViewer(
state = viewerState,
nodeContent = { node -> Text(node.id) },
edgeContent = { edge, from, to -> StyledEdgeContent(edge, from, to) }
)
}Replace the default filled-triangle arrow with any DrawScope lambda via the arrowDrawer
parameter, available on all edge composables:
val circleArrow: ArrowDrawer = { arrowTip, direction, color ->
drawCircle(color = color, radius = 8f, center = arrowTip)
}
edgeContent = { edge, from, to ->
EdgeContent(from, to, arrowDrawer = circleArrow)
}Kuiver automatically measures node dimensions from your nodeContent. You can also specify
dimensions explicitly:
buildKuiver {
// Auto-measured (recommended)
nodes("A")
// Explicit dimensions
addNode(
KuiverNode(
id = "B",
dimensions = NodeDimensions(width = 120.dp, height = 80.dp)
)
)
}Auto-measured nodes are measured while they render, with unbounded constraints, so a node is as large as its content wants to be. The measurement is repeated whenever the content changes size, and the graph is laid out again with the new sizes, so nodes that grow or shrink at runtime keep their spacing. Nodes with explicit dimensions are held to them, and their content is given that much room.
By default, edges point and connect to the node center (with consideration of the node boundaries). For precise control, you can define custom anchor points:
nodeContent = { node ->
Box(modifier = Modifier.size(120.dp, 80.dp).background(Color.Blue)) {
// Define anchors with optional visual indicators
KuiverAnchor(
anchorId = "left",
nodeId = node.id,
modifier = Modifier.align(Alignment.CenterStart)
) {
Box(
Modifier
.size(8.dp)
.background(Color.White, CircleShape)
)
}
KuiverAnchor(
anchorId = "right",
nodeId = node.id,
modifier = Modifier.align(Alignment.CenterEnd)
)
Text("Node ${node.id}", modifier = Modifier.align(Alignment.Center))
}
}
// Reference anchors in edges
buildKuiver {
nodes("A", "B")
edge(
from = "A",
to = "B",
fromAnchor = "right",
toAnchor = "left"
)
}Things to keep in mind:
See ProcessDiagramDemo.kt for a complete example with multiple anchors per side.
Note: The layout algorithms are simple implementations based on established graph layouting techniques. While inspired by academic research, they are not direct ports of published implementations. Expect flaws and suboptimal layouts on complex graphs.
Every length a layout deals with is a Dp: the canvas size in LayoutConfig, the spacing options,
node dimensions, and the DpOffset positions a layout writes to each node. 150.dp of spacing is
therefore the same physical distance on a 1x desktop screen and a 3x phone, and there is no pixel
value anywhere in the graph coordinate space to mix it up with.
Best for directed acyclic graphs (DAGs) and tree structures. Automatically handles cycles by classifying back edges.
val layoutConfig = LayoutConfig.Hierarchical(
direction = LayoutDirection.HORIZONTAL, // or VERTICAL
levelSpacing = 150.dp, // Distance between hierarchy levels
nodeSpacing = 100.dp // Distance between nodes in same level
)Edge Types in Hierarchical Layout:
FORWARD - Edges to descendants (typical parent-child edges)BACK - Edges to ancestors (creates cycles, rendered as dashed by StyledEdgeContent)CROSS - Edges between nodes at similar hierarchy levelsSELF_LOOP - Edges from a node to itselfBest for understanding relationships in general graphs. Creates organic, balanced layouts using physics simulation.
val layoutConfig = LayoutConfig.ForceDirected(
iterations = 200, // Simulation steps (more = better layout, slower)
repulsionStrength = 500f, // How strongly nodes push apart
attractionStrength = 0.02f, // How strongly connected nodes pull together
damping = 0.85f // Velocity damping (stability vs convergence speed)
)You can provide your own layout algorithm using LayoutConfig.Custom. This gives you full
control over node positioning.
// Define a custom circular layout
val circularLayout: LayoutProvider = { kuiver, config ->
val nodesList = kuiver.nodes.values.toList()
val radius = minOf(config.width, config.height) * 0.4f
val centerX = config.width / 2f
val centerY = config.height / 2f
val updatedNodes = nodesList.mapIndexed { index, node ->
val angle = (index.toFloat() / nodesList.size) * 2f * PI.toFloat()
node.copy(
position = DpOffset(
x = centerX + radius * cos(angle),
y = centerY + radius * sin(angle)
)
)
}
buildKuiverWithClassifiedEdges(updatedNodes, kuiver.edges)
}
// Use the custom layout
val layoutConfig = LayoutConfig.Custom(
provider = circularLayout
)Custom Layout Tips:
Kuiver graph and LayoutConfig (use LayoutConfig.Custom)config.width and config.height, both Dp
DpOffset position. Dp multiplies as spacing * count, never count * spacing
buildKuiverWithClassifiedEdges(updatedNodes, kuiver.edges) to construct the resultremember to stabilize your layout function in Compose to avoid unnecessary recompositionsCustomize viewer behavior with KuiverViewerConfig:
KuiverViewer(
state = viewerState,
config = KuiverViewerConfig(
// Visual
showDebugBounds = false, // Show node bounding boxes for debugging
// Viewport
fitToContent = true, // Auto-fit graph to viewport on load
contentPadding = 0.8f, // Fraction of the viewport the graph fills when fitted
// Zoom (applies to gestures, centerGraph() and zoomIn()/zoomOut())
minScale = 0.1f, // Minimum zoom level (10%)
maxScale = 5f, // Maximum zoom level (500%)
zoomStep = 1.2f, // Multiplier applied by zoomIn()/zoomOut()
// Pan
panVelocity = 15f, // Scroll sensitivity, dp per scroll unit.
// Interaction, all off by default
selectionMode = SelectionMode.NONE, // NONE, SINGLE or MULTIPLE
nodeDragEnabled = false, // Drag nodes to reposition them
hoverEnabled = false, // Track the node under the pointer
relayoutPolicy = RelayoutPolicy.KEEP_MANUAL, // What layout does to dragged nodes
// Animations
scaleAnimationSpec = spring( // Zoom animation
dampingRatio = Spring.DampingRatioMediumBouncy,
stiffness = Spring.StiffnessMedium
),
offsetAnimationSpec = spring(), // Pan animation
layoutAnimationSpec = spring(), // Progress of a layout change, shared by nodes and edges
animateInitialPlacement = false,// Whether the very first placement animates too
enterAnimationSpec = null, // animation when the graph is ready, none when null
// Desktop-specific
zoomConditionDesktop = { event -> // When to zoom vs pan on desktop
event.keyboardModifiers.isCtrlPressed
}
),
nodeContent = { node -> /* ... */ },
edgeContent = { edge, from, to -> /* ... */ }
)// Zoom and navigation (animated)
viewerState.zoomIn() // Zoom in by config.zoomStep (default 1.2x)
viewerState.zoomOut() // Zoom out by config.zoomStep
viewerState.centerGraph() // Center and fit graph in viewport
viewerState.centerGraph(animated = false) // Snap without animation
// Direct control, panning in graph dp
viewerState.updateTransform(scale = 1.5f, offset = DpOffset(100.dp, 100.dp))
viewerState.updateTransform(scale = 1.5f, offset = DpOffset(100.dp, 100.dp), animated = true)
// Access current state
val currentScale = viewerState.scale
val currentOffset = viewerState.offset
val isReady = viewerState.hasFittedInitially // true when first auto-fit completeszoomIn(), zoomOut() and centerGraph() read contentPadding, minScale, maxScale and
zoomStep from the KuiverViewerConfig of the KuiverViewer the state is passed to, so they stay
in sync with gestures. updateTransform is unclamped by design — it sets exactly what you ask for.
You can enable hovering and dragging nodes, then respond to them with KuiverInteractionCallbacks:
KuiverViewer(
state = viewerState,
config = KuiverViewerConfig(
selectionMode = SelectionMode.SINGLE,
nodeDragEnabled = true,
hoverEnabled = true
),
callbacks = KuiverInteractionCallbacks(
onNodeClick = { node -> println("clicked ${node.id}") },
onNodeLongPress = { node -> showMenuFor(node) },
onNodeDragEnd = { node, travelled -> println("${node.id} moved by $travelled") },
onCanvasClick = { println("deselected") }
),
nodeContent = { node -> /* ... */ },
edgeContent = { edge, from, to -> StyledEdgeContent(edge, from, to) }
)Additionally, you have KuiverNodeScope with isSelected, isHovered and isDragging:
nodeContent = { node ->
Box(
Modifier
.size(120.dp, 60.dp)
.border(
width = if (isSelected) 3.dp else 1.dp,
color = if (isHovered) MaterialTheme.colorScheme.primary else Color.Gray
)
) { Text(node.id) }
}isHovered is always false on touch, which has no hover.
The same state is readable and writable from viewerState.interaction:
val selected = viewerState.interaction.selectedNodeIds
val hovered = viewerState.interaction.hoveredNodeId
val dragging = viewerState.interaction.isDragging
viewerState.interaction.select("A")
viewerState.interaction.toggleSelection("B")
viewerState.interaction.clearSelection()A drag saves the node's new position into the graph and remembers it as a manual position.
relayoutPolicy decides what the next layout pass does with it:
RelayoutPolicy.KEEP_MANUAL (default) puts dragged nodes back where the user left them and lays
out the rest as usualRelayoutPolicy.RELAYOUT_ALL gives every position back to the algorithm, so a drag survives only
until the graph, the node sizes or the canvas next changeYou can also set and get these positions programmatically:
viewerState.moveNode("A", DpOffset(120.dp, 40.dp)) // absolute, in graph dp
viewerState.moveNodeBy("A", DpOffset(10.dp, 0.dp)) // relative
viewerState.manualPositions
viewerState.clearManualPositions()
viewerState.relayout()Use rememberSaveableKuiverViewerState to preserve zoom/pan across process death.
A Kuiver is immutable. buildKuiver { } is a simple constructor dsl and every change afterwards
hands back a new graph instead of modifying the old one. Two graphs
with the same nodes and edges are equal, so they work as snapshot state and as remember keys.
Derive the new graph and hand it to viewerState.updateKuiver(newKuiver):
val graph = buildKuiver {
nodes("A", "B")
edge("A", "B")
}
// Single changes
val withNode = graph.withNode(KuiverNode("C"))
val withEdge = withNode.withEdge(KuiverEdge("B", "C"))
val trimmed = withEdge.withoutNode("A") // also drops the edges touching A
val unlinked = withEdge.withoutEdge("A", "B")
// Batches, back in the builder
val extended = graph.rebuild {
nodes("C", "D")
edges("B" to "C", "C" to "D")
}
viewerState.updateKuiver(extended)withNode replaces a node that already carries the same id and leaves its edges alone, which is how
you move a node or give it explicit dimensions. withEdge throws if either endpoint is missing from
the graph.
withoutEdge drops an edge from the graph. It takes either endpoints or an edge:
graph.withoutEdge("A", "B") // whatever edge connects them
graph.withoutEdge(someEdgeFromTheGraph) // that exact edgeEach edge composable is a layout node to compose, measure and draw, and every edge recomposes on every frame of a layout animation to pick up its new end points.
Pass edgeStyle instead of edgeContent to draw the whole edge set from one canvas, with
end points resolved in the draw phase:
KuiverViewer(
state = viewerState,
nodeContent = { node -> /* ... */ },
edgeStyle = { edge ->
EdgeStyle.styled(edge, baseColor = Color.Gray) // the StyledEdgeContent look
}
)EdgeStyle has the same parameters as the edge composables:
edgeStyle = { edge ->
EdgeStyle(
color = if (edge.type == EdgeType.BACK) Color.Red else Color.Gray,
strokeWidth = 2.dp,
dashed = edge.type == EdgeType.BACK,
shape = EdgeShape.ORTHOGONAL // AUTO, STRAIGHT, CURVED, ORTHOGONAL, RIGHT_ANGLE
)
}Edges are values rather than composables here, so they cannot hold composable content. No edge labels in this mode.
The edgeStyle lambda also runs while drawing rather than while composing, so it cannot read
LocalKuiverColors itself. KuiverDefaults.edgeStyle() reads the colors in composition and returns
a lambda closing over them:
KuiverViewer(
state = viewerState,
nodeContent = { node -> Text(node.id) },
edgeStyle = KuiverDefaults.edgeStyle()
)val kuiver = buildKuiver {
nodes("A", "B", "C")
edges(
"A" to "B",
"B" to "C"
)
// Check before adding edge that would create a cycle
if (!wouldCreateCycle(from = "C", to = "A")) {
edge("C", "A")
} else {
println("Skipping edge C -> A: would create a cycle")
}
}
// Check existing graph
if (kuiver.hasCycles()) {
val components = kuiver.findStronglyConnectedComponents()
println("Strongly connected components: $components")
}val kuiver = buildKuiver {
nodes("A", "B", "C")
edges(
"A" to "B",
"B" to "C",
"C" to "A" // Back edge (creates cycle)
)
}
// Classify all edges
val edgeTypes = kuiver.classifyAllEdges()
edgeTypes.forEach { (edge, type) ->
println("${edge.fromId} -> ${edge.toId}: $type")
}
// Output:
// A -> B: FORWARD
// B -> C: FORWARD
// C -> A: BACK// For DAGs or graphs with back edges removed
val order = kuiver.getTopologicalOrder()
println("Topological order: $order")
// Useful for dependency resolution, task scheduling, etc.A complete demo app is included in /sample. Open the project in IntelliJ IDEA or Android Studio, sync, and select a run configuration (Desktop/Android/iOS/Web) from the dropdown.
You can also run from the command line:
./gradlew :sample:composeApp:run # DesktopThe Web target is experimental and has known issues.
The library implements several web-specific adjustments to handle browser limitations:
panVelocity defaults to 2f on js/wasmJs (vs 15f on Android, iOS and
desktop) to compensate for higher scroll sensitivity in browserspreloadFont from compose.components.resources (web only) and a
<link rel="preload" as="fetch"> in your index.html
As an alpha release, the public API may change between versions. Breaking changes will be noted in the changelog.
Contributions are welcome! Please see CONTRIBUTING.md for guidelines on:
In mathematics, a quiver is a directed graph in its most general sense.
"K" instead of "Q" for Kotlin. Just pronounce it like quiver: /ˈkwɪvər/
From Wikipedia:
"a quiver is another name for a multidigraph; that is, a directed graph where loops and multiple arrows between two vertices are allowed."
Technically this library is not quite a "true" quiver, as it doesn't support multiple edges between the same two nodes.
ALPHA RELEASE - This library is in early development. The API is subject to change and may contain bugs. Feedback and bug reports are welcome at GitHub Issues.
Kuiver is available on Maven Central.
For multiplatform projects, add to your common source set:
kotlin {
sourceSets {
commonMain.dependencies {
implementation("io.github.justdeko:kuiver:0.4.1")
}
}
}Or for a specific platform only:
kotlin {
sourceSets {
androidMain.dependencies {
implementation("io.github.justdeko:kuiver-android:0.4.1")
}
iosMain.dependencies {
implementation("io.github.justdeko:kuiver-iosarm64:0.4.1")
}
// etc.
}
}@Composable
fun MyGraphViewer() {
// Create graph structure
val kuiver = remember {
buildKuiver {
// Add nodes
nodes("A", "B", "C")
// Add edges
edges(
"A" to "B",
"B" to "C",
"A" to "C"
)
}
}
// Configure layout
val layoutConfig = LayoutConfig.Hierarchical(
direction = LayoutDirection.HORIZONTAL
)
// Create viewer state
val viewerState = rememberKuiverViewerState(
initialKuiver = kuiver,
layoutConfig = layoutConfig
)
// Render the graph
KuiverViewer(
state = viewerState,
nodeContent = { node ->
// Customize node appearance
Box(
modifier = Modifier
.size(80.dp)
.background(Color.Blue, CircleShape),
contentAlignment = Alignment.Center
) {
Text(node.id, color = Color.White)
}
},
edgeContent = { edge, from, to ->
// Customize edge appearance
EdgeContent(from, to, color = Color.Gray)
}
)
}Kuiver only handles visual graph structure using node IDs. Store your application data separately
and look it up by node ID in your nodeContent composable.
The edgeContent lambda receives the edge data and start/end positions (from: Offset,
to: Offset). You can use built-in components or create custom rendering with Canvas:
// Using built-in styled edges (automatically styles FORWARD, BACK, CROSS, SELF_LOOP)
edgeContent = { edge, from, to ->
StyledEdgeContent(
edge = edge,
from = from,
to = to,
baseColor = Color.Black,
backEdgeColor = Color(0xFFFF6B6B),
strokeWidth = 3.dp
)
}
// Custom edge rendering
edgeContent = { edge, from, to ->
val density = LocalDensity.current
val path = remember(from, to, density) {
EdgePathFactory.createStraightPath(from, to, density)
}
EdgeCanvas(remember(path, density) { path.boundingRect(density) }) {
drawLine(
color = Color.Blue,
start = path.from,
end = path.pathEndpoint,
strokeWidth = 2.dp.toPx()
)
// Draw custom arrows, labels, etc.
}
}Use EdgeContentWithLabel (or StyledEdgeContent) to display text along an edge. Labels
automatically hide on edges shorter than minEdgeLengthForLabel and can optionally rotate
to follow the edge direction.
edgeContent = { edge, from, to ->
EdgeContentWithLabel(
from = from,
to = to,
label = "my label",
labelPlacement = LabelPlacement.CENTER, // START, CENTER, or END
labelStyle = EdgeLabelStyle(
textColor = Color.Black,
backgroundColor = Color.White.copy(alpha = 0.9f),
fontSize = 12.sp,
rotateWithEdge = false
)
)
}
// or use a custom composable as the label
edgeContent = { edge, from, to ->
EdgeContentWithLabel(
from = from,
to = to,
label = "custom",
labelContent = { text ->
Text(text, color = Color.Red, fontWeight = FontWeight.Bold)
}
)
}StyledEdgeContent also accepts the same label parameters, so you can combine automatic
edge styling with labels in one call.
Kuiver depends on compose runtime + foundation + ui only, so it can't read MaterialTheme
directly. However you can useLocalKuiverColors. Provide it once instead of overriding colors
in every edgeContent lambda:
CompositionLocalProvider(
LocalKuiverColors provides KuiverColors(
edge = MaterialTheme.colorScheme.onSurface,
backEdge = MaterialTheme.colorScheme.tertiary,
labelText = MaterialTheme.colorScheme.onSurface,
labelBackground = MaterialTheme.colorScheme.surface,
),
) {
KuiverViewer(
state = viewerState,
nodeContent = { node -> Text(node.id) },
edgeContent = { edge, from, to -> StyledEdgeContent(edge, from, to) }
)
}Replace the default filled-triangle arrow with any DrawScope lambda via the arrowDrawer
parameter, available on all edge composables:
val circleArrow: ArrowDrawer = { arrowTip, direction, color ->
drawCircle(color = color, radius = 8f, center = arrowTip)
}
edgeContent = { edge, from, to ->
EdgeContent(from, to, arrowDrawer = circleArrow)
}Kuiver automatically measures node dimensions from your nodeContent. You can also specify
dimensions explicitly:
buildKuiver {
// Auto-measured (recommended)
nodes("A")
// Explicit dimensions
addNode(
KuiverNode(
id = "B",
dimensions = NodeDimensions(width = 120.dp, height = 80.dp)
)
)
}Auto-measured nodes are measured while they render, with unbounded constraints, so a node is as large as its content wants to be. The measurement is repeated whenever the content changes size, and the graph is laid out again with the new sizes, so nodes that grow or shrink at runtime keep their spacing. Nodes with explicit dimensions are held to them, and their content is given that much room.
By default, edges point and connect to the node center (with consideration of the node boundaries). For precise control, you can define custom anchor points:
nodeContent = { node ->
Box(modifier = Modifier.size(120.dp, 80.dp).background(Color.Blue)) {
// Define anchors with optional visual indicators
KuiverAnchor(
anchorId = "left",
nodeId = node.id,
modifier = Modifier.align(Alignment.CenterStart)
) {
Box(
Modifier
.size(8.dp)
.background(Color.White, CircleShape)
)
}
KuiverAnchor(
anchorId = "right",
nodeId = node.id,
modifier = Modifier.align(Alignment.CenterEnd)
)
Text("Node ${node.id}", modifier = Modifier.align(Alignment.Center))
}
}
// Reference anchors in edges
buildKuiver {
nodes("A", "B")
edge(
from = "A",
to = "B",
fromAnchor = "right",
toAnchor = "left"
)
}Things to keep in mind:
See ProcessDiagramDemo.kt for a complete example with multiple anchors per side.
Note: The layout algorithms are simple implementations based on established graph layouting techniques. While inspired by academic research, they are not direct ports of published implementations. Expect flaws and suboptimal layouts on complex graphs.
Every length a layout deals with is a Dp: the canvas size in LayoutConfig, the spacing options,
node dimensions, and the DpOffset positions a layout writes to each node. 150.dp of spacing is
therefore the same physical distance on a 1x desktop screen and a 3x phone, and there is no pixel
value anywhere in the graph coordinate space to mix it up with.
Best for directed acyclic graphs (DAGs) and tree structures. Automatically handles cycles by classifying back edges.
val layoutConfig = LayoutConfig.Hierarchical(
direction = LayoutDirection.HORIZONTAL, // or VERTICAL
levelSpacing = 150.dp, // Distance between hierarchy levels
nodeSpacing = 100.dp // Distance between nodes in same level
)Edge Types in Hierarchical Layout:
FORWARD - Edges to descendants (typical parent-child edges)BACK - Edges to ancestors (creates cycles, rendered as dashed by StyledEdgeContent)CROSS - Edges between nodes at similar hierarchy levelsSELF_LOOP - Edges from a node to itselfBest for understanding relationships in general graphs. Creates organic, balanced layouts using physics simulation.
val layoutConfig = LayoutConfig.ForceDirected(
iterations = 200, // Simulation steps (more = better layout, slower)
repulsionStrength = 500f, // How strongly nodes push apart
attractionStrength = 0.02f, // How strongly connected nodes pull together
damping = 0.85f // Velocity damping (stability vs convergence speed)
)You can provide your own layout algorithm using LayoutConfig.Custom. This gives you full
control over node positioning.
// Define a custom circular layout
val circularLayout: LayoutProvider = { kuiver, config ->
val nodesList = kuiver.nodes.values.toList()
val radius = minOf(config.width, config.height) * 0.4f
val centerX = config.width / 2f
val centerY = config.height / 2f
val updatedNodes = nodesList.mapIndexed { index, node ->
val angle = (index.toFloat() / nodesList.size) * 2f * PI.toFloat()
node.copy(
position = DpOffset(
x = centerX + radius * cos(angle),
y = centerY + radius * sin(angle)
)
)
}
buildKuiverWithClassifiedEdges(updatedNodes, kuiver.edges)
}
// Use the custom layout
val layoutConfig = LayoutConfig.Custom(
provider = circularLayout
)Custom Layout Tips:
Kuiver graph and LayoutConfig (use LayoutConfig.Custom)config.width and config.height, both Dp
DpOffset position. Dp multiplies as spacing * count, never count * spacing
buildKuiverWithClassifiedEdges(updatedNodes, kuiver.edges) to construct the resultremember to stabilize your layout function in Compose to avoid unnecessary recompositionsCustomize viewer behavior with KuiverViewerConfig:
KuiverViewer(
state = viewerState,
config = KuiverViewerConfig(
// Visual
showDebugBounds = false, // Show node bounding boxes for debugging
// Viewport
fitToContent = true, // Auto-fit graph to viewport on load
contentPadding = 0.8f, // Fraction of the viewport the graph fills when fitted
// Zoom (applies to gestures, centerGraph() and zoomIn()/zoomOut())
minScale = 0.1f, // Minimum zoom level (10%)
maxScale = 5f, // Maximum zoom level (500%)
zoomStep = 1.2f, // Multiplier applied by zoomIn()/zoomOut()
// Pan
panVelocity = 15f, // Scroll sensitivity, dp per scroll unit.
// Interaction, all off by default
selectionMode = SelectionMode.NONE, // NONE, SINGLE or MULTIPLE
nodeDragEnabled = false, // Drag nodes to reposition them
hoverEnabled = false, // Track the node under the pointer
relayoutPolicy = RelayoutPolicy.KEEP_MANUAL, // What layout does to dragged nodes
// Animations
scaleAnimationSpec = spring( // Zoom animation
dampingRatio = Spring.DampingRatioMediumBouncy,
stiffness = Spring.StiffnessMedium
),
offsetAnimationSpec = spring(), // Pan animation
layoutAnimationSpec = spring(), // Progress of a layout change, shared by nodes and edges
animateInitialPlacement = false,// Whether the very first placement animates too
enterAnimationSpec = null, // animation when the graph is ready, none when null
// Desktop-specific
zoomConditionDesktop = { event -> // When to zoom vs pan on desktop
event.keyboardModifiers.isCtrlPressed
}
),
nodeContent = { node -> /* ... */ },
edgeContent = { edge, from, to -> /* ... */ }
)// Zoom and navigation (animated)
viewerState.zoomIn() // Zoom in by config.zoomStep (default 1.2x)
viewerState.zoomOut() // Zoom out by config.zoomStep
viewerState.centerGraph() // Center and fit graph in viewport
viewerState.centerGraph(animated = false) // Snap without animation
// Direct control, panning in graph dp
viewerState.updateTransform(scale = 1.5f, offset = DpOffset(100.dp, 100.dp))
viewerState.updateTransform(scale = 1.5f, offset = DpOffset(100.dp, 100.dp), animated = true)
// Access current state
val currentScale = viewerState.scale
val currentOffset = viewerState.offset
val isReady = viewerState.hasFittedInitially // true when first auto-fit completeszoomIn(), zoomOut() and centerGraph() read contentPadding, minScale, maxScale and
zoomStep from the KuiverViewerConfig of the KuiverViewer the state is passed to, so they stay
in sync with gestures. updateTransform is unclamped by design — it sets exactly what you ask for.
You can enable hovering and dragging nodes, then respond to them with KuiverInteractionCallbacks:
KuiverViewer(
state = viewerState,
config = KuiverViewerConfig(
selectionMode = SelectionMode.SINGLE,
nodeDragEnabled = true,
hoverEnabled = true
),
callbacks = KuiverInteractionCallbacks(
onNodeClick = { node -> println("clicked ${node.id}") },
onNodeLongPress = { node -> showMenuFor(node) },
onNodeDragEnd = { node, travelled -> println("${node.id} moved by $travelled") },
onCanvasClick = { println("deselected") }
),
nodeContent = { node -> /* ... */ },
edgeContent = { edge, from, to -> StyledEdgeContent(edge, from, to) }
)Additionally, you have KuiverNodeScope with isSelected, isHovered and isDragging:
nodeContent = { node ->
Box(
Modifier
.size(120.dp, 60.dp)
.border(
width = if (isSelected) 3.dp else 1.dp,
color = if (isHovered) MaterialTheme.colorScheme.primary else Color.Gray
)
) { Text(node.id) }
}isHovered is always false on touch, which has no hover.
The same state is readable and writable from viewerState.interaction:
val selected = viewerState.interaction.selectedNodeIds
val hovered = viewerState.interaction.hoveredNodeId
val dragging = viewerState.interaction.isDragging
viewerState.interaction.select("A")
viewerState.interaction.toggleSelection("B")
viewerState.interaction.clearSelection()A drag saves the node's new position into the graph and remembers it as a manual position.
relayoutPolicy decides what the next layout pass does with it:
RelayoutPolicy.KEEP_MANUAL (default) puts dragged nodes back where the user left them and lays
out the rest as usualRelayoutPolicy.RELAYOUT_ALL gives every position back to the algorithm, so a drag survives only
until the graph, the node sizes or the canvas next changeYou can also set and get these positions programmatically:
viewerState.moveNode("A", DpOffset(120.dp, 40.dp)) // absolute, in graph dp
viewerState.moveNodeBy("A", DpOffset(10.dp, 0.dp)) // relative
viewerState.manualPositions
viewerState.clearManualPositions()
viewerState.relayout()Use rememberSaveableKuiverViewerState to preserve zoom/pan across process death.
A Kuiver is immutable. buildKuiver { } is a simple constructor dsl and every change afterwards
hands back a new graph instead of modifying the old one. Two graphs
with the same nodes and edges are equal, so they work as snapshot state and as remember keys.
Derive the new graph and hand it to viewerState.updateKuiver(newKuiver):
val graph = buildKuiver {
nodes("A", "B")
edge("A", "B")
}
// Single changes
val withNode = graph.withNode(KuiverNode("C"))
val withEdge = withNode.withEdge(KuiverEdge("B", "C"))
val trimmed = withEdge.withoutNode("A") // also drops the edges touching A
val unlinked = withEdge.withoutEdge("A", "B")
// Batches, back in the builder
val extended = graph.rebuild {
nodes("C", "D")
edges("B" to "C", "C" to "D")
}
viewerState.updateKuiver(extended)withNode replaces a node that already carries the same id and leaves its edges alone, which is how
you move a node or give it explicit dimensions. withEdge throws if either endpoint is missing from
the graph.
withoutEdge drops an edge from the graph. It takes either endpoints or an edge:
graph.withoutEdge("A", "B") // whatever edge connects them
graph.withoutEdge(someEdgeFromTheGraph) // that exact edgeEach edge composable is a layout node to compose, measure and draw, and every edge recomposes on every frame of a layout animation to pick up its new end points.
Pass edgeStyle instead of edgeContent to draw the whole edge set from one canvas, with
end points resolved in the draw phase:
KuiverViewer(
state = viewerState,
nodeContent = { node -> /* ... */ },
edgeStyle = { edge ->
EdgeStyle.styled(edge, baseColor = Color.Gray) // the StyledEdgeContent look
}
)EdgeStyle has the same parameters as the edge composables:
edgeStyle = { edge ->
EdgeStyle(
color = if (edge.type == EdgeType.BACK) Color.Red else Color.Gray,
strokeWidth = 2.dp,
dashed = edge.type == EdgeType.BACK,
shape = EdgeShape.ORTHOGONAL // AUTO, STRAIGHT, CURVED, ORTHOGONAL, RIGHT_ANGLE
)
}Edges are values rather than composables here, so they cannot hold composable content. No edge labels in this mode.
The edgeStyle lambda also runs while drawing rather than while composing, so it cannot read
LocalKuiverColors itself. KuiverDefaults.edgeStyle() reads the colors in composition and returns
a lambda closing over them:
KuiverViewer(
state = viewerState,
nodeContent = { node -> Text(node.id) },
edgeStyle = KuiverDefaults.edgeStyle()
)val kuiver = buildKuiver {
nodes("A", "B", "C")
edges(
"A" to "B",
"B" to "C"
)
// Check before adding edge that would create a cycle
if (!wouldCreateCycle(from = "C", to = "A")) {
edge("C", "A")
} else {
println("Skipping edge C -> A: would create a cycle")
}
}
// Check existing graph
if (kuiver.hasCycles()) {
val components = kuiver.findStronglyConnectedComponents()
println("Strongly connected components: $components")
}val kuiver = buildKuiver {
nodes("A", "B", "C")
edges(
"A" to "B",
"B" to "C",
"C" to "A" // Back edge (creates cycle)
)
}
// Classify all edges
val edgeTypes = kuiver.classifyAllEdges()
edgeTypes.forEach { (edge, type) ->
println("${edge.fromId} -> ${edge.toId}: $type")
}
// Output:
// A -> B: FORWARD
// B -> C: FORWARD
// C -> A: BACK// For DAGs or graphs with back edges removed
val order = kuiver.getTopologicalOrder()
println("Topological order: $order")

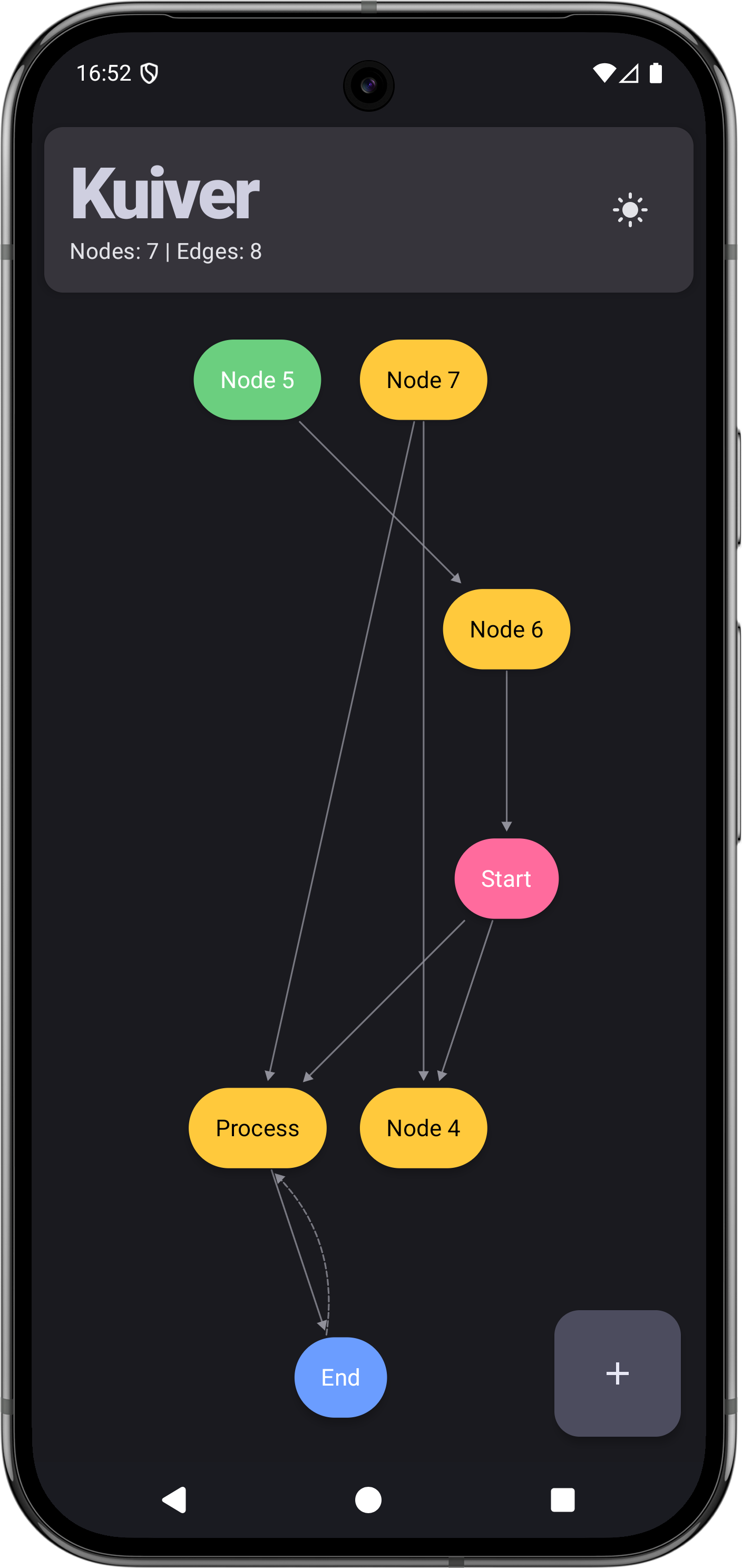

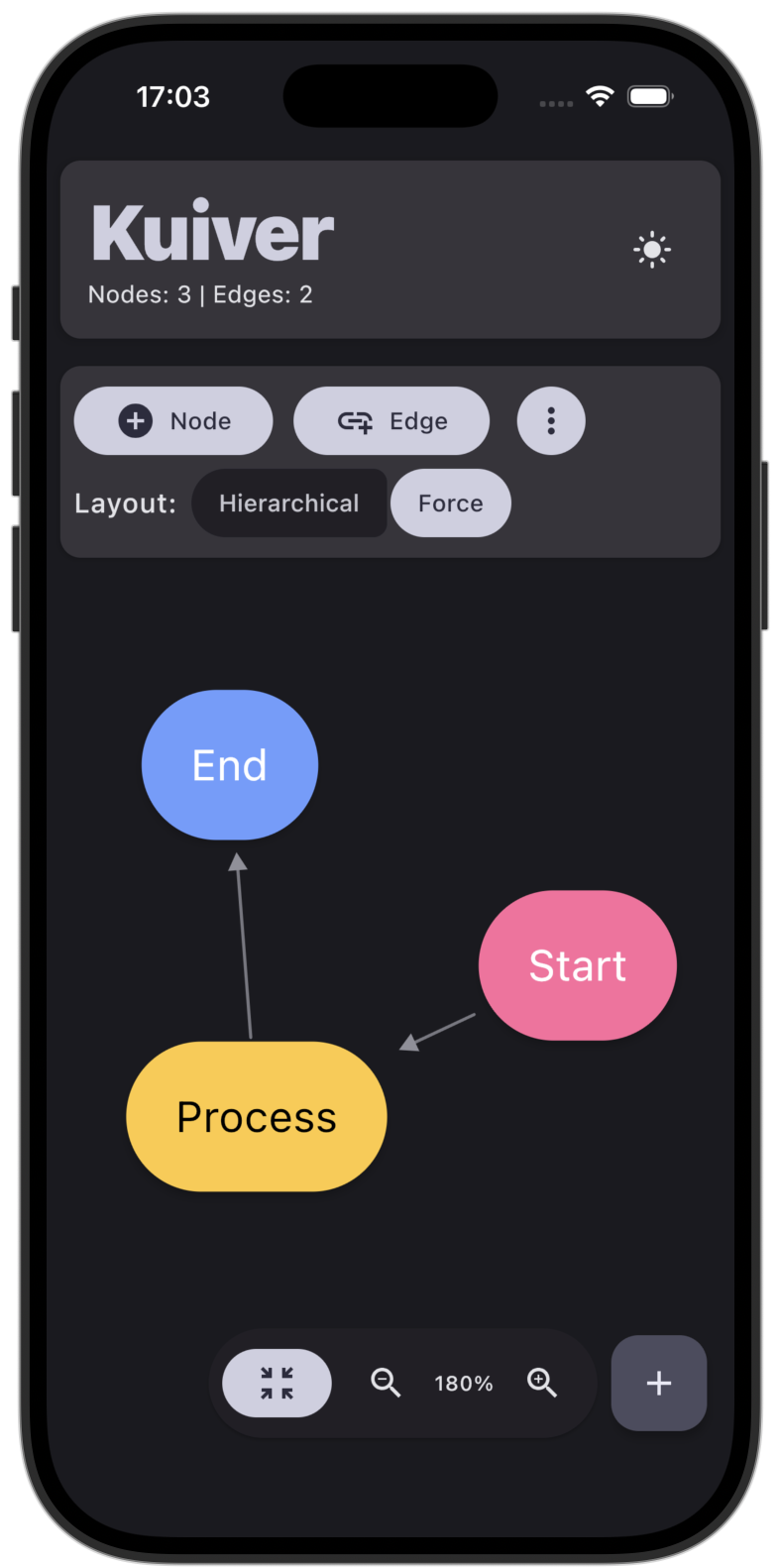

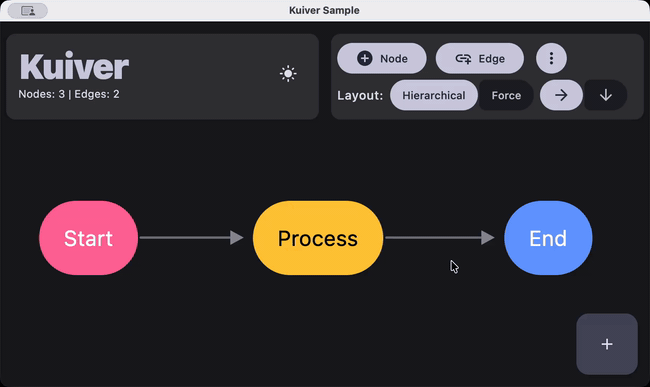

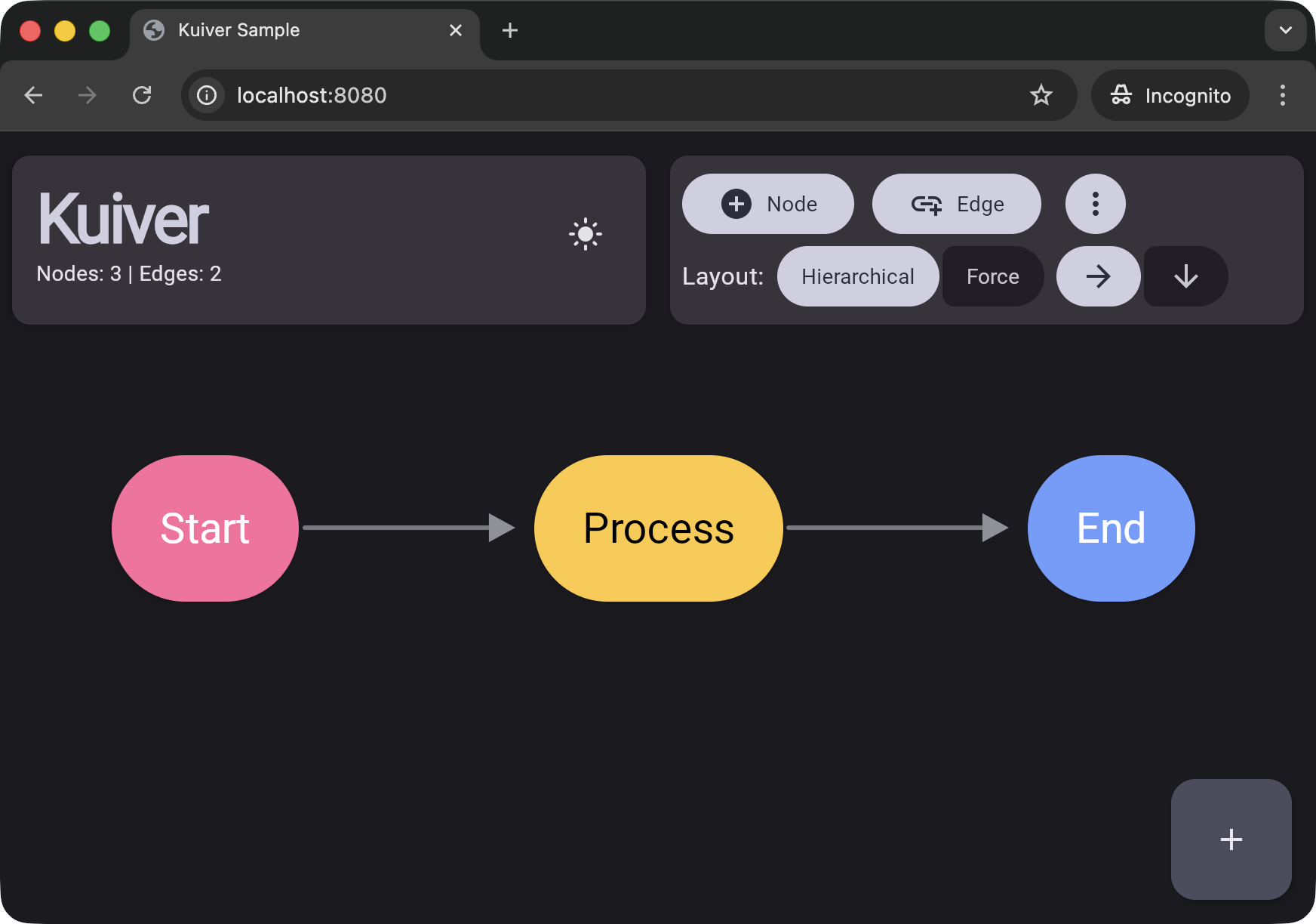

// Useful for dependency resolution, task scheduling, etc.A complete demo app is included in /sample. Open the project in IntelliJ IDEA or Android Studio, sync, and select a run configuration (Desktop/Android/iOS/Web) from the dropdown.
You can also run from the command line:
./gradlew :sample:composeApp:run # DesktopThe Web target is experimental and has known issues.
The library implements several web-specific adjustments to handle browser limitations:
panVelocity defaults to 2f on js/wasmJs (vs 15f on Android, iOS and
desktop) to compensate for higher scroll sensitivity in browserspreloadFont from compose.components.resources (web only) and a
<link rel="preload" as="fetch"> in your index.html
As an alpha release, the public API may change between versions. Breaking changes will be noted in the changelog.
Contributions are welcome! Please see CONTRIBUTING.md for guidelines on:
In mathematics, a quiver is a directed graph in its most general sense.
"K" instead of "Q" for Kotlin. Just pronounce it like quiver: /ˈkwɪvər/
From Wikipedia:
"a quiver is another name for a multidigraph; that is, a directed graph where loops and multiple arrows between two vertices are allowed."
Technically this library is not quite a "true" quiver, as it doesn't support multiple edges between the same two nodes.
