A customizable Liquid Glass effect library for Compose Multiplatform.

This fork is maintained by koai-dev, based on Kyant0's original project.

The publication coordinates for this fork are io.github.koai-dev:backdrop:2.0.1. Once this version has been published to Maven Central, add it to your dependencies:

implementation("io.github.koai-dev:backdrop:2.0.1")

The Kotlin and Android namespace is com.koaidev.backdrop. Maven coordinates retain the GitHub account's hyphen (koai-dev), while source packages use koaidev. Existing imports from com.kyant.backdrop must be updated to com.koaidev.backdrop.

Upstream documentation

The backdrop library includes reusable Liquid Glass components in com.koaidev.backdrop.components:

• LiquidButton
• LiquidToggle
• LiquidSlider
• LiquidBottomTabs
• LiquidBottomTab

Import the components directly from the library; their gesture, animation, and highlight helpers are included internally, without a dependency on the catalog app.

import androidx.compose.foundation.text.BasicText
import com.koaidev.backdrop.components.LiquidButton

LiquidButton(onClick = { /* Handle click */ }, backdrop = backdrop) {
    BasicText("Continue")
}

The defaults retain the catalog appearance. Use the component parameters for internal geometry and styling, and Modifier for outer sizing, placement, and padding.

LiquidButton uses a minimum height of 48.dp, so taller content can grow the button. An explicit caller size such as Modifier.height(40.dp) takes precedence over that minimum. The tab indicator and its content backdrop derive their height from the measured bar height minus twice contentPadding; each tab uses an equal share of the remaining width. The toggle derives thumb travel from its measured track width, thumb width, and padding. A constrained toggle limits its thumb size to fit the available track.

Unspecified accent, track, container, and indicator colors follow the system light/dark theme. Use Color.Transparent for an explicitly transparent surface. Thumb colors default to white and fade with the existing glass animation. The animation and optical effect constants remain internal to keep the public API focused on UI customization.

import androidx.compose.foundation.layout.PaddingValues
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.ui.unit.dp

LiquidButton(
    onClick = { /* Handle click */ },
    backdrop = backdrop,
    shape = RoundedCornerShape(16.dp),
    minHeight = 56.dp,
    contentPadding = PaddingValues(horizontal = 24.dp, vertical = 8.dp)
) {
    BasicText("Continue")
}

LiquidBottomTabs(
    selectedTabIndex = { selectedIndex },
    onTabSelected = { selectedIndex = it },
    backdrop = backdrop,
    tabsCount = 3,
    height = 80.dp,
    contentPadding = 6.dp,
    shape = RoundedCornerShape(24.dp),
    indicatorShape = RoundedCornerShape(18.dp)
) {
    repeat(3) { index ->
        LiquidBottomTab(
            onClick = { selectedIndex = index },
            shape = RoundedCornerShape(18.dp)
        ) {
            BasicText("Tab ${index + 1}")
        }
    }
}

Tab bars and sliders need a bounded, positive width. Tab content must contain exactly tabsCount equally weighted items. Toggle thumb dimensions must fit its configured track, and horizontal padding must leave room for travel. Slider ranges must be finite and increasing, with a positive visibilityThreshold.

The backdrop module publishes all configured Kotlin Multiplatform targets under io.github.koai-dev, with POM metadata pointing to this fork. The publishing plugin configures source and Javadoc artifacts, and publication signing is enabled.

1. Verify the io.github.koai-dev namespace in the Central Portal, following Sonatype's namespace instructions.

2. Provide the Central Portal user-token credentials through ORG_GRADLE_PROJECT_mavenCentralUsername and ORG_GRADLE_PROJECT_mavenCentralPassword.

3. For local signing, create a GPG key and set the following in your private ~/.gradle/gradle.properties (replace the executable path and fingerprint):

   signing.gnupg.executable=/opt/homebrew/bin/gpg
   signing.gnupg.keyName=YOUR_FULL_KEY_FINGERPRINT

   Gradle will use the local GPG keyring and gpg-agent for the passphrase. Local signing tasks run one at a time. On macOS, install pinentry-mac with Homebrew and set pinentry-program /opt/homebrew/bin/pinentry-mac in your private ~/.gnupg/gpg-agent.conf (adjust the path for your Homebrew install). Reload the agent with gpgconf --reload gpg-agent; it will show a native passphrase dialog when the key needs unlocking. For CI, supply the ASCII-armored key through ORG_GRADLE_PROJECT_signingInMemoryKey and its password through ORG_GRADLE_PROJECT_signingInMemoryKeyPassword, when applicable. An in-memory key takes precedence over the local keyring configuration.

4. Make the matching public key available on a keyserver supported by Sonatype:

   gpg --keyserver hkps://keyserver.ubuntu.com --send-keys YOUR_FULL_KEY_FINGERPRINT

Use environment variables or your private ~/.gradle/gradle.properties for these settings. See the publishing plugin's credential configuration.

Upload the publications for validation and manual release in the Central Portal:

bash ./gradlew :backdrop:publishToMavenCentral

After the deployment passes validation, publish it from the Central Portal. For an automatic upload and release, use:

bash ./gradlew :backdrop:publishAndReleaseToMavenCentral

The external io.github.kyant0:shapes dependency and its com.kyant.shapes package remain unchanged. Original copyright and Apache 2.0 license notices are retained.

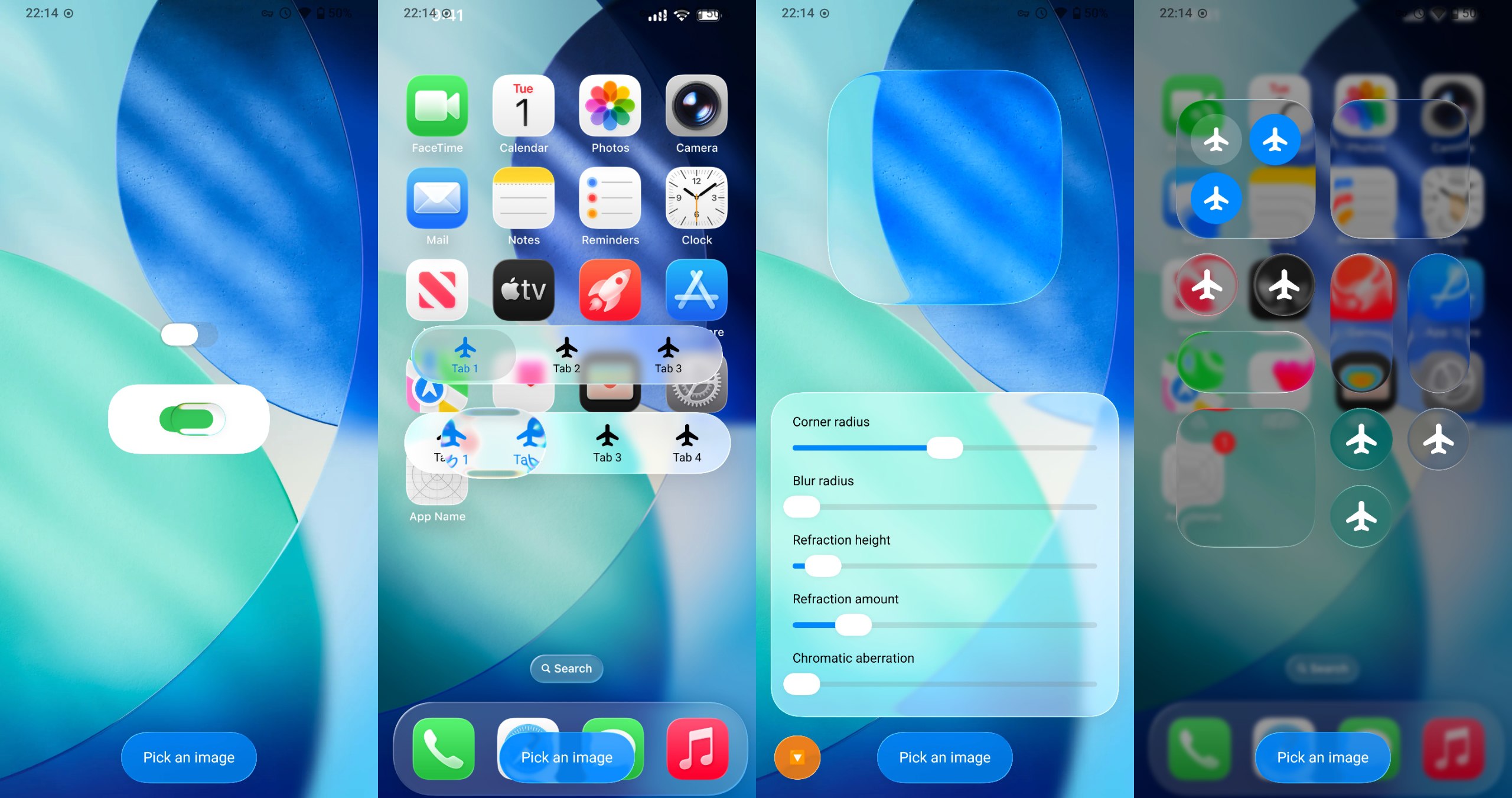

• Backdrop Catalog
