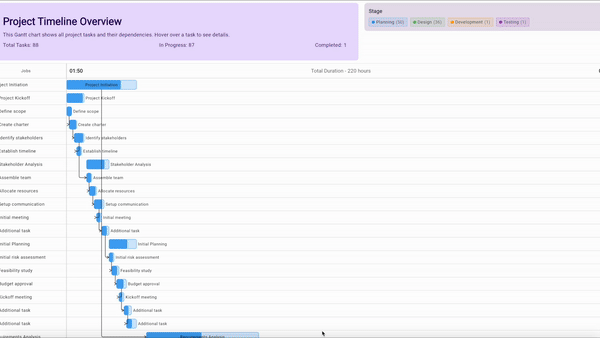

Interactive Gantt chart visualization with customizable tasks, dependencies, and progress indicators. Includes tooltips for task information and plans for additional features like timeline zoom and dark mode.
A modern Gantt chart implementation using Compose Multiplatform, targeting Wasm/JS with Kotlin.
// In your build.gradle.kts
dependencies {
implementation("io.github.kotlinlabs:ganttly:$version")
}fun main() {
CanvasBasedWindow("Ganttastic", canvasElementId = "ganttasticCanvas") {
val ganttState = remember { createSampleNestedGanttState() }
val customTheme = ganttTheme {
naming {
taskListHeader = "Jobs"
taskGroups = "Stage"
noGroupsMessage = "No stages found"
}
}
GanttChartView(
state = ganttState,
headerContent = {
// Optional header content that collapses on scroll
Column(modifier = Modifier.fillMaxWidth().padding(16.dp)) {
Text(
"Project Timeline Overview",
style = MaterialTheme.typography.headlineMedium,
fontWeight = FontWeight.Bold
)
// Add your custom header content here
}
},
ganttTheme = customTheme
)
}
}Ganttly provides a comprehensive theme system that allows you to customize colors, styles, typography, and naming.
val customTheme = ganttTheme {
colors {
// Define group color palette (used for automatic assignment)
groupColorPalette = listOf(
Color(0xFF2196F3), // Blue
Color(0xFF4CAF50), // Green
Color(0xFFFF9800) // Orange
)
// Explicit group color mapping
groupColorScheme {
"Development" to Color.Blue
"Testing" to Color.Green
"Deployment" to Color.Orange
}
// Override default colors
taskBarBackground = { baseColor, isHovered ->
if (isHovered) baseColor.copy(alpha = 0.8f) else baseColor.copy(alpha = 0.6f)
}
taskBarBorder = { baseColor, isHovered ->
baseColor.copy(alpha = if (isHovered) 0.9f else 0.7f)
}
taskBarProgress = { baseColor, isHovered ->
baseColor.copy(alpha = if (isHovered) 0.9f else 0.8f)
}
dependencyArrowColor = { baseColor ->
baseColor.copy(alpha = 0.7f)
}
taskBarBorder = { baseColor, isHovered ->
baseColor.copy(alpha = if (isHovered) 0.9f else 0.7f)
}
taskBarProgress = { baseColor, isHovered ->
baseColor.copy(alpha = if (isHovered) 0.9f else 0.8f)
}
dependencyArrowColor = { baseColor ->
baseColor.copy(alpha = 0.7f)
}
}
typography {
taskBarTextStyle = TextStyle(
fontFamily = FontFamily.Monospace,
fontSize = 12.sp
)
}
naming {
taskListHeader = "Sprint Tasks"
taskGroups = "Team"
}
}val customTheme = ganttTheme {
styles {
// Task bar styling
taskBarHeight = 0.7f
taskBarCornerRadius = 0.25f
taskBarTextPadding = 4.dp
// Dependency arrow styling
dependencyArrowWidth = 1.5.dp
dependencyArrowHeadSize = 7.dp
dependencyArrowCornerRadius = 4.dp
// Row and border styling
rowBorderWidth = 0.5.dp
timelineHeaderBorderWidth = 0.5.dp
// Group tag styling
groupTagShape = 4.0f
groupTagBorderWidth = 1.dp
groupTagPadding = 8.dp
// Show/hide task progress
showTaskProgress = true
}
}val customTheme = ganttTheme {
typography {
// Task bar text
taskBarTextStyle = TextStyle(
fontFamily = FontFamily.SansSerif,
fontSize = 12.sp
)
// Timeline header text
timelineHeaderTextStyle = TextStyle(
fontFamily = FontFamily.Monospace,
fontSize = 14.sp,
fontWeight = FontWeight.Bold
)
// Tooltip text
tooltipTitleStyle = TextStyle(
fontFamily = FontFamily.Serif,
fontSize = 16.sp,
fontWeight = FontWeight.Bold
)
tooltipBodyStyle = TextStyle(
fontSize = 14.sp
)
// Task list text
taskListTextStyle = TextStyle(
fontSize = 14.sp
)
// Group header text
groupHeaderTextStyle = TextStyle(
fontSize = 14.sp
)
}
}val customTheme = ganttTheme {
naming {
// Change text labels
taskListHeader = "Activities"
taskGroups = "Department"
noGroupsMessage = "No departments assigned"
subtasks = "Sub-activities"
}
}val customTheme = ganttTheme {
colors {
groupColorScheme {
"Backend" to Color(0xFF2196F3)
"Frontend" to Color(0xFF4CAF50)
"DevOps" to Color(0xFFFF9800)
}
}
styles {
taskBarHeight = 0.8f
showTaskProgress = true
}
typography {
taskBarTextStyle = TextStyle(
fontFamily = FontFamily.Monospace,
fontSize = 12.sp
)
}
naming {
taskListHeader = "Sprint Tasks"
taskGroups = "Team"
}
}
GanttChartView(
state = ganttState,
ganttTheme = customTheme
)import kotlinx.datetime.*
import kotlin.time.Duration.Companion.hours
val now = Clock.System.now().toLocalDateTime(TimeZone.UTC)
// Simple task
val task = GanttTask(
id = "task1",
name = "Design Phase",
startDate = now,
duration = 5.hours,
progress = 0.5f,
group = "Development", // Optional grouping
url = "https://example.com" // Optional clickable URL in tooltip
)val projectTask = GanttTask.createParentTask(
id = "project",
name = "Full Project",
startDate = now,
group = "Development",
children = listOf(
// This is a nested parent task
GanttTask.createParentTask(
id = "phase1",
name = "Phase 1",
startDate = now,
group = "Development",
children = listOf(
// Child tasks of Phase 1
GanttTask(
id = "task1.1",
name = "Task 1.1",
startDate = now,
duration = 2.hours,
progress = 0.5f
),
GanttTask(
id = "task1.2",
name = "Task 1.2",
startDate = now.plus(2.hours),
duration = 3.hours,
progress = 0.3f,
dependencies = listOf("task1.1") // Task dependencies
)
),
progress = 0.4f
),
// Another nested parent task
GanttTask.createParentTask(
id = "phase2",
name = "Phase 2",
startDate = now.plus(5.hours),
group = "Testing",
children = listOf(
// Child tasks of Phase 2
GanttTask(
id = "task2.1",
name = "Task 2.1",
startDate = now.plus(5.hours),
duration = 4.hours,
progress = 0.0f,
dependencies = listOf("task1.2") // Depends on task from Phase 1
)
),
progress = 0.0f
)
),
progress = 0.2f
)// Tasks can depend on other tasks
val task1 = GanttTask(
id = "backend",
name = "Backend Development",
startDate = now,
duration = 10.hours
)
val task2 = GanttTask(
id = "frontend",
name = "Frontend Development",
startDate = now.plus(10.hours),
duration = 8.hours,
dependencies = listOf("backend") // Depends on backend task
)
val task3 = GanttTask(
id = "testing",
name = "Integration Testing",
startDate = now.plus(18.hours),
duration = 5.hours,
dependencies = listOf("backend", "frontend") // Depends on both
)val ganttState = remember {
GanttChartState(
tasks = listOf(task1, task2, task3, projectTask),
enableSmartOrdering = true // Automatically orders tasks by dependencies
)
}Ganttastic is built with:
Contributions are welcome! Please feel free to submit a Pull Request.
git checkout -b feature/amazing-feature)git commit -m 'Add some amazing feature')git push origin feature/amazing-feature)Please make sure to update tests as appropriate and adhere to the existing coding style.
This project is licensed under the MIT License - see the LICENSE file for details.
You can add custom content that appears above the Gantt chart and collapses on scroll:
GanttChartView(
state = ganttState,
headerContent = {
Column(modifier = Modifier.fillMaxWidth().padding(16.dp)) {
Text(
"Project Timeline Overview",
style = MaterialTheme.typography.headlineMedium,
fontWeight = FontWeight.Bold
)
// Add group info header
GroupInfoHeader(
groupInfo = ganttState.getGroupColorMapping(),
taskCountProvider = { group ->
ganttState.displayTasks.count { it.group == group }
}
)
}
}
)Enable smart ordering to automatically arrange tasks based on dependencies:
val ganttState = GanttChartState(
tasks = tasks,
enableSmartOrdering = true
)GanttChartView(
state = ganttState,
taskListWidth = 250.dp,
rowHeight = 40.dp,
headerHeight = 50.dp,
showTaskList = true // Toggle task list visibility
)Project Link: https://github.com/kotlinlabs/ganttastic
