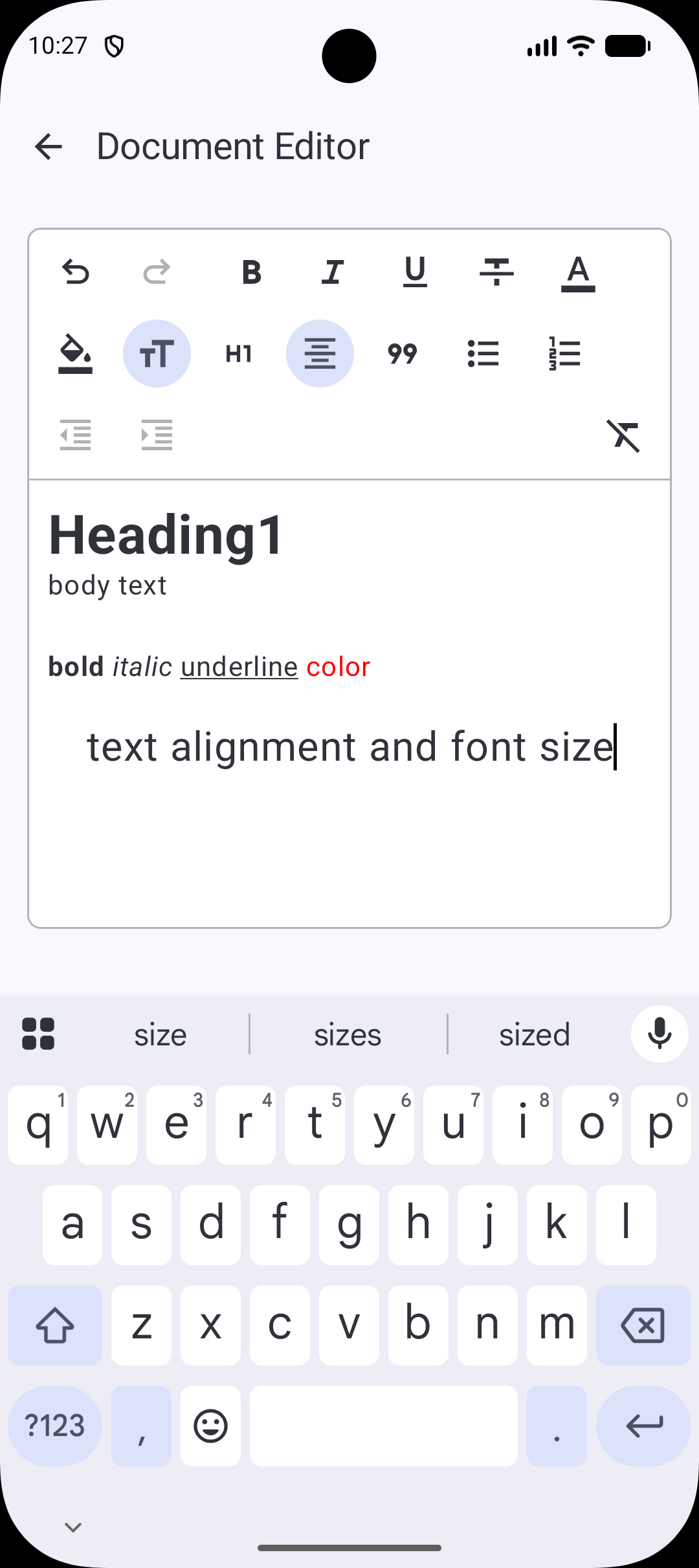

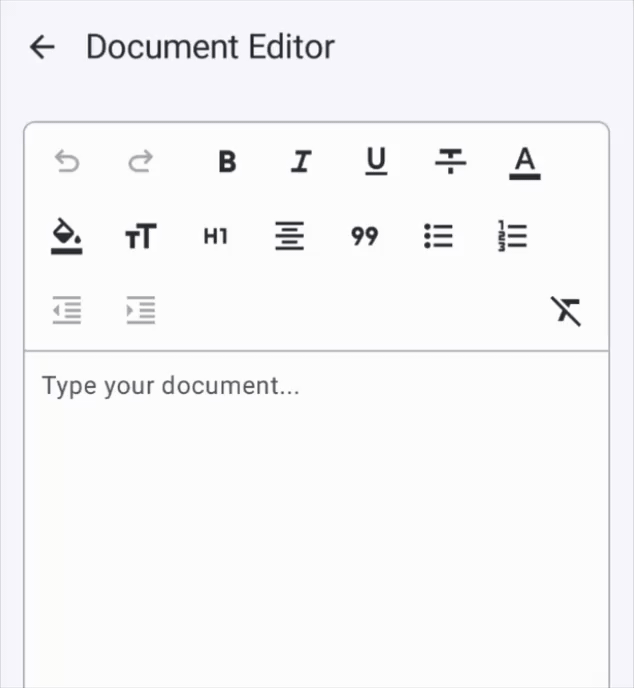

Arranger - Type-safe Rich Text Editor Engine for Compose Multiplatform

Arranger is a declarative, type-safe rich text editor engine and UI ecosystem for Compose Multiplatform. Think of Arranger as the foundational framework (similar to ProseMirror or Lexical) for building full-featured, modern text editing experiences on Compose—providing out-of-the-box paragraph formatting, dynamic enter-key strategies, semantic attribute querying, atomic undo/redo, and upcoming Markdown/WYSIWYG interoperability.

[!WARNING] Work In Progress: This library is currently under active development. APIs are unstable and subject to change without notice. We highly welcome your feedback, feature requests, and bug reports via GitHub Issues!

Supported Platforms

Platform	Support Status	Target
Android	✅ Supported	API Level 26+
Desktop (JVM)	✅ Supported	macOS, Windows, Linux
iOS	✅ Supported	-
Web	✅ Supported	WasmJs

Requirements

Kotlin 2.4.10+

Core Features

🛡️ Type-Safe Custom Attributes: Define and apply UI-specific styles (like SpanStyle) and domain-specific attributes (e.g., @Mention, #Hashtag, LinkKey) with full compile-time safety.
⚡ High-Level Editor Behaviors: Built-in paragraph formatting (Headings, Blockquotes, Alignments, Bullet & Ordered Lists), dynamic enter-key strategies, and robust Undo/Redo history tracking.
🔄 Declarative & Type-Safe Mutation DSL: Atomically mutate text and apply rich attributes within a type-safe builder DSL, eliminating manual index calculations and ensuring synchronized state.
🔍 Semantic "Runs": Treat text not just as characters, but as "Runs" (chunks of text with identical attributes) for semantic iteration, searching, and batch editing.
🌐 Markdown & HTML Interoperability: Bi-directional import/export converters between RichString and Markdown / HTML representations (:richtext-markdown, :richtext-html).
🧩 Native Compose Multiplatform Integration: Elegantly separate headless core state management (RichTextState) and UI rendering (RichTextEditor) across Android, iOS, Desktop, and Web.

Why Arranger?

While Compose 1.12+ provides fundamental primitives (TextField, addStyle), building a production-grade rich text editor (such as Notion, Bear, or Slack) requires a higher-level engine to orchestrate complex editing interactions. Arranger delivers that complete editor framework.

1. Declarative & Type-Safe Mutation DSL

Standard text components require manual index math and string concatenation. Arranger provides a declarative, type-safe builder DSL to atomically mutate text and apply formatting attributes in a single synchronized operation:

// Arranger: Declarative and type-safe text mutation DSL
state.edit {
    insert(index = textLength, text = "New Section") {
        bold()
        headingLevel(HeadingLevel.H2)
    }
}

2. Out-of-the-Box Editor Behaviors

Building an intuitive editing experience requires orchestrating multi-step formatting rules. Arranger comes with batteries included:

Smart Enter Key Handling: EnterKeyStrategy automatically manages list continuations, outdenting, and heading resets on newlines.
Dynamic List Marker Resolution: Automated nested bullet markers and sequence numbering (ListMarkerResolver).

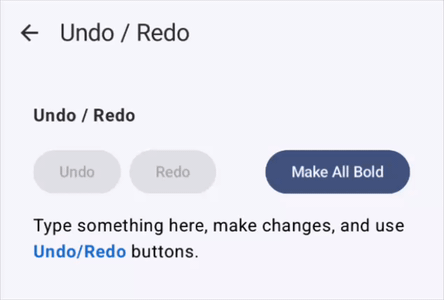

Atomic Undo / Redo: Full undo/redo stack tracking both text mutations and formatting changes seamlessly.

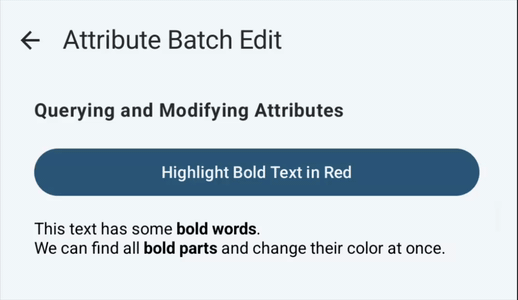

3. Semantic Attribute Search via "Runs"

Inspired by SwiftUI's AttributedString.Runs, Arranger treats text as semantic chunks. You can easily find and batch-edit specific attributes without complex regex or index tracking.

// Arranger: Semantic iteration over attributes via "Runs"
state.edit {
    // Find all chunks of text that are Bold, and turn them Red at once
    val boldRuns = state.richString.runs(BoldKey)
    editAll(boldRuns) {
        textColor(Color.Red)
    }
}

Installation

Arranger is published to Maven Central.

For Compose Multiplatform (KMP) Projects

Add the dependencies to your commonMain source set in build.gradle.kts:

kotlin {
    sourceSets {
        commonMain.dependencies {
            // For Compose UI integration (RichTextEditor).
            // This automatically includes the core 'arranger-richtext' module.
            implementation("dev.mkeeda.arranger:arranger-richtext-editor:0.4.0-alpha02")

            // Optional: Markdown bi-directional conversion support
            implementation("dev.mkeeda.arranger:arranger-richtext-markdown:0.4.0-alpha02")

            // Optional: HTML bi-directional conversion support
            implementation("dev.mkeeda.arranger:arranger-richtext-html:0.4.0-alpha02")

            // Optional: If you only need the core data structures without Compose UI:
            // implementation("dev.mkeeda.arranger:arranger-richtext:0.4.0-alpha02")
        }
    }
}

For Android-only Projects

Add the dependencies to your top-level dependencies block in build.gradle.kts:

dependencies {
    implementation("dev.mkeeda.arranger:arranger-richtext-editor:0.4.0-alpha02")
    implementation("dev.mkeeda.arranger:arranger-richtext-markdown:0.4.0-alpha02")
    implementation("dev.mkeeda.arranger:arranger-richtext-html:0.4.0-alpha02")
}

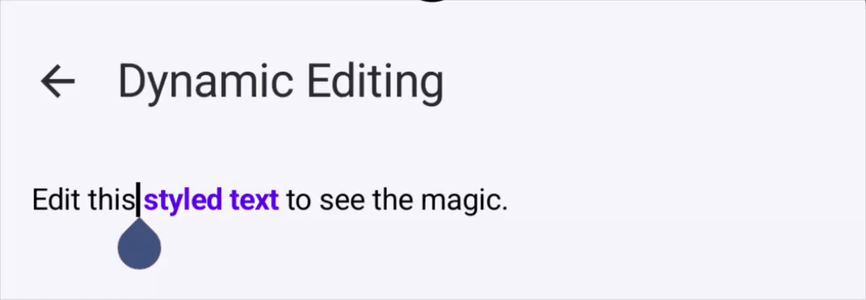

Dynamic Editing (Getting Started)

Arranger's true power lies in its ability to handle dynamic text input gracefully. When a user types in the RichTextEditor—or when you programmatically insert text into RichTextState—existing spans are automatically maintained and shifted. You don't need to write any custom logic to preserve formatting.

@Composable
fun DynamicEditingSample(modifier: Modifier = Modifier) {
    val initialText = "Edit this styled text to see the magic."

    // 1. Initialize state with formatting
    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                editAttributes(range = initialText.rangeOf("styled text")) {
                    bold()
                    textColor(Color(0xFF6200EA)) // Purple
                }
            }
        )
    }

    // 2. Render natively via Compose Multiplatform
    // Try typing in the middle of "styled text"!
    // Arranger automatically tracks and shifts the span indices in the background.
    RichTextEditor(
        state = state,
        modifier = Modifier.fillMaxWidth(),
    )
}

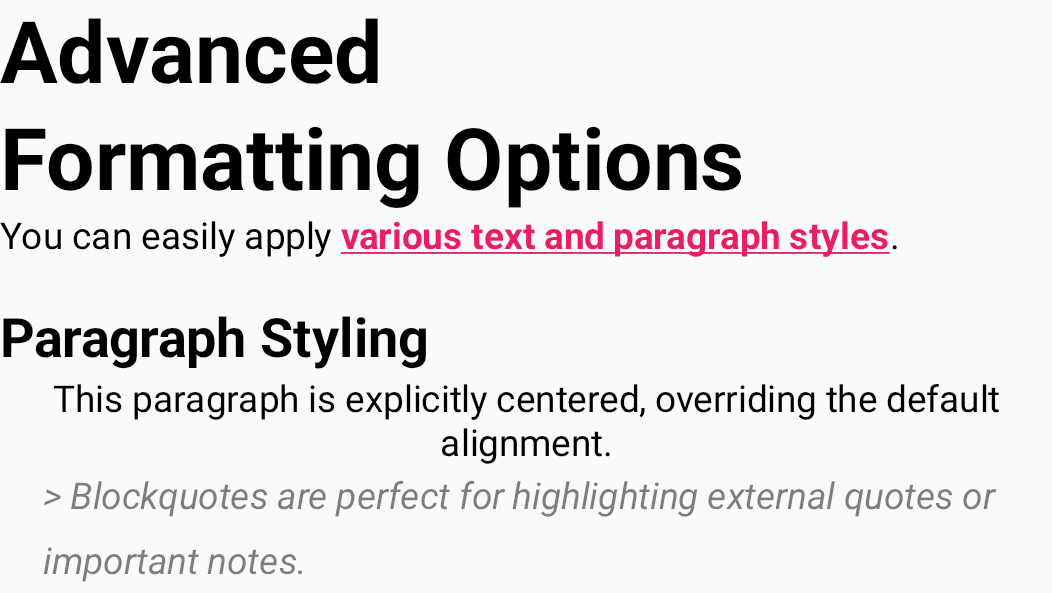

Paragraph Styles & Advanced Formatting

Arranger natively supports not only inline character formatting (like colors and boldness) but also block-level paragraph formatting such as Headers, Blockquotes, and Alignments.

Show Code

@Composable
fun AdvancedFormattingSample(modifier: Modifier = Modifier) {
    val initialText =
        "Advanced Formatting Options\n" +
            "You can easily apply various text and paragraph styles.\n\n" +
            "Paragraph Styling\n" +
            "This paragraph is explicitly centered, overriding the default alignment.\n" +
            "> Blockquotes are perfect for highlighting external quotes or important notes."

    val state =
        remember {
            RichTextState(
                initialText =
                    RichString(text = initialText).edit {
                        editAttributes(range = initialText.rangeOf("Advanced Formatting Options")) {
                            headingLevel(HeadingLevel.H1)
                        }
                        editAttributes(range = initialText.rangeOf("Paragraph Styling")) {
                            headingLevel(HeadingLevel.H3)
                        }
                        editAttributes(range = initialText.rangeOf("This paragraph is explicitly centered, overriding the default alignment.")) {
                            textAlignment(TextAlignment.Center)
                        }
                        editAttributes(range = initialText.rangeOf("> Blockquotes are perfect for highlighting external quotes or important notes.")) {
                            blockquote()
                        }
                        editAttributes(range = initialText.rangeOf("various text and paragraph styles")) {
                            textColor(Color(0xFFE91E63)) // Pink
                            bold()
                            underline()
                        }
                    },
            )
        }

    RichTextEditor(
        state = state,
        modifier = Modifier.fillMaxWidth(),
    )
}

Lists & Ordered Lists

Arranger provides native support for bulletList and orderedList paragraph formatting. You can apply list attributes over a text range, and the editor will automatically render the appropriate markers and handle indentation.

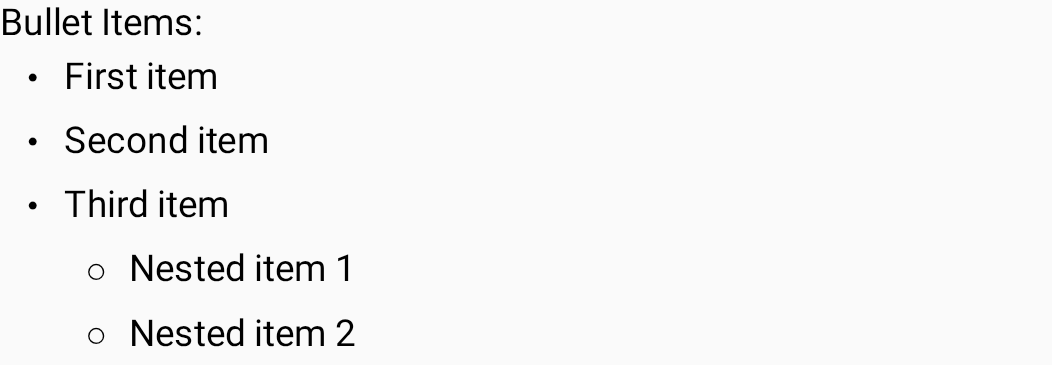

Bullet Lists

Bullet lists automatically change their marker symbol based on the indentation level (e.g., Level 1 uses ・, Level 2 uses ○).

Show Code

@Composable
fun BulletListSample(modifier: Modifier = Modifier) {
    val initialText = "Bullet Items:\n" +
            "First item\n" +
            "Second item\n" +
            "Third item\n" +
            "Nested item 1\n" +
            "Nested item 2"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val itemsStart = initialText.indexOf("First item")
                val itemsEnd = initialText.indexOf("Nested item 1") - 1
                editAttributes(itemsStart until itemsEnd) {
                    bulletList(ListIndentLevel.Level1)
                }

                val nestedStart = initialText.indexOf("Nested item 1")
                val nestedEnd = initialText.length
                editAttributes(nestedStart until nestedEnd) {
                    bulletList(ListIndentLevel.Level2)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

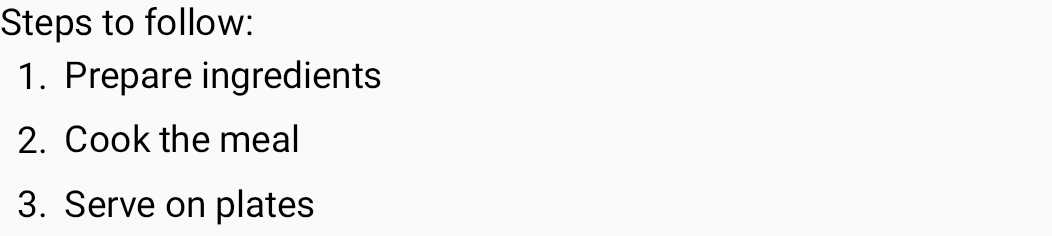

Ordered Lists

Ordered lists automatically calculate and display the sequence numbers based on their position and nesting level.

Show Code

@Composable
fun OrderedListSample(modifier: Modifier = Modifier) {
    val initialText = "Steps to follow:\n" +
            "Prepare ingredients\n" +
            "Cook the meal\n" +
            "Serve on plates"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val start = initialText.indexOf("Prepare ingredients")
                val end = initialText.length
                editAttributes(start until end) {
                    orderedList(ListIndentLevel.Level1)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

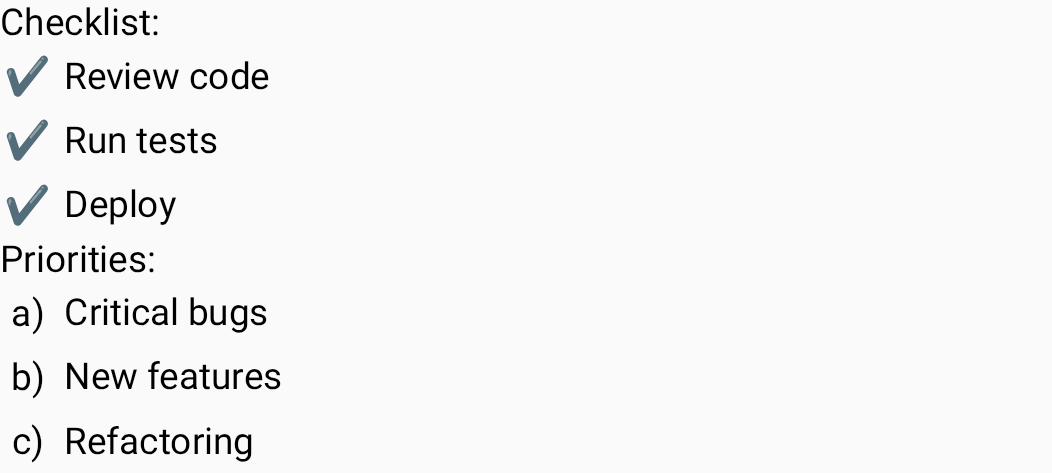

Custom List Markers

You can customize the list markers by providing a ListMarkerResolver to the RichTextEditor. This allows you to use different symbols, letters, or parentheses for your lists.

Show Code

private val customMarkerResolver = ListMarkerResolver { item ->
    when (item) {
        is BulletListItem -> "✔️ "
        is OrderedListItem -> "${('a' + item.index - 1)}) "
    }
}

@Composable
fun CustomListMarkerSample(modifier: Modifier = Modifier) {
    val initialText = "Checklist:\n" +
            "Review code\n" +
            "Run tests\n" +
            "Deploy\n" +
            "Priorities:\n" +
            "Critical bugs\n" +
            "New features\n" +
            "Refactoring"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val start = initialText.indexOf("Review code")
                val end = initialText.indexOf("Priorities:") - 1
                editAttributes(start until end) {
                    bulletList(ListIndentLevel.Level1)
                }

                val orderedStart = initialText.indexOf("Critical bugs")
                val orderedEnd = initialText.length
                editAttributes(orderedStart until orderedEnd) {
                    orderedList(ListIndentLevel.Level1)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
        listMarkerResolver = customMarkerResolver,
    )
}

Dynamic Enter Key Handling

Arranger provides intelligent formatting strategies when the user presses the Enter key. By providing an EnterKeyStrategy to the RichTextEditor, you can control how paragraph attributes are inherited or transformed on new lines.

The library includes three built-in strategies:

Strategy	Description	Demo

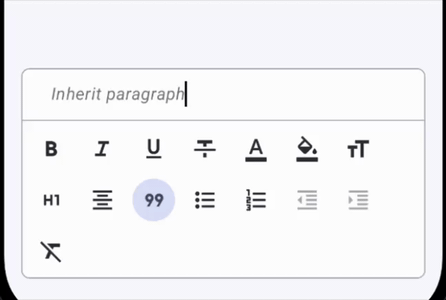

`InheritParagraphStrategy` (Default)	Inherits all paragraph attributes (like alignment or blockquote) to the new line.

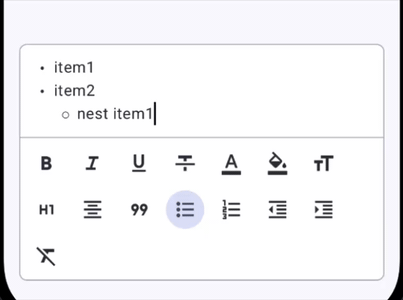

`ListEnterStrategy`	Inherits list attributes and automatically increments ordered list numbers. Pressing Enter on an empty list item will decrease its indentation level (outdent). If the item is at the first level, the list attribute is removed.

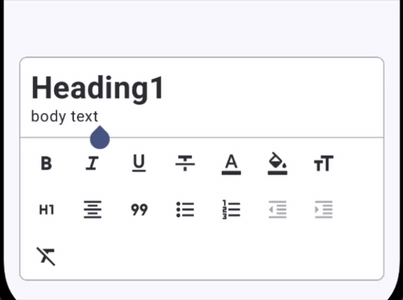

`HeadingEnterStrategy`	Automatically removes the heading attribute on the new line, allowing users to quickly start typing normal text after a heading.

You can combine these strategies (or create your own custom strategies) to build a seamless editing experience.

Hyperlinks & URL Detection

Arranger provides native support for rich hyperlinks with LinkKey. You can apply links to text ranges, automatically detect URLs in plain text, and provide seamless tap/click navigation across all platforms.

Applying Hyperlinks

You can apply a URL link to a selected range using the standard applyFormat(LinkKey, url) extension on RichTextState, or link(url) within a RichString builder:

Show Code

@Composable
fun HyperlinkSample(modifier: Modifier = Modifier) {
    val initialText = "Visit Kotlin website or Google for search."

    val state =
        remember {
            RichTextState(
                initialText =
                    RichString(text = initialText).edit {
                        editAttributes(range = initialText.rangeOf("Kotlin website")) {
                            link("https://kotlinlang.org")
                        }
                        editAttributes(range = initialText.rangeOf("Google")) {
                            link("https://google.com")
                        }
                    },
            )
        }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Interactive Tap / Click Handling

RichTextEditor automatically styles links (blue text with underline by default) and handles tap/click gestures:

Native Navigation: Clicking or tapping a hyperlink automatically invokes Compose's standard LocalUriHandler.current.openUri(url).
Custom URI Handlers: To customize link navigation behavior (e.g., in-app web views or custom routing), provide a custom handler using standard Compose CompositionLocalProvider(LocalUriHandler provides customUriHandler).

URL Parsing & Auto-Linking

Arranger includes a pure Kotlin UrlParser utility that detects URLs in plain text and normalizes them (e.g., prepending https:// to www. domains). To automatically scan the document and apply LinkKey spans to all detected URLs in one atomic transaction, use state.detectAndApplyLinks():

// Automatically detects URLs and applies LinkKey spans (preserving existing custom links)
state.detectAndApplyLinks()

Custom Attribute Mapping

You can define custom attribute keys and map them to Compose styles. Below shows an example of implementing a simple highlight feature by creating a custom SpanAttributeKey and styling it with an AttributeStyleResolver.

[!TIP] If you are building a Material 3 application, consider using rememberMaterial3AttributeStyleResolver() from the arranger-richtext-editor-material3 artifact. It automatically resolves standard text formats (like headings and blockquotes) using your app's MaterialTheme typography and color schemes.

To use it, add the following dependency to your module's build.gradle.kts:
dependencies {
    implementation("dev.mkeeda.arranger:arranger-richtext-editor-material3:0.4.0-alpha02")
}

Show Code

// 1. Define Custom Attribute Key
object HighlightKey : SpanAttributeKey<Unit> {
    override val name: String = "Highlight"
    override val defaultValue: Unit = Unit
}

// 2. Create a custom AttributeStyleResolver inheriting from DefaultAttributeStyleResolver
private val customResolver = AttributeStyleResolver(base = DefaultAttributeStyleResolver) {
    spanStyle(HighlightKey) {
        SpanStyle(
            background = Color(0xFFFFF59D), // Light Yellow
            color = Color(0xFFE65100),      // Orange Text
            fontWeight = FontWeight.ExtraBold
        )
    }
}

@Composable
fun CustomAttributeSample(modifier: Modifier = Modifier) {
    val initialText = "Arranger also supports Custom Attributes.\nThis text is highlighted using a custom resolver!"

    // 3. Initialize RichTextState with the custom attribute
    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val range = initialText.rangeOf("highlighted")
                setSpanAttribute(HighlightKey, Unit, range)
            }
        )
    }

    // 4. Pass the custom resolver to RichTextEditor
    RichTextEditor(
        state = state,
        styleResolver = customResolver,
        modifier = modifier.fillMaxWidth(),
    )
}

Semantic Batch Editing (Searching & Querying)

Arranger treats text as semantic "Runs" (chunks of text with identical attributes). This allows you to effortlessly search for patterns or query existing attributes, and modify them all at once.

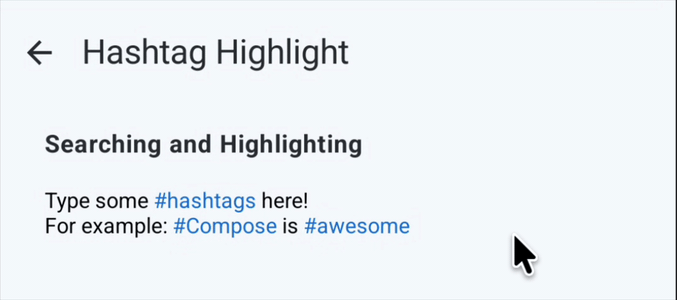

Searching and Highlighting

You can easily search for strings or regular expressions and apply styles to all occurrences at once using rangesOf and editAll. Here's a sample that highlights hashtags in real-time.

Show Code

@Composable
fun HashtagHighlightSample(modifier: Modifier = Modifier) {
    val initialText = "Type some #hashtags here!\nFor example: #Compose is #awesome"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText)
        )
    }

    LaunchedEffect(state) {
        snapshotFlow { state.richString.text }.collect { text ->
            state.edit {
                // Clear existing colors first
                editAttributes(range = text.indices) {
                    clearTextColor()
                }

                // Find all hashtags and highlight them in blue
                val hashtagRanges = text.rangesOf(Regex("#\\w+"))
                editAll(hashtagRanges) {
                    textColor(Color(0xFF1976D2)) // Blue
                }
            }
        }
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Querying and Modifying Attributes

Instead of text searching, you can also query existing attributes using runs(key) and apply a batch edit over those specific runs. This is useful for semantic manipulations like changing the color of all bold texts.

[!NOTE] For more complex queries, you can also use runs { predicate } to extract runs that match any custom condition based on their attributes.

Show Code

@Composable
fun AttributeBatchEditSample(modifier: Modifier = Modifier) {
    val initialText = "This text has some bold words.\n" +
            "We can find all bold parts and change their color at once."

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                editAttributes(range = initialText.rangeOf("bold words")) {
                    bold()
                }
                editAttributes(range = initialText.rangeOf("bold parts")) {
                    bold()
                }
            }
        )
    }

    Column(modifier = modifier) {
        Button(
            onClick = {
                // Find all runs that have the BoldKey
                val boldRuns = state.richString.runs(BoldKey)

                // Batch edit those specific runs
                state.edit {
                    editAll(boldRuns) {
                        textColor(Color(0xFFD32F2F)) // Red
                    }
                }
            },
            modifier = Modifier.fillMaxWidth()
        ) {
            Text("Highlight Bold Text in Red")
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth(),
        )
    }
}

Atomic Text Mutations

Arranger allows you to programmatically mutate text (insert, delete, replace) and apply formatting atomically within the RichTextState.edit { } block. The RichTextBuffer automatically shifts existing spans to maintain alignment and allows you to apply new attributes safely to the newly inserted text.

Show Code

@Composable
fun AtomicMutationSample(modifier: Modifier = Modifier) {
    val state = remember {
        RichTextState(initialText = RichString(text = "Hello "))
    }

    Column(modifier = modifier.padding(16.dp)) {
        Text("Atomic Text Mutations", fontWeight = FontWeight.Bold)
        Spacer(modifier = Modifier.height(16.dp))

        Button(
            onClick = {
                state.edit {
                    // Atomically insert text and apply styles to the newly inserted text
                    insert(index = textLength, text = "World!") {
                        bold()
                        textColor(Color(0xFFE91E63)) // Pink
                    }

                    // You can also delete or replace text:
                    // delete(range = 0..5)
                    // replace(range = 0..5, text = "Hi, ") { italic() }
                }
            },
            modifier = Modifier.fillMaxWidth()
        ) {
            Text("Insert Styled Text")
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth(),
        )
    }
}

Undo / Redo

Arranger provides a built-in, robust Undo/Redo engine that automatically records text mutations and attribute changes. The history state is exposed via state.undoState, allowing you to easily build undo/redo toolbars or handle keyboard shortcuts.

The engine correctly manages complex operations like batch attribute application or atomic text replacements as single undoable actions.

Show Code

@Composable
fun UndoRedoSample(modifier: Modifier = Modifier) {
    val initialText = "Type something here, make changes, and use Undo/Redo buttons."
    val state =
        remember {
            RichTextState(
                initialText = RichString(text = initialText).edit {
                    val range = initialText.rangeOf("Undo/Redo")
                    editAttributes(range = range) {
                        bold()
                        textColor(Color(0xFF1976D2)) // Blue
                    }
                }
            )
        }

    Column(modifier = modifier.padding(16.dp)) {
        Row(
            modifier = Modifier.fillMaxWidth(),
            horizontalArrangement = Arrangement.spacedBy(8.dp)
        ) {
            Button(
                onClick = { state.undoState.undo() },
                enabled = state.undoState.canUndo
            ) {
                Text("Undo")
            }
            Button(
                onClick = { state.undoState.redo() },
                enabled = state.undoState.canRedo
            ) {
                Text("Redo")
            }
            Spacer(modifier = Modifier.weight(1f))
            Button(
                onClick = {
                    state.edit {
                        // textLength is a property of the edit block's receiver — the full character count
                        editAttributes(range = 0 until textLength) { bold() }
                    }
                }
            ) {
                Text("Make All Bold")
            }
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth().weight(1f),
        )
    }
}

Markdown & HTML Bi-directional Conversion

Arranger supports converting RichString to and from structured text formats (Markdown and HTML). This enables applications to persist formatted rich text to external databases or services, and restore the editor state dynamically.

Markdown Conversion (`:arranger-richtext-markdown`)

Using the JetBrains CommonMark parser under the hood, Arranger supports full bi-directional conversion of inline formatting (Bold, Italic, Strikethrough, Underline, Links) and block formatting (Headings, Blockquotes, multi-level Bullet and Ordered lists):

// Exporting to Markdown
val markdownText: String = state.richString.toMarkdown()

// Importing from Markdown and setting to editor state
val importedRichString = RichString.fromMarkdown("# Hello **World**\n* Item 1\n* Item 2")
state.setRichString(importedRichString)

HTML Conversion (`:arranger-richtext-html`)

Using pure KMP HTML parsing, Arranger supports converting HTML tags, inline CSS styles (colors, background colors, font sizes), headings, blockquotes, alignments, and nested lists:

// Exporting to HTML
val htmlText: String = state.richString.toHtml()

// Importing from HTML and setting to editor state
val importedHtmlString = RichString.fromHtml("<p>Hello <span style=\"color: #ff0000;\"><strong>Red Bold</strong></span></p>")
state.setRichString(importedHtmlString)

Generic Format Interface

For custom serialization (e.g., custom JSON AST, BBCode), you can implement the generic RichTextFormat<T> or RichTextExporter<T> / RichTextImporter<T> interfaces:

val exported = state.richString.export(myCustomExporter)
val imported = RichString.import(payload, myCustomImporter)

Practical Examples

Arranger can be used to build rich and complex text input interfaces. Below are some real-world use cases demonstrating how to integrate Arranger into your applications.

Sample Screenshot

Document Editor with Full UI

This sample demonstrates a full-screen document editor UI equipped with a rich formatting toolbar.
It showcases how to handle text selection, manage undo/redo history, insert hyperlinks via dialogs, and seamlessly integrate state with Compose Multiplatform.
This sample app can be run as an Android, iOS, Desktop (macOS, Windows, Linux), and Web (Wasm) app.

Tip: Check this sample to see how you can easily apply formatting using the idiomatic RichTextState extension functions (e.g., toggleFormat(), applyFormat(), removeFormat(), and clearFormats()).

Sample	Screenshot
Document Editor with Full UI This sample demonstrates a full-screen document editor UI equipped with a rich formatting toolbar. It showcases how to handle text selection, manage undo/redo history, insert hyperlinks via dialogs, and seamlessly integrate state with Compose Multiplatform. This sample app can be run as an Android, iOS, Desktop (macOS, Windows, Linux), and Web (Wasm) app. Tip: Check this sample to see how you can easily apply formatting using the idiomatic `RichTextState` extension functions (e.g., `toggleFormat()`, `applyFormat()`, `removeFormat()`, and `clearFormats()`).

Running the Sample Applications

You can run the sample application on any of the supported platforms:

Web (Wasm): ./gradlew :sample:web:wasmJsBrowserDevelopmentRun
Desktop: ./gradlew :sample:desktop:run
Android: Open the project in Android Studio and run the :sample:android configuration.
iOS: Open sample/ios/ArrangerSample.xcodeproj in Xcode and press Run (Cmd + R).

Development Roadmap

Arranger is evolving towards a stable v1.0.0 (Production-Ready Release).

With the release of Compose 1.12, we have pivoted our focus toward delivering a comprehensive High-Level Rich Text Editor Engine:

v0.3.x (Strategic Pivot & Baseline): Compose 1.12 compatibility verification and positioning pivot.
v0.4.0 – v0.5.0 (High Priority Focus): Markdown/HTML interop, WYSIWYG auto-formatting, interactive links/mentions, and visual block decorations.
v1.0.0 (Production Readiness): Internal adoption of Compose 1.12 native TrackedRange primitives across all multiplatform targets, API freeze, and LTS stability.

For the complete version release plan, detailed milestone breakdown, and post-1.0.0 roadmap, please see ROADMAP.md.

Contributing

Contributions are welcome! Please see our CONTRIBUTING.md for details on how to get started.

License

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.

Android

JVM

iOS

Wasm

GitHub stars9

Authorsmkeeda

Dependents0

LicenseApache License 2.0

Creation date5 months ago

Last activity3 days ago

Latest release0.4.0-alpha02 (3 days ago)

GitHub repository Wiki page

Arranger - Type-safe Rich Text Editor Engine for Compose Multiplatform

[!WARNING] Work In Progress: This library is currently under active development. APIs are unstable and subject to change without notice. We highly welcome your feedback, feature requests, and bug reports via GitHub Issues!

Supported Platforms

Platform	Support Status	Target
Android	✅ Supported	API Level 26+
Desktop (JVM)	✅ Supported	macOS, Windows, Linux
iOS	✅ Supported	-
Web	✅ Supported	WasmJs

Requirements

Kotlin 2.4.10+

Core Features

🛡️ Type-Safe Custom Attributes: Define and apply UI-specific styles (like SpanStyle) and domain-specific attributes (e.g., @Mention, #Hashtag, LinkKey) with full compile-time safety.
⚡ High-Level Editor Behaviors: Built-in paragraph formatting (Headings, Blockquotes, Alignments, Bullet & Ordered Lists), dynamic enter-key strategies, and robust Undo/Redo history tracking.
🔄 Declarative & Type-Safe Mutation DSL: Atomically mutate text and apply rich attributes within a type-safe builder DSL, eliminating manual index calculations and ensuring synchronized state.
🔍 Semantic "Runs": Treat text not just as characters, but as "Runs" (chunks of text with identical attributes) for semantic iteration, searching, and batch editing.
🌐 Markdown & HTML Interoperability: Bi-directional import/export converters between RichString and Markdown / HTML representations (:richtext-markdown, :richtext-html).
🧩 Native Compose Multiplatform Integration: Elegantly separate headless core state management (RichTextState) and UI rendering (RichTextEditor) across Android, iOS, Desktop, and Web.

Why Arranger?

1. Declarative & Type-Safe Mutation DSL

// Arranger: Declarative and type-safe text mutation DSL
state.edit {
    insert(index = textLength, text = "New Section") {
        bold()
        headingLevel(HeadingLevel.H2)
    }
}

2. Out-of-the-Box Editor Behaviors

Building an intuitive editing experience requires orchestrating multi-step formatting rules. Arranger comes with batteries included:

Smart Enter Key Handling: EnterKeyStrategy automatically manages list continuations, outdenting, and heading resets on newlines.
Dynamic List Marker Resolution: Automated nested bullet markers and sequence numbering (ListMarkerResolver).
Atomic Undo / Redo: Full undo/redo stack tracking both text mutations and formatting changes seamlessly.

3. Semantic Attribute Search via "Runs"

Inspired by SwiftUI's AttributedString.Runs, Arranger treats text as semantic chunks. You can easily find and batch-edit specific attributes without complex regex or index tracking.

// Arranger: Semantic iteration over attributes via "Runs"
state.edit {
    // Find all chunks of text that are Bold, and turn them Red at once
    val boldRuns = state.richString.runs(BoldKey)
    editAll(boldRuns) {
        textColor(Color.Red)
    }
}

Installation

Arranger is published to Maven Central.

For Compose Multiplatform (KMP) Projects

Add the dependencies to your commonMain source set in build.gradle.kts:

kotlin {
    sourceSets {
        commonMain.dependencies {
            // For Compose UI integration (RichTextEditor).
            // This automatically includes the core 'arranger-richtext' module.
            implementation("dev.mkeeda.arranger:arranger-richtext-editor:0.4.0-alpha02")

            // Optional: Markdown bi-directional conversion support
            implementation("dev.mkeeda.arranger:arranger-richtext-markdown:0.4.0-alpha02")

            // Optional: HTML bi-directional conversion support
            implementation("dev.mkeeda.arranger:arranger-richtext-html:0.4.0-alpha02")

            // Optional: If you only need the core data structures without Compose UI:
            // implementation("dev.mkeeda.arranger:arranger-richtext:0.4.0-alpha02")
        }
    }
}

For Android-only Projects

Add the dependencies to your top-level dependencies block in build.gradle.kts:

dependencies {
    implementation("dev.mkeeda.arranger:arranger-richtext-editor:0.4.0-alpha02")
    implementation("dev.mkeeda.arranger:arranger-richtext-markdown:0.4.0-alpha02")
    implementation("dev.mkeeda.arranger:arranger-richtext-html:0.4.0-alpha02")
}

Dynamic Editing (Getting Started)

@Composable
fun DynamicEditingSample(modifier: Modifier = Modifier) {
    val initialText = "Edit this styled text to see the magic."

    // 1. Initialize state with formatting
    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                editAttributes(range = initialText.rangeOf("styled text")) {
                    bold()
                    textColor(Color(0xFF6200EA)) // Purple
                }
            }
        )
    }

    // 2. Render natively via Compose Multiplatform
    // Try typing in the middle of "styled text"!
    // Arranger automatically tracks and shifts the span indices in the background.
    RichTextEditor(
        state = state,
        modifier = Modifier.fillMaxWidth(),
    )
}

Paragraph Styles & Advanced Formatting

Arranger natively supports not only inline character formatting (like colors and boldness) but also block-level paragraph formatting such as Headers, Blockquotes, and Alignments.

Show Code

@Composable
fun AdvancedFormattingSample(modifier: Modifier = Modifier) {
    val initialText =
        "Advanced Formatting Options\n" +
            "You can easily apply various text and paragraph styles.\n\n" +
            "Paragraph Styling\n" +
            "This paragraph is explicitly centered, overriding the default alignment.\n" +
            "> Blockquotes are perfect for highlighting external quotes or important notes."

    val state =
        remember {
            RichTextState(
                initialText =
                    RichString(text = initialText).edit {
                        editAttributes(range = initialText.rangeOf("Advanced Formatting Options")) {
                            headingLevel(HeadingLevel.H1)
                        }
                        editAttributes(range = initialText.rangeOf("Paragraph Styling")) {
                            headingLevel(HeadingLevel.H3)
                        }
                        editAttributes(range = initialText.rangeOf("This paragraph is explicitly centered, overriding the default alignment.")) {
                            textAlignment(TextAlignment.Center)
                        }
                        editAttributes(range = initialText.rangeOf("> Blockquotes are perfect for highlighting external quotes or important notes.")) {
                            blockquote()
                        }
                        editAttributes(range = initialText.rangeOf("various text and paragraph styles")) {
                            textColor(Color(0xFFE91E63)) // Pink
                            bold()
                            underline()
                        }
                    },
            )
        }

    RichTextEditor(
        state = state,
        modifier = Modifier.fillMaxWidth(),
    )
}

Lists & Ordered Lists

Bullet Lists

Bullet lists automatically change their marker symbol based on the indentation level (e.g., Level 1 uses ・, Level 2 uses ○).

Show Code

@Composable
fun BulletListSample(modifier: Modifier = Modifier) {
    val initialText = "Bullet Items:\n" +
            "First item\n" +
            "Second item\n" +
            "Third item\n" +
            "Nested item 1\n" +
            "Nested item 2"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val itemsStart = initialText.indexOf("First item")
                val itemsEnd = initialText.indexOf("Nested item 1") - 1
                editAttributes(itemsStart until itemsEnd) {
                    bulletList(ListIndentLevel.Level1)
                }

                val nestedStart = initialText.indexOf("Nested item 1")
                val nestedEnd = initialText.length
                editAttributes(nestedStart until nestedEnd) {
                    bulletList(ListIndentLevel.Level2)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Ordered Lists

Ordered lists automatically calculate and display the sequence numbers based on their position and nesting level.

Show Code

@Composable
fun OrderedListSample(modifier: Modifier = Modifier) {
    val initialText = "Steps to follow:\n" +
            "Prepare ingredients\n" +
            "Cook the meal\n" +
            "Serve on plates"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val start = initialText.indexOf("Prepare ingredients")
                val end = initialText.length
                editAttributes(start until end) {
                    orderedList(ListIndentLevel.Level1)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Custom List Markers

You can customize the list markers by providing a ListMarkerResolver to the RichTextEditor. This allows you to use different symbols, letters, or parentheses for your lists.

Show Code

private val customMarkerResolver = ListMarkerResolver { item ->
    when (item) {
        is BulletListItem -> "✔️ "
        is OrderedListItem -> "${('a' + item.index - 1)}) "
    }
}

@Composable
fun CustomListMarkerSample(modifier: Modifier = Modifier) {
    val initialText = "Checklist:\n" +
            "Review code\n" +
            "Run tests\n" +
            "Deploy\n" +
            "Priorities:\n" +
            "Critical bugs\n" +
            "New features\n" +
            "Refactoring"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val start = initialText.indexOf("Review code")
                val end = initialText.indexOf("Priorities:") - 1
                editAttributes(start until end) {
                    bulletList(ListIndentLevel.Level1)
                }

                val orderedStart = initialText.indexOf("Critical bugs")
                val orderedEnd = initialText.length
                editAttributes(orderedStart until orderedEnd) {
                    orderedList(ListIndentLevel.Level1)
                }
            }
        )
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
        listMarkerResolver = customMarkerResolver,
    )
}

Dynamic Enter Key Handling

The library includes three built-in strategies:

Strategy	Description	Demo
`InheritParagraphStrategy` (Default)	Inherits all paragraph attributes (like alignment or blockquote) to the new line.
`ListEnterStrategy`	Inherits list attributes and automatically increments ordered list numbers. Pressing Enter on an empty list item will decrease its indentation level (outdent). If the item is at the first level, the list attribute is removed.
`HeadingEnterStrategy`	Automatically removes the heading attribute on the new line, allowing users to quickly start typing normal text after a heading.

You can combine these strategies (or create your own custom strategies) to build a seamless editing experience.

Hyperlinks & URL Detection

Applying Hyperlinks

You can apply a URL link to a selected range using the standard applyFormat(LinkKey, url) extension on RichTextState, or link(url) within a RichString builder:

Show Code

@Composable
fun HyperlinkSample(modifier: Modifier = Modifier) {
    val initialText = "Visit Kotlin website or Google for search."

    val state =
        remember {
            RichTextState(
                initialText =
                    RichString(text = initialText).edit {
                        editAttributes(range = initialText.rangeOf("Kotlin website")) {
                            link("https://kotlinlang.org")
                        }
                        editAttributes(range = initialText.rangeOf("Google")) {
                            link("https://google.com")
                        }
                    },
            )
        }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Interactive Tap / Click Handling

RichTextEditor automatically styles links (blue text with underline by default) and handles tap/click gestures:

Native Navigation: Clicking or tapping a hyperlink automatically invokes Compose's standard LocalUriHandler.current.openUri(url).
Custom URI Handlers: To customize link navigation behavior (e.g., in-app web views or custom routing), provide a custom handler using standard Compose CompositionLocalProvider(LocalUriHandler provides customUriHandler).

URL Parsing & Auto-Linking

// Automatically detects URLs and applies LinkKey spans (preserving existing custom links)
state.detectAndApplyLinks()

Custom Attribute Mapping

[!TIP] If you are building a Material 3 application, consider using rememberMaterial3AttributeStyleResolver() from the arranger-richtext-editor-material3 artifact. It automatically resolves standard text formats (like headings and blockquotes) using your app's MaterialTheme typography and color schemes.

To use it, add the following dependency to your module's build.gradle.kts:
dependencies {
    implementation("dev.mkeeda.arranger:arranger-richtext-editor-material3:0.4.0-alpha02")
}

Show Code

// 1. Define Custom Attribute Key
object HighlightKey : SpanAttributeKey<Unit> {
    override val name: String = "Highlight"
    override val defaultValue: Unit = Unit
}

// 2. Create a custom AttributeStyleResolver inheriting from DefaultAttributeStyleResolver
private val customResolver = AttributeStyleResolver(base = DefaultAttributeStyleResolver) {
    spanStyle(HighlightKey) {
        SpanStyle(
            background = Color(0xFFFFF59D), // Light Yellow
            color = Color(0xFFE65100),      // Orange Text
            fontWeight = FontWeight.ExtraBold
        )
    }
}

@Composable
fun CustomAttributeSample(modifier: Modifier = Modifier) {
    val initialText = "Arranger also supports Custom Attributes.\nThis text is highlighted using a custom resolver!"

    // 3. Initialize RichTextState with the custom attribute
    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                val range = initialText.rangeOf("highlighted")
                setSpanAttribute(HighlightKey, Unit, range)
            }
        )
    }

    // 4. Pass the custom resolver to RichTextEditor
    RichTextEditor(
        state = state,
        styleResolver = customResolver,
        modifier = modifier.fillMaxWidth(),
    )
}

Semantic Batch Editing (Searching & Querying)

Arranger treats text as semantic "Runs" (chunks of text with identical attributes). This allows you to effortlessly search for patterns or query existing attributes, and modify them all at once.

Searching and Highlighting

You can easily search for strings or regular expressions and apply styles to all occurrences at once using rangesOf and editAll. Here's a sample that highlights hashtags in real-time.

Show Code

@Composable
fun HashtagHighlightSample(modifier: Modifier = Modifier) {
    val initialText = "Type some #hashtags here!\nFor example: #Compose is #awesome"

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText)
        )
    }

    LaunchedEffect(state) {
        snapshotFlow { state.richString.text }.collect { text ->
            state.edit {
                // Clear existing colors first
                editAttributes(range = text.indices) {
                    clearTextColor()
                }

                // Find all hashtags and highlight them in blue
                val hashtagRanges = text.rangesOf(Regex("#\\w+"))
                editAll(hashtagRanges) {
                    textColor(Color(0xFF1976D2)) // Blue
                }
            }
        }
    }

    RichTextEditor(
        state = state,
        modifier = modifier.fillMaxWidth(),
    )
}

Querying and Modifying Attributes

[!NOTE] For more complex queries, you can also use runs { predicate } to extract runs that match any custom condition based on their attributes.

Show Code

@Composable
fun AttributeBatchEditSample(modifier: Modifier = Modifier) {
    val initialText = "This text has some bold words.\n" +
            "We can find all bold parts and change their color at once."

    val state = remember {
        RichTextState(
            initialText = RichString(text = initialText).edit {
                editAttributes(range = initialText.rangeOf("bold words")) {
                    bold()
                }
                editAttributes(range = initialText.rangeOf("bold parts")) {
                    bold()
                }
            }
        )
    }

    Column(modifier = modifier) {
        Button(
            onClick = {
                // Find all runs that have the BoldKey
                val boldRuns = state.richString.runs(BoldKey)

                // Batch edit those specific runs
                state.edit {
                    editAll(boldRuns) {
                        textColor(Color(0xFFD32F2F)) // Red
                    }
                }
            },
            modifier = Modifier.fillMaxWidth()
        ) {
            Text("Highlight Bold Text in Red")
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth(),
        )
    }
}

Atomic Text Mutations

Show Code

@Composable
fun AtomicMutationSample(modifier: Modifier = Modifier) {
    val state = remember {
        RichTextState(initialText = RichString(text = "Hello "))
    }

    Column(modifier = modifier.padding(16.dp)) {
        Text("Atomic Text Mutations", fontWeight = FontWeight.Bold)
        Spacer(modifier = Modifier.height(16.dp))

        Button(
            onClick = {
                state.edit {
                    // Atomically insert text and apply styles to the newly inserted text
                    insert(index = textLength, text = "World!") {
                        bold()
                        textColor(Color(0xFFE91E63)) // Pink
                    }

                    // You can also delete or replace text:
                    // delete(range = 0..5)
                    // replace(range = 0..5, text = "Hi, ") { italic() }
                }
            },
            modifier = Modifier.fillMaxWidth()
        ) {
            Text("Insert Styled Text")
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth(),
        )
    }
}

Undo / Redo

The engine correctly manages complex operations like batch attribute application or atomic text replacements as single undoable actions.

Show Code

@Composable
fun UndoRedoSample(modifier: Modifier = Modifier) {
    val initialText = "Type something here, make changes, and use Undo/Redo buttons."
    val state =
        remember {
            RichTextState(
                initialText = RichString(text = initialText).edit {
                    val range = initialText.rangeOf("Undo/Redo")
                    editAttributes(range = range) {
                        bold()
                        textColor(Color(0xFF1976D2)) // Blue
                    }
                }
            )
        }

    Column(modifier = modifier.padding(16.dp)) {
        Row(
            modifier = Modifier.fillMaxWidth(),
            horizontalArrangement = Arrangement.spacedBy(8.dp)
        ) {
            Button(
                onClick = { state.undoState.undo() },
                enabled = state.undoState.canUndo
            ) {
                Text("Undo")
            }
            Button(
                onClick = { state.undoState.redo() },
                enabled = state.undoState.canRedo
            ) {
                Text("Redo")
            }
            Spacer(modifier = Modifier.weight(1f))
            Button(
                onClick = {
                    state.edit {
                        // textLength is a property of the edit block's receiver — the full character count
                        editAttributes(range = 0 until textLength) { bold() }
                    }
                }
            ) {
                Text("Make All Bold")
            }
        }

        Spacer(modifier = Modifier.height(16.dp))

        RichTextEditor(
            state = state,
            modifier = Modifier.fillMaxWidth().weight(1f),
        )
    }
}

Markdown & HTML Bi-directional Conversion

Markdown Conversion (`:arranger-richtext-markdown`)

// Exporting to Markdown
val markdownText: String = state.richString.toMarkdown()

// Importing from Markdown and setting to editor state
val importedRichString = RichString.fromMarkdown("# Hello **World**\n* Item 1\n* Item 2")
state.setRichString(importedRichString)

HTML Conversion (`:arranger-richtext-html`)

Using pure KMP HTML parsing, Arranger supports converting HTML tags, inline CSS styles (colors, background colors, font sizes), headings, blockquotes, alignments, and nested lists:

// Exporting to HTML
val htmlText: String = state.richString.toHtml()

// Importing from HTML and setting to editor state
val importedHtmlString = RichString.fromHtml("<p>Hello <span style=\"color: #ff0000;\"><strong>Red Bold</strong></span></p>")
state.setRichString(importedHtmlString)

Generic Format Interface

For custom serialization (e.g., custom JSON AST, BBCode), you can implement the generic RichTextFormat<T> or RichTextExporter<T> / RichTextImporter<T> interfaces:

val exported = state.richString.export(myCustomExporter)
val imported = RichString.import(payload, myCustomImporter)

Practical Examples

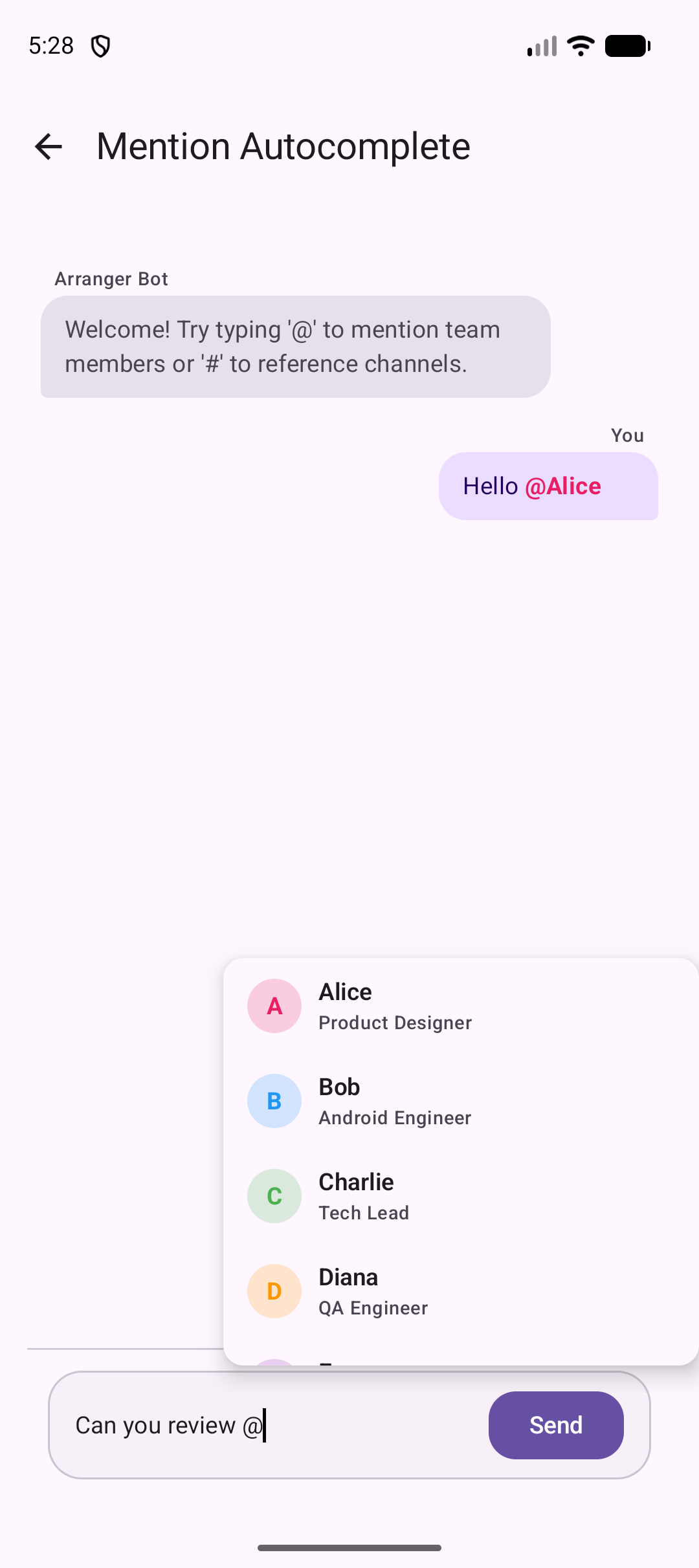

Arranger can be used to build rich and complex text input interfaces. Below are some real-world use cases demonstrating how to integrate Arranger into your applications.

Sample Screenshot

Sample	Screenshot
Document Editor with Full UI This sample demonstrates a full-screen document editor UI equipped with a rich formatting toolbar. It showcases how to handle text selection, manage undo/redo history, insert hyperlinks via dialogs, and seamlessly integrate state with Compose Multiplatform. This sample app can be run as an Android, iOS, Desktop (macOS, Windows, Linux), and Web (Wasm) app. Tip: Check this sample to see how you can easily apply formatting using the idiomatic `RichTextState` extension functions (e.g., `toggleFormat()`, `applyFormat()`, `removeFormat()`, and `clearFormats()`).

Running the Sample Applications

You can run the sample application on any of the supported platforms:

Web (Wasm): ./gradlew :sample:web:wasmJsBrowserDevelopmentRun
Desktop: ./gradlew :sample:desktop:run
Android: Open the project in Android Studio and run the :sample:android configuration.
iOS: Open sample/ios/ArrangerSample.xcodeproj in Xcode and press Run (Cmd + R).

Development Roadmap

Arranger is evolving towards a stable v1.0.0 (Production-Ready Release).

With the release of Compose 1.12, we have pivoted our focus toward delivering a comprehensive High-Level Rich Text Editor Engine:

v0.3.x (Strategic Pivot & Baseline): Compose 1.12 compatibility verification and positioning pivot.
v0.4.0 – v0.5.0 (High Priority Focus): Markdown/HTML interop, WYSIWYG auto-formatting, interactive links/mentions, and visual block decorations.
v1.0.0 (Production Readiness): Internal adoption of Compose 1.12 native TrackedRange primitives across all multiplatform targets, API freeze, and LTS stability.

For the complete version release plan, detailed milestone breakdown, and post-1.0.0 roadmap, please see ROADMAP.md.

Contributing

Contributions are welcome! Please see our CONTRIBUTING.md for details on how to get started.

License

This project is licensed under the Apache License 2.0 - see the LICENSE file for details.

arranger

Arranger - Type-safe Rich Text Editor Engine for Compose Multiplatform

Supported Platforms

Requirements

Core Features

Why Arranger?

1. Declarative & Type-Safe Mutation DSL

2. Out-of-the-Box Editor Behaviors

3. Semantic Attribute Search via "Runs"

Installation

For Compose Multiplatform (KMP) Projects

For Android-only Projects

Dynamic Editing (Getting Started)

Paragraph Styles & Advanced Formatting

Lists & Ordered Lists

Bullet Lists

Ordered Lists

Custom List Markers

Dynamic Enter Key Handling

Hyperlinks & URL Detection

Applying Hyperlinks

Interactive Tap / Click Handling

URL Parsing & Auto-Linking

Custom Attribute Mapping

Semantic Batch Editing (Searching & Querying)

Searching and Highlighting

Querying and Modifying Attributes

Atomic Text Mutations

Undo / Redo

Markdown & HTML Bi-directional Conversion

Markdown Conversion (:arranger-richtext-markdown)

HTML Conversion (:arranger-richtext-html)

Generic Format Interface

Practical Examples

Running the Sample Applications

Development Roadmap

Contributing

License

Arranger - Type-safe Rich Text Editor Engine for Compose Multiplatform

Supported Platforms

Requirements

Core Features

Why Arranger?

1. Declarative & Type-Safe Mutation DSL

2. Out-of-the-Box Editor Behaviors

3. Semantic Attribute Search via "Runs"

Installation

For Compose Multiplatform (KMP) Projects

For Android-only Projects

Dynamic Editing (Getting Started)

Paragraph Styles & Advanced Formatting

Lists & Ordered Lists

Bullet Lists

Ordered Lists

Custom List Markers

Dynamic Enter Key Handling

Hyperlinks & URL Detection

Applying Hyperlinks

Interactive Tap / Click Handling

URL Parsing & Auto-Linking

Custom Attribute Mapping

Semantic Batch Editing (Searching & Querying)

Searching and Highlighting

Querying and Modifying Attributes

Atomic Text Mutations

Undo / Redo

Markdown & HTML Bi-directional Conversion

Markdown Conversion (:arranger-richtext-markdown)

HTML Conversion (:arranger-richtext-html)

Generic Format Interface

Practical Examples

Running the Sample Applications

Development Roadmap

Contributing

License

Markdown Conversion (`:arranger-richtext-markdown`)

HTML Conversion (`:arranger-richtext-html`)

Markdown Conversion (`:arranger-richtext-markdown`)

HTML Conversion (`:arranger-richtext-html`)
