A fast, lightweight, and type-safe Kotlin Multiplatform (KMP) engine to manage application themes, share design tokens, and bundle localized strings and graphics synchronously across Compose Multiplatform, Jetpack Compose, Android XML Layouts, SwiftUI, and iOS UIKit.

Instead of relying on heavy code generation, kmp-design-system translates design tokens and assets directly into standard platform-native resource structures (such as Android XML Theme Attributes, iOS Asset Catalogs, and iOS localized strings). This enables completely synchronous, zero-copy, and frame-rate-safe resource rendering across all native and Compose UI stacks.

For a deep-dive conceptual explanation of the challenges of KMP resource sharing and how the Resource Contracts pattern solves them, see docs/resource_contracts_concept.md.

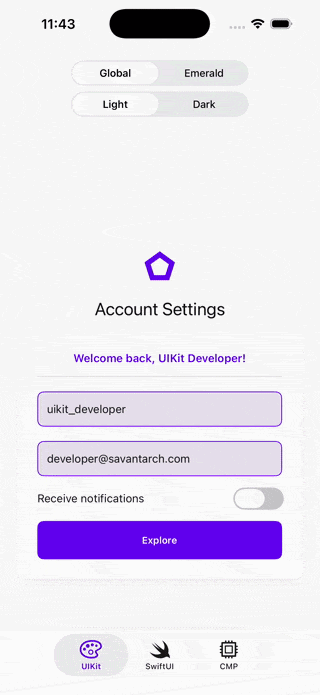

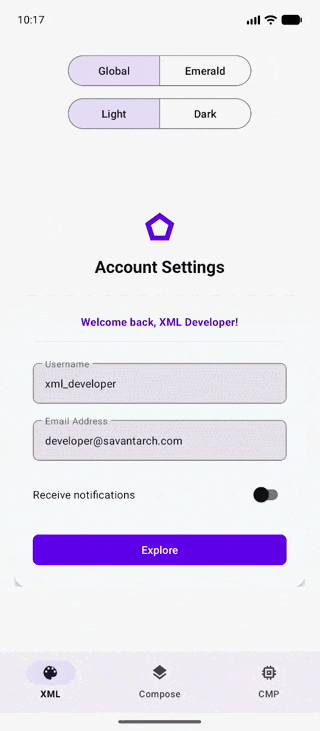

Below is the sample application demonstrating dynamic theme variants (Global Purple vs. Emerald Green), light/dark mode swaps, localized greeting text, and vector image rendering.

Android	iOS

• Compatibility & Prerequisites
• Gradle Setup
  • Add Plugin Repository
  • Apply and Configure the Plugin
  • Add the Runtime Dependency
• Usage & Architecture
  • Colors
  • Shapes
  • Typography
  • Strings (with expect/actual)
  • Images (with expect/actual)
  • Themes
• Running Local Showcase Builds
• Contributing
• License

To use this engine, your development environment and target project must satisfy the following:

• Gradle: 8.5 or higher
• Kotlin: 2.1.0 or higher (tested with 2.1.20)
• Compose Multiplatform: 1.8.0 or higher (tested with 1.8.2)
• Android target: minSdk 29, compileSdk 36
• iOS target: iOS 15.0 or higher (Xcode 15.0+ required for framework assembly)

To use the design system library in any KMP application, configure it using Gradle's Version Catalog.

Add the design system plugin and runtime dependency to your client application's version catalog (gradle/libs.versions.toml):

[versions]
# Check the live Maven Central badge at the top for the latest release version
design-system = "1.0.0-beta08"

[libraries]
design-system = { group = "com.savantarch", name = "design-system", version.ref = "design-system" }

[plugins]
design-system = { id = "com.savantarch.designsystem", version.ref = "design-system" }

In your shared UI module's build.gradle.kts (e.g. :app-shared), apply the plugin using its catalog alias and configure the designSystem extension block:

plugins {
    alias(libs.plugins.design.system)
}

designSystem {
    // Directory containing Apple .xcassets folder
    // default: "src/iosMain/resources/Assets.xcassets"
    xcassetsDir.set(layout.projectDirectory.dir("src/iosMain/resources/Assets.xcassets"))

    // Directory containing raw localizations and assets
    // default: "src/iosMain/resources"
    resourcesDir.set(layout.projectDirectory.dir("src/iosMain/resources"))

    // Optional: iOS deployment target
    // default: "15.0"
    minimumDeploymentTarget.set("15.0")

    // Optional: Target iOS devices
    // default: ["iphone", "ipad"]
    targetDevices.set(listOf("iphone", "ipad"))
}

Add the core design system runtime library to your shared UI module's commonMain dependencies:

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation(libs.design.system)
        }
    }
}

The :design-system module is app-agnostic. It provides token interfaces, asset contracts, and the core DesignSystemTheme Composable. Client applications are responsible for satisfying these contracts by defining concrete values for standard tokens (which are based on Material 3 designs), and optionally extending them with custom tokens.

Here is how each type of design resource is modeled, extended, and provided via staticCompositionLocalOf:

[!TIP] Use Delegation Wrappers (AppXyz) Even if your application does not initially require custom design tokens, we recommend that you always declare custom client delegation wrapper classes (e.g. AppColors, AppShapes, AppTypography wrapping their library-level DsColors, DsShapes, DsTypography equivalents) and expose them on your public AppTheme API.

Doing so future-proofs your theme implementation: if you need to introduce new custom tokens in the future, you can add them directly to your application wrappers without altering AppTheme's return types, preventing breaking API changes across your Kotlin and Swift codebases.

• Core Model: The library exposes the DsColors interface containing standard Material 3 color properties (e.g., primary, background, surface). The client app must define values for these properties.
• Custom Tokens: The client app can define extra custom colors (e.g., promoBrand) wrapping the base DsColors.
• Definition:

  class AppColors(
      private val base: DsColors,
      val promoBrand: Long
  ) : DsColors by base

• Compose Multiplatform (Android & iOS):

  Box(modifier = Modifier.background(AppTheme.colors.background.toColor()))

• Jetpack Compose (Android):

  Text(text = "Hello", color = AppTheme.colors.primary.toColor())

• Android XML Layouts:

  <View android:background="?attr/colorPrimary" />

• SwiftUI (iOS):

  @ObservedObject private var theme = AppThemeSwift.shared
  Text("Hello").foregroundColor(theme.colors.primary.color)

• UIKit (iOS):

  view.backgroundColor = AppThemeSwift.shared.colors.background.uiColor

• Core Model: The library exposes the DsShapes interface containing shape tokens (e.g., small, medium, large). The client app must define values for these properties.
• Custom Tokens: The client app can define custom shapes (e.g., buttonShape) using class delegation.
• Definition:

  class AppShapes(
      private val base: DsShapes,
      val buttonShape: ShapeAppearance
  ) : DsShapes by base

• Compose Multiplatform (Android & iOS):

  Box(modifier = Modifier.clip(AppTheme.shapes.buttonShape.toComposeShape()))

• Jetpack Compose (Android):

  Surface(shape = AppTheme.shapes.medium.toComposeShape()) { }

• Android XML Layouts:

  <View android:background="?attr/shapeMedium" />

• SwiftUI (iOS):

  Text("Button").cornerRadius(theme.shapes.medium.topLeft)

• UIKit (iOS):

  @ObservedObject private var theme = AppThemeSwift.shared
  button.layer.cornerRadius = AppThemeSwift.shared.shapes.medium.topLeft

• Core Model: The library exposes the DsTypography interface containing text style tokens ( e.g., titleLarge, bodyMedium). The client app must define values for these properties.
• Custom Tokens: The client app can define custom typography styles (e.g., promoTitle) using class delegation.
• Definition:

  class AppTypography(
      private val base: DsTypography,
      val promoTitle: FontSpec
  ) : DsTypography by base

• Compose Multiplatform (Android & iOS):

  Text("Header", style = AppTheme.typography.titleLarge)

• Jetpack Compose (Android):

  Text("Sub", style = AppTheme.typography.bodyMedium)

• Android XML Layouts:

  <TextView
      android:textSize="?attr/fontSizeTitle"
      android:textColor="?attr/colorOnSurface" />

• SwiftUI (iOS):

  @ObservedObject private var theme = AppThemeSwift.shared
  Text("Header").font(Font(theme.typography.titleLargeFont))

• UIKit (iOS):

  titleLabel.font = AppThemeSwift.shared.typography.titleLargeFont

• Core Model: The library does not define any core strings. The custom Gradle plugin packages localized string resource folders (.lproj) into the iOS bundle. The client app defines its own resource keys (typically as an enum) and platform-specific resolvers.

• Storage Location: Localized text is placed directly in standard native resource folders within your shared module:

  • Android: Placed in standard XML values under strings.xml (e.g., values/strings.xml, values-es/strings.xml).
  • iOS: Standard Apple localization directories inside the resources folder (e.g., src/iosMain/resources/en.lproj/Localizable.strings).

• Definition: Define a localized resource enum in commonMain implementing DsStrings. In the platform source sets, implement the platform-specific contract interfaces:

  • Android (AndroidDsStrings): Maps each key to its style theme attribute ID ( R.attr.welcomeMsg) and active theme variant.
  • iOS (IosDsStrings): Maps each key to its exact Cocoa localization dictionary key ( "welcomeMsg").

  // commonMain
  expect enum class AppStrings : DsStrings {
      WELCOME_MSG
  }

  // androidMain
  actual enum class AppStrings : AndroidDsStrings {
      WELCOME_MSG;

    override fun toAttrId(): Pair<Int, String> =
        Pair(R.attr.welcomeMsg, currentVariant.name)
  }

  // iosMain
  actual enum class AppStrings : IosDsStrings {
      WELCOME_MSG;

      override fun toIosKey(): String = "welcomeMsg"
  }

  Usage in the 5 UI Stacks:

  • Compose Multiplatform (Android & iOS):

    Text(text = stringResource(AppStrings.APP_TITLE))

  • Jetpack Compose (Android):

    Text(text = stringResource(AppStrings.WELCOME_MSG))

  • Android XML Layouts:

    <TextView android:text="?attr/welcomeMsg" />

  • SwiftUI (iOS):

    Text(AppStrings.appTitle.localized)

  • UIKit (iOS):

    titleLabel.text = AppStrings.appTitle.localized

  Images

  • Core Model: The library does not define any core images. The custom Gradle plugin compiles and packages the .xcassets catalog into Assets.car inside the iOS bundle. The client app defines its own image references/contracts and platform-specific mapping.

  • Storage Location: Raw vector files and asset catalogs are placed in standard platform-specific resource folders:

    • Android: SVGs/drawables placed directly under src/androidMain/res/drawable/.
    • iOS: Vector asset catalogs located inside src/iosMain/resources/Assets.xcassets/.

  • Definition: Define an image asset enum in commonMain implementing DsImages. In the platform source sets, implement the platform-specific contract interfaces:

    • Android (AndroidDsImages): Maps each key to its style theme attribute ID ( R.attr.logo).
    • iOS (IosDsImages): Maps each key to its Apple Asset Catalog asset name ("ic_logo").

    // commonMain
    expect enum class AppImages : DsImages {
        LOGO
    }

    // androidMain
    actual enum class AppImages : AndroidDsImages {
        LOGO;

        override fun toAttrId(): Int = R.attr.logo
    }

    // iosMain
    actual enum class AppImages : IosDsImages {
        LOGO;

        override fun toImageName(): String = "ic_logo"
    }

• Compose Multiplatform (Android & iOS):

  DsImage(
      image = AppImages.LOGO,
      contentDescription = "Logo",
      modifier = Modifier.size(64.dp)
  )

• Jetpack Compose (Android):

  DsImage(image = AppImages.LOGO, contentDescription = "Logo")

• Android XML Layouts:

  <ImageView android:src="?attr/logo" android:tint="?attr/colorPrimary" />

• SwiftUI (iOS):

  Image(uiImage: AppImages.logo.uiImage)
      .foregroundColor(theme.colors.primary.color)

• UIKit (iOS):

  logoImageView.image = AppImages.logo.uiImage
  logoImageView.tintColor = AppThemeSwift.shared.colors.primary.uiColor

• Advanced Image Loading (Coil 3):

  • For advanced, asynchronous image loading with disk caching, transformations, or transitions, you can bridge DsImages with Coil 3 using our platform-agnostic helper toCoilModel(), or by registering a custom Coil 3 Mapper.
  • See the Coil Integration Guide for full setup instructions and code examples.

• Core Model: The client app writes its custom AppTheme Composable. It resolves the current theme variant tokens, passes them to a CompositionLocalProvider (e.g., LocalAppColors, LocalAppShapes, LocalAppTypography), and maps them to standard MaterialTheme:

  @Composable
  fun AppTheme(
      variant: AppThemeVariant = AppThemeSettings.currentVariant,
      isDark: Boolean = AppThemeSettings.isDark,
      content: @Composable () -> Unit
  ) {
      val (appColors, colorScheme) = remember(variant, isDark) {
          val resolved = variant.resolveColors(isDark)
          resolved to resolved.toColorScheme(isDark)
      }
      val (appShapes, shapes) = remember(variant) {
          val resolved = variant.resolveShapes()
          resolved to resolved.toShapes()
      }
      val (appTypography, typography) = remember(variant) {
          val resolved = variant.resolveTypography()
          resolved to resolved.toTypography()
      }

      CompositionLocalProvider(
          LocalAppColors provides appColors,
          LocalAppShapes provides appShapes,
          LocalAppTypography provides appTypography
      ) {
          MaterialTheme(
              colorScheme = colorScheme,
              shapes = shapes,
              typography = typography,
              content = content
          )
      }
  }

[!NOTE] The sample app's AppThemeSpecs.kt provides a full, concrete example of how to implement colors, shapes, typography, platform-specific string/image maps, and dynamic theme switching.

Build the Android debug configurations:

./gradlew assembleDebug

[!IMPORTANT] macOS & Xcode Requirement
Building and linking iOS targets requires a macOS machine with Xcode 15.0 or higher installed.

Clean and build the iOS framework package and simulator targets:

xcodebuild -project app-ios/app-ios.xcodeproj \
           -scheme app-ios \
           -destination "generic/platform=iOS Simulator" \
           -configuration Debug \
           clean build

We welcome contributions to help improve kmp-design-system! Whether you are reporting a bug, suggesting a new design token, or submitting a Pull Request, please follow these guidelines:

1. Report Issues: Open an issue on GitHub detailing the bug, unexpected behavior, or feature request.
2. Submit Pull Requests:
   • Create a feature branch for your changes (do not commit directly to main).
   • Write clear, concise commit messages and ensure all existing checks (Android compilation, iOS linking) pass.
   • For major or breaking changes, please open an issue first to discuss your planned modifications.

This project is licensed under the MIT License. See the LICENSE file in the root directory for the full legal text.
