A refracting glass material for Compose Multiplatform, drawn entirely in a shader. No images, no nine-patches, no platform widgets. Drop it on any element and it becomes an optical object sitting over whatever is behind it.

Runs on Android 13+ (AGSL) and Desktop/JVM (Skia). Below Android 13 it degrades to a tinted surface with the same rim lighting — a plainer material, not a broken one.

implementation("dev.shayxo.liquidglass:liquidglass:0.1.0")

On Maven Central for Android and desktop JVM; a Kotlin Multiplatform module, so one dependency line in commonMain resolves the right variant for each target. To try an unreleased change, ./gradlew publishToMavenLocal in a clone produces the same artifacts, and a project consumes them by adding mavenLocal { content { includeGroup("dev.shayxo.liquidglass") } } to its repositories. See Getting started.

The sample/ app is the material on a phone: ./gradlew :sample:installDebug.

Apache-2.0. Not affiliated with, endorsed by, or derived from Apple. "Liquid Glass" is Apple's name for their design language and is used here only to describe what this material resembles; no Apple code, shader or asset is included.

Full documentation → · Getting started · Shapes · Interaction · API reference · Limitations · Roadmap · The research · What everyone else built

val glass = rememberLiquidGlassState(background = MyTheme.ground)

Box {
    Content(Modifier.liquidGlassSource(glass))          // what gets refracted

    Row(
        Modifier
            .align(Alignment.BottomCenter)
            .liquidGlass(glass, CircleShape, GlassStyle.Chrome)
    ) { /* tab bar */ }
}

Apple publishes no numbers for Liquid Glass — no blur radius, no index of refraction, no falloff exponent. What it publishes is architecture and direction of effect. This implements that architecture; the constants are ours, tuned against a test surface.

The sample region is larger than the element. The material samples "an area larger than itself", which is what makes it lens rather than merely blur. The host records a padded slice of backdrop and the panel occupies the inset rect, so displacement at the rim reaches real content beyond the edge instead of clamping against it.

The rim is sharper than the middle. This is the most recognisable thing about the material and the easiest to lose. The edge band shows a compressed, warped, legible image of what lies just outside the element while the interior stays soft. A backdrop blurred before it reaches the shader cannot do this — the detail the rim is supposed to bend has already been destroyed. So the interior blur lives inside the shader, with its radius keyed to distance from the edge.

Geometry is a signed distance field. Distance to the edge drives refraction, so the bend is a band hugging the rim that fades to nothing in the flat centre. The gradient of the field is the surface normal, which gives refraction its direction and specular its angle, and stays correct through corners where a per-edge normal pops.

That gradient is central-differenced at a wide epsilon, clamp(band * 0.3, 1, 16) px. At one pixel the gradient magnitude collapses from 1 to 0 to 1 across the medial axis, leaving a one-pixel seam of zero refraction down the spine of every capsule. The magnitude that falls out of the wide difference is reused as a confidence term that fades the lens toward the axis rather than letting its direction flip — which matters most in a container's neck, where the whole region is medial axis.

Dispersion. A real bevel does not bend every wavelength equally, so the channels are sampled fractionally apart and the rim carries a faint colour fringe. Blue carries the higher index, so it lands furthest out. Faint on purpose — real UI glass shows almost no prismatic rainbow, and past a few percent this reads as a broken colour channel rather than as glass.

A mirrored edge band. A broad, soft, upside-down echo of nearby content over roughly the outer third of the surface, with a squared falloff. This is the detail that makes an edge read as liquid rather than as a bevel; a thin band instead reads as a hard streak.

Exact refraction, not a curve that looks about right. The bevel is a superellipse height field and the displacement is the exact Snell deviation for its slope, computed through the tangent-difference identity so it contains no transcendental. It is self-bounding as the slope goes vertical, which is why it needs none of the ad-hoc clamps the usual slope * (1 - 1/n) shortcut requires. The index of refraction therefore shapes the falloff rather than scaling it.

Tint is a tone mapping, not an overlay. One colour generates a range of tones indexed by backdrop brightness — lifting and desaturating over dark ground, darkening and saturating over bright — the way a real pane of coloured glass does.

Parameters are keyed to element size. Larger glass reads more opaque with deeper shadow and stronger lensing; smaller glass reads clearer and is allowed to invert light/dark to hold contrast. See elementSizeFactor.

Inversion is one decision per element, not per pixel. Symbols and labels drawn on the glass have to flip in lockstep with it, and a fragment shader behind them cannot reach them, so the same scalar has to reach both. The app decides and passes it as rememberLiquidGlassState(inversion = ...); a permanently dark app leaves it at 0.

Legibility rises with local contrast. Apple shifts tint as text scrolls underneath. The shader gets that signal for free: its rim sample and its interior sample already bracket the backdrop's high frequencies, so their difference stands in for "something busy is under here".

The edge is lit, not outlined. A thin bright line where the edge turns into the light, and no dark border. A dark border is the fastest way to make this read as a drawn rectangle.

Content can sit inside the glass, not only on it. Some content is what the glass is looking at — the symbol a selection lens is crossing, whatever a magnifier is over. With refractContent = true the content takes a second pass through the same field, bevel and dispersion as the backdrop, clipped to the shape, and is composited over the material. This is how an iOS tab bar changes a symbol's colour: the indicator is a lens above the tab, and a symbol half under it is half one colour and half the other, fringing where the rim crosses it.

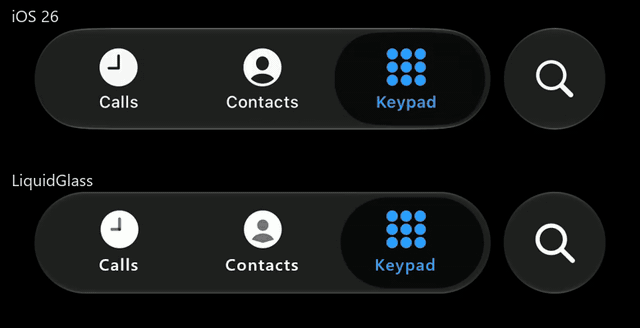

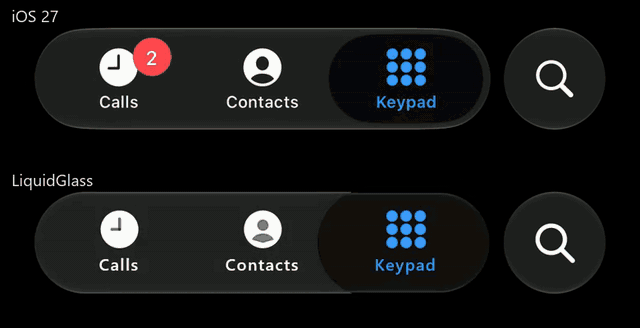

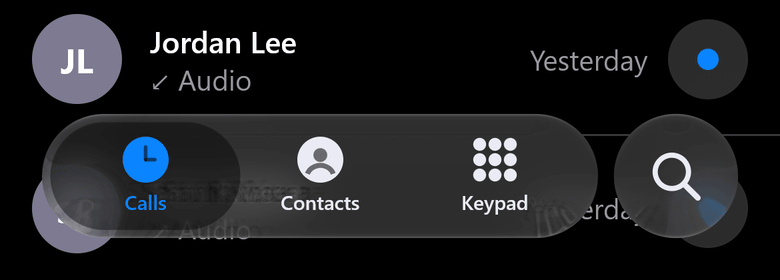

There is a tab bar. GlassTabBar is the component the material was measured against: a flat inset at rest that becomes a lens under the finger, stands proud of the bar, looks through it, is dragged 1:1 and commits on release, with the tabs changing colour because you are looking at them through the lens. Every default is a measurement.

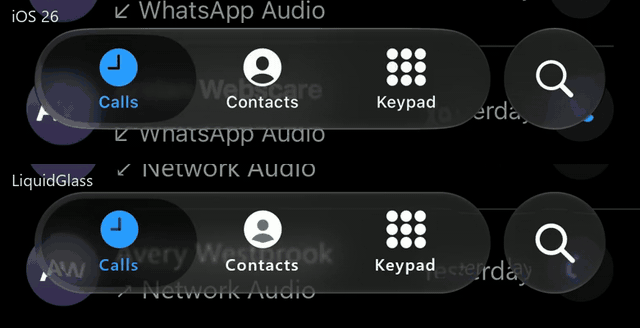

One preset is measured rather than tuned. GlassStyle.DarkChrome comes from a frame-by-frame reading of an iOS 26 tab bar in dark appearance — what it adds over black, what fraction of the text behind it survives, where its edge is lit and where it is not. See reference measurements.

LiquidGlassContainer renders several panels as one body of glass. Members do not each get their own material: their shapes are combined into a single distance field with a smooth minimum, so panels that come within mergeDistance of each other grow a neck and fuse, then separate again as they move apart.

The merge is geometry, not an animation, so it stays correct at any speed or angle — which is what makes it read as liquid rather than as two rectangles cross-fading.

LiquidGlassContainer(glass, mergeDistance = 40.dp) {
    Box(Modifier.size(96.dp).glassMember(CircleShape))
    Box(Modifier.size(96.dp).glassMember(CircleShape))
}

Capped at eight members, because SkSL needs unrollable loops and every member is evaluated at every pixel — which is precisely what lets the fields interact.

GlassStyle carries two, and they are not interchangeable.

blurRadius tapers to zero at the rim, which is what keeps the signature edge. It is a nineteen-tap disc rotated by a per-pixel angle — too few taps to blur legible text outright, so the pattern is rotated and the ghosts break up into noise the eye integrates as blur.

backdropBlur is the opt-in for chrome. Over a plain dark ground carrying sparse high-contrast text there is almost nothing to refract, and the little there is arrives half-legible, smeared along the rim and sitting under the labels. GlassStyle.Chrome trades the signature for legibility on purpose.

• Shapes. Rounded rects, capsules and circles analytically; GlassSquircleShape for Apple's actual corner geometry; and anything else — a star, a blob, a hand-drawn GenericShape — by measuring it. See Shapes.
• Touch. Opt-in press response: scale with one overshoot, illumination from within under the fingertip, and a magnifier that drags the backdrop with it. Inside a container a press on one member lights its neighbours, because the falloff is evaluated in the container's space.
• Materialize. Elements arrive and leave by modulating the lensing rather than by fading, which is Apple's stated mechanism and their guidance over alpha.
• Morph. animateGlassStyle carries the material with the geometry, because Apple's material changes with size — a growing element that holds its edge parameters constant reads as a picture of glass being stretched.
• Adaptation. Per-pixel tone-mapped tint, free local-contrast legibility, and a per-element light/dark inversion with hysteresis that the app hands to its content too.
• Accessibility. Frost, high contrast, and reduced motion. See Accessibility for what Android does and does not have.
• Scroll edge effect. A separate sibling, as Apple ships it — it is not the material.

• Regular — the workhorse. Carries controls.
• Clear — thinner and more transparent, for chrome that should mostly disappear. Its zeros are Apple's, not a tuning choice: clear "does not have adaptive behaviours, it is permanently more transparent", so it does not tone-map, does not react to contrast and never flips — and therefore requires the 35% dimming layer, the one number the HIG actually gives.
• Thick — a sheet or dialog that must hold a lot of content. Adapts but never flips polarity.
• Chrome — tab bars, toolbars, accessory pills over an app's own content.

Both were bugs here first, and both look like a shader problem when they are not.

The recorded layer must be opaque. A backdrop layer is transparent wherever the app painted nothing — its ground is usually painted by an ancestor, not by the recorded subtree — and a blur drags that transparency inward. Using the premultiplied result composites those pixels toward black, which is a heavy dark halo around every panel; dividing the alpha out instead blows partly-covered pixels to white. Neither is what a viewer sees. So the padded layer is filled with LiquidGlassState.background before the backdrop goes into it, and the shader can then treat any alpha shortfall as filtering error and reconstruct through it.

The sample must be bounded by the backdrop, not by the layer. The padded slice is deliberately larger than the panel, and near a screen edge it hangs off the end of the backdrop. Those pixels are not merely dark — they are the flat fill — and a panel that samples them grows a band of solid colour at the rim. sampleBounds is the intersection of the recorded backdrop with the layer.

Measured on a Pixel 7 at 120 Hz with two glass elements over a live, continuously animating app: 4.36% janky frames with the shader path enabled against 4.96% with it forced off — the same within noise, on an app whose idle redraw already dominates. Adding the mirrored band, the Schlick term and exact-Snell refraction did not move it (3.85%, p90 8 ms). The padded recording is sized to what the shader actually reads (peak displacement plus blur radius), since every pixel of it is re-recorded per frame.

GlassGallery is the tuning surface: saturated colour, hard stripes and fine text over which the differences between the styles — and the mistakes — are obvious. A smooth gradient alone hides almost every flaw in a lensing shader. The sample app's first screen opens it.

Contributions are welcome; see CONTRIBUTING.md. Releases are described in docs/publishing.md and listed in CHANGELOG.md.
