Kotlin Multiplatform color picker library for Android, iOS, Desktop (JVM), and Web (Wasm), built with Compose Multiplatform and Material 3.

• Compose Multiplatform (Android, iOS, Desktop/JVM, Web/Wasm)
• Material 3 theming via ColorPickerDefaults
• HSL, RGB, CMYK, and LAB color models
• Perceptual color: Okhsl and Okhsv pickers, with Oklab and OkLCh for interchange and manipulation
• CSS Color 4 gamut mapping, so an out-of-gamut LAB, Oklab or OkLCh color keeps its lightness and hue
• Alpha channel support
• Zero-drift editing: ColorPickerState keeps the authoritative color in the space you edited, so edit-in-X-read-X is always exact (conversions themselves are float-based)
• Unidirectional data flow with ColorPickerState
• Hex string parsing and formatting
• Color picker dialog
• Two-dimensional color planes — saturation paired with lightness or value — alongside the single-channel sliders
• Accessibility semantics throughout — the planes take focus, move with the arrow keys, and offer a screen reader one named action per direction
• RTL layout support everywhere but the planes, which map a color space rather than showing progress

// build.gradle.kts
implementation("codes.side:colorpicker:1.2.0")

In a Kotlin Multiplatform project, add it to commonMain:

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("codes.side:colorpicker:1.2.0")
        }
    }
}

Published targets: android, jvm, iosArm64, iosSimulatorArm64, wasmJs.

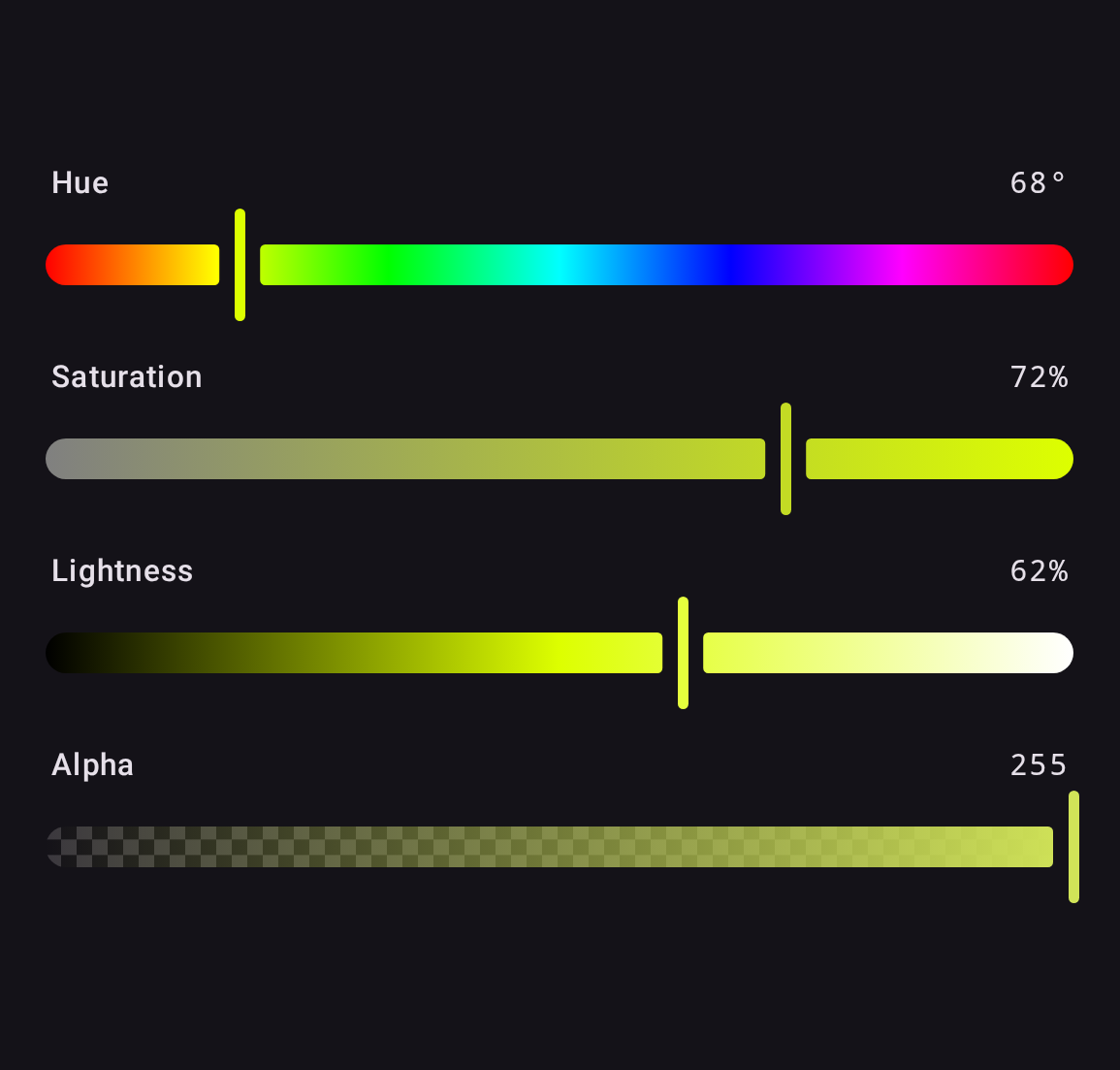

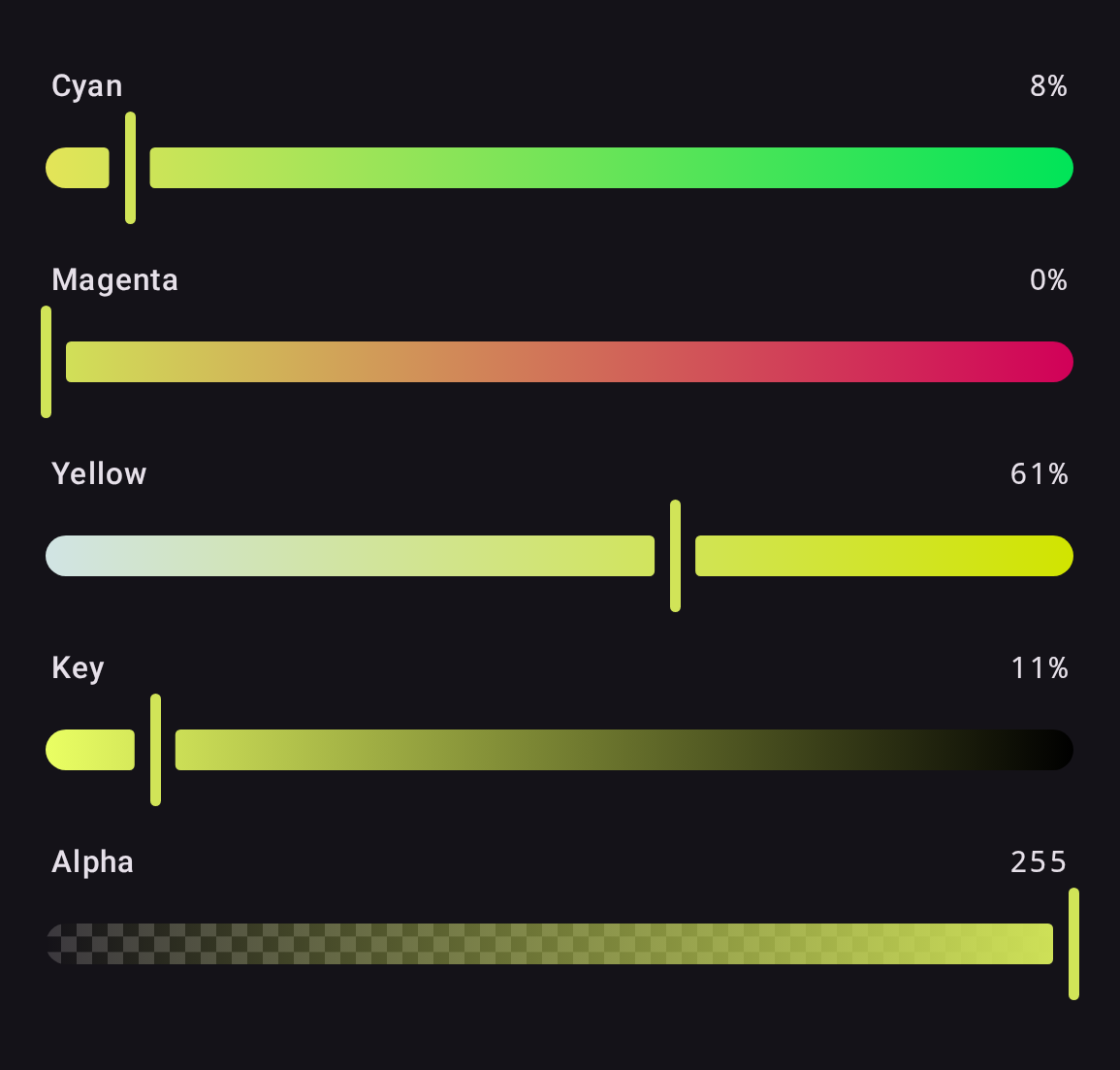

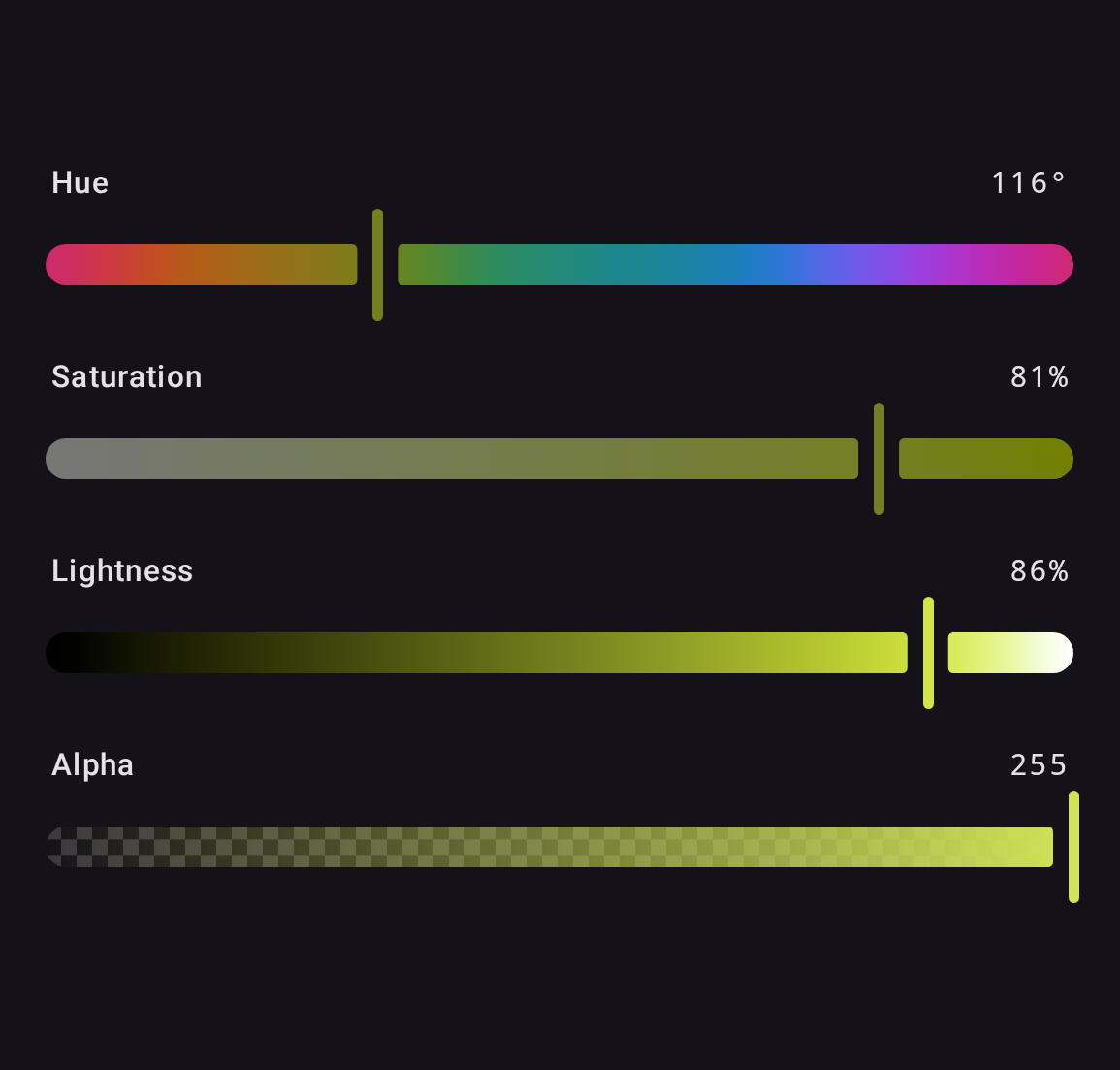

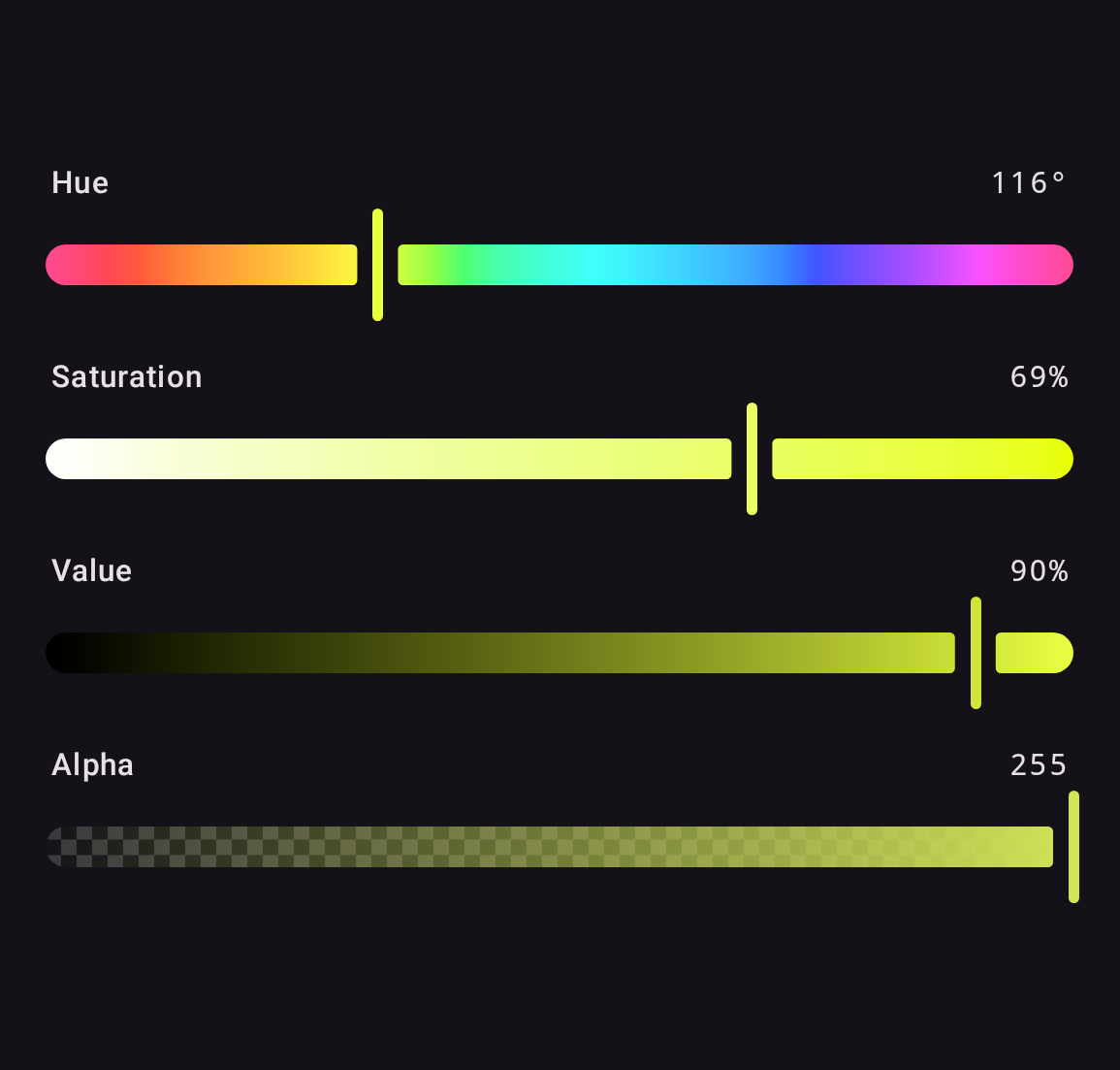

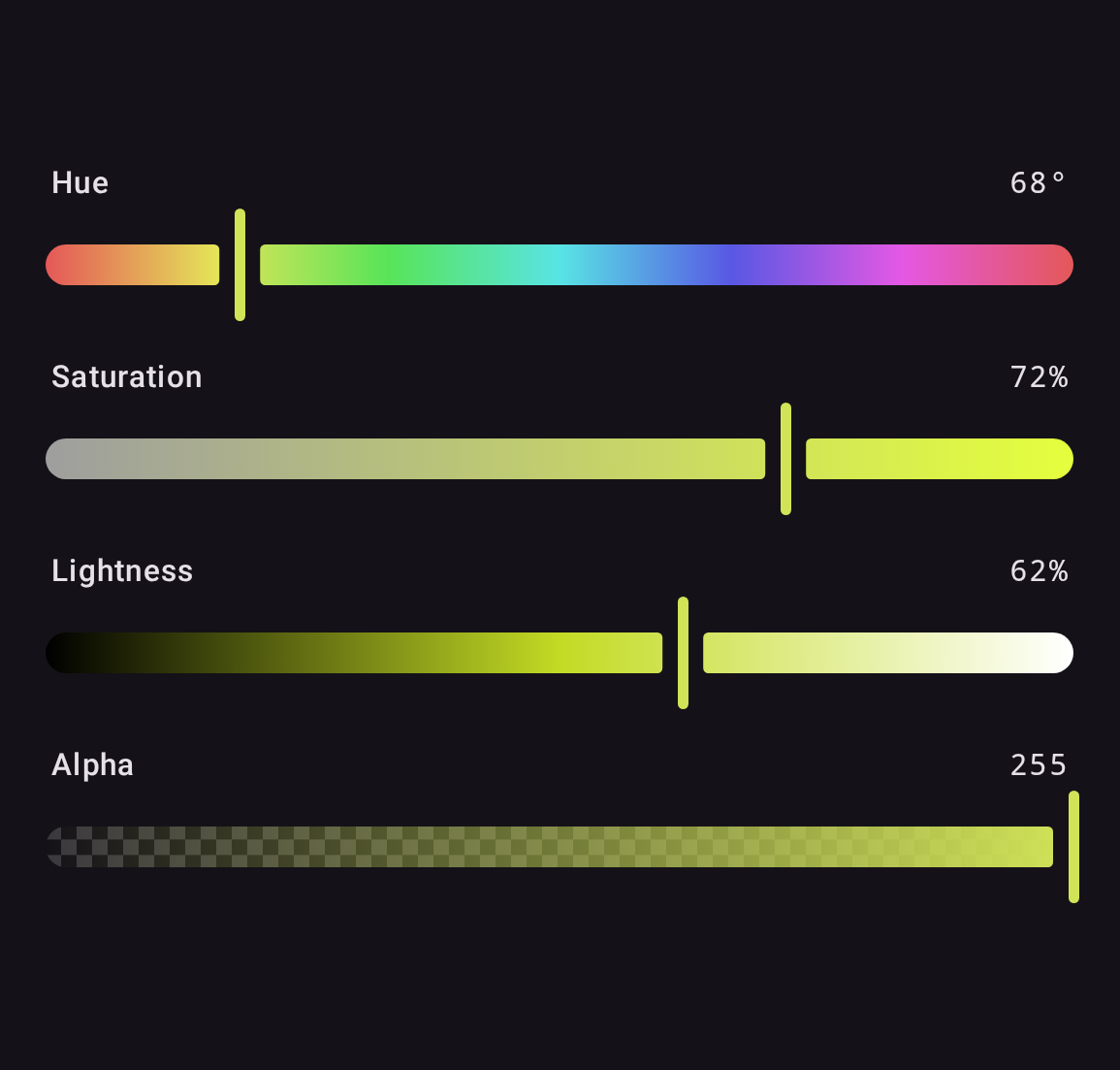

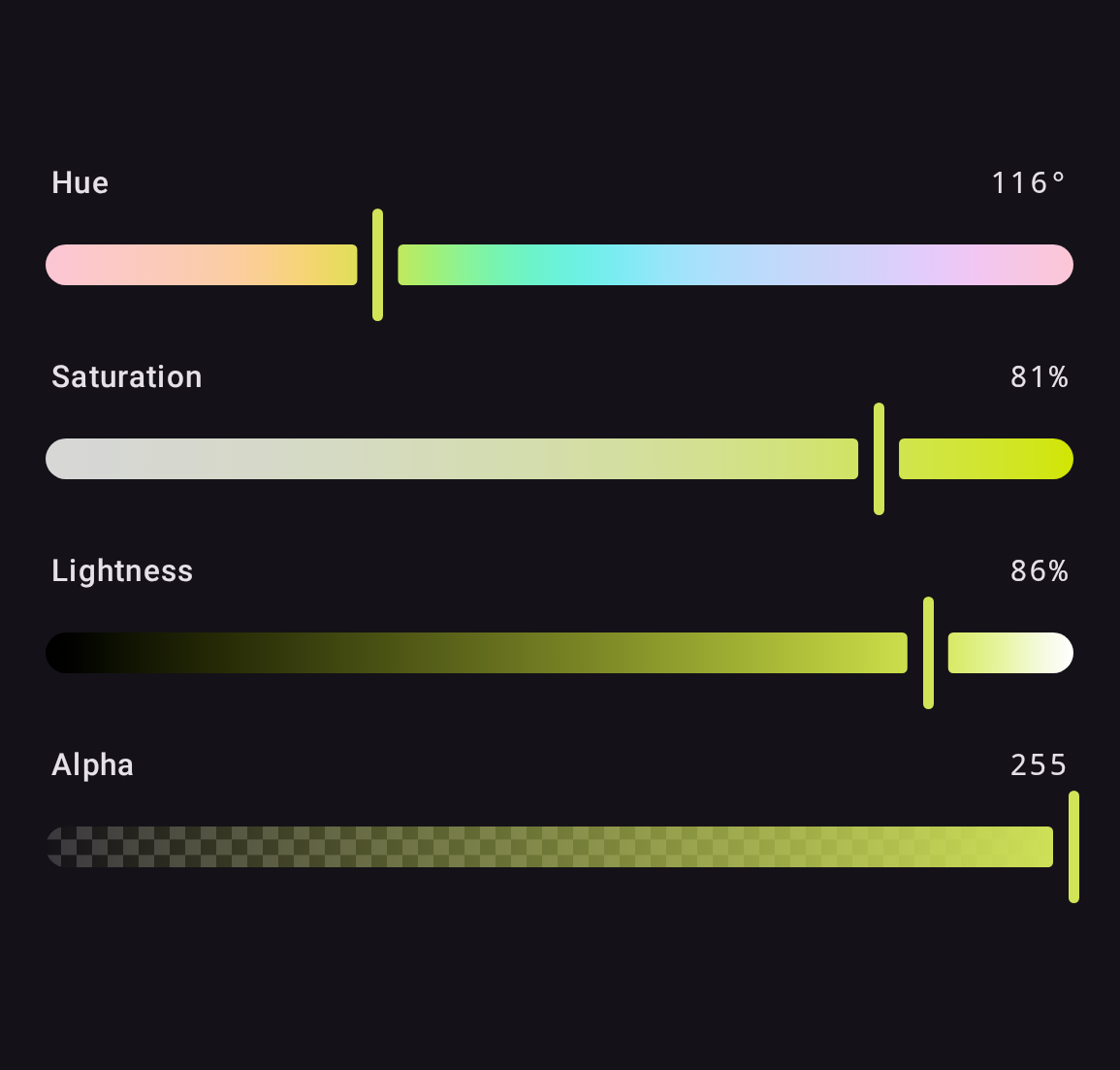

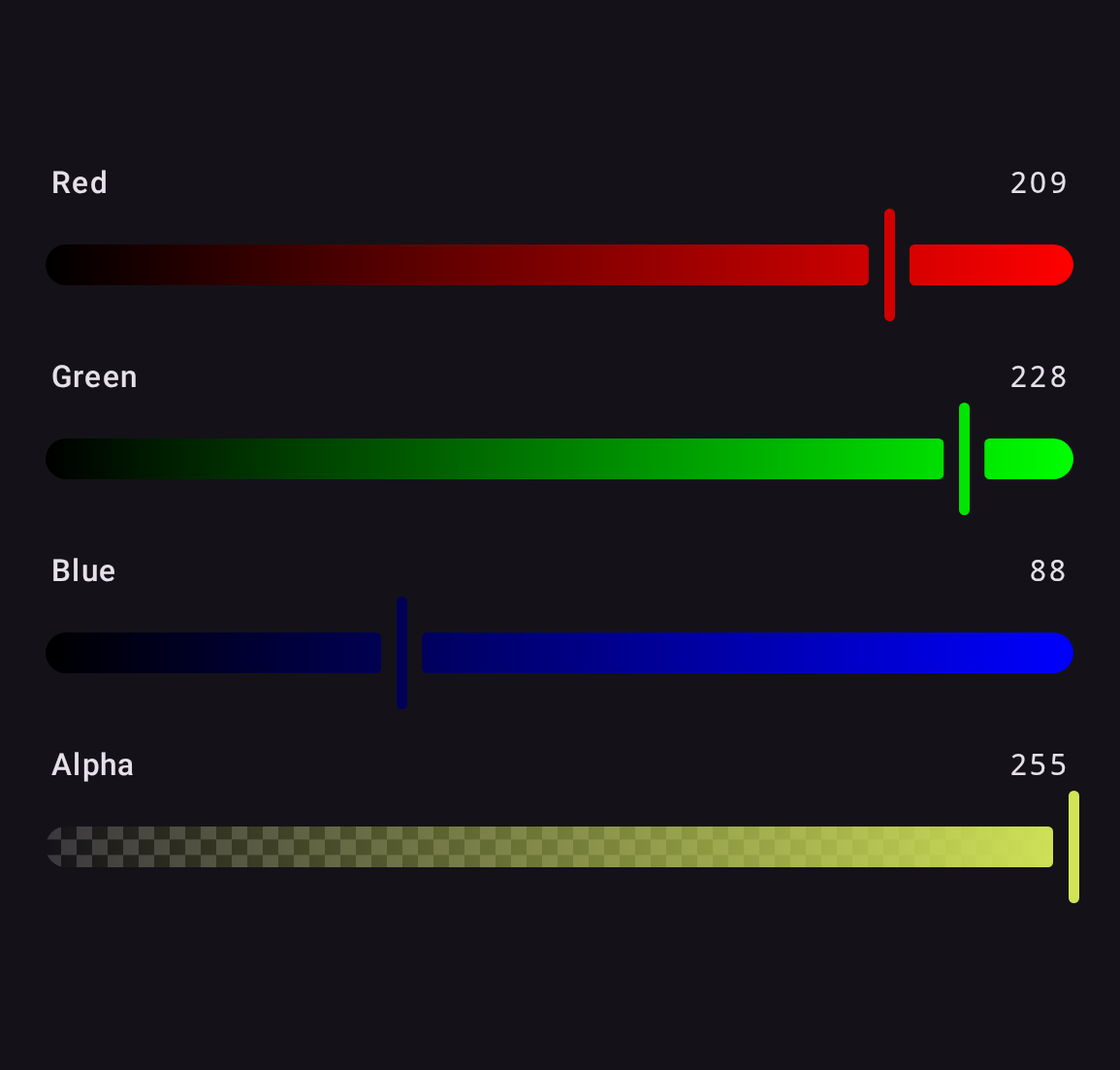

Every picker takes a ColoringMode. Independent shows each channel's full range; Contextual previews the resulting color at every slider position. HslColorPicker, OkhslColorPicker and OkhsvColorPicker default to Independent; the RGB, CMYK and LAB pickers default to Contextual.

Model	Independent	Contextual
HSL HslColorPicker

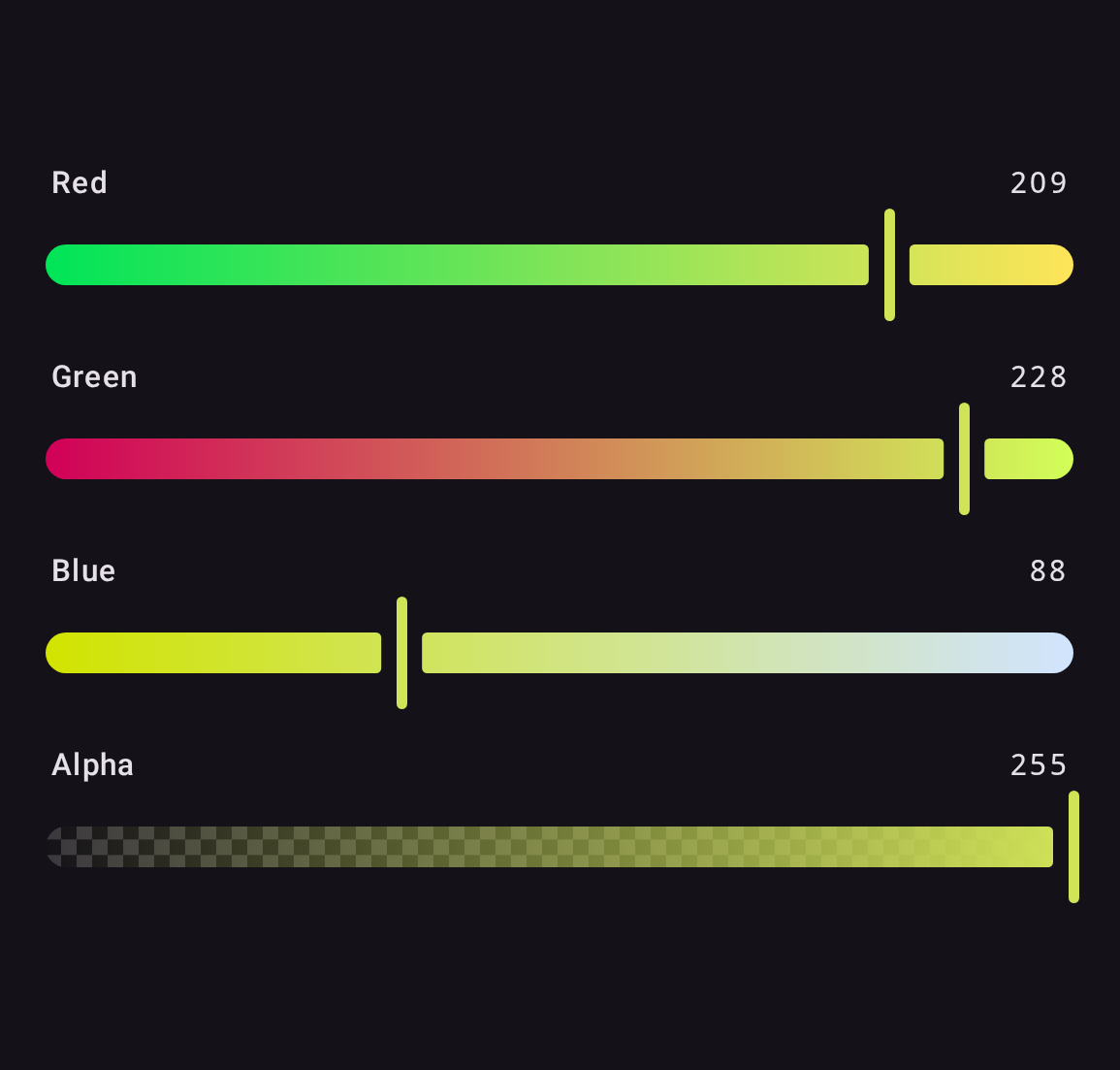

RGB RgbColorPicker

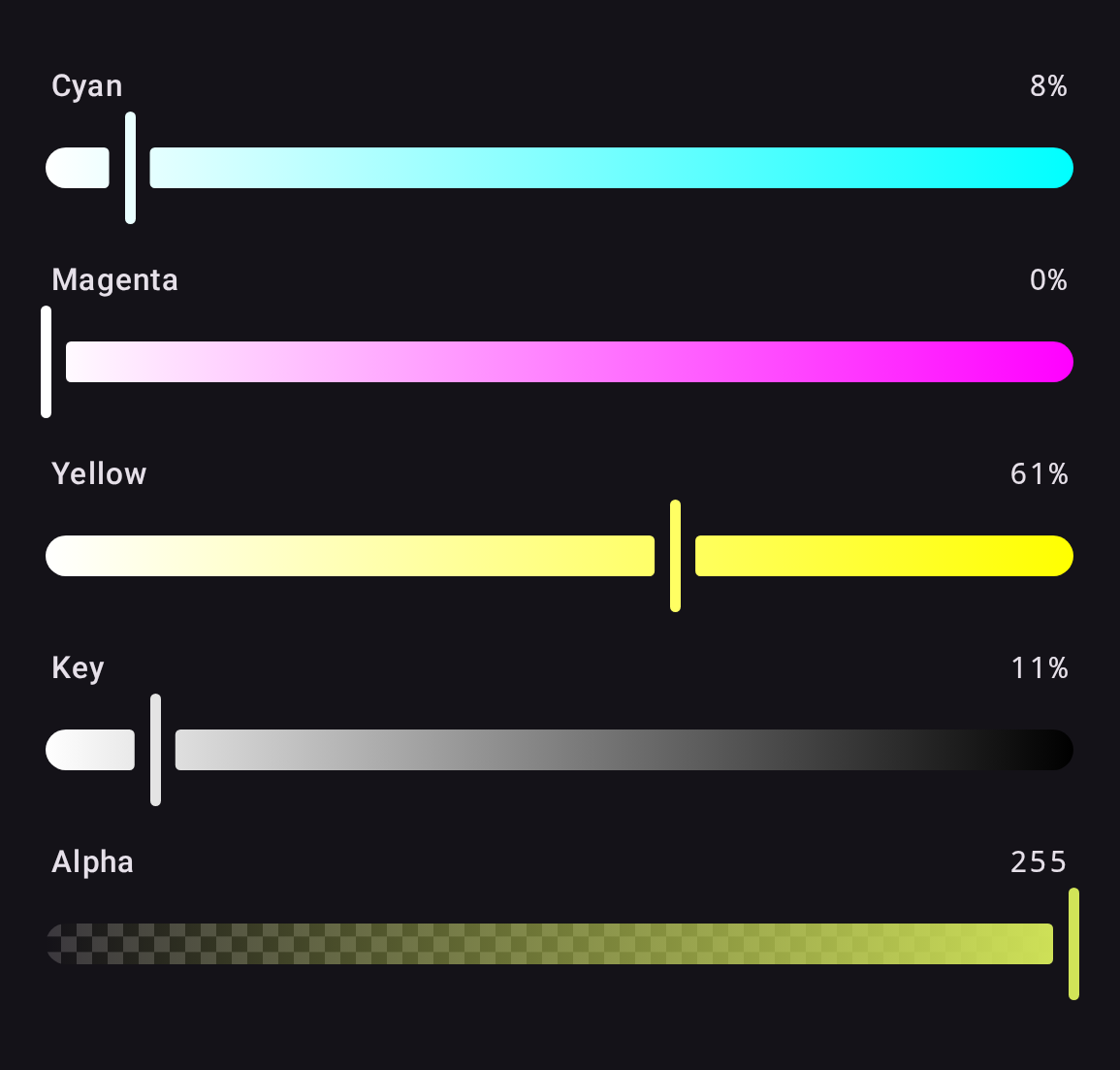

CMYK CmykColorPicker

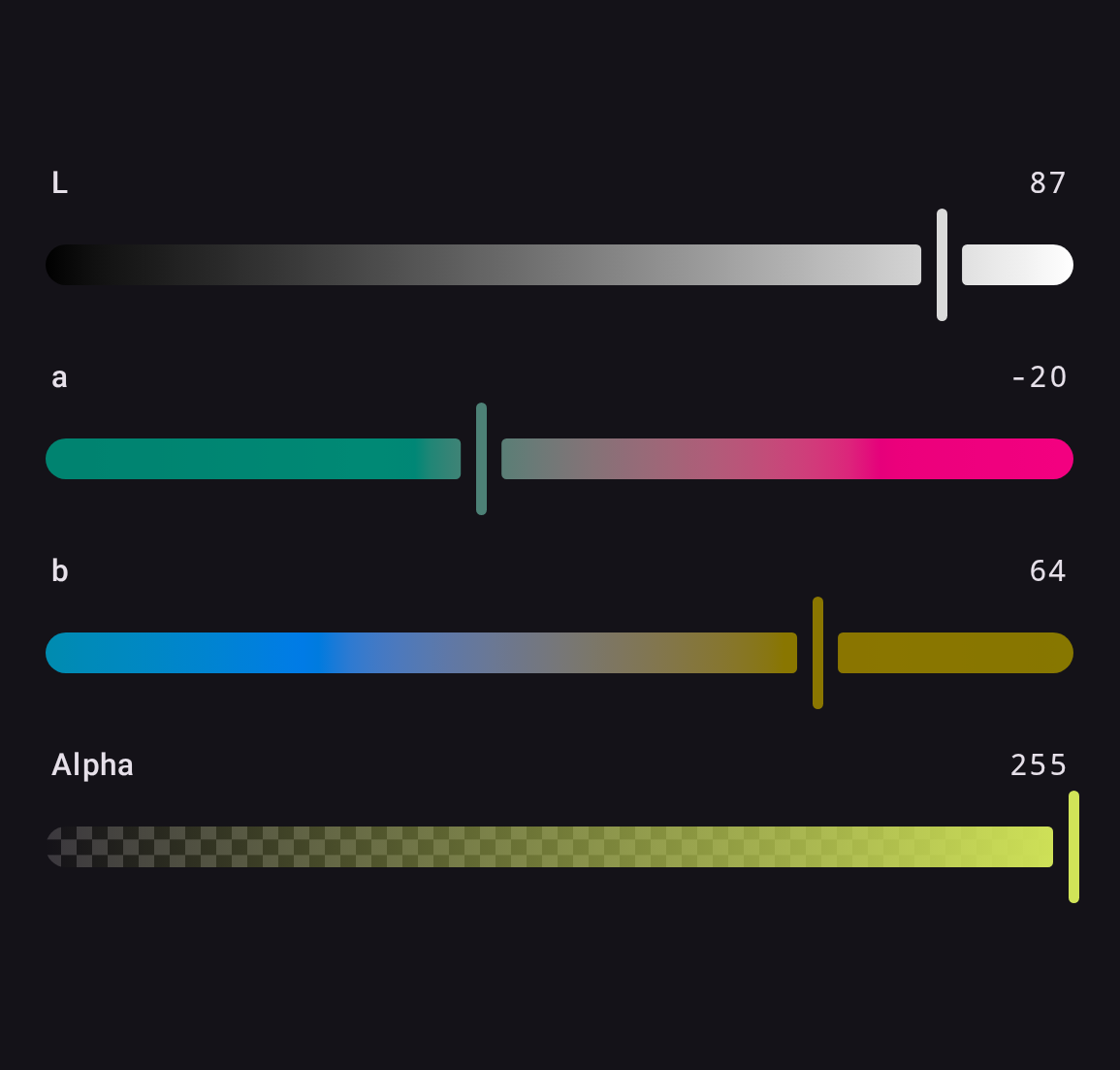

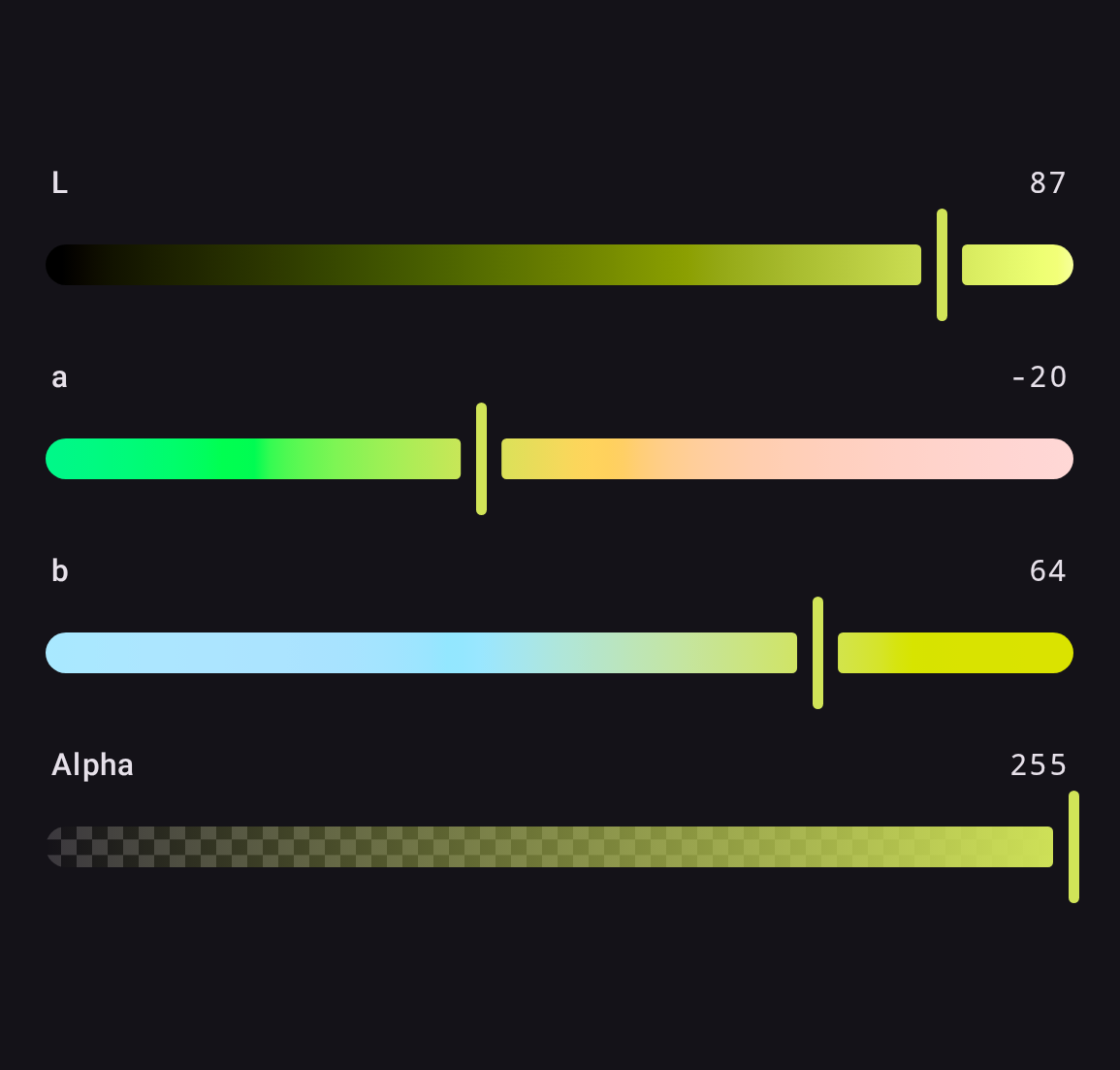

LAB LabColorPicker
Okhsl OkhslColorPicker

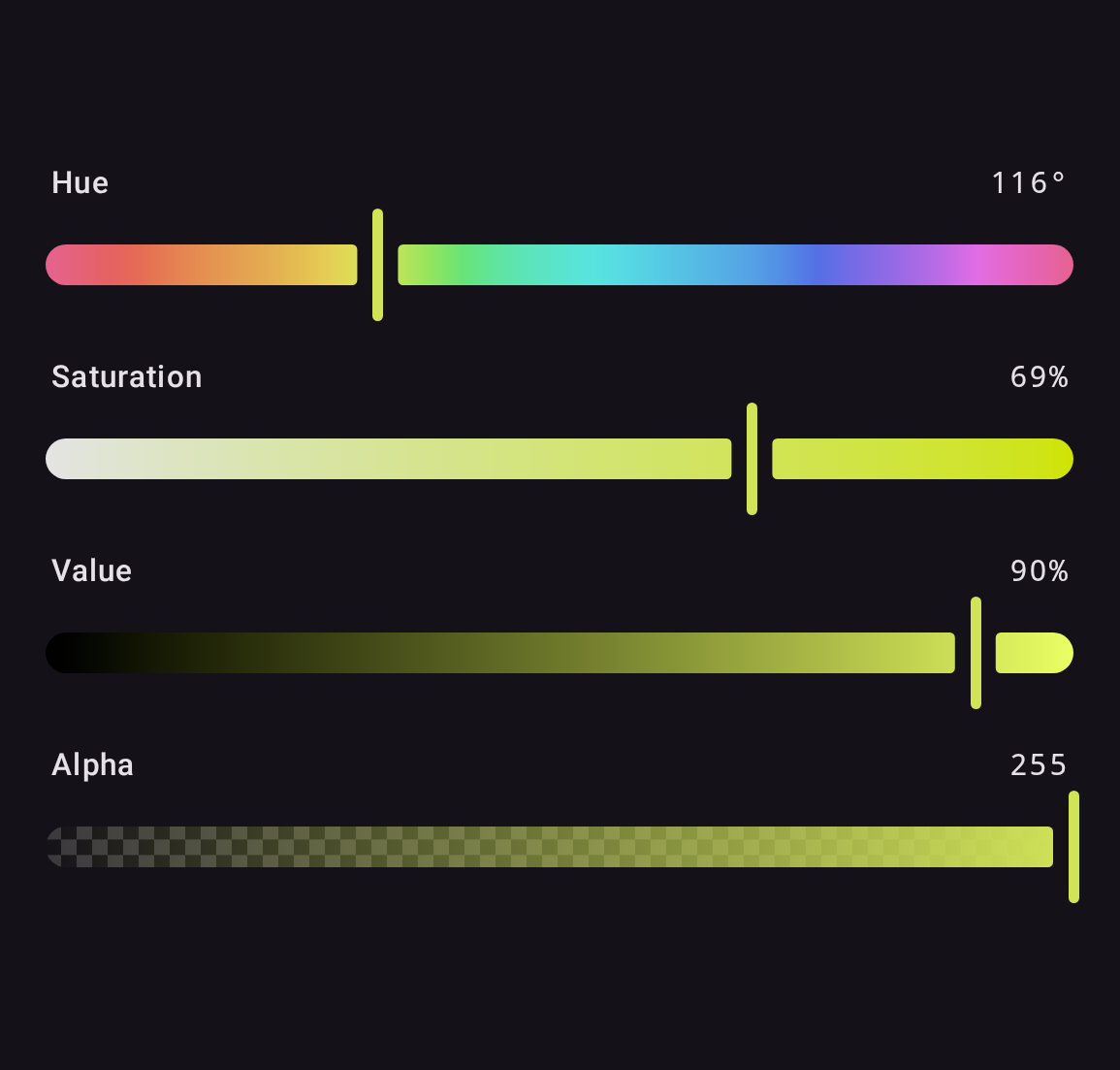

Okhsv OkhsvColorPicker

ColorSwatch draws the color over a transparency checkerboard, so alpha reads correctly:

These images are the Compose Preview Screenshot Testing references, rendered from the library's own components and re-checked on every CI run, so they cannot drift from what the code actually draws. Regenerate them with ./gradlew :screenshot-tests:updateDebugScreenshotTest.

@Composable
fun MyScreen() {
    val state = rememberColorPickerState(
        initialColor = HslColor(hue = 200f, saturation = 0.8f, lightness = 0.5f)
    )

    Column {
        HslColorPicker(state = state)
        ColorSwatch(
            color = state.hslColor.toComposeColor(),
            modifier = Modifier.size(48.dp)
        )
    }
}

All color models use Float for full precision. Integer accessors and factories are provided for convenience.

val color = HslColor(hue = 210f, saturation = 0.8f, lightness = 0.5f, alpha = 1f)
// hue: [0, 360], saturation/lightness/alpha: [0, 1]

// Integer accessors
color.intHue        // 210
color.intSaturation // 80
color.intLightness  // 50
color.intAlpha      // 255

// From integers
HslColor.fromInt(hue = 210, saturation = 80, lightness = 50, alpha = 255)

val color = RgbColor(red = 0.2f, green = 0.5f, blue = 0.8f, alpha = 1f)
// All components: [0, 1]

color.intRed   // 51
color.intGreen // 128
color.intBlue  // 204

RgbColor.fromInt(red = 51, green = 128, blue = 204)

val color = CmykColor(cyan = 0.3f, magenta = 0.6f, yellow = 0.1f, key = 0.2f)
// All components: [0, 1]

CmykColor.fromInt(cyan = 30, magenta = 60, yellow = 10, key = 20)

The naive conversion, with no colour profile. It round-trips on screen and is not what a press will print — real CMYK is device dependent, its gamut is not sRGB's, and crossing between them needs an ICC profile and a rendering intent. Treat these as a screen-space parameterisation rather than ink.

val color = LabColor(l = 54.29f, a = 80.81f, b = 69.89f)
// l: [0, 100], a: [-128, 127], b: [-128, 127], alpha: [0, 1]

LabColor.fromInt(l = 54, a = 81, b = 70)

CIELAB with a D50 reference white, which is what CSS lab(), Photoshop and Compose's ColorSpaces.CieLab all quote, so a value copied from any of them means here what it meant there. About an eighth of the a/b box is inside sRGB: over half the travel on either slider is outside it and renders as the nearest color the display can show.

val color = OkhslColor(hue = 29.2f, saturation = 1f, lightness = 0.57f)
// hue: [0, 360), saturation: [0, 1], lightness: [0, 1], alpha: [0, 1]

OkhslColor.fromInt(hue = 29, saturation = 100, lightness = 57)

Björn Ottosson's perceptual replacement for HSL, and the one to reach for if you are choosing between the two. lightness is perceived lightness, so a blue and a yellow at 0.5 look equally light; in HSL they differ by more than half the scale. saturation is measured against the sRGB gamut, so 1 is as colorful as the display can go at that hue and lightness — every coordinate is a real color and no part of a slider is dead travel.

val color = OkhsvColor(hue = 29.2f, saturation = 1f, value = 1f)
// hue: [0, 360), saturation: [0, 1], value: [0, 1], alpha: [0, 1]

OkhsvColor.fromInt(hue = 29, saturation = 100, value = 100)

Okhsl's perceptual hue and gamut-relative saturation in the HSV arrangement artists expect: full saturation at full value is the most vivid form of a hue, and pulling value down darkens toward black. Prefer Okhsl when the middle of the lightness track should be a mid tone.

val color = OklabColor(l = 0.63f, a = 0.22f, b = 0.13f)
// l: [0, 1], a: [-0.4, 0.4], b: [-0.4, 0.4], alpha: [0, 1]

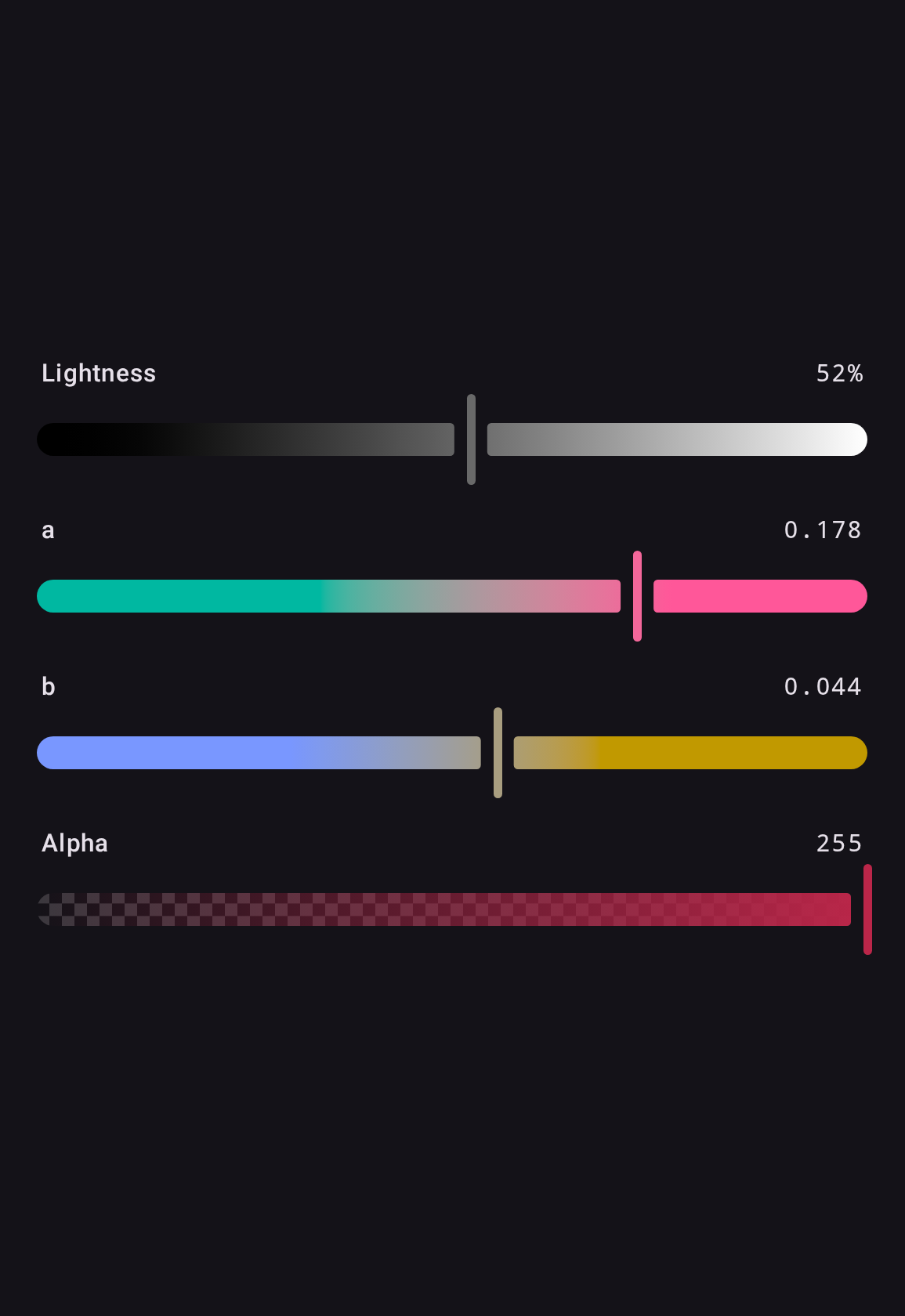

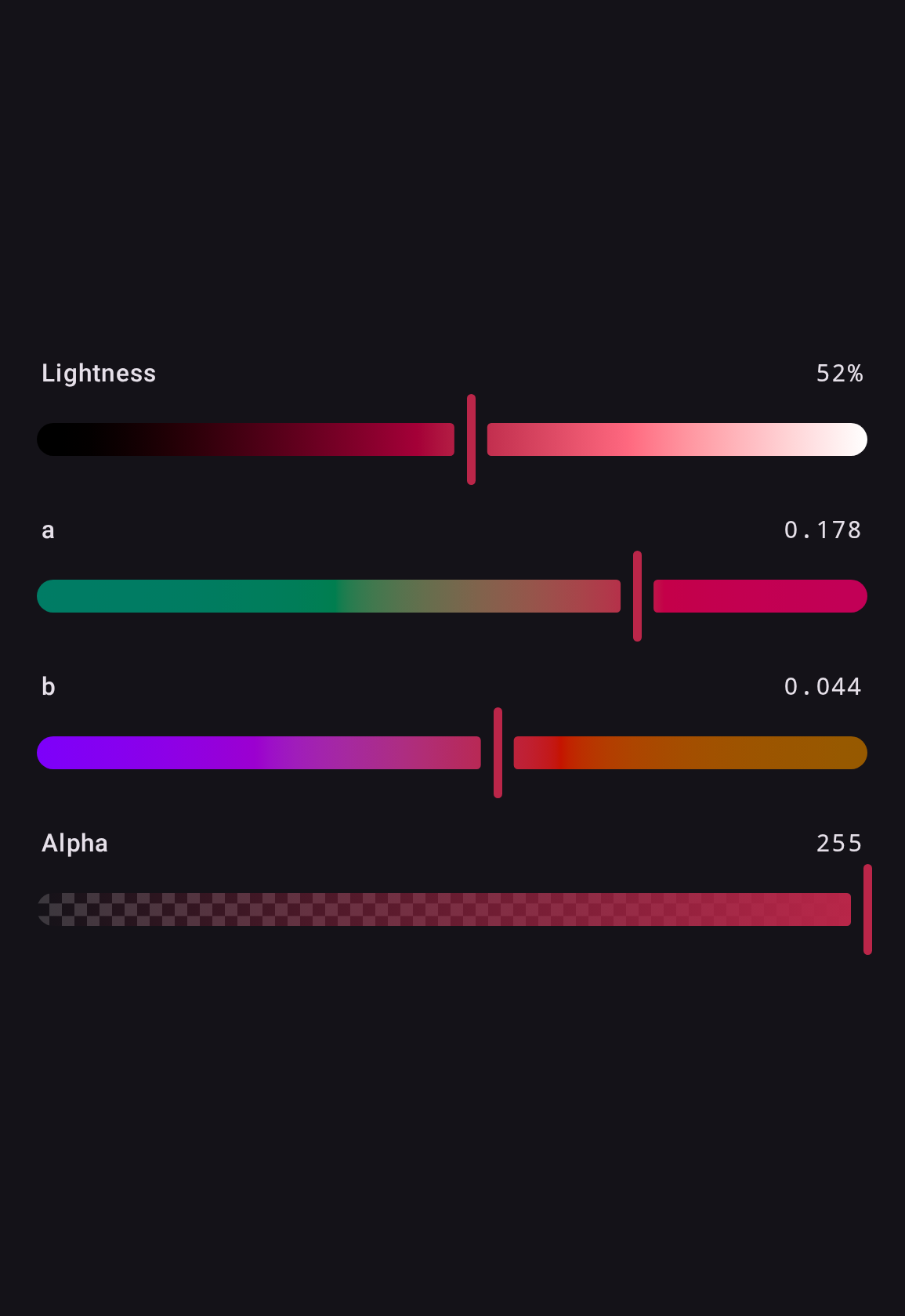

The perceptual space the two above are built on, and the one to interpolate, compare or blend in — equal numeric steps are close to equal perceived steps, and moving l does not drag the perceived hue with it. Note l runs 0..1, not CIELAB's 0..100, and the a and b bounds are the reference range CSS Color 4 gives oklab().

Oklab is not a space to put sliders on: a and b are not bounded by the display gamut, so most of their range is unreachable, exactly as with LAB. Use Okhsl or Okhsv for that.

val color = OklchColor(l = 0.63f, chroma = 0.26f, hue = 29.2f)
// l: [0, 1], chroma: [0, 0.4], hue: [0, 360), alpha: [0, 1]

Oklab in cylindrical form, and the space CSS exposes as oklch() — use it to move values in and out of stylesheets, or to change one of lightness, chroma and hue while holding the others.

LAB, Oklab and OkLCh can describe colors sRGB cannot show. Converting one to RGB does not clamp each channel independently, which would shift lightness and hue as a side effect. It runs the CSS Color 4 algorithm: binary search down the chroma axis, comparing each candidate against its clipped form, and stop once the two are within a just-noticeable difference. Lightness and hue survive, chroma pays, and the result matches what a browser would render.

The search runs in Oklab whatever space the color came from, as CSS specifies, so what survives is Oklab's lightness and hue, not CIELAB's. L* lands within about 3 where clipping each channel moved it by 7.6. CIELAB's own hue angle can still swing, and swings worst where the two spaces disagree most: lab(50% 0 -128) sits at 270° in CIELAB but 221° in Oklab, so holding the latter moves the former by 38°. That is CIELAB's blue axis being non-uniform rather than the mapping misbehaving — Oklab's hue is the one that tracks what you see.

Okhsl and Okhsv never need this — their coordinates are normalized against the gamut, so they are inside it by construction.

Conversions are extension functions. They operate on floats end to end — nothing is quantized to integers until you explicitly ask for an ARGB Int or a hex string. Like any color space conversion, a cross-space round trip is not guaranteed to be bit-exact; the zero-drift guarantee comes from ColorPickerState's origin tracking (see Architecture).

val hsl = HslColor(hue = 0f, saturation = 1f, lightness = 0.5f)
val rgb = hsl.toRgb()
val cmyk = rgb.toCmyk()
val lab = rgb.toLab()
val argb = rgb.toArgbInt()

// Perceptual spaces
val oklab = rgb.toOklab()
val oklch = rgb.toOklch()
val okhsl = rgb.toOkhsl()
val okhsv = rgb.toOkhsv()

// Compose interop, both ways
val composeColor: Color = hsl.toComposeColor()
val backToHsl: HslColor = composeColor.toHslColor()
val backToRgb: RgbColor = composeColor.toRgbColor()
val backToCmyk: CmykColor = composeColor.toCmykColor()
val backToLab: LabColor = composeColor.toLabColor()
val backToOkhsl: OkhslColor = composeColor.toOkhslColor()

val rgb = RgbColor(red = 0.2f, green = 0.5f, blue = 0.8f)

// Formatting: any PickerColor or packed ARGB Int. The ordering is always named.
rgb.toHexString(HexAlpha.First)            // "#FF3380CC", as android.graphics.Color writes it
rgb.toHexString(HexAlpha.Last)             // "#3380CCFF", as CSS writes it
rgb.toHexString(HexAlpha.None)             // "#3380CC"
0xFF3380CC.toInt().toHexColorString(HexAlpha.First)

// Parsing: named there too
"#3380CC".toRgbColorOrNull(HexAlpha.None)  // RgbColor, alpha defaults to FF
"#ABC".toRgbColorOrNull(HexAlpha.None)     // shorthand, expands to #AABBCC
"not a color".toRgbColorOrNull(HexAlpha.None)   // null, never throws
"#3380CC".toRgbColor(HexAlpha.None)        // throws IllegalArgumentException on invalid input

Four and eight hex digits carry an alpha channel and cannot tell you at which end — #FF000080 is a half-transparent red to a stylesheet and an opaque navy to android.graphics.Color. Neither end has a default, so a round trip names the same ordering twice and the pair reads off one screen:

val stored = rgb.toHexString(HexAlpha.First)
stored.toRgbColorOrNull(HexAlpha.First)          // the colour that went in

"#FF000080".toRgbColorOrNull(HexAlpha.First)     // opaque navy, as Android reads it
"#FF000080".toRgbColorOrNull(HexAlpha.Last)      // half-transparent red, as CSS reads it
"#FF000080".toRgbColorOrNull(HexAlpha.None)      // null: the opaque forms only
"#F00C".toRgbColorOrNull(HexAlpha.Last)          // #RGBA shorthand, red at 80%

Three and six digits carry no alpha, so they mean the same thing whichever you name.

Each color model has a ready-made picker that stacks its channel sliders (plus an optional alpha slider):

val state = rememberColorPickerState()

HslColorPicker(
    state = state,
    showAlpha = true,
    coloringMode = ColoringMode.Independent, // or Contextual
)

RgbColorPicker(state = state, showAlpha = true)
CmykColorPicker(state = state, showAlpha = true)
LabColorPicker(state = state, showAlpha = true)
OkhslColorPicker(state = state, showAlpha = true)
OkhsvColorPicker(state = state, showAlpha = true)

ColoringMode controls the slider gradients: Independent shows each channel's full range regardless of the other channels, Contextual previews the actual resulting color at each position.

Every slider in a picker is a slot, defaulted to the channel slider it names. Replace one to relabel it — which is how a picker is localized, since the library ships no strings of its own:

HslColorPicker(
    state = state,
    hueSlider = { HueSlider(state, label = { Text(stringResource(Res.string.hue)) }) },
)

A replacement inherits the picker's colors, shapes and dimensions through the theme, so only what you actually want to change has to be named. enabled is the exception — forward it if you want your slider dimmed, though the picker refuses input to a disabled slot either way:

HslColorPicker(state = state, enabled = false)   // dimmed, inert, and disabled to a screen reader

thumb reaches every slider in the picker, so the custom thumb below works here too rather than only on a slider built by hand.

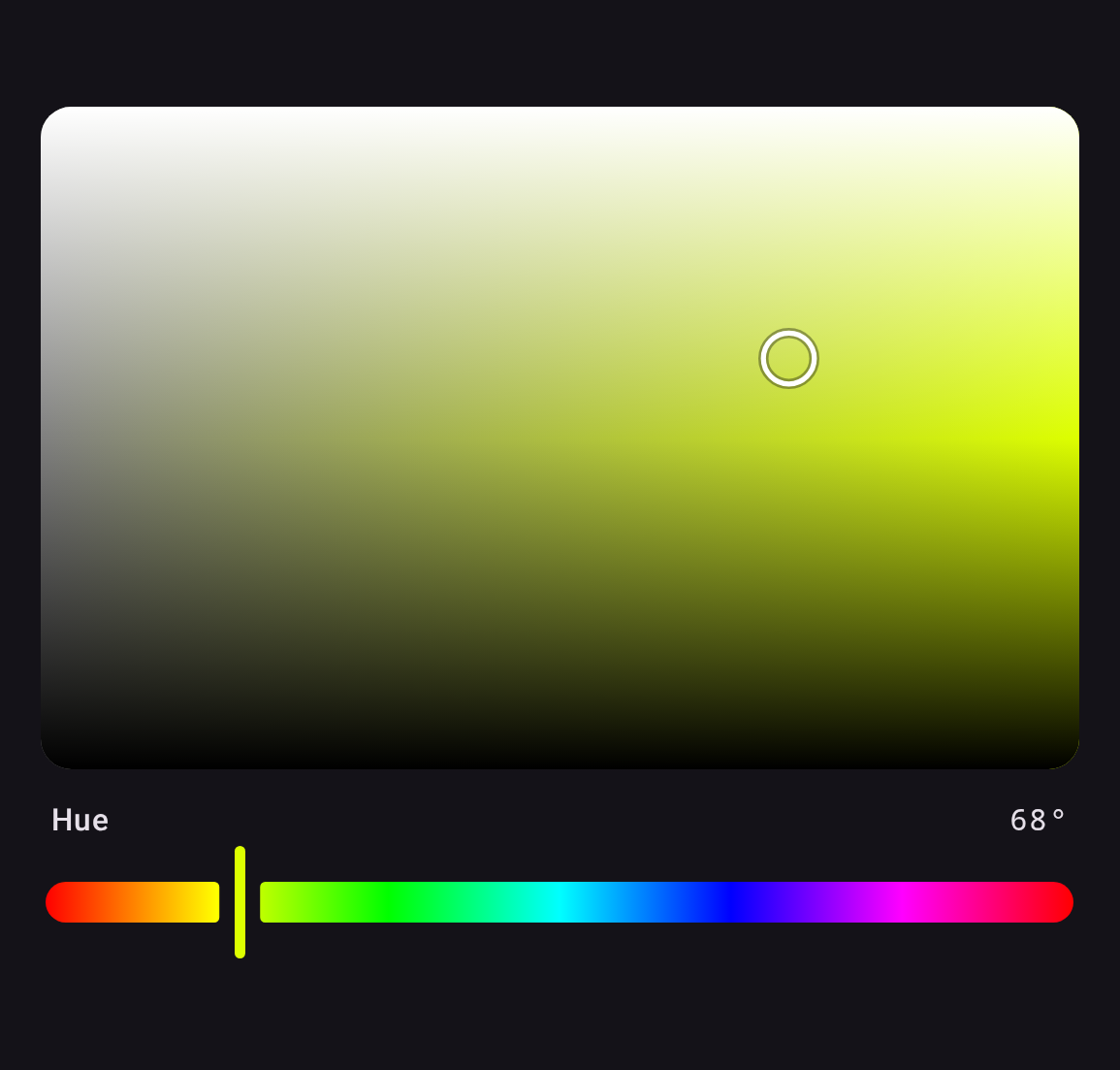

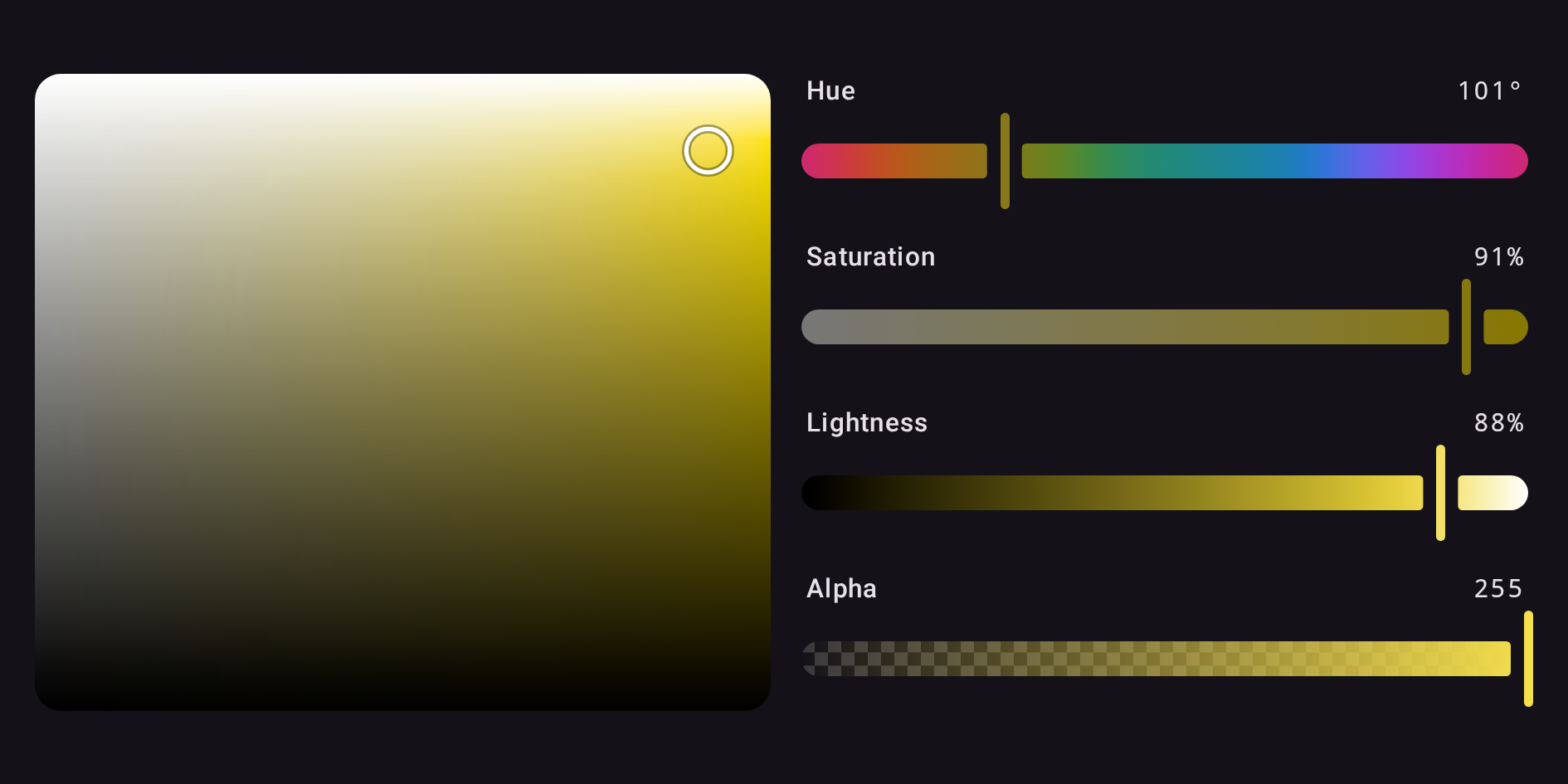

HslPlane picks both channels at once for the hue currently in state, leaving hue and alpha untouched, so it composes with a HueSlider into a full picker. OkhslPlane and OkhsvPlane are the same idea over Okhsl and Okhsv, composing with an OkhslHueSlider or OkhsvHueSlider instead.

Model	Preview
HSL HslPlane

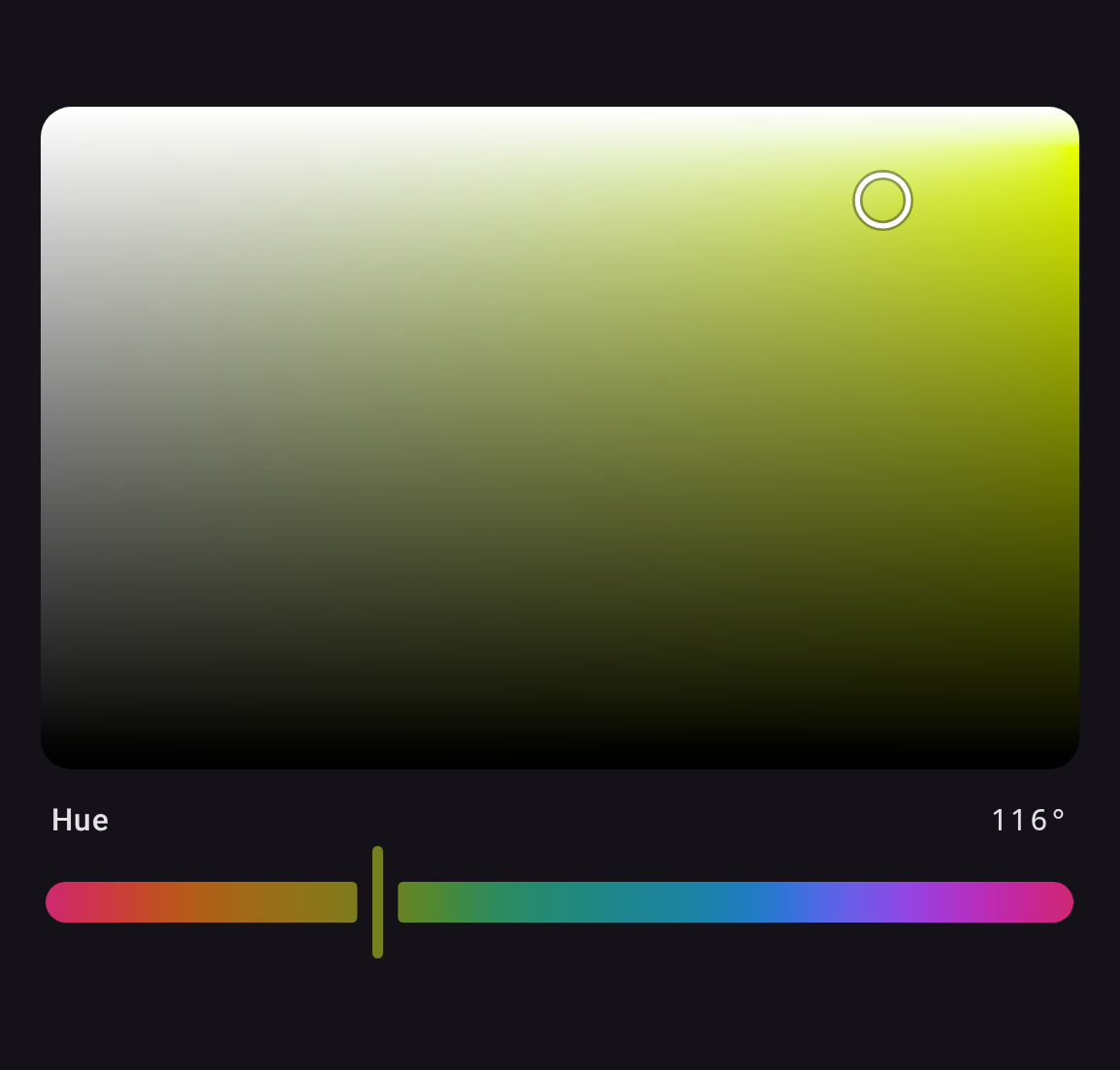

Okhsl OkhslPlane

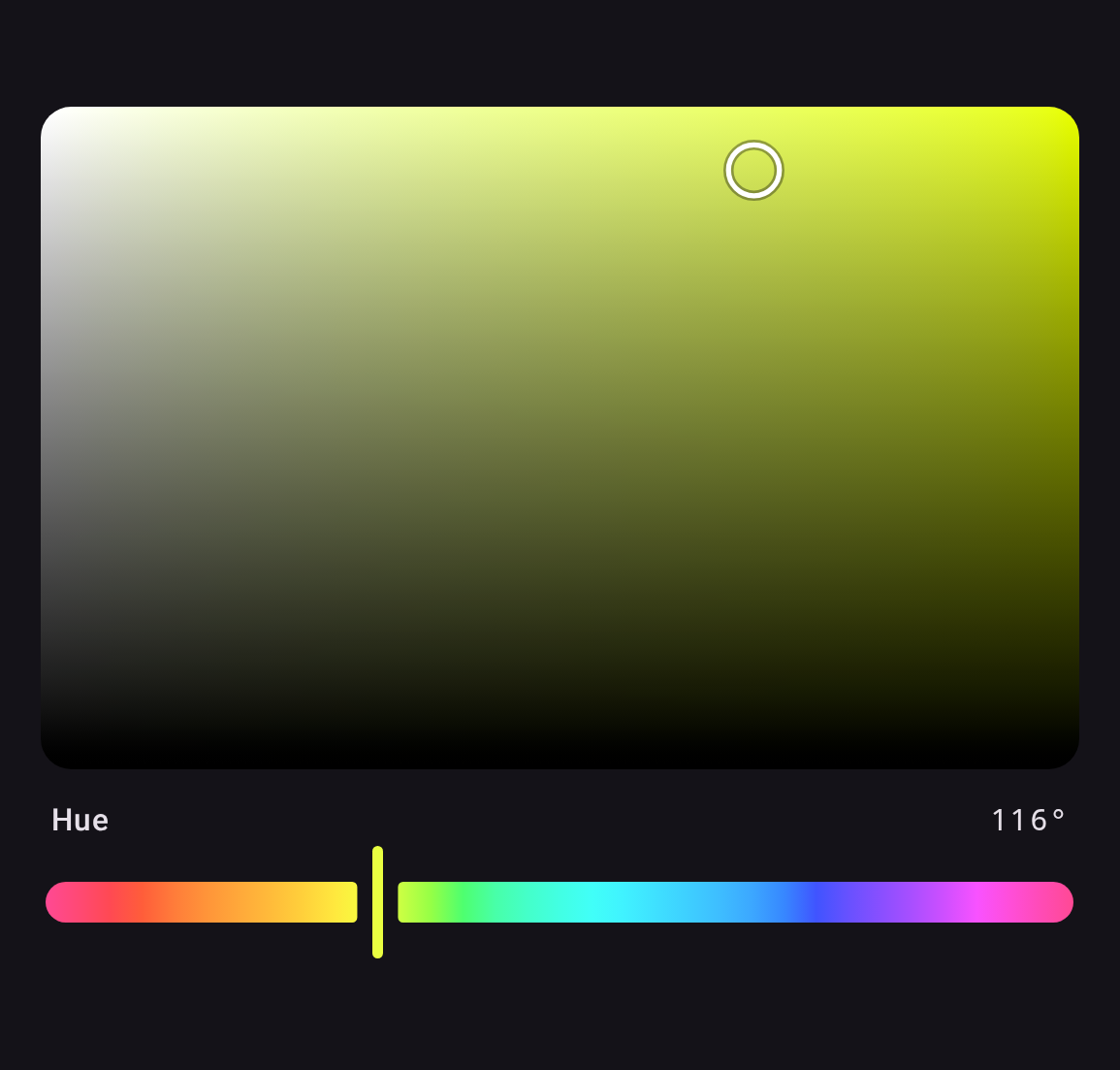

Okhsv OkhsvPlane

val state = rememberColorPickerState(HslColor(hue = 68f, saturation = 0.72f, lightness = 0.62f))

HslPlane(state = state, modifier = Modifier.fillMaxWidth().height(220.dp))
HueSlider(state = state)

Saturation always runs left to right, so the left edge is grey and the right edge the most colorful the hue can be. The vertical axis runs from black at the bottom in every plane, but reads differently at the top: lightness for HslPlane and OkhslPlane, so the top edge is white, and value for OkhsvPlane, so the top edge is each column's own hue at full brightness — the arrangement artists expect from a color picker, and the one Okhsv was designed for.

HslPlane's surface is a horizontal grey-to-hue ramp under a white / transparent / black overlay, which reproduces HSL exactly rather than approximately — the colour at lightness L is the mid-lightness colour blended toward white by 2L-1 above the middle and toward black by 1-2L below it, which is what compositing the overlay computes. Okhsl and Okhsv have no such identity, so OkhslPlane and OkhsvPlane sample their surface on a grid fine enough that the difference is invisible instead.

The surface is not mirrored in right-to-left layouts, unlike the sliders. It maps a colour space rather than showing progress, and mirroring it would have saturation growing leftwards here while it still grows rightwards on the hue slider beside it.

A plane is reachable without a pointer. It takes focus — by tab or by being pressed — and the arrow keys move it a percent at a time, ten with shift held. An arrow it cannot use, because that edge is already reached, is passed on, so focus can still leave on a device driven by a D-pad alone. The focus ring is drawn only while the input mode is keyboard, so a finger that took focus by pressing the surface does not leave one behind. A screen reader has no gesture for two degrees of freedom, so each direction is offered as a named action instead, stepping ten percent because an action menu has no modifier key to hold:

HslPlane(
    state = state,
    actionLabels = PlaneActionLabels(          // read aloud, so localize them
        increaseX = "Sättigung erhöhen",
        decreaseX = "Sättigung verringern",
        increaseY = "Helligkeit erhöhen",
        decreaseY = "Helligkeit verringern",
    ),
)

Passing null drops the actions and leaves the plane readable but not adjustable.

thumb replaces the position indicator, and receives the plane's InteractionSource — which carries focus as well as drag, so a replacement can mark keyboard focus the way the default indicator does, with a second ring:

HslPlane(
    state = state,
    thumb = { source -> MyIndicator(source) },
)

Every channel is available as a standalone slider. Compose any subset against a shared state:

// HSL
HueSlider(state = state)
SaturationSlider(state = state)
LightnessSlider(state = state)

// RGB
RedSlider(state = state)
GreenSlider(state = state)
BlueSlider(state = state)

// CMYK
CyanSlider(state = state)
MagentaSlider(state = state)
YellowSlider(state = state)
KeySlider(state = state)

// LAB
LightnessLabSlider(state = state)
LabASlider(state = state)
LabBSlider(state = state)

// Okhsl
OkhslHueSlider(state = state)
OkhslSaturationSlider(state = state)
OkhslLightnessSlider(state = state)

// Okhsv
OkhsvHueSlider(state = state)
OkhsvSaturationSlider(state = state)
OkhsvValueSlider(state = state)

// Planes — two channels at once, to compose with a hue slider
HslPlane(state = state)
OkhslPlane(state = state)
OkhsvPlane(state = state)

// Alpha (works with any origin space)
AlphaSlider(state = state)

Sliders expose slots and semantics for customization:

HueSlider(
    state = state,
    label = { SliderLabel("Hue") },              // leading label slot (null to hide)
    valueLabel = { SliderValueLabel("200°") },   // trailing value slot (null to hide)
    semanticLabel = "Hue",                       // accessibility label
    semanticValueText = "200°",                  // accessibility value announcement
)

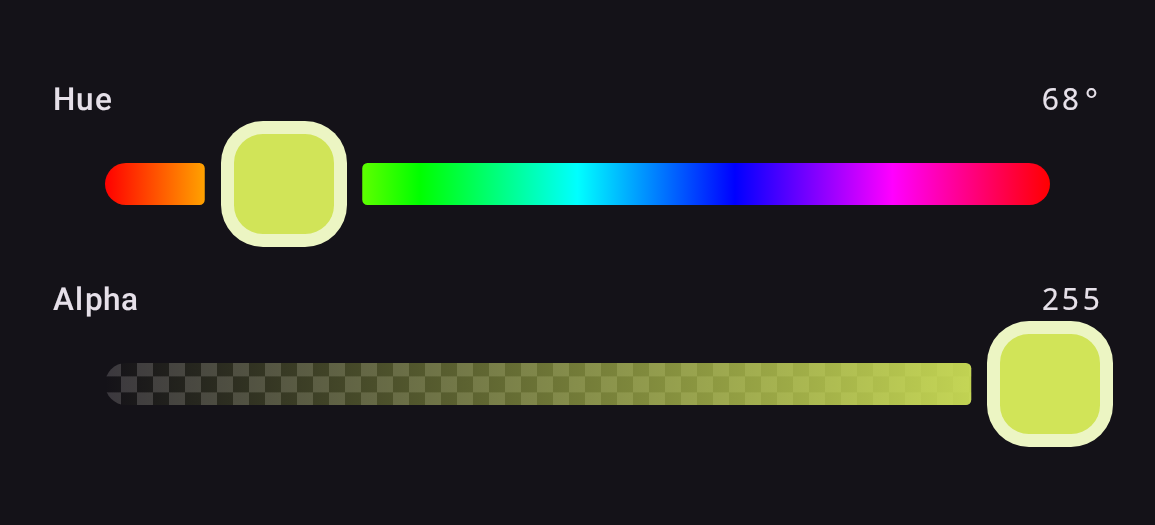

Every slider takes a thumb slot, so the Material 3 thumb can be replaced outright — its size, shape and stroke are yours rather than a fixed set of dimension parameters. The slot receives the slider's InteractionSource, so a thumb can also react to press and drag.

private val SquareThumbSize = 48.dp   // M3 minimum interactive size

@Composable
fun SquareThumb(color: Color, interaction: InteractionSource) {
    val fill = color.copy(alpha = 1f)
    val shape = RoundedCornerShape(16.dp)
    val ring = lerp(fill, Color.White, 0.6f)

    val dragged by interaction.collectIsDraggedAsState()
    val pressed by interaction.collectIsPressedAsState()
    val elevation by animateDpAsState(if (dragged || pressed) 4.dp else 0.dp)

    Box(
        Modifier
            .size(SquareThumbSize)
            .shadow(elevation, shape)
            .background(ring, shape)
            .padding(5.dp)
            .background(fill, RoundedCornerShape(11.dp))
    )
}

HueSlider(
    state = state,
    thumb = { source -> SquareThumb(state.hslColor.toComposeColor(), source) },
    thumbWidth = SquareThumbSize,   // so the track leaves room for it
)

The thumb needs no state parameter: state is already in scope at the call site, so the composable restyles itself as the color changes. The ring is the fill lifted toward white rather than a light-or-dark choice made at some luminance threshold — a threshold snaps visibly the moment a drag crosses it, while this moves with the color. And because the slot is handed the slider's InteractionSource, the thumb can react to being dragged; that is state a caller cannot otherwise reach, since the source is created inside the slider.

thumbWidth matters. The track breaks around the thumb, and it sizes that break from this value, defaulting to ColorPickerDefaults.ThumbWidth (the Material 3 handle). A wider thumb that does not declare its width covers the gap and sits flush against the gradient. thumbTrackGap controls the clearance itself. The sample app's Custom thumb section runs exactly this code.

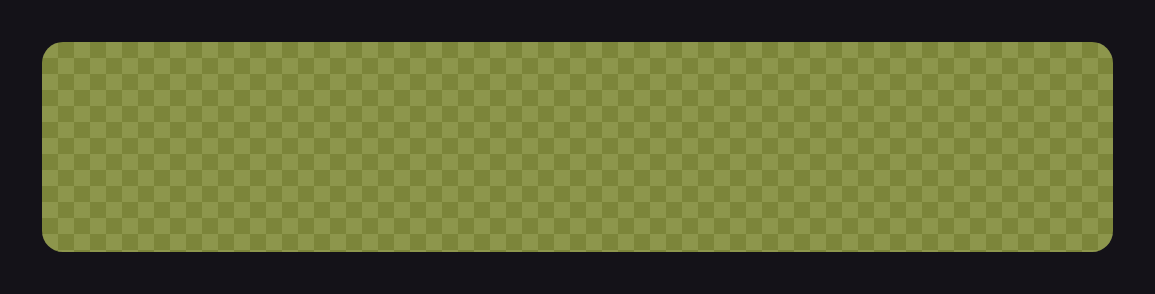

Renders a color over a transparency checkerboard:

ColorSwatch(
    color = state.hslColor.toComposeColor(),
    modifier = Modifier.fillMaxWidth().height(48.dp),
    contentDescription = "Selected color",
)

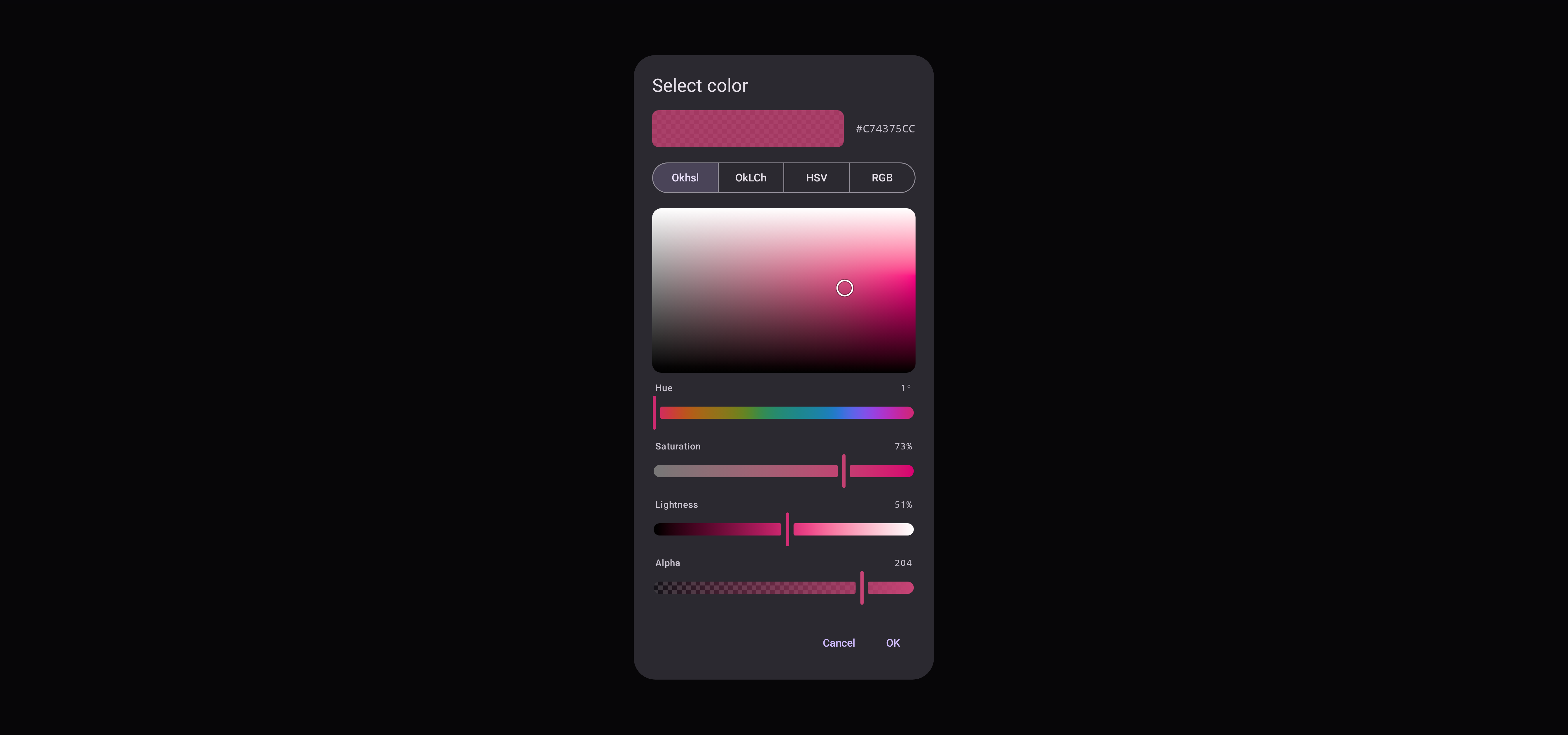

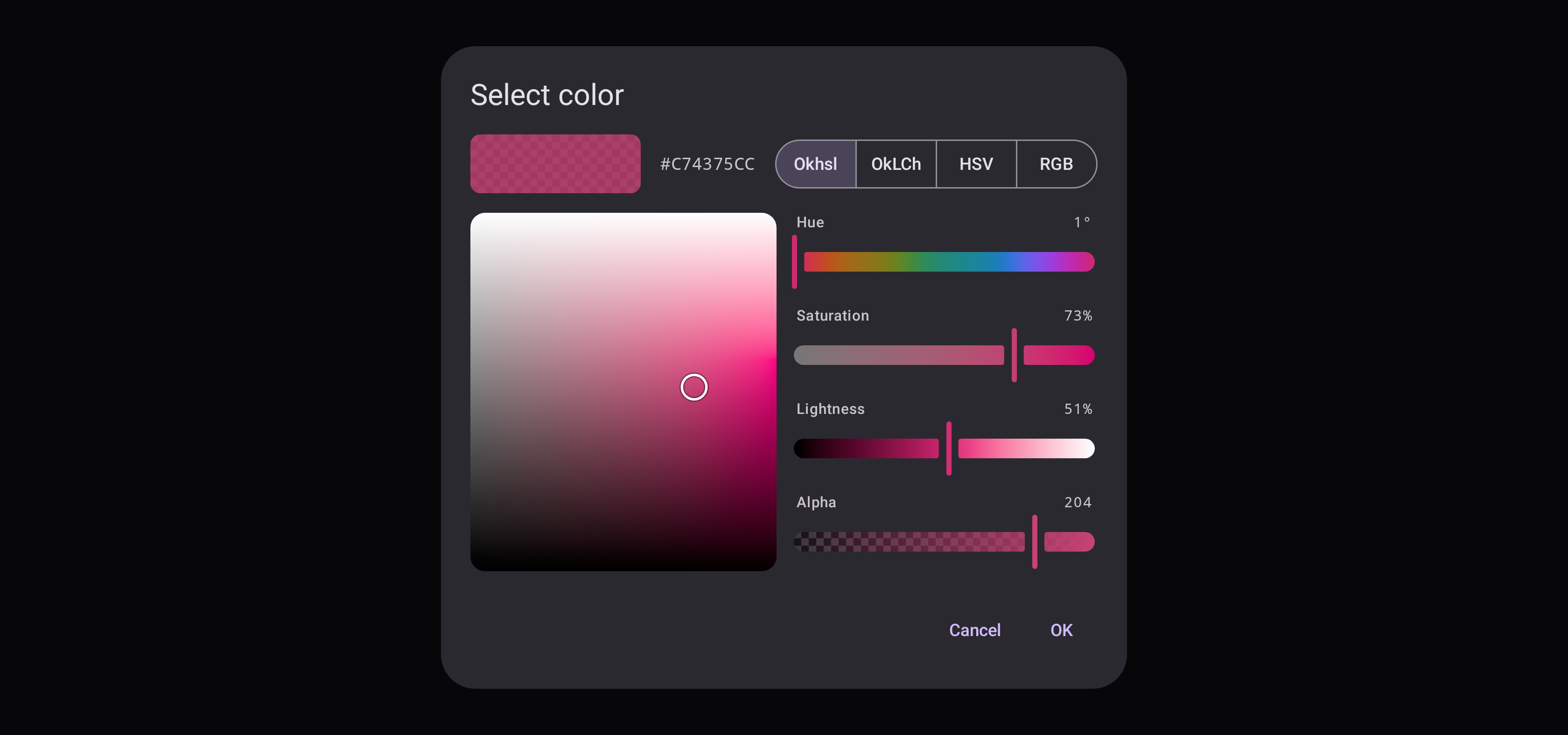

A Material 3 AlertDialog with an HSL picker and a live swatch. Callbacks come first; everything else has defaults:

ColorPickerDialog(
    onColorSelected = { hsl -> /* confirmed color */ },
    onDismiss = { /* close */ },
    initialColor = HslColor(hue = 200f, saturation = 0.8f, lightness = 0.5f),
    title = "Pick a Color",
    confirmText = "Select",
    dismissText = "Cancel",
    showAlpha = true,
)

In-progress edits inside the dialog survive configuration changes; passing a new initialColor resets the picker.

The dialog builds its own state, so unlike the pickers its slider slots are handed that state — without it a replacement would have nothing to read or write, which is what localizing a dialog's sliders needs:

ColorPickerDialog(
    onColorSelected = { /* ... */ },
    onDismiss = { /* ... */ },
    hueSlider = { state -> HueSlider(state, label = { Text(stringResource(Res.string.hue)) }) },
)

All pickers and sliders accept colors, shapes and dimensions built with ColorPickerDefaults, which derive from MaterialTheme by default:

HslColorPicker(
    state = state,
    colors = ColorPickerDefaults.colors(
        checkerboardLight = Color.White,
        checkerboardDark = Color.LightGray,
    ),
    shapes = ColorPickerDefaults.shapes(
        trackShape = RoundedCornerShape(4.dp),
        swatchShape = RoundedCornerShape(8.dp),
    ),
)

ColorPickerTheme sets them for everything inside it instead, which is how a track height reaches all twenty-one channel sliders without being a parameter on any of them:

ColorPickerTheme(
    dimensions = ColorPickerDefaults.dimensions(trackHeight = 24.dp),
) {
    HslColorPicker(state = state)
    OkhslPlane(state = state)
}

A component reads the theme in its parameter defaults, so an explicit argument still wins over whatever an enclosing ColorPickerTheme provided.

ColorPickerState is the single source of truth. It reads and writes each color space natively, with no round-trip conversions.

val state = rememberColorPickerState()

// Read any color space (derived from the authoritative color)
state.hslColor
state.rgbColor
state.cmykColor
state.labColor
state.argbInt
state.pickerColor // the authoritative color, in whichever space was last written

// Per-channel updates (NaN ignored, values clamped)
state.updateHue(180f)
state.updateSaturation(0.5f)
state.updateLightness(0.5f)
state.updateRed(1f)
state.updateGreen(0f)
state.updateBlue(0f)
state.updateCyan(0.3f)
state.updateMagenta(0.6f)
state.updateYellow(0.1f)
state.updateKey(0.2f)
state.updateLabLightness(50f)
state.updateLabA(20f)
state.updateLabB(-30f)
state.updateAlpha(0.5f) // keeps the current origin space

// Whole-color updates (the written space becomes the origin)
state.updateFromHsl(HslColor(hue = 0f, saturation = 1f, lightness = 0.5f))
state.updateFromRgb(RgbColor(1f, 0f, 0f))
state.updateFromCmyk(cmykColor)
state.updateFromLab(labColor)
state.updateFromArgbInt(0xFFFF0000.toInt())

// True while the user is dragging a slider
state.isInteracting

ColorPickerState has a public constructor, so it can also be created and held outside of composition (e.g. in a ViewModel).

Use rememberSaveableColorPickerState() to keep the state across configuration changes and process death on platforms that provide saved-instance-state support (primarily Android). On other platforms it behaves like rememberColorPickerState within the composition. The saver preserves the authoritative color space, not just the visible color.

Color space conversions are inherently lossy when values are quantized to integers, and even with floats, transcendental functions (used in LAB) introduce IEEE 754 rounding errors. Industry-standard tools (Photoshop, CSS Color Level 4, Sass) solve this the same way we do:

Store colors in their authored color space. Convert forward only. Never convert back.

ColorPickerState tracks which color space was last written to (the origin). When you read a different space, it converts forward once from the origin. The origin value is never re-derived from a conversion.

That covers the space being written to. Read a different space and you get a conversion, which cannot invent what the colour does not carry — grey, black and white have no hue, so a hue read off one would be red. Because someone who dragged lightness to zero did not choose red, the last hue actually chosen is kept and handed back, as a painting tool does. HSL's hue angle and Oklab's are separate quantities and are remembered separately. Saturation is not treated this way: a grey really is unsaturated, where its hue is only unknown.

User drags Red slider
  -> the authoritative color is written as RGB (origin = RGB, zero conversions)
  -> UI reads hslColor -> converts RGB->HSL once (forward only)
  -> UI reads rgbColor -> returns the authoritative RGB value as-is (zero conversions)

This means:

• Editing in RGB and reading back RGB produces the exact original value
• Editing in HSL and reading back HSL produces the exact original value
• Cross-space reads involve a single forward conversion, never a round-trip
• No precision loss accumulates over time, regardless of how many edits are made

For more details, see:

• CSS Color Module Level 4 -- the W3C spec mandates the same approach
• Sass Color Spaces -- stores colors in their original space

The same sample app runs on every supported platform:

./gradlew :sample:desktopApp:run             # desktop window
./gradlew :sample:androidApp:installDebug    # device or emulator

sample/iosApp holds the SwiftUI entry points. The Xcode project is not checked in, so it needs creating once on a Mac against the ComposeApp framework that :sample:shared produces.

The View-based codes.side:andcolorpicker artifact (XML HSLColorPickerSeekBar and friends) is discontinued. This library is a full Compose Multiplatform rewrite published under new coordinates:

- implementation("codes.side:andcolorpicker:0.6.2")
+ implementation("codes.side:colorpicker:1.2.0")

There is no 1:1 API mapping — migrate by concept:

Copyright 2020 Illia Achour

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
