Ultra-lightweight native LaTeX math library for Kotlin Multiplatform under ru.wertik.orcex.

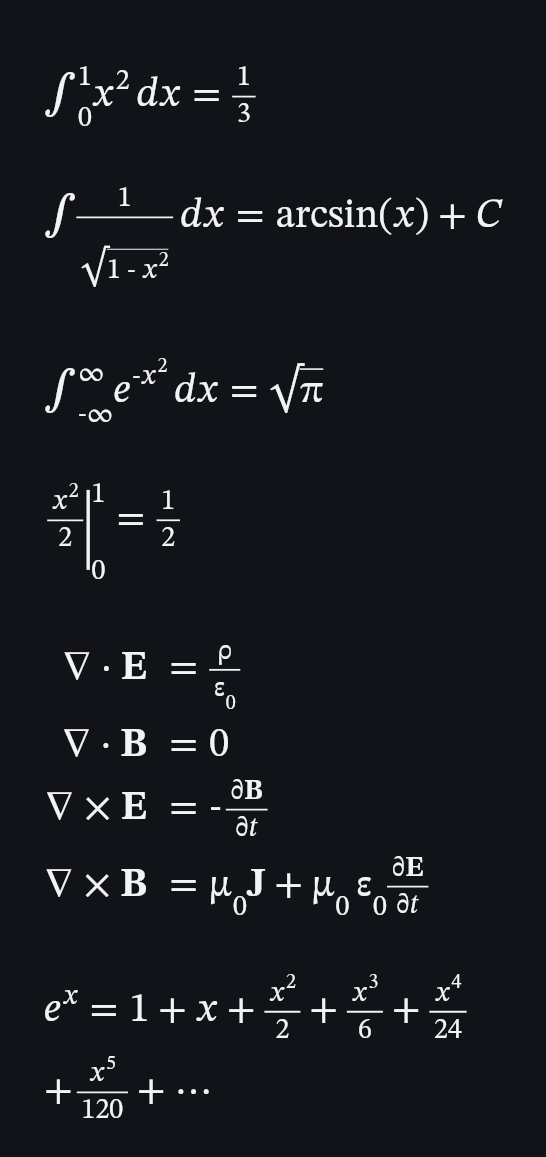

Rendered natively with the bundled STIX Two Math font:

The preview above is generated and golden-tested through the public Skia renderer backend.

The parser and layout do not require Android or a bundled font. Apps that already provide a math Typeface can omit orcex-font-stix2-android.

orcex-core and orcex-layout publish KMP variants for Android, JVM, Linux x64, Windows x64, macOS x64/Arm64 and iOS x64/Arm64/simulator Arm64. orcex-render-skia publishes JVM desktop, Linux x64 Native, macOS Arm64 and iOS variants; Windows desktop renders through its JVM/Skiko variant. Android uses orcex-render-android directly or orcex-render-compose inside Compose UI. orcex-render-compose publishes Android, JVM desktop and modern iOS Arm64/simulator variants.

repositories { mavenCentral() }

commonMain.dependencies {
    implementation("ru.wertik.orcex:orcex-core:0.4.0")
    implementation("ru.wertik.orcex:orcex-layout:0.4.0")
    implementation("ru.wertik.orcex:orcex-render-compose:0.4.0")
}

androidMain.dependencies {
    implementation("ru.wertik.orcex:orcex-render-android:0.4.0")
    implementation("ru.wertik.orcex:orcex-font-stix2-android:0.4.0")
}

desktopMain.dependencies {
    implementation("ru.wertik.orcex:orcex-render-skia:0.4.0")
    runtimeOnly("org.jetbrains.skiko:skiko-awt-runtime-linux-x64:0.148.1") // choose the runtime for your desktop OS/architecture
}

The Maven group is ru.wertik.orcex under the verified ru.wertik Central namespace; source packages also remain ru.wertik.orcex.

• Symbols and operators such as \alpha, \varepsilon, \nabla, \sum, \int, \iint, \leq, \sin, \arcsin.
• Superscripts/subscripts, fractions, indexed radicals and scalable delimiters.
• Accents, text/style commands and matrix, pmatrix, bmatrix, vmatrix, cases, aligned/align environments.
• Optional constrained layout with automatic top-level line breaking at mathematical relations and operators.
• Individually disableable parser modules through ParserConfig.enabledModules.

val typeface = StixTwoMath.load(context)
val engine = AndroidLatexEngine(typeface)
val layout = engine.layout("\\frac{\\sum_{i=1}^{n} i^2}{\\sqrt{x+1}}", fontSize = 48f)
val renderer = CanvasMathRenderer(typeface, color = Color.BLACK)
renderer.draw(canvas, layout, x = 24f, y = 24f)

CanvasMathRenderer draws natively to Android Canvas; its x/y origin is the top-left of the generated layout. Use layout.baseline only when aligning the result with surrounding baseline-positioned text.

val expression = "e^x = 1 + x + \\frac{x^2}{2} + \\frac{x^3}{6} + \\frac{x^4}{24} + \\frac{x^5}{120} + \\cdots"
val layout = engine.layout(
    expression,
    fontSize = 40f,
    constraints = MathLayoutConstraints(maxWidth = availableWidth),
)
renderer.draw(canvas, layout, x = 24f, y = 24f)

Line breaking is opt-in, keeps fractions, radicals and aligned equations atomic, and prefers relation signs before additive or multiplicative operators.

val maxwell = """\begin{aligned}
    \nabla \cdot \mathbf{E} &= \frac{\rho}{\varepsilon_0} \\
    \nabla \cdot \mathbf{B} &= 0 \\
    \nabla \times \mathbf{E} &= -\frac{\partial \mathbf{B}}{\partial t} \\
    \nabla \times \mathbf{B} &= \mu_0 \mathbf{J} + \mu_0\,\varepsilon_0 \frac{\partial \mathbf{E}}{\partial t}
\end{aligned}""".trimIndent()

val layout = engine.layout(maxwell, fontSize = 40f)
renderer.draw(canvas, layout, x = 24f, y = 24f)

val typeface = requireNotNull(FontMgr.default.makeFromFile("STIXTwoMath-Regular.ttf"))
val engine = SkiaLatexEngine(typeface)
val layout = engine.layout("\\int_0^1 x^2 \\, dx = \\frac{1}{3}", fontSize = 48f)
val renderer = SkiaMathRenderer(typeface, color = 0xFF111318.toInt())
renderer.draw(canvas, layout, x = 24f, y = 24f)

orcex-render-skia accepts a consumer-provided Skia Typeface and Canvas; it does not bundle fonts or own a window/surface.

val renderer = rememberComposeMathRenderer(stixTwoMathFamily)
val engine = remember(renderer) { MathLayoutEngine(renderer) }
val layout = engine.layout(parser.parse(formula), MathStyle(fontSize = 48f))
OrcexMath(layout = layout, renderer = renderer, contentDescription = formula)

Use drawMathLayout(...) inside an existing Compose Canvas when the surrounding UI owns sizing or animation.

orcex-font-stix2-android bundles STIXTwoMath-Regular.ttf version 2.13 b171 from the STIX Fonts project. It is distributed under the SIL Open Font License 1.1; the license text is included in orcex-font-stix2-android/OFL.txt.

The repository is prepared for Maven Central Portal bundle publishing and GitHub Actions release automation. See docs/PUBLISHING.md for namespace choice, secrets, signing and release flow.

./gradlew check :orcex-render-android:lintDebug :orcex-font-stix2-android:lintDebug
./gradlew koverVerify koverHtmlReport koverXmlReport
./gradlew centralBundleZip

Tests cover nested formulas, calculus operators, automatic line breaking, whitespace tolerance, module switches, malformed input, responsive geometry, matrix layout, rules, scripts, Unicode mathematical alphabet glyph output and Skia raster rendering. CI enforces complete executable line coverage for the covered core/layout/Skia backend, runs Compose adapter geometry tests and uploads golden-tested rendered STIX Two Math preview sheets.
