a backend-driven UI toolkit for Kotlin Multiplatform — the server describes a screen as a tree of components, the client renders it, and a new screen ships without a new client release

🧃 one annotation → the component is on the wire and in the renderer registry

Backend-driven UI is easy to start and hard to keep honest. The usual failure is a toolkit that knows your components: a sealed hierarchy of every widget the product happens to have, a client that must be released whenever the server learns a new one, and a serialiser that quietly turns an unfamiliar type into a crash.

Kompot is built the other way round. The core knows about a tree, actions, modifiers and tokens — and nothing about what a "product card" or a "story" is. Everything concrete arrives as a plug-in module, and an unknown type degrades to a placeholder instead of taking the screen down.

• open contracts, not sealed sets — KompotComponent, KompotAction, FieldValue and ValidationRule are interfaces; the set of concrete types is assembled by the application;
• generated registration — mark a component or a renderer with @KompotComponentMarker and KSP writes its polymorphic registration and renderer entry, so no list has to be maintained by hand;
• open string tokens — a backend may send ColorToken("promo_gold") with no client release; a server-driven theme (kompot-theme) can also say what to paint it with;
• forms that stay client-side — validation, visibility conditions and cross-field rules run locally, and only a server-relevant change asks the backend for a patch;
• live updates — a screen can name its own update channel, so updates stay per-user rather than broadcast to everyone on the same page, and the same channel works across several server instances;
• multi-step flows as pure functions — a wizard graph is (session, transition, draft) -> session, so branching is covered by unit tests with no HTTP, no database and no UI in sight;
• it degrades rather than breaks — an unknown component, an unknown action or a malformed theme token costs a widget or some styling, never the screen.

Every release is checked from the other side by proba: it resolves the published coordinates the way a stranger's build does and reports what a consumer actually receives.

The distinction is the point. A module whose public API returns a type it declares as implementation compiles, tests and publishes green here, and hands a consumer a signature they cannot name; a file can go up under a name carrying a version that was never released. Both happened, both were found from the other side, and neither is visible from this one.

The third badge above says what it found, in a word — clean, 1 suspicion, 1 unchecked — and the colour only agrees with it. It is a file written by the run that published the version beside it, not a service answering when somebody looks: a publication never changes, so neither can the answer. The other checked coordinates report the same way in the job's summary; the readme carries the one a consumer starts from.

1 unchecked is not clean: a check that could not run is not a check that passed. A suspicion is a shape the metadata cannot tell apart from the correct case — on wasmJs, for instance, where a jvm consumer build cannot confirm what the metadata suspects.

From this side the same question is asked by the compiler: every module is built with explicitApi, so a declaration reaches you because somebody wrote public, not because nobody wrote anything.

form-core, experiments-core and wizard-core are usable on their own and know nothing about Kompot components: one manages form state, one assigns variants, one walks a graph of steps. They keep their names for that reason.

The realtime pair is worth separating in your head from kompot-realtime, which is only the frame contract. kompot-realtime-server delivers to the subscribers of one process and defines the bus between processes; its default bus is in-memory, so a single-instance application needs no infrastructure. kompot-realtime-redis is the bus for the multi-instance case, and it is pub/sub without delivery guarantees on purpose: a component update is a thing you can afford to lose, since the client gets current state with its next screen request anyway.

skills/kompot-layout/SKILL.md is the method: what travels on the wire and what stays in the client, how a screen is built on the server and drawn through the registry, how goldens and fixtures are kept honest, and the loop — measure before looking — that takes a screen from a canvas to the wire. It is written as a Claude Code skill; link it into ~/.claude/skills/kompot-layout to have it load when a screen is being laid out.

tools/canvas are the measuring instruments: render a canvas artboard and diff its text geometry against a Compose frame, inventory a canvas's tokens and generate the design system from the named file, draw a server's recorded screens as a canvas in the wire's own vocabulary and read such a canvas back into a tree.

kompot-spec generates a JSON Schema for every protocol module out of the very SerialDescriptors kotlinx.serialization encodes a response with, so a schema cannot fall quietly behind the types. The generated files are committed in kompot-spec/schema and the rules a schema cannot express — degradation, the two kinds of extensibility, form connectivity, pagination, transport — are written out in kompot-spec/SPEC.md, addressed to somebody implementing a server on another stack.

Both travel in the artefact — the schemas and the document — because a rule of §9 carries an id a conformance case names, and an id whose text lives only in this repository is a reference with nothing behind it for anybody reading from another language:

val rules = KompotSpecResources(root = "kompot-spec").rules()
rules["9.4.3"] // "Ошибка, поднятая до того, как поле скрылось, перестаёт действовать вместе с полем."

The closed list of types is a property of a build, not of the toolkit: an application assembles its own spec from these modules plus its own, and gets its own profile. The thirteen toolkit schemas and the profile beside them come out byte-identical either way.

val schemas = KompotSpec.generateAll(KompotToolkitSpec.modules + myComponentsSpecModule())
val profile = KompotSpec.profile(schemas)

kompot-tck is the other half: it points at a running server and checks what a schema cannot express — ids unique within a tree, a form's screen and schema agreeing on fieldId, a 304 on a repeated ETag, pagination that terminates, a 401 without a token, the idempotency contract. It reads endpoint kinds out of your OpenAPI document and never assumes an address, so it runs against an implementation on any stack:

val report = TckRunner(RemoteTckTransport("http://localhost:5000"), TckConfig(schemas, openApi)).run()
check(report.isClean) { report.toString() }

The report prints how many targets each check visited. A check that found nothing to apply to passes silently, and that is the commonest way to end up with a conformance kit that proves nothing.

Every module is published under one version, so take the version once, from the platform, and name no version anywhere else. The badge at the top of this file shows the latest one — substitute it below.

repositories {
    maven("https://reposilite.kotlin.website/snapshots")
}

val kompotVersion = "0.36.2.118"

dependencies {
    implementation(platform("io.github.youndie:kompot-bom:$kompotVersion"))

    implementation("io.github.youndie:kompot-core")
    implementation("io.github.youndie:kompot-standard")
    implementation("io.github.youndie:kompot-ktor")
}

The platform is worth using rather than repeating the version, and not only for brevity. A version carries the CI run number on its tail, so any two publishes differ — and kompot-core:0.19.0.26 beside kompot-client:0.19.0.27 resolves quietly into a combination nobody ever built or tested. Through the platform that combination cannot be written down. It constrains every coordinate this build publishes, including the per-target ones a Kotlin Multiplatform module adds beside its root (kompot-core-jvm, kompot-core-iosarm64, and so on), so a consumer naming one of those directly is covered too.

To have registrations generated, add KSP to the module that declares components and give it a tag unique to that module:

plugins { id("com.google.devtools.ksp") }

dependencies {
    implementation("io.github.youndie:kompot-registry-annotations")
    ksp("io.github.youndie:kompot-registry-processor")
}

ksp { arg("kompotModuleTag", "Catalogue") }

The tag must be unique because generated files land in one package: two modules sharing a tag would generate objects of the same name and collide in the consumer's build. The generated code compiles into the declaring module's own artifact, so a consumer never applies KSP — it just imports generatedCatalogueSerializersModule.

A component and its renderer belong in different modules once you have a server. A renderer needs Compose and a server does not have it, so a component declared beside its renderer is a component the server cannot construct — which is the one thing a server-driven component exists for. Declare the component in a module both sides depend on, the renderer in the Compose one, and give each its own tag; the renderer carries its component in its type argument, so the generated registry pairs them across the module boundary:

// :catalogue-wire — no Compose, and the server depends on it
@Serializable @SerialName("product_card") @KompotComponentMarker
data class ProductCardComponent(override val id: String, val title: String) : KompotComponent

// :catalogue-ui — ksp { arg("kompotModuleTag", "CatalogueUi") }
@KompotComponentMarker
class ProductCardRenderer : KompotComponentRenderer<ProductCardComponent> { … }

kompot-forms and kompot-forms-client are that pair, which is why the split is exercised on every build of this repository rather than only described here.

A component is a plain serialisable data class:

@Serializable
@SerialName("product_card")
@KompotComponentMarker
data class ProductCardComponent(
    override val id: String,
    val title: String,
    val onClick: KompotAction? = null,
) : KompotComponent

The server builds a tree and responds with it through a helper rather than call.respond:

get("/catalogue") {
    call.respondKompotComponent(
        column {
            text("Catalogue", style = TypographyToken("title_large"))
            items.forEach { productCard(title = it.title, onClick = navigate(it.url)) }
        },
    )
}

respondKompotComponent exists because a plain call.respond(component) resolves the serialiser from the concrete runtime class and drops the "type" discriminator on the ROOT of the tree — the client then receives an unknown component. Nested children are unaffected, which is what makes the bug so easy to miss.

Writing a screen on the server is otherwise writing a tree blind: the only way to look at it is to run a client against it. kompot-preview draws the body an endpoint returns with the real renderers, and @Preview beside it puts that picture in the IDE next to the code that builds it.

@Preview
@Composable
fun CheckoutPreview() {
    KompotPreview(
        body = myJson.encodeToString(KompotFormResponse.serializer(), checkoutScreen()),
        registry = myRegistry,
        designSystem = myDesignSystem,
        // A form is not one picture: empty, filled and showing every error are three.
        state = KompotPreviewState(allFieldsChanged = true),
        json = myJson,
    )
}

The body and not the component in hand, and that is the point rather than an inconvenience: a plain call.respond drops the "type" discriminator on the ROOT of a tree, so a screen that renders perfectly from the object in memory degrades to a placeholder in front of a person. A preview taken from the object photographs a working screen that does not work. For the same reason a missing renderer stops the preview instead of drawing the grey placeholder — recorded into a screenshot golden it would become the screen's expected appearance.

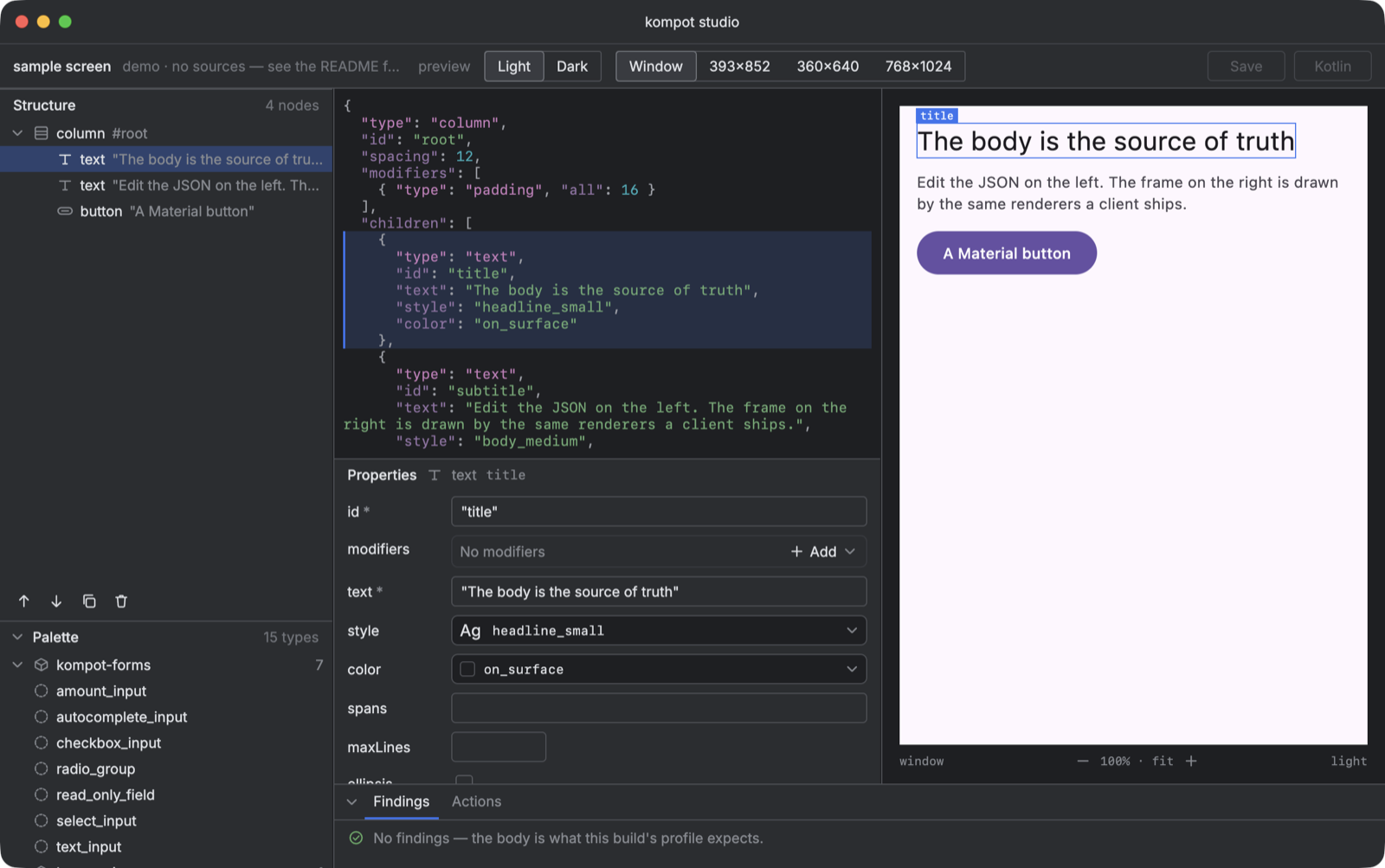

For more than a look there is kompot-studio: a desktop window that opens the recorded bodies of a consumer's build, draws each one in that build's brand frame, and lets a person edit it — the JSON, the tree of nodes, the properties the schema describes, a palette of the types the build's profile allows — while the checks a body has to pass run beside it.

The same call is what a screenshot test photographs, so a preview and a golden are one input and two checks. Note that an IDE preview renders through skiko, whose host-native half comes with compose.desktop.currentOs: it is present in an application module and cannot be in a published one, since it would pin the host in the POM.

• it does not ship YOUR renderers — the Compose renderers of the standard, form, wizard and image components are here, and so is a Material3 design system; what stays yours is the renderer of a component you invented. The registry is open exactly the way the wire types are. The SwiftUI side is yours too: kompot-swift-interop is not a renderer but the handful of non-generic functions Swift needs because the Kotlin/Native ObjC export drops reified calls, suspend contracts and value classes;
• it does not choose a transport — the live-update contract is here, the SSE or WebSocket implementation is yours;
• it does not validate your business rules — form-core covers what a form can decide locally; limits and balances belong to the server, and the client only highlights the field it names;
• it does not assemble your component set for you — the application composes its own SerializersModule from the generated pieces, which is precisely why the library never has to know what your product contains.

Every protocol module publishes for JVM, Android, the three iOS targets and wasmJs, and every Compose client module for the same set minus one: iosX64 is not reachable for anything that depends on Compose, because compose.runtime published its last artefact for it at 1.11.0-alpha01. An Intel simulator is where that ends; a device and an Apple-silicon simulator are not.

So the same screens are drawn on a desktop, on a phone, on an iPhone and in a browser without a line of the wire changing. There is no expect/actual anywhere in the toolkit — the modules are common code — which is why a target costs a declaration rather than a port.

The Compose half is built against Compose Multiplatform 1.11.1 and material3 1.11.0-alpha07, and the second number is not sloppiness: that line has no stable material3 at all. It is worth knowing because mixing lines fails late — a consumer on 1.12.0 resolves foundation and runtime to 1.12.0 while material3 stays where these modules put it, and the pair compiles, starts, and throws AbstractMethodError at the first screen with a text field on it.

Android is the newest of them, and it is worth saying what its absence used to do rather than only that it is there. Nothing failed: an Android consumer resolved the desktop variant, because Gradle will hand an androidJvm consumer a jvm artefact when the producer publishes no android one. It compiled, and the app then carried a client built against desktop Compose beside its own android Compose. Now the same build receives kompot-client-android and an .aar.

Three modules stay off the browser, off iOS and off Android on purpose, and it is worth naming them so a deployment can plan around it rather than discover it — a deployment plans around a documented absence and stumbles into an undocumented one:

./gradlew build

On CI (Linux) that is the whole story: Kotlin/Native cross-compiles the Apple klibs there, and the simulator test tasks do not exist. On a Mac without an iOS simulator runtime installed the same command fails with "Xcode does not support simulator tests for ios_simulator_arm64" — the failure is the missing runtime, not the code. Either install one through Xcode, or skip those tasks:

./gradlew build -x iosSimulatorArm64Test -x iosX64Test

Java 17 — both the toolchain the modules compile against and the floor their metadata declares, so a consumer on 17 gets a build that resolves rather than an UnsupportedClassVersionError at class loading. It is 17 for every module at once, and that part is a Gradle requirement rather than tidiness: where org.gradle.jvm.version is present, a module on 17 cannot be built against a dependency on 25, so it is all of them or none.

A toolchain rather than jvmTarget alone, for the same reason: jvmTarget asks for older bytecode while still compiling against the newest JDK's class library, so a call to something added in 21 compiles and then fails on a 17 runtime.

MIT.
