nav3-uikit

Native UIKit navigation for Compose Multiplatform apps built on Navigation 3.

Rename NavDisplay to NativeNavDisplay and your iOS screens run in a real UINavigationController, with system swipe-back, large titles, and sheets. NativeTabDisplay adds a native UITabBarController. On Android and desktop, both fall back to NavDisplay.

- NavDisplay(
+ NativeNavDisplay(
      backStack = backStack,
      onBack = { backStack.removeLastOrNull() },
      entryProvider = entryProvider { /* unchanged */ },
  )

Install · Quick start · Tabs · Compatibility · Limitations · How it works

• Drop-in for NavDisplay. NativeNavDisplay has both overloads (backStack and entries) and every parameter of NavDisplay. Decorators, sceneStrategies, DialogSceneStrategy, and back handlers keep working.
• Native stack on iOS. Each entry is its own ComposeUIViewController in a UINavigationController, so the back button, edge swipe-back, and the back button's history menu are UIKit's own.
• Native tabs on iOS. NativeTabDisplay shows a UITabBarController with a navigation stack per tab. It accepts either the single back stack of Navigation 3's commonui recipe or one back stack per tab.
• Sheets, titles, and bar buttons from metadata. Entries opt into a large title, a sheet with medium or large detents, or a hidden navigation bar or tab bar. Screens can set the title and trailing buttons from their content.
• Back stack stays the source of truth. Native pops call onBack. If the app refuses a pop, the screen is put back.

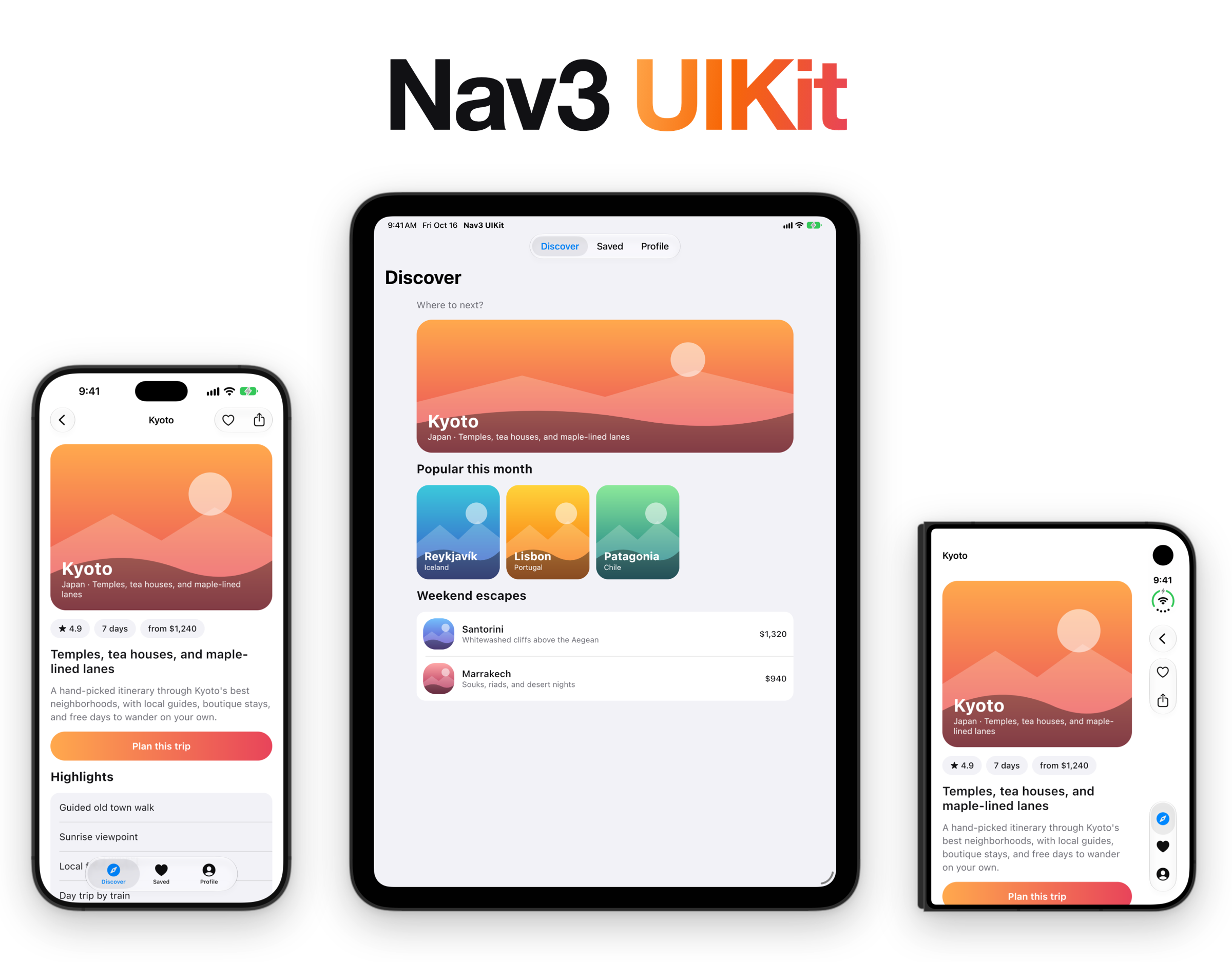

• iPhone Duo ready. The tab bar and the back button move into the iPhone Duo vertical bar, laid out by UIKit itself.

The library is on Maven Central. Depend on it from commonMain:

// build.gradle.kts
kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("dev.seungmin.nav3:nav3-uikit:0.1.0-dev01")
        }
    }
}

One coordinate serves Android, JVM, iosArm64, and iosSimulatorArm64. The library exposes Navigation 3 (org.jetbrains.androidx.navigation3:navigation3-ui) as an api dependency, so the app does not have to declare it. The tab display uses UITab and requires iOS 18 or later.

1. On iOS, create the root view controller with NativeNavigationViewController. Apps that use NativeTabDisplay need it for the tab bar to appear on an open iPhone Duo.

// iosMain
fun MainViewController(): UIViewController = NativeNavigationViewController { App() }

2. Replace NavDisplay with NativeNavDisplay, and add NativeNavigation metadata to the entries that should use the native navigation bar or a sheet.

NativeNavDisplay(
    backStack = backStack,
    onBack = { backStack.removeLastOrNull() },
    entryDecorators = listOf(
        rememberSaveableStateHolderNavEntryDecorator(),
        rememberViewModelStoreNavEntryDecorator(),
    ),
    entryProvider = entryProvider {
        entry<Home>(metadata = NativeNavigation.title("Home", large = true)) { HomeScreen() }
        entry<Detail>(metadata = { NativeNavigation.title("Detail ${it.id}") }) { DetailScreen(it.id) }
        entry<Settings>(metadata = NativeNavigation.sheet(listOf(SheetDetent.Medium, SheetDetent.Large))) { SettingsSheet() }
        entry<Immersive>(metadata = NativeNavigation.navigationBarHidden()) { ImmersiveScreen() }
        entry<ConfirmDelete>(metadata = DialogSceneStrategy.dialog()) { ConfirmDeleteDialog() }
    },
    sceneStrategies = listOf(DialogSceneStrategy()),
)

Entries without NativeNavigation metadata draw their own top bar, exactly as under NavDisplay.

NativeNavigationBarItems sets the native bar's title and trailing buttons from inside the screen. LocalNativeNavigationBar is true where the native bar is available, so one screen can serve every platform:

if (LocalNativeNavigationBar.current) {
    NativeNavigationBarItems(
        title = note.title,
        trailing = listOf(NativeBarButton("Edit", systemImage = "pencil") { onEdit() }),
    )
} else {
    TopAppBar(title = { Text(note.title) }, actions = { /* ... */ })
}

NavDisplay has no tabs; an app's tab bar is its own UI next to it. To get a native tab bar, replace the app's tab bar and NavDisplay with one NativeTabDisplay call. Choose the overload that matches how the app already stores its navigation state.

One back stack holding every tab, as the TopLevelBackStack of Navigation 3's commonui recipe does. The selected tab is read from the back stack.

// e.g. [Home, Detail(1), Search, Detail(2)]
val topLevelBackStack = remember { TopLevelBackStack<NavKey>(Home) }

NativeTabDisplay(
    backStack = topLevelBackStack.backStack,
    tabs = listOf(
        NativeTabRoot(Home, "Home", icon = "house"),  // SF Symbol name
        NativeTabRoot(Search, "Search", icon = painterResource(Res.drawable.search)),  // tinted as a template image
    ),
    onTabSelected = { topLevelBackStack.addTopLevel(it) },
    onBack = { topLevelBackStack.removeLast() },
    entryDecorators = listOf(rememberSaveableStateHolderNavEntryDecorator(), rememberViewModelStoreNavEntryDecorator()),
    entryProvider = entryProvider { /* entries for every tab */ },
)

One back stack per tab, as Navigation 3's multiplestacks recipe does. The app owns the selection.

val home = rememberNavBackStack(config, Home)
val search = rememberNavBackStack(config, SearchHome)
var selected by rememberSaveable { mutableIntStateOf(0) }

NativeTabDisplay(
    tabs = listOf(
        NativeTab(home, "Home", icon = "house"),
        NativeTab(search, "Search", icon = painterResource(Res.drawable.search)),
    ),
    selectedTab = selected,
    onTabSelected = { selected = it },
    onBack = { tab -> listOf(home, search)[tab].removeLastOrNull() },
    entryDecorators = listOf(rememberSaveableStateHolderNavEntryDecorator(), rememberViewModelStoreNavEntryDecorator()),
    entryProvider = entryProvider { /* entries for every tab */ },
)

With one back stack per tab, every tab keeps its rememberSaveable state and ViewModels while it is hidden. An app that wants to keep its Compose tab bar can use NativeNavDisplay alone; the tab bar then stays a Compose view and does not move into the iPhone Duo vertical bar.

NativeNavDisplay passes every parameter to NavDisplay. NativeTabDisplay shows a NavDisplay above its tabBar slot, which defaults to a plain row of tab icons and titles; pass the app's own tab bar there. Back behaves as before: the single back stack overload follows the back stack exactly, and the per-tab overload returns to the first tab from the root of any other tab.

The tested versions are the ones in gradle/libs.versions.toml (last checked 2026-10-16); update this table when that file changes. If the app declares Navigation 3 itself, Gradle uses the higher of the two versions.

• Navigation 3 1.1.0 is the lowest version that can work. It introduced NavMetadataKey, the metadata { } builder, and SceneDecoratorStrategy, which the public API uses. Navigation 3 1.2.0 and 1.3.0-alpha02 keep the signatures of every function the library calls.
• On iOS the library computes scenes with rememberSceneState itself instead of calling NavDisplay. A Navigation 3 release that changes how scenes or overlays are computed can therefore change iOS behavior without a compile error, and the iOS code also relies on Compose Multiplatform's partly experimental UIKit interop. After moving to a version outside the table, run the UI tests described in CONTRIBUTING.md.

• Transitions are UIKit's. Shared element transitions, the transition parameters, and scenes other than overlays do not apply on iOS. An overlay scene that shows more than one entry has its entries pushed instead.
• Sheet and overlay entries must come after all pushed entries in the back stack; a pushed entry that follows them is presented modally too. A sheet on a hidden tab appears when that tab is selected.
• Tabs must be keys in the back stack. Tabs that one screen draws inside its own content are invisible to the display, so make each tab's root a key, or keep the Compose tab bar.
• The single back stack tab overload has no entries form, because NavEntry does not expose its key. Apps that build entries from several back stacks use the NativeTab overload.
• The single back stack must start with a tab's root key. For a sign-in flow before the tabs, pick the display by the root: if (backStack.first() in tabKeys) NativeTabDisplay(...) else NativeNavDisplay(...).
• On iOS, back does not go from one tab's root to another tab, because UIKit has no back action at a tab's root. Android and desktop keep that NavDisplay behavior.

• How it works on iOS: how entries map to controllers, how native pops reach the back stack, tabs, and the iPhone Duo layout.
• CONTRIBUTING.md: repository layout, the sample app, building, and the UI test suite.
• sample/: runnable single-stack and tab samples for iOS and desktop.
