KitePDF

A pure-Kotlin document engine for Kotlin Multiplatform: read, create, edit and render PDFs, and read reflowable EPUB 2/3, from commonMain.

Documentation · a guide for each task, plus the generated API reference.

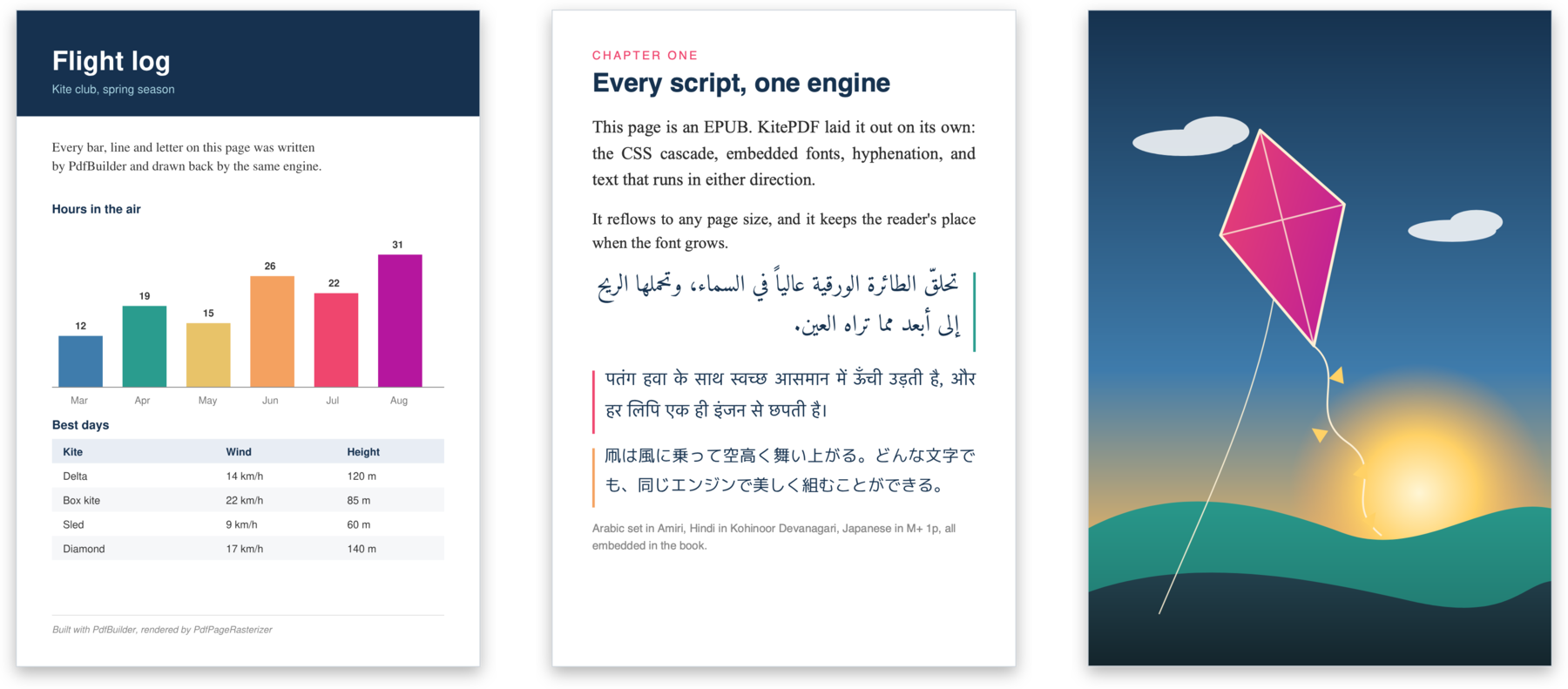

_{A PDF, an EPUB and an SVG, each rendered by KitePDF.}

KitePDF brings its own document engine, written in Kotlin from the ground up. There is no platform PDF library underneath, no JNI and no native binary. So the same code runs on Android, iOS, the desktop JVM, macOS, Linux, Windows and the web.

Here is a PDF made, opened and read back:

import io.github.yuroyami.kitepdf.PdfDocument
import io.github.yuroyami.kitepdf.writer.PdfBuilder
import io.github.yuroyami.kitepdf.writer.StandardFont

val bytes = PdfBuilder()
    .page { text(StandardFont.Helvetica, 24.0, 72.0, 700.0, "Hello from PdfBuilder") }
    .build()

val doc = PdfDocument.open(bytes)
doc.pageCount                // 1
doc.pages[0].extractText()   // "Hello from PdfBuilder"

KitePDF.open(bytes) is a short alias for PdfDocument.open(bytes). The docs use PdfDocument, because it also has the password overload, openOrNull and edit().

[!NOTE] KitePDF is not at 1.0 yet, so the API can still change between minor versions.

Every artifact is on Maven Central at 0.12.0. Most apps need just two lines: one to open documents, and one to show them.

commonMain.dependencies {
    implementation("io.github.yuroyami:kitepdf:0.12.0")                  // opens every format
    implementation("io.github.yuroyami:kitepdf-compose-viewer:0.12.0")   // shows them with KiteDocView
}

Here is everything you can add:

kotlin {
    sourceSets {
        commonMain.dependencies {
            // Every format: PDF, EPUB, CBZ, SVG, XPS and OpenXPS
            implementation("io.github.yuroyami:kitepdf:0.12.0")

            // Or one format only
            implementation("io.github.yuroyami:kitepdf-pdf:0.12.0")
            implementation("io.github.yuroyami:kitepdf-epub:0.12.0")
            implementation("io.github.yuroyami:kitepdf-cbz:0.12.0")
            implementation("io.github.yuroyami:kitepdf-svg:0.12.0")
            implementation("io.github.yuroyami:kitepdf-xps:0.12.0")

            // Optional, depending on what you build
            implementation("io.github.yuroyami:kitepdf-compose-viewer:0.12.0")   // KiteDocView for Compose Multiplatform
            implementation("io.github.yuroyami:kitepdf-native-renderer:0.12.0")  // page-to-image on the platform canvas
            implementation("io.github.yuroyami:kitepdf-skia-renderer:0.12.0")    // page-to-image on Skia (on Android, add one repository)
            implementation("io.github.yuroyami:kitepdf-javascript:0.12.0")       // runs the JavaScript inside PDFs (pulls in KiteJS)
            implementation("io.github.yuroyami:kitepdf-net:0.12.0")              // loads documents from a URL (add a Ktor engine too)
        }
    }
}

[!IMPORTANT] Two artifacts need something extra. Without it, the build or the download fails.

Good to know:

• kitepdf-core comes with every document artifact, so you never add it yourself.
• The document artifacts depend only on kotlin-stdlib and KiteImageCodec, which decodes the images.
• In a plain Android or JVM project, put the same lines in your usual dependencies { } block.

import io.github.yuroyami.kitepdf.PdfDocument
import io.github.yuroyami.kitepdf.document.KiteDoc

val doc = PdfDocument.open(bytes)      // a PDF; PdfDocument.open(bytes, "secret") if it is locked
val any = KiteDoc.open(bytes)          // any format: KitePDF finds out which by itself
KiteDoc.formatOf(bytes)                // Pdf, Epub, Cbz, Svg, Xps, or null

open throws when it cannot read a file, and openOrNull returns null instead. A damaged or cut-off PDF usually still opens. When its table of objects is broken, KitePDF scans the whole file for the objects instead.

Bytes are the usual way in, but not the only one. You can also pass a file path, a File or an InputStream, an Android content Uri, NSData or NSURL on Apple, Base64 or a data: URI, and a URL through kitepdf-net. Each one also has an ...OrNull form. See Loading for which platform takes which.

With kitepdf-compose-viewer, one composable shows any document, whatever its format:

import androidx.compose.foundation.gestures.Orientation
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import io.github.yuroyami.kitepdf.compose.*
import io.github.yuroyami.kitepdf.core.KiteDocument

@Composable
fun Viewer(doc: KiteDocument) {
    KiteDocView(
        state = rememberKiteDocViewState(doc),
        modifier = Modifier.fillMaxSize(),
        layout = KiteDocLayout.Paged(Orientation.Horizontal),   // or KiteDocLayout.Continuous()
        zoomSpec = KiteZoomSpec(maxZoom = 6f),
        renderSpec = KiteRenderSpec.Rasterized(),               // or KiteRenderSpec.Vectorized()
    )
}

It zooms, selects text, follows links inside the document and highlights search hits. See Compose viewer for everything it can do.

The viewer draws pages in one of two ways, and you pick one with renderSpec:

• Rasterized (the default) draws each page once into a bitmap. Scrolling and zooming stay smooth, even on dense pages and slow devices.
• Vectorized draws the page from its vector content each time the screen updates. It uses no bitmap memory, and text and lines stay sharp at any zoom.

See Rendering: rasterized vs. vectorized for the trade-offs.

import io.github.yuroyami.kitepdf.text.search

val page = doc.pages[0]

page.extractText()            // the page as plain text
page.structuredText.blocks    // blocks of lines of spans, each with its bounds
page.search("invoice")        // the hits on this page
doc.search("invoice")         // every hit in the document, page by page

Each span knows the edges of its characters, so you can draw a text selection. The rest of the document is there too: doc.info.title, doc.bookmarks, page labels, attachments, permissions, XMP metadata and the form fields.

doc.edit() gives you a PdfEditor, which collects your changes. saveIncremental() adds them to the end of the original file, and saveRewritten() writes a fresh, clean file.

import io.github.yuroyami.kitepdf.core.KiteRectangle

val filled = doc.edit().apply {
    setTextFieldValue(doc.formField("ApplicantName")!!, "Jane Doe")
    setCheckbox(doc.formField("AgreeToTerms")!!, checked = true)
    setChoiceValue(doc.formField("Country")!!, "Norway")
}.saveIncremental()

val redacted = doc.edit().apply {
    redactRegions(doc.pages[0], listOf(KiteRectangle(72.0, 700.0, 320.0, 720.0)))
}.saveRewritten()

Redaction really removes what lies inside the region: the text, images and vector paths, and the content of annotations and form fields there. It does not just paint a black box over them. That is why it needs saveRewritten(). saveIncremental() refuses, because the old content would still be in the file.

PdfBuilder writes a file page by page, as in the first example. It can also:

• fill in the title and author: setInfo(title = "Report", author = "Jane Doe")
• draw an image inside page { }: drawImage(logo, x = 400.0, y = 700.0, width = 96.0, height = 48.0), with logo = PdfImage.rgba(pixels, width = 128, height = 64)
• use any of the 14 standard fonts, or your own with EmbeddedFont.load(bytes), which embeds only the glyphs you use
• encrypt the file with AES-256: encrypt(userPassword, ownerPassword, random = platformCsprng)

Encryption asks for a secure random source on purpose. KitePDF never quietly falls back to Kotlin's Random.Default for keys. Reading works with RC4, AES-128 and AES-256.

import io.github.yuroyami.kitepdf.epub.EpubDocument

val book = EpubDocument.open(bytes, pageWidth = 400.0, pageHeight = 640.0)
book.tableOfContents        // from nav.xhtml (EPUB 3) or toc.ncx (EPUB 2)
book.search("chapter")
book.withFontSize(15.0)     // lays the book out again; the old layout stays valid

KitePDF lays out the HTML and CSS itself:

• the full CSS cascade
• embedded TTF, OTF, WOFF and WOFF2 fonts
• hyphenation in German, French, Spanish, Italian, Portuguese and Dutch
• tables, floats, ruby, and right-to-left and vertical text
• text shaping that matches HarfBuzz for complex scripts such as Arabic and the Indic scripts

Big books open fast, because KitePDF lays out one chapter at a time. A reader who comes back to chapter 20 waits for chapter 20, not for the whole book. On a 26-chapter book, that cuts the wait from 986 ms to 3 ms. A saved place also survives a change of font size.

val state = rememberKiteDocViewState(book, savedBookmark)   // opens at the saved place
KiteDocView(state, Modifier.fillMaxSize())

savedBookmark = state.currentBookmark()                    // save it when the app pauses

import io.github.yuroyami.kitepdf.nativerenderer.AwtPdfRasterizer
import io.github.yuroyami.kitepdf.skia.PdfPageRasterizer

val awtPng = AwtPdfRasterizer.encodeToPng(doc.pages[0], scale = 2.0)    // JVM
val skiaPng = PdfPageRasterizer.encodeToPng(doc.pages[0], scale = 2.0)  // any Skia target

kitepdf-native-renderer draws with the platform's own canvas: AWT on the JVM, android.graphics, CoreGraphics on Apple, and Canvas2D in the browser. kitepdf-skia-renderer draws with Skia, alike on every target, and renders EPUB pages too with EpubPageRasterizer.

Many forms add up totals and format their fields with JavaScript. kitepdf-javascript runs those scripts on KiteJS, a JavaScript engine written in Kotlin. It is experimental, and it runs the scripts of PDF forms only.

PdfScriptRunner(doc, onAlert = { alert -> showDialog(alert.message); 1 }).use { runner ->
    runner.runDocumentOpen()                 // the document's own scripts, then its open action
    runner.setFieldValue("price", "1200")    // runs the field's scripts, as a viewer would
    runner.formattedValue("total")           // "$1,200.00", as the form worked it out
}

See JavaScript for what scripts can reach.

The document artifacts run on every target. The viewer and the renderers cover fewer targets, and that difference is the usual reason a first build does not resolve.

Platform support has the full list, with the reason behind each gap.

Around 2,000 tests run on the JVM alone. A differential test renders a set of real PDFs with KitePDF and with MuPDF, and compares them page by page. On the latest run of 40 pages, the mean difference was 0.0007 on a scale where 0 means identical. A parity check adds PDFium as a second reference, and it fails where MuPDF and PDFium agree and KitePDF does not. See DIFFTEST.md. The PDFs themselves are not in the repository, so a fresh checkout cannot repeat that run.

Found a PDF that renders wrong? Open an issue with the file attached. Every rendering fix comes with a test that keeps it fixed.

sample/ is a Compose Multiplatform app that opens a PDF and tries out the API. The desktop version runs on its own. The Android and iOS entry points are meant to go into a host project of your own.

Apache-2.0. KitePDF holds no third-party source code. It does bundle some third-party data, each under its own license, and NOTICE lists every piece and where it comes from:

• the URW base 35 fonts, which draw the 14 standard fonts, under the SIL Open Font License 1.1
• PDFium's table for DeviceCMYK, under PDFium's BSD-style license
• Adobe's glyph lists and CJK CMaps, under BSD-3-Clause
• the hyphenation patterns of the hyph-utf8 project, each under the license in its file header

Part of the Kite family: KiteCore, KiteImageCodec, KiteQR.
