[!NOTE] Unofficial project. This is a community-maintained Kotlin Multiplatform wrapper around Google's Filament. It is not affiliated with, endorsed by, or supported by Google or the Filament team.

[!NOTE] Current release: 0.3.0. Major development and internal repository restructuring are done and the project is stabilizing, but public APIs may still change between minor releases while we track upstream Filament — read the changelog before upgrading. See Versioning & stability. The JVM bindings run on Project Panama (FFM, requires JDK 22+).

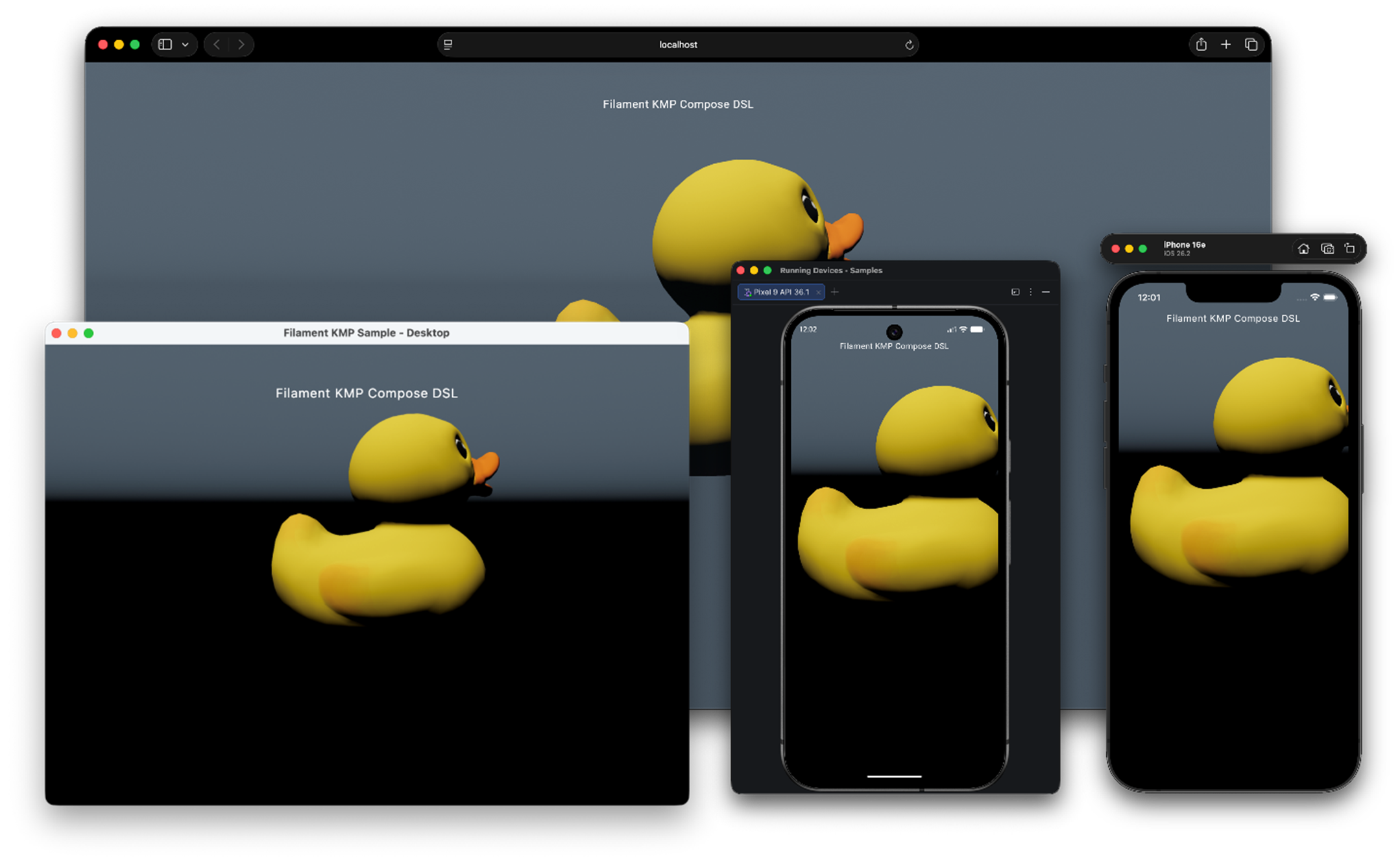

Filament KMP brings the same physically based renderer that powers Android's Filament to iOS, Desktop/JVM, and Web (JS & Wasm), with first-class Compose Multiplatform integration.

FilamentSceneView(
    modifier       = Modifier.fillMaxSize(),
    cameraState    = rememberCameraState(initialEye = Position(0f, 1f, 4f)),
    skyboxState    = rememberSkyboxState(SkyboxSource.Color(Color(0.1f, 0.12f, 0.15f))),
    postProcessing = PostProcessing(bloom = Bloom(strength = 0.2f)),
) {
    DirectionalLight(direction = Direction(0.3f, -1f, -0.5f), intensity = LightIntensity.LuminousPower(100_000f))
    GltfInstance(asset = rememberGltfAsset { Res.readBytes("files/Duck.glb") })
}

The world is declared in the content lambda; the viewport's look is configured by value. Need several cameras over one world? Hoist the scene with rememberFilamentScene { … } and feed it to multiple FilamentViews.

• Android — OpenGL ES / Vulkan via the official com.google.android.filament library
• iOS — Metal via C wrapper + Kotlin/Native cinterop
• Desktop / JVM (macOS, Windows, Linux) — Metal / Vulkan / OpenGL via Project Panama (FFM) bindings over a combined C wrapper
• Web (JS & Wasm) — WebGL 2.0 via Filament.js (embind), through hand-maintained Kotlin externals shared by the js and wasmJs targets

JVM requirements: the Android artifacts ship JVM 11 bytecode (minSdk 24) and work with the standard Android jvmTarget = 11 setup. The Desktop/JVM artifacts require JDK 22+ at build and run time — the FFM bindings call java.lang.foreign, finalized in JDK 22.

Add the Maven Central repository and depend on the modules you need:

// settings.gradle.kts
dependencyResolutionManagement {
    repositories {
        mavenCentral()
        google()
    }
}

// build.gradle.kts
kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("io.github.erkko68.filament:filament-compose:0.3.0")
        }
    }
}

For the full setup (Compose Multiplatform plugin, FFM native runtime for Desktop, iOS framework linking, Web prebuilts) see Getting Started.

All published under io.github.erkko68.filament. The Desktop/JVM bindings (Project Panama / FFM) ship as io.github.erkko68.filament-ffm:filament-ffm and are pulled in automatically, with the natives in per-platform filament-ffm-runtime-<os>-<arch> jars — all of them by default, or only your platform's if your build declares os/arch attributes (see java/README.md). See Modules for full coordinates and dependency graph.

Releases are plain X.Y.Z (no pre-release suffixes since 0.2.0):

• X.Y.0 (minor) — the normal release channel. Each new upstream Filament feature release (1.73 → 1.74 → …) ships as a minor bump, together with any wrapper API additions or changes accumulated since the last one. This is where regular work lands; breaking wrapper API changes may appear here and are always listed in the changelog.
• X.Y.Z (patch) — bug fixes only: upstream Filament point releases (e.g. 1.73.1) and fixes in the wrapper itself. Safe to pick up without reading anything.
• X.0.0 (major) — reserved for maturity milestones and very large changes (a stabilized public API, a full architectural rework). Routine upstream tracking never triggers a major bump — expect minor releases to keep flowing for as long as Filament keeps releasing.

All io.github.erkko68.filament:* artifacts share one version and must be upgraded together. The project is actively maintained long-term and tracks upstream Filament releases as they are published (see docs/upgrading-filament.md for the process). Larger technical direction — like zero-copy GPU sharing with Compose — lives in the Roadmap.

The public API stays as close as possible to the Android Filament API, so existing Filament knowledge transfers directly. Differences:

• Kotlin properties instead of get*() / set*() for single-value state accessors (e.g. view.scene, camera.focusDistance, engine.backend, engine.paused, engine.config). The boundary is deliberate: manager lookups that read as factory-ish accessors stay methods to match the Android Filament API — engine.getTransformManager(), getLightManager(), getRenderableManager(), getEntityManager() — as do calls that perform work or take arguments (engine.getFeatureFlag(name), engine.setActiveFeatureLevel(level)).
• Removed APIs that are deprecated upstream or strictly Android-only (require Context or Android UI classes).
• Compose DSL layered on top — fully optional; the raw Engine and friends remain accessible via FilamentEffect.

• API Reference — generated KDoc for all published modules.
• Getting Started — per-platform Gradle setup, first scene.
• Modules — published artifacts, dependency graph, when you need what.
• Platform Notes — backends, gotchas (Windows JVM shutdown, web limits, iOS embedding).
• Compose Integration — scene-vs-view model, FilamentSceneView / rememberFilamentScene / FilamentView, scene DSL, post-processing.
• Repository Structure — for contributors.

• Filament Engine — PBR theory, scene graph, lighting model, render pipeline.
• Materials — material system, surface shading model, matc reference.

The samples/ directory contains a shared Compose scene running on all four targets. See samples/README.md for build commands.

The web build is also deployed live to erkko68.github.io/filament-kmp — open it on any WebGL 2.0–capable browser to try every scene without a local toolchain.

• HexonKMP — a larger sample app: a Catan-like strategy board game built with Filament KMP, running across platforms from a single codebase. Try the live web demo at hexon.biri.es.

Licensed under the Apache License, Version 2.0. Filament itself is also Apache-2.0 licensed by Google.
