apng

High-performance APNG parsing and rendering with precomposed frames, Compose-style painters, declarative and imperative playback controls, optional HTTP network loading and disk LRU caching.

#resources
#okio
#ktor-client
#image-loader
#image
#graphics
#compose-ui
#compose-multiplatform
#cache
#animated-image

Suggest an edit

Android JVMJVMKotlin/NativeWasmJS

GitHub stars3

Authorslugf027

Open issues0

LicenseMIT License

Creation dateabout 1 month ago

Last activity10 days ago

Latest release1.0.0 (11 days ago)

GitHub repository Wiki page

APNG Kotlin Multiplatform

中文版本

A high-performance APNG (Animated PNG) parsing and rendering library built with Kotlin Multiplatform(KMP). It provides consistent animation rendering across Android, iOS, Desktop (JVM), and Web (JS/Wasm).

Android	Desktop (JVM)	iOS	macOS	JS	WasmJS
✅	✅	✅	✅	✅	✅

Setup

Add the dependencies you need to your build.gradle.kts:

// Core: APNG parsing + frame composing + Compose animation rendering (required)
implementation("io.github.lugf027:apng-core:<version>")

// Network: Ktor-based URL loading with disk LRU caching
implementation("io.github.lugf027:apng-network:<version>")

// Resources: Load APNG from KMP Resources (Res)
implementation("io.github.lugf027:apng-resources:<version>")

apng-network transitively includes apng-network-core (disk cache layer). You only need apng-network-core directly if you want caching without the built-in Ktor client.

Usage

1. Load an APNG Composition

// From byte array
val composition by rememberApngComposition(
    ApngCompositionSpec.Bytes(byteArray, cacheKey = "my_anim")
)

// From URL (requires apng-network)
val composition by rememberApngComposition(
    ApngCompositionSpec.Url("https://example.com/animation.apng")
)

// From Compose Resources (requires apng-resources)
val composition by rememberApngComposition(
    ApngCompositionSpec.ComposeResource { Res.readBytes("files/animation.apng") }
)

2. Render the Animation

Declarative (recommended):

val progress by animateApngCompositionAsState(
    composition,
    isPlaying = true,
    iterations = Apng.IterateForever,
)
val painter = rememberApngPainter(composition, progress = { progress })
Image(painter = painter, contentDescription = null)

Imperative:

val animatable = rememberApngAnimatable()
LaunchedEffect(composition) {
    animatable.animate(composition, iterations = Apng.IterateForever)
}
val painter = rememberApngPainter(composition, progress = { animatable.progress })
Image(painter = painter, contentDescription = null)

Shorthand:

val painter = rememberApngPainter(composition, isPlaying = true)
Image(painter = painter, contentDescription = null)

3. Playback Control

val progress by animateApngCompositionAsState(
    composition,
    isPlaying = true,
    speed = 1.5f,                          // Playback speed
    iterations = Apng.IterateForever,      // Loop forever (or pass an Int)
    clipSpec = ApngClipSpec.Frame(2, 8),   // Play only frames 2–8
)

Modules

Module	Artifact	Description
apng-core	`io.github.lugf027:apng-core`	APNG parsing, frame composing, and Compose animation rendering
apng-network-core	`io.github.lugf027:apng-network-core`	Disk LRU cache and network caching strategy
apng-network	`io.github.lugf027:apng-network`	Ktor-based network loading with built-in disk caching
apng-resources	`io.github.lugf027:apng-resources`	KMP Resources integration

Module Dependencies

apng-core                  ← standalone
apng-network-core          ← apng-core + okio
apng-network               ← apng-core + apng-network-core + ktor-client-core
apng-resources             ← apng-core + compose.components.resources

Key APIs

Class / Function	Purpose
`ApngComposition`	Pre-composed frame data container
`ApngCompositionSpec`	Loading specification (Bytes / Url / ComposeResource)
`rememberApngComposition()`	Composable that loads and caches a composition
`animateApngCompositionAsState()`	Declarative animation driver
`rememberApngAnimatable()`	Imperative animation controller
`rememberApngPainter()`	Creates a `Painter` from a composition + progress
`ApngClipSpec`	Frame/progress range clipping
`Apng.IterateForever`	Constant for infinite looping

Platform Details

Feature	Android	Skiko (JVM / iOS / macOS / JS / WasmJS)
Image decoding	`BitmapFactory`	`Image.makeFromEncoded` (Skia)
Frame composing	Android Canvas + PorterDuff	Skia Canvas + BlendMode
Disk cache	✅ (`FileSystem.SYSTEM`)	JVM/Native ✅ · Web ❌

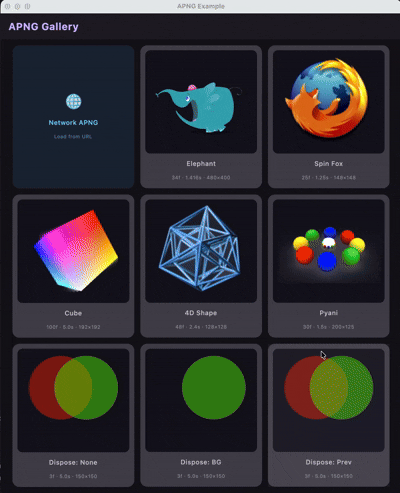

Running the Example

# Desktop
./gradlew :example:desktopApp:run

# Android
./gradlew :example:androidApp:installDebug

# Web (JS)
./gradlew :example:webApp:jsBrowserDevelopmentRun

# Web (WasmJS)
./gradlew :example:webApp:wasmJsBrowserDevelopmentRun

# iOS — open in Xcode
open example/iosApp/iosApp.xcodeproj

License

MIT License

Copyright (c) 2026 lugf027

See LICENSE for details.
